识别MNI脑模板影像的面部3D坐标一直是我想要做的。先说一说方法，后面我再把其对应的Mediapiple 标记的468 点计算出的3D坐标给出来。
（1）准备工作
首先需要一个包含完整人脸的MNI152脑模板T1w影像。注意：MNI152 标准模板默认会裁剪掉面部区域，需要选择未裁剪的版本，否则 MediaPipe 无法检测到完整的 468 个面部关键点。可以去官网下载，也可以从我的博客路径下下载：
- 官网：https://blog.csdn.net/learner_jj/article/details/152075001?spm=1001.2014.3001.5502
- 离线资源：https://download.csdn.net/download/learner_jj/93204384?spm=1001.2014.3001.5503
建议优先从官网下载 ，因为我的离线版本做了平移校正（将 MNI 影像的AC移到了0点），与官网原始坐标存在偏移，直接混用会导致坐标不一致。
然后要准备3D slicer 和Mediapiple 。这样接下来就可以开始干活了。
（2）制作MNI152的表面mesh模型

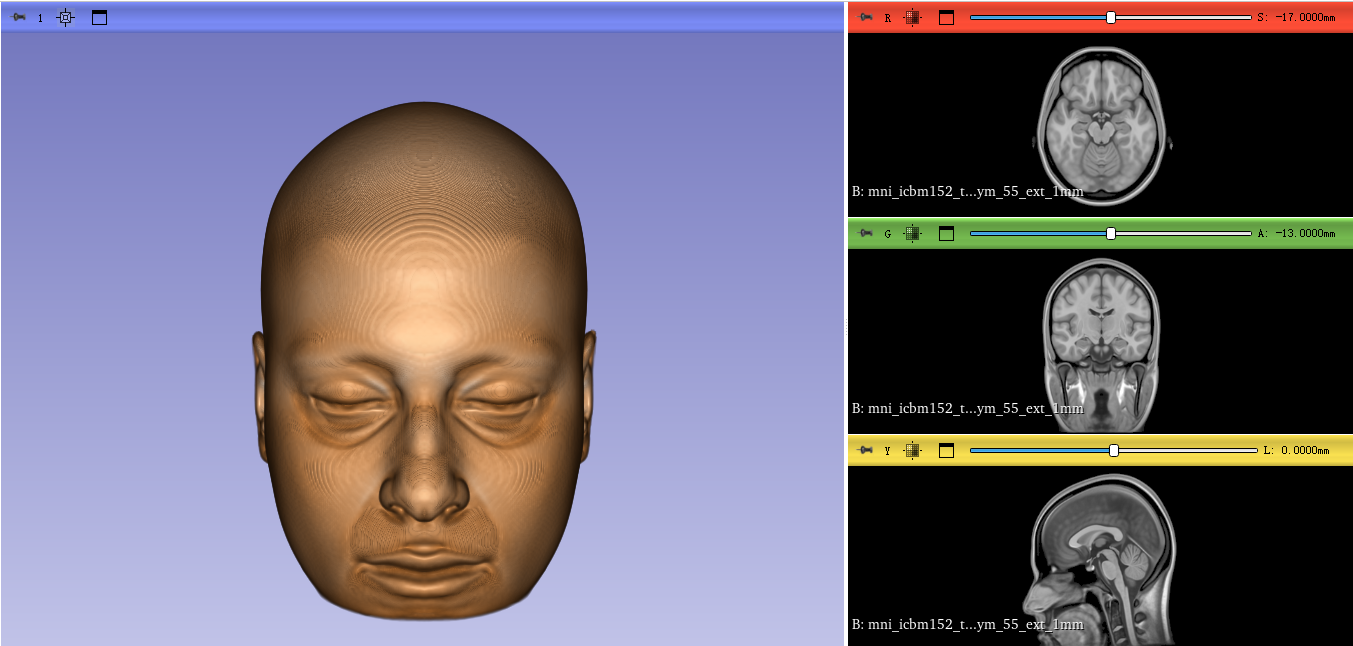

用3D slicer 加载MNI152脑模板影像并基于segment Editor模块做成表面mesh 模型，并导出保存为RAS坐标系的obj文件。
（3）截图并保存视场相机参数
1）调整好模型显示的的视角、放大比例等为开始准备截图并保存视场相机参数作准备

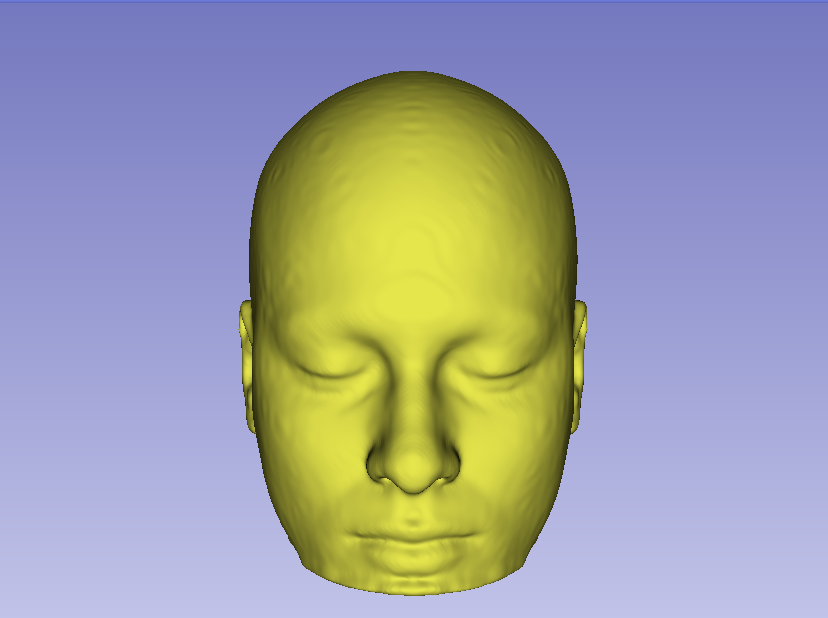

为了截取的2D图可以被mediapiple识别，我们需要截取一张不错的2D图，为了好看我把3D cube、axis都隐藏了，还做了适当放大。而且要保持正视图。这样更好帮助检测出面部特征点。
2）在PC机本地准备好存储图片和文件的路径
如D:\TMS_test
在里面建立文件夹Capture01，用作存储截图文件，并把上一步生成的mni的头模型文件拷贝到这个路径下
3）准备保存脚本并运行
准备脚本代码Save3DViewState.py，然后将其放置在D:\TMS_test\Save3DViewState.py
bash
import os
import json
import datetime
import slicer
import vtk
# ============================================================
# Get first 3D View
# ============================================================
def get_first_3d_view():
layout_manager = slicer.app.layoutManager()
three_d_widget = layout_manager.threeDWidget(0)
if three_d_widget is None:
raise RuntimeError(
"No 3D View found."
)
return three_d_widget.threeDView()
# ============================================================
# Capture RGB image
# ============================================================
def capture_rgb(render_window, output_path):
window_to_image = vtk.vtkWindowToImageFilter()
window_to_image.SetInput(
render_window
)
# RGB image
window_to_image.SetInputBufferTypeToRGB()
# Capture front buffer
window_to_image.ReadFrontBufferOn()
# No scaling
window_to_image.SetScale(
1,
1
)
window_to_image.Update()
image = (
window_to_image.GetOutput()
)
dimensions = (
image.GetDimensions()
)
writer = vtk.vtkPNGWriter()
writer.SetFileName(
output_path
)
writer.SetInputData(
)
writer.Write()
return dimensions
# ============================================================
# Get Camera State
# ============================================================
def get_camera_state(camera):
parallel_projection = bool(
camera.GetParallelProjection()
)
position = list(
camera.GetPosition()
)
focal_point = list(
camera.GetFocalPoint()
)
view_up = list(
camera.GetViewUp()
)
clipping_range = list(
camera.GetClippingRange()
)
return {
"projection":
"parallel"
if parallel_projection
else "perspective",
"parallel_projection":
parallel_projection,
"position":
position,
"focal_point":
focal_point,
"view_up":
view_up,
"parallel_scale":
float(
camera.GetParallelScale()
),
"view_angle":
float(
camera.GetViewAngle()
),
"clipping_range":
clipping_range,
"distance":
float(
camera.GetDistance()
),
"thickness":
float(
camera.GetThickness()
)
}
# ============================================================
# Save 3D View State
#
# Output:
#
# screenshot_*.png
# camera_*.json
#
# Coordinate systems:
#
# World : SlicerWorld_RAS
# Image : ImagePixel_TopLeft
#
# No depth buffer is used.
# ============================================================
def save_3d_view_state(output_dir):
os.makedirs(
output_dir,
exist_ok=True
)
print("")
print("==============================================")
print(" Slicer 3D View Capture")
print(" RGB + Camera")
print("==============================================")
# --------------------------------------------------------
# Get 3D View
# --------------------------------------------------------
three_d_view = (
get_first_3d_view()
)
render_window = (
three_d_view.renderWindow()
)
renderer = (
render_window
.GetRenderers()
.GetFirstRenderer()
)
if renderer is None:
raise RuntimeError(
"No renderer found."
)
camera = (
renderer.GetActiveCamera()
)
if camera is None:
raise RuntimeError(
"No active camera found."
)
# --------------------------------------------------------
# Render once.
#
# The screenshot and camera state below are captured
# from the same RenderWindow state.
# --------------------------------------------------------
render_window.Render()
# --------------------------------------------------------
# Get actual RenderWindow size
# --------------------------------------------------------
window_size = (
render_window.GetSize()
)
image_width = int(
window_size[0]
)
image_height = int(
window_size[1]
)
if (
image_width <= 0
or image_height <= 0
):
raise RuntimeError(
"Invalid RenderWindow size."
)
# --------------------------------------------------------
# Timestamp
# --------------------------------------------------------
timestamp = (
datetime.datetime.now()
.strftime(
"%Y%m%d_%H%M%S_%f"
)
)
# --------------------------------------------------------
# File names
# --------------------------------------------------------
screenshot_filename = (
"screenshot_{}.png".format(
timestamp
)
)
camera_filename = (
"camera_{}.json".format(
timestamp
)
)
screenshot_path = os.path.join(
output_dir,
screenshot_filename
)
camera_path = os.path.join(
output_dir,
camera_filename
)
# --------------------------------------------------------
# Capture RGB
# --------------------------------------------------------
rgb_dimensions = capture_rgb(
render_window,
screenshot_path
)
# --------------------------------------------------------
# Verify image dimensions
# --------------------------------------------------------
if (
rgb_dimensions[0] != image_width
or rgb_dimensions[1] != image_height
):
raise RuntimeError(
"RGB image dimensions do not match "
"RenderWindow dimensions."
)
# --------------------------------------------------------
# Camera State
# --------------------------------------------------------
camera_state = (
get_camera_state(camera)
)
# --------------------------------------------------------
# Renderer Viewport
# --------------------------------------------------------
viewport = list(
renderer.GetViewport()
)
# --------------------------------------------------------
# Build JSON
# --------------------------------------------------------
camera_json = {
"format":
"Slicer3DViewCapture",
"format_version":
"3.0",
"timestamp":
timestamp,
"coordinate_system": {
"world":
"SlicerWorld_RAS",
"image":
"ImagePixel_TopLeft"
},
"image": {
"filename":
screenshot_filename,
"width":
image_width,
"height":
image_height,
"channels":
3,
"format":
"PNG",
"scale_x":
1,
"scale_y":
1,
"image_is_rescaled":
False,
"pixel_origin":
"top_left",
"u_direction":
"right",
"v_direction":
"down"
},
"render_window": {
"width":
image_width,
"height":
image_height
},
"viewport":
viewport,
"camera":
camera_state,
"capture": {
"rgb_scale_x":
1,
"rgb_scale_y":
1,
"same_render_state":
True,
"description":
"RGB screenshot and camera parameters "
"captured from the same VTK RenderWindow state."
}
}
# --------------------------------------------------------
# Write Camera JSON
# --------------------------------------------------------
with open(
camera_path,
"w",
encoding="utf-8"
) as f:
json.dump(
camera_json,
f,
indent=4
)
# --------------------------------------------------------
# Output
# --------------------------------------------------------
print("")
print("Slicer 3D View Capture Completed")
print("")
print("Screenshot:")
print(
" {}".format(
screenshot_path
)
)
print("")
print("Camera JSON:")
print(
" {}".format(
camera_path
)
)
print("")
print("Image size:")
print(
" {} x {}".format(
image_width,
image_height
)
)
print("")
print("Projection:")
print(
" {}".format(
camera_state["projection"]
)
)
print("")
print("Camera Position:")
print(
" {}".format(
tuple(
camera_state["position"]
)
)
)
print("Camera Focal Point:")
print(
" {}".format(
tuple(
camera_state["focal_point"]
)
)
)
print("Camera View Up:")
print(
" {}".format(
tuple(
camera_state["view_up"]
)
)
)
print("")
print("Viewport:")
print(
" {}".format(
tuple(viewport)
)
)
print("")
print("Coordinate System:")
print(" World = SlicerWorld_RAS")
print(" Image = ImagePixel_TopLeft")
print("")
print("==============================================")
return {
"screenshot":
screenshot_path,
"camera":
camera_path,
"width":
image_width,
"height":
image_height
}
# ============================================================
# Restore Camera
# ============================================================
def restore_3d_view_camera(
camera_json_path
):
with open(
camera_json_path,
"r",
encoding="utf-8"
) as f:
data = json.load(f)
# --------------------------------------------------------
# Verify coordinate systems
# --------------------------------------------------------
coordinate_system = (
data.get(
"coordinate_system",
{}
)
)
if (
coordinate_system.get("world")
!= "SlicerWorld_RAS"
):
raise RuntimeError(
"Camera JSON world coordinate system "
"is not SlicerWorld_RAS."
)
if (
coordinate_system.get("image")
!= "ImagePixel_TopLeft"
):
raise RuntimeError(
"Camera JSON image coordinate system "
"is not ImagePixel_TopLeft."
)
# --------------------------------------------------------
# Get 3D View
# --------------------------------------------------------
three_d_view = (
get_first_3d_view()
)
render_window = (
three_d_view.renderWindow()
)
renderer = (
render_window
.GetRenderers()
.GetFirstRenderer()
)
if renderer is None:
raise RuntimeError(
"No renderer found."
)
camera = (
renderer.GetActiveCamera()
)
if camera is None:
raise RuntimeError(
"No active camera found."
)
camera_data = (
data["camera"]
)
# --------------------------------------------------------
# Projection
# --------------------------------------------------------
camera.SetParallelProjection(
bool(
camera_data[
"parallel_projection"
]
)
)
# --------------------------------------------------------
# Position
# --------------------------------------------------------
camera.SetPosition(
camera_data[
"position"
]
)
# --------------------------------------------------------
# Focal Point
# --------------------------------------------------------
camera.SetFocalPoint(
camera_data[
"focal_point"
]
)
# --------------------------------------------------------
# View Up
# --------------------------------------------------------
camera.SetViewUp(
camera_data[
"view_up"
]
)
# --------------------------------------------------------
# Parallel Scale
# --------------------------------------------------------
camera.SetParallelScale(
float(
camera_data[
"parallel_scale"
]
)
)
# --------------------------------------------------------
# Perspective View Angle
# --------------------------------------------------------
camera.SetViewAngle(
float(
camera_data[
"view_angle"
]
)
)
# --------------------------------------------------------
# Clipping Range
# --------------------------------------------------------
camera.SetClippingRange(
camera_data[
"clipping_range"
]
)
# --------------------------------------------------------
# Render
# --------------------------------------------------------
render_window.Render()
print("")
print("==============================================")
print(" Camera Restore Completed")
print("==============================================")
print("")
print("Camera JSON:")
print(
" {}".format(
camera_json_path
)
)
print("")
print("Projection:")
print(
" {}".format(
camera_data["projection"]
)
)
print("")
print("Position:")
print(
" {}".format(
tuple(
camera_data["position"]
)
)
)
print("")
print("Focal Point:")
print(
" {}".format(
tuple(
camera_data["focal_point"]
)
)
)
print("")
print("View Up:")
print(
" {}".format(
tuple(
camera_data["view_up"]
)
)
)
print("")

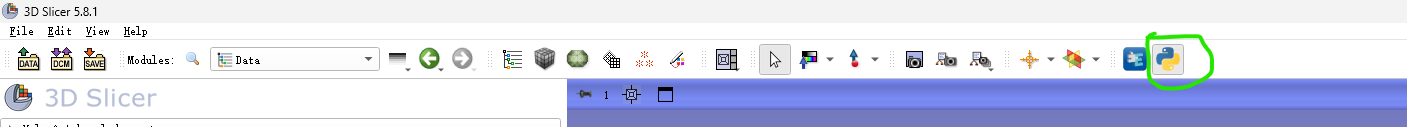

print("==============================================")打开3D Slicer 的python窗口，
在窗口中输入
exec(open(r"D:\TMS_Test\Save3DViewState.py", "r").read())
回车后输入
save_3d_view_state(r"D:\TMS_Test\Capture01")

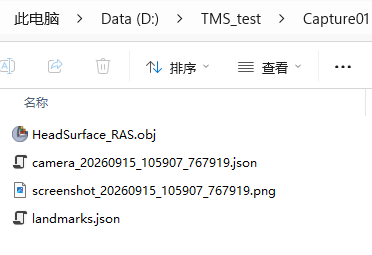

这样就可以把3D窗中当前视图2D图像和相机视场信息保存下来放在D:\TMS_Test\Capture01下。

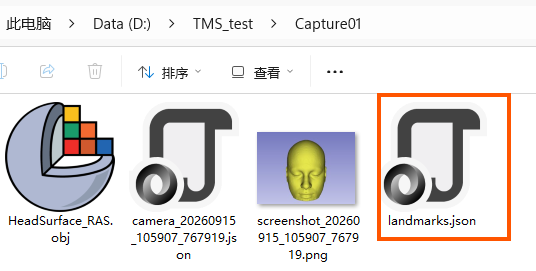

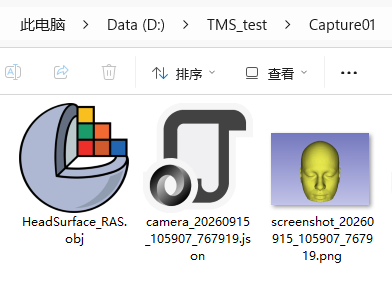

如上图中从左到右分别为脑模板的表面mesh 模型、视图对应的位置状态信息文件和截取的3D显示窗中的2D图。
4）用mediapiple 识别出截取2D图中的面部特征点

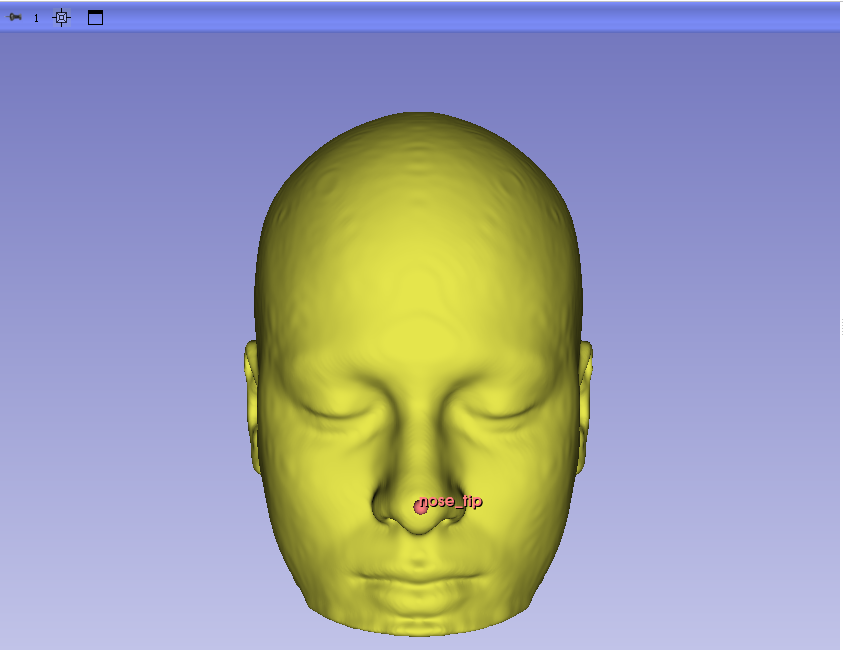

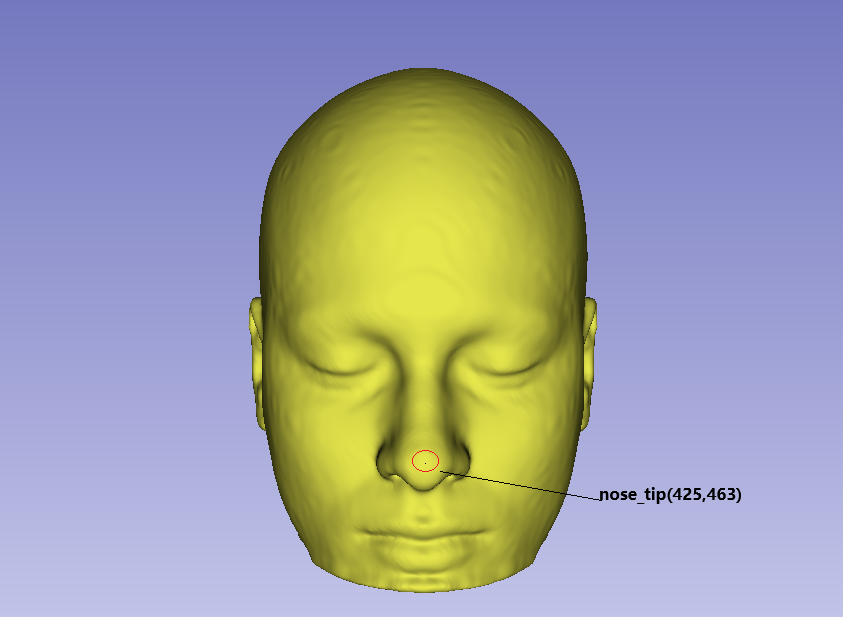

我上图，选取了鼻尖，标记出了鼻尖这个特征点像素坐标，并将这个识别的特征点像素坐标写在landmark.json文件中
landmark.json
bash
{
"format": "Slicer2DLandmarks",
"format_version": "1.0",
"coordinate_system": "ImagePixel_TopLeft",
"image_filename": "screenshot_20260915_105907_767919.png",
"image_width": 843,
"image_height": 617,
"landmarks": [
{
"name": "nose_tip",
"u": 425,
"v": 463
}
]
}json 文档中写命了这个特征点做图像中的坐标位置，写明了截图图像名称、分辨率信息。
5）基于识别的图像中的面部特征点坐标及输入计算特征点对应的3D坐标
基于已知的4个输入如下
我们需要得到面部特征点对应的3D坐标。准备如下脚本文件：2DTo3DMarkups.py ，放置在D:\TMS_test下
即D:\TMS_test\2DTo3DMarkups.py。
2DTo3DMarkups.py 内容如下：
bash
# -*- coding: utf-8 -*-
import os
import json
import glob
import math
import slicer
import vtk
import qt
# ============================================================
# Configuration
# ============================================================
DATA_DIR = r"D:\TMS_Test\Capture01"
LANDMARKS_JSON = os.path.join(DATA_DIR, "landmarks.json")
HEAD_OBJ = os.path.join(DATA_DIR, "HeadSurface_RAS.obj")
# ============================================================
# Utility
# ============================================================
def load_json(filename):
with open(filename, "r") as f:
return json.load(f)
def find_single_file(pattern, description):
files = glob.glob(os.path.join(DATA_DIR, pattern))
if len(files) == 0:
raise RuntimeError(
"Cannot find {}: {}".format(description, pattern)
)
if len(files) > 1:
print("WARNING: multiple {} files found:".format(description))
for f in files:
print(" {}".format(f))
# Prefer the newest one
files.sort(key=os.path.getmtime, reverse=True)
return files[0]
def normalize(v):
length = math.sqrt(
v[0] * v[0] +
v[1] * v[1] +
v[2] * v[2]
)
if length < 1e-12:
raise RuntimeError("Cannot normalize zero-length vector")
return (
v[0] / length,
v[1] / length,
v[2] / length
)
def cross(a, b):
return (
a[1] * b[2] - a[2] * b[1],
a[2] * b[0] - a[0] * b[2],
a[0] * b[1] - a[1] * b[0]
)
def dot(a, b):
return (
a[0] * b[0] +
a[1] * b[1] +
a[2] * b[2]
)
def sub(a, b):
return (
a[0] - b[0],
a[1] - b[1],
a[2] - b[2]
)
def add(a, b):
return (
a[0] + b[0],
a[1] + b[1],
a[2] + b[2]
)
def mul(v, s):
return (
v[0] * s,
v[1] * s,
v[2] * s
)
# ============================================================
# Load screenshot information
# ============================================================
def load_camera_and_image_info():
camera_file = find_single_file(
"camera_*.json",
"Camera JSON"
)
camera_data = load_json(camera_file)
if camera_data.get("coordinate_system", {}).get("world") != "SlicerWorld_RAS":
raise RuntimeError(
"Camera JSON world coordinate system is not SlicerWorld_RAS"
)
image_info = camera_data.get("image", {})
width = int(image_info.get("width", 0))
height = int(image_info.get("height", 0))
if width <= 0 or height <= 0:
raise RuntimeError(
"Invalid image size in Camera JSON"
)
camera = camera_data.get("camera", {})
return camera_file, camera_data, camera, width, height
# ============================================================
# Camera ray
# ============================================================
def calculate_camera_ray(camera, image_width, image_height, u, v):
"""
Convert ImagePixel_TopLeft pixel (u,v)
into a ray in Slicer World RAS.
Camera JSON contains:
position
focal_point
view_up
projection
view_angle
parallel_scale
"""
position = tuple(camera["position"])
focal_point = tuple(camera["focal_point"])
view_up = tuple(camera["view_up"])
projection = camera.get("projection", "perspective").lower()
# Camera forward direction
forward = normalize(
sub(focal_point, position)
)
# Camera right direction
right = normalize(
cross(forward, view_up)
)
# Recompute orthogonal up
up = normalize(
cross(right, forward)
)
# --------------------------------------------------------
# Image coordinates
#
# ImagePixel_TopLeft:
#
# (0,0) ------------------> u
# |
# |
# v
#
# Convert pixel center to normalized coordinates.
# --------------------------------------------------------
# Pixel center
x_ndc = ((float(u) + 0.5) / float(image_width)) * 2.0 - 1.0
y_ndc_top = ((float(v) + 0.5) / float(image_height)) * 2.0 - 1.0
# Image top -> VTK camera up
y_ndc = -y_ndc_top
if projection == "parallel":
parallel_scale = float(camera["parallel_scale"])
aspect = float(image_width) / float(image_height)
half_height = parallel_scale * 0.5
half_width = half_height * aspect
offset_right = x_ndc * half_width
offset_up = y_ndc * half_height
ray_origin = add(
add(
position,
mul(right, offset_right)
),
mul(up, offset_up)
)
ray_direction = forward
else:
# ----------------------------------------------------
# Perspective camera
# ----------------------------------------------------
view_angle = float(camera["view_angle"])
aspect = float(image_width) / float(image_height)
half_height = math.tan(
math.radians(view_angle) * 0.5
)
half_width = half_height * aspect
ray_direction = normalize(
add(
add(
forward,
mul(right, x_ndc * half_width)
),
mul(up, y_ndc * half_height)
)
)
ray_origin = position
return ray_origin, ray_direction
# ============================================================
# Load OBJ
# ============================================================
def load_head_mesh(filename):
print("")
print("Loading Head Surface:")
print(" {}".format(filename))
reader = vtk.vtkOBJReader()
reader.SetFileName(filename)
reader.Update()
polydata = reader.GetOutput()
if polydata is None:
raise RuntimeError("OBJ reader returned None")
if polydata.GetNumberOfPoints() == 0:
raise RuntimeError(
"Head OBJ contains no points"
)
if polydata.GetNumberOfCells() == 0:
raise RuntimeError(
"Head OBJ contains no cells"
)
print(" Points : {}".format(
polydata.GetNumberOfPoints()
))
print(" Cells : {}".format(
polydata.GetNumberOfCells()
))
bounds = polydata.GetBounds()
print(" Bounds :")
print(" X = [{:.3f}, {:.3f}]".format(
bounds[0], bounds[1]
))
print(" Y = [{:.3f}, {:.3f}]".format(
bounds[2], bounds[3]
))
print(" Z = [{:.3f}, {:.3f}]".format(
bounds[4], bounds[5]
))
return polydata
# ============================================================
# Ray / mesh intersection
# ============================================================
def ray_mesh_intersection(ray_origin, ray_direction, mesh):
"""
Intersect ray with the surface mesh.
vtkOBBTree returns all intersections.
We select the nearest positive intersection.
"""
bounds = mesh.GetBounds()
diagonal = math.sqrt(
(bounds[1] - bounds[0]) ** 2 +
(bounds[3] - bounds[2]) ** 2 +
(bounds[5] - bounds[4]) ** 2
)
if diagonal <= 0:
raise RuntimeError("Invalid mesh bounds")
# Very large but finite ray length
ray_length = max(diagonal * 10.0, 1000.0)
ray_end = add(
ray_origin,
mul(ray_direction, ray_length)
)
locator = vtk.vtkOBBTree()
locator.SetDataSet(mesh)
locator.BuildLocator()
points = vtk.vtkPoints()
cell_ids = vtk.vtkIdList()
result = locator.IntersectWithLine(
ray_origin,
ray_end,
points,
cell_ids
)
if result == 0 or points.GetNumberOfPoints() == 0:
return None
intersections = []
for i in range(points.GetNumberOfPoints()):
p = points.GetPoint(i)
vector_from_origin = (
p[0] - ray_origin[0],
p[1] - ray_origin[1],
p[2] - ray_origin[2]
)
distance = dot(
vector_from_origin,
ray_direction
)
# Only accept points in the forward ray direction
if distance >= 0:
intersections.append(
(distance, p)
)
if not intersections:
return None
# Nearest surface intersection
intersections.sort(
key=lambda x: x[0]
)
return intersections[0][1]
# ============================================================
# Create Markups Fiducial
# ============================================================
def create_fiducial(name, position):
# Remove an existing node with the same name
existing = slicer.util.getFirstNodeByName(name)
if existing and existing.IsA("vtkMRMLMarkupsFiducialNode"):
slicer.mrmlScene.RemoveNode(existing)
markups = slicer.mrmlScene.AddNewNodeByClass(
"vtkMRMLMarkupsFiducialNode"
)
markups.SetName(name)
index = markups.AddControlPoint(
position[0],
position[1],
position[2]
)
markups.SetNthControlPointLabel(
index,
name
)
return markups
# ============================================================
# Main
# ============================================================
def main():
print("")
print("==============================================")
print(" 2D -> 3D Markups")
print("==============================================")
# --------------------------------------------------------
# 1. Find input files
# --------------------------------------------------------
screenshot_file = find_single_file(
"screenshot_*.png",
"Screenshot"
)
camera_file, camera_data, camera, image_width, image_height = \
load_camera_and_image_info()
landmarks = load_json(LANDMARKS_JSON)
if landmarks.get("coordinate_system") != "ImagePixel_TopLeft":
raise RuntimeError(
"Landmarks JSON coordinate system must be "
"ImagePixel_TopLeft"
)
# --------------------------------------------------------
# 2. Load landmark
# --------------------------------------------------------
landmark_list = landmarks.get("landmarks", [])
if len(landmark_list) == 0:
raise RuntimeError(
"No landmarks found in landmarks.json"
)
print("")
print("Input Files:")
print(" Screenshot:")
print(" {}".format(screenshot_file))
print(" Camera:")
print(" {}".format(camera_file))
print(" Landmarks:")
print(" {}".format(LANDMARKS_JSON))
print(" Head OBJ:")
print(" {}".format(HEAD_OBJ))
print("")
print("Image:")
print(" {} x {}".format(
image_width,
image_height
))
# --------------------------------------------------------
# 3. Load mesh
# --------------------------------------------------------
mesh = load_head_mesh(HEAD_OBJ)
# --------------------------------------------------------
# 4. Process landmarks
# --------------------------------------------------------
for landmark in landmark_list:
name = landmark["name"]
u = float(landmark["u"])
v = float(landmark["v"])
# Check image coordinate range
if u < 0 or u >= image_width:
raise RuntimeError(
"Landmark '{}' u={} outside image width {}".format(
name, u, image_width
)
)
if v < 0 or v >= image_height:
raise RuntimeError(
"Landmark '{}' v={} outside image height {}".format(
name, v, image_height
)
)
print("")
print("----------------------------------------------")
print("Landmark : {}".format(name))
print("Image UV : ({:.3f}, {:.3f})".format(u, v))
# ----------------------------------------------------
# Camera ray
# ----------------------------------------------------
ray_origin, ray_direction = calculate_camera_ray(
camera,
image_width,
image_height,
u,
v
)
print("")
print("Ray Origin:")
print(" ({:.6f}, {:.6f}, {:.6f})".format(
ray_origin[0],
ray_origin[1],
ray_origin[2]
))
print("Ray Direction:")
print(" ({:.9f}, {:.9f}, {:.9f})".format(
ray_direction[0],
ray_direction[1],
ray_direction[2]
))
# ----------------------------------------------------
# Ray / Head Surface
# ----------------------------------------------------
intersection = ray_mesh_intersection(
ray_origin,
ray_direction,
mesh
)
if intersection is None:
print("")
print("ERROR:")
print(" No intersection between camera ray")
print(" and HeadSurface_RAS.obj")
continue
x = float(intersection[0])
y = float(intersection[1])
z = float(intersection[2])
print("")
print("3D World RAS:")
print(" X = {:.6f}".format(x))
print(" Y = {:.6f}".format(y))
print(" Z = {:.6f}".format(z))
# ----------------------------------------------------
# Create Markups
# ----------------------------------------------------
markups = create_fiducial(
name,
(x, y, z)
)
print("")
print("Markups Fiducial created:")
print(" {}".format(name))
print("")
print("==============================================")
print(" Completed")
print("==============================================")
print("")
# ============================================================
# Execute
# ============================================================
try:
main()
except Exception as e:
print("")
print("==============================================")
print(" ERROR")
print("==============================================")
print(str(e))
import traceback
traceback.print_exc()
print("==============================================")6）在3D Slicer中运行脚本计算3D坐标并画出3D坐标
》》》加载之前做的mni 脑模板表面mesh模型并恢复视图
注意：先确保MNI头模型mesh在3D Slicer 的显示窗中，不管对模型基于鼠标交互做过什么旋转 平移甚至缩放，在画3D点时模型的显示状态必须回到截图时的状态。
也就是在界面下运行语句：
bash
exec(open(r"D:\TMS_Test\Save3DViewState.py", "r").read())回车后运行
bash
restore_3d_view_camera( r"D:\TMS_Test\Capture01\camera_20260915_105907_767919.json")D:\TMS_Test\Capture01\camera_20260915_103905_699861.json是在截图时保存的相机参数文件。如果截图时的文件明不一样，此处始要更换成实时截图时保存的相机文件。
上面那两句此处运行就是为了3D显示头模型的视场恢复到截图时的那个一致的状态。
》》》在3D 视图中画出目标点
当视图回到截图是的状态时，我们就可以开始在3D窗中画特征点
接着
在3D slicer 的python输入窗口输入
bash
exec(open(r"D:\TMS_Test\2DTo3DMarkups.py", "r").read())回车以后，等待一会儿界面会处理完成，首相会读取预先设定的D:\TMS_test\Capture01路径下输入4个文件，然后处理使得在landmarks.json文件中的鼻尖被画到3D slcier 的3D显示窗中
再看看3D slicer 的python窗口中的输出：
bash
>>> exec(open(r"D:\TMS_Test\2DTo3DMarkups.py", "r").read())
==============================================
2D -> 3D Markups
==============================================
Input Files:
Screenshot:
Camera:
D:\TMS_Test\Capture01\camera_20260915_105907_767919.json
Landmarks:
D:\TMS_Test\Capture01\landmarks.json
Head OBJ:
D:\TMS_Test\Capture01\HeadSurface_RAS.obj
Image:
843 x 617
Loading Head Surface:
D:\TMS_Test\Capture01\HeadSurface_RAS.obj
Points : 508014
Cells : 1016028
Bounds :
X = [-93.897, 93.855]
Y = [-120.618, 100.609]
Z = [-148.650, 103.629]
----------------------------------------------
Landmark : nose_tip
Image UV : (425.000, 463.000)
Ray Origin:
(0.818068, 578.641603, -22.312277)
Ray Direction:
(-0.003443137, -0.991053394, -0.133421567)
3D World RAS:
X = -0.842868
Y = 100.566971
Z = -86.673561
Markups Fiducial created:
nose_tip
==============================================
Completed
==============================================到此处基于2D图上的特征点完整落到3D窗口中了。这样也得到了面部特征点的3D坐标。.
下面初步看一下随机成果：

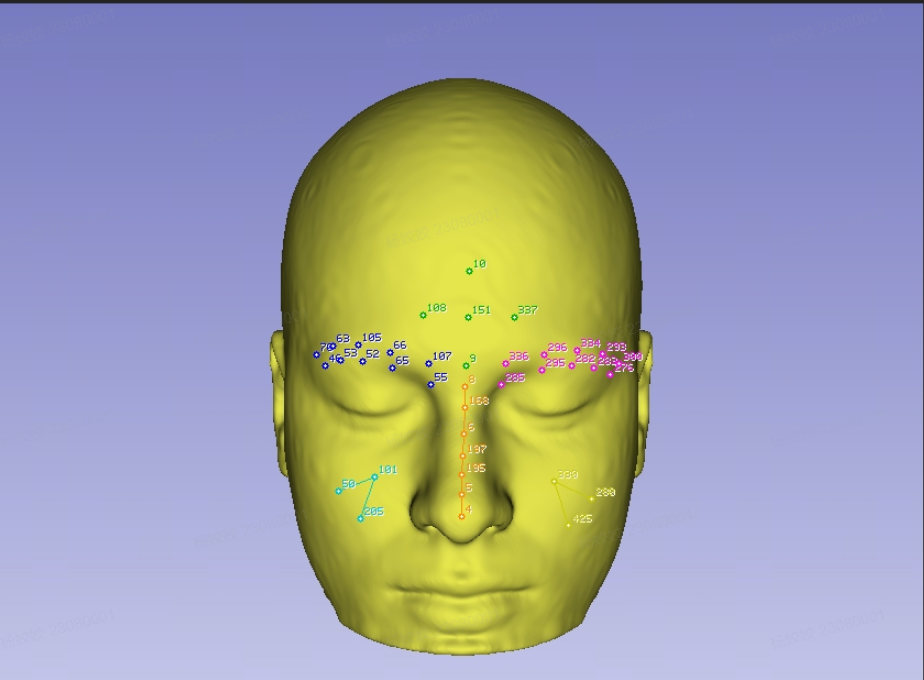

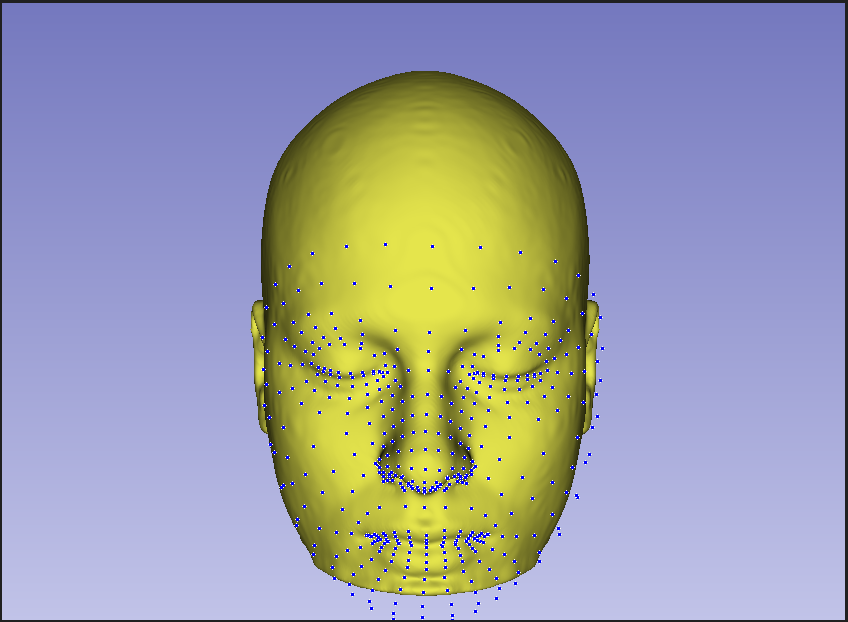

我随机看的mediapiple检测出的点图：

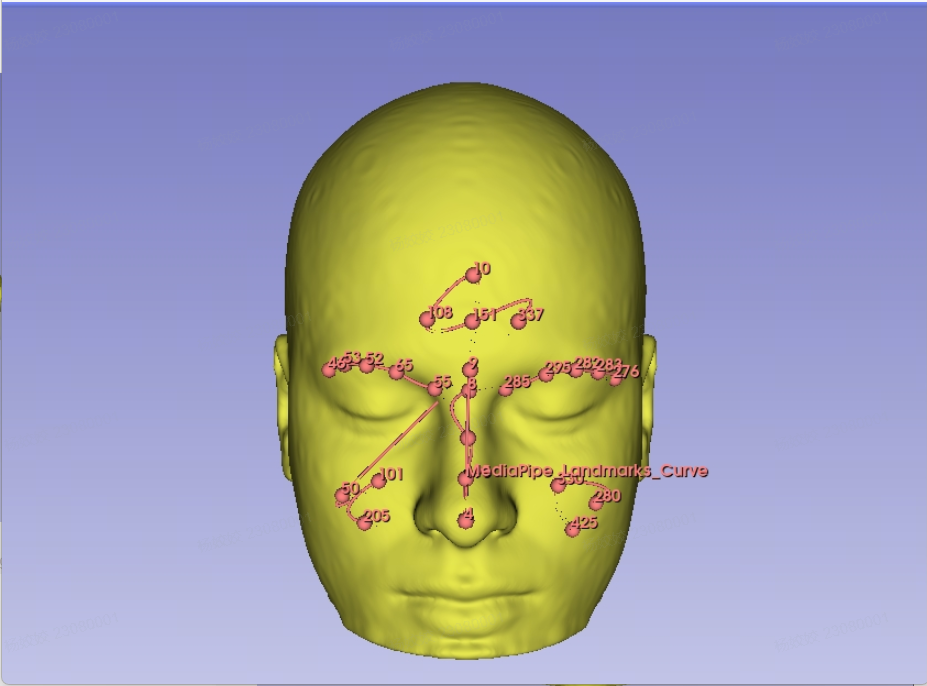

计算得到的标记带点对用的3D坐标图。
