使用springboot写入pulsar消息队列中

前置条件

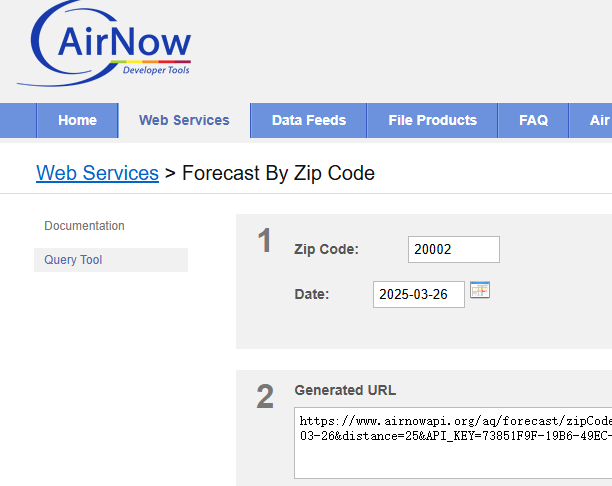

注意airnow的apikey，需要注册一个用户，然后获取apikey 注意可以看到APIKEY，取这个字段即可。docs.airnowapi.org/forecastsby...

Basic Java Source Code

下面是pulsar的代码。

ini 复制代码

import org.apache.pulsar.client.api.MessageId;
import org.apache.pulsar.client.api.Schema;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.pulsar.core.PulsarProducerFactory;
import org.springframework.pulsar.core.PulsarTemplate;
@Autowired
private PulsarProducerFactory&lt;Observation&gt; producerFactory; PulsarTemplate&lt;Observation&gt; pulsarTemplate = new PulsarTemplate&lt;(producerFactory); pulsarTemplate.setSchema(Schema.JSON(Observation.class));
MessageId msgid = pulsarTemplate.newMessage(observation2)&nbsp;.withMessageCustomizer((mb) -&gt; mb.key(uuidKey.toString()))&nbsp;.withTopic(topicName)&nbsp;.send();

这段代码就是springboot发送信息到pulsar中。

Apache Flink Continuous SQL over Apache Pulsar Topics

接下来是在flink上消费pulsar数据

第一步需要一个pulsar集群，这里直接采用pulsar官网提供的docker-compose文件来开整了：：

yaml 复制代码

cat docker-compose.yaml
version: "3"
networks:
  pulsar:
    driver: bridge
services:
  # Start zookeeper
  zookeeper:
    image: apachepulsar/pulsar:4.0.3
    container_name: zookeeper
    restart: on-failure
    networks:
      - pulsar
    volumes:
      - ./data/zookeeper:/pulsar/data/zookeeper
    environment:
      - metadataStoreUrl=zk:zookeeper:2181
      - PULSAR_MEM=-Xms256m -Xmx256m -XX:MaxDirectMemorySize=256m
    command: |
      bash -c "bin/apply-config-from-env.py conf/zookeeper.conf &amp;&amp; \
             bin/generate-zookeeper-config.sh conf/zookeeper.conf &amp;&amp; \
             exec bin/pulsar zookeeper"
    healthcheck:
      test: ["CMD", "bin/pulsar-zookeeper-ruok.sh"]
      interval: 10s
      timeout: 5s
      retries: 30

  # Init cluster metadata
  pulsar-init:
    container_name: pulsar-init
    hostname: pulsar-init
    image: apachepulsar/pulsar:4.0.3
    networks:
      - pulsar
    command:
      [
        "bash",
        "-c",
        "bin/pulsar initialize-cluster-metadata --cluster cluster-a --zookeeper zookeeper:2181 --configuration-store zookeeper:2181 --web-service-url http://broker:8080 --broker-service-url pulsar://broker:6650",
      ]

    depends_on:
      zookeeper:
        condition: service_healthy

  # Start bookie
  bookie:
    image: apachepulsar/pulsar:4.0.3
    container_name: bookie
    restart: on-failure
    networks:
      - pulsar
    environment:
      - clusterName=cluster-a
      - zkServers=zookeeper:2181
      - metadataServiceUri=metadata-store:zk:zookeeper:2181
      # otherwise every time we run docker compose uo or down we fail to start due to Cookie
      # See: https://github.com/apache/bookkeeper/blob/405e72acf42bb1104296447ea8840d805094c787/bookkeeper-server/src/main/java/org/apache/bookkeeper/bookie/Cookie.java#L57-68
      - advertisedAddress=bookie
      - BOOKIE_MEM=-Xms512m -Xmx512m -XX:MaxDirectMemorySize=256m
    depends_on:
      zookeeper:
        condition: service_healthy
      pulsar-init:
        condition: service_completed_successfully
    # Map the local directory to the container to avoid bookie startup failure due to insufficient container disks.
    volumes:
      - ./data/bookkeeper:/pulsar/data/bookkeeper
    command: bash -c "bin/apply-config-from-env.py conf/bookkeeper.conf &amp;&amp; exec bin/pulsar bookie"

  # Start broker
  broker:
    image: apachepulsar/pulsar:4.0.3
    container_name: broker
    hostname: broker
    restart: on-failure
    networks:
      - pulsar
    environment:
      - metadataStoreUrl=zk:zookeeper:2181
      - zookeeperServers=zookeeper:2181
      - clusterName=cluster-a
      - managedLedgerDefaultEnsembleSize=1
      - managedLedgerDefaultWriteQuorum=1
      - managedLedgerDefaultAckQuorum=1
      - advertisedAddress=broker
      - advertisedListeners=external:pulsar://172.21.195.56:6650
      - PULSAR_MEM=-Xms512m -Xmx512m -XX:MaxDirectMemorySize=256m
    depends_on:
      zookeeper:
        condition: service_healthy
      bookie:
        condition: service_started
    ports:
      - "6650:6650"
      - "8080:8080"
    command: bash -c "bin/apply-config-from-env.py conf/broker.conf &amp;&amp; exec bin/pulsar broker"

把上面文件保存为docker-compose.yaml,接下来操作创建目录

bash 复制代码

sudo mkdir -p ./data/zookeeper ./data/bookkeeper
# this step might not be necessary on other than Linux platforms
sudosudo chown -R 10000 data

创建好目录之后来启动一下pulsar集群 docker-compose up -d

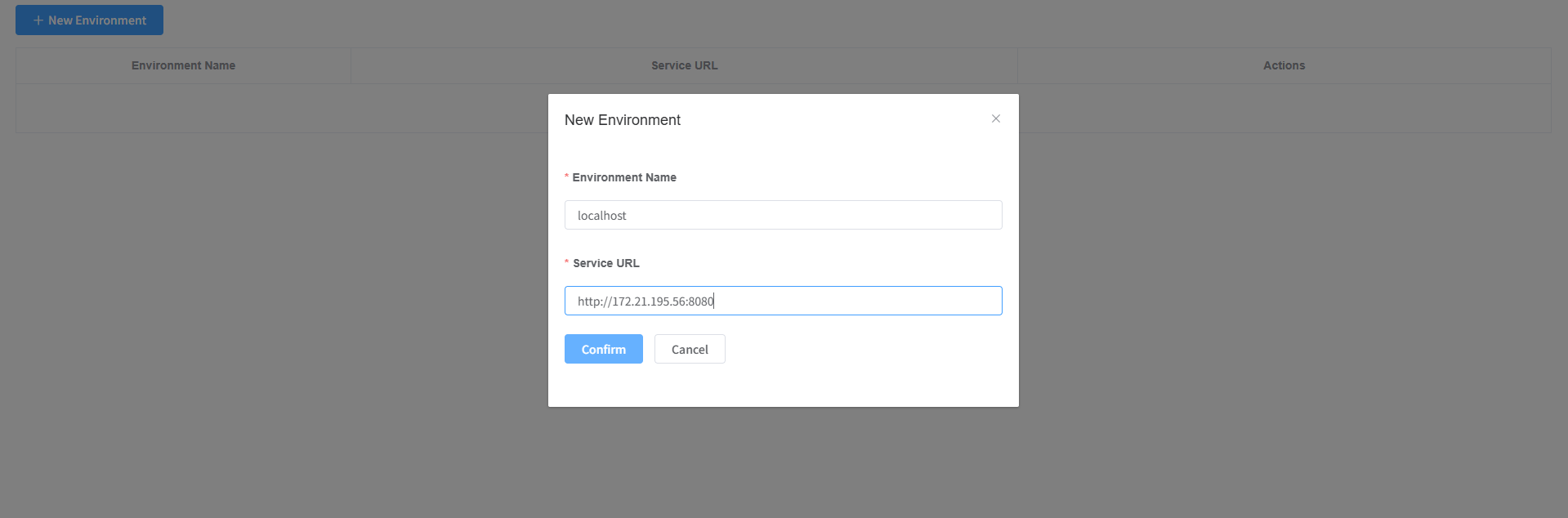

安装一个pulsar-manger来看一下：

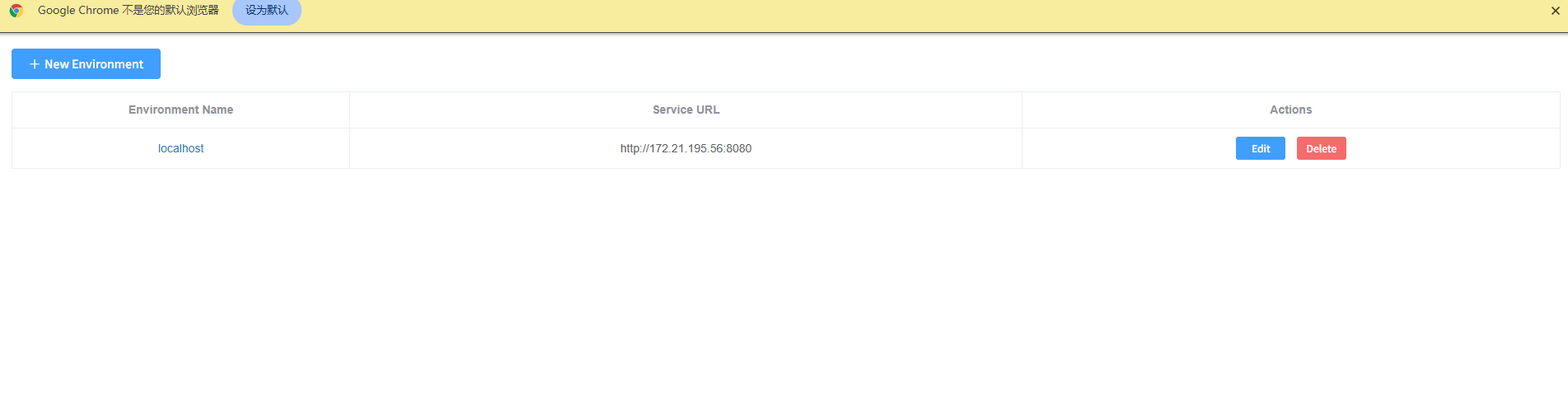

创建成功后可以看到如下展示

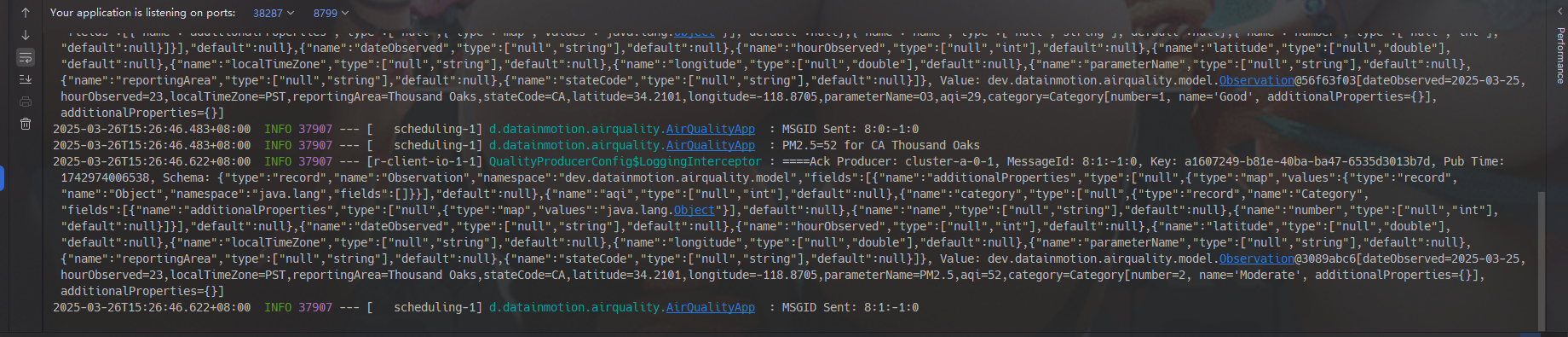

运行springboot来将airnow的数据写入到pulsar中，我们来测试一下

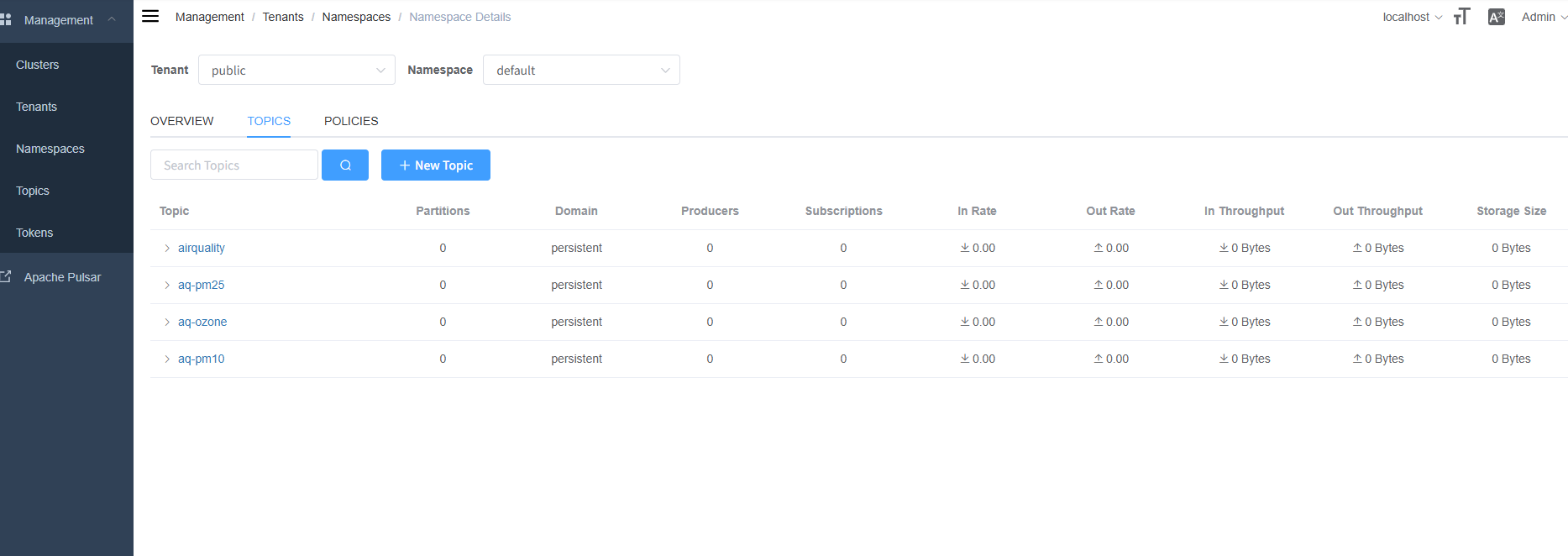

当出现以上数据代表代码已经开始写数据到pulsar集群中。可以直接通过界面查看到pulsar的topic

接下来开始部署一个flink-sql的查询容器了，同样的我们也需要一个docker-compose文件，这里我们使用的是这样一个项目`https://github.com/Aiven-Open/sql-cli-for-apache-flink-docker/tree/main?tab=readme-ov-file`,需要注意的事我们使用的事streamnative的flink连接pulsar的插件，所以使用的flink的1.16版本（因为streamnative使用的就是1.16.0）,我们注意修改一下docker-compose文件，让所有的镜像都是正常的flink-1.16.0的版本

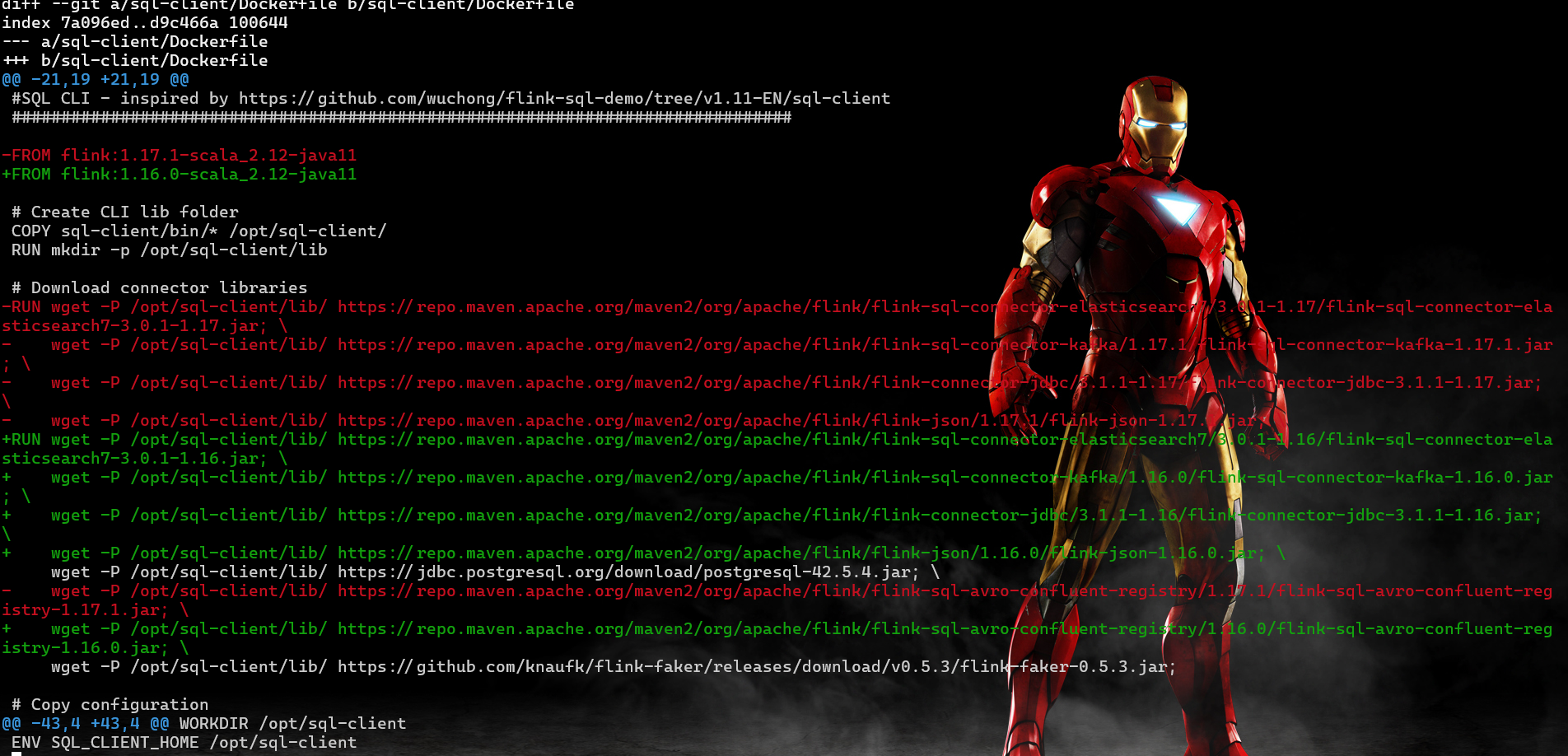

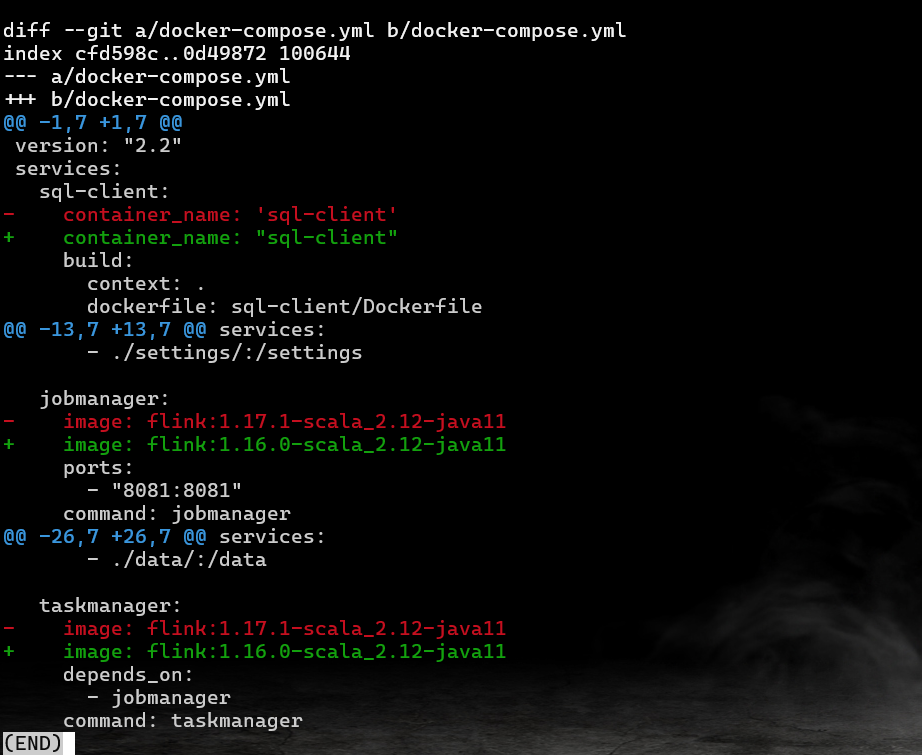

注意按上面的照片修改好之后就可以正常使用flink-sql了。通过docker-compose up -d 来启动环境。这里我们需要把flink-sql-connector-pulsar的jar包导入到docker到container中，请看接下来到操作：创建一个myjars的目录，里面放入这次需要的jar包 ls myjars  flink-sql-avro-1.16.0.jar  flink-sql-connector-pulsar-1.16.0.0.jar 接下来通过命令行把数据导入进去

|-----|-----------------------------------------------------------------------------------------------------------------------------|
| 1 2 | ruby SQL_CLIENT_CONTAINER_ID=$(docker ps -qf "name=sql-client") docker cp /myjars $SQL_CLIENT_CONTAINER_ID:/tmp/jars |

CopyCopy

接下来进入到sql-client的容器中

bash 复制代码

cp /tmp/jars/*.jar /opt/flink/lib/.
cp /tmp/jars/*.jar /opt/sql-client/lib/.
./sql-client.sh

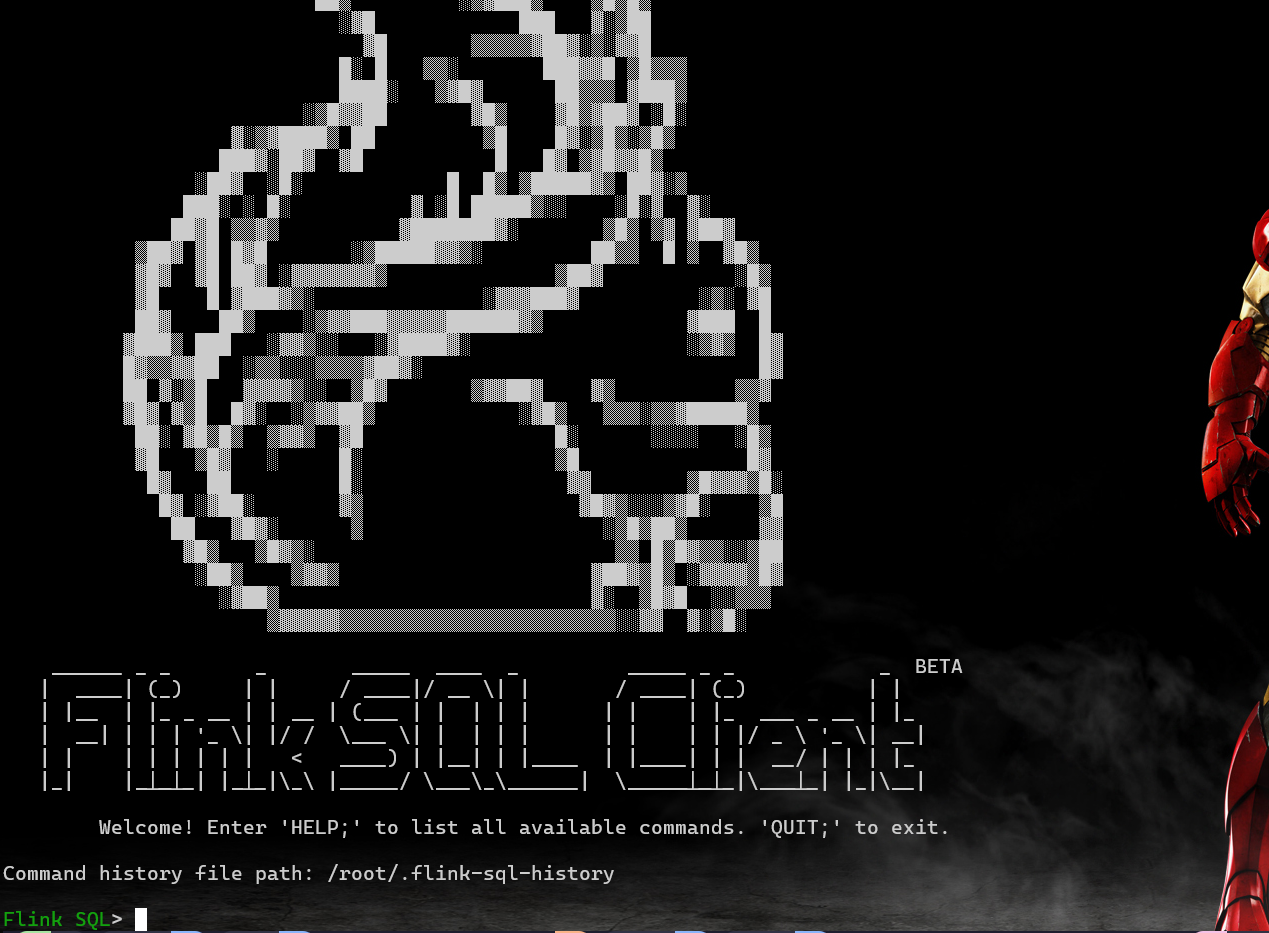

当出现以下图片时，代表进入sql中接下来可以运行sql来进行查询了

ini 复制代码

CREATE CATALOG pulsar WITH (
   'type' = 'pulsar-catalog',
   'catalog-service-url' = 'pulsar://172.21.195.56:6650',
   'catalog-admin-url' = 'http://172.21.195.56:8080'
);

USE CATALOG pulsar;

SHOW CURRENT DATABASE;
SHOW DATABASES;

set table.dynamic-table-options.enabled = true;

use `public/default`;

SHOW TABLES;

接下来进行flink-sql的查询语句了第一条sql为：

csharp 复制代码

select aqi, parameterName, dateObserved, hourObserved, latitude, longitude, localTimeZone, stateCode, reportingArea from airquality

同时也可以通过pulsar的命令行来查看进入到pulsar中的数据

ruby 复制代码

docker exec -it broker /bin/bash
broker:/pulsar$ bin/pulsar-admin topics list public/default
persistent://public/default/airquality
persistent://public/default/aq-pm25
persistent://public/default/aq-ozone
persistent://public/default/aq-pm10
broker:/pulsar$ bin/pulsar-client consume persistent://public/default/airquality -s "my-subscription" -n 10
Mar 26, 2025 2:10:45 AM io.opentelemetry.api.GlobalOpenTelemetry maybeAutoConfigureAndSetGlobal
INFO: AutoConfiguredOpenTelemetrySdk found on classpath but automatic configuration is disabled. To enable, run your JVM with -Dotel.java.global-autoconfigure.enabled=true
2025-03-26T02:10:45,482+0000 [pulsar-client-io-1-3] INFO  org.apache.pulsar.client.impl.ConnectionPool - [[id: 0x28e4a2c9, L:/127.0.0.1:40496 - R:localhost/127.0.0.1:6650]] Connected to server
2025-03-26T02:10:45,689+0000 [pulsar-client-lookup-21-1] INFO  org.apache.pulsar.client.impl.ConsumerStatsRecorderImpl - Starting Pulsar consumer status recorder with config: {"topicNames":["persistent://public/default/airquality"],"topicsPattern":null,"subscriptionName":"my-subscription","subscriptionType":"Exclusive","subscriptionProperties":null,"subscriptionMode":"Durable","receiverQueueSize":1000,"acknowledgementsGroupTimeMicros":100000,"maxAcknowledgmentGroupSize":1000,"negativeAckRedeliveryDelayMicros":60000000,"negativeAckPrecisionBitCnt":8,"maxTotalReceiverQueueSizeAcrossPartitions":50000,"consumerName":null,"ackTimeoutMillis":0,"tickDurationMillis":1000,"priorityLevel":0,"maxPendingChunkedMessage":10,"autoAckOldestChunkedMessageOnQueueFull":false,"expireTimeOfIncompleteChunkedMessageMillis":60000,"cryptoFailureAction":"FAIL","properties":{},"readCompacted":false,"subscriptionInitialPosition":"Latest","patternAutoDiscoveryPeriod":60,"regexSubscriptionMode":"PersistentOnly","deadLetterPolicy":null,"retryEnable":false,"autoUpdatePartitions":true,"autoUpdatePartitionsIntervalSeconds":60,"replicateSubscriptionState":false,"resetIncludeHead":false,"batchIndexAckEnabled":false,"ackReceiptEnabled":false,"poolMessages":true,"startPaused":false,"autoScaledReceiverQueueSizeEnabled":false,"topicConfigurations":[],"maxPendingChuckedMessage":10}
2025-03-26T02:10:45,717+0000 [pulsar-client-lookup-21-1] INFO  org.apache.pulsar.client.impl.ConsumerStatsRecorderImpl - Pulsar client config: {"serviceUrl":"pulsar://localhost:6650/","authPluginClassName":null,"authParams":null,"authParamMap":null,"operationTimeoutMs":30000,"lookupTimeoutMs":30000,"statsIntervalSeconds":60,"numIoThreads":6,"numListenerThreads":6,"connectionsPerBroker":1,"connectionMaxIdleSeconds":60,"useTcpNoDelay":true,"useTls":false,"tlsKeyFilePath":"","tlsCertificateFilePath":"","tlsTrustCertsFilePath":"","tlsAllowInsecureConnection":false,"tlsHostnameVerificationEnable":false,"sslFactoryPlugin":"org.apache.pulsar.common.util.DefaultPulsarSslFactory","sslFactoryPluginParams":null,"concurrentLookupRequest":5000,"maxLookupRequest":50000,"maxLookupRedirects":20,"maxNumberOfRejectedRequestPerConnection":50,"keepAliveIntervalSeconds":30,"connectionTimeoutMs":10000,"requestTimeoutMs":60000,"readTimeoutMs":60000,"autoCertRefreshSeconds":300,"initialBackoffIntervalNanos":100000000,"maxBackoffIntervalNanos":60000000000,"enableBusyWait":false,"listenerName":null,"useKeyStoreTls":false,"sslProvider":null,"tlsKeyStoreType":"JKS","tlsKeyStorePath":"","tlsKeyStorePassword":"*****","tlsTrustStoreType":"JKS","tlsTrustStorePath":"","tlsTrustStorePassword":"*****","tlsCiphers":[],"tlsProtocols":[],"memoryLimitBytes":0,"proxyServiceUrl":null,"proxyProtocol":null,"enableTransaction":false,"dnsLookupBindAddress":null,"dnsLookupBindPort":0,"dnsServerAddresses":[],"socks5ProxyAddress":null,"socks5ProxyUsername":null,"socks5ProxyPassword":null,"description":null,"lookupProperties":{},"openTelemetry":null}
2025-03-26T02:10:45,750+0000 [pulsar-client-io-1-6] INFO  org.apache.pulsar.client.impl.ConnectionPool - [[id: 0xce2a1215, L:/172.19.0.4:58170 - R:172.21.195.56/172.21.195.56:6650]] Connected to server
2025-03-26T02:10:45,755+0000 [pulsar-client-io-1-6] INFO  org.apache.pulsar.client.impl.ConsumerImpl - [persistent://public/default/airquality][my-subscription] Subscribing to topic on cnx [id: 0xce2a1215, L:/172.19.0.4:58170 - R:172.21.195.56/172.21.195.56:6650], consumerId 0
2025-03-26T02:10:45,815+0000 [pulsar-client-io-1-6] INFO  org.apache.pulsar.client.impl.ConsumerImpl - [persistent://public/default/airquality][my-subscription] Subscribed to topic on 172.21.195.56/172.21.195.56:6650 -- consumer: 0




----- got message -----
publishTime:[1742955071690], eventTime:[0], key:[d75bdf37-93a4-4088-9a3c-94e778e41a2c], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":18,"localTimeZone":"PST","reportingArea":"Redwood City","stateCode":"CA","latitude":37.48,"longitude":-122.22,"parameterName":"O3","aqi":31,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955071794], eventTime:[0], key:[79d653fc-57c5-45d6-92af-7c4df28e0975], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":18,"localTimeZone":"PST","reportingArea":"Redwood City","stateCode":"CA","latitude":37.48,"longitude":-122.22,"parameterName":"PM2.5","aqi":36,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955101688], eventTime:[0], key:[105e644a-341c-4b7f-b6d3-3b2c2454ab37], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":21,"localTimeZone":"EST","reportingArea":"Northeast Urban","stateCode":"NJ","latitude":40.692,"longitude":-74.187,"parameterName":"O3","aqi":28,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955101858], eventTime:[0], key:[ea48f397-3aa6-4760-b414-bf71875bec06], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":21,"localTimeZone":"EST","reportingArea":"Northeast Urban","stateCode":"NJ","latitude":40.692,"longitude":-74.187,"parameterName":"PM2.5","aqi":35,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
2025-03-26T02:11:45,718+0000 [pulsar-timer-22-1] INFO  org.apache.pulsar.client.impl.ConsumerStatsRecorderImpl - [persistent://public/default/airquality] [my-subscription] [XKsbk] Prefetched messages: 0 --- Consume throughput received: 0.07 msgs/s --- 0.00 Mbit/s --- Ack sent rate: 0.07 ack/s --- Failed messages: 0 --- batch messages: 0 ---Failed acks: 0
----- got message -----
publishTime:[1742955132424], eventTime:[0], key:[face36b9-bec4-4217-a1c4-9b09b3488c6a], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":20,"localTimeZone":"CST","reportingArea":"El Paso","stateCode":"TX","latitude":31.8493,"longitude":-106.4375,"parameterName":"O3","aqi":48,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955132547], eventTime:[0], key:[0bf3f47f-b282-490a-937a-8f41cc44affa], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":20,"localTimeZone":"CST","reportingArea":"El Paso","stateCode":"TX","latitude":31.8493,"longitude":-106.4375,"parameterName":"PM2.5","aqi":37,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955132683], eventTime:[0], key:[a0cb48ea-a545-4d47-a659-dbd2526abd09], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":20,"localTimeZone":"CST","reportingArea":"El Paso","stateCode":"TX","latitude":31.8493,"longitude":-106.4375,"parameterName":"PM10","aqi":32,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955162421], eventTime:[0], key:[e5b14f19-9654-486c-996a-ae274512ccf8], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":18,"localTimeZone":"PST","reportingArea":"San Rafael","stateCode":"CA","latitude":37.97,"longitude":-122.52,"parameterName":"O3","aqi":38,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
----- got message -----
publishTime:[1742955162497], eventTime:[0], key:[0479660c-3a4b-4a90-9589-958fa52f7ab0], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":18,"localTimeZone":"PST","reportingArea":"San Rafael","stateCode":"CA","latitude":37.97,"longitude":-122.52,"parameterName":"PM2.5","aqi":57,"category":{"number":2,"name":"Moderate","additionalProperties":{}},"additionalProperties":{}}
2025-03-26T02:12:45,451+0000 [pulsar-client-io-1-3] INFO  org.apache.pulsar.client.impl.ClientCnx - [id: 0x28e4a2c9, L:/127.0.0.1:40496 ! R:localhost/127.0.0.1:6650] Disconnected
2025-03-26T02:12:45,719+0000 [pulsar-timer-22-1] INFO  org.apache.pulsar.client.impl.ConsumerStatsRecorderImpl - [persistent://public/default/airquality] [my-subscription] [XKsbk] Prefetched messages: 0 --- Consume throughput received: 0.08 msgs/s --- 0.00 Mbit/s --- Ack sent rate: 0.08 ack/s --- Failed messages: 0 --- batch messages: 0 ---Failed acks: 0
----- got message -----
publishTime:[1742955191825], eventTime:[0], key:[814ebfbb-d723-4dd0-9dea-ed5bdab36528], properties:[], content:{"dateObserved":"2025-03-25","hourObserved":18,"localTimeZone":"PST","reportingArea":"San Rafael","stateCode":"CA","latitude":37.97,"longitude":-122.52,"parameterName":"O3","aqi":38,"category":{"number":1,"name":"Good","additionalProperties":{}},"additionalProperties":{}}
2025-03-26T02:13:11,919+0000 [pulsar-client-io-1-6] INFO  org.apache.pulsar.client.impl.ConsumerImpl - [persistent://public/default/airquality] [my-subscription] Closed consumer
2025-03-26T02:13:11,921+0000 [main] INFO  org.apache.pulsar.client.impl.PulsarClientImpl - Client closing. URL: pulsar://localhost:6650/
2025-03-26T02:13:11,928+0000 [pulsar-client-io-1-6] INFO  org.apache.pulsar.client.impl.ClientCnx - [id: 0xce2a1215, L:/172.19.0.4:58170 ! R:172.21.195.56/172.21.195.56:6650] Disconnected
2025-03-26T02:13:13,937+0000 [main] INFO  org.apache.pulsar.client.cli.PulsarClientTool - 10 messages successfully consumed
</code></pre></td></tr></tbody></table>

CopyCopy

在pulsar-manger的界面上也可以看到注册消费者 ![{601DAA1B-C3F9-4E87-ADEB-39087E3F2817}.png](https://cdn.jsdelivr.net/gh/huangxiaofeng10047/blogimage@main/img/%7B601DAA1B-C3F9-4E87-ADEB-39087E3F2817%7D.png) 第二条sql语句

<table><tbody><tr><td><pre tabindex="0"><code>1
</code></pre></td><td><pre tabindex="0"><code>select max(aqi) as MaxAQI, parameterName, reportingArea from airquality group by parameterName, reportingArea;

第三条sql语句

csharp 复制代码

select max(aqi) as MaxAQI, min(aqi) as MinAQI, avg(aqi) as AvgAQI, count(aqi) as RowCount, parameterName, reportingArea from airquality group by parameterName, reportingArea;

参考文档： hackernoon.com/spring-boot... flink.apache.org/2020/07/28/...
