FPGA_DDR(一) 仿真

奋斗的牛马2025-04-08 17:22

对ddr进行读写实验，用了vivado的ddr的模型进行仿真

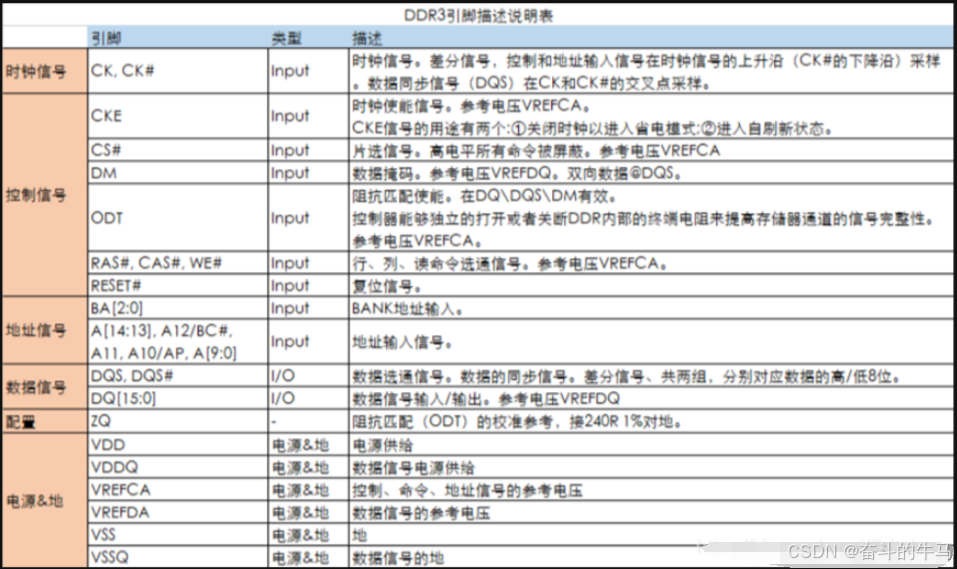

1 创建AXI_mig的ip核

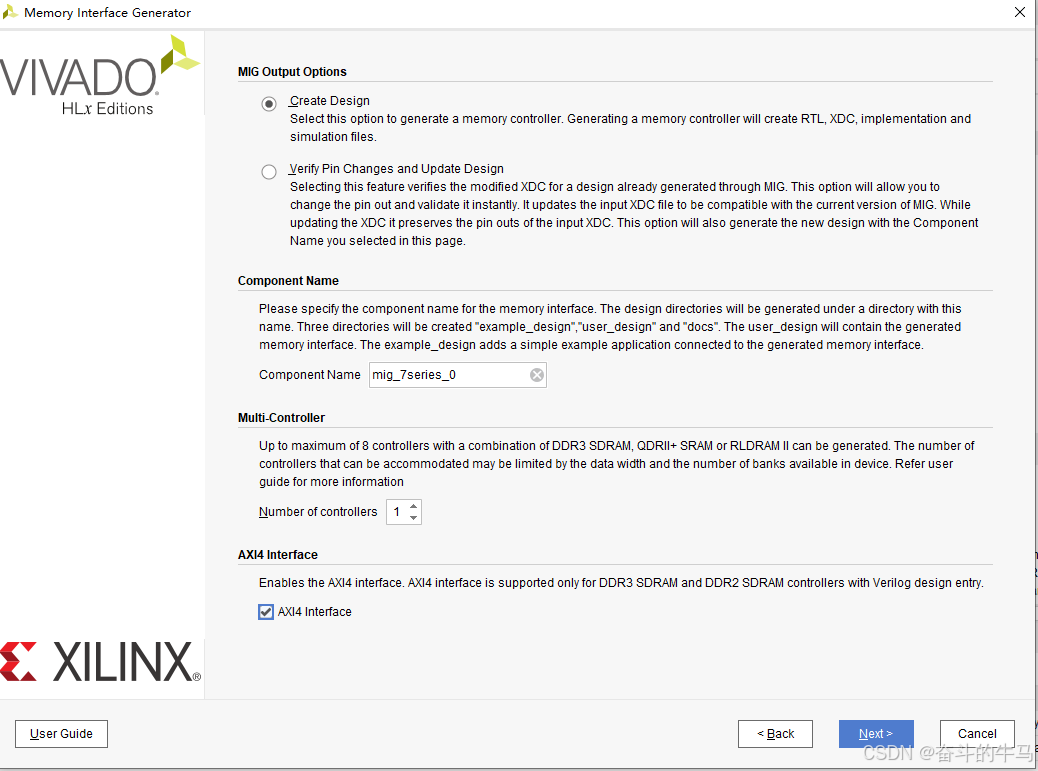

选择axi

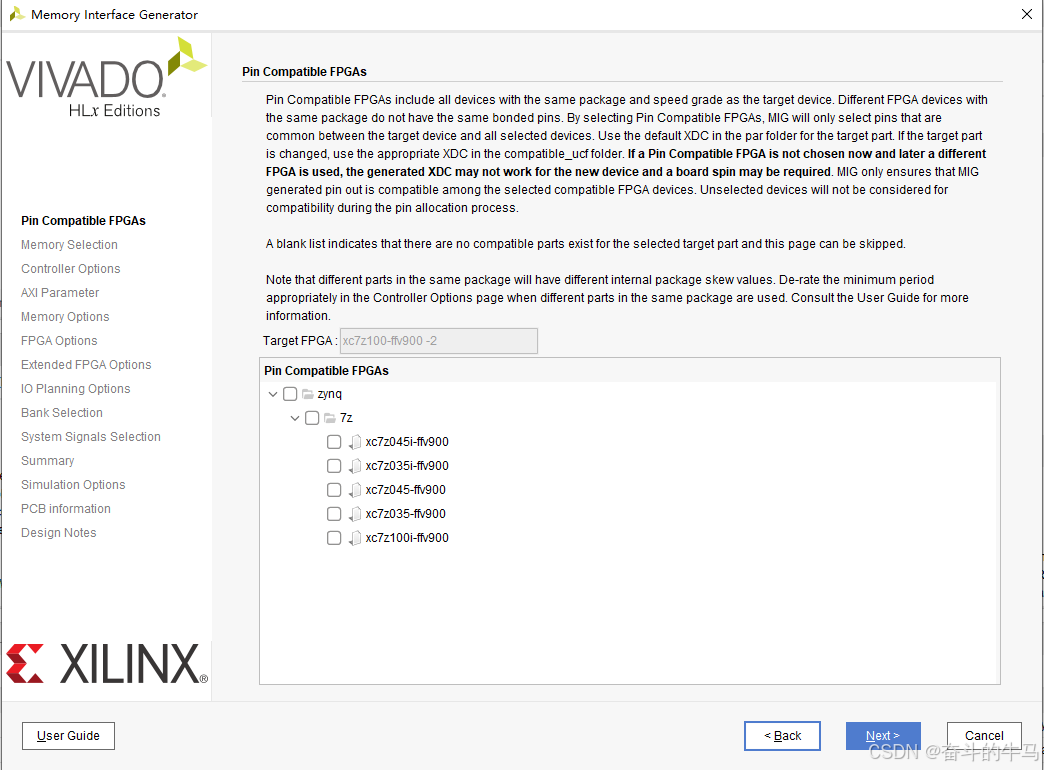

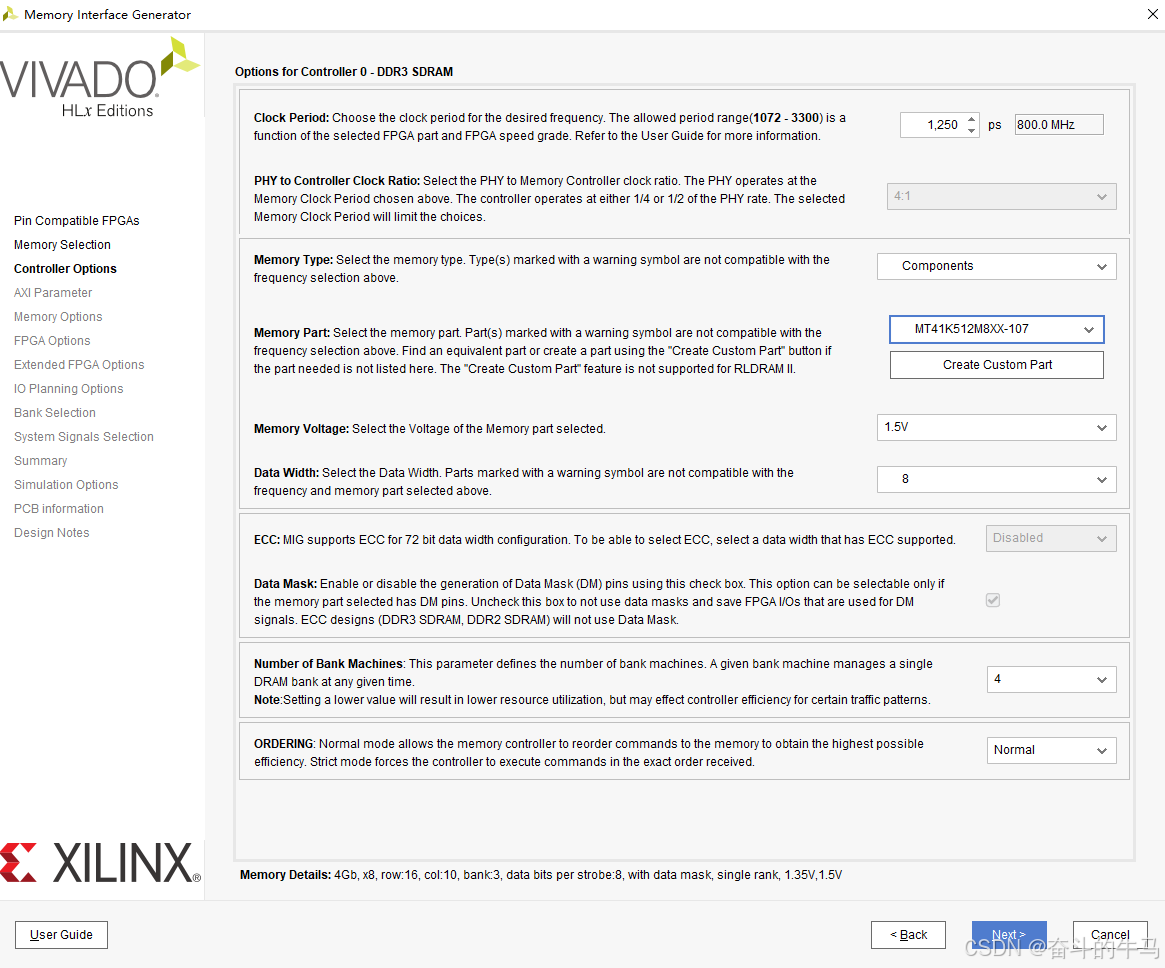

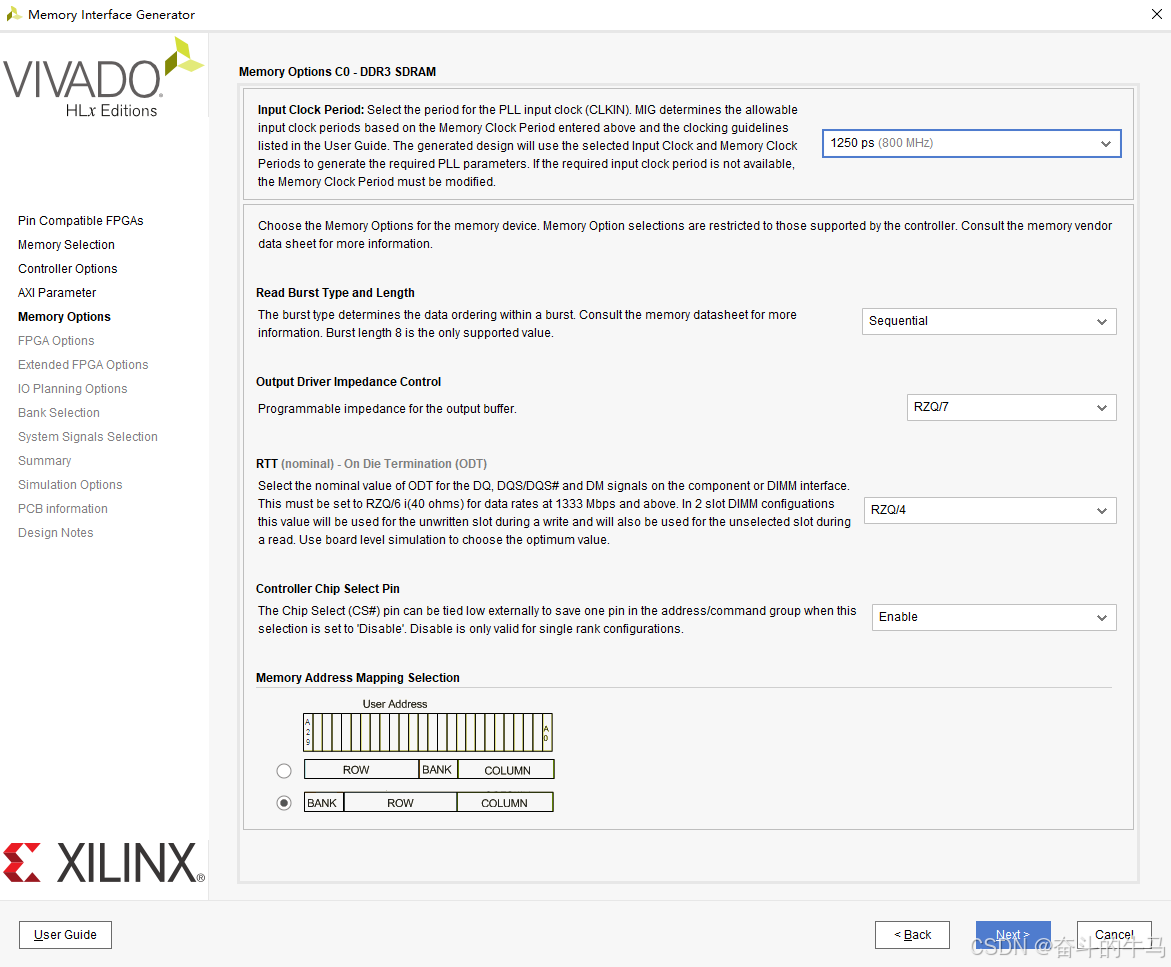

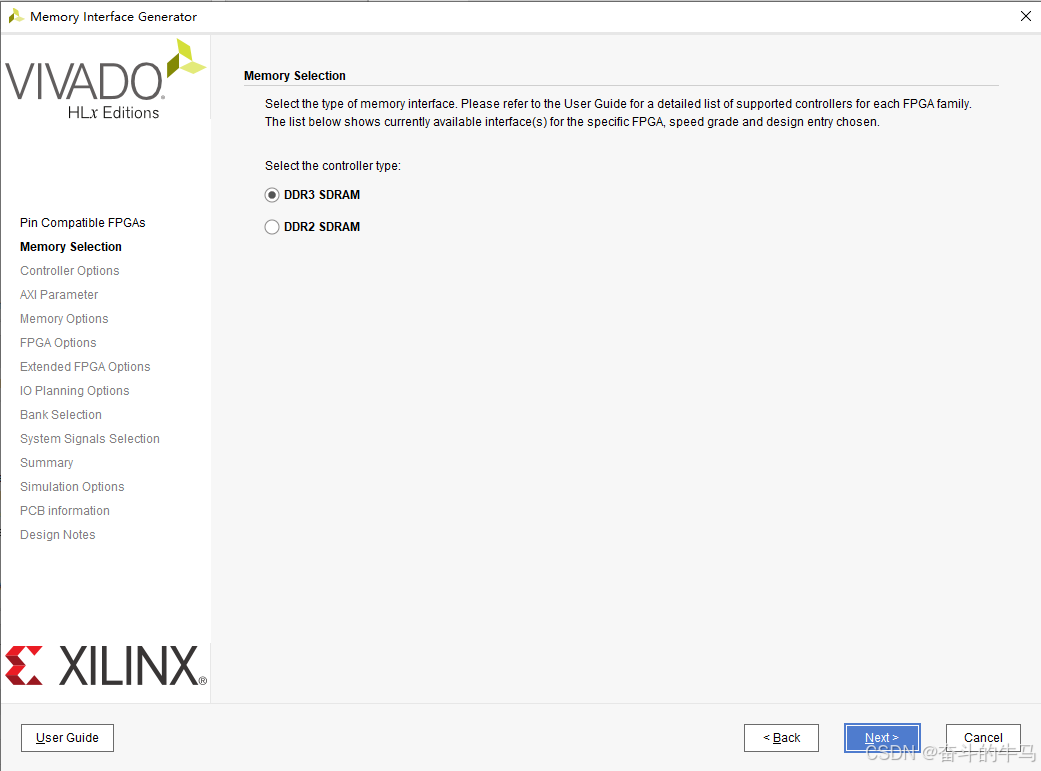

选择自己的型号，这里是ddr的位宽32，但是axi的话是256位宽

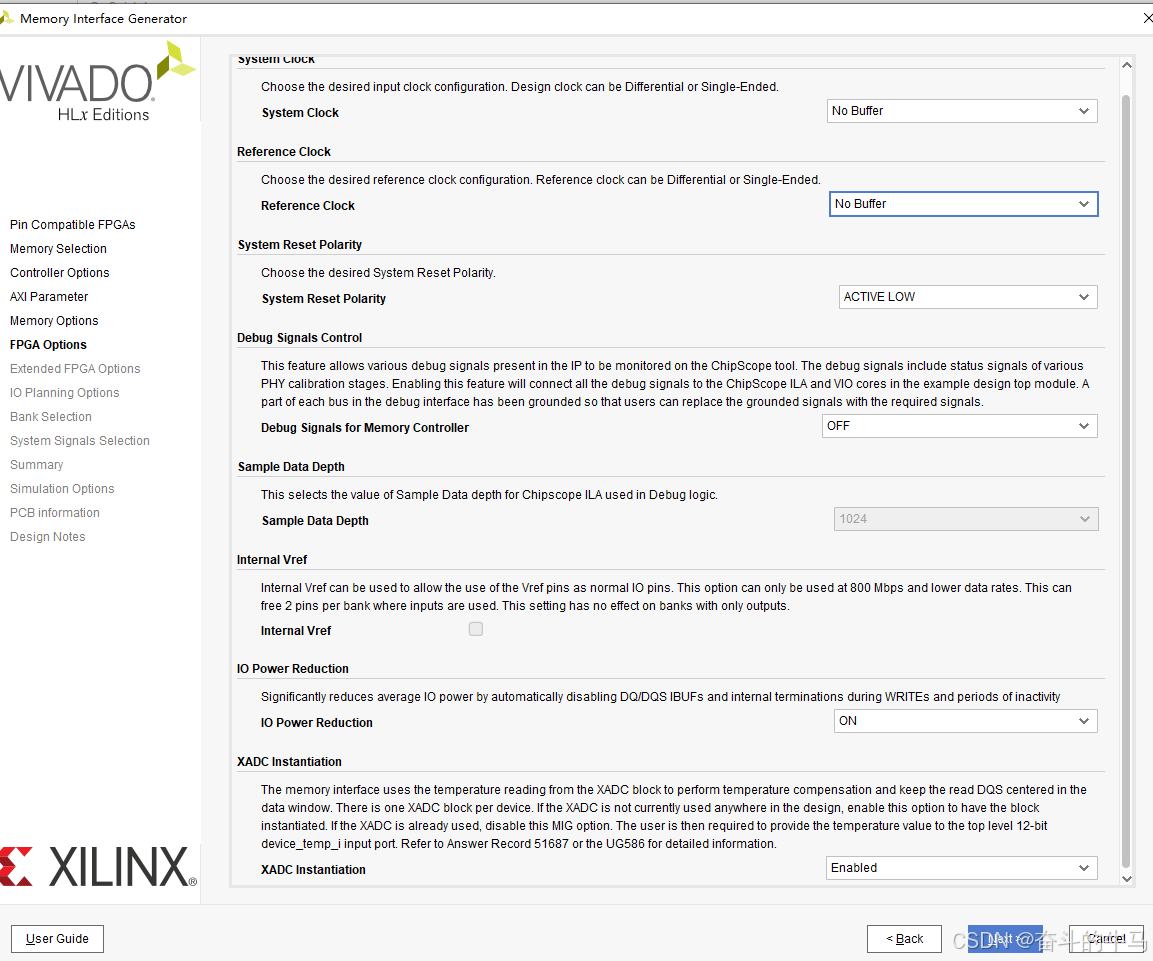

选择nobuffer，没有缓冲器

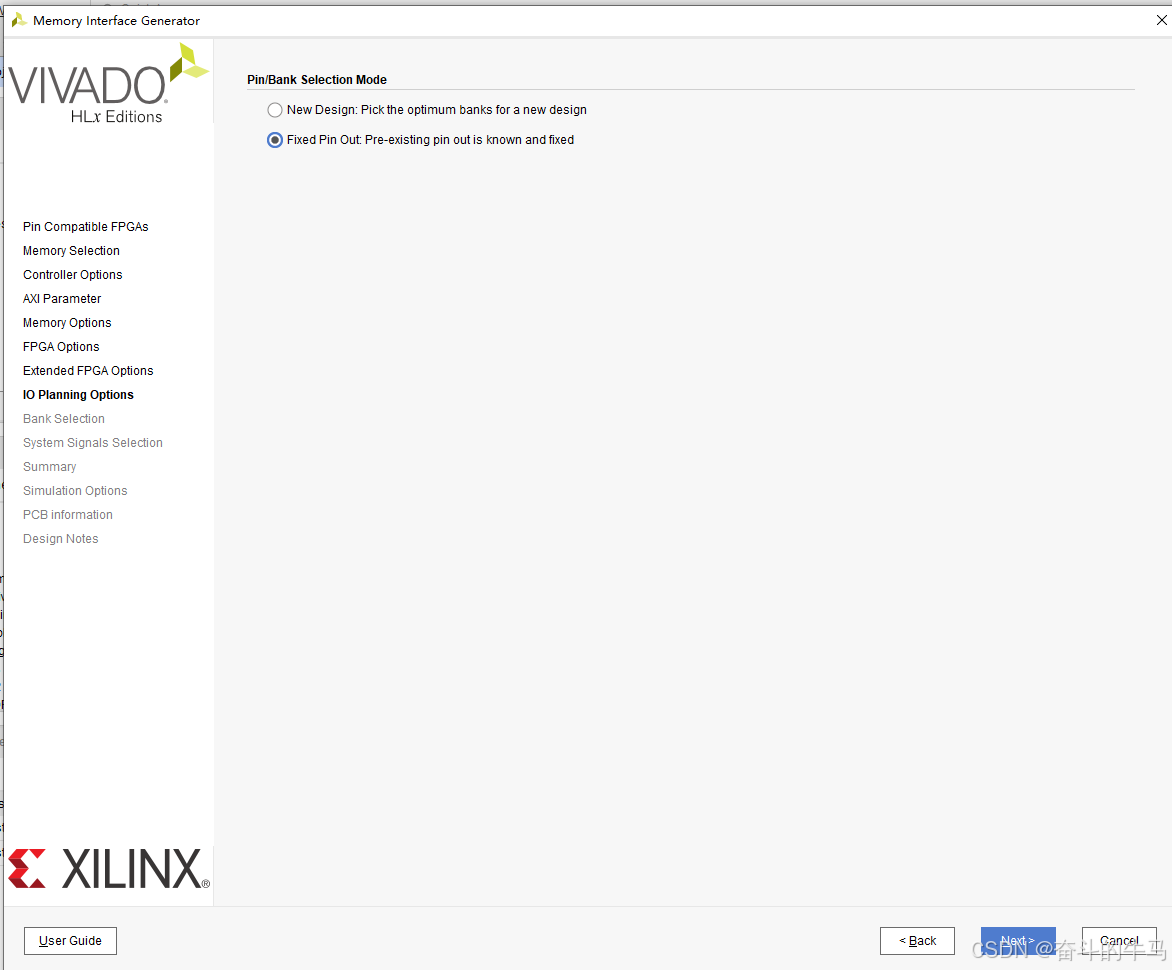

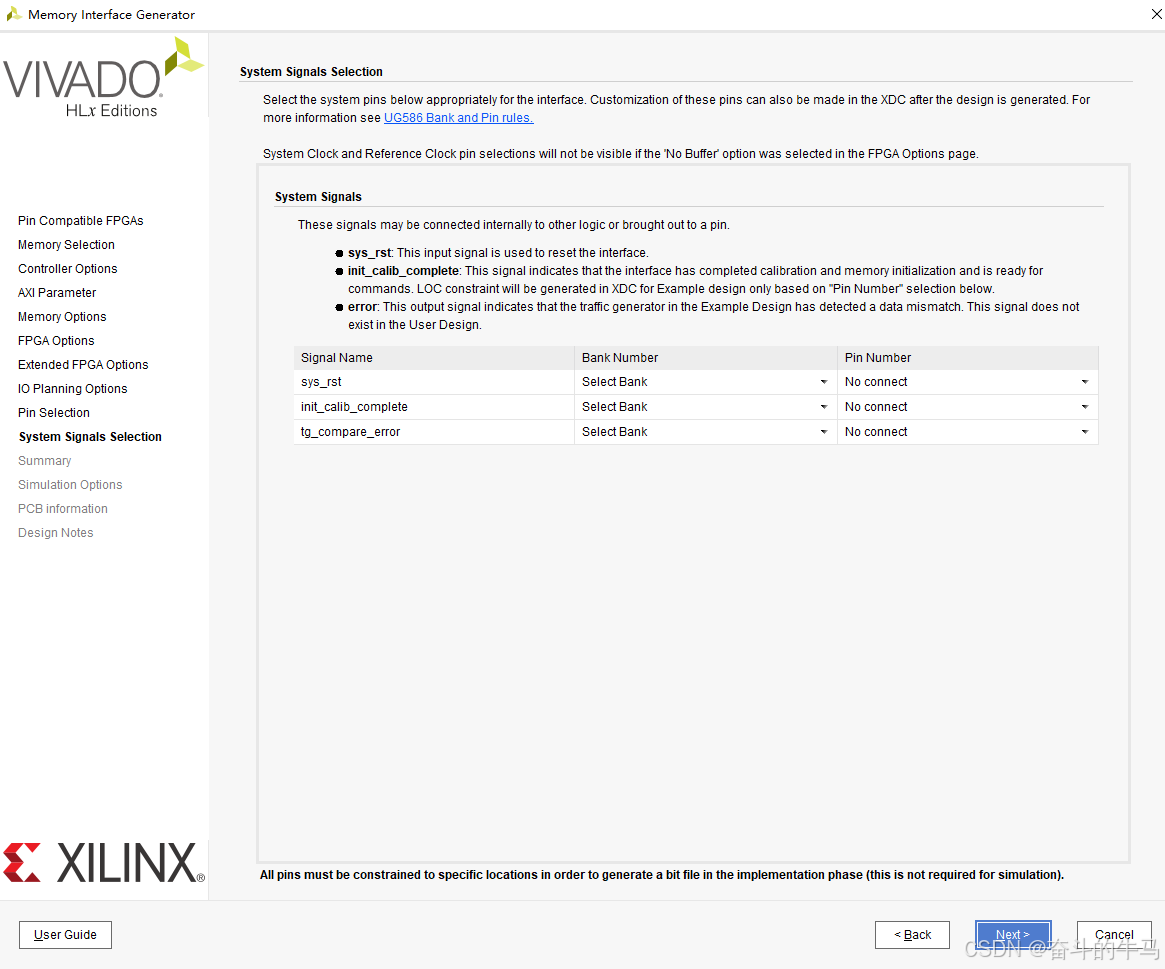

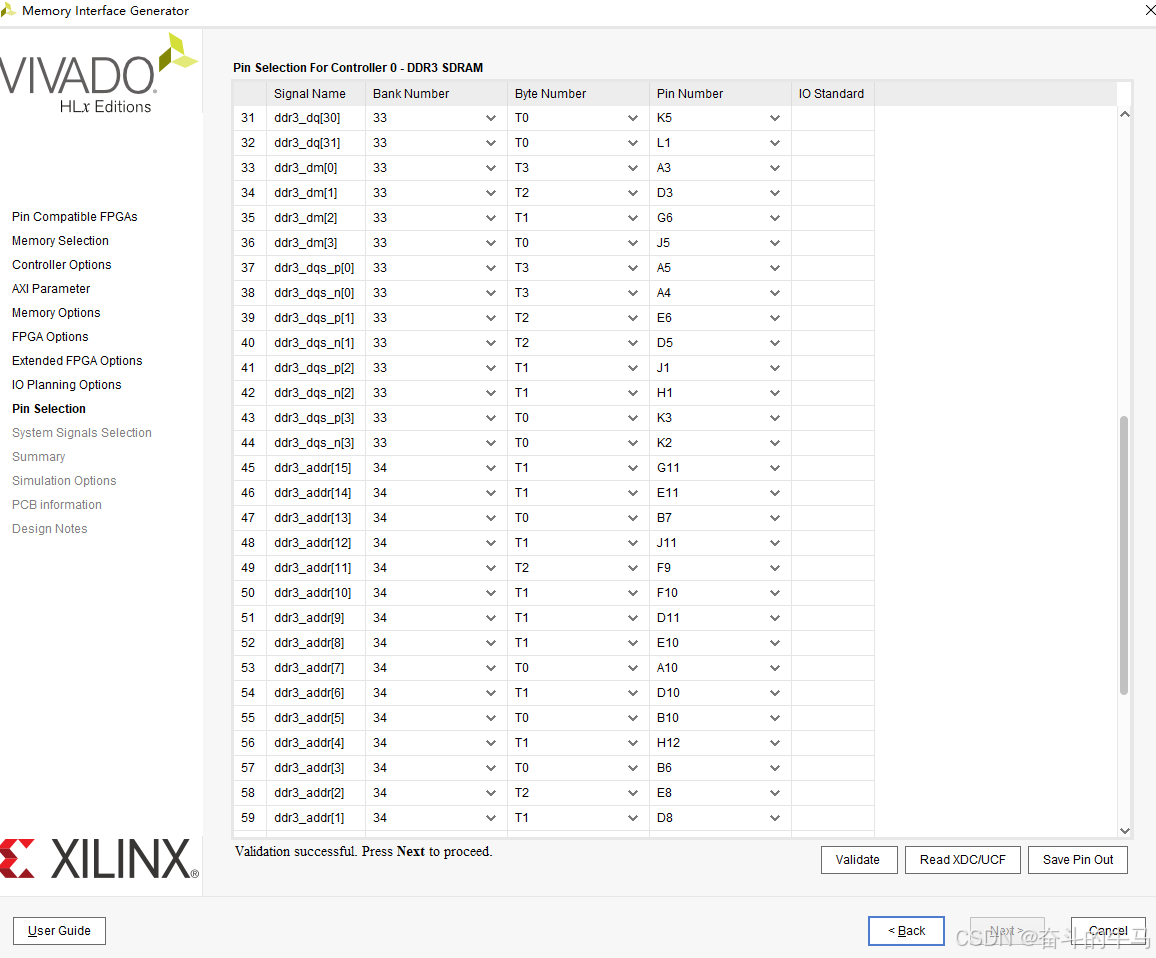

选择自己匹配引脚


默认

后面默认即可

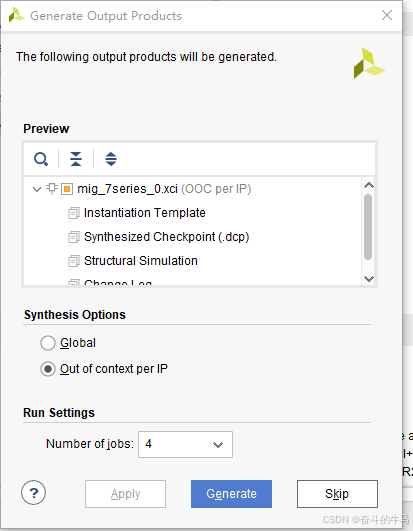

生成ip，时间很长。

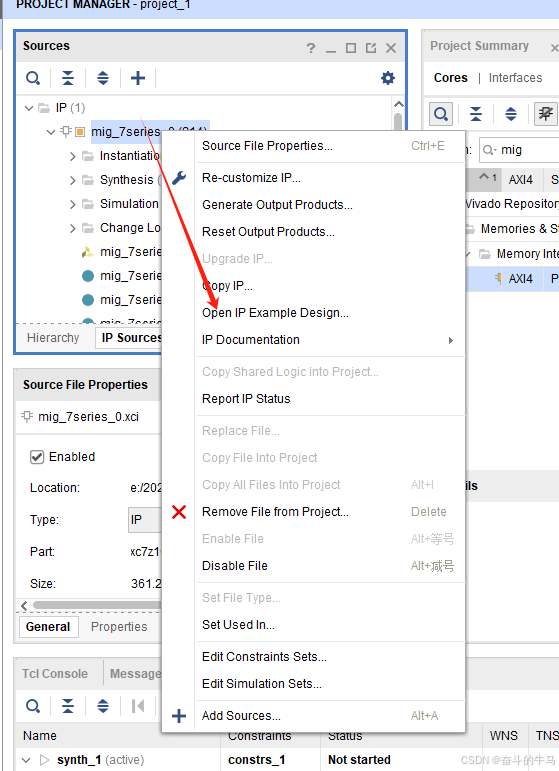

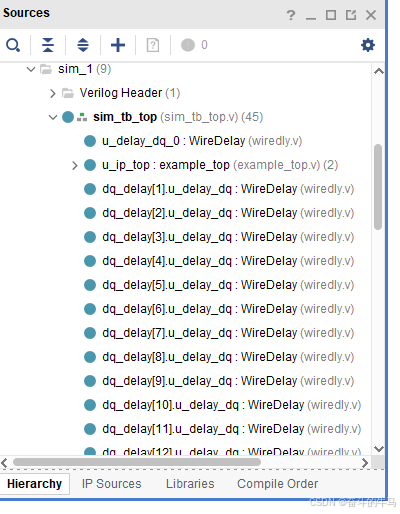

2 打开mig的工程寻找模型文件

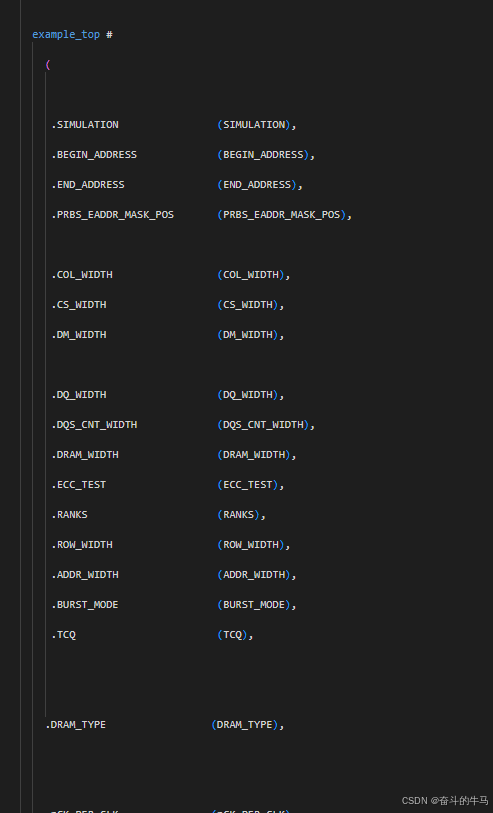

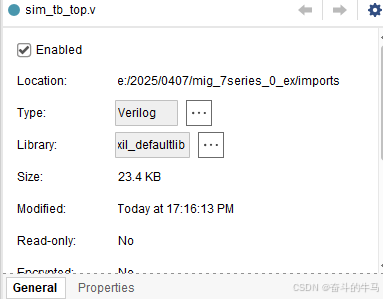

仿真模型 这个tb是xlinx自己的仿真代码以及模型

根据路径找到需要的代码

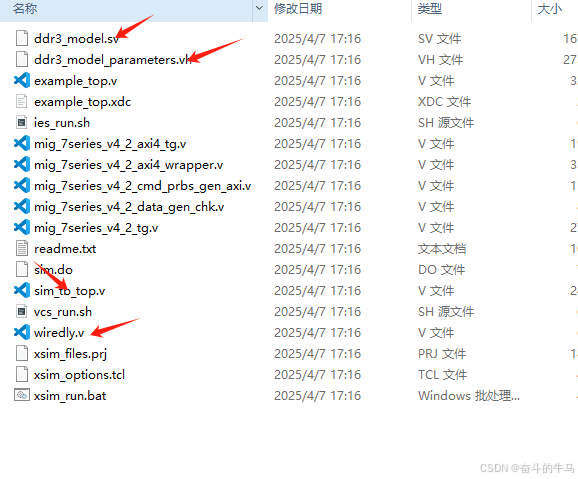

需要的文件如下都拷到自己的工程

3.写驱动模块代码

顶层模块

复制代码
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2025/04/01 20:38:55
// Design Name:
// Module Name: axi_ddr
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//


module axi_ddr_top(

input                       clk     ,
input                       rst     ,
input                       wen     ,
input        [31:0]               wr_len  ,
input                       rd_en   ,
input      [31:0]                 rd_len,
output [15:0]		ddr3_addr,
output [2:0]		ddr3_ba,
output			ddr3_cas_n,
output [0:0]		ddr3_ck_n,
output [0:0]		ddr3_ck_p,
output [0:0]		ddr3_cke,
output			ddr3_ras_n,
output			ddr3_reset_n,
output			ddr3_we_n,
inout [31:0]		ddr3_dq,
inout [3:0]		ddr3_dqs_n,
inout [3:0]		ddr3_dqs_p,
input			init_calib_complete,
output [0:0]		ddr3_cs_n,
output [3:0]		ddr3_dm,
output [0:0]		ddr3_odt

    );



 localparam integer C_S_AXI_ID_WIDTH = 4;
 localparam integer C_S_AXI_DATA_WIDTH = 256;
 localparam integer C_S_AXI_ADDR_WIDTH = 31;
 localparam integer C_S_AXI_AWUSER_WIDTH = 0;
 localparam integer C_S_AXI_ARUSER_WIDTH = 0;
 localparam integer C_S_AXI_WUSER_WIDTH = 0;
 localparam integer C_S_AXI_RUSER_WIDTH = 0;
 localparam integer C_S_AXI_BUSER_WIDTH = 0;


    wire   S_AXI_ACLK;
    wire   S_AXI_ARESETN;
    wire  [C_S_AXI_ID_WIDTH-1 : 0] S_AXI_AWID;
    wire  [C_S_AXI_ADDR_WIDTH-1 : 0] S_AXI_AWADDR;
    wire  [7 : 0] S_AXI_AWLEN;
    wire  [2 : 0] S_AXI_AWSIZE;
    wire  [1 : 0] S_AXI_AWBURST;
    wire   S_AXI_AWLOCK;
    wire  [3 : 0] S_AXI_AWCACHE;
    wire  [2 : 0] S_AXI_AWPROT;
    wire  [3 : 0] S_AXI_AWQOS;
    wire  [3 : 0] S_AXI_AWREGION;
    wire  [C_S_AXI_AWUSER_WIDTH-1 : 0] S_AXI_AWUSER;
    wire   S_AXI_AWVALID;
    wire  S_AXI_AWREADY;
    wire  [C_S_AXI_DATA_WIDTH-1 : 0] S_AXI_WDATA;
    wire  [(C_S_AXI_DATA_WIDTH/8)-1 : 0] S_AXI_WSTRB;
    wire   S_AXI_WLAST;
    wire  [C_S_AXI_WUSER_WIDTH-1 : 0] S_AXI_WUSER;
    wire   S_AXI_WVALID;
    wire  S_AXI_WREADY;
    wire [C_S_AXI_ID_WIDTH-1 : 0] S_AXI_BID;
    wire [1 : 0] S_AXI_BRESP;
    wire [C_S_AXI_BUSER_WIDTH-1 : 0] S_AXI_BUSER;
    wire  S_AXI_BVALID;
    wire   S_AXI_BREADY;
    wire  [C_S_AXI_ID_WIDTH-1 : 0] S_AXI_ARID;
    wire  [C_S_AXI_ADDR_WIDTH-1 : 0] S_AXI_ARADDR;
    wire  [7 : 0] S_AXI_ARLEN;
    wire  [2 : 0] S_AXI_ARSIZE;
    wire  [1 : 0] S_AXI_ARBURST;
    wire   S_AXI_ARLOCK;
    wire  [3 : 0] S_AXI_ARCACHE;
    wire  [2 : 0] S_AXI_ARPROT;
    wire  [3 : 0] S_AXI_ARQOS;
    wire  [3 : 0] S_AXI_ARREGION;
    wire  [C_S_AXI_ARUSER_WIDTH-1 : 0] S_AXI_ARUSER;
    wire   S_AXI_ARVALID;
    wire  S_AXI_ARREADY;
    wire [C_S_AXI_ID_WIDTH-1 : 0] S_AXI_RID;
    wire [C_S_AXI_DATA_WIDTH-1 : 0] S_AXI_RDATA;
    wire [1 : 0] S_AXI_RRESP;
    wire  S_AXI_RLAST;
    wire [C_S_AXI_RUSER_WIDTH-1 : 0] S_AXI_RUSER;
    wire  S_AXI_RVALID;
   wire   S_AXI_RREADY;



    axi_addr_m  axi_addr_m_inst (
      .clk                    (      ui_clk            ),
      .rst                    (      rst            ),
      .wen                    (      wen            ),
      .wr_len                 (      wr_len         ),
      .rd_en                  (      rd_en          ),
      .rd_len                 (      rd_len         ),
      .init_calib_complete    (init_calib_complete)  ,
      .s_axi_awid             (    S_AXI_AWID       ),
      .s_axi_awaddr           (    S_AXI_AWADDR     ),
      .s_axi_awlen            (    S_AXI_AWLEN       ),
      .s_axi_awsize           (    S_AXI_AWSIZE      ),
      .s_axi_awburst          (    S_AXI_AWBURST     ),
      .s_axi_awlock           (    S_AXI_AWLOCK       ),
      .s_axi_awcache          (    S_AXI_AWCACHE      ),
      .s_axi_awprot           (    S_AXI_AWPROT       ),
      .s_axi_awqos            (    S_AXI_AWQOS        ),
      .s_axi_awvalid          (    S_AXI_AWVALID      ),
      .s_axi_awready          (    S_AXI_AWREADY      ),
      .s_axi_wdata            (    S_AXI_WDATA        ),
      .s_axi_wstrb            (    S_AXI_WSTRB        ),
      .s_axi_wlast            (    S_AXI_WLAST        ),
      .s_axi_wvalid           (    S_AXI_WVALID       ),
      .s_axi_wready           (    S_AXI_WREADY       ),
      .s_axi_bid              (    S_AXI_BID          ),
      .s_axi_bresp            (    S_AXI_BRESP        ),
      .s_axi_bvalid           (    S_AXI_BVALID       ),
      .s_axi_bready           (    S_AXI_BREADY       ),
      .s_axi_arid             (    S_AXI_ARID         ),
      .s_axi_araddr           (    S_AXI_ARADDR       ),
      .s_axi_arlen            (    S_AXI_ARLEN        ),
      .s_axi_arsize           (    S_AXI_ARSIZE       ),
      .s_axi_arburst          (    S_AXI_ARBURST       ),
      .s_axi_arlock           (    S_AXI_ARLOCK       ),
      .s_axi_arcache          (    S_AXI_ARCACH       ),
      .s_axi_arprot           (    S_AXI_ARPROT       ),
      .s_axi_arqos            (    S_AXI_ARQOS        ),
      .s_axi_arvalid          (    S_AXI_ARVALID      ),
      .s_axi_arready          (    S_AXI_ARREADY      ),
      .s_axi_rid              (    S_AXI_RID          ),
      .s_axi_rdata            (    S_AXI_RDATA        ),
      .s_axi_rresp            (    S_AXI_RRESP        ),
      .s_axi_rlast            (    S_AXI_RLAST        ),
      .s_axi_rvalid           (    S_AXI_RVALID       ),
      .s_axi_rready           (    S_AXI_RREADY       )
    );
//
//axi_full_test_v1_0_S00_AXI # (
//  .C_S_AXI_ID_WIDTH(C_S_AXI_ID_WIDTH),
//  .C_S_AXI_DATA_WIDTH(C_S_AXI_DATA_WIDTH),
//  .C_S_AXI_ADDR_WIDTH(C_S_AXI_ADDR_WIDTH),
//  .C_S_AXI_AWUSER_WIDTH(C_S_AXI_AWUSER_WIDTH),
//  .C_S_AXI_ARUSER_WIDTH(C_S_AXI_ARUSER_WIDTH),
//  .C_S_AXI_WUSER_WIDTH(C_S_AXI_WUSER_WIDTH),
//  .C_S_AXI_RUSER_WIDTH(C_S_AXI_RUSER_WIDTH),
//  .C_S_AXI_BUSER_WIDTH(C_S_AXI_BUSER_WIDTH)
//)
//axi_full_test_v1_0_S00_AXI_inst (
//  .S_AXI_ACLK            (     clk        ),
//  .S_AXI_ARESETN         (     rst        ),
//  .S_AXI_AWID            (S_AXI_AWID      ),
//  .S_AXI_AWADDR          (S_AXI_AWADDR    ),
//  .S_AXI_AWLEN           (S_AXI_AWLEN     ),
//  .S_AXI_AWSIZE          (S_AXI_AWSIZE    ),
//  .S_AXI_AWBURST         (S_AXI_AWBURST   ),
//  .S_AXI_AWLOCK          (S_AXI_AWLOCK    ),
//  .S_AXI_AWCACHE         (S_AXI_AWCACHE   ),
//  .S_AXI_AWPROT          (S_AXI_AWPROT    ),
//  .S_AXI_AWQOS           (S_AXI_AWQOS     ),
//  .S_AXI_AWREGION        (S_AXI_AWREGION  ),
//  .S_AXI_AWUSER          (S_AXI_AWUSER    ),
//  .S_AXI_AWVALID         (S_AXI_AWVALID   ),
//  .S_AXI_AWREADY         (S_AXI_AWREADY   ),
//  .S_AXI_WDATA           (S_AXI_WDATA     ),
//  .S_AXI_WSTRB           (S_AXI_WSTRB     ),
//  .S_AXI_WLAST           (S_AXI_WLAST     ),
//  .S_AXI_WUSER           (S_AXI_WUSER     ),
//  .S_AXI_WVALID          (S_AXI_WVALID    ),
//  .S_AXI_WREADY          (S_AXI_WREADY    ),
//  .S_AXI_BID             (S_AXI_BID       ),
//  .S_AXI_BRESP           (S_AXI_BRESP     ),
//  .S_AXI_BUSER           (S_AXI_BUSER     ),
//  .S_AXI_BVALID          (S_AXI_BVALID    ),
//  .S_AXI_BREADY          (S_AXI_BREADY    ),
//  .S_AXI_ARID            (S_AXI_ARID      ),
//  .S_AXI_ARADDR          (S_AXI_ARADDR    ),
//  .S_AXI_ARLEN           (S_AXI_ARLEN     ),
//  .S_AXI_ARSIZE          (S_AXI_ARSIZE    ),
//  .S_AXI_ARBURST         (S_AXI_ARBURST    ),
//  .S_AXI_ARLOCK          (S_AXI_ARLOCK    ),
//  .S_AXI_ARCACHE         (S_AXI_ARCACH    ),
//  .S_AXI_ARPROT          (S_AXI_ARPROT    ),
//  .S_AXI_ARQOS           (S_AXI_ARQOS     ),
//  .S_AXI_ARREGION        (S_AXI_ARREGION  ),
//  .S_AXI_ARUSER          (S_AXI_ARUSER    ),
//  .S_AXI_ARVALID         (S_AXI_ARVALID   ),
//  .S_AXI_ARREADY         (S_AXI_ARREADY   ),
//  .S_AXI_RID             (S_AXI_RID       ),
//  .S_AXI_RDATA           (S_AXI_RDATA     ),
//  .S_AXI_RRESP           (S_AXI_RRESP     ),
//  .S_AXI_RLAST           (S_AXI_RLAST     ),
//  .S_AXI_RUSER           (S_AXI_RUSER     ),
//  .S_AXI_RVALID          (S_AXI_RVALID    ),
//  .S_AXI_RREADY          (S_AXI_RREADY    )
//);


    mig_7series_0 u_mig_7series_0 (
// Memory interface ports
.ddr3_addr                      (   ddr3_addr                 ),  // output [15:0]		ddr3_addr
.ddr3_ba                        (   ddr3_ba                   ),  // output [2:0]		ddr3_ba
.ddr3_cas_n                     (   ddr3_cas_n                ),  // output			ddr3_cas_n
.ddr3_ck_n                      (   ddr3_ck_n                 ),  // output [0:0]		ddr3_ck_n
.ddr3_ck_p                      (   ddr3_ck_p                 ),  // output [0:0]		ddr3_ck_p
.ddr3_cke                       (   ddr3_cke                  ),  // output [0:0]		ddr3_cke
.ddr3_ras_n                     (   ddr3_ras_n                ),  // output			ddr3_ras_n
.ddr3_reset_n                   (   ddr3_reset_n              ),  // output			ddr3_reset_n
.ddr3_we_n                      (   ddr3_we_n                 ),  // output			ddr3_we_n
.ddr3_dq                        (   ddr3_dq                   ),  // inout [31:0]		ddr3_dq
.ddr3_dqs_n                     (   ddr3_dqs_n                ),  // inout [3:0]		ddr3_dqs_n
.ddr3_dqs_p                     (   ddr3_dqs_p                ),  // inout [3:0]		ddr3_dqs_p
.init_calib_complete            (   init_calib_complete       ),  // output			init_calib_complete
.ddr3_cs_n                      (   ddr3_cs_n                 ),  // output [0:0]		ddr3_cs_n
.ddr3_dm                        (   ddr3_dm                   ),  // output [3:0]		ddr3_dm
.ddr3_odt                       (   ddr3_odt                  ),  // output [0:0]		ddr3_odt
// Application interface ports
.ui_clk                         (   ui_clk                    ),  // output			ui_clk
.ui_clk_sync_rst                (   ui_clk_sync_rst           ),  // output			ui_clk_sync_rst
.mmcm_locked                    (   mmcm_locked               ),  // output			mmcm_locked
.aresetn                        (  ~ui_clk_sync_rst                      ),  // input			aresetn
.app_sr_req                     (  1'b0                       ),  // input			app_sr_req
.app_ref_req                    (  1'b0                       ),  // input			app_ref_req
.app_zq_req                     (  1'b0                       ),  // input			app_zq_req
.app_sr_active                  ( app_sr_active               ),  // output			app_sr_active
.app_ref_ack                    ( app_ref_ack                 ),  // output			app_ref_ack
.app_zq_ack                     ( app_zq_ack                  ),  // output			app_zq_ack
// Slave Interface Write Address Ports
.s_axi_awid                     (  S_AXI_AWID                   ),  // input     [3:0]			s_axi_awid
.s_axi_awaddr                   (  S_AXI_AWADDR                 ),  // input     [31:0]			s_axi_awaddr
.s_axi_awlen                    (  S_AXI_AWLEN                  ),  // input     [7:0]			s_axi_awlen
.s_axi_awsize                   (  S_AXI_AWSIZE                 ),  // input     [2:0]			s_axi_awsize
.s_axi_awburst                  (  S_AXI_AWBURST               ),  // input     [1:0]			s_axi_awburst
.s_axi_awlock                   (  S_AXI_AWLOCK                ),  // input     [0:0]			s_axi_awlock
.s_axi_awcache                  (  S_AXI_AWCACHE              ),  // input     [3:0]			s_axi_awcache
.s_axi_awprot                   (  S_AXI_AWPROT               ),  // input     [2:0]			s_axi_awprot
.s_axi_awqos                    (  S_AXI_AWQOS         ),  // input     [3:0]			s_axi_awqos
.s_axi_awvalid                  (   S_AXI_AWVALID             ),  // input			            s_axi_awvalid
.s_axi_awready                  (   S_AXI_AWREADY             ),  // output			            s_axi_awready
// Slave Interface Write Data Ports
.s_axi_wdata                    (   S_AXI_WDATA               ),  // input       [255:0]			s_axi_wdata
.s_axi_wstrb                    (   S_AXI_WSTRB               ),  // input       [31:0]			    s_axi_wstrb 都有效
.s_axi_wlast                    (   S_AXI_WLAST               ),  // input			                s_axi_wlast
.s_axi_wvalid                   (   S_AXI_WVALID              ),  // input			                s_axi_wvalid
.s_axi_wready                   (   S_AXI_WREADY              ),  // output			                s_axi_wready
// Slave Interface Write Response Ports
.s_axi_bid                      (   S_AXI_BID                    ),  // output [3:0]			s_axi_bid
.s_axi_bresp                    (   S_AXI_BRESP                ),  // output [1:0]			s_axi_bresp
.s_axi_bvalid                   (   S_AXI_BVALID               ),  // output			s_axi_bvalid
.s_axi_bready                   (   S_AXI_BREADY                       ),  // input			s_axi_bready
// Slave Interface Read Address Ports
.s_axi_arid                     (   S_AXI_ARID               ),  // input [3:0]			s_axi_arid
.s_axi_araddr                   (   S_AXI_ARADDR             ),  // input [31:0]			s_axi_araddr
.s_axi_arlen                    (   S_AXI_ARLEN              ),  // input [7:0]			s_axi_arlen
.s_axi_arsize                   (   S_AXI_ARSIZE             ),  // input [2:0]			s_axi_arsize
.s_axi_arburst                  (   S_AXI_ARBURST            ),  // input [1:0]			s_axi_arburst
.s_axi_arlock                   (   S_AXI_ARLOCK             ),  // input [0:0]			s_axi_arlock
.s_axi_arcache                  (   S_AXI_ARCACH            ),  // input [3:0]			s_axi_arcache
.s_axi_arprot                   (   S_AXI_ARPROT             ),  // input [2:0]			s_axi_arprot
.s_axi_arqos                    (   S_AXI_ARQOS              ),  // input [3:0]			s_axi_arqos
.s_axi_arvalid                  (   S_AXI_ARVALID              ),  // input			s_axi_arvalid
.s_axi_arready                  (   S_AXI_ARREADY              ),  // output			s_axi_arready
// Slave Interface Read Data Ports
.s_axi_rid                      (   S_AXI_RID                       ),  // output [3:0]			s_axi_rid
.s_axi_rdata                    (   S_AXI_RDATA                ),  // output [255:0]			s_axi_rdata
.s_axi_rresp                    (   S_AXI_RRESP                ),  // output [1:0]			s_axi_rresp
.s_axi_rlast                    (   S_AXI_RLAST                ),  // output			s_axi_rlast
.s_axi_rvalid                   (   S_AXI_RVALID               ),  // output			s_axi_rvalid
.s_axi_rready                   (   S_AXI_RREADY               ),  // input			s_axi_rready
// System Clock Ports
.sys_clk_i                      (  clk                         ),
// Reference Clock Ports
.clk_ref_i                      (   clk                     ),
.sys_rst                        (   rst                 ) // input sys_rst   axi低电平复位
);

endmodule

axi_addr_m模块代码

复制代码
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2025/04/01 20:49:57
// Design Name:
// Module Name: axi_addr_m
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//


module axi_addr_m(
input                       clk,
input                       rst,
input                       wen,
input       [31:0]           wr_len,
input                       rd_en,
input       [31:0]           rd_len,
input                        init_calib_complete,
                 // Slave Interface Write Address Ports
output     [3:0]			s_axi_awid                  ,
output     [30:0]			s_axi_awaddr                ,
output      [7:0]			s_axi_awlen                 ,
output      [2:0]			s_axi_awsize                ,
output      [1:0]			s_axi_awburst               ,
output           			s_axi_awlock                ,
output      [3:0]			s_axi_awcache               ,
output      [2:0]			s_axi_awprot                ,
output      [3:0]			s_axi_awqos                 ,
output      	            s_axi_awvalid               ,
input          	            s_axi_awready               ,
                   // Slave Interface Write Data Ports
output   [255:0]			s_axi_wdata                 ,
output    [31:0]			s_axi_wstrb                 ,
output   	                s_axi_wlast                 ,
output   	                s_axi_wvalid                ,
input     	                s_axi_wready                ,
                       // Slave Interface Write Response Ports
input     [3:0]			    s_axi_bid                   ,
input     [1:0]			    s_axi_bresp                 ,
input     			        s_axi_bvalid                ,
output     		            s_axi_bready                ,
                     // Slave Interface Read Address Ports
output     [3:0]			s_axi_arid              ,
output    [30:0]			s_axi_araddr            ,
output     [7:0]			s_axi_arlen             ,
output     [2:0]			s_axi_arsize            ,
output     [1:0]			s_axi_arburst           ,
output     [0:0]			s_axi_arlock            ,
output     [3:0]			s_axi_arcache           ,
output     [2:0]			s_axi_arprot            ,
output     [3:0]			s_axi_arqos             ,
output    		            s_axi_arvalid           ,
input   			        s_axi_arready           ,
                          // Slave Interface Read Data Ports
input      [3:0]			s_axi_rid               ,
input      [255:0]			s_axi_rdata             ,
input      [1:0]			s_axi_rresp             ,
input                       s_axi_rlast             ,
input                       s_axi_rvalid            ,
output                      s_axi_rready

    );




(* syn_keep = "true", mark_debug = "true" *)
reg    [31:0]           w_cnt            ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [31:0]           r_cnt            ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [31:0]           wr_cnt_num            ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [31:0]           rd_cnt_num            ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [255:0]          s_axi_rdata_d    ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     s_axi_awvalid_r  ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [30:0]           s_axi_awaddr_r   ;


(* syn_keep = "true", mark_debug = "true" *)
reg                     s_axi_wvalid_r    ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     s_axi_wlast_r     ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [255:0]          s_axi_wdata_r     ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     s_axi_arvalid_r   ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [30:0]           s_axi_araddr_r    ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     s_axi_rready_r    ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     wen_d1;
(* syn_keep = "true", mark_debug = "true" *)
reg                     wen_d2;
(* syn_keep = "true", mark_debug = "true" *)
reg                     rd_en_d1;
(* syn_keep = "true", mark_debug = "true" *)
reg                     rd_en_d2;
(* syn_keep = "true", mark_debug = "true" *)
(* syn_keep = "true", mark_debug = "true" *)
reg    [7:0]            s_axi_awlen_d1    ;
(* syn_keep = "true", mark_debug = "true" *)
reg    [7:0]            s_axi_arlen_d1    ;
(* syn_keep = "true", mark_debug = "true" *)
reg                     init_calib_complete_d1;
(* syn_keep = "true", mark_debug = "true" *)
reg                     init_calib_complete_d2;
(* syn_keep = "true", mark_debug = "true" *)
wire                 wr_en_flag;
(* syn_keep = "true", mark_debug = "true" *)
wire                 rd_en_flag;

reg     [7:0]       test_cnt;

assign  s_axi_awid     =4'd0              ;
assign  s_axi_awlen    =8'd255            ;
assign  s_axi_awsize   =3'd5              ;
assign  s_axi_awburst  =2'b01             ;
assign  s_axi_awlock   =1'b0              ;
assign  s_axi_awcache  =4'b0010           ;
assign  s_axi_awprot   =3'd0              ;
assign  s_axi_awqos    =4'd0              ;
assign  s_axi_wstrb    =32'hffffffff      ;
assign  s_axi_arid     = 4'd0             ;
assign  s_axi_arlen    = 8'd255           ;
assign  s_axi_arsize   = 3'd5             ;
assign  s_axi_arburst  = 2'b01            ;
assign  s_axi_arlock   = 1'b0             ;
assign  s_axi_arcache  = 4'b0010             ;
assign  s_axi_arprot   = 3'd0             ;
assign  s_axi_arqos    = 4'd0             ;
assign  s_axi_bready   = 1'b1             ;

assign  s_axi_awvalid  = s_axi_awvalid_r  ;
assign  s_axi_awaddr   = s_axi_awaddr_r   ;
assign  s_axi_wvalid   = s_axi_wvalid_r   ;
assign  s_axi_wlast    = s_axi_wlast_r    ;
assign  s_axi_wdata    = s_axi_wdata_r    ;
assign  s_axi_arvalid  = s_axi_arvalid_r  ;
assign  s_axi_araddr   =s_axi_araddr_r    ;
assign  s_axi_rready   = s_axi_rready_r   ;
assign  wr_en_flag     = wen_d1 & (~wen_d2) ;
assign  rd_en_flag     =  rd_en_d1 & (~rd_en_d2) ;

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0) begin
         init_calib_complete_d1 <= 1'b0;
         init_calib_complete_d2 <= 1'b0;
    end
    else  begin
         init_calib_complete_d1<= init_calib_complete;
         init_calib_complete_d2<= init_calib_complete_d1;
    end
end

//always @(posedge clk or negedge rst) begin
//    if (rst == 1'b0) begin
//        wen_d1 <= 1'b0;
//        wen_d2 <= 1'b0;
//    end
//    else  begin
//        wen_d1<= wen;
//         wen_d2<= wen_d1;
//    end
//end
//
//
//always @(posedge clk or negedge rst) begin
//    if (rst == 1'b0) begin
//        rd_en_d1 <= 1'b0;
//        rd_en_d2 <= 1'b0;
//    end
//    else  begin
//        rd_en_d1<= rd_en;
//        rd_en_d2<= rd_en_d1;
//    end
//end
//==============test==================


always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
    test_cnt <=8'd0;
    else if( init_calib_complete_d2 == 1'b1  )
        test_cnt <= test_cnt + 8'd1;
    else if (test_cnt  == 8'd100)
        test_cnt <=8'd0;
    else;
end





//===========写地址==========
always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_awvalid_r <= 1'b0;
    else if(s_axi_awvalid && s_axi_awready )
        s_axi_awvalid_r <= 1'b0;
    else if (s_axi_wlast_r == 1'b1 && wr_cnt_num != wr_len -1'b1 )
        s_axi_awvalid_r <= 1'b1;
    else if (test_cnt  == 8'd100 && init_calib_complete_d2 == 1'b1 )    //wen_d2 == 1'b1
        s_axi_awvalid_r <= 1'b1;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_awaddr_r <=31'd0;
    else if(s_axi_awvalid_r && s_axi_awready )
        s_axi_awaddr_r <= s_axi_awaddr_r + 31'd256;
    else;
end
//==========写数据===========
always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_wvalid_r <= 1'b0;
    else if(s_axi_awvalid_r && s_axi_awready )
        s_axi_wvalid_r <= 1'b1;
    else if (s_axi_wlast == 1'b1)
        s_axi_wvalid_r <= 1'b0;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        w_cnt <= 32'd0;
    else if (s_axi_wlast_r == 1'b1)
        w_cnt <= 32'd0;
    else if(s_axi_wvalid_r == 1'b1 && s_axi_wready == 1'b1 )
        w_cnt <= w_cnt + 1'b1;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        wr_cnt_num <= 32'd0;
    else if (wr_cnt_num == wr_len -1'b1 )
        wr_cnt_num <= 32'd0;
    else if(s_axi_wvalid_r == 1'b1 && s_axi_wready == 1'b1 )
        wr_cnt_num <= wr_cnt_num + 1'b1;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_wlast_r <= 1'b0;
    else if(w_cnt == 8'd254  )
        s_axi_wlast_r <= 1'b1;
    else
        s_axi_wlast_r <= 1'b0;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_wdata_r <= 256'd0;
    else if(s_axi_wvalid_r == 1'b1 && s_axi_wready == 1'b1 )
        s_axi_wdata_r <= s_axi_wdata_r + 1'b1;
    else;
end

//==========响应=============


//==========读地址===========

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_arvalid_r <= 1'b0;
    else if( s_axi_wlast_r == 1'b1 && init_calib_complete_d2 == 1'b1  )  //rd_en == 1'b1
        s_axi_arvalid_r <= 1'b1;
    else if (s_axi_arvalid_r == 1'b1 && s_axi_arready == 1'b1 )
        s_axi_arvalid_r <= 1'b0;
end


always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_araddr_r <= 31'd0;
    else if(s_axi_arvalid_r == 1'b1 && s_axi_arready == 1'b1 )
        s_axi_araddr_r <=s_axi_araddr_r + 31'd256;
    else;
end

//==========读数据=============

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_rready_r <= 1'b0;
    else if(s_axi_arvalid_r == 1'b1 && s_axi_arready == 1'b1  )
        s_axi_rready_r <= 1'b1;
    else if (s_axi_rlast == 1'b1)
        s_axi_rready_r <= 1'b0;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        s_axi_rdata_d <= 256'd0;
    else if (s_axi_rlast == 1'b1)
        s_axi_rdata_d <= 256'd0;
    else if(s_axi_rvalid == 1'b1 && s_axi_rready == 1'b1  )
        s_axi_rdata_d <=s_axi_rdata;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        r_cnt <= 32'd0;
    else if (s_axi_rlast == 1'b1)
        r_cnt <= 32'd0;
    else if(s_axi_rvalid == 1'b1 && s_axi_rready == 1'b1  )
        r_cnt <= r_cnt + 1'b1;
    else;
end

always @(posedge clk or negedge rst) begin
    if (rst == 1'b0)
        rd_cnt_num <= 32'd0;
    else if (rd_cnt_num == rd_len -1'b1 )
        rd_cnt_num <= 32'd0;
    else if(s_axi_rvalid == 1'b1 && s_axi_rready == 1'b1 )
        rd_cnt_num <= rd_cnt_num + 1'b1;
    else;
end

endmodule

4.仿真

需要把xilinx的tb文件中的顶层改成自己的顶层

改成自己的

5仿真结果

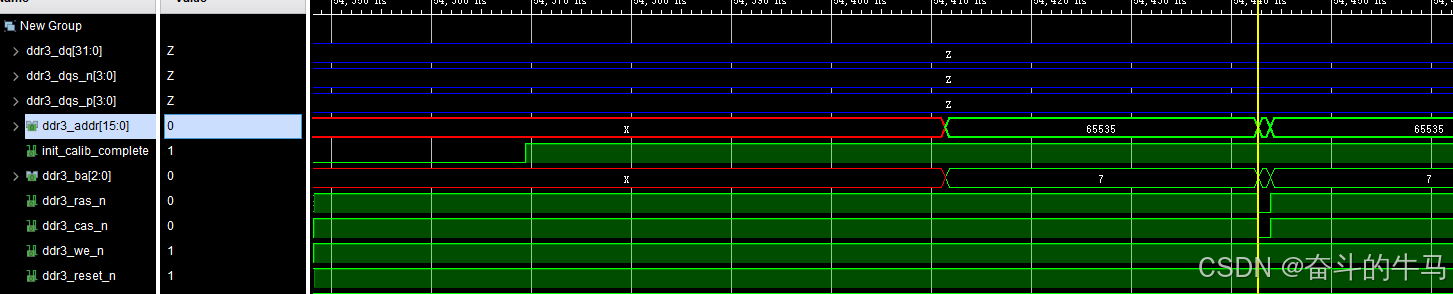

尤其是注意ddr的init_calib_complete 信号拉高，表示ddr初始化完成，但是对于模型的初始地址并不是0 ，这个仿真是需要10分钟左右才能看到他拉高。

写入0-255 读0-255

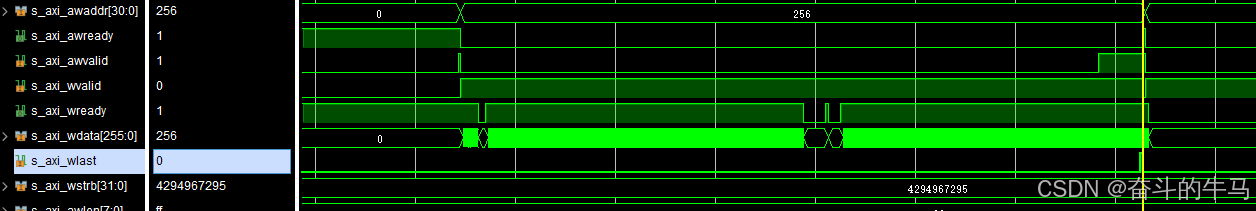

写

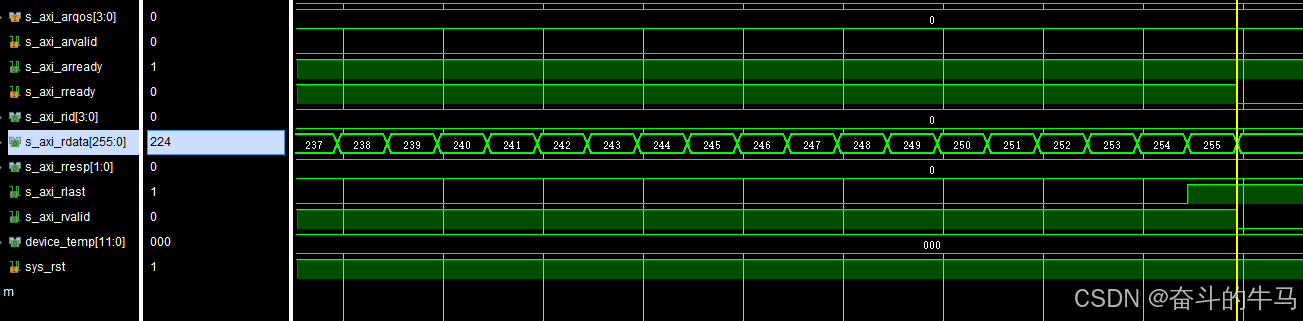

读

相关推荐
Seele Vollerei❀4 小时前
FPGA-DDS技术的波形发生器
fpga开发
2201_755183714 小时前
【FPGA】——DDS信号发生器设计
fpga开发
芯语新源5 小时前
designware IP如何被FPGA综合
fpga开发
Born_t0ward6 小时前
基于FPGA实现BPSK 调制
fpga开发
且听风吟5678 小时前
深度为16，位宽8bit的单端口SRAM——学习记录
学习·fpga开发
鸡精拌饭8 小时前
FPAG IP核调用小练习
fpga开发
爱喝西北风的东北风8 小时前
DDS波形发生器仿真及技术原理
单片机·嵌入式硬件·fpga开发
hahaha601612 小时前
Vccaux_IO在DDR3接口中的作用
fpga开发
Water_Sounds1 天前
【FPGA开发技巧】Modelsim仿真中，显示状态机的名称，而非编码数字
fpga开发
北京青翼科技1 天前
【PCIE736-0】基于 PCIE X16 总线架构的 4 路 QSFP28 100G 光纤通道处理平台
图像处理·人工智能·fpga开发·信号处理
热门推荐
01我决定放弃搞 Java 了02RAG 实践- Ollama+RagFlow 部署本地知识库03DeepSeek各版本说明与优缺点分析04Scipy||第三章 线性代数 (scipy.linalg)05DeepSeek RAGFlow构建本地知识库系统06如何在WPS和Word/Excel中直接使用DeepSeek功能07本地化部署AI知识库：基于Ollama+DeepSeek+AnythingLLM保姆级教程08汽车上的各种质量：整备质量、总质量、装载质量、簧上质量、簧下质量09苍穹外卖面试总结10C#/.NET/.NET Core技术前沿周刊 | 第 34 期（2025年4.7-4.13）
