教程目的
本教程介绍如何在ALINX Artix US+ AXAU25 FPGA 开发板上，通过 Multiboot 实现多个 bitstream 的存储与动态切换，并在配置失败时自动回退至安全镜像（Golden Image）。
适用对象
-
已掌握 FPGA 基础开发（会写Verilog、会生成bitstream）
-
熟悉 Vivado 工程流程
-
对 FPGA 配置机制尚不深入，希望进入系统级设计阶段的学习者
Multiboot 功能概述
在基础实验中，FPGA 通常通过 JTAG 下载 bitstream，这种方式掉电后配置就丢失，亦无法实现远程升级。Multiboot 通过将多个配置镜像存储在外部 Flash 中，使 FPGA 能够在上电或运行过程中，从不同地址加载不同的 bitstream，并在异常情况下自动回退，保证系统可恢复。
Golden Image：固定存放在 Flash 的 0 地址，功能最小、稳定可靠，负责系统初始化与升级控制。
Multiboot Image：存放在 Flash 的其他地址，承载具体业务逻辑，可被升级或替换。

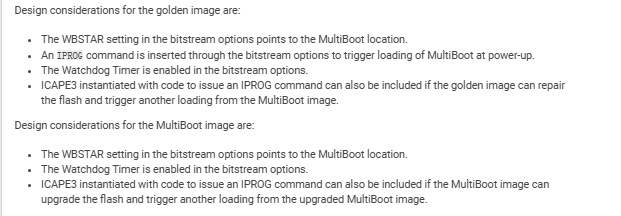

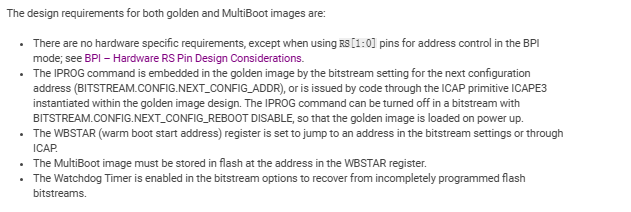

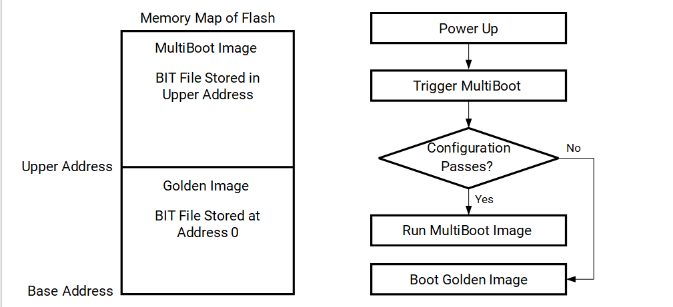

下图展示了 FPGA Multiboot 机制的整体配置与启动流程：FPGA 上电后默认从 Flash 0 地址加载 Golden Image，在满足触发条件后，通过 MultiBoot 机制尝试从 Upper Address 加载 MultiBoot Image。当配置成功时运行 MultiBoot Image；若配置失败，则触发 Fallback 机制，自动回退并重新加载 Golden Image，以保证系统仍可正常运行。
（Multiboot 运行流程示意图）
Multiboot 实现方式
AMD FPGA 支持两种 Multiboot 实现方式，一种是 在生成 bitstream 时嵌入 IPROG，另一种是 通过用户逻辑控制 ICAP 接口触发重配置，本教程采用ICAP+IPROG 的动态方式，可在 FPGA 运行过程中灵活控制重配置行为，更符合实际工程需求。
Multiboot 功能实现
使用硬件
开发板：ALINX AXAU25
FPGA：AMD Artix UltraScale+（XCAU25P）
启动方式：SPI Flash（x4 模式）
该平台原生支持 MultiBoot 与 Fallback。

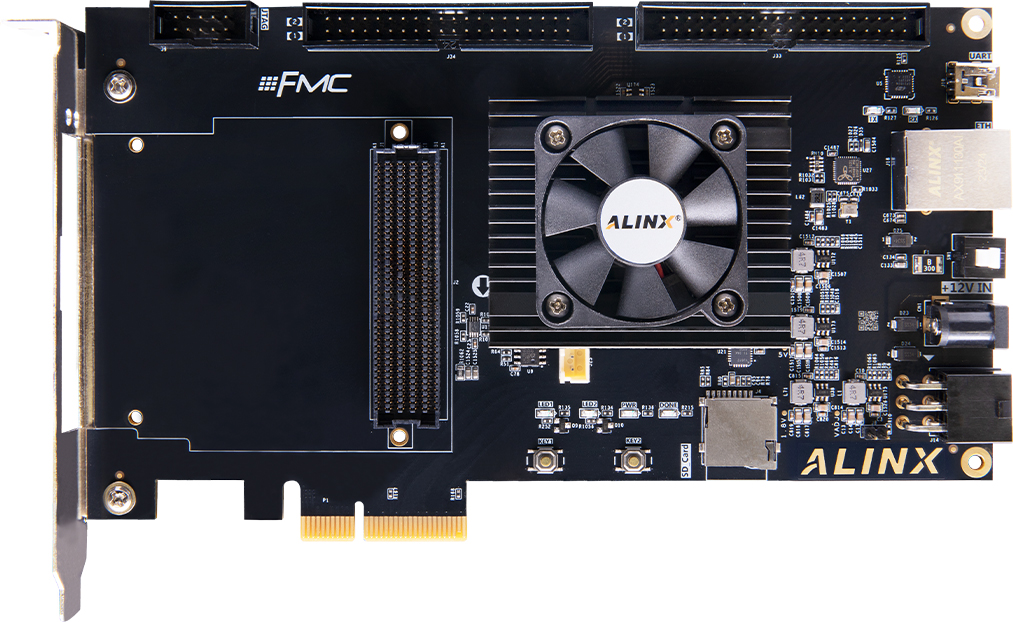

（ALINX基于Artix UltraScale+ FPGA开发板AXAU25）
工程实现
Golden Image 设计
//===========================================================================
// Module name: led_test.v
//===========================================================================
`timescale 1ns / 1ps
module multiboot_top
(
input sys_clk_p, // Difference system clock 200Mhz input on board
input sys_clk_n,
output reg led // LED,use for control the LED signal on board
);
//define the time counter
reg [31:0] timer;
wire [31:0] WBSTAR;
//===========================================================================
//Differentia system clock to single end clock
//===========================================================================
wire rst_n;
wire sys_clk_buf;
wire sys_clk;
wire switch;
wire switch_d0;
wire switch_d1;
IBUFGDS u_ibufg_sys_clk //????????????????
(
.I (sys_clk_p),
.IB (sys_clk_n),
.O (sys_clk_buf )
);
clk_wiz_0 syspll
(
// Clock out ports
.clk_out1(sys_clk), // output clk_out1
// Status and control signals
.locked(rst_n), // output locked
// Clock in ports
.clk_in1(sys_clk_buf));
vio_0 uu (
.clk(sys_clk), // input wire clk
.probe_out0(switch), // output wire [0 : 0] probe_out0
.probe_out1(WBSTAR) // output wire [31 : 0] probe_out1
);
//===========================================================================
//===========================================================================
always @(posedge sys_clk)
begin
if (~rst_n)
timer <= 32'd0; // when the reset signal valid,time counter clearing
else if (timer == 32'd99_999_999) //1 seconds count(200M-1=199999999) ?????200Mhz??????5ns??????0-199_999_999,??2*10^8??????
timer <= 32'd0; //count done,clearing the time counter
else
timer <= timer + 1'b1; //timer counter = timer counter + 1????????????????
end
//===========================================================================
// LED control
//===========================================================================
always @(posedge sys_clk)
begin
if (~rst_n)
led <= 0; //when the reset signal active
else if (timer == 32'd99_999_999) //time counter count to 1 sec,LED4 lighten
led <= ~led;
end
(* MARK_DEBUG="true" *)reg ce ;
(* MARK_DEBUG="true" *)reg write ;
(* MARK_DEBUG="true" *)reg [31:0] icap_in ;
(* MARK_DEBUG="true" *)wire [31:0] icap_in_wire ;
ICAPE3 #(
.DEVICE_ID(32'h04A64093), // Specifies the pre-programmed Device ID value to be used for simulation
// purposes.
.ICAP_AUTO_SWITCH("DISABLE"), // Enable switch ICAP using sync word.
.SIM_CFG_FILE_NAME("NONE") // Specifies the Raw Bitstream (RBT) file to be parsed by the simulation
// model.
)
ICAPE3_inst (
.AVAIL(), // 1-bit output: Availability status of ICAP.
.O(O), // 32-bit output: Configuration data output bus.
.PRDONE(), // 1-bit output: Indicates completion of Partial Reconfiguration.
.PRERROR(), // 1-bit output: Indicates error during Partial Reconfiguration.
.CLK(sys_clk), // 1-bit input: Clock input.
.CSIB(ce), // 1-bit input: Active-Low ICAP enable.
.I(icap_in_wire), // 32-bit input: Configuration data input bus.
.RDWRB(write) // 1-bit input: Read/Write Select input.
);
localparam [31:0] DUMMY_WORD = 32'hFFFFFFFF;
localparam [31:0] SYNC_WORD = 32'hAA995566;
localparam [31:0] TYPE1_NOOP = 32'h20000000;
localparam [31:0] TYPE1_WBSTAR = 32'h30020001;
localparam [31:0] TYPE1_CMD = 32'h30008001;
localparam [31:0] IPROG_CMD = 32'h0000000F;
// localparam [31:0] WBSTAR = 32'h04000000;
(* MARK_DEBUG="true" *)reg [3:0] state ;
assign icap_in_wire = {icap_in[3*8+0],icap_in[3*8+1],icap_in[3*8+2],icap_in[3*8+3],icap_in[3*8+4],icap_in[3*8+5],icap_in[3*8+6],icap_in[3*8+7],
icap_in[2*8+0],icap_in[2*8+1],icap_in[2*8+2],icap_in[2*8+3],icap_in[2*8+4],icap_in[2*8+5],icap_in[2*8+6],icap_in[2*8+7],
icap_in[1*8+0],icap_in[1*8+1],icap_in[1*8+2],icap_in[1*8+3],icap_in[1*8+4],icap_in[1*8+5],icap_in[1*8+6],icap_in[1*8+7],
icap_in[0*8+0],icap_in[0*8+1],icap_in[0*8+2],icap_in[0*8+3],icap_in[0*8+4],icap_in[0*8+5],icap_in[0*8+6],icap_in[0*8+7]};
always @(posedge sys_clk ) begin
if (~rst_n) begin
state <= 0 ;
ce <= 0 ;
write <= 0 ;
icap_in <= DUMMY_WORD ;
end
else begin
case (state)
0: begin
if (switch) begin
state <= 1 ;
icap_in <= DUMMY_WORD ; //Dummy word
write <= 0 ;
ce <= 0 ;
end
end
1: begin
state <= 2 ;
icap_in <= SYNC_WORD ; //sync word
end
2: begin
state <= 3 ;
icap_in <= TYPE1_NOOP ; //Type 1 NOOP
end
3: begin
state <= 4 ;
icap_in <= TYPE1_WBSTAR ; //Type 1 Write 1 words to WBSTAR
end
4: begin
state <= 5 ;
icap_in <= WBSTAR ; //Warm boot start address (Load the desired address)
end
5: begin
state <= 6 ;
icap_in <= TYPE1_CMD ; //Type 1 Write 1 words to CMD
end
6: begin
state <= 7 ;
icap_in <= IPROG_CMD ; //IPROG command
end
7: begin
state <= 8 ;
icap_in <= TYPE1_NOOP ; //Type 1 NOOP
end
8: begin
state <= 8 ;
write <= 1 ;
ce <= 1 ;
icap_in <= 0 ;
end
default: begin
state <= 0 ;
ce <= 1 ;
write <= 1 ;
icap_in <= DUMMY_WORD ;
end
endcase
end
end
endmodule
XDC 约束
############## clock define##################
create_clock -period 5.000 [get_ports sys_clk_p]
set_property PACKAGE_PIN T24 [get_ports sys_clk_p]
set_property PACKAGE_PIN U24 [get_ports sys_clk_n]
set_property IOSTANDARD DIFF_SSTL18_I [get_ports sys_clk_n]
##############LED define##################
set_property PACKAGE_PIN W21 [get_ports led]
set_property IOSTANDARD LVCMOS18 [get_ports led]
set_property CONFIG_MODE SPIx4 [current_design]
set_property BITSTREAM.CONFIG.CONFIGRATE 85.0 [current_design]
set_property BITSTREAM.CONFIG.SPI_32BIT_ADDR YES [current_design]
set_property BITSTREAM.CONFIG.SPI_BUSWIDTH 4 [current_design]
set_property BITSTREAM.CONFIG.SPI_FALL_EDGE YES [current_design]
set_property BITSTREAM.CONFIG.CONFIGFALLBACK ENABLE [current_design]
set_property BITSTREAM.GENERAL.COMPRESS TRUE [current_design]Multiboot Image 设计
`timescale 1ns / 1ps
module multiboot(
//Differential system clock
input sys_clk_p,
input sys_clk_n,
input rst_n,
(* MARK_DEBUG="true" *) output reg [1:0] led
);
(* MARK_DEBUG="true" *)reg[31:0] timer_cnt;
wire sys_clk ;
IBUFDS IBUFDS_inst (
.O(sys_clk), // 1-bit output: Buffer output
.I(sys_clk_p), // 1-bit input: Diff_p buffer input (connect directly to top-level port)
.IB(sys_clk_n) // 1-bit input: Diff_n buffer input (connect directly to top-level port)
);
always@(posedge sys_clk)
begin
if (!rst_n)
begin
led <= 2'b0 ;
end
else if(timer_cnt <= 32'd100_000_000)
begin
led <= 2'b10;
end
else begin
led <= 2'b01;
end
end
always@(posedge sys_clk)begin
if(!rst_n)begin
timer_cnt <= 32'b0;
end
else if(timer_cnt >= 32'd199_999_999) //1 second counter, 200M-1=199_999_999
begin
timer_cnt <= 32'd0;
end
else begin
timer_cnt <= timer_cnt + 1;
end
end
endmodule
xdc约束
set_property PACKAGE_PIN T24 [get_ports sys_clk_p]
set_property PACKAGE_PIN N26 [get_ports rst_n]
set_property PACKAGE_PIN W21 [get_ports led]
set_property IOSTANDARD LVCMOS18 [get_ports {led[1]}]
set_property IOSTANDARD LVCMOS18 [get_ports {led[0]}]
set_property IOSTANDARD LVCMOS18 [get_ports rst_n]
set_property IOSTANDARD DIFF_SSTL18_I [get_ports sys_clk_p]
set_property PACKAGE_PIN AC16 [get_ports {led[0]}]
set_property PACKAGE_PIN W21 [get_ports {led[1]}]
create_clock -period 5.000 -name sys_clk_p -waveform {0.000 2.500} [get_ports sys_clk_p]
set_property BITSTREAM.CONFIG.CONFIGFALLBACK ENABLE [current_design]
set_property BITSTREAM.GENERAL.COMPRESS TRUE [current_design]
set_property BITSTREAM.CONFIG.SPI_BUSWIDTH 4 [current_design]

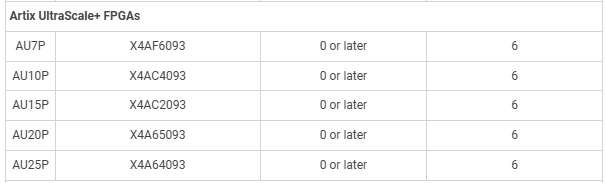

set_property BITSTREAM.CONFIG.SPI_32BIT_ADDR YES [current_design]设备的 ID 是固定按照提供资料查询相关操作设备 ID

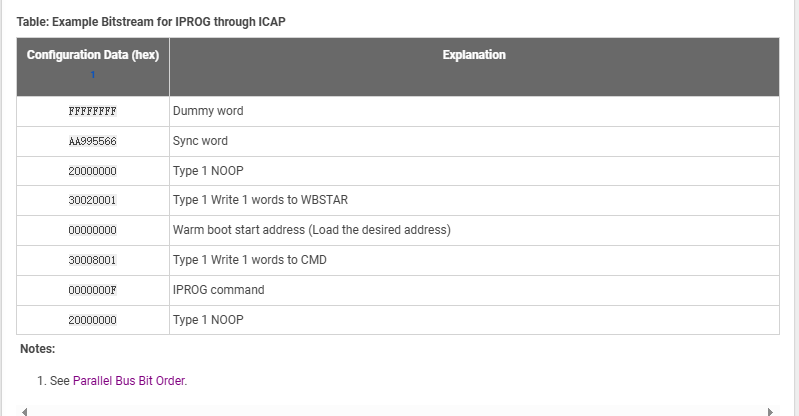

下方列表是通过 ICAP 接口进行 IPROG 中需要执行的命令

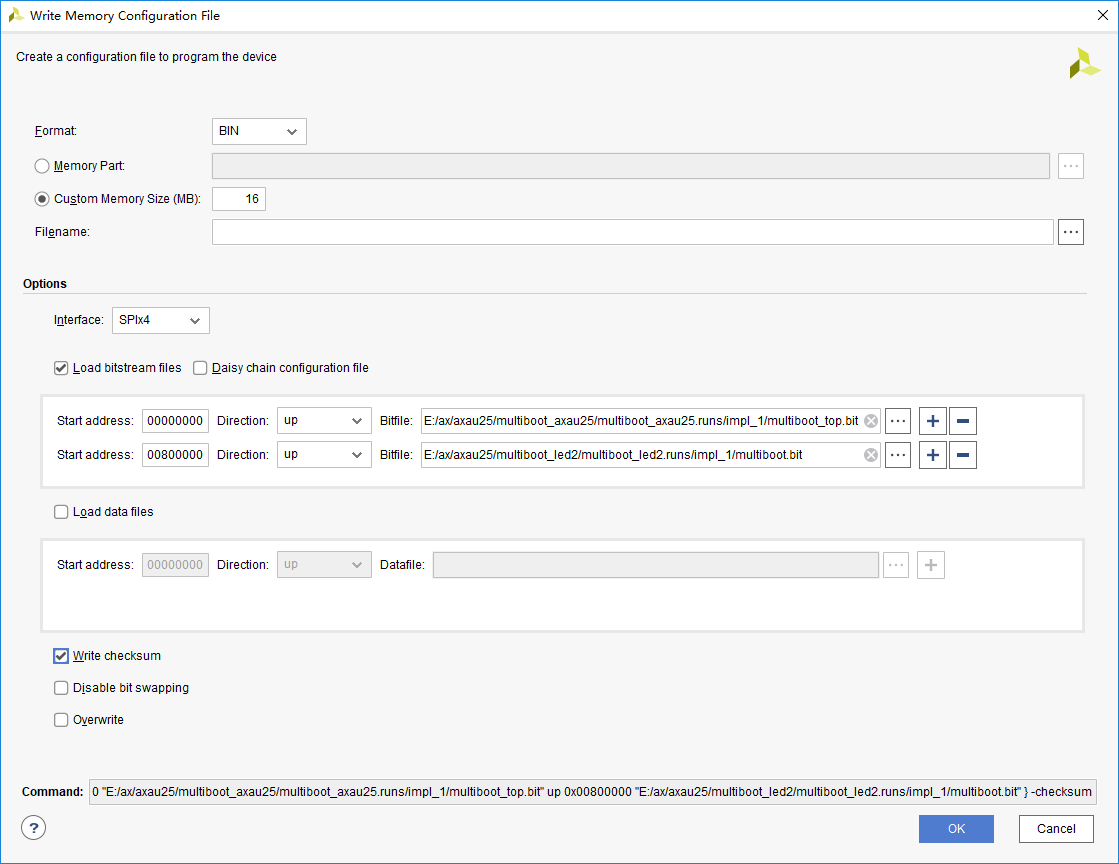

通过 Vivado 将需要固化的两个 bit 文件合成一个烧写文件，烧写完成断电重新上电即可。
实验结果
默认加载 Golden Image，LED 1闪烁

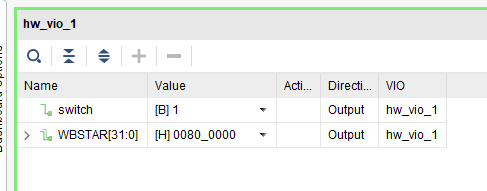

通过 VIO 设置
switch=1，WBSTAR=0x0080_0000（我们在 Flash 中存放的第二个 Multiboot Image 的初始地址），等待一段时间，LED 1、LED 2 交替闪烁，MultiBoot Image 切换成功。
参考文档
UltraScale Architecture Configuration User Guide (UG570)
Vivado Design Suite 用户指南: 编程和调试 (UG908)
