uni-app ucharts自定义换行tooltips

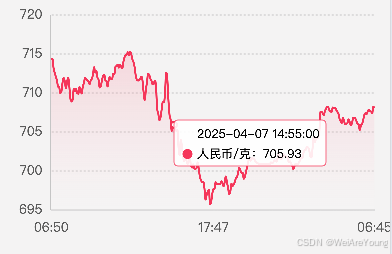

实现效果:

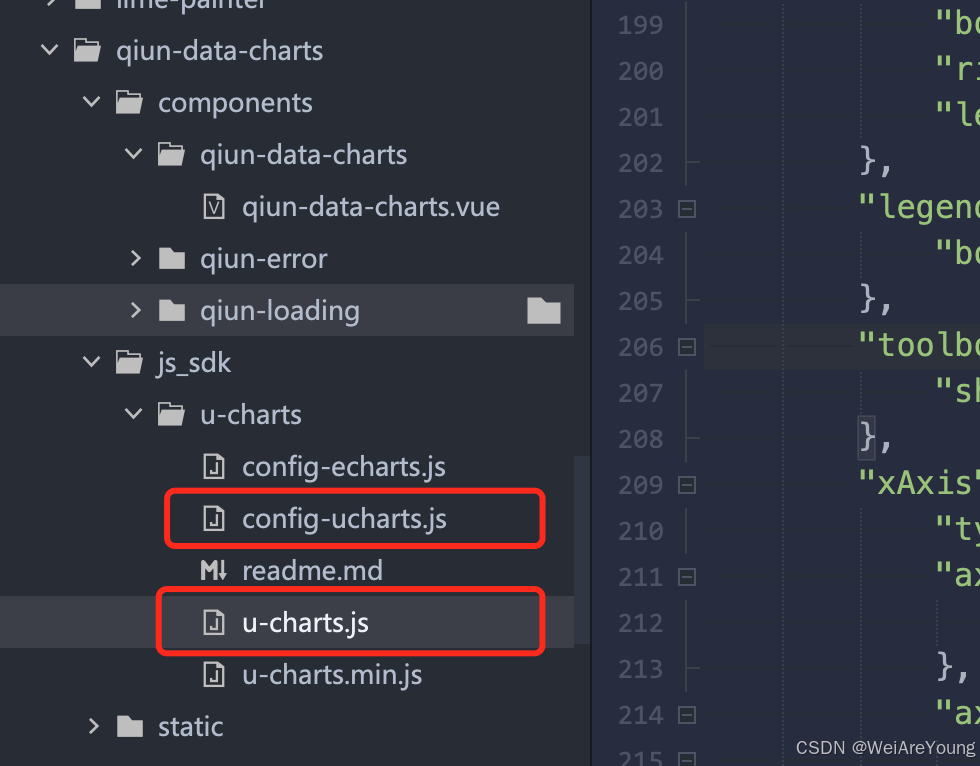

第一步:在uni_modules文件夹下找到config-ucharts.js和u-charts.js文件

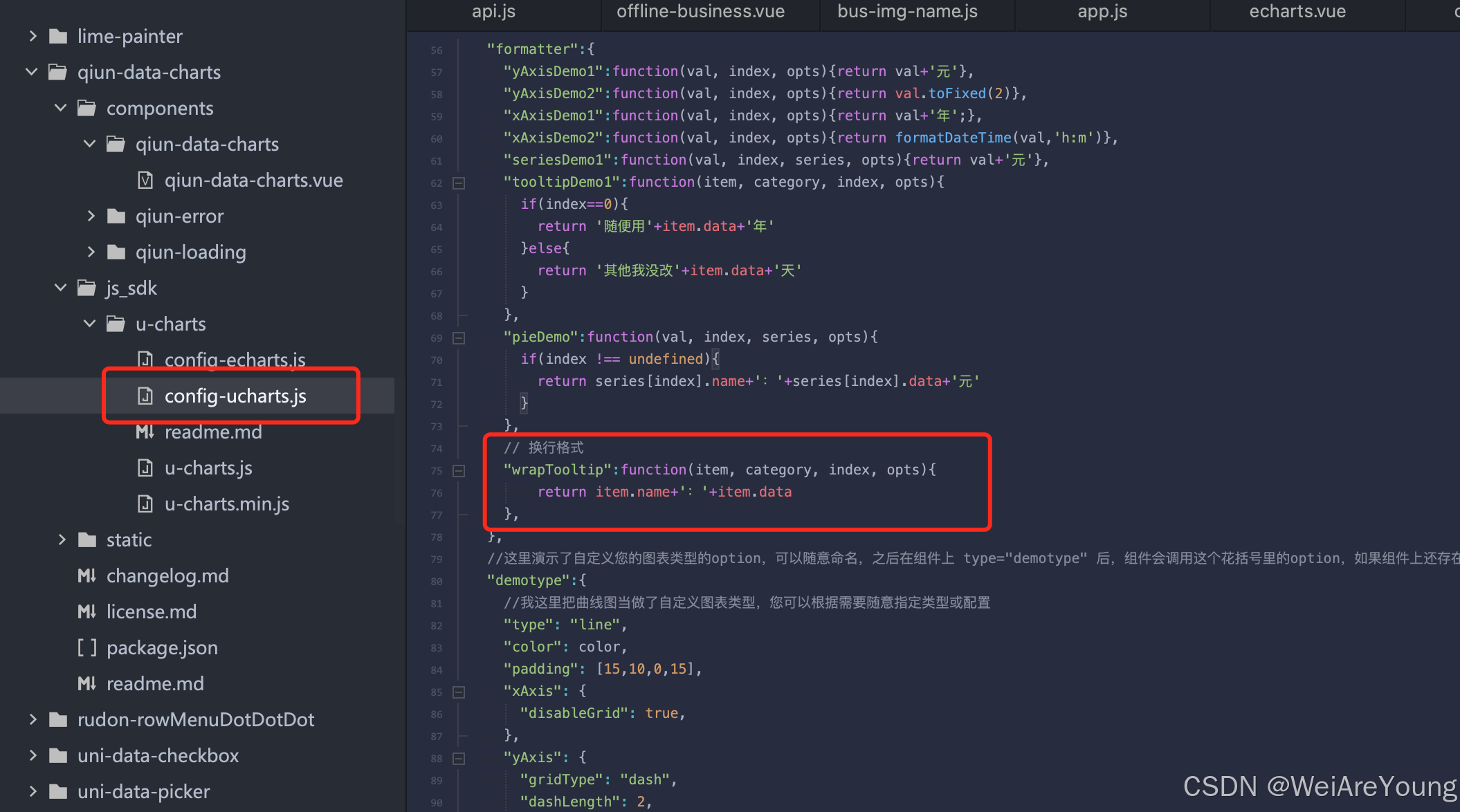

第二步:在config-ucharts.js文件中配置换行格式

复制代码
// 换行格式
	"wrapTooltip":function(item, category, index, opts){
		return item.name+':'+item.data
	},

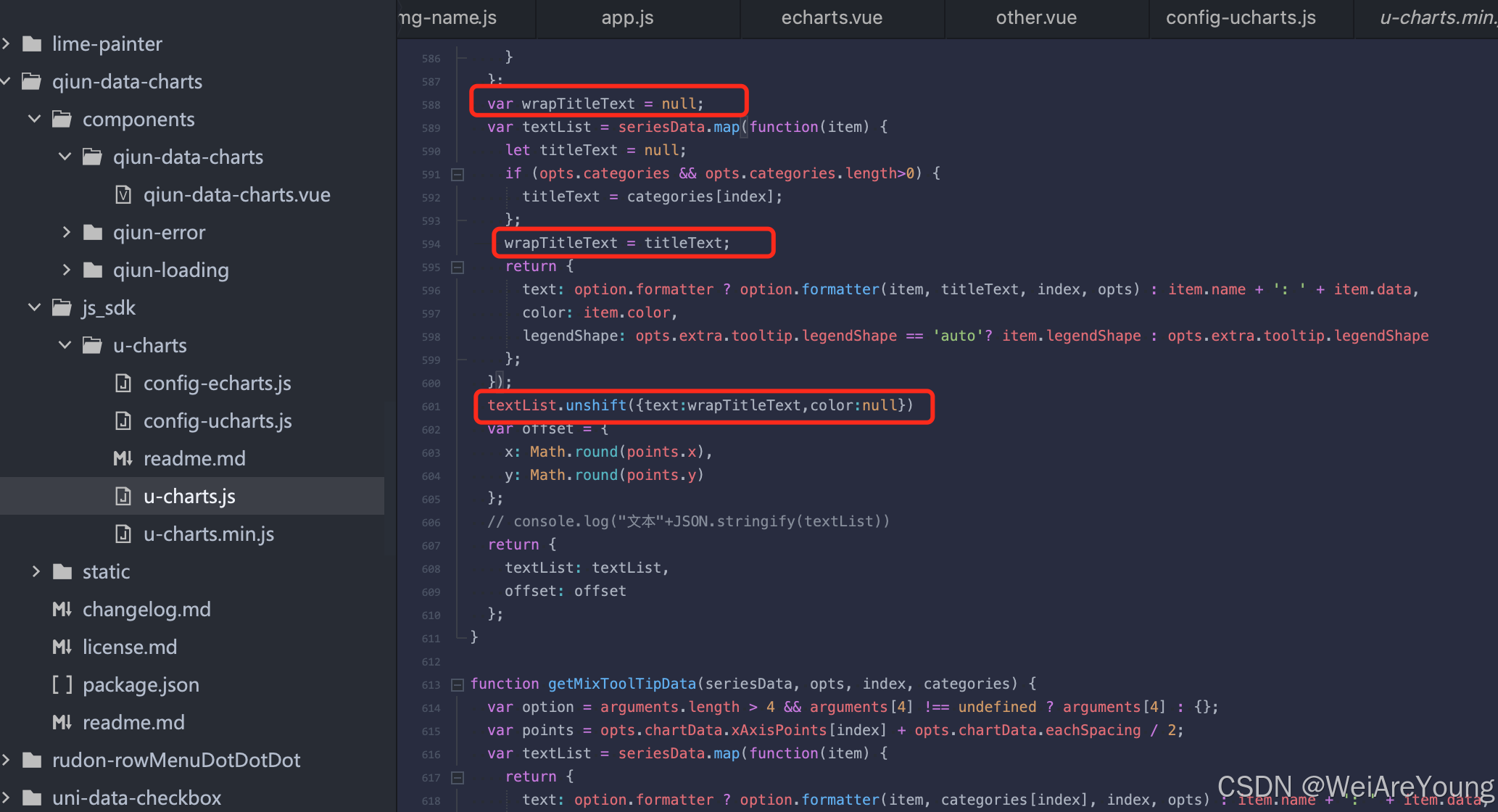

第三步:在u-charts.js文件中找到getToolTipData函数,修改换行文本

复制代码
var wrapTitleText = null;
  var textList = seriesData.map(function(item) {
    let titleText = null;
    if (opts.categories && opts.categories.length>0) {
      titleText = categories[index];
    };
	wrapTitleText = titleText;
    return {
      text: option.formatter ? option.formatter(item, titleText, index, opts) : item.name + ': ' + item.data,
      color: item.color,
      legendShape: opts.extra.tooltip.legendShape == 'auto'? item.legendShape : opts.extra.tooltip.legendShape
    };
  });
  textList.unshift({text:wrapTitleText,color:null})
  var offset = {
    x: Math.round(points.x),
    y: Math.round(points.y)
  };
  // console.log("文本"+JSON.stringify(textList))
  return {
    textList: textList,
    offset: offset
  };

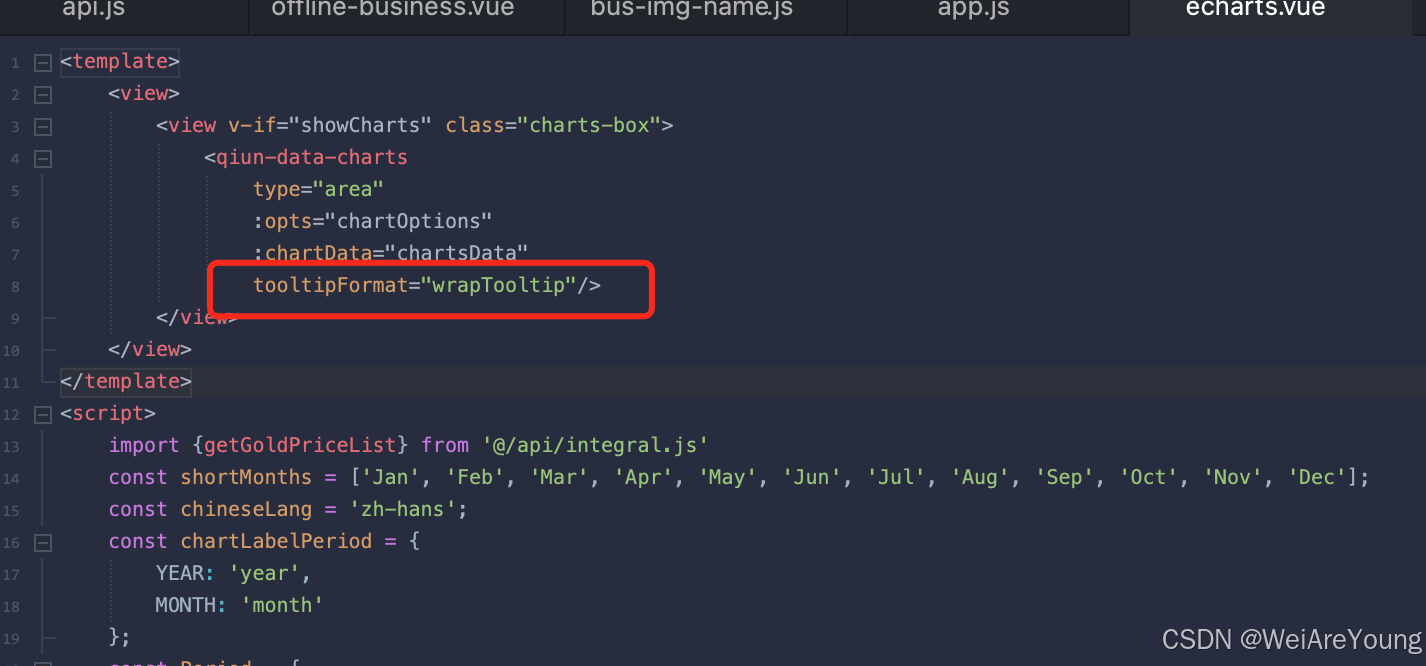

第五步:在图表页面引入提示框格式,tooltipFormat="wrapTooltip"
