MySQL | DQL语句-连接查询


🪄个人博客：https://vite.xingji.fun

什么是连接查询

  1. 从一张表中查询数据称为单表查询。
  2. 从两张或更多张表中联合查询数据称为多表查询，又叫做连接查询。
  3. 什么时候需要使用连接查询？
    1. 比如这样的需求：员工表中有员工姓名，部门表中有部门名字，要求查询每个员工所在的部门名字，这个时候就需要连接查询。

连接查询的分类

  1. 根据语法出现的年代进行分类：
    1. SQL92（这种语法很少用，可以不用学。）
    2. SQL99（我们主要学习这种语法。）
  2. 根据连接方式的不同进行分类：
    1. 内连接
      1. 等值连接
      2. 非等值连接
      3. 自连接
    2. 外连接
      1. 左外连接（左连接）
      2. 右外连接（右连接）

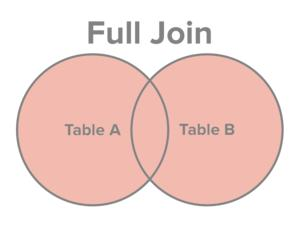

    3. 全连接

笛卡尔积现象

  1. 当两张表进行连接查询时，如果 没有任何条件进行过滤 ，最终的**查询结果条数是 两张表条数的乘积**。为了避免笛卡尔积现象的发生，需要添加条件进行筛选过滤。
  2. 需要注意：添加条件之后，虽然避免了笛卡尔积现象，但是匹配的次数没有减少。
  3. 为了SQL语句的可读性，为了执行效率，建议给表起别名。

例子：

sql 复制代码
mysql> select * from emp;
+-------+--------+-----------+------+------------+---------+---------+--------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO |
+-------+--------+-----------+------+------------+---------+---------+--------+
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |
+-------+--------+-----------+------+------------+---------+---------+--------+
14 rows in set (0.00 sec)

mysql> select * from dept;
+--------+------------+----------+
| DEPTNO | DNAME      | LOC      |
+--------+------------+----------+
|     10 | ACCOUNTING | NEW YORK |
|     20 | RESEARCH   | DALLAS   |
|     30 | SALES      | CHICAGO  |
|     40 | OPERATIONS | BOSTON   |
+--------+------------+----------+
4 rows in set (0.03 sec)

mysql> select e.ename,d.dname from emp e,dept d;
+--------+------------+
| ename  | dname      |
+--------+------------+
| SMITH  | OPERATIONS |
| SMITH  | SALES      |
| SMITH  | RESEARCH   |
| SMITH  | ACCOUNTING |
| ALLEN  | OPERATIONS |
| ALLEN  | SALES      |
| ALLEN  | RESEARCH   |
| ALLEN  | ACCOUNTING |
| WARD   | OPERATIONS |
| WARD   | SALES      |
| WARD   | RESEARCH   |
| WARD   | ACCOUNTING |
| JONES  | OPERATIONS |
| JONES  | SALES      |
| JONES  | RESEARCH   |
| JONES  | ACCOUNTING |
| MARTIN | OPERATIONS |
| MARTIN | SALES      |
| MARTIN | RESEARCH   |
| MARTIN | ACCOUNTING |
| BLAKE  | OPERATIONS |
| BLAKE  | SALES      |
| BLAKE  | RESEARCH   |
| BLAKE  | ACCOUNTING |
| CLARK  | OPERATIONS |
| CLARK  | SALES      |
| CLARK  | RESEARCH   |
| CLARK  | ACCOUNTING |
| SCOTT  | OPERATIONS |
| SCOTT  | SALES      |
| SCOTT  | RESEARCH   |
| SCOTT  | ACCOUNTING |
| KING   | OPERATIONS |
| KING   | SALES      |
| KING   | RESEARCH   |
| KING   | ACCOUNTING |
| TURNER | OPERATIONS |
| TURNER | SALES      |
| TURNER | RESEARCH   |
| TURNER | ACCOUNTING |
| ADAMS  | OPERATIONS |
| ADAMS  | SALES      |
| ADAMS  | RESEARCH   |
| ADAMS  | ACCOUNTING |
| JAMES  | OPERATIONS |
| JAMES  | SALES      |
| JAMES  | RESEARCH   |
| JAMES  | ACCOUNTING |
| FORD   | OPERATIONS |
| FORD   | SALES      |
| FORD   | RESEARCH   |
| FORD   | ACCOUNTING |
| MILLER | OPERATIONS |
| MILLER | SALES      |
| MILLER | RESEARCH   |
| MILLER | ACCOUNTING |
+--------+------------+
56 rows in set (0.01 sec)

说明：

  1. 笛卡尔积现象：查询结果为14*4=56条记录。
  2. 给表起别名：为了避免表名重复，给表起别名。

内连接

什么叫内连接

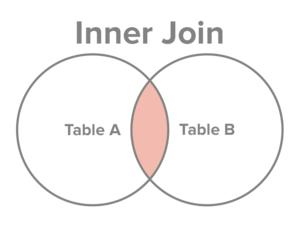

内连接：查询的结果是两张表的交集。

满足条件的记录才会出现在结果集中。

内连接之等值连接

连接时，条件为等量关系。
案例：查询每个员工所在的部门名称，要求显示员工名、部门名。

sql 复制代码
select
	e.ename,d.dname
from
	emp e
inner join
	dept d
on
	e.deptno = d.deptno;

SELECT e.ename, d.dname FROM emp e (inner) JOIN dept d ON e.deptno = d.deptno;

员工表(emp)：

sql 复制代码
mysql> select * from emp;
+-------+--------+-----------+------+------------+---------+---------+--------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO |
+-------+--------+-----------+------+------------+---------+---------+--------+
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |
+-------+--------+-----------+------+------------+---------+---------+--------+
14 rows in set (0.01 sec)

部门表(dept)：

sql 复制代码
mysql> select * from dept;
+--------+------------+----------+
| DEPTNO | DNAME      | LOC      |
+--------+------------+----------+
|     10 | ACCOUNTING | NEW YORK |
|     20 | RESEARCH   | DALLAS   |
|     30 | SALES      | CHICAGO  |
|     40 | OPERATIONS | BOSTON   |
+--------+------------+----------+
4 rows in set (0.00 sec)

::: tip 提示

通过上述员工表和部门表可知，每个员工所在的部门名称是通过deptno字段进行连接的。

:::

内连接之等值连接查询结果:

sql 复制代码
mysql> SELECT e.ename, d.dname FROM emp e JOIN dept d ON e.deptno = d.deptno;
+--------+------------+
| ename  | dname      |
+--------+------------+
| SMITH  | RESEARCH   |
| ALLEN  | SALES      |
| WARD   | SALES      |
| JONES  | RESEARCH   |
| MARTIN | SALES      |
| BLAKE  | SALES      |
| CLARK  | ACCOUNTING |
| SCOTT  | RESEARCH   |
| KING   | ACCOUNTING |
| TURNER | SALES      |
| ADAMS  | RESEARCH   |
| JAMES  | SALES      |
| FORD   | RESEARCH   |
| MILLER | ACCOUNTING |
+--------+------------+
14 rows in set (0.01 sec)

::: tip 提示

  1. 底层也是进行56次匹配，但是由于deptno是主键，所以只匹配一次。

  2. inner可以省略。

    :::

内连接之非等值连接

连接时，条件是非等量关系。

案例：查询每个员工的工资等级，要求显示员工名、工资、工资等级。

sql 复制代码
select
	e.ename,e.sal,s.grade
from
	emp e
join
	salgrade s
on
	e.sal between s.losal and s.hisal;

SELECT e.ename, e.sal, s.grade FROM emp e INNER JOIN salgrade s ON e.sal BETWEEN s.losal AND s.hisal;

员工表(emp)：

sql 复制代码
mysql> select * from emp;
+-------+--------+-----------+------+------------+---------+---------+--------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO |
+-------+--------+-----------+------+------------+---------+---------+--------+
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |
+-------+--------+-----------+------+------------+---------+---------+--------+
14 rows in set (0.00 sec)

工资等级表(salgrade)：

sql 复制代码
mysql> select * from salgrade;
+-------+-------+-------+
| GRADE | LOSAL | HISAL |
+-------+-------+-------+
|     1 |   700 |  1200 |
|     2 |  1201 |  1400 |
|     3 |  1401 |  2000 |
|     4 |  2001 |  3000 |
|     5 |  3001 |  9999 |
+-------+-------+-------+
5 rows in set (0.00 sec)

::: tip 提示

通过上述员工表和工资等级表可知，每个员工的工资等级是通过sal字段进行连接的。

利用between关键字连接losal和hisal进行非等值连接。

:::

内连接之非等值连接查询结果：

sql 复制代码
mysql> SELECT e.ename, e.sal, s.grade FROM emp e INNER JOIN salgrade s ON e.sal BETWEEN s.losal AND s.hisal;
+--------+---------+-------+
| ename  | sal     | grade |
+--------+---------+-------+
| SMITH  |  800.00 |     1 |
| ALLEN  | 1600.00 |     3 |
| WARD   | 1250.00 |     2 |
| JONES  | 2975.00 |     4 |
| MARTIN | 1250.00 |     2 |
| BLAKE  | 2850.00 |     4 |
| CLARK  | 2450.00 |     4 |
| SCOTT  | 3000.00 |     4 |
| KING   | 5000.00 |     5 |
| TURNER | 1500.00 |     3 |
| ADAMS  | 1100.00 |     1 |
| JAMES  |  950.00 |     1 |
| FORD   | 3000.00 |     4 |
| MILLER | 1300.00 |     2 |
+--------+---------+-------+
14 rows in set (0.01 sec)

内连接之自连接

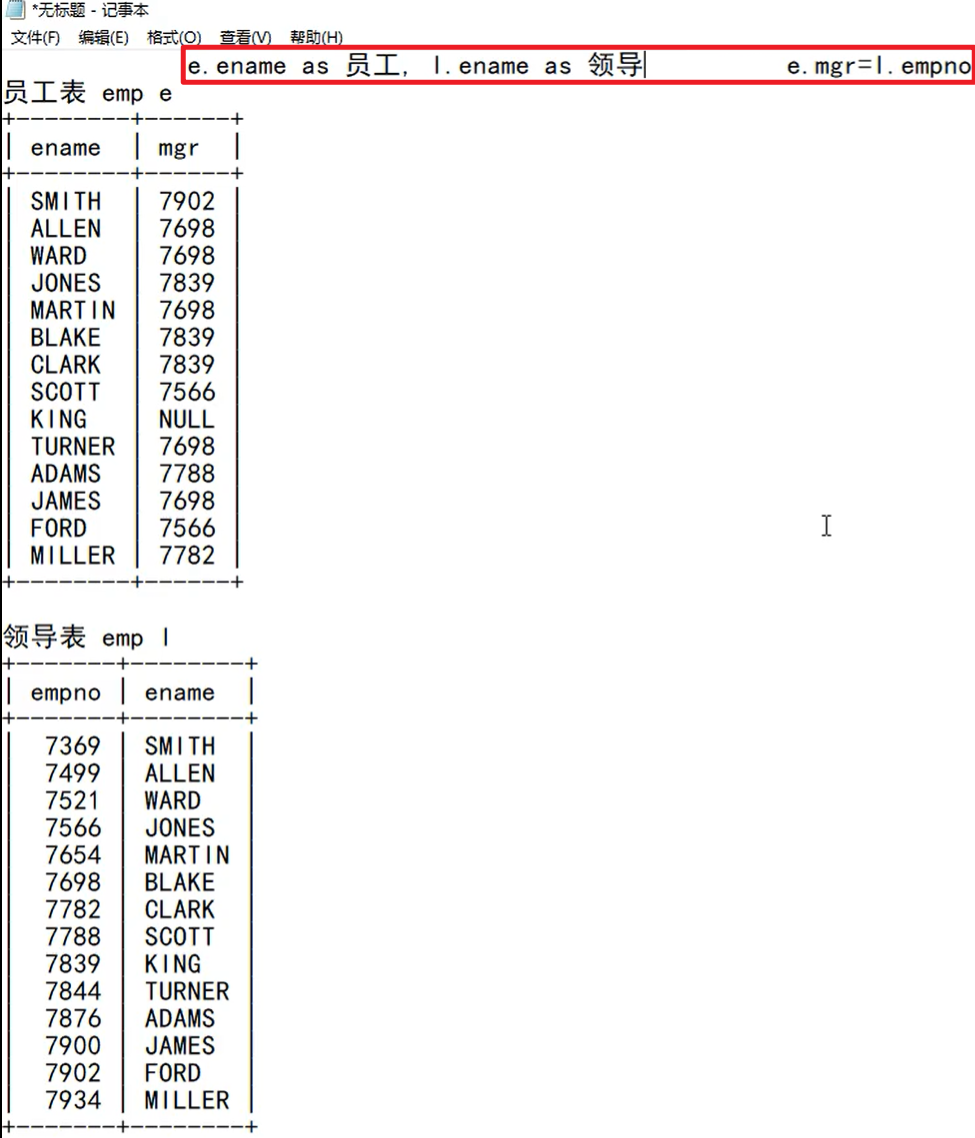

连接时，一张表看做两张表，自己和自己进行连接。
案例：找出每个员工的直属领导，要求显示员工名、领导名。

sql 复制代码
select
	e.ename 员工名, l.ename 领导名
from
	emp e
join
	emp l
on
	e.mgr = l.empno;

内连接之自连接查询结果:

sql 复制代码
mysql> select e.ename 员工, l.ename 领导 from emp e join emp l on e.mgr = l.empno;

+--------+-------+
| 员工   | 领导  |
+--------+-------+
| SMITH  | FORD  |
| ALLEN  | BLAKE |
| WARD   | BLAKE |
| JONES  | KING  |
| MARTIN | BLAKE |
| BLAKE  | KING  |
| CLARK  | KING  |
| SCOTT  | JONES |
| TURNER | BLAKE |
| ADAMS  | SCOTT |
| JAMES  | BLAKE |
| FORD   | JONES |
| MILLER | CLARK |
+--------+-------+
13 rows in set (0.01 sec)

::: 提示

可以发现连接条件是：e.mgr = l.empno（员工的领导编号=领导的员工编号）

注意：KING这个员工没有查询出来。如果想将KING也查询出来，需要使用外连接。

:::

外连接

什么叫外连接

内连接是满足条件的记录查询出来。也就是两张表的交集。
外连接是除了满足条件的记录查询出来，再将其中一张表的记录全部查询出来，另一张表如果没有与之匹配的记录，自动模拟出NULL与其匹配。

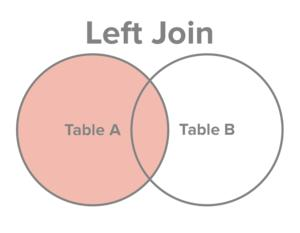

左外连接：

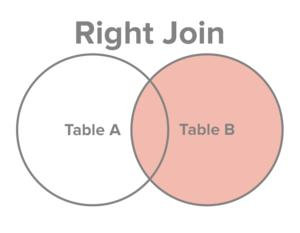

右外连接：

外连接之左外连接（左连接）

案例：查询所有部门信息，并且找出每个部门下的员工。

sql 复制代码
select
  d.*,e.*
from
  dept d
left outer join
  emp e
on
  d.deptno = e.deptno;

左连接查询结果：

sql 复制代码
mysql> select e.*, d.* from dept d left outer join emp e on e.deptno = d.deptno;

+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO | DEPTNO | DNAME      | LOC      |
+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |     30 | SALES      | CHICAGO  |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |     30 | SALES      | CHICAGO  |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |     30 | SALES      | CHICAGO  |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |     30 | SALES      | CHICAGO  |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |     30 | SALES      | CHICAGO  |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |     30 | SALES      | CHICAGO  |
|  NULL | NULL   | NULL      | NULL | NULL       |    NULL |    NULL |   NULL |     40 | OPERATIONS | BOSTON   |
+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
15 rows in set (0.00 sec)

::: 提示

注意：outer可以省略。

任何一个左连接都可以写作右连接。

:::

外连接之右外连接（右连接）

还是上面的案例，可以写作右连接。

sql 复制代码
select
  d.*,e.*
from
  emp e
right outer join
  dept d
on
  d.deptno = e.deptno;

右连接查询结果：

sql 复制代码
mysql> select e.*, d.* from emp e right outer join dept d on e.deptno = d.deptno;

+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO | DEPTNO | DNAME      | LOC      |
+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |     10 | ACCOUNTING | NEW YORK |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |     20 | RESEARCH   | DALLAS   |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |     30 | SALES      | CHICAGO  |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |     30 | SALES      | CHICAGO  |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |     30 | SALES      | CHICAGO  |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |     30 | SALES      | CHICAGO  |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |     30 | SALES      | CHICAGO  |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |     30 | SALES      | CHICAGO  |
|  NULL | NULL   | NULL      | NULL | NULL       |    NULL |    NULL |   NULL |     40 | OPERATIONS | BOSTON   |
+-------+--------+-----------+------+------------+---------+---------+--------+--------+------------+----------+
15 rows in set (0.00 sec)

案例：找出所有员工的上级领导，要求显示员工名和领导名。

sql 复制代码
select
  e.ename 员工名,l.ename 领导名
from
  emp e
left join
  emp l
on
  e.mgr = l.empno;
sql 复制代码
select
  e.ename 员工名,l.ename 领导名
from
  emp l
right join
  emp e
on
  e.mgr = l.empno;

左,右连接查询结果：

sql 复制代码
mysql> select e.ename 员工 ,l.ename 领导 from emp e left join emp l on e.mgr = l.empno; -- 左连接

+--------+-------+
| 员工   | 领导  |
+--------+-------+
| SMITH  | FORD  |
| ALLEN  | BLAKE |
| WARD   | BLAKE |
| JONES  | KING  |
| MARTIN | BLAKE |
| BLAKE  | KING  |
| CLARK  | KING  |
| SCOTT  | JONES |
| KING   | NULL  |
| TURNER | BLAKE |
| ADAMS  | SCOTT |
| JAMES  | BLAKE |
| FORD   | JONES |
| MILLER | CLARK |
+--------+-------+
14 rows in set (0.00 sec)

mysql> select e.ename 员工 ,l.ename 领导 from emp l right join emp e on e.mgr = l.empno; -- 右连接

+--------+-------+
| 员工   | 领导  |
+--------+-------+
| SMITH  | FORD  |
| ALLEN  | BLAKE |
| WARD   | BLAKE |
| JONES  | KING  |
| MARTIN | BLAKE |
| BLAKE  | KING  |
| CLARK  | KING  |
| SCOTT  | JONES |
| KING   | NULL  |
| TURNER | BLAKE |
| ADAMS  | SCOTT |
| JAMES  | BLAKE |
| FORD   | JONES |
| MILLER | CLARK |
+--------+-------+
14 rows in set (0.00 sec)

全连接

::: tip 提示

什么是全连接？

全连接是指将两张或多张表中的所有记录都查询出来，即两张表的并集。

MySQL不支持full join。oracle数据库支持。

:::

两张表数据全部查询出来，没有匹配的记录，各自为对方模拟出NULL进行匹配。

客户表：t_customer

订单表：t_order

案例：查询所有的客户和订单。

sql 复制代码
select
 c.*,o.*
from
 t_customer c
full join
 t_order o
on
 c.cid = o.cid;

全连接查询结果：

sql 复制代码
mysql> select c.*,o.* from t_customer c full join t_order o on c.cid = o.cid; -- 全连接

+--------+-------+-------+-------+
cid | cname   | old  | price | cid
+--------+-------+-------+-------+
1  | zhangsan| 100  | 3400  | 1    |
2  | lisi    | 200  | 6600  | 2    |
3  | wangwu  | NULL | NULL  | NULL |
NULL| NULL    | 300  | 9900 | NULL |
+--------+-------+-------+-------+
4 rows in set (0.00 sec)

解释：
1. 客户 `zhangsan`（cid=1）匹配到订单 `old=100`。
2. 客户 `lisi`（cid=2）匹配到订单 `old=200`。
3. 客户 `wangwu`（cid=3）无订单，订单字段为 `NULL`。
4. 订单 `old=300`（cid=NULL）无客户，客户字段为 `NULL`。

多张表连接

::: tip 提示

什么是多张表连接？

多张表连接是指将多张表按照一定的规则进行连接，从而得到一张新的表。

:::

案例：找出每个员工的部门，并且要求显示每个员工的薪资等级。

sql 复制代码
select
 e.ename,d.dname,s.grade
from
 emp e
join
 dept d
on
 e.deptno = d.deptno
join
 salgrade s
on
 e.sal between s.losal and s.hisal;

多张表连接查询结果：

sql 复制代码
mysql> select * from emp;

+-------+--------+-----------+------+------------+---------+---------+--------+
| EMPNO | ENAME  | JOB       | MGR  | HIREDATE   | SAL     | COMM    | DEPTNO |
+-------+--------+-----------+------+------------+---------+---------+--------+
|  7369 | SMITH  | CLERK     | 7902 | 1980-12-17 |  800.00 |    NULL |     20 |
|  7499 | ALLEN  | SALESMAN  | 7698 | 1981-02-20 | 1600.00 |  300.00 |     30 |
|  7521 | WARD   | SALESMAN  | 7698 | 1981-02-22 | 1250.00 |  500.00 |     30 |
|  7566 | JONES  | MANAGER   | 7839 | 1981-04-02 | 2975.00 |    NULL |     20 |
|  7654 | MARTIN | SALESMAN  | 7698 | 1981-09-28 | 1250.00 | 1400.00 |     30 |
|  7698 | BLAKE  | MANAGER   | 7839 | 1981-05-01 | 2850.00 |    NULL |     30 |
|  7782 | CLARK  | MANAGER   | 7839 | 1981-06-09 | 2450.00 |    NULL |     10 |
|  7788 | SCOTT  | ANALYST   | 7566 | 1987-04-19 | 3000.00 |    NULL |     20 |
|  7839 | KING   | PRESIDENT | NULL | 1981-11-17 | 5000.00 |    NULL |     10 |
|  7844 | TURNER | SALESMAN  | 7698 | 1981-09-08 | 1500.00 |    0.00 |     30 |
|  7876 | ADAMS  | CLERK     | 7788 | 1987-05-23 | 1100.00 |    NULL |     20 |
|  7900 | JAMES  | CLERK     | 7698 | 1981-12-03 |  950.00 |    NULL |     30 |
|  7902 | FORD   | ANALYST   | 7566 | 1981-12-03 | 3000.00 |    NULL |     20 |
|  7934 | MILLER | CLERK     | 7782 | 1982-01-23 | 1300.00 |    NULL |     10 |
+-------+--------+-----------+------+------------+---------+---------+--------+
14 rows in set (0.00 sec)

mysql> select * from dept;

+--------+------------+----------+
| DEPTNO | DNAME      | LOC      |
+--------+------------+----------+
|     10 | ACCOUNTING | NEW YORK |
|     20 | RESEARCH   | DALLAS   |
|     30 | SALES      | CHICAGO  |
|     40 | OPERATIONS | BOSTON   |
+--------+------------+----------+
4 rows in set (0.00 sec)

mysql> select * from salgrade;

+-------+-------+-------+
| GRADE | LOSAL | HISAL |
+-------+-------+-------+
|     1 |   700 |  1200 |
|     2 |  1201 |  1400 |
|     3 |  1401 |  2000 |
|     4 |  2001 |  3000 |
|     5 |  3001 |  9999 |
+-------+-------+-------+
5 rows in set (0.00 sec)

mysql> select
    ->    e.ename,d.dname,s.grade
    -> from
    ->    emp e
    -> join
    ->    dept d
    -> on
    ->    e.deptno = d.deptno
    -> join
    ->    salgrade s
    -> on
    ->    e.sal between s.losal and s.hisal;

+--------+------------+-------+
| ename  | dname      | grade |
+--------+------------+-------+
| SMITH  | RESEARCH   |     1 |
| ALLEN  | SALES      |     3 |
| WARD   | SALES      |     2 |
| JONES  | RESEARCH   |     4 |
| MARTIN | SALES      |     2 |
| BLAKE  | SALES      |     4 |
| CLARK  | ACCOUNTING |     4 |
| SCOTT  | RESEARCH   |     4 |
| KING   | ACCOUNTING |     5 |
| TURNER | SALES      |     3 |
| ADAMS  | RESEARCH   |     1 |
| JAMES  | SALES      |     1 |
| FORD   | RESEARCH   |     4 |
| MILLER | ACCOUNTING |     2 |
+--------+------------+-------+
14 rows in set (0.00 sec)
相关推荐
松涛和鸣2 小时前
72、IMX6ULL驱动实战：设备树（DTS/DTB）+ GPIO子系统+Platform总线
linux·服务器·arm开发·数据库·单片机
likangbinlxa3 小时前
【Oracle11g SQL详解】UPDATE 和 DELETE 操作的正确使用
数据库·sql
r i c k3 小时前
数据库系统学习笔记
数据库·笔记·学习
野犬寒鸦3 小时前
从零起步学习JVM || 第一章：类加载器与双亲委派机制模型详解
java·jvm·数据库·后端·学习
IvorySQL4 小时前
PostgreSQL 分区表的 ALTER TABLE 语句执行机制解析
数据库·postgresql·开源
·云扬·4 小时前
MySQL 8.0 Redo Log 归档与禁用实战指南
android·数据库·mysql
IT邦德4 小时前
Oracle 26ai DataGuard 搭建(RAC到单机)
数据库·oracle
惊讶的猫5 小时前
redis分片集群
数据库·redis·缓存·分片集群·海量数据存储·高并发写
不爱缺氧i5 小时前
完全卸载MariaDB
数据库·mariadb
纤纡.5 小时前
Linux中SQL 从基础到进阶：五大分类详解与表结构操作（ALTER/DROP）全攻略
linux·数据库·sql
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03openclaw配置教程（linux+局域网ollama）04UV安装并设置国内源05AI 规范驱动开发“三剑客”深度对比：Spec-Kit、Kiro 与 OpenSpec 实战指南06Linux下V2Ray安装配置指南07openclaw使用nginx反代部署过程 与disconnected (1008): pairing required解决08在Trae中使用Pencil MCP09Claude Code Skills 实用使用手册10Vue-skills的中文文档
