搭建nginx的负载均衡

1、编写一个configMap的配置文件

复制代码
events {
    worker_connections 1024;  # 定义每个worker进程的最大连接数
}

http {
    # 定义通用代理参数(替代proxy_params文件)
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;

    proxy_connect_timeout 5s;
    proxy_read_timeout 10s;
    proxy_send_timeout 10s;

    proxy_next_upstream error timeout http_500 http_502 http_503 http_504;
    proxy_next_upstream_tries 3;

    upstream backend {
        #ip_hash;  # 基于客户端IP的会话保持
        server 172.16.45.33:8081 max_fails=3 fail_timeout=30s;
        server 172.16.45.33:8084 max_fails=3 fail_timeout=30s;
    }

    server {
        listen 8045;

        location / {
            proxy_pass http://backend;

            # 如果不需要单独的proxy_params文件,可以在这里直接包含参数
            # 或者保留include指令但确保文件存在
        }

        # 添加健康检查端点
        location = /health {
            access_log off;
            return 200 "OK";
            add_header Content-Type text/plain;
        }
    }
}

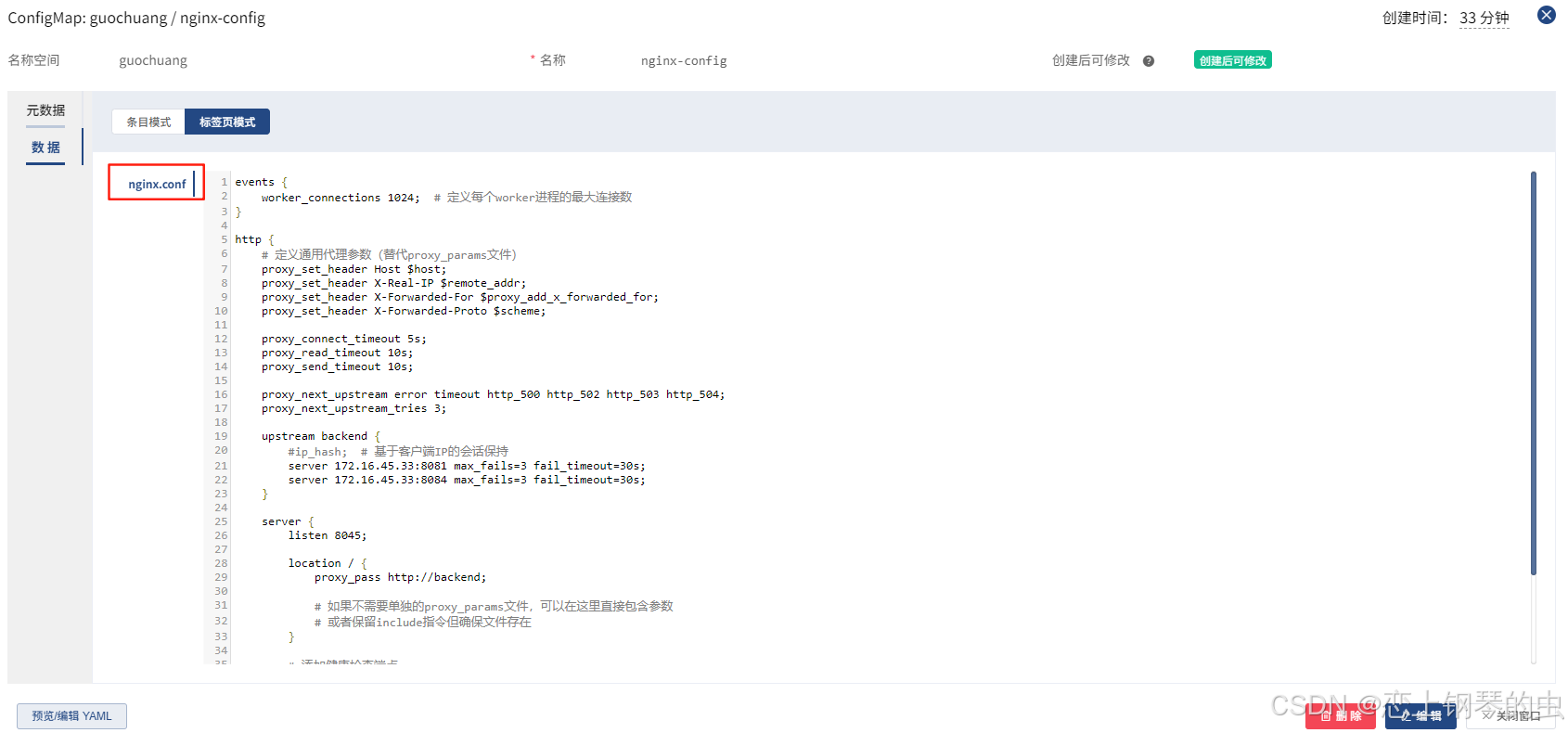

如下,key为nginx.conf

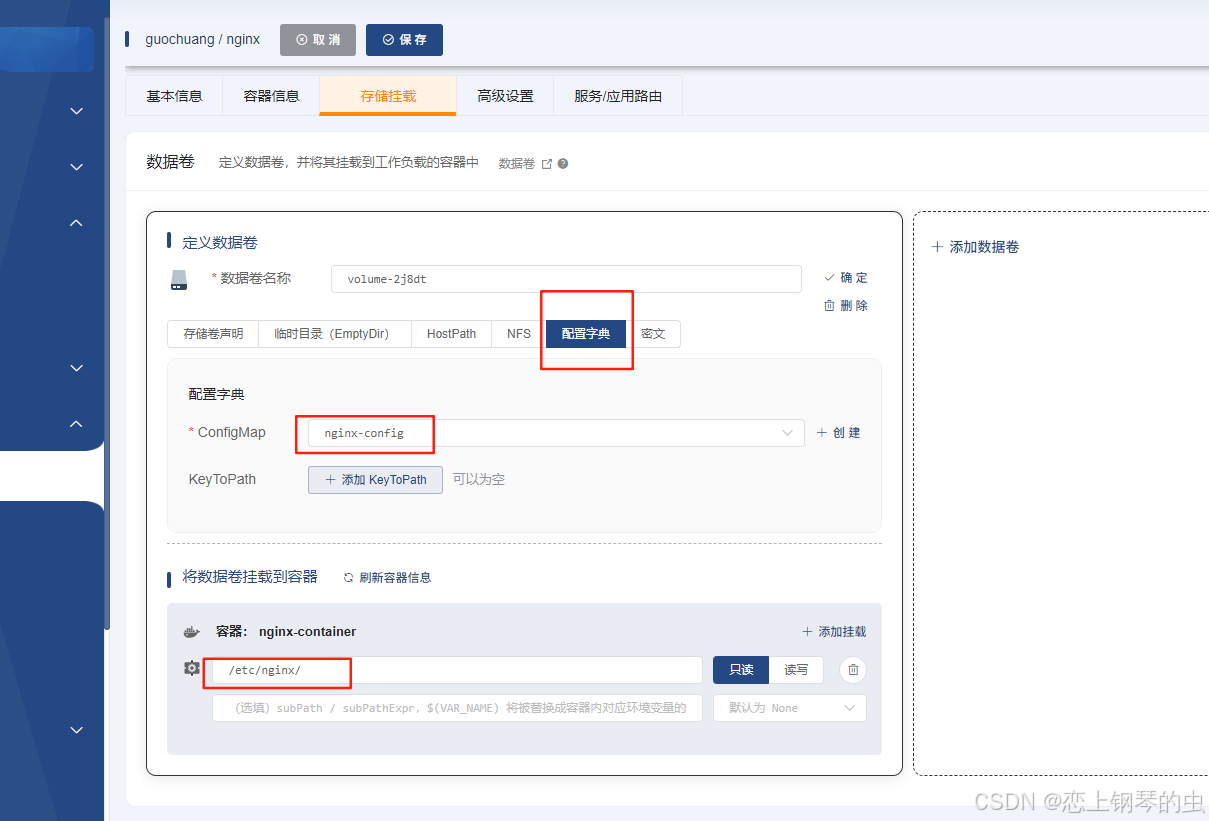

2、把该configMap的配置文件映射到容器的/ect/nginx/目录下

3、点击保存,后会启动nginx的服务。

4、访问http://ip:8045会路由到不同的后端服务。
