FFmpeg avformat_open_input函数分析

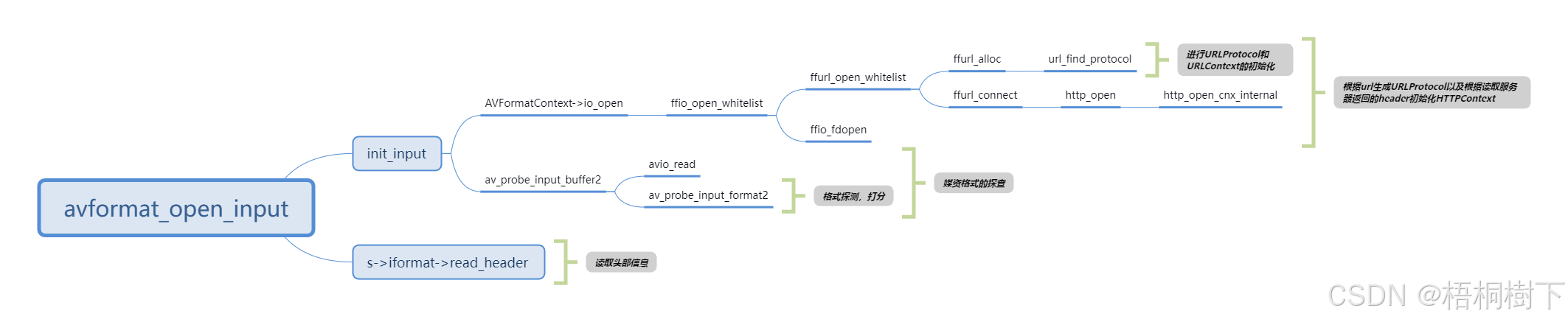

函数内部的总体流程如下：

avformat_open_input 精简后的代码如下：

c 复制代码

int avformat_open_input(AVFormatContext **ps, const char *filename,
                        ff_const59 AVInputFormat *fmt, AVDictionary **options)
{
    AVFormatContext *s = *ps;
    int i, ret = 0;
    AVDictionary *tmp = NULL;

    if (!s && !(s = avformat_alloc_context()))
        return AVERROR(ENOMEM);
    if (fmt)
        s->iformat = fmt;

    if (options)
        av_dict_copy(&tmp, *options, 0);

    if (s->pb) // must be before any goto fail
        s->flags |= AVFMT_FLAG_CUSTOM_IO;

    if ((ret = init_input(s, filename, &tmp)) < 0)
        goto fail;
    s->probe_score = ret;

    if (!(s->flags&AVFMT_FLAG_PRIV_OPT) && s->iformat->read_header)
        if ((ret = s->iformat->read_header(s)) < 0)
            goto fail;

    if (options) {
        av_dict_free(options);
        *options = tmp;
    }
    *ps = s;
    return 0;

close:
    if (s->iformat->read_close)
        s->iformat->read_close(s);
fail:
    av_dict_free(&tmp);
    if (s->pb && !(s->flags & AVFMT_FLAG_CUSTOM_IO))
        avio_closep(&s->pb);
    avformat_free_context(s);
    *ps = NULL;
    return ret;
}

主要是两个步骤：init_input 和 read_header.

read_header 会调用对应解封装器的 read_header 接口进行解析，如 mp4 则调用 mov_read_header，解析 mp4 元数据，建立索引.

init_input 分析.

这部分会涉及到以上几个主要的结构体.

AVFormatContext.pb 指向了 AVIOContext，AVIOContext 提供了统一的接口处理各种输入/输出操作，内置缓冲区.

URLContext 位于 AVIOContext 层次下，封装不同协议的实现细节，使上层 AVIOContext 可以统一访问各种输入/输出源. URLContext.prot 指向 URLProtocol，priv_data 指向具体的协议对象 (如 HTTPContext、FileContext). URLProtocol 类似于虚函数表定义接口，由具体协议提供实现.

c 复制代码

/* Open input file and probe the format if necessary. */
static int init_input(AVFormatContext *s, const char *filename,
                      AVDictionary **options)
{
    int ret;
    AVProbeData pd = { filename, NULL, 0 };
    int score = AVPROBE_SCORE_RETRY;

    if (s->pb) {//如果自定义了 AVIOContext
        s->flags |= AVFMT_FLAG_CUSTOM_IO;
        if (!s->iformat)//如果没有指定 AVInputFormat，则由 ffmpeg 去解析推测
            return av_probe_input_buffer2(s->pb, &s->iformat, filename,
                                         s, 0, s->format_probesize);
        else if (s->iformat->flags & AVFMT_NOFILE)
            av_log(s, AV_LOG_WARNING, "Custom AVIOContext makes no sense and "
                                      "will be ignored with AVFMT_NOFILE format.\n");
        return 0;
    }

    if ((s->iformat && s->iformat->flags & AVFMT_NOFILE) ||
        (!s->iformat && (s->iformat = av_probe_input_format2(&pd, 0, &score))))
        return score;

    //打开文件读取内容再调用 av_probe_input_buffer2 推测格式
    if ((ret = s->io_open(s, &s->pb, filename, AVIO_FLAG_READ | s->avio_flags, options)) < 0)
        return ret;

    if (s->iformat)
        return 0;
    return av_probe_input_buffer2(s->pb, &s->iformat, filename,
                                 s, 0, s->format_probesize);
}

s->io_open 指向了 ffio_open_whitelist

c 复制代码

int ffio_open_whitelist(AVIOContext **s, const char *filename, int flags,
                         const AVIOInterruptCB *int_cb, AVDictionary **options,
                         const char *whitelist, const char *blacklist
                        )
{
    URLContext *h;
    int err;

    *s = NULL;
    //创建 URLContext 对象，调用 ffurl_connect 建立连接
    err = ffurl_open_whitelist(&h, filename, flags, int_cb, options, whitelist, blacklist, NULL);
    if (err < 0)
        return err;
    //创建 AVIOContext 对象并初始化
    err = ffio_fdopen(s, h);
    if (err < 0) {
        ffurl_close(h);
        return err;
    }
    return 0;
}

c 复制代码

int ffurl_open_whitelist(URLContext **puc, const char *filename, int flags,
                         const AVIOInterruptCB *int_cb, AVDictionary **options,
                         const char *whitelist, const char* blacklist,
                         URLContext *parent)
{
    AVDictionaryEntry *e;
    /************************************************
    根据 filename 查找协议 (URLProtocol), 并创建 URLContext 对象，URLContext->prot 关联了 URLProtocol
    如是 http 协议则返回的结果为 ff_http_protocol
    const URLProtocol ff_http_protocol = {
    .name                = "http",
    .url_open2           = http_open,
    .url_accept          = http_accept,
    .url_handshake       = http_handshake,
    .url_read            = http_read,
    .url_write           = http_write,
    .url_seek            = http_seek,
    .url_close           = http_close,
    .priv_data_size      = sizeof(HTTPContext),
    .priv_data_class     = &http_context_class
    };
    ***************************************************/
    int ret = ffurl_alloc(puc, filename, flags, int_cb);
    if (ret < 0)
        return ret;

    //......

    //建立连接，打开对应的协议，如 http_open
    ret = ffurl_connect(*puc, options);

    if (!ret)
        return 0;
fail:
    ffurl_closep(puc);
    return ret;
}

ffurl_connect -> http_open -> http_open_cnx -> http_open_cnx_internal

c 复制代码

//主要完成底层 protocol(tcp) 的生成，以及通过底层 protocol 与服务器进行握手
static int http_open_cnx_internal(URLContext *h, AVDictionary **options)
{
    const char *path, *proxy_path, *lower_proto = "tcp", *local_path;

    char hostname[1024], hoststr[1024], proto[10];
    char auth[1024], proxyauth[1024] = "";
    char path1[MAX_URL_SIZE];
    char buf[1024], urlbuf[MAX_URL_SIZE];
    int port, use_proxy, err, location_changed = 0;

    HTTPContext *s = h->priv_data;
    av_url_split(proto, sizeof(proto), auth, sizeof(auth),
                 hostname, sizeof(hostname), &port,
                 path1, sizeof(path1), s->location);
    ff_url_join(hoststr, sizeof(hoststr), NULL, NULL, hostname, port, NULL);

    //......

    //拼凑 lower protocol 字符串(buf) -> tcp://{hostname}:{port}
    ff_url_join(buf, sizeof(buf), lower_proto, NULL, hostname, port, NULL);
    //s: HTTPContext, s->hd: URLContext
    if (!s->hd) {
        //调用 ffurl_open_whitelist 生成 ff_tcp_protocol
        err = ffurl_open_whitelist(&s->hd, buf, AVIO_FLAG_READ_WRITE,
                                   &h->interrupt_callback, options,
                                   h->protocol_whitelist, h->protocol_blacklist, h);
        if (err < 0)
            return err;
    }
    //进行 http 连接
    //URLProtocol 对应 ff_http_protocol，URLContext->priv_data 对应 HTTPContext，
    //HTTPContext 嵌套的 URLContext，其 URLProtocol 对应着 ff_tcp_protocol
    err = http_connect(h, path, local_path, hoststr,
                       auth, proxyauth, &location_changed);
    if (err < 0)
        return err;

    return location_changed;
}

c 复制代码

int ffio_fdopen(AVIOContext **s, URLContext *h)
{
    uint8_t *buffer = NULL;
    int buffer_size, max_packet_size;
    //......
    //申请一个读写缓冲 buffer
    buffer = av_malloc(buffer_size);
    if (!buffer)
        return AVERROR(ENOMEM);

    //分配 AVIOContext 对象
    *s = avio_alloc_context(buffer, buffer_size, h->flags & AVIO_FLAG_WRITE, h,
                            (int (*)(void *, uint8_t *, int))  ffurl_read,
                            (int (*)(void *, uint8_t *, int))  ffurl_write,
                            (int64_t (*)(void *, int64_t, int))ffurl_seek);
    if (!*s)
        goto fail;

    //初始化相关变量
    // .......

    (*s)->seekable = h->is_streamed ? 0 : AVIO_SEEKABLE_NORMAL;
    if(h->prot) {
        (*s)->read_pause = (int (*)(void *, int))h->prot->url_read_pause;
        (*s)->read_seek  =
            (int64_t (*)(void *, int, int64_t, int))h->prot->url_read_seek;

        if (h->prot->url_read_seek)
            (*s)->seekable |= AVIO_SEEKABLE_TIME;
    }
    (*s)->short_seek_get = (int (*)(void *))ffurl_get_short_seek;
    (*s)->av_class = &ff_avio_class;
    return 0;
fail:
    av_freep(&buffer);
    return AVERROR(ENOMEM);
}

c 复制代码

int av_probe_input_buffer2(AVIOContext *pb, ff_const59 AVInputFormat **fmt,
                          const char *filename, void *logctx,
                          unsigned int offset, unsigned int max_probe_size)
{
    AVProbeData pd = { filename ? filename : "" };
    uint8_t *buf = NULL;
    int ret = 0, probe_size, buf_offset = 0;
    int score = 0;
    int ret2;
    //......
    for (probe_size = PROBE_BUF_MIN; probe_size <= max_probe_size && !*fmt;
         probe_size = FFMIN(probe_size << 1,
                            FFMAX(max_probe_size, probe_size + 1))) {//循环调整 probe_size
        score = probe_size < max_probe_size ? AVPROBE_SCORE_RETRY : 0;

        /* Read probe data. */
        if ((ret = av_reallocp(&buf, probe_size + AVPROBE_PADDING_SIZE)) < 0)//重新分配 buf
            goto fail;
        //调用 avio 接口读取数据
        if ((ret = avio_read(pb, buf + buf_offset,
                             probe_size - buf_offset)) < 0) {
            /* Fail if error was not end of file, otherwise, lower score. */
            if (ret != AVERROR_EOF)
                goto fail;

            score = 0;
            ret   = 0;          /* error was end of file, nothing read */
        }
        buf_offset += ret;
        if (buf_offset < offset)
            continue;
        pd.buf_size = buf_offset - offset;
        pd.buf = &buf[offset];

        memset(pd.buf + pd.buf_size, 0, AVPROBE_PADDING_SIZE);

        /* Guess file format. */
        *fmt = av_probe_input_format2(&pd, 1, &score);//遍历每一个注册的解封装器的 read_probe 接口探测并打分，最终选择出一个分数最高的格式
        if (*fmt) {
            /* This can only be true in the last iteration. */
            if (score <= AVPROBE_SCORE_RETRY) {
                av_log(logctx, AV_LOG_WARNING,
                       "Format %s detected only with low score of %d, "
                       "misdetection possible!\n", (*fmt)->name, score);
            } else
                av_log(logctx, AV_LOG_DEBUG,
                       "Format %s probed with size=%d and score=%d\n",
                       (*fmt)->name, probe_size, score);
        }
    }

    if (!*fmt)
        ret = AVERROR_INVALIDDATA;

fail:
    /* Rewind. Reuse probe buffer to avoid seeking. */
    ret2 = ffio_rewind_with_probe_data(pb, &buf, buf_offset);
    if (ret >= 0)
        ret = ret2;

    av_freep(&pd.mime_type);
    return ret < 0 ? ret : score;
}
