vue 不完美的多标签页解决方案

背景

多标签页多用在中后台管理系统,能够让用户同时打开多个标签页,而且不会丢失之前填写的内容,操作起来会比较方便。虽然部分开源项目有多标签页的功能,但就体验来看,算不上特别好。

目标

  1. 可以通过router.push实现打开标签页
  2. 同一路由组件可以多开并且数据能够缓存下来
  3. 不需要处理是否缓存导致的生命周期不一致的问题
  4. 多标签页可以关闭,同时KeepAlive中的缓存清除

存在的问题

要实现多标签页的缓存,最简单的方法就是用RouterView配合KeepAlive。

vue 复制代码
<RouterView v-slot="{ Component }">
  <KeepAlive>
    <component :is="Component" />
  </KeepAlive>
</RouterView>

然而,这个方案存在几个问题:

  1. 不能重复打开同一个路由,而是原有的组件被激活
  2. 组件生命周期发生变化

不能重复打开路由

如果给路由添加参数,打开第一次没有任何问题,但如果换另一个参数打开,还会是之前的页面,因为组件被缓存下来了。

例如:

新增一个路由 counter,在页面上添加RouterLink,并使用不同的参数

vue 复制代码
<template>
  <header>
    <img alt="Vue logo" class="logo" src="@/assets/logo.svg" width="125" height="125" />
    <div class="wrapper">
      <HelloWorld msg="You did it!" />
      <nav>
        <RouterLink to="/home">Home</RouterLink>
        <RouterLink to="/about">About</RouterLink>
        <RouterLink to="/counter?id=1">Counter 1</RouterLink>
        <RouterLink to="/counter?id=2">Counter 2</RouterLink>
      </nav>
    </div>
  </header>
<RouterView v-slot="{ Component }">
  <KeepAlive>
    <component :is="Component" />
  </KeepAlive>
</RouterView>
</template>

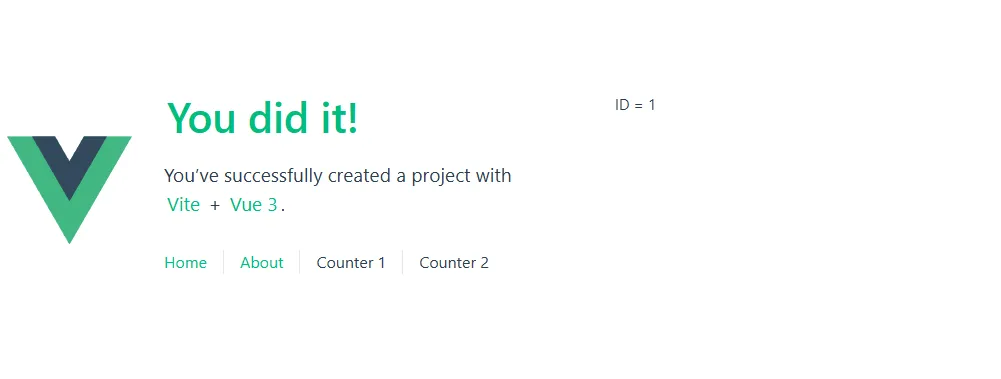

然后再Counter组件中获取id参数,分别点击Counter 1和Counter 2,会发现点击Counter 1时获取到的id是1,点击Counter 2时却没有任何变化,而且两个RouterLink同时是激活状态。

组件生命周期变化

和上一个问题有所关联,因为组件没有重新加载,在需要重新获取数据时,KeepAlive改变了组件的生命周期,添加了onActivatedonDeactivated生命周期。

添加一个组件测试生命周期:

vue 复制代码
<template>
  <div class="about">
    <h1>This is an about page</h1>
  </div>
</template>

<script setup>

import { onMounted, onUpdated, onUnmounted, onBeforeMount, onBeforeUpdate, onBeforeUnmount, onActivated, onDeactivated } from 'vue'

onMounted(() => { console.log("onMounted") })
onUpdated(() => { console.log("onUpdated") })
onUnmounted(() => { console.log("onUnmounted") })
onBeforeMount(() => { console.log("onBeforeMount") })
onBeforeUpdate(() => { console.log("onBeforeUpdate") })
onBeforeUnmount(() => { console.log("onBeforeUnmount") })
onActivated(() => { console.log("onActivated") })
onDeactivated(() => { console.log("onDeactivated") })
</script>

<style>
@media (min-width: 1024px) {
  .about {
    min-height: 100vh;
    display: flex;
    align-items: center;
  }
}
</style>

再修改App.vue

vue 复制代码
<template>
  <header>
    <img alt="Vue logo" class="logo" src="@/assets/logo.svg" width="125" height="125" />

    <div class="wrapper">
      <HelloWorld msg="You did it!" />
      <nav>
        <RouterLink to="/home">Home</RouterLink>
        <RouterLink to="/about">About</RouterLink>
        <RouterLink to="/counter?id=1">Counter 1</RouterLink>
        <RouterLink to="/counter?id=2">Counter 2</RouterLink>
      </nav>
    </div>
  </header>

  <RouterView v-slot="{ Component }">
    <!-- <KeepAlive> -->
      <component :is="Component" />
    <!-- </KeepAlive> -->
  </RouterView>
</template>

<script setup>
import { watch } from 'vue'
import { RouterLink, RouterView, useRoute } from 'vue-router'
import HelloWorld from './components/HelloWorld.vue'

const route = useRoute()

watch(route, () => {
  console.log("页面切换", route.fullPath)
})

</script>

先从Home切换到About再切换回Home再切换回About。

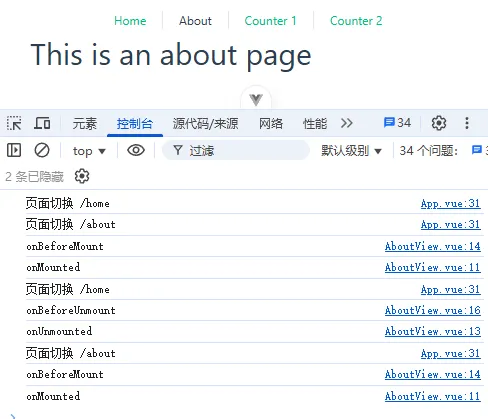

查看在不使用KeepAlive切换页面时候的输出,onBeforeMount -> onMounted -> onBeforeUnmount -> onUnMounted 循环

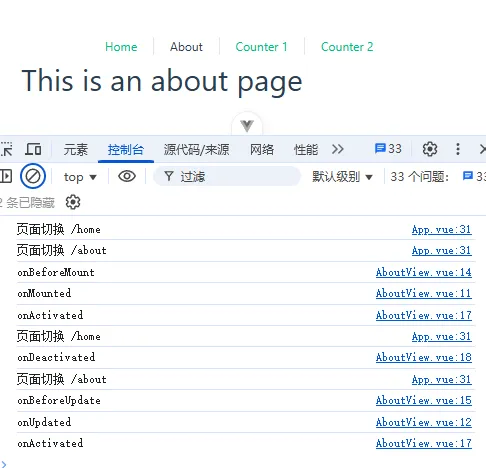

使用KeepAlive的情况,情况就复杂很多,每次切换到页面时会激活onActivated钩子,正常情况下可以通过onActivated钩子获取路由参数,重新获取数据。

问题在于:如果组件可以在缓存与不缓存中切换,在获取数据时,需要考虑是写在onMounted里还是onActivated里,写在onMounted中时如果组件会被服用,需要处理路由参数变化重新获取数据;写在onActivated里,需要考虑组件不缓存了钩子函数不会被调用的情况。

解决方案

重复打开组件 & 生命周期变化

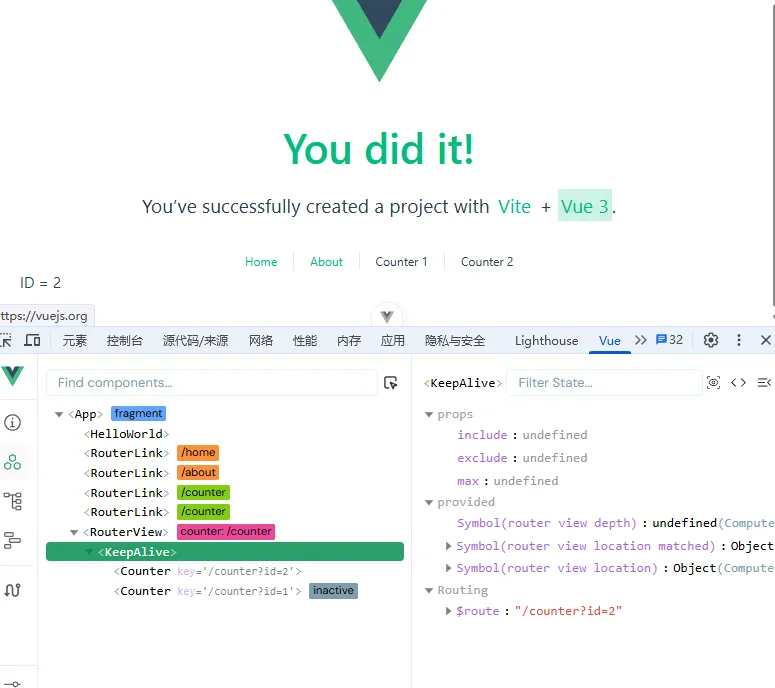

这个问题很好解决,只需要给KeepAlive中的component加上不同的key就可以实现,key可以通过router.fullPath来计算,这样KeepAlive中就可以缓存同一个组件多次。

vue 复制代码
<RouterView v-slot="{ Component, route }">
  <KeepAlive>
    <component :is="Component" :key="route.fullPath" />
  </KeepAlive>
</RouterView>

同时,修改下Counter组件,查看生命周期

vue 复制代码
<template>
    <div> ID = {{ id }}</div>
</template>

<script setup>

import { useRoute } from 'vue-router'
import { onMounted, onUpdated, onUnmounted, onBeforeMount, onBeforeUpdate, onBeforeUnmount, onActivated, onDeactivated } from 'vue'

const route = useRoute()
const id = route.query.id

onMounted(() => { console.log(route.fullPath, "onMounted") })
onUpdated(() => { console.log(route.fullPath, "onUpdated") })
onUnmounted(() => { console.log(route.fullPath, "onUnmounted") })
onBeforeMount(() => { console.log(route.fullPath, "onBeforeMount") })
onBeforeUpdate(() => { console.log(route.fullPath, "onBeforeUpdate") })
onBeforeUnmount(() => { console.log(route.fullPath, "onBeforeUnmount") })
onActivated(() => { console.log(route.fullPath, "onActivated") })
onDeactivated(() => { console.log(route.fullPath, "onDeactivated") })
</script>

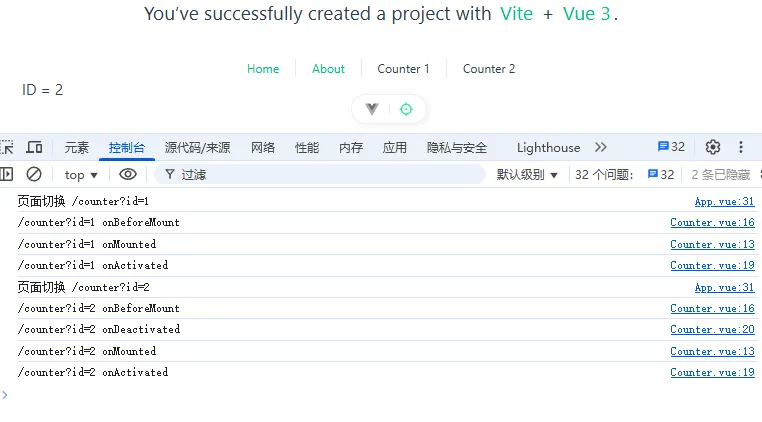

会发现,虽然是同一个组件,但生命周期也独立了,也就不需要考虑路由参数变化时重新获取数据,只需要在onMounted时获取一次数据就可以了。

关闭标签页

上面的问题好像一下就解决了,但第三个目标没有实现,这也是最难的一个问题。

KeepAlive可以通过给component添加不同的key达到路由多开的效果,但是却不能用key删除,KeepAlive只能通过exclude参数使用组件名称删除缓存。

这下问题麻烦了,虽然使用不同的key多开了路由,但路由的组件名称是相同的,也就是说,就算能多开了,关闭却只能全部关闭,这种是不行的。

思索后,想到了下面的方案:

不使用KeepAlive,通过监听route,变化后就向list中添加达到打开标签页的功能,渲染list中的所有组件,然后为了让组件数据缓存下来,不能使用v-if而是使用v-show来隐藏组件。

验证方案

监听route,将访问过的路由都保存下来作为打开过的标签页,当前route作为激活的标签页

编写一个TagView组件,替代RouterView+KeepAlive,关闭的时候直接删除tagView就可以

vue 复制代码
<template>
  <div class="tags">
    <div class="tag" v-for="tagView in tagViews" :class="{ active: tagView.key === currentTagView?.key }"
     @click="router.push(tagView.route)">
      {{ tagView.title }}</div>
  </div>
  <div class="content">
    <template v-for="tagView in tagViews" :key="tagView.key">
      <Component :is="tagView.component" v-show="tagView.key === currentTagView.key" />
    </template>
  </div>
</template>

<script setup>

import { inject, ref, shallowRef, toValue, watch } from 'vue'
import { useRoute, useRouter, viewDepthKey } from 'vue-router'

const route = useRoute()
const router = useRouter()

const tagViews = ref([])
const currentTagView = ref(null)
// 参考了vue官方的RouterView, 是RouterView嵌套的深度
const routerViewDepth = inject(viewDepthKey, 0)

const routeKey = (route) => {
  return route.fullPath
}

const routeTitle = (route) => {
  // 还没有设计title,先用fullPath替代
  return route.fullPath
}

const toTagView = (route) => {
  const depth = toValue(routerViewDepth)
  return {
    title: routeTitle(route),
    key: routeKey(route),
    route: { ...route },
    component: shallowRef(route.matched[depth]?.components['default'])
  }
}

watch(route, () => {
  // 判断是否已存在,存在则不添加
  const key = routeKey(route)
  let tagView = tagViews.value.find(tagView => tagView.key === key)
  if (!tagView) {
    tagView = toTagView(route)
    tagViews.value.push(tagView)
  }
  currentTagView.value = tagView
})

</script>

<style scoped>
.tags {
  gap: 8px;
  padding: 4px;
  display: flex;
  border: 1px solid #ccc;
}

.tag {
  padding: 4px 12px;
  border: 1px solid #ccc;
}

.tag.active {
  color: #fff;
  background-color: #409EFF;
}
</style>

然后在App.vue中使用

vue 复制代码
<template>
  <div class="left-menu">
    <RouterLink to="/counter?id=1">Counter 1</RouterLink>
    <RouterLink to="/counter?id=2">Counter 2</RouterLink>
  </div>
  <div class="right-content">
    <TagView />
  </div>
</template>

<script setup>
import { watch } from 'vue'
import TagView from './components/TagView.vue'
import { RouterLink, useRoute } from 'vue-router'

const route = useRoute()

watch(route, () => {
  console.log("页面切换", route.fullPath)
})

</script>


<style scoped>
.left-menu {
  display: flex;
  padding: 8px;
  width: 220px;
  border: 1px solid #ccc;
  flex-direction: column;
}

.right-content {
  flex: 1;
  padding: 8px;
}
</style>

样式随便写的,明白意思就好。

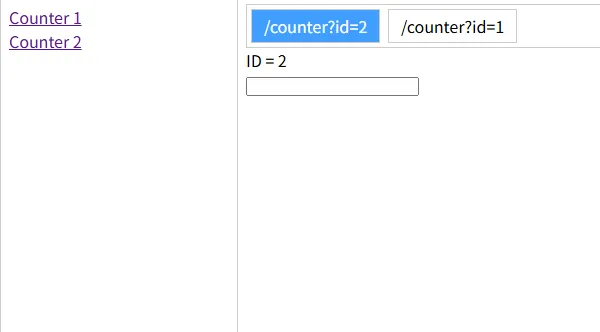

可以自由切换标签页,并且填写的内容依然保留。

优点:编写起来很简单

缺点:之前的组件一直保留,打开的页面多了可能会卡

总结:也算一种可行的方案,但要注意页面不能太多

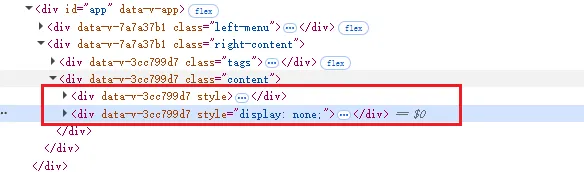

之前的组件只是display: none了

可能是优化

上面其实解决了最大的问题,但是还可以优化一下,可以利用KeepAlive卸载dom并缓存。

基于上面的方案,在Component外面再套一层KeepAlive,然后将v-show改成v-if。

vue 复制代码
<template>
  <div class="tags">
    <div class="tag" v-for="tagView in tagViews" :class="{ active: tagView.key === currentTagView?.key }"
      @click="router.push(tagView.route)">
      {{ tagView.title }}</div>
  </div>
  <div class="content">
    <template v-for="tagView in tagViews" :key="tagView.key">
      <KeepAlive>
        <Component :is="tagView.component" v-if="tagView.key === currentTagView.key" />
      </KeepAlive>
    </template>
  </div>
</template>

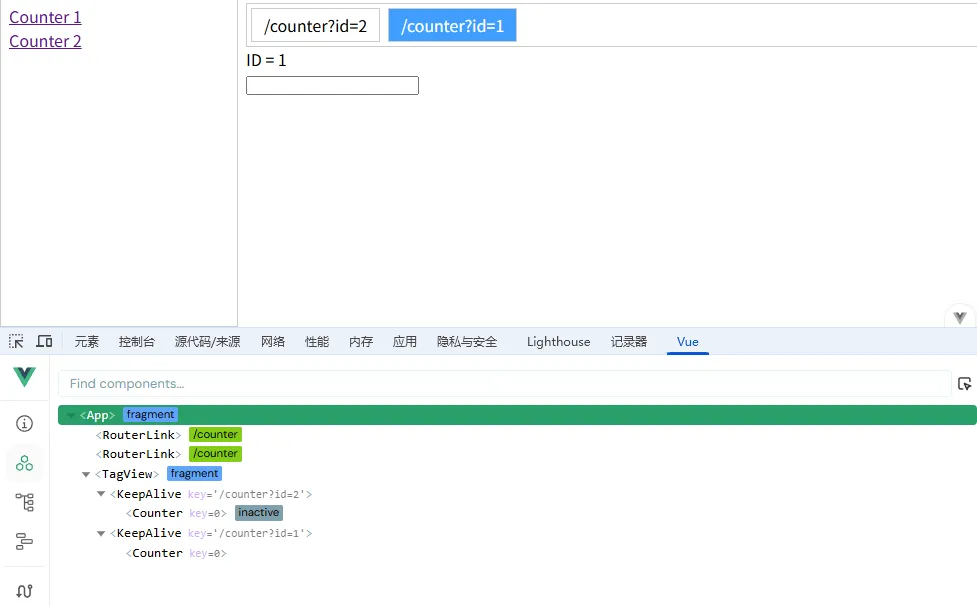

这样就解决了打开页面太多可能会导致的性能问题,但是在DevTool中就会看到很多个KeepAlive了,这也是一种取舍吧。

总结

上面的解决方案并不完美,要么容易影响性能,要么可能会影响开发(多个KeepAlive在DevTool里),要完美的话估计只能自己实现一个KeepAlive了。
