01 启动流程实例

前言

本文基于 Activiti 7.0.0.GA 源码，研究 Activiti 如何启动一个流程实例。

审批流程图

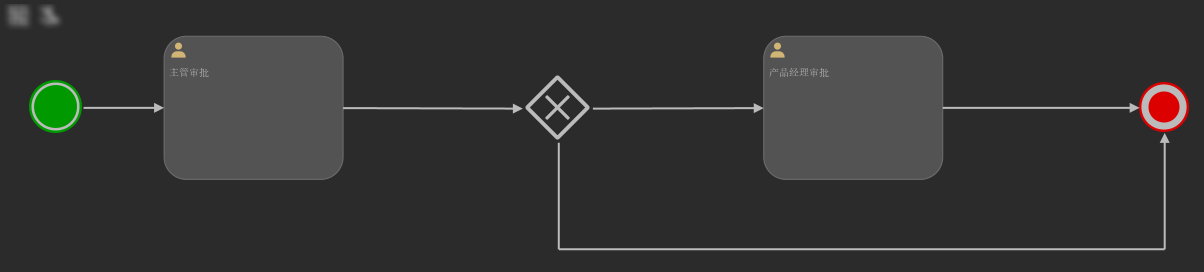

如下图，在此流程图中，存在两个UserTask节点，第一个节点是主管审批，第二个节点是产品经理审批，两个节点中间有一个排他网关，此网关用来对主管审批的结果进行判断，如果主管审批通过，则流程走到产品经理审批节点，如果主管审批拒绝，则流程走到结束节点。

主管审批节点通过UEL表达式 ${assignManager}动态赋值，产品经理审批节点通过UEL表达式$ {assignProductLineManager}动态赋值，网关节点通过UEL表达式${isPass}动态赋值。

启动流程实例

以RuntimeService接口的startProcessInstanceById(String, Map)为源码入口，研究Activiti框架如何启动一个流程实例。

java 复制代码

ProcessInstance startProcessInstanceById(String processDefinitionId, Map<String, Object> variables)

RuntimeService接口的实现类RuntimeServiceImpl实现如下，把传入的processDefinitionId和variable封装成StartProcessInstanceCmd，然后把StartProcessInstanceCmd放入commandExecutor命令执行器的execute方法中，待后续调用。

java 复制代码

public ProcessInstance startProcessInstanceById(String processDefinitionId, Map<String, Object> variables) {
  return commandExecutor.execute(new StartProcessInstanceCmd<ProcessInstance>(null, processDefinitionId, null, variables));
}

CommandExecutor内部持有一个命令拦截器LogInterceptor，LogInterceptor是CommandInteceptor命令拦截器链中的第一个拦截器，StartProcessInstanceCmd在执行前会经过拦截器链中的所有拦截器。

拦截器链中的各个拦截器的前后顺序如下，CommandInvoker是拦截器链中的处于最末端的拦截器，专用于调用实现了Command接口的各种CMD类。

StartProcessInstanceCmd实现了Command接口，该接口只有一个execute方法，此方法会被CommandInvoker拦截器调用，从而开始执行StartProcessInstanceCmd实现的execute方法，用以启动一个流程实例。

java 复制代码

@Internal
public interface Command<T> {
  T execute(CommandContext commandContext);
}

StartProcessInstanceCmd实现execute方法如下：

java 复制代码

package org.activiti.engine.impl.cmd;

import java.io.Serializable;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;

import org.activiti.bpmn.model.ValuedDataObject;
import org.activiti.engine.ActivitiIllegalArgumentException;
import org.activiti.engine.ActivitiObjectNotFoundException;
import org.activiti.engine.ProcessEngineConfiguration;
import org.activiti.engine.impl.interceptor.Command;
import org.activiti.engine.impl.interceptor.CommandContext;
import org.activiti.engine.impl.persistence.deploy.DeploymentManager;
import org.activiti.engine.impl.runtime.ProcessInstanceBuilderImpl;
import org.activiti.engine.impl.util.ProcessInstanceHelper;
import org.activiti.engine.repository.ProcessDefinition;
import org.activiti.engine.runtime.ProcessInstance;

/**
 * 开启流程实例-命令类
 */
public class StartProcessInstanceCmd<T> implements Command<ProcessInstance>, Serializable {
  private static final long serialVersionUID = 1L;
  protected String processDefinitionKey;
  protected String processDefinitionId;
  protected Map<String, Object> variables;
  protected Map<String, Object> transientVariables;
  protected String businessKey;
  protected String tenantId;
  protected String processInstanceName;
  protected ProcessInstanceHelper processInstanceHelper;

  public StartProcessInstanceCmd(String processDefinitionKey, String processDefinitionId, String businessKey, Map<String, Object> variables) {
    this.processDefinitionKey = processDefinitionKey;
    this.processDefinitionId = processDefinitionId;
    this.businessKey = businessKey;
    this.variables = variables;
  }

  public StartProcessInstanceCmd(String processDefinitionKey, String processDefinitionId, String businessKey, Map<String, Object> variables, String tenantId) {
    this(processDefinitionKey, processDefinitionId, businessKey, variables);
    this.tenantId = tenantId;
  }

  public StartProcessInstanceCmd(ProcessInstanceBuilderImpl processInstanceBuilder) {
    this(processInstanceBuilder.getProcessDefinitionKey(),
        processInstanceBuilder.getProcessDefinitionId(),
        processInstanceBuilder.getBusinessKey(),
        processInstanceBuilder.getVariables(),
        processInstanceBuilder.getTenantId());
    this.processInstanceName = processInstanceBuilder.getProcessInstanceName();
    this.transientVariables = processInstanceBuilder.getTransientVariables();
  }

  /**
   * 从 CommandInvoker 调用下面这个方法
   * @param commandContext
   * @return
   */
  public ProcessInstance execute(CommandContext commandContext) {
    // 取出已经部署好的流程信息
    DeploymentManager deploymentCache = commandContext.getProcessEngineConfiguration().getDeploymentManager();

    // Find the process definition
    ProcessDefinition processDefinition = null;
    // 传入了processDefinitionId，所以进入到这个if中，
    if (processDefinitionId != null) {
      // 通过 processDefinitionId 从缓存中找到 processDefinition 流程定义
      processDefinition = deploymentCache.findDeployedProcessDefinitionById(processDefinitionId);
      if (processDefinition == null) {
        throw new ActivitiObjectNotFoundException("No process definition found for id = '" + processDefinitionId + "'", ProcessDefinition.class);
      }

    } else if (processDefinitionKey != null && (tenantId == null || ProcessEngineConfiguration.NO_TENANT_ID.equals(tenantId))) {

      processDefinition = deploymentCache.findDeployedLatestProcessDefinitionByKey(processDefinitionKey);
      if (processDefinition == null) {
        throw new ActivitiObjectNotFoundException("No process definition found for key '" + processDefinitionKey + "'", ProcessDefinition.class);
      }

    } else if (processDefinitionKey != null && tenantId != null && !ProcessEngineConfiguration.NO_TENANT_ID.equals(tenantId)) {

      processDefinition = deploymentCache.findDeployedLatestProcessDefinitionByKeyAndTenantId(processDefinitionKey, tenantId);
      if (processDefinition == null) {
        throw new ActivitiObjectNotFoundException("No process definition found for key '" + processDefinitionKey + "' for tenant identifier " + tenantId, ProcessDefinition.class);
      }

    } else {
      throw new ActivitiIllegalArgumentException("processDefinitionKey and processDefinitionId are null");
    }

    // 获取一个 ProcessInstanceHelper，用于启动流程
    processInstanceHelper = commandContext.getProcessEngineConfiguration().getProcessInstanceHelper();
    ProcessInstance processInstance = createAndStartProcessInstance(processDefinition, businessKey, processInstanceName, variables, transientVariables);

    return processInstance;
  }

  protected ProcessInstance createAndStartProcessInstance(ProcessDefinition processDefinition, String businessKey, String processInstanceName,
      Map<String,Object> variables, Map<String, Object> transientVariables) {
    return processInstanceHelper.createAndStartProcessInstance(processDefinition, businessKey, processInstanceName, variables, transientVariables);
  }

  protected Map<String, Object> processDataObjects(Collection<ValuedDataObject> dataObjects) {
    Map<String, Object> variablesMap = new HashMap<String, Object>();
    // convert data objects to process variables
    if (dataObjects != null) {
      for (ValuedDataObject dataObject : dataObjects) {
        variablesMap.put(dataObject.getName(), dataObject.getValue());
      }
    }
    return variablesMap;
  }
}

ProcessInstanceHelper的createAndStartProcessInstance中用 processDefinition 的 id 查找出 Process 流程模型。

java 复制代码

protected ProcessInstance createAndStartProcessInstance(ProcessDefinition processDefinition,
                                                        String businessKey, String processInstanceName,
                                                        Map<String, Object> variables, Map<String, Object> transientVariables, boolean startProcessInstance) {

    CommandContext commandContext = Context.getCommandContext(); // Todo: ideally, context should be passed here

    // Do not start process a process instance if the process definition is suspended
    if (ProcessDefinitionUtil.isProcessDefinitionSuspended(processDefinition.getId())) {
        throw new ActivitiException("Cannot start process instance. Process definition " + processDefinition.getName() + " (id = " + processDefinition.getId() + ") is suspended");
    }

    // Get model from cache
    // 用 processDefinition 的 id 查找出 Process 流程模型
    Process process = ProcessDefinitionUtil.getProcess(processDefinition.getId());
    if (process == null) {
        throw new ActivitiException("Cannot start process instance. Process model " + processDefinition.getName() + " (id = " + processDefinition.getId() + ") could not be found");
    }
    // 获取流程定义中的第一个节点（初始节点）
    FlowElement initialFlowElement = process.getInitialFlowElement();
    if (initialFlowElement == null) {
        throw new ActivitiException("No start element found for process definition " + processDefinition.getId());
    }

    return createAndStartProcessInstanceWithInitialFlowElement(processDefinition, businessKey,
            processInstanceName, initialFlowElement, process, variables, transientVariables, startProcessInstance);
}

在ProcessInstanceHelper的createAndStartProcessInstanceWithInitialFlowElement方法中，创建了 ExecutionEntity 流程实例，此实例的生命周期贯穿整个流程实例，从StartEvent开始，到EndEvent结束。Process流程模型就好比一条人工运河，而ExecutionEntity就是这条河流上的一条船。

java 复制代码

public ProcessInstance createAndStartProcessInstanceWithInitialFlowElement(ProcessDefinition processDefinition,
                                                                           String businessKey, String processInstanceName, FlowElement initialFlowElement,
                                                                           Process process, Map<String, Object> variables, Map<String, Object> transientVariables, boolean startProcessInstance) {

    CommandContext commandContext = Context.getCommandContext();

    // Create the process instance
    String initiatorVariableName = null;
    // 如果初始节点是StartEvent，就获取 Initiator
    if (initialFlowElement instanceof StartEvent) {
        initiatorVariableName = ((StartEvent) initialFlowElement).getInitiator();
    }

    // 创建 ExecutionEntity，后续会有很多地方用到。
    ExecutionEntity processInstance = commandContext.getExecutionEntityManager()
            .createProcessInstanceExecution(processDefinition, businessKey, processDefinition.getTenantId(), initiatorVariableName);

    // 创建完成，记录流程已经开始
    commandContext.getHistoryManager().recordProcessInstanceStart(processInstance, initialFlowElement);

    processInstance.setVariables(processDataObjects(process.getDataObjects()));

    // Set the variables passed into the start command
    if (variables != null) {
        for (String varName : variables.keySet()) {
            // 把传入的流程变量绑定到 ProcessInstance 上
            processInstance.setVariable(varName, variables.get(varName));
        }
    }
    if (transientVariables != null) {
        for (String varName : transientVariables.keySet()) {
            processInstance.setTransientVariable(varName, transientVariables.get(varName));
        }
    }

    // Set processInstance name
    if (processInstanceName != null) {
        processInstance.setName(processInstanceName);
        commandContext.getHistoryManager().recordProcessInstanceNameChange(processInstance.getId(), processInstanceName);
    }

    // Fire events
    if (Context.getProcessEngineConfiguration().getEventDispatcher().isEnabled()) {
        Context.getProcessEngineConfiguration().getEventDispatcher()
                .dispatchEvent(ActivitiEventBuilder.createEntityWithVariablesEvent(ActivitiEventType.ENTITY_INITIALIZED, processInstance, variables, false));
    }

    // Create the first execution that will visit all the process definition elements
    // 用父级ExecutionEntity（processInstance）创建一个子级ExecutionEntity
    // 后续父级ExecutionEntity（processInstance）通过getExecutions().get(0)访问
    ExecutionEntity execution = commandContext.getExecutionEntityManager().createChildExecution(processInstance);
    // 这个 setCurrentFlowElement 操作非常重要，它表示 execution 当前活跃在哪个 FlowNode 或者 SequenceFlow 上。
    // execution 每到一个新的节点上，都会调用这个方法更新一下活跃的节点，在这里这个 initialFlowElement 是 StartEvent
    execution.setCurrentFlowElement(initialFlowElement);

    if (startProcessInstance) {
        // 已经成功启动一个新流程，从这里流程将流向下个节点
        startProcessInstance(processInstance, commandContext, variables);
    }

    return processInstance;
}

ProcessInstanceHelper的startProcessInstance方法中有关于如何处理Process流程模型中含有子流程的逻辑，但这里为方便学习不做研究，知道即可。在此方法中，流程实例将通过commandContext.getAgenda().planContinueProcessOperation(execution);前往下一个节点。

java 复制代码

public void startProcessInstance(ExecutionEntity processInstance, CommandContext commandContext, Map<String, Object> variables) {
    // 通过 processDefinitionId 获取流程详情 Process
    Process process = ProcessDefinitionUtil.getProcess(processInstance.getProcessDefinitionId());
    // Event sub process handling
    List<MessageEventSubscriptionEntity> messageEventSubscriptions = new LinkedList<>();
    for (FlowElement flowElement : process.getFlowElements()) {
        // 处理流程中含有子流程的审批流
        if (flowElement instanceof EventSubProcess) {
            EventSubProcess eventSubProcess = (EventSubProcess) flowElement;
            for (FlowElement subElement : eventSubProcess.getFlowElements()) {
                if (subElement instanceof StartEvent) {
                    StartEvent startEvent = (StartEvent) subElement;
                    if (CollectionUtil.isNotEmpty(startEvent.getEventDefinitions())) {
                        EventDefinition eventDefinition = startEvent.getEventDefinitions().get(0);
                        if (eventDefinition instanceof MessageEventDefinition) {
                            MessageEventDefinition messageEventDefinition = (MessageEventDefinition) eventDefinition;
                            BpmnModel bpmnModel = ProcessDefinitionUtil.getBpmnModel(processInstance.getProcessDefinitionId());
                            if (bpmnModel.containsMessageId(messageEventDefinition.getMessageRef())) {
                                messageEventDefinition.setMessageRef(bpmnModel.getMessage(messageEventDefinition.getMessageRef()).getName());
                            }
                            ExecutionEntity messageExecution = commandContext.getExecutionEntityManager().createChildExecution(processInstance);
                            messageExecution.setCurrentFlowElement(startEvent);
                            messageExecution.setEventScope(true);
                            messageEventSubscriptions
                                    .add(commandContext.getEventSubscriptionEntityManager().insertMessageEvent(messageEventDefinition.getMessageRef(), messageExecution));
                        }
                    }
                }
            }
        }
    }

    // 取出父级ExecutionEntity（processInstance）的子execution
    ExecutionEntity execution = processInstance.getExecutions().get(0); // There will always be one child execution created
    // 将通过 planContinueProcessOperation 继续走向流程中的下一个节点。
    commandContext.getAgenda().planContinueProcessOperation(execution);
    // 分发事件
    if (Context.getProcessEngineConfiguration().getEventDispatcher().isEnabled()) {
        ActivitiEventDispatcher eventDispatcher = Context.getProcessEngineConfiguration().getEventDispatcher();
        // 创建并分发流程开始事件
        eventDispatcher.dispatchEvent(ActivitiEventBuilder.createProcessStartedEvent(execution, variables, false));

        for (MessageEventSubscriptionEntity messageEventSubscription : messageEventSubscriptions) {
            commandContext.getProcessEngineConfiguration().getEventDispatcher()
                    .dispatchEvent(ActivitiEventBuilder.createMessageEvent(ActivitiEventType.ACTIVITY_MESSAGE_WAITING, messageEventSubscription.getActivityId(),
                            messageEventSubscription.getEventName(), null, messageEventSubscription.getExecution().getId(),
                            messageEventSubscription.getProcessInstanceId(), messageEventSubscription.getProcessDefinitionId()));
        }
    }
}

至此，流程实例启动完成。

后续将通过 commandContext.getAgenda().planContinueProcessOperation(execution) 流转到下一个节点。

总结

流程启动过程中主要涉及到命令执行器（CommandExecutor）、命令拦截器（CommandInteceptor）、流程开始命令（StartProcessInstanceCmd）、流程定义（ProcessDefinition）、流程模型（Process）以及流程实例（ProcessInstance，即ExecutionEntity），这些元素共构成了启动一个流程实例的必需条件。

在启动流程实例过程的源码中，我个人感觉非常精妙的设计之处在于拦截器，得益于拦截器的使用，Activiti抽出了业务中的公共代码（比如内置的日志记录、CommandContext、Transaction、CommandInvoker），使得主业务与附属业务边界感更强，启动过程逐渐递进，前后逻辑顺序清晰明了，源码学习者更容易掌握业务逻辑。
