【51单片机-B015】【protues仿真】基于51单片机点阵屏仿真

目录

一、主要功能

二、使用步骤

三、硬件资源

四、软件设计

五、实验现象

联系作者

一、主要功能

1、16*16点阵屏幕显示

2、138芯片和595芯片

3、按键切换左右移动，暂停

二、使用步骤

本项目使用Proteus8仿真

包含：程序，仿真，文档等

三、硬件资源

1、51单片机核心模块

2、按键模块

3、16*16点阵屏

四、软件设计

#include<reg51.h>//头文件

sbit shcp=P1^2;//数据输入时钟线 595的11脚
sbit stcp=P1^1;//输出存储器锁存时钟线 595的12脚
sbit ds=P1^0;//数据线  595的14脚

sbit s1=P3^1;//按下暂停再暂按继续
sbit s2=P3^2;//按下方向取反
bit fx;//方向切换
sbit	IR    = P3^2;

unsigned char	N[4];				 //识别码，操作码存放
unsigned char   X1,X2,X3,X4;

unsigned char alt;//数据移动定时时间
unsigned int net;//控制显示的字符
unsigned char zi=8;//显示字数
unsigned int zong;//总字符  （所有的字数+1）*32   字数指的是汉字，字母、数字两个算一个数字
unsigned char code tab[]={
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*先送两个空字节用于缓冲*/


0x00,0x01,0x02,0x02,0x42,0x04,0x42,0x08,0x42,0x30,0x43,0xC0,0x7E,0x00,0x42,0x00,
0x43,0xFC,0x42,0x02,0x42,0x02,0x42,0x02,0x02,0x02,0x02,0x0E,0x00,0x00,0x00,0x00,/*"无",0*/

0x00,0x80,0x07,0x00,0x00,0x00,0xFF,0xFF,0x08,0x00,0x04,0x01,0x08,0x06,0x08,0x38,
0xFF,0xC0,0x08,0x00,0x0F,0xFC,0x88,0x02,0x68,0x02,0x08,0x02,0x08,0x1E,0x00,0x00,/*"忧",1*/

0x00,0x08,0x00,0x08,0x1F,0xC8,0x92,0x48,0x52,0x48,0x32,0x48,0x12,0x48,0x1F,0xFF,
0x12,0x48,0x32,0x48,0x52,0x48,0x92,0x48,0x1F,0xC8,0x00,0x08,0x00,0x08,0x00,0x00,/*"单",2*/

0x00,0x00,0x00,0x01,0x00,0x06,0x7F,0xF8,0x04,0x40,0x04,0x40,0x04,0x40,0x04,0x40,
0x04,0x40,0xFC,0x40,0x04,0x7F,0x04,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00,0x00,/*"片",3*/

0x08,0x20,0x08,0xC0,0x0B,0x00,0xFF,0xFF,0x09,0x00,0x08,0xC1,0x00,0x06,0x7F,0xF8,
0x40,0x00,0x40,0x00,0x40,0x00,0x7F,0xFC,0x00,0x02,0x00,0x02,0x00,0x1E,0x00,0x00,/*"机",4*/

0x00,0x00,0x00,0x00,0x00,0x6C,0x00,0x6C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"：",5*/

0x08,0x04,0x0F,0xFC,0x00,0x24,0x00,0x60,0x01,0x94,0x01,0x0C,0x01,0x04,0x00,0x00,/*"k",6*/

0x00,0x00,0x01,0x04,0x19,0x04,0x19,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00,/*"i",7*/

0x00,0x00,0x00,0xF8,0x01,0x04,0x01,0x04,0x01,0x04,0x09,0x08,0x0F,0xFC,0x00,0x04,/*"d",8*/

0x01,0x01,0x01,0xFF,0x00,0x89,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00,/*"p",9*/

0x00,0x00,0x00,0x98,0x01,0x24,0x01,0x24,0x01,0x48,0x00,0xFC,0x00,0x04,0x00,0x00,/*"a",10*/

0x01,0x04,0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x04,0x01,0x00,0x01,0x80,0x00,0x00,/*"r",11*/


0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
unsigned char code tab1[]={
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x01,0x04,0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x04,0x01,0x00,0x01,0x80,0x00,0x00,/*"r",0*/

0x00,0x00,0x00,0x98,0x01,0x24,0x01,0x24,0x01,0x48,0x00,0xFC,0x00,0x04,0x00,0x00,/*"a",1*/

0x01,0x01,0x01,0xFF,0x00,0x89,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00,/*"p",2*/

0x00,0x00,0x00,0xF8,0x01,0x04,0x01,0x04,0x01,0x04,0x09,0x08,0x0F,0xFC,0x00,0x04,/*"d",3*/

0x00,0x00,0x01,0x04,0x19,0x04,0x19,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00,/*"i",4*/

0x08,0x04,0x0F,0xFC,0x00,0x24,0x00,0x60,0x01,0x94,0x01,0x0C,0x01,0x04,0x00,0x00,/*"k",5*/

0x00,0x00,0x00,0x00,0x00,0x6C,0x00,0x6C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"：",6*/

0x08,0x20,0x08,0xC0,0x0B,0x00,0xFF,0xFF,0x09,0x00,0x08,0xC1,0x00,0x06,0x7F,0xF8,
0x40,0x00,0x40,0x00,0x40,0x00,0x7F,0xFC,0x00,0x02,0x00,0x02,0x00,0x1E,0x00,0x00,/*"机",7*/

0x00,0x00,0x00,0x01,0x00,0x06,0x7F,0xF8,0x04,0x40,0x04,0x40,0x04,0x40,0x04,0x40,
0x04,0x40,0xFC,0x40,0x04,0x7F,0x04,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00,0x00,/*"片",8*/

0x00,0x08,0x00,0x08,0x1F,0xC8,0x92,0x48,0x52,0x48,0x32,0x48,0x12,0x48,0x1F,0xFF,
0x12,0x48,0x32,0x48,0x52,0x48,0x92,0x48,0x1F,0xC8,0x00,0x08,0x00,0x08,0x00,0x00,/*"单",9*/

0x00,0x80,0x07,0x00,0x00,0x00,0xFF,0xFF,0x08,0x00,0x04,0x01,0x08,0x06,0x08,0x38,
0xFF,0xC0,0x08,0x00,0x0F,0xFC,0x88,0x02,0x68,0x02,0x08,0x02,0x08,0x1E,0x00,0x00,/*"忧",10*/

0x00,0x01,0x02,0x02,0x42,0x04,0x42,0x08,0x42,0x30,0x43,0xC0,0x7E,0x00,0x42,0x00,
0x43,0xFC,0x42,0x02,0x42,0x02,0x42,0x02,0x02,0x02,0x02,0x0E,0x00,0x00,0x00,0x00,/*"无",11*/



0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
void delay(unsigned int z)//延时子函数
{
   unsigned char x;
   for(;z>0;z--)
   for(x=110;x>0;x--);
}

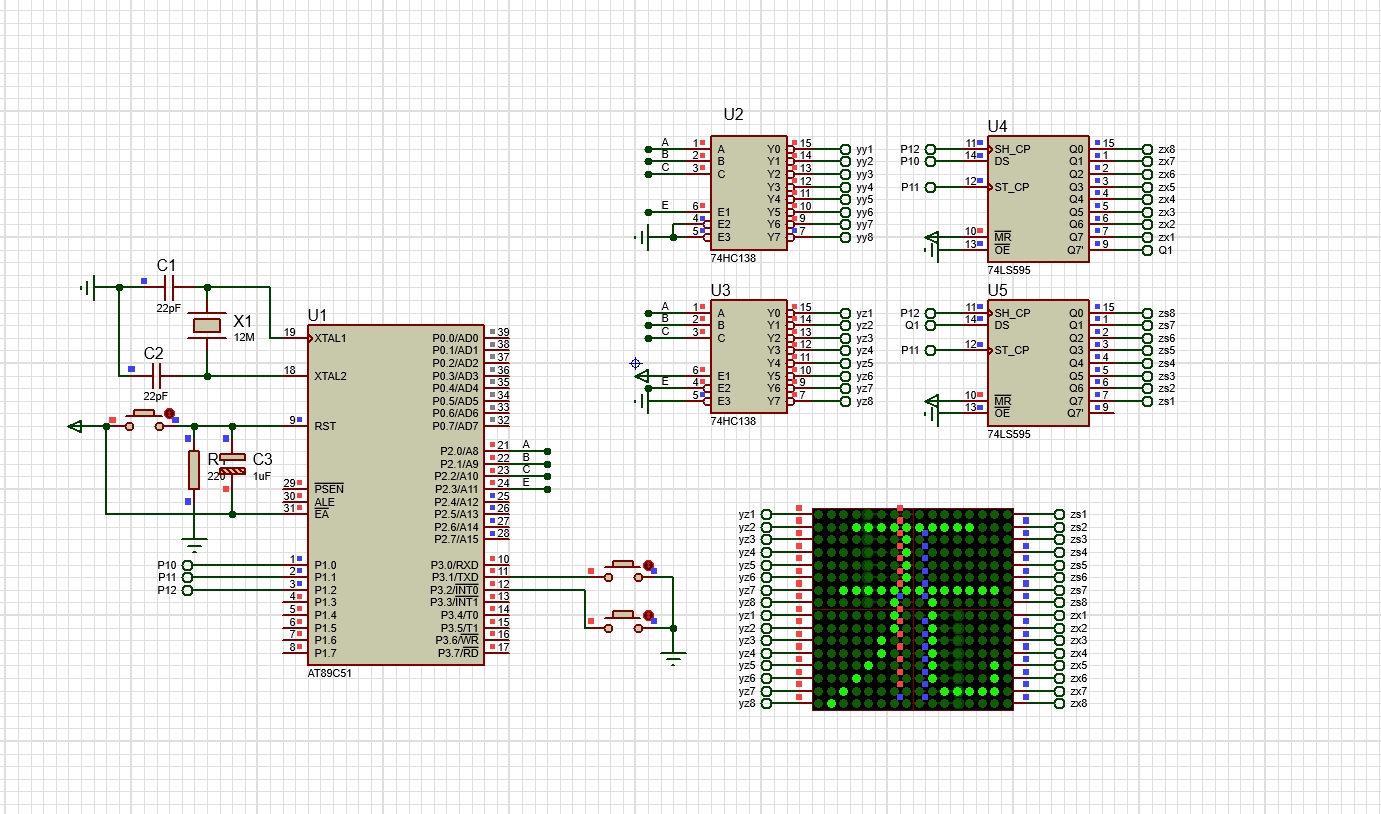

五、实验现象

B站演示视频：
【51单片机-B015】【protues仿真】基于51单片机点阵屏仿真_哔哩哔哩_bilibili【51单片机-B015】【protues仿真】基于51单片机点阵屏仿真, 视频播放量 0、弹幕量 0、点赞数 0、投硬币枚数 0、收藏人数 0、转发人数 0, 视频作者 无忧电子设计, 作者简介 Q：215138327 V：Kinpar 承接51，32单片机设计定做，51，32单片机protues仿真，实物，程序等。，相关视频：【51单片机-B012】【protues仿真】基于51单片机数码管温度报警器仿真，【51单片机-B010】【protues仿真】基于51单片机宠物投食器仿真，【51单片机-B008】【protues仿真】基于51单片机水位监测控制系统仿真，【51单片机-B011】【protues仿真】 基于51单片机储物箱仿真，【51单片机-B018】【protues仿真】 基于51单片机叫号系统，【51单片机-B006】【protues仿真】基于51单片机温度烟雾控制系统仿真，【51单片机-B009】【protues仿真】基于51单片机冰箱仿真，【51单片机-B014】【protues仿真】 基于51单片机出租车计价器仿真，【51单片机-B013】【protues仿真】基于51单片机八路抢答器数码管仿真，【51单片机-B016】【protues仿真】基于51单片机篮球计时计分器数码管仿真https://www.bilibili.com/video/BV15AubzjEDL/

联系作者

作者B站链接：https://space.bilibili.com/3493294220773802

专注于51单片机、STM32、Proteus、物联网软件开发，PCB设计。
