网络资源模板--基于Android Studio 实现的画板App

目录

一、测试环境说明

二、项目简介

三、项目演示

四、部设计详情(部分))

画板页

五、项目源码


一、测试环境说明

电脑环境

Windows 11

编写语言

JAVA

开发软件

Android Studio (2020)

开发软件只要大于等于测试版本即可(近几年官网直接下载也可以),若是版本低于测试版本请自行测试。项目需要根据你的软件自行适配

二、项目简介

该项目简介来自网络,具体内容需要自行测试

本项目是基于Java开发的Android绘画应用,采用设备相册系统(MediaStore)进行作品存储。

系统包含三大核心模块:提供9种预设画布的背景选择模块、支持通过双缓冲技术实现多点触控绘画/橡皮擦/撤销重做功能的绘图模块,以及通过扫描系统相册图片并利用RecyclerView展示作品的历史记录模块(支持滑动删除和重新编辑)。

应用采用Bitmap压缩算法优化图像处理,通过自定义PaletteView组件模拟压感笔触,遵循Material Design设计规范。测试表明,该系统通过Android原生存储方案(而非独立数据库)在主流设备上运行稳定,能够有效满足用户的数字绘画和作品管理需求。

该项目由编程乐学团队介入,优化布局完善功能

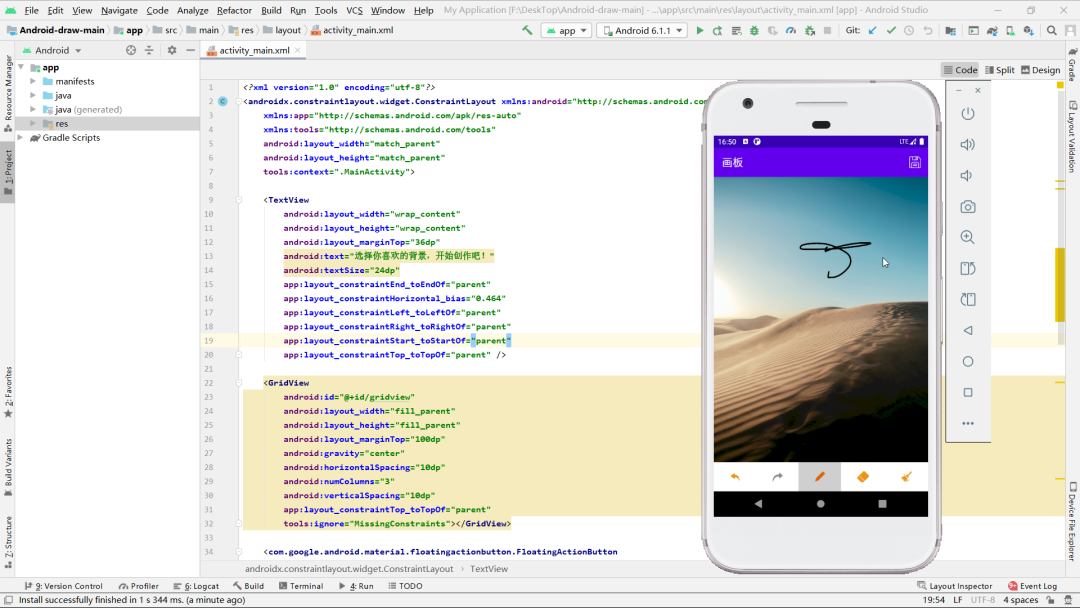

三、项目演示

网络资源模板--基于Android studio 画板App

四、部设计详情(部分)

画板页

  1. 页面的结构

这是一个绘画创作页面,整体采用经典的工具栏加画布布局。顶部是操作菜单栏,包含保存功能;下方是绘画工具栏,提供撤销、重做、画笔、橡皮擦和清空功能;中间大面积区域为画布区,支持自由绘制。

页面采用分层设计,将控制逻辑与视图分离,通过回调机制实现各组件间的通信,结构清晰且易于扩展。

  1. 使用到的技术

该页面运用了Android基础组件和高级特性。通过ProgressDialog实现保存等待提示,Handler处理异步消息,AlertDialog提供颜色选择交互。

文件操作涉及Bitmap压缩存储和媒体库更新,利用Environment获取系统目录。

绘画核心功能通过自定义PaletteView实现,支持触摸绘制、撤销栈管理和多种画笔模式,充分展现了Android绘图系统的能力。

  1. 页面详细介绍

这是一个功能完整的数字绘画界面,用户可选择不同颜色画笔或橡皮擦进行创作,支持无限撤销和重做操作。

特色功能包括背景模板选择(纯色或图片)、实时笔迹渲染和作品导出保存。当用户保存作品时,系统会自动将图片存储到公共相册目录并更新媒体库。

交互设计注重用户体验,通过视觉反馈(按钮选中状态)和提示信息引导用户操作,形成完整的绘画创作闭环。

XML 复制代码
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    >

    <com.example.myapplication.PaletteView
        android:id="@+id/palette"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:background="@drawable/bg"
        />

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="56dp"
        android:orientation="horizontal"
        android:gravity="center"
        >
        <ImageView
            android:id="@+id/undo"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:scaleType="centerInside"
            android:src="@drawable/undo"
            android:background="@drawable/toolbar_item_bg"
            />
        <ImageView
            android:id="@+id/redo"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:scaleType="centerInside"
            android:src="@drawable/redo"
            android:background="@drawable/toolbar_item_bg"
            />
        <ImageView
            android:id="@+id/pen"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:scaleType="centerInside"
            android:layout_weight="1"
            android:src="@drawable/pen"
            android:background="@drawable/toolbar_item_bg"
            />
        <ImageView
            android:id="@+id/eraser"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:scaleType="centerInside"
            android:layout_weight="1"
            android:src="@drawable/eraser"
            android:background="@drawable/toolbar_item_bg"
            />
        <ImageView
            android:id="@+id/clear"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:scaleType="centerInside"
            android:src="@drawable/clear"
            android:background="@drawable/toolbar_item_bg"
            />
    </LinearLayout>
</LinearLayout>

五、项目源码
