译 | 在 Python 中从头开始构建 Qwen-3 MoE

文章出自:基于 2个Expert 的 MoE 架构分步指南

本篇适合 MoE 架构初学者。文章亮点在于详细拆解 Qwen 3 MoE 架构,并用简单代码从零实现 MoE 路由器、RMSNorm 等核心组件,便于理解内部原理。

该方法适用于需部署高性能、高效率大模型,同时优化计算成本的商业场景。

例如,在智能客服中,不同专家处理特定问题,提升响应速度;或在个性化推荐中,快速生成用户内容。

代码都可以在: GitHub 仓库找到


文章目录

  • [1. 前言](#1. 前言)
  • [2. 了解 Qwen 3 MoE 架构](#2. 了解 Qwen 3 MoE 架构)
    • [2.1. 使用 RMSNorm 进行预归一化](#2.1. 使用 RMSNorm 进行预归一化)
    • [2.2. SwiGLU 激活函数](#2.2. SwiGLU 激活函数)
    • [2.3. 旋转位置嵌入 (RoPE)](#2.3. 旋转位置嵌入 (RoPE))
    • [2.4. 字节对编码 (BPE)](#2.4. 字节对编码 (BPE))
  • [3. 初始化安装](#3. 初始化安装)
  • [4. 为什么我们需要模型权重?](#4. 为什么我们需要模型权重?)
  • [5. Tokenized文本](#5. Tokenized文本)
  • [6. 创建令牌嵌入层](#6. 创建令牌嵌入层)
  • [7. 使用 RMSNorm 进行规范化](#7. 使用 RMSNorm 进行规范化)

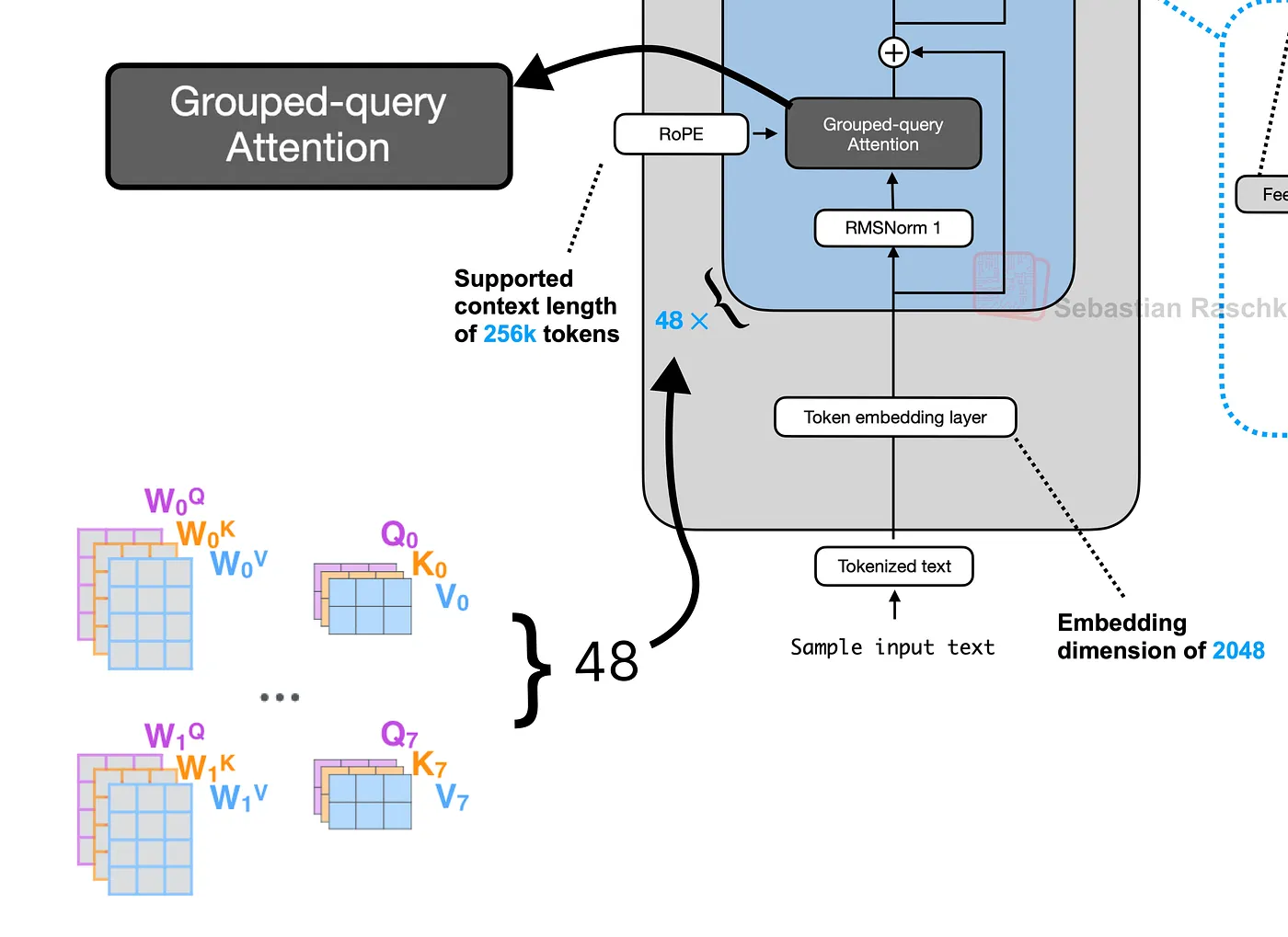

  • [8. 分组查询注意力 (GQA)](#8. 分组查询注意力 (GQA))
  • [9. 使用 RoPE](#9. 使用 RoPE)

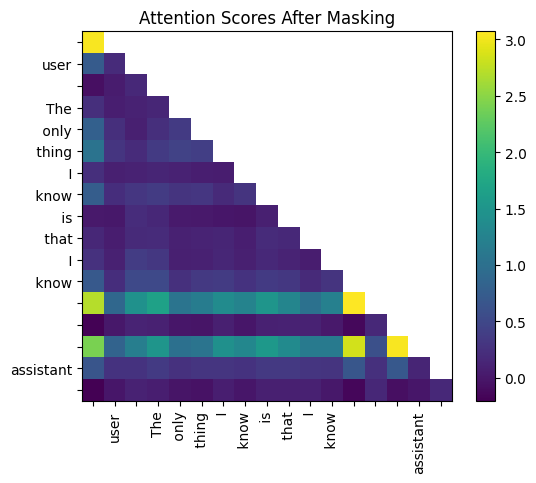

  • [10. 计算注意力分数](#10. 计算注意力分数)

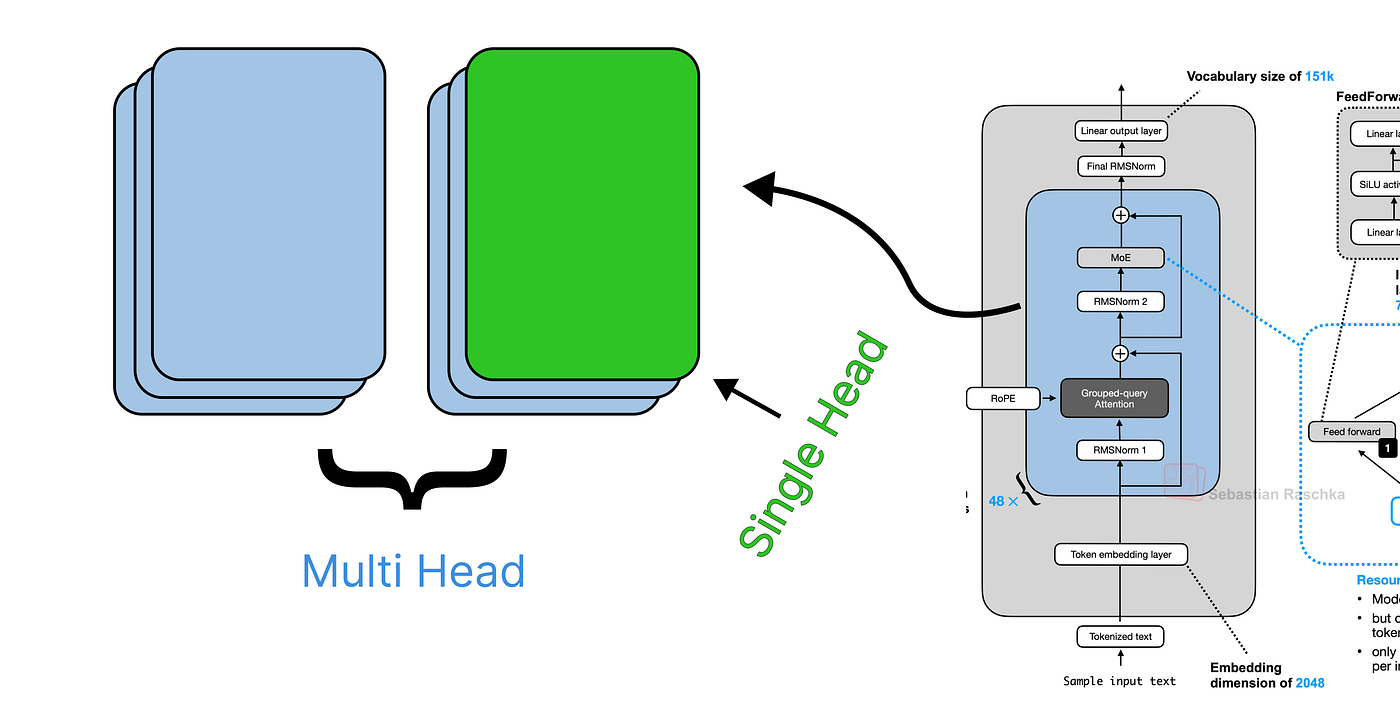

  • [11. 实现多头注意力](#11. 实现多头注意力)
  • [12. 专家混合 (MoE) 块](#12. 专家混合 (MoE) 块)
  • [13. 合并层](#13. 合并层)
  • [14. 生成输出](#14. 生成输出)

1. 前言

阿里巴巴Qwen 3 是目前仅次于 DeepSeek 的最佳开源 MoE AI 模型,擅长推理、编码、数学和语言。其顶级版本在 MMLU-ProLiveCodeBenchAIME 等关键测试中表现出色。

在这篇博客中,我们将使用 2 位专家构建一个微型 Qwen-3 MoE,而不使用面向对象编程(OOP)原则......

因此,我们可以一次查看并理解一个矩阵乘法。

Qwen 3 采用混合专家(MoE)架构构建,每次查询仅激活其 2350 亿参数中的一个子集,从而在不牺牲质量的情况下实现高效率。它还支持高达 128K 标记上下文,处理 119 种语言,并引入了双重"思考"与"非思考"模式,以平衡深度推理和更快的推理。

我们的 Qwen 模型拥有 8 亿参数。

所有代码(理论 + 笔记本)都可以在我的 GitHub 仓库中找到。

正如我所说,我们不会使用面向对象编程(OOP)编码,而只使用简单的 Python 编程。但是,您应该对神经网络和 Transformer 架构有基本的了解。

这是遵循本博客所需的仅有的两个先决条件。

2. 了解 Qwen 3 MoE 架构

我们首先以中级技术人员的身份了解 Qwen MoE 架构,然后使用一个例子"猫坐"来了解它如何通过架构,从而获得清晰的理解。

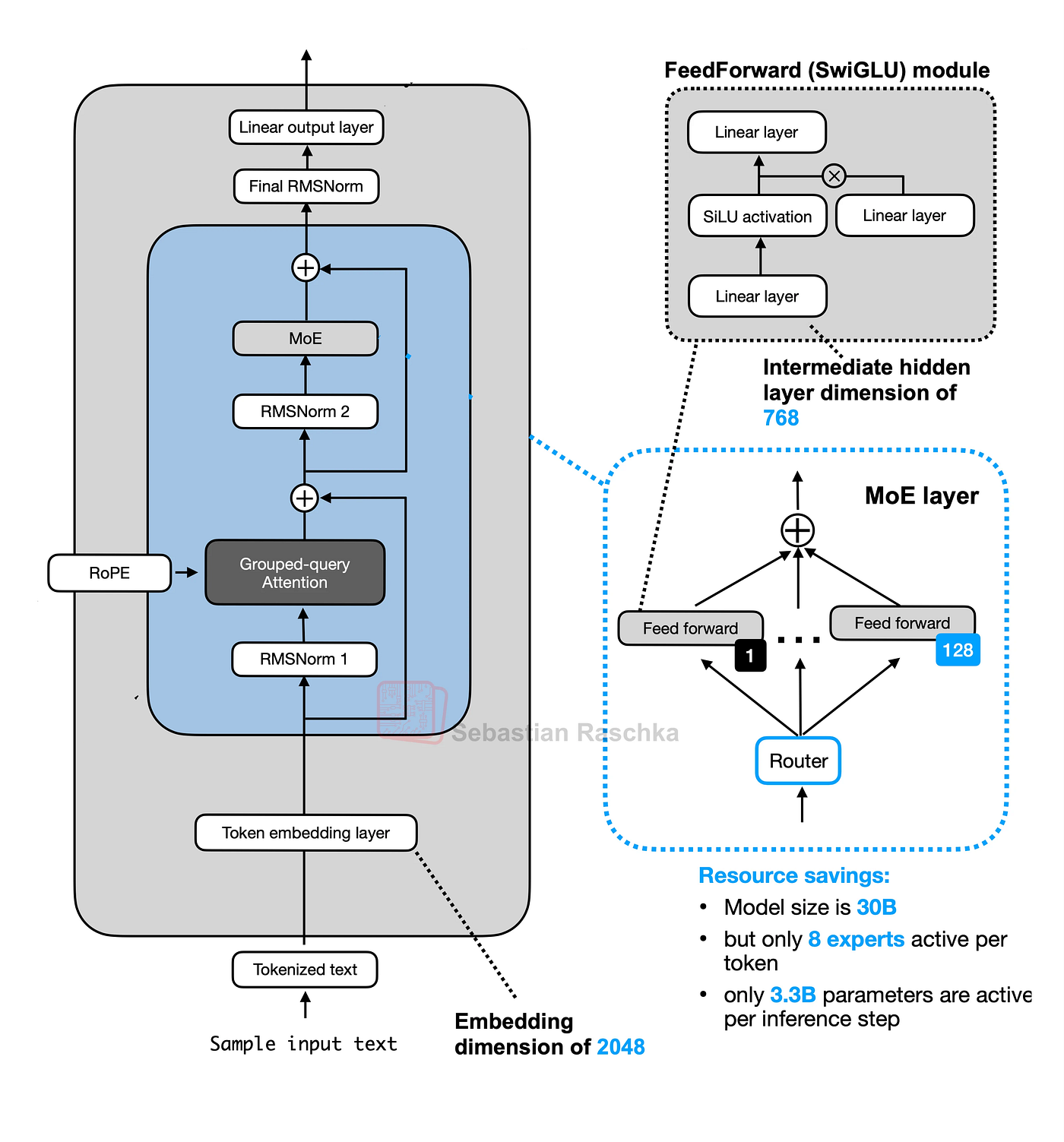

Qwen 3 MoE 架构(来自 Sebastian Raschka

想象一下你有一项非常艰巨的工作。你不是雇佣一个对所有事情都"略知一二"的人,而是雇佣一个专家团队,每个人都擅长某一项特定技能(比如电工、水管工、油漆工)。你还会雇佣一个经理,他会查看当前任务并将其发送给合适的专家。

AI 模型中的 MoE 有点像这样。MoE 层不是一个试图学习所有内容的庞大神经网络,而是包含:

  1. "专家"团队:这些是更小、更专业的神经网络(通常是简单的前馈网络或 MLP)。每个专家可能擅长处理某些类型的信息或模式。
  2. "路由器"(经理):这是另一个小型网络。它的工作是查看输入数据(如一个词或词的一部分),并决定哪些专家最适合立即处理它。

想象一下我们的模型正在处理句子:"The cat sat."

  1. 标记:首先,我们将其分解成小块(标记):"The"、"cat"、"sat"。
  2. 路由器获取标记 :MoE 层接收标记 cat(表示为一串数字,一个嵌入向量)。路由器查看这个 cat 向量。
  3. 路由器选择 :假设我们有 4 位专家(E1E2E3E4)。路由器决定哪些最适合 cat
  4. 也许它认为 E2(可能擅长名词?)和 E4(可能擅长动物概念?)是最佳选择。它为这些选择赋予分数或"权重"(例如,E2 为 70%,E4 为 30%)。

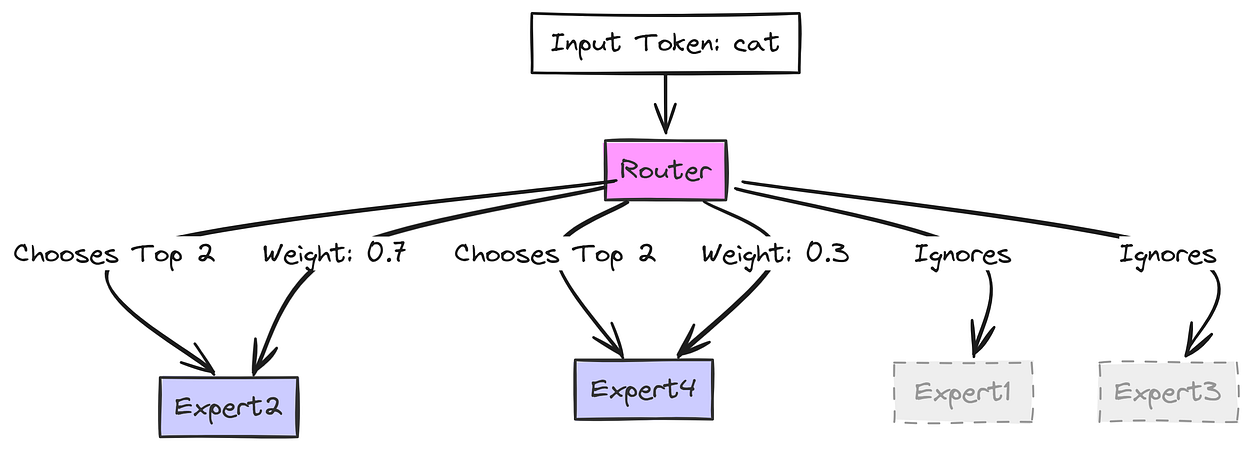

路由器如何决定(由 Fareed Khan 创建)

cat 向量仅发送到 专家 2专家 4专家 1专家 3 不对此标记执行任何工作,从而节省了计算!E2 处理 cat 并生成其结果(Output_E2)。E4 处理 cat 并生成其结果(Output_E4)。

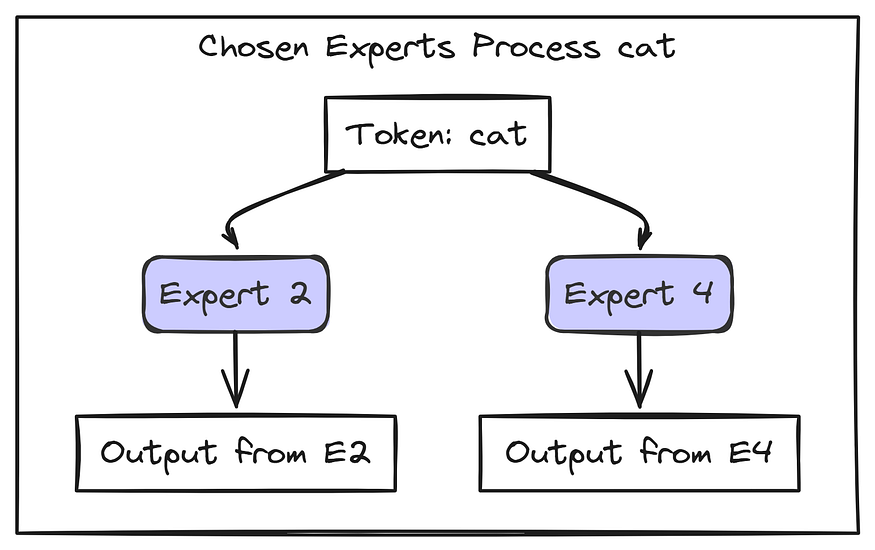

猫词精选专家(由 Fareed Khan 创建)

我们现在使用 路由器 权重组合所选专家的结果:Final_Output = (0.7 * Output_E2) + (0.3 * Output_E4).

这个 Final_OutputMoE 层为标记 cat 传递的内容。序列中的每个标记都会发生这种情况!不同的标记可能会被路由到不同的专家。

因此,当我们的模型处理像"The cat sat."这样的文本时,整个过程如下所示:

输入文本进入 分词器分词器创建数字标记 ID嵌入层将 ID 转换为有意义的数字向量(嵌入)并添加位置信息(稍后在注意力中使用 RoPE)。

这些向量通过多个 Transformer 块。每个块都有:

  • 自注意力(其中标记相互关注,由 RoPE 增强)。
  • MoE 层(其中 路由器 将标记发送到特定的 专家)。
  • 归一化RMSNorm)和 残差连接 有助于学习。

最后一个块的输出进入 最终层。这一层为我们词汇表中的每个可能的下一个标记生成 Logits(分数)。

我们将 logits 转换为 概率预测下一个标记

现在我们已经了解了 MoE 如何融入整体,接下来让我们深入了解每个 AI 模型中的较小组件。

2.1. 使用 RMSNorm 进行预归一化

RMSNorm(均方根归一化)应用于每个 Transformer 子层(注意力或前馈)之前

它根据输入的均方根缩放输入,而不减去均值(与 LayerNorm 不同)。这有助于稳定训练并在早期保持重要信号的强度,就像在深入研究教科书之前复习关键章节一样。

均方根层归一化论文 (https://arxiv.org/abs/1910.07467)

感兴趣的读者可以在此处探索 RMSNorm 的详细实现。

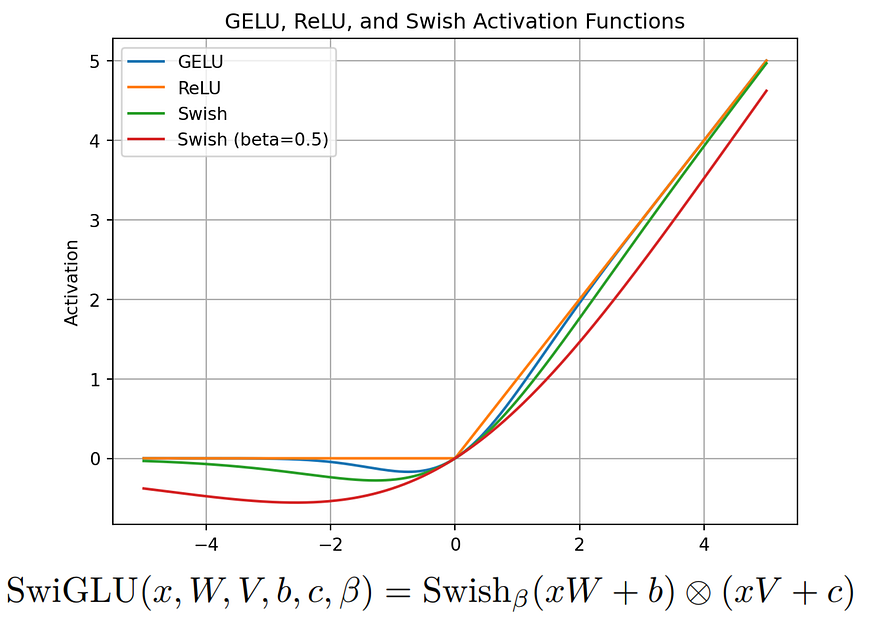

2.2. SwiGLU 激活函数

SwiGLU(Swish + 门控线性单元)增强了模型强调重要特征的能力。

它使用带有 Swish 激活的门控机制,这有助于控制哪些信息通过。

SwiGLU:GLU 变体改进 Transformer (https://kikaben.com/swiglu-2020/)

将其视为一个智能荧光笔,它使关键部分在处理过程中更加突出。

它在 PaLM 中引入,现在用于 LLaMA 3/Qwen 3 以获得更好的性能。有关 SwiGLU 的更多详细信息可以在相关论文中找到。

2.3. 旋转位置嵌入 (RoPE)

RoPE 使用正弦函数和旋转扭曲来编码标记位置,使嵌入能够"旋转"以反映相对位置。

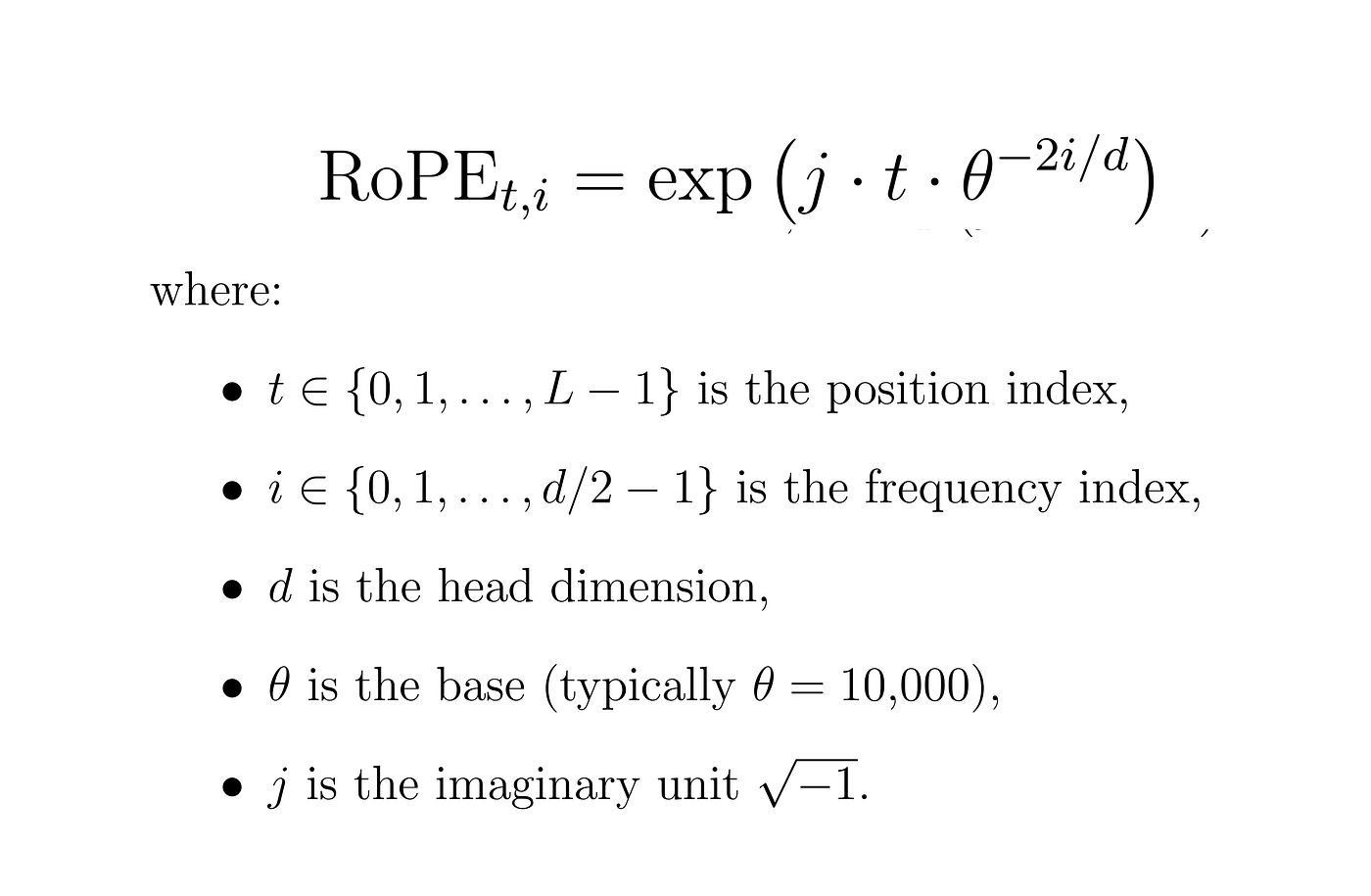

RoPE 公式(由 Fareed Khan 创建)

与固定位置嵌入不同,RoPE 支持更长的上下文和对未见位置的更好泛化。

想象一下学生在一个圆圈中移动,他们的位置会发生变化,但他们的相对距离保持不变。这有助于模型更灵活地跟踪词序。

2.4. 字节对编码 (BPE)

BPE 通过合并频繁的字符对(如"th"、"ing")来构建标记,使模型能够更有效地处理不常见或新词

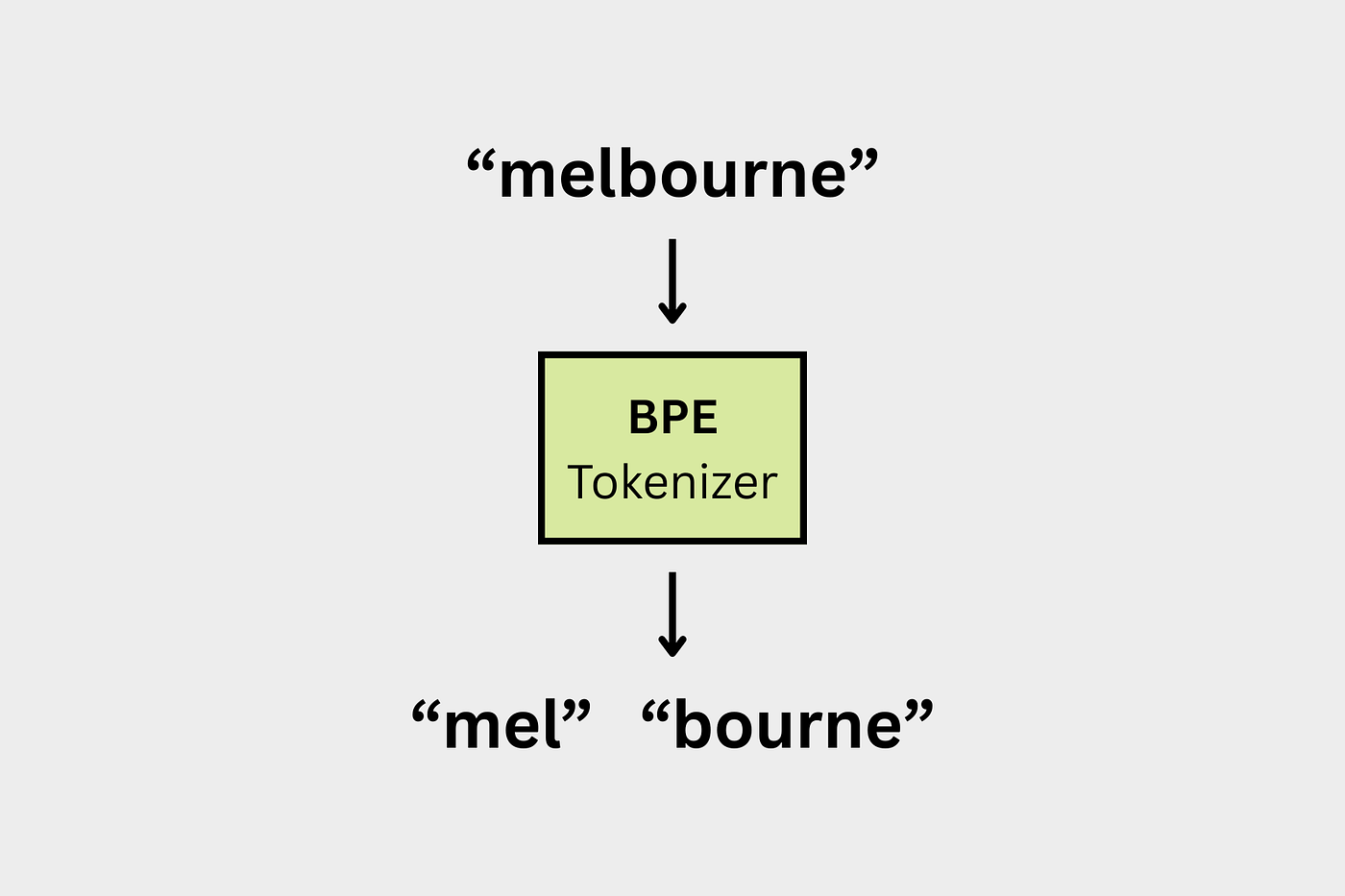

BPE(来自 langformer blog

Qwen 3 使用 BPE,它倾向于完整的已知词(例如,"hugging"如果在词汇表中,则保持完整)。

而 LLaMA 3 使用 SentencePiece BPE,它可能会将同一个词拆分成多个部分("hug"+"ging")。这种差异会影响分词速度以及模型理解文本的方式。

3. 初始化安装

我们将使用少量 Python 库,但最好安装它们以避免遇到**"未找到模块"**错误。

python 复制代码
pip install sentencepiece tiktoken torch matplotlib huggingface_hub tokenizers safetensors

安装完所需的库后,我们需要下载 Qwen 3 架构权重和配置文件,这些文件将在本指南中用到。

我们正在针对一个较小的 Qwen 3 MoE 版本,其中包含两个专家,每个专家有 0.8B 参数。必要的文件是 Qwen 3 架构的骨干。有两种方法可以实现这一点。

(选项 1:手动) 转到 Qwen-0.8B-2E HF 目录并手动下载这四个文件中的每一个。

(选项 2:编码) 我们可以使用 huggingface_hubsnapshot_download 模块下载 Qwen 3 MoE 模型的整个 Hugging Face 仓库。我们采用这种方法。

python 复制代码
from tqdm import tqdm
from huggingface_hub import snapshot_download

repo_id = "huihui-ai/Huihui-MoE-0.8B-2E"
local_dir = "Huihui-MoE-0.8B-2E"

snapshot_download(
    repo_id=repo_id,
    local_dir=local_dir,
    ignore_patterns=["*.bin"],
    tqdm_class=tqdm
)

下载所有文件后,我们需要导入将在本博客中使用的库。

python 复制代码
import torch
import torch.nn as nn

from huggingface_hub import snapshot_download
from tokenizers import Tokenizer
from safetensors.torch import load_file

import json
from pathlib import Path
from tqdm import tqdm

import matplotlib.pyplot as plt

接下来,我们需要了解每个文件的用途。

4. 为什么我们需要模型权重?

由于我们旨在精确复制 Qwen 3 MoE,这意味着我们的输入文本必须产生有意义的输出。

例如,如果我们的输入是**"太阳的颜色是?"** ,输出必须是**"白色"**。

实现这一点需要在大规模数据集上训练我们的 LLM,这需要高计算能力,对我们来说是不可行的。

然而,阿里巴巴已经公开了他们的 Qwen 3 架构文件,或者更复杂地说,他们预训练的权重供使用。我们刚刚下载了这些文件,这使我们能够复制他们的架构,而无需训练或大量数据集。一切都已准备就绪,我们只需在正确的位置使用正确的组件。

tokenizer.json --- Qwen 3 使用字节对编码(BPE),Andrej Karpathy 有一个非常简洁的 BPE 实现

python 复制代码
tokenizer_path = Path("Huihui-MoE-0.8B-2E/tokenizer.json")

tokenizer = Tokenizer.from_file(str(tokenizer_path))

with open("Huihui-MoE-0.8B-2E/special_tokens_map.json", "r") as f:
    special_tokens_map = json.load(f)
    print(f"Special tokens from file: {special_tokens_map}")
复制代码
Special tokens from file: {
'additional_special_tokens': ['<|im_start|>',
'<|im_end|>', '<|object_ref_start|>', '<|object_ref_end|>', '<|box_start|>'
...
}

这些特殊标记将用于包装我们的提示,以指导我们的 Qwen 3 架构如何响应我们的查询。

复制代码
# We'll follow the encode -> decode pattern to ensure it works correctly.
prompt = "The only thing I know is that I know"

# .encode() returns an Encoding object, we access the token IDs via .ids
encoded = tokenizer.encode(prompt)
print(f"\nOriginal prompt: '{prompt}'")
print(f"Encoded token IDs: {encoded.ids}")

# .decode() converts the token IDs back to a string.
decoded = tokenizer.decode(encoded.ids)
print(f"Decoded back to text: '{decoded}'")

# Verify the vocabulary size
vocab_size = tokenizer.get_vocab_size()
print(f"\nTokenizer vocabulary size: {vocab_size}")


#### OUTPUT ####
Original prompt: 'The only thing I know is that I know'
Encoded token IDs: [785, 1172, 3166, 358, 1414, 374, 429, 358, 1414]
Decoded back to text: 'The only thing I know is that I know'
Tokenizer vocabulary size: 151669

词汇量大小表示训练数据中唯一字符的数量。tokenizer 的类型是一个字典。

复制代码
# Get the vocabulary as a dictionary: {token_string: token_id}
vocab = tokenizer.get_vocab()

# Display a slice of the vocabulary for inspection (tokens 5600 to 5609)
sample_vocab_slice = list(vocab.items())[5600:5610]
sample_vocab_slice

#### OUTPUT ####
[('íĮIJ', 129382),
 ('ĠBrands', 54232),
 ('Ġincorporates', 51824),
 ('à¸ŀระราà¸Ĭ', 132851),
 ('ĉResource', 79487),
 ('ĠĠĠĠĉĠ', 80840),
 ('hover', 17583),
 ('Movement', 38050),
 ('è§£åĨ³äºĨ', 105826),
 ('ĠonBackPressed', 70609)]

当我们从中打印 10 个随机项时,您会看到使用 BPE 算法形成的字符串。键表示来自 BPE 训练的字节序列,而值表示基于频率的合并排名。

config.json --- 包含各种参数值,例如:

python 复制代码
# Define the path to the configuration file.
config_path = Path("Huihui-MoE-0.8B-2E/config.json")

# Open and load the JSON file into a Python dictionary.
with open(config_path, "r") as f:
    config = json.load(f)

# Print the configuration to see all the parameters.
# This gives us a complete overview of the model we're about to build.
print(json.dumps(config, indent=4))


#### OUTPUT ####
{
    "architectures": [
        "Qwen3MoeForCausalLM"
    ],
    "attention_bias": false,
    "attention_dropout": 0.0,
    "bos_token_id": 151643,
    "decoder_sparse_step": 1,
    "eos_token_id": 151645,
    "head_dim": 128,
    "hidden_act": "silu",
    ...
    "transformers_version": "4.52.4",
    "use_cache": true,
    "use_sliding_window": false,
    "vocab_size": 151936
}

这些值将通过指定注意力头数、嵌入向量维度、专家数量等细节来帮助我们复制 Qwen-3 架构。

让我们存储这些值,以便以后使用。

python 复制代码
# --- Main Architecture Parameters ---
# Extract model hyperparameters from the config dictionary.

# Embedding dimension (hidden size of the model)
dim = config["hidden_size"]
# Number of transformer layers
n_layers = config["num_hidden_layers"]
# Number of attention heads
n_heads = config["num_attention_heads"]
# Number of key/value heads (for grouped-query attention)
n_kv_heads = config["num_key_value_heads"]
# Vocabulary size
vocab_size = config["vocab_size"]
# RMSNorm epsilon value for numerical stability
norm_eps = config["rms_norm_eps"]
# Rotary positional embedding theta parameter
rope_theta = torch.tensor(config["rope_theta"])
# Dimension of each attention head
head_dim = config["head_dim"]  # For attention calculations

# --- Mixture-of-Experts (MoE) Specific Parameters ---
# Number of experts in the MoE layer
num_experts = config["num_experts"]
# Number of experts selected per token by the router
num_experts_per_tok = config["num_experts_per_tok"]
# Intermediate size of the MoE feed-forward network
moe_intermediate_size = config["moe_intermediate_size"]

model.safetensors --- 包含 Qwen 0.8B 2 专家模型的学习参数(权重)。这些参数包含模型如何理解和处理语言的信息,例如它如何表示标记、计算注意力、执行专家选择以及归一化其输出。

python 复制代码
model_weights_path = Path("Huihui-MoE-0.8B-2E/model.safetensors")

model_weights = load_file(model_weights_path)

print("First 20 keys in model_weights:")
print(json.dumps(list(model_weights.keys())[:20], indent=4))

OUTPUT:

复制代码
[
    "model.embed_tokens.weight",
    "model.layers.0.input_layernorm.weight",
    "model.layers.0.mlp.experts.0.down_proj.weight",
    "model.layers.0.mlp.experts.0.gate_proj.weight",
    "model.layers.0.mlp.experts.0.up_proj.weight",
    "model.layers.0.mlp.experts.1.down_proj.weight",
    ...
    "model.layers.1.mlp.experts.0.gate_proj.weight",
    "model.layers.1.mlp.experts.0.up_proj.weight"
    ...
]

如果您熟悉 Transformer 架构,您就会知道查询、键矩阵等等。稍后,我们将使用这些层/权重来创建这些矩阵以及 Qwen 3 MoE 架构中的 MoE 组件。

现在我们有了分词器模型、包含权重的架构模型和配置参数,让我们开始从头开始编码我们自己的 Qwen 3 MoE。

5. Tokenized文本

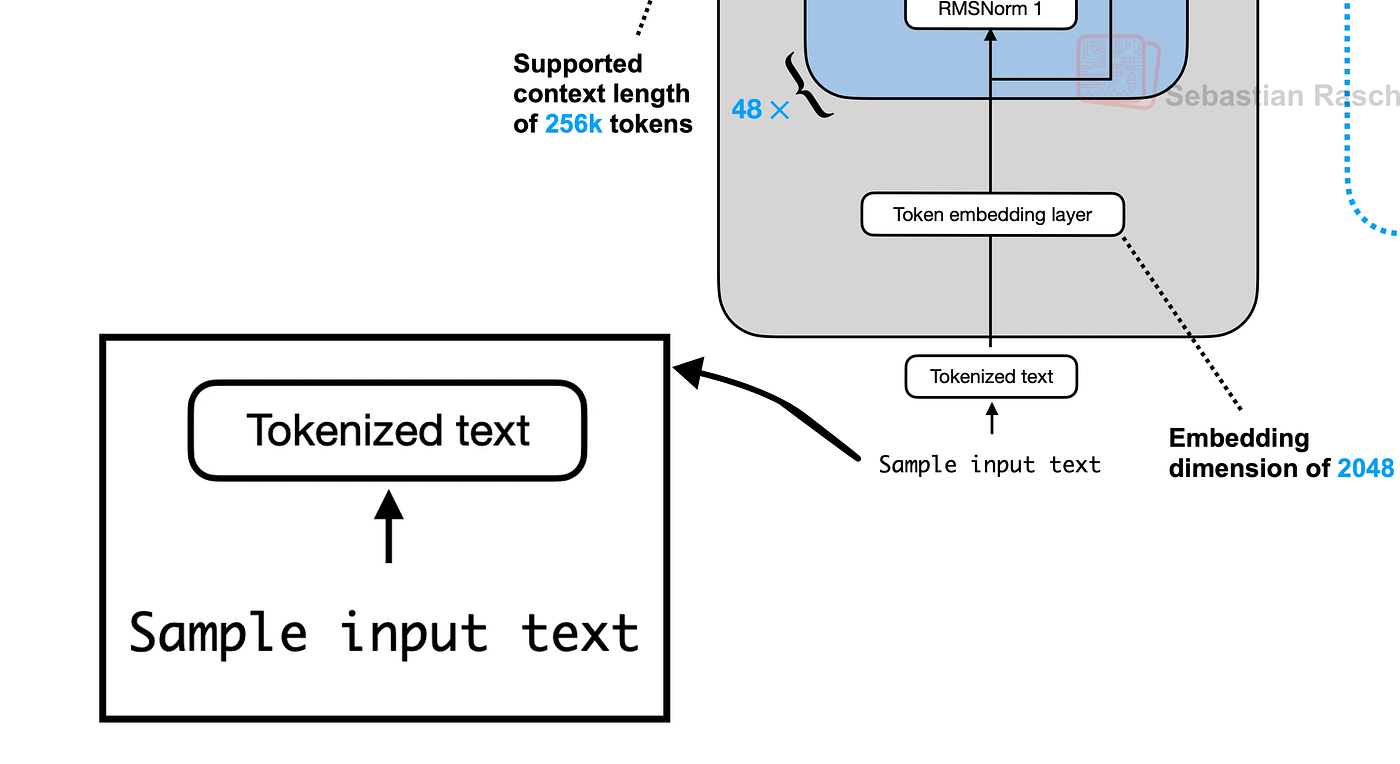

标记化输入文本(由 Fareed Khan 创建)

第一步是将我们的输入文本转换为标记。Qwen 3 使用带有特殊标记(如 <|im_start|><|im_end|>)的特定聊天模板来构建对话。这有助于模型区分用户查询和它自己的响应。

python 复制代码
prompt = "The only thing I know is that I know"

im_start_id = tokenizer.token_to_id("<|im_start|>")
im_end_id = tokenizer.token_to_id("<|im_end|>")
newline_id = tokenizer.encode("\n").ids[0]
user_ids = tokenizer.encode
````python
assistant_ids = tokenizer.encode("assistant").ids
prompt_ids = tokenizer.encode(prompt).ids

prefix_ids = [im_start_id] + user_ids + [newline_id]
suffix_ids = [im_end_id, newline_id, im_start_id] + assistant_ids + [newline_id]
tokens_list = prefix_ids + prompt_ids + suffix_ids

tokens = torch.tensor(tokens_list)

print(f"Final combined token IDs: {tokens}")

prompt_split_as_tokens = [tokenizer.decode([token.item()]) for token in tokens]
print(f"\nPrompt split into tokens: {prompt_split_as_tokens}")

OUTPUT:

复制代码
Final combined token IDs: tensor([151644,    872,  ... , 8])
Prompt split into tokens: ['', 'user', '\n', 'The', ..., '\n']

我们现在已经将提示转换为一个包含 17 个标记的结构化列表,准备好供模型使用。

6. 创建令牌嵌入层

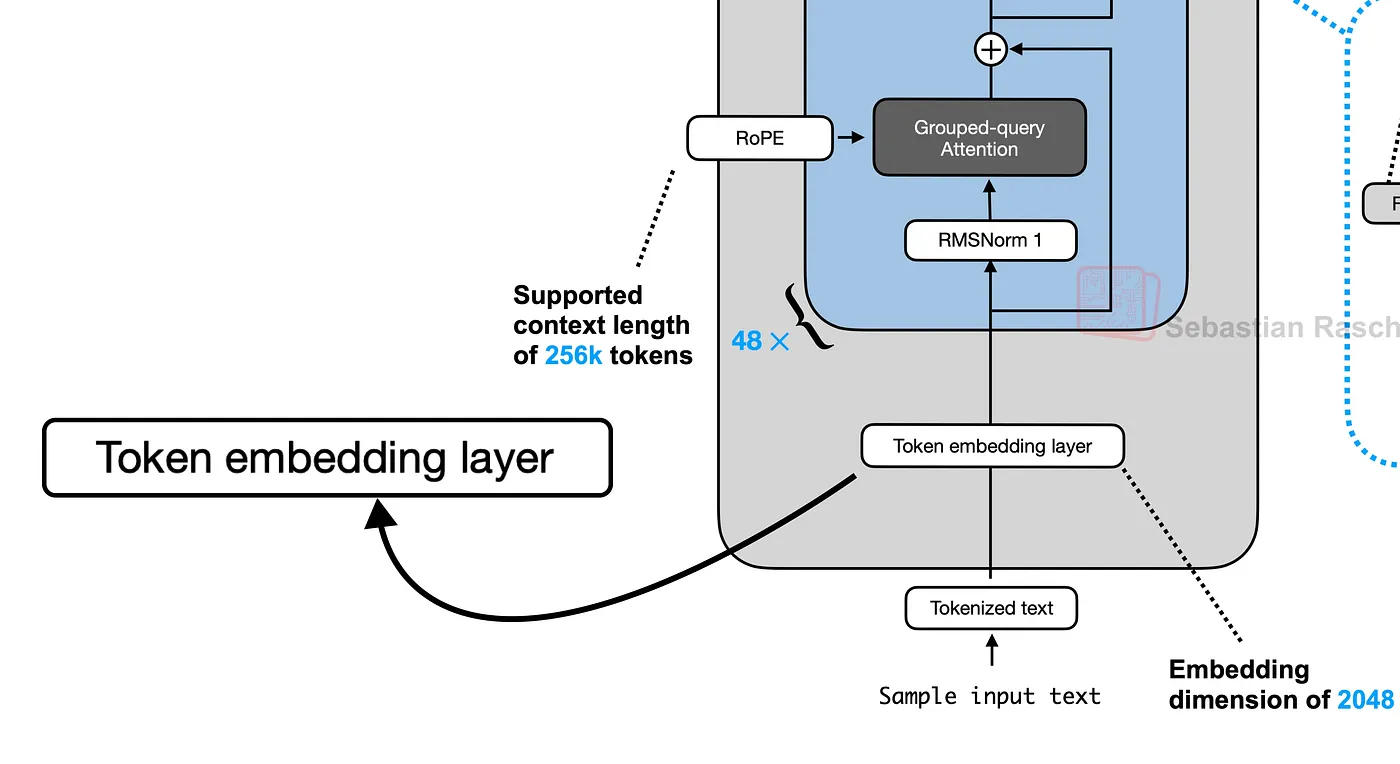

生成标记化文本的嵌入(由 Fareed Khan 创建)

嵌入是一个密集向量,用于在高维空间中表示标记的含义。我们的 17 个标记的输入向量需要转换为 [17, 1024] 的张量,其中 1024 (dim) 是嵌入维度。

python 复制代码
embedding_layer = nn.Embedding(vocab_size, dim)

embedding_layer.weight.data.copy_(model_weights["model.embed_tokens.weight"])

token_embeddings_unnormalized = embedding_layer(tokens).to(torch.bfloat16)

print("Shape of the token embeddings:", token_embeddings_unnormalized.shape)

OUTPUT

复制代码
Shape of the token embeddings: torch.Size([17, 1024])

这些嵌入未归一化,如果我们不进行归一化,将产生严重影响。在下一节中,我们将对输入向量执行归一化。

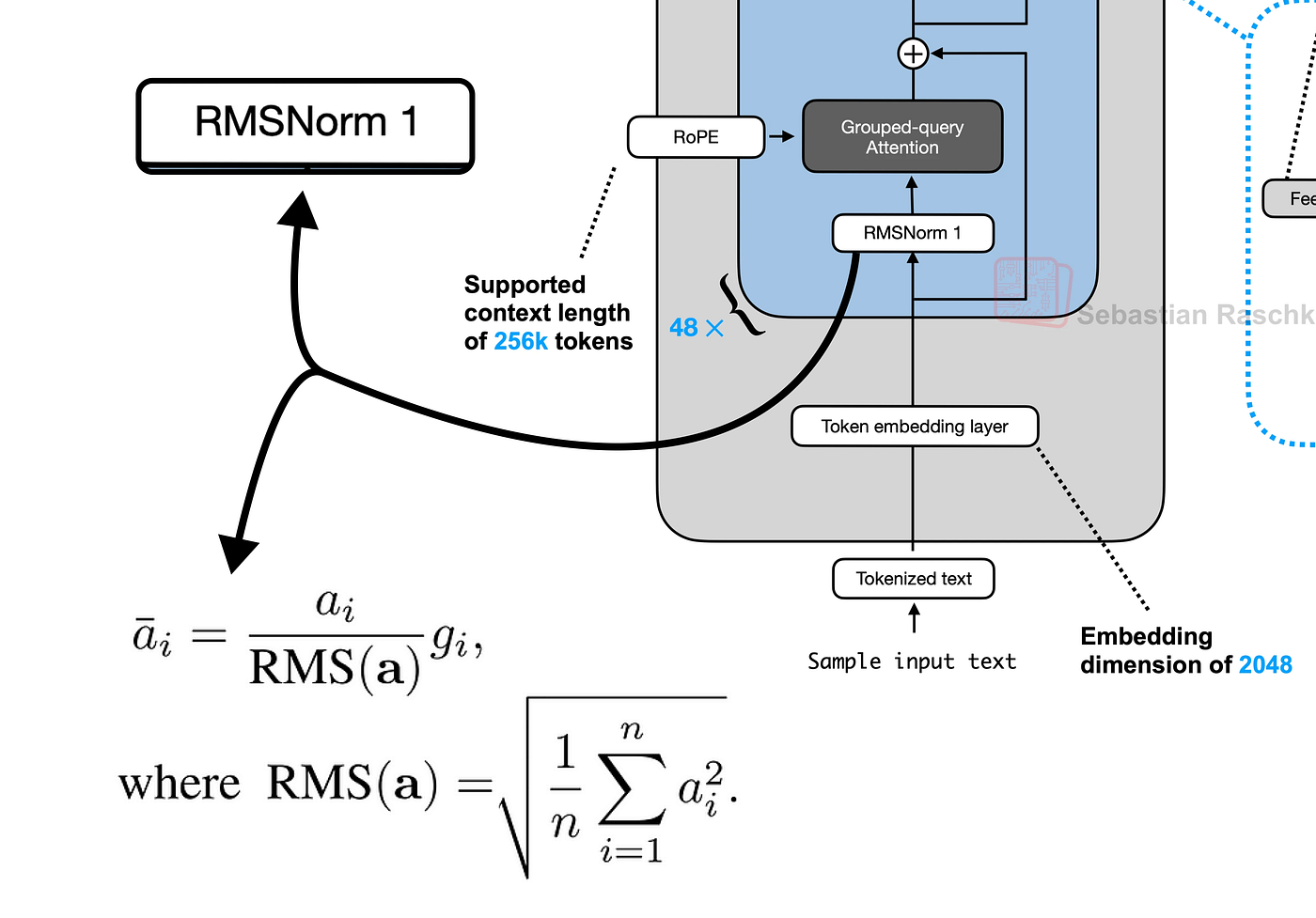

7. 使用 RMSNorm 进行规范化

我们将定义 rms_norm 函数,它根据输入的均方根值缩放输入。这是我们 Transformer 层中的第一个预归一化步骤。

均方根层归一化论文 (https://arxiv.org/abs/1910.07467)

python 复制代码
def rms_norm(tensor, norm_weights):
    input_dtype = tensor.dtype
    tensor_float = tensor.to(torch.float32)

    variance = tensor_float.pow(2).mean(-1, keepdim=True)

    normalized_tensor = tensor_float * torch.rsqrt(variance + norm_eps)

    return (normalized_tensor * norm_weights).to(input_dtype)

我们将使用 layers_0 的注意力权重来归一化我们未归一化的嵌入。使用 layer_0 的原因是,我们现在正在创建 Qwen 3 架构的第一层。

python 复制代码
token_embeddings_normalized = rms_norm(
    token_embeddings_unnormalized,
    model_weights["model.layers.0.input_layernorm.weight"]
)
print("Shape of the normalized token embeddings:", token_embeddings_normalized.shape)
复制代码
Shape of the normalized token embeddings: torch.Size([17, 1024])

形状保持不变,但值现在已归一化,并准备好用于注意力机制。

8. 分组查询注意力 (GQA)

接下来,我们生成查询 (Q)、键 (K) 和值 (V) 向量。预训练权重存储在大的组合矩阵中。我们需要重塑它们以分离出我们 16 个注意力头的每个头的权重。

分组查询注意力 (GQA)(由 Fareed Khan 创建)

该模型使用一种称为分组查询注意力 (GQA) 的优化,其中多个查询头 (16) 共享少量键和值头 (8)。这在不显著降低性能的情况下减少了计算负载。

python 复制代码
q_layer0 = model_weights["model.layers.0.self_attn.q_proj.weight"]
q_layer0 = q_layer0.view(n_heads, head_dim, dim)

k_layer0 = model_weights["model.layers.0.self_attn.k_proj.weight"]
k_layer0 = k_layer0.view(n_kv_heads, head_dim, dim)

v_layer0 = model_weights["model.layers.0.self_attn.v_proj.weight"]
v_layer0 = v_layer0.view(n_kv_heads, head_dim, dim)

现在,让我们通过将归一化嵌入乘以头的权重来计算第一个头的 Q、K 和 V 向量。

python 复制代码
q_layer0_head0 = q_layer0[0]
k_layer0_head0 = k_layer0[0]
v_layer0_head0 = v_layer0[0]

q_per_token = torch.matmul(token_embeddings_normalized, q_layer0_head0.T)
k_per_token = torch.matmul(token_embeddings_normalized, k_layer0_head0.T)
v_per_token = torch.matmul(token_embeddings_normalized, v_layer0_head0.T)

print("Shape of Query vectors per token:", q_per_token.shape)
复制代码
Shape of Query vectors per token: torch.Size([17, 128])

我们 17 个标记中的每个标记现在都有一个 128 维的 Q、K 和 V 向量,用于第一个头。

9. 使用 RoPE

这些向量尚未知道它们的位置。我们将使用 RoPE 通过"旋转"它们来注入这些信息。为了提高效率,我们可以预先计算所有可能位置(直到最大序列长度)的旋转角度。

RoPE 实现(由 Fareed Khan 创建)

这将创建一个旋转矩阵的查找表,表示为复数。

python 复制代码
max_seq_len = config["max_position_embeddings"]
freqs = 1.0 / (rope_theta ** (torch.arange(0, head_dim, 2) / head_dim))
t = torch.arange(max_seq_len)
freqs_for_each_token = torch.outer(t, freqs)

freqs_cis = torch.polar(torch.ones_like(freqs_for_each_token), freqs_for_each_token)

这个 freqs_cis 张量现在包含将执行旋转的复数。我们可以可视化单个标记的旋转,以查看每个 2D 维度对如何以不同的角度旋转。

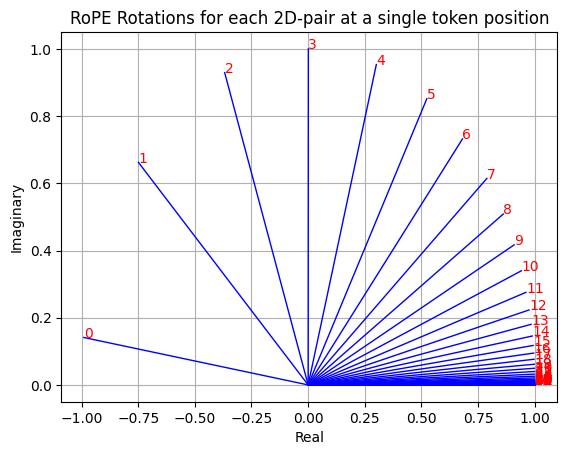

单个标记位置上每个 2D 对的 RoPE 旋转(由 Fareed Khan 创建)

现在,我们将这些旋转应用于我们的 Q 和 K 向量。通过将向量视为复数并执行逐元素乘法来执行旋转。

python 复制代码
freqs_cis_for_tokens = freqs_cis[:len(tokens)]

q_per_token_as_complex_numbers = torch.view_as_complex(q_per_token.float().view(q_per_token.shape[0], -1, 2))
q_per_token_rotated_complex = q_per_token_as_complex_numbers * freqs_cis_for_tokens
q_per_token_rotated = torch.view_as_real(q_per_token_rotated_complex).view(q_per_token.shape)

k_per_token_as_complex_numbers = torch.view_as_complex(k_per_token.float().view(k_per_token.shape[0], -1, 2))
k_per_token_rotated_complex = k_per_token_as_complex_numbers * freqs_cis_for_tokens
k_per_token_rotated = torch.view_as_real(k_per_token_rotated_complex).view(k_per_token.shape)

print("Shape of rotated Query vectors:", q_per_token_rotated.shape)
复制代码
Shape of rotated Query vectors: torch.Size([17, 128])

10. 计算注意力分数

现在我们通过计算查询和键矩阵的点积来计算注意力分数。这将创建一个 [17, 17] 矩阵,显示每个标记应该"关注"其他每个标记的程度。

我们通过头维度的平方根来缩放分数,以稳定训练。

python 复制代码
qk_per_token = torch.matmul(q_per_token_rotated, k_per_token_rotated.T)

qk_per_token_scaled = qk_per_token / (head_dim**0.5)

我们可以将这些原始分数可视化为热图。

python 复制代码
qk_per_token = torch.matmul(q_per_token_rotated, k_per_token_rotated.T)

qk_per_token_scaled = qk_per_token / (head_dim**0.5)

def display_qk_heatmap(qk_matrix, title="Attention Heatmap"):
    _, ax = plt.subplots()
    im = ax.imshow(qk_matrix.to(torch.float32).detach(), cmap='viridis')
    ax.set_xticks(range(len(prompt_split_as_tokens)))
    ax.set_yticks(range(len(prompt_split_as_tokens)))
    ax.set_xticklabels(prompt_split_as_tokens, rotation=90)
    ax.set_yticklabels(prompt_split_as_tokens)
    ax.figure.colorbar(im, ax=ax)
    plt.title(title)
    plt.show()

display_qk_heatmap(qk_per_token_scaled, title="Raw Attention Scores (Before Masking)")

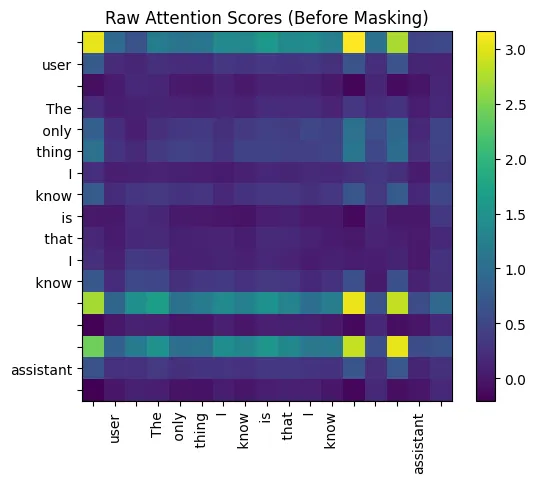

原始注意力分数(掩码前)

为了防止标记在这种自回归模型中"看到"未来,我们应用因果掩码。这将矩阵上三角形中的所有分数设置为负无穷大,因此它们在 softmax 函数后变为零。

python 复制代码
mask = torch.full((len(tokens), len(tokens)), float("-inf"))
mask = torch.triu(mask, diagonal=1)

qk_per_token_masked = qk_per_token_scaled + mask

如果我们看看掩码矩阵的样子。

python 复制代码
print(mask)
复制代码
tensor([[0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf, -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., -inf],
        [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]])

掩码后的注意力分数

最后,我们应用 softmax 函数将这些分数转换为概率(注意力权重),并将它们乘以值矩阵。这将产生值的加权和,为我们提供此注意力头的最终输出。

python 复制代码
qk_per_token_after_masking_after_softmax = torch.nn.functional.softmax(qk_per_token_masked.float(), dim=1).to(torch.bfloat16)

qkv_attention = torch.matmul(qk_per_token_after_masking_after_softmax, v_per_token)

print("Shape of the final attention output for Head 0:", qkv_attention.shape)
复制代码
Shape of the final attention output for Head 0: torch.Size([17, 128])

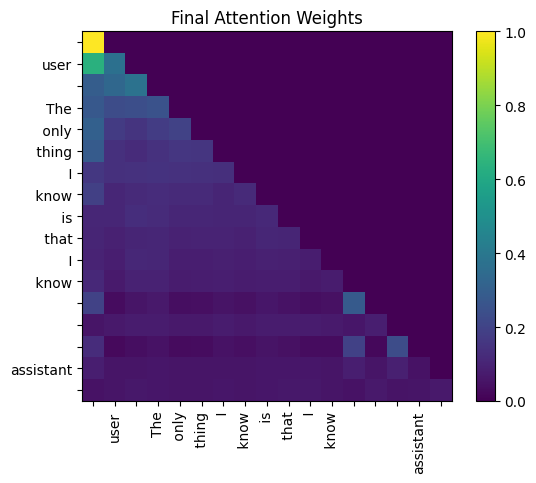

最终注意力权重(由 Fareed Khan 创建)

输出是一个新的 [17, 128] 张量,其中每个标记的向量现在包含来自所有先前标记的上下文信息。

11. 实现多头注意力

我们现在在一个循环中对所有 16 个头重复自注意力过程。每个头的输出([17, 128] 张量)被收集到一个列表中。

多头注意力(由 Fareed Khan 创建)

python 复制代码
qkv_attention_store = []

for head in range(n_heads):

    q_layer0_head = q_layer0[head]
    k_layer0_head = k_layer0[head // (n_heads // n_kv_heads)]
    v_layer0_head = v_layer0[head // (n_heads // n_kv_heads)]

    q_per_token = torch.matmul(token_embeddings_normalized, q_layer0_head.T)
    k_per_token = torch.matmul(token_embeddings_normalized, k_layer0_head.T)
    v_per_token = torch.matmul(token_embeddings_normalized, v_layer0_head.T)

    q_per_token_split_into_pairs = q_per_token.float().view(q_per_token.shape[0], -1, 2)
    q_per_token_as_complex_numbers = torch.view_as_complex(q_per_token_split_into_pairs)
    q_per_token_as_complex_numbers_rotated = q_per_token_as_complex_numbers * freqs_cis_for_tokens
    q_per_token_split_into_pairs_rotated = torch.view_as_real(q_per_token_as_complex_numbers_rotated)
    q_per_token_rotated = q_per_token_split_into_pairs_rotated.view(q_per_token.shape)

    k_per_token_split_into_pairs = k_per_token.float().view(k_per_token.shape[0], -1, 2)
    k_per_token_as_complex_numbers = torch.view_as_complex(k_per_token_split_into_pairs)
    k_per_token_as_complex_numbers_rotated = k_per_token_as_complex_numbers * freqs_cis_for_tokens
    k_per_token_split_into_pairs_rotated = torch.view_as_real(k_per_token_as_complex_numbers_rotated)
    k_per_token_rotated = k_per_token_split_into_pairs_rotated.view(k_per_token.shape)

    qk_per_token = torch.matmul(q_per_token_rotated, k_per_token_rotated.T) / (head_dim**0.5)

    qk_per_token_masked = qk_per_token + mask

    qk_per_token_after_masking_after_softmax = torch.nn.functional.softmax(qk_per_token_masked.float(), dim=1).to(torch.bfloat16)

    qkv_attention = torch.matmul(qk_per_token_after_masking_after_softmax, v_per_token)

    qkv_attention_store.append(qkv_attention)

循环结束后,我们将 16 个头的输出连接成一个大小为 [17, 2048] 的大张量。然后使用输出权重矩阵 o_proj 将其投影回模型的维度 (1024)。

python 复制代码
stacked_qkv_attention = torch.cat(qkv_attention_store, dim=-1)

w_layer0 = model_weights["model.layers.0.self_attn.o_proj.weight"]

embedding_delta = torch.matmul(stacked_qkv_attention, w_layer0.T)

结果 embedding_delta 被加回到层的原始输入中。这是第一个残差连接,这是一项关键技术,通过允许梯度更轻松地流动,有助于训练非常深的神经网络。

python 复制代码
embedding_after_attention = token_embeddings_unnormalized + embedding_delta

12. 专家混合 (MoE) 块

这是 Transformer 块的第二个子层。首先,我们对其输入应用预归一化。

Qwen 3 MoE 层(由 Fareed Khan 创建)

python 复制代码
embedding_after_attention_normalized = rms_norm(
    embedding_after_attention,
    model_weights["model.layers.0.post_attention_layernorm.weight"]
)

接下来,路由器(一个简单的线性层)计算分数以确定每个标记应该发送到两个专家中的哪一个。

python 复制代码
gate = model_weights["model.layers.0.mlp.gate.weight"]
router_logits = torch.matmul(embedding_after_attention_normalized, gate.T)

routing_weights = torch.nn.functional.softmax(router_logits.float(), dim=1).to(torch.bfloat16)
routing_expert_indices = torch.argmax(routing_weights, dim=1)

print("Router logits shape:", router_logits.shape)
print("Expert chosen for each of the 17 tokens:", routing_expert_indices)
复制代码
Router logits shape: torch.Size([17, 2])
Expert chosen for each of the 17 tokens: tensor([1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1])

在这种情况下,路由器决定将所有 17 个标记发送给专家 1。我们现在通过每个标记选择的专家的前馈网络 (FFN) 处理每个标记的嵌入,并根据路由器的概率加权组合结果。

python 复制代码
expert0_w1 = model_weights["model.layers.0.mlp.experts.0.gate_proj.weight"]
expert0_w2 = model_weights["model.layers.0.mlp.experts.0.down_proj.weight"]
expert0_w3 = model_weights["model.layers.0.mlp.experts.0.up_proj.weight"]

expert1_w1 = model_weights["model.layers.0.mlp.experts.1.gate_proj.weight"]
expert1_w2 = model_weights["model.layers.0.mlp.experts.1.down_proj.weight"]
expert1_w3 = model_weights["model.layers.0.mlp.experts.1.up_proj.weight"]

final_expert_output = torch.zeros_like(embedding_after_attention_normalized)

for i, token_embedding in enumerate(embedding_after_attention_normalized):
    chosen_expert_index = routing_expert_indices[i]

    if chosen_expert_index == 0:
        w1, w2, w3 = expert0_w1, expert0_w2, expert0_w3
    else:
        w1, w2, w3 = expert1_w1, expert1_w2, expert1_w3

    silu_output = torch.nn.functional.silu(torch.matmul(token_embedding, w1.T))
    gated_output = silu_output * torch.matmul(token_embedding, w3.T)
    expert_output = torch.matmul(gated_output, w2.T)

    final_expert_output[i] = expert_output * routing_weights[i, chosen_expert_index]

最后,我们将 MoE 块的输出添加回注意力块的输出。这是第二个残差连接,完成了 Transformer 层。

python 复制代码
layer_0_embedding = embedding_after_attention + final_expert_output

13. 合并层

现在我们有了所有组件,我们可以通过遍历所有 28 层来构建完整的模型。

一层的输出成为下一层的输入。

合并一切(来自 Sebastian Raschka

python 复制代码
final_embedding = token_embeddings_unnormalized

for layer in range(n_layers):

    attention_input = rms_norm(final_embedding, model_weights[f"model.layers.{layer}.input_layernorm.weight"])

    q_layer = model_weights[f"model.layers.{layer}.self_attn.q_proj.weight"].view(n_heads, head_dim, dim)
    k_layer = model_weights[f"model.layers.{layer}.self_attn.k_proj.weight"].view(n_kv_heads, head_dim, dim)
    v_layer = model_weights[f"model.layers.{layer}.self_attn.v_proj.weight"].view(n_kv_heads, head_dim, dim)
    w_layer = model_weights[f"model.layers.{layer}.self_attn.o_proj.weight"]

    qkv_attention_store = []
    for head in range(n_heads):
        q_layer_head = q_layer[head]
        k_layer_head = k_layer[head // (n_heads // n_kv_heads)]
        v_layer_head = v_layer[head // (n_heads // n_kv_heads)]

        q_per_token = torch.matmul(attention_input, q_layer_head.T)
        k_per_token = torch.matmul(attention_input, k_layer_head.T)
        v_per_token = torch.matmul(attention_input, v_layer_head.T)

        q_per_token_rotated = torch.view_as_real(torch.view_as_complex(q_per_token.float().view(q_per_token.shape[0], -1, 2)) * freqs_cis_for_tokens).view(q_per_token.shape)
        k_per_token_rotated = torch.view_as_real(torch.view_as_complex(k_per_token.float().view(k_per_token.shape[0], -1, 2)) * freqs_cis_for_tokens).view(k_per_token.shape)

        qk_per_token = torch.matmul(q_per_token_rotated, k_per_token_rotated.T) / (head_dim**0.5)
        qk_per_token_masked = qk_per_token + mask
        qk_per_token_after_masking_after_softmax = torch.nn.functional.softmax(qk_per_token_masked.float(), dim=1).to(torch.bfloat16)

        qkv_attention = torch.matmul(qk_per_token_after_masking_after_softmax, v_per_token)
        qkv_attention_store.append(qkv_attention)

    stacked_qkv_attention = torch.cat(qkv_attention_store, dim=-1)
    embedding_delta = torch.matmul(stacked_qkv_attention, w_layer.T)

    embedding_after_attention = final_embedding + embedding_delta

    moe_input = rms_norm(embedding_after_attention, model_weights[f"model.layers.{layer}.post_attention_layernorm.weight"])

    gate = model_weights[f"model.layers.{layer}.mlp.gate.weight"]
    router_logits = torch.matmul(moe_input, gate.T)
    routing_weights = torch.nn.functional.softmax(router_logits.float(), dim=1).to(torch.bfloat16)
    routing_expert_indices = torch.argmax(routing_weights, dim=1)

    final_expert_output = torch.zeros_like(moe_input)

    expert0_w1 = model_weights[f"model.layers.{layer}.mlp.experts.0.gate_proj.weight"]
    expert0_w2 = model_weights[f"model.layers.{layer}.mlp.experts.0.down_proj.weight"]
    expert0_w3 = model_weights[f"model.layers.{layer}.mlp.experts.0.up_proj.weight"]

    expert1_w1 = model_weights[f"model.layers.{layer}.mlp.experts.1.gate_proj.weight"]
    expert1_w2 = model_weights[f"model.layers.{layer}.mlp.experts.1.down_proj.weight"]
    expert1_w3 = model_weights[f"model.layers.{layer}.mlp.experts.1.up_proj.weight"]

    for i, token_embedding in enumerate(moe_input):
        chosen_expert_index = routing_expert_indices[i]

        if chosen_expert_index == 0:
            w1, w2, w3 = expert0_w1, expert0_w2, expert0_w3
        else:
            w1, w2, w3 = expert1_w1, expert1_w2, expert1_w3

        silu_output = torch.nn.functional.silu(torch.matmul(token_embedding, w1.T))
        gated_output = silu_output * torch.matmul(token_embedding, w3.T)
        expert_output = torch.matmul(gated_output, w2.T)

        final_expert_output[i] = expert_output * routing_weights[i, chosen_expert_index]

    final_embedding = embedding_after_attention + final_expert_output

print("Shape of the final embeddings after all layers:", final_embedding.shape)
复制代码
Shape of the final embeddings after all layers: torch.Size([17, 1024])

14. 生成输出

我们现在有了最终嵌入,它代表了模型对下一个标记的预测。其形状为 [17, 1024]。首先,我们应用最后一次 RMSNorm。

python 复制代码
final_embedding_normalized = rms_norm(final_embedding, model_weights["model.norm.weight"])

为了获得最终预测,我们只需要序列中最后一个标记的嵌入。我们将这个 [1024] 向量乘以语言模型头权重(与标记嵌入权重绑定),以获得词汇表中每个单词的分数,即 logits

python 复制代码
lm_head_weights = model_weights["model.embed_tokens.weight"]

last_token_embedding = final_embedding_normalized[-1]

logits = torch.matmul(last_token_embedding, lm_head_weights.T)

print("Shape of the final logits :", logits.shape)
复制代码
Shape of the final logits: torch.Size([151936])

具有最高 logit 的标记是模型的预测。我们使用 argmax 来找到其索引。

python 复制代码
next_token_id = torch.argmax(logits, dim=-1)
print(f"Predicted Token ID: {next_token_id.item()}")

predicted_word = tokenizer.decode([next_token_id.item()])
print(f"\nPredicted Word: '{predicted_word}'")
复制代码
Predicted Token ID: 12454
Predicted Word: 'nothing'

因此,在提示 ...assistant\n 之后,模型对下一个词的最佳猜测是"nothing"。这只是一个单标记生成,但它表明我们从头开始实现的 Qwen 3 MoE 架构正在正确运行。

您可以通过简单地更改开头的 prompt 变量并调整标记张量构造来尝试不同的输入文本。
