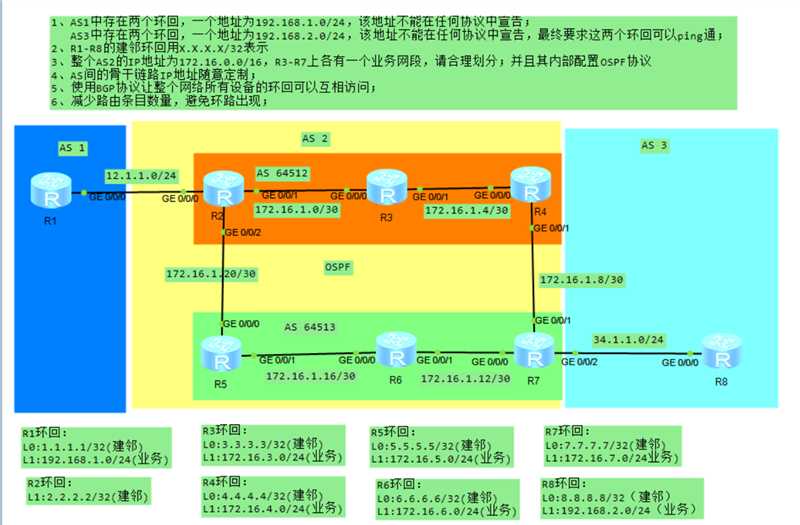

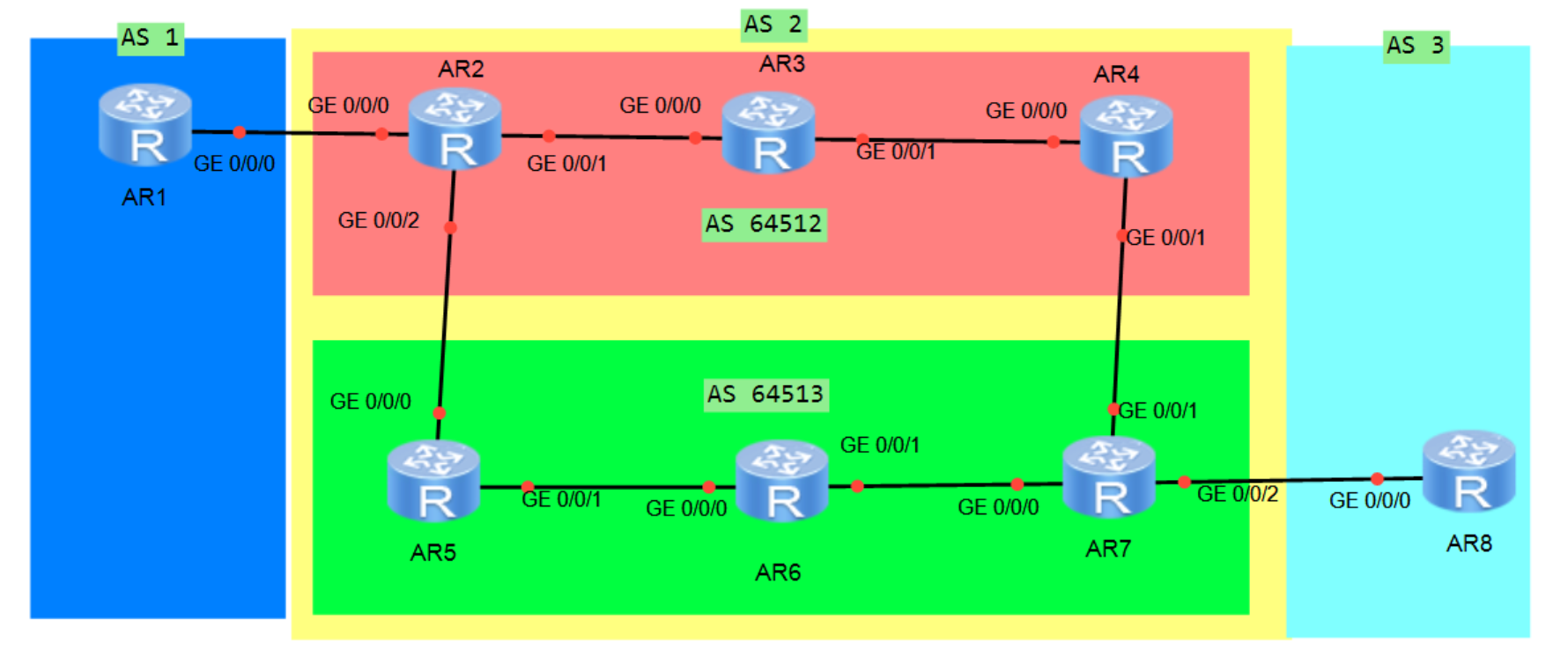

一、实验拓扑
二、实验需求
1、AS1中存在两个环回，一个地址为192.168.1.0/24，该地址不能在任何协议中宣告；AS2中存在两个环回，一个地址为192.168.2.0/24，该地址不能在任何协议中宣告，最终要求这两个环回可以ping通
2、R1-R8的建邻环回用X.X.X.X/32表示
3、整个AS2的IP地址为172.16.0.0/16，R3-R7上各有一个业务网段，请合理划分；并且其内部配置OSPF协议
4、AS间的骨干链路IP地址随意定制
5、使用BGP协议让整个网路所有设备的环回可以互相访问
6、减少路由条目数量，避免环路出现
三、实验思路
1.配置IP地址
2.配通AS2内网（OSPF建邻、BGP、路由反射器），让整个网路所有设备的环回可以互相访问
3.路由聚合，减少路由条目数量，避免环路出现
4.路由引入，使192.168.1.0/24，192.168.2.0/24不能在任何协议中宣告，但这两个环回可以ping通
四、实验步骤
1.配置IP
[R1]int l0
[R1-LoopBack0]ip add 1.1.1.1 32
[R1-LoopBack0]int l1
[R1-LoopBack1]ip add 192.168.1.1 24
[R1-LoopBack1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 12.1.1.1 24
[R2]int l0
[R2-LoopBack1]ip add 2.2.2.2 32
[R2-LoopBack1]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 12.1.1.2 24
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ip add 172.16.1.1 30
[R2-GigabitEthernet0/0/1]int g0/0/2
[R2-GigabitEthernet0/0/2]ip add 172.16.1.21 30
[R3-LoopBack0]ip add 3.3.3.3 32
[R3-LoopBack0]int l1
[R3-LoopBack1]ip add 172.16.3.3 24
[R3-LoopBack1]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 172.16.1.2 30
[R3-GigabitEthernet0/0/0]int g0/0/1
[R3-GigabitEthernet0/0/1]ip add 172.16.1.5 30
[R4]int l0
[R4-LoopBack0]ip add 4.4.4.4 32
[R4-LoopBack0]int l1
[R4-LoopBack1]ip add 172.16.4.4 24
[R4-LoopBack1]int g0/0/0
[R4-GigabitEthernet0/0/0]ip add 172.16.1.6 30
[R4-GigabitEthernet0/0/0]int g0/0/1
[R4-GigabitEthernet0/0/1]ip add 172.16.1.9 30
[R5]int l0
[R5-LoopBack0]ip add 5.5.5.5 32
[R5-LoopBack0]int l1
[R5-LoopBack1]ip add 172.16.5.5 24
[R5-LoopBack1]int g0/0/0
[R5-GigabitEthernet0/0/0]ip add 172.16.1.22 30
[R5-GigabitEthernet0/0/0]int g0/0/1
[R5-GigabitEthernet0/0/1]ip add 172.16.1.17 30
[R6]int l0
[R6-LoopBack0]ip add 6.6.6.6 32
[R6-LoopBack0]int l1
[R6-LoopBack1]ip add 172.16.6.6 24
[R6-LoopBack1]int g0/0/0
[R6-GigabitEthernet0/0/0]ip add 172.16.1.18 30
[R6-GigabitEthernet0/0/0]int g0/0/1
[R6-GigabitEthernet0/0/1]ip add 172.16.1.13 30
[R7]int l0
[R7-LoopBack0]ip add 7.7.7.7 32
[R7-LoopBack0]int l1
[R7-LoopBack1]ip add 172.16.7.7 24
[R7-LoopBack1]int g0/0/0
[R7-GigabitEthernet0/0/0]ip add 172.16.1.14 30
[R7-GigabitEthernet0/0/0]int g0/0/1
[R7-GigabitEthernet0/0/1]ip add 172.16.1.10 30
[R7-GigabitEthernet0/0/1]int g0/0/2
[R7-GigabitEthernet0/0/2]ip add 34.1.1.7 24
[R8]int l0
[R8-LoopBack0]ip add 8.8.8.8 32
[R8-LoopBack0]int l1
[R8-LoopBack1]ip add 192.168.2.8 24
[R8-LoopBack1]int g0/0/0
[R8-GigabitEthernet0/0/0]ip add 34.1.1.8 242.配置AS2内网
[R2-ospf-1]a 0
[R2-ospf-1-area-0.0.0.0]net 172.16.1.1 0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 172.16.1.21 0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 2.2.2.2 0.0.0.0
[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]a 0
[R3-ospf-1-area-0.0.0.0]net 172.16.1.2 0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 172.16.1.5 0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 172.16.3.0 0.0.0.255
[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]a 0
[R4-ospf-1-area-0.0.0.0]net 172.16.1.6 0.0.0.0
[R4-ospf-1-area-0.0.0.0]net 172.16.1.9 0.0.0.0
[R4-ospf-1-area-0.0.0.0]net 4.4.4.4 0.0.0.0
[R4-ospf-1-area-0.0.0.0]net 172.16.4.0 0.0.0.255
[R5]ospf 1 router-id 5.5.5.5
[R5-ospf-1]a 0
[R5-ospf-1-area-0.0.0.0]net 172.16.1.22 0.0.0.0
[R5-ospf-1-area-0.0.0.0]net 172.16.1.17 0.0.0.0
[R5-ospf-1-area-0.0.0.0]net 5.5.5.5 0.0.0.0
[R5-ospf-1-area-0.0.0.0]net 172.16.5.0 0.0.0.255
[R6]ospf 1 router-id 6.6.6.6
[R6-ospf-1]a 0
[R6-ospf-1-area-0.0.0.0]net 172.16.1.18 0.0.0.0
[R6-ospf-1-area-0.0.0.0]net 172.16.1.13 0.0.0.0
[R6-ospf-1-area-0.0.0.0]net 6.6.6.6 0.0.0.0
[R6-ospf-1-area-0.0.0.0]net 172.16.6.0 0.0.0.255
[R7]ospf 1 router-id 7.7.7.7
[R7-ospf-1]a 0
[R7-ospf-1-area-0.0.0.0]net 172.16.1.14 0.0.0.0
[R7-ospf-1-area-0.0.0.0]net 172.16.1.10 0.0.0.0
[R7-ospf-1-area-0.0.0.0]net 7.7.7.7 0.0.0.0
[R7-ospf-1-area-0.0.0.0]net 172.16.7.0 0.0.0.255
[R1]bgp 1
[R1-bgp]peer 12.1.1.2 as 2
[R2]bgp 64512
[R2-bgp]confederation id 2
[R2-bgp]confederation peer-as 64513
[R2-bgp]peer 12.1.1.1 as 1
[R2-bgp]peer 3.3.3.3 as 64512
[R2-bgp]peer 3.3.3.3 connect-interface l0
[R2-bgp]peer 3.3.3.3 next-hop-local
[R2-bgp]peer 172.16.1.22 as 64513
[R2-bgp]peer 172.16.1.22 next-hop-local
[R3]bgp 64512
[R3-bgp]confederation id 2
[R3-bgp]confederation peer-as 64513
[R3-bgp]peer 2.2.2.2 as 64512
[R3-bgp]peer 2.2.2.2 connect-interface l0
[R3-bgp]peer 4.4.4.4 as 64512
[R3-bgp]peer 4.4.4.4 connect-interface l0
[R4]bgp 64512
[R4-bgp]confederation id 2
[R4-bgp]confederation peer-as 64513
[R4-bgp]peer 3.3.3.3 as 64512
[R4-bgp]peer 3.3.3.3 connect-interface l0
[R3]bgp 64512
[R3-bgp]peer 2.2.2.2 reflect-client
[R3-bgp]peer 4.4.4.4 reflect-client
[R5]bgp 64513
[R5-bgp]confederation id 2
[R5-bgp]peer 172.16.1.21 as 64512
[R5-bgp]peer 172.16.1.21 next-hop-local
[R5-bgp]peer 6.6.6.6 as 64513
[R5-bgp]peer 6.6.6.6 connect-interface l0
[R5-bgp]peer 6.6.6.6 next-hop-local
[R6]bgp 64513
[R6-bgp]confederation id 2
[R6-bgp]confederation peer-as 64512
[R6-bgp]peer 5.5.5.5 as 64513
[R6-bgp]peer 5.5.5.5 connect-interface l0
[R6-bgp]peer 7.7.7.7 as 64513
[R6-bgp]peer 7.7.7.7 connect-interface l0
[R7]bgp 64513
[R7-bgp]confederation id 2
[R7-bgp]peer 6.6.6.6 as 64513
[R7-bgp]peer 6.6.6.6 connect-interface l0
[R7-bgp]peer 6.6.6.6 next-hop-local
[R7-bgp]peer 34.1.1.8 as 3
[R6]bgp 64513
[R6-bgp]peer 5.5.5.5 reflect-client
[R6-bgp]peer 7.7.7.7 reflect-client
[R8]bgp 3
[R8-bgp]peer 34.1.1.7 as 2
[R3]bgp 64512
[R3-bgp]net 172.16.3.0 24
[R4]bgp 64512
[R4-bgp]net 172.16.4.0 24
[R5]bgp 64513
[R5-bgp]net 172.16.5.0 24
[R6]bgp 64513
[R6-bgp]net 172.16.6.0 24
[R7]bgp 64513
[R7-bgp]net 172.16.7.0 24
[R1]bgp 1
[R1-bgp]net 1.1.1.1 32
[R8]bgp 3
[R8-bgp]net 8.8.8.8 32

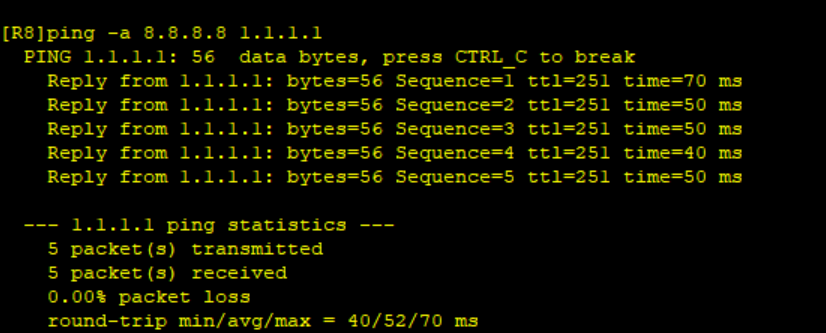

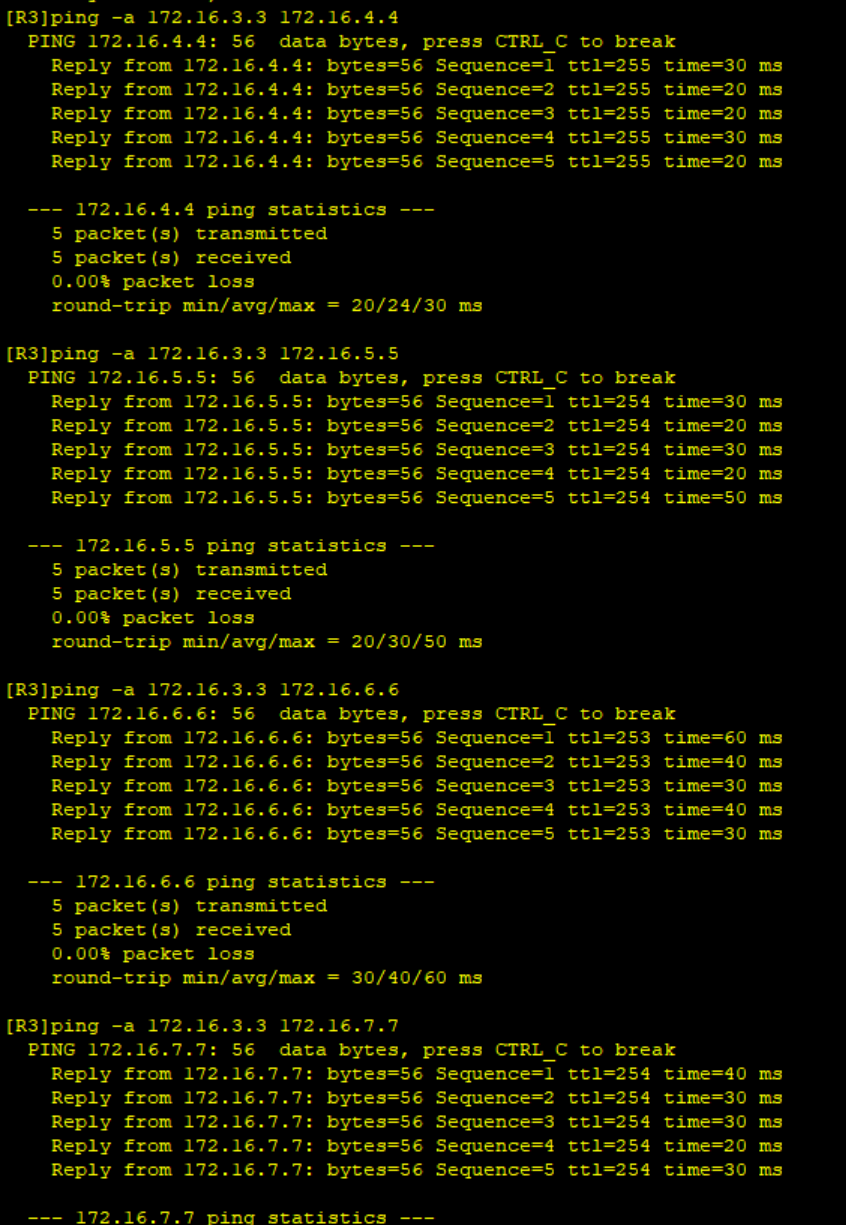

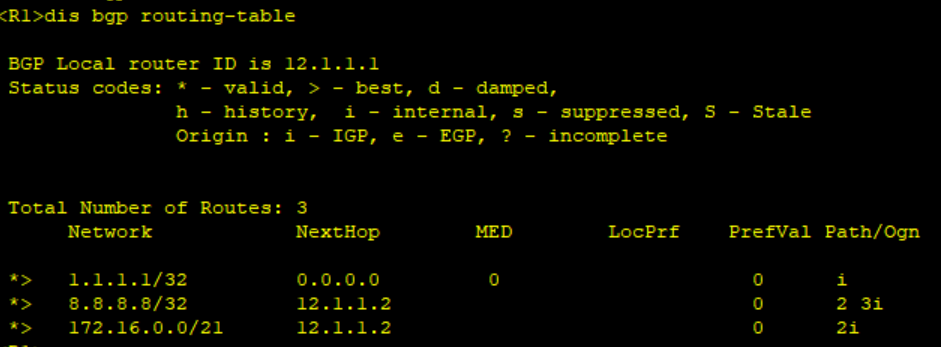

3.ASBR上手动聚合
[R2]bgp 64512
[R2-bgp]aggregate 172.16.0.0 21 detail-suppressed as-set
[R7]bgp 64513
[R7-bgp]aggregate 172.16.0.0 21 detail-suppressed as-set

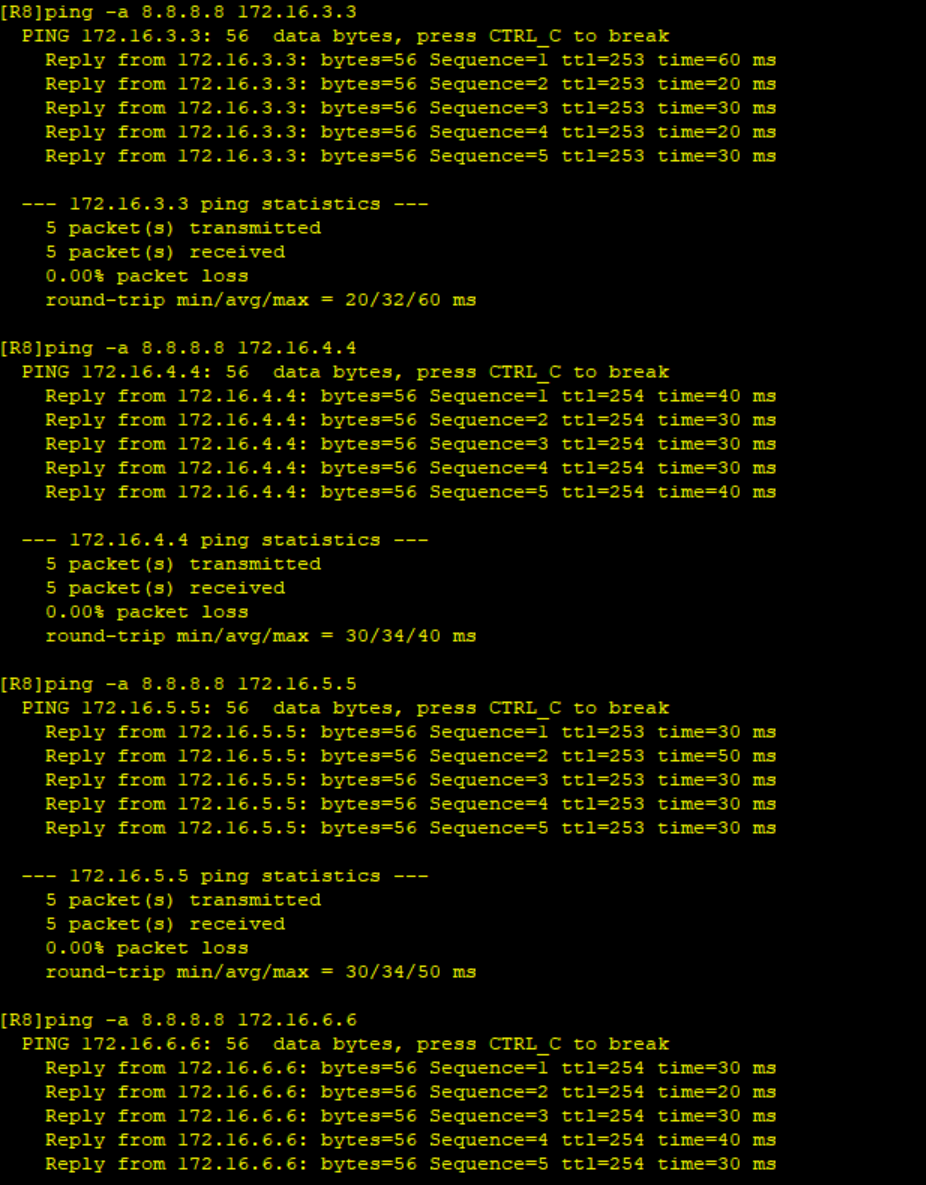

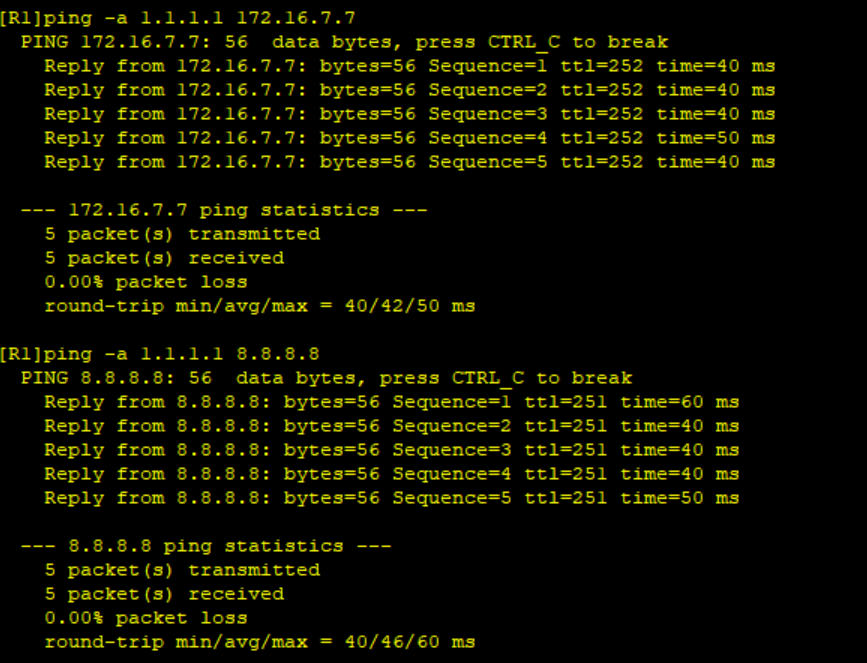

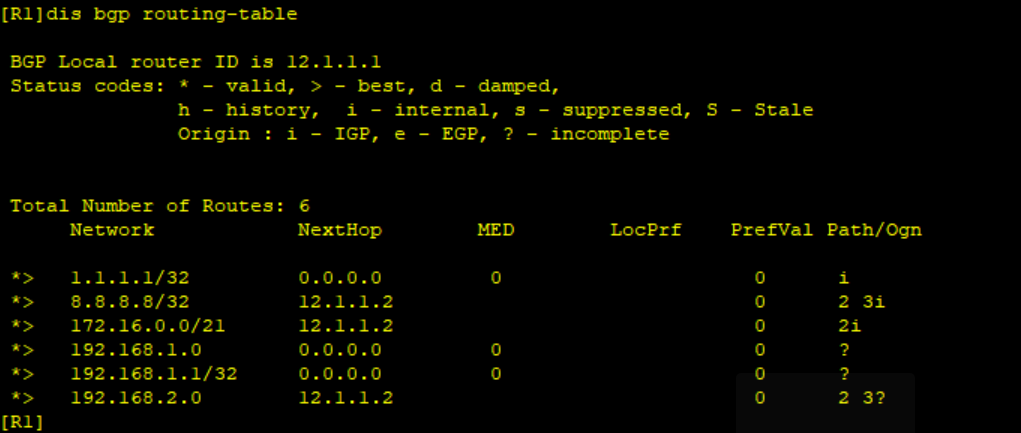

4.R1、R8上路由引入（结合路由策略）
[R1]bgp 1
[R1-bgp]import-route direct
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[R1-acl-basic-2000]q
[R1]route-policy aa permit node 10
[R1-route-policy]if-match acl 2000
[R1-route-policy]q
[R1]bgp 1
[R1-bgp]import-route direct route-policy aa
[R8]acl 2000
[R8-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[R8-acl-basic-2000]q
[R8]route-policy bb permit node 10
[R8-route-policy]if-match acl 2000
[R8-route-policy]q
[R8]bgp 3

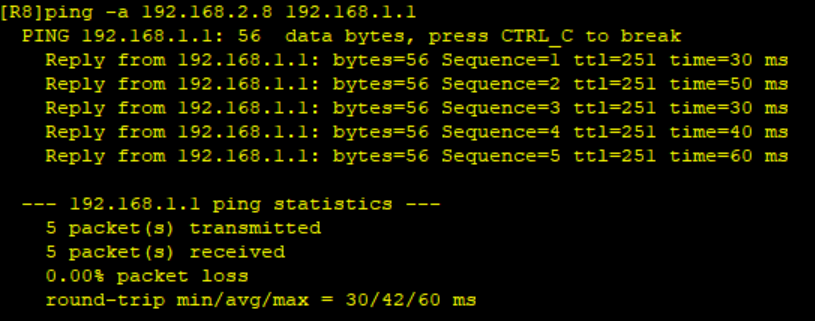

[R8-bgp]import-route direct route-policy bb
