目标

1. 知道transactional如何创建的代理
2. 知道transactional如何提交，回滚事务
3. 通过源码，了解一些场景下transactional失效的原因

建议跟着debug一遍，不然这么多代码，很容易乱

可以先把断点达到这里，computeTransactionAttribute，然后看调用堆栈

protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
		// Don't allow non-public methods, as configured.
		if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
			return null;
		}

		// The method may be on an interface, but we need attributes from the target class.
		// If the target class is null, the method will be unchanged.
		Method specificMethod = AopUtils.getMostSpecificMethod(method, targetClass);

		// First try is the method in the target class.
		TransactionAttribute txAttr = findTransactionAttribute(specificMethod);
		if (txAttr != null) {
			return txAttr; // 如果函数加了注解，这里返回，可以把断点断到这里
		}

		// Second try is the transaction attribute on the target class.
		txAttr = findTransactionAttribute(specificMethod.getDeclaringClass());
		if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
			return txAttr;
		}

		if (specificMethod != method) {
			// Fallback is to look at the original method.
			txAttr = findTransactionAttribute(method);
			if (txAttr != null) {
				return txAttr;
			}
			// Last fallback is the class of the original method.
			txAttr = findTransactionAttribute(method.getDeclaringClass());
			if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
				return txAttr;
			}
		}

		return null;
	}

正式开始-transactional代理类的生成

端点的调用栈入口是initializeBean函数，也就是bean的实例化和属性赋值结束的动作。

protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
    invokeAwareMethods(beanName, bean);

    Object wrappedBean = bean;
    if (mbd == null || !mbd.isSynthetic()) {
        wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
    }

    try {
        invokeInitMethods(beanName, wrappedBean, mbd);
    }
    catch (Throwable ex) {
        throw new BeanCreationException(
                (mbd != null ? mbd.getResourceDescription() : null), beanName, ex.getMessage(), ex);
    }
    if (mbd == null || !mbd.isSynthetic()) {
        wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName); // 这里进入
    }

    return wrappedBean;
}

很明显调用的是 postProcessAfterInitialization 回调函数 先进入

public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
        throws BeansException {

    Object result = existingBean;
    for (BeanPostProcessor processor : getBeanPostProcessors()) {
        Object current = processor.postProcessAfterInitialization(result, beanName); // 进入这里
        if (current == null) {
            return result;
        }
        result = current;
    }
    return result;
}

再进入类 AbstractAutoProxyCreator

public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    if (bean != null) {
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
        if (this.earlyBeanReferences.remove(cacheKey) != bean) {
            return wrapIfNecessary(bean, beanName, cacheKey); // 进入这里
        }
    }
    return bean;
}

再进入 wrapIfNeccessary

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
        return bean;
    }
    if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
        return bean;
    }
    if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }

    // Create proxy if we have advice.
    Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null); // 这里找到注解
    if (specificInterceptors != DO_NOT_PROXY) {
        this.advisedBeans.put(cacheKey, Boolean.TRUE);
        Object proxy = createProxy(
                bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean)); // 创建代理
        this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
    }

    this.advisedBeans.put(cacheKey, Boolean.FALSE);
    return bean;
}

找注解的步骤就不细究了，直接看怎么生成代理的。

代理类的生成

进入createProxy

protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
        @Nullable Object[] specificInterceptors, TargetSource targetSource) {

    return buildProxy(beanClass, beanName, specificInterceptors, targetSource, false);
}

进入buildProxy

private Object buildProxy(Class<?> beanClass, @Nullable String beanName,
        @Nullable Object[] specificInterceptors, TargetSource targetSource, boolean classOnly) {

    if (this.beanFactory instanceof ConfigurableListableBeanFactory clbf) {
        AutoProxyUtils.exposeTargetClass(clbf, beanName, beanClass);
    }

    ProxyFactory proxyFactory = new ProxyFactory();
    proxyFactory.copyFrom(this);

    if (proxyFactory.isProxyTargetClass()) {
        // Explicit handling of JDK proxy targets and lambdas (for introduction advice scenarios)
        if (Proxy.isProxyClass(beanClass) || ClassUtils.isLambdaClass(beanClass)) {
            // Must allow for introductions; can't just set interfaces to the proxy's interfaces only.
            for (Class<?> ifc : beanClass.getInterfaces()) {
                proxyFactory.addInterface(ifc);
            }
        }
    }
    else {
        // No proxyTargetClass flag enforced, let's apply our default checks...
        if (shouldProxyTargetClass(beanClass, beanName)) {
            proxyFactory.setProxyTargetClass(true);
        }
        else {
            evaluateProxyInterfaces(beanClass, proxyFactory);
        }
    }

    Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
    proxyFactory.addAdvisors(advisors);
    proxyFactory.setTargetSource(targetSource);
    customizeProxyFactory(proxyFactory);

    proxyFactory.setFrozen(this.freezeProxy);
    if (advisorsPreFiltered()) {
        proxyFactory.setPreFiltered(true);
    }

    // Use original ClassLoader if bean class not locally loaded in overriding class loader
    ClassLoader classLoader = getProxyClassLoader();
    if (classLoader instanceof SmartClassLoader smartClassLoader && classLoader != beanClass.getClassLoader()) {
        classLoader = smartClassLoader.getOriginalClassLoader();
    }
    return (classOnly ? proxyFactory.getProxyClass(classLoader) : proxyFactory.getProxy(classLoader)); // 上面基本都没走，直接进入getProxy
}

public Object getProxy(@Nullable ClassLoader classLoader) {
    return createAopProxy().getProxy(classLoader);
}

protected final synchronized AopProxy createAopProxy() {
    if (!this.active) {
        activate();
    }
    return getAopProxyFactory().createAopProxy(this);
}

public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
    if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) { // 第一个参数是配置项，第二个参数是@EnableAspectJAutoProxy(proxyTargetClass = true) 的配置，第三个参数就是该类是否有接口
        Class<?> targetClass = config.getTargetClass();
        if (targetClass == null) {
            throw new AopConfigException("TargetSource cannot determine target class: " +
                    "Either an interface or a target is required for proxy creation.");
        }
        if (targetClass.isInterface() || Proxy.isProxyClass(targetClass) || ClassUtils.isLambdaClass(targetClass)) { // 目标是接口，或者是代理类，或者是lambda表达式
            return new JdkDynamicAopProxy(config);
        }
        return new ObjenesisCglibAopProxy(config); // 最终会选择cglib代理
    }
    else {
        return new JdkDynamicAopProxy(config);
    }
}

判断用jdk还是cglib，因为cglib要继承原本的类实现代理，所以要检查情况，如果不能继承，就需要用jdk代理。 cglib对象创建完了，进入getProxy，可以创建代理了

public Object getProxy(@Nullable ClassLoader classLoader) {
    return buildProxy(classLoader, false);
}
private Object buildProxy(@Nullable ClassLoader classLoader, boolean classOnly) {
    if (logger.isTraceEnabled()) {
        logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
    }

    try {
        Class<?> rootClass = this.advised.getTargetClass();
        Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

        Class<?> proxySuperClass = rootClass;
        if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
            proxySuperClass = rootClass.getSuperclass();
            Class<?>[] additionalInterfaces = rootClass.getInterfaces();
            for (Class<?> additionalInterface : additionalInterfaces) {
                this.advised.addInterface(additionalInterface);
            }
        }

        // Validate the class, writing log messages as necessary.
        validateClassIfNecessary(proxySuperClass, classLoader);

        // Configure CGLIB Enhancer...
        Enhancer enhancer = createEnhancer();
        if (classLoader != null) {
            enhancer.setClassLoader(classLoader);
            if (classLoader instanceof SmartClassLoader smartClassLoader &&
                    smartClassLoader.isClassReloadable(proxySuperClass)) {
                enhancer.setUseCache(false);
            }
        }
        enhancer.setSuperclass(proxySuperClass);
        enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
        enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
        enhancer.setAttemptLoad(true);
        enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

        Callback[] callbacks = getCallbacks(rootClass);
        Class<?>[] types = new Class<?>[callbacks.length];
        for (int x = 0; x < types.length; x++) {
            types[x] = callbacks[x].getClass();
        }
        // fixedInterceptorMap only populated at this point, after getCallbacks call above
        ProxyCallbackFilter filter = new ProxyCallbackFilter(
                this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset);
        enhancer.setCallbackFilter(filter);
        enhancer.setCallbackTypes(types);

        // Generate the proxy class and create a proxy instance.
        // ProxyCallbackFilter has method introspection capability with Advisor access.
        try {
            return (classOnly ? createProxyClass(enhancer) : createProxyClassAndInstance(enhancer, callbacks)); // 进入这里
        }
        finally {
            // Reduce ProxyCallbackFilter to key-only state for its class cache role
            // in the CGLIB$CALLBACK_FILTER field, not leaking any Advisor state...
            filter.advised.reduceToAdvisorKey();
        }
    }
    catch (CodeGenerationException | IllegalArgumentException ex) {
        throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
                ": Common causes of this problem include using a final class or a non-visible class",
                ex);
    }
    catch (Throwable ex) {
        // TargetSource.getTarget() failed
        throw new AopConfigException("Unexpected AOP exception", ex);
    }
}

下面就是真正创建代理类了

protected Object createProxyClassAndInstance(Enhancer enhancer, Callback[] callbacks) {
    Class<?> proxyClass = enhancer.createClass();
    Object proxyInstance = null;

    if (objenesis.isWorthTrying()) {
        try {
            proxyInstance = objenesis.newInstance(proxyClass, enhancer.getUseCache()); // 创建类
        }
        catch (Throwable ex) {
            logger.debug("Unable to instantiate proxy using Objenesis, " +
                    "falling back to regular proxy construction", ex);
        }
    }

    if (proxyInstance == null) {
        // Regular instantiation via default constructor...
        try {
            Constructor<?> ctor = (this.constructorArgs != null ?
                    proxyClass.getDeclaredConstructor(this.constructorArgTypes) :
                    proxyClass.getDeclaredConstructor());
            ReflectionUtils.makeAccessible(ctor);
            proxyInstance = (this.constructorArgs != null ?
                    ctor.newInstance(this.constructorArgs) : ctor.newInstance());
        }
        catch (Throwable ex) {
            throw new AopConfigException("Unable to instantiate proxy using Objenesis, " +
                    "and regular proxy instantiation via default constructor fails as well", ex);
        }
    }

    ((Factory) proxyInstance).setCallbacks(callbacks);
    return proxyInstance;
}
public <T> T newInstance(Class<T> clazz, boolean useCache) {
    if (!useCache) {
        return newInstantiatorOf(clazz).newInstance();
    }
    return getInstantiatorOf(clazz).newInstance(); // 这里创建
}

// SunReflectionFactoryInstantiator.java
public T newInstance() {
    try {
        return mungedConstructor.newInstance((Object[]) null); // 调用构造函数.newInstance创建代理类
    }
    catch(Exception e) {
        throw new ObjenesisException(e);
    }
}

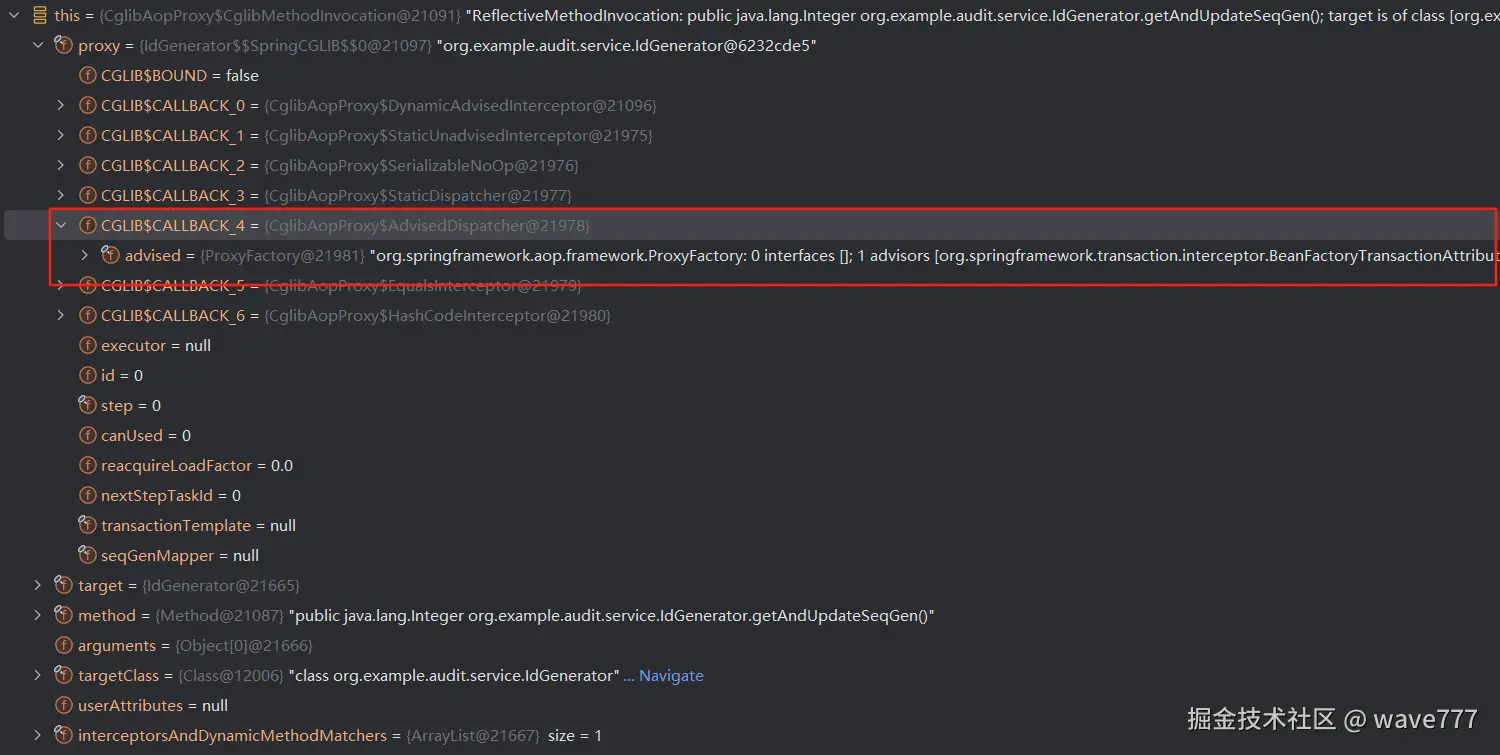

可以在文章附录部分看到创建好的代理类，但是意义不大，里面的字段对理解下文没帮助。

代码里面使用transactional，执行sql

获取连接，开启事务

调用的源码是TransactionAspectSupport.java

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
        final InvocationCallback invocation) throws Throwable {

    // .....

    if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager cpptm)) {
        // Standard transaction demarcation with getTransaction and commit/rollback calls.
        TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification); // 这里要获取连接开启事务，进去看一下

        Object retVal;
        try {
            // This is an around advice: Invoke the next interceptor in the chain.
            // This will normally result in a target object being invoked.
            retVal = invocation.proceedWithInvocation();
        }
        catch (Throwable ex) {
            // target invocation exception
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }
        finally {
            cleanupTransactionInfo(txInfo);
        }

        if (retVal != null && txAttr != null) {
            TransactionStatus status = txInfo.getTransactionStatus();
            if (status != null) {
                if (retVal instanceof Future<?> future && future.isDone()) {
                    try {
                        future.get();
                    }
                    catch (ExecutionException ex) {
                        if (txAttr.rollbackOn(ex.getCause())) {
                            status.setRollbackOnly();
                        }
                    }
                    catch (InterruptedException ex) {
                        Thread.currentThread().interrupt();
                    }
                }
                else if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
                    // Set rollback-only in case of Vavr failure matching our rollback rules...
                    retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
                }
            }
        }

        commitTransactionAfterReturning(txInfo);
        return retVal;
    }

    else {
        Object result;
        final ThrowableHolder throwableHolder = new ThrowableHolder();

        // It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
        try {
            result = cpptm.execute(txAttr, status -> {
                TransactionInfo txInfo = prepareTransactionInfo(ptm, txAttr, joinpointIdentification, status);
                try {
                    Object retVal = invocation.proceedWithInvocation();
                    if (retVal != null && vavrPresent && VavrDelegate.isVavrTry(retVal)) {
                        // Set rollback-only in case of Vavr failure matching our rollback rules...
                        retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
                    }
                    return retVal;
                }
                catch (Throwable ex) {
                    if (txAttr.rollbackOn(ex)) {
                        // A RuntimeException: will lead to a rollback.
                        if (ex instanceof RuntimeException runtimeException) {
                            throw runtimeException;
                        }
                        else {
                            throw new ThrowableHolderException(ex);
                        }
                    }
                    else {
                        // A normal return value: will lead to a commit.
                        throwableHolder.throwable = ex;
                        return null;
                    }
                }
                finally {
                    cleanupTransactionInfo(txInfo);
                }
            });
        }
        catch (ThrowableHolderException ex) {
            throw ex.getCause();
        }
        catch (TransactionSystemException ex2) {
            if (throwableHolder.throwable != null) {
                logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
                ex2.initApplicationException(throwableHolder.throwable);
            }
            throw ex2;
        }
        catch (Throwable ex2) {
            if (throwableHolder.throwable != null) {
                logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
            }
            throw ex2;
        }

        // Check result state: It might indicate a Throwable to rethrow.
        if (throwableHolder.throwable != null) {
            throw throwableHolder.throwable;
        }
        return result;
    }
}

先进入createTransactionIfNecessary

protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
        @Nullable TransactionAttribute txAttr, final String joinpointIdentification) {

    // If no name specified, apply method identification as transaction name.
    if (txAttr != null && txAttr.getName() == null) { // joinpointIdentification是函数名
        txAttr = new DelegatingTransactionAttribute(txAttr) {
            @Override
            public String getName() {
                return joinpointIdentification;
            }
        };
    }

    TransactionStatus status = null;
    if (txAttr != null) {
        if (tm != null) {
            status = tm.getTransaction(txAttr); // 进入这里
        }
        else {
            if (logger.isDebugEnabled()) {
                logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
                        "] because no transaction manager has been configured");
            }
        }
    }
    return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status); // 这个一会也要看一下
}

进入getTransaction

public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
        throws TransactionException {

    // Use defaults if no transaction definition given.
    TransactionDefinition def = (definition != null ? definition : TransactionDefinition.withDefaults());

    Object transaction = doGetTransaction(); // 很关键
    boolean debugEnabled = logger.isDebugEnabled();

    if (isExistingTransaction(transaction)) {
        // Existing transaction found -> check propagation behavior to find out how to behave.
        return handleExistingTransaction(def, transaction, debugEnabled);
    }

    // Check definition settings for new transaction.
    if (def.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
        throw new InvalidTimeoutException("Invalid transaction timeout", def.getTimeout());
    }

    // No existing transaction found -> check propagation behavior to find out how to proceed.
    if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
        throw new IllegalTransactionStateException(
                "No existing transaction found for transaction marked with propagation 'mandatory'");
    }
    else if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
            def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
            def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) { // 这些是处理隔离级别
        SuspendedResourcesHolder suspendedResources = suspend(null);
        if (debugEnabled) {
            logger.debug("Creating new transaction with name [" + def.getName() + "]: " + def);
        }
        try {
            return startTransaction(def, transaction, false, debugEnabled, suspendedResources); // 开始事务，这里要进去看一下
        }
        catch (RuntimeException | Error ex) {
            resume(null, suspendedResources);
            throw ex;
        }
    }
    else {
        // Create "empty" transaction: no actual transaction, but potentially synchronization.
        if (def.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
            logger.warn("Custom isolation level specified but no actual transaction initiated; " +
                    "isolation level will effectively be ignored: " + def);
        }
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        return prepareTransactionStatus(def, null, true, newSynchronization, debugEnabled, null);
    }
}

doGetTransaction会获取一个数据库连接

protected Object doGetTransaction() {
    DataSourceTransactionObject txObject = new DataSourceTransactionObject();
    txObject.setSavepointAllowed(isNestedTransactionAllowed());
    ConnectionHolder conHolder =
            (ConnectionHolder) TransactionSynchronizationManager.getResource(obtainDataSource()); // 这里获取了一个数据库连接
    txObject.setConnectionHolder(conHolder, false);
    return txObject;
}

看一下startTransaction

private TransactionStatus startTransaction(TransactionDefinition definition, Object transaction,
        boolean nested, boolean debugEnabled, @Nullable SuspendedResourcesHolder suspendedResources) {

    boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    DefaultTransactionStatus status = newTransactionStatus(
            definition, transaction, true, newSynchronization, nested, debugEnabled, suspendedResources);
    this.transactionExecutionListeners.forEach(listener -> listener.beforeBegin(status));
    try {
        doBegin(transaction, definition); // 这里真正开始
    }
    catch (RuntimeException | Error ex) {
        this.transactionExecutionListeners.forEach(listener -> listener.afterBegin(status, ex));
        throw ex;
    }
    prepareSynchronization(status, definition);
    this.transactionExecutionListeners.forEach(listener -> listener.afterBegin(status, null));
    return status;
}

开启事务

protected void doBegin(Object transaction, TransactionDefinition definition) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    Connection con = null;

    try {
        if (!txObject.hasConnectionHolder() ||
                txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
            Connection newCon = obtainDataSource().getConnection();
            if (logger.isDebugEnabled()) {
                logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");// 这里要获取数据库连接，如果没有连接就新建一个
            }
            txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
        }

        txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
        con = txObject.getConnectionHolder().getConnection();

        Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
        txObject.setPreviousIsolationLevel(previousIsolationLevel);
        txObject.setReadOnly(definition.isReadOnly());

        // Switch to manual commit if necessary. This is very expensive in some JDBC drivers,
        // so we don't want to do it unnecessarily (for example if we've explicitly
        // configured the connection pool to set it already).
        if (con.getAutoCommit()) {
            txObject.setMustRestoreAutoCommit(true);
            if (logger.isDebugEnabled()) {
                logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
            }
            con.setAutoCommit(false); // 关闭autoCommit
        }

        prepareTransactionalConnection(con, definition);
        txObject.getConnectionHolder().setTransactionActive(true);

        int timeout = determineTimeout(definition);
        if (timeout != TransactionDefinition.TIMEOUT_DEFAULT) {
            txObject.getConnectionHolder().setTimeoutInSeconds(timeout);
        }

        // Bind the connection holder to the thread.
        if (txObject.isNewConnectionHolder()) {
            TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder()); // 如果是新建的，就绑定连接
        }
    }

    catch (Throwable ex) {
        if (txObject.isNewConnectionHolder()) {
            DataSourceUtils.releaseConnection(con, obtainDataSource());
            txObject.setConnectionHolder(null, false);
        }
        throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", ex);
    }
}

然后回到 createTransactionIfNecessary

protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
        @Nullable TransactionAttribute txAttr, final String joinpointIdentification) {
    // If no name specified, apply method identification as transaction name.
    if (txAttr != null && txAttr.getName() == null) {
        txAttr = new DelegatingTransactionAttribute(txAttr) {
            @Override
            public String getName() {
                return joinpointIdentification;
            }
        };
    }

    TransactionStatus status = null;
    if (txAttr != null) {
        if (tm != null) {
            status = tm.getTransaction(txAttr); // 从这里出来
        }
        else {
            if (logger.isDebugEnabled()) {
                logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
                        "] because no transaction manager has been configured");
            }
        }
    }
    return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status); // 进入这里
}

进入 prepareTransactionInfo

protected TransactionInfo prepareTransactionInfo(@Nullable PlatformTransactionManager tm,
        @Nullable TransactionAttribute txAttr, String joinpointIdentification,
        @Nullable TransactionStatus status) {

    TransactionInfo txInfo = new TransactionInfo(tm, txAttr, joinpointIdentification);
    if (txAttr != null) {
        // We need a transaction for this method...
        if (logger.isTraceEnabled()) {
            logger.trace("Getting transaction for [" + txInfo.getJoinpointIdentification() + "]");
        }
        // The transaction manager will flag an error if an incompatible tx already exists.
        txInfo.newTransactionStatus(status);
    }
    else {
        // The TransactionInfo.hasTransaction() method will return false. We created it only
        // to preserve the integrity of the ThreadLocal stack maintained in this class.
        if (logger.isTraceEnabled()) {
            logger.trace("No need to create transaction for [" + joinpointIdentification +
                    "]: This method is not transactional.");
        }
    }

    // We always bind the TransactionInfo to the thread, even if we didn't create
    // a new transaction here. This guarantees that the TransactionInfo stack
    // will be managed correctly even if no transaction was created by this aspect.
    txInfo.bindToThread(); // 关键这里有一个绑定线程的操作，使用了threadLocal
    return txInfo;
}
/**
 * Holder to support the {@code currentTransactionStatus()} method,
 * and to support communication between different cooperating advices
 * (e.g. before and after advice) if the aspect involves more than a
 * single method (as will be the case for around advice).
 */
private static final ThreadLocal<TransactionInfo> transactionInfoHolder =
        new NamedThreadLocal<>("Current aspect-driven transaction");
private void bindToThread() {
    // Expose current TransactionStatus, preserving any existing TransactionStatus
    // for restoration after this transaction is complete.
    this.oldTransactionInfo = transactionInfoHolder.get();
    transactionInfoHolder.set(this);
}
// 我也看了一下这个threadlocal没有remove，只要线程活着，连接就存在

回滚

现在我们回到invokeWithinTransaction

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
        final InvocationCallback invocation) throws Throwable {

        ......
    if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager cpptm)) {
        // Standard transaction demarcation with getTransaction and commit/rollback calls.
        TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification); // 刚才在这里创建了数据库连接，开启了事务

        Object retVal;
        try {
            // This is an around advice: Invoke the next interceptor in the chain.
            // This will normally result in a target object being invoked.
            retVal = invocation.proceedWithInvocation(); // 这里执行sql，这里就是aop的执行逻辑了，invocation.proceed()，开始执行我们的业务函数
        }
        catch (Throwable ex) { // 业务执行出问题会走到这里，这里会回滚
            // target invocation exception
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }
        finally {
            cleanupTransactionInfo(txInfo);
        }

        ......
        commitTransactionAfterReturning(txInfo);
        return retVal;
    }
}

看一下如何回滚的，completeTransactionAfterThrowing

protected void completeTransactionAfterThrowing(@Nullable TransactionInfo txInfo, Throwable ex) {
    if (txInfo != null && txInfo.getTransactionStatus() != null) {
        if (logger.isTraceEnabled()) {
            logger.trace("Completing transaction for [" + txInfo.getJoinpointIdentification() +
                    "] after exception: " + ex);
        }
        if (txInfo.transactionAttribute != null && txInfo.transactionAttribute.rollbackOn(ex)) {
            try {
                txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus()); // 回滚
            }
            catch (TransactionSystemException ex2) {
                logger.error("Application exception overridden by rollback exception", ex);
                ex2.initApplicationException(ex);
                throw ex2;
            }
            catch (RuntimeException | Error ex2) {
                logger.error("Application exception overridden by rollback exception", ex);
                throw ex2;
            }
        }
        else {
            // We don't roll back on this exception.
            // Will still roll back if TransactionStatus.isRollbackOnly() is true.
            try {
                txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
            }
            catch (TransactionSystemException ex2) {
                logger.error("Application exception overridden by commit exception", ex);
                ex2.initApplicationException(ex);
                throw ex2;
            }
            catch (RuntimeException | Error ex2) {
                logger.error("Application exception overridden by commit exception", ex);
                throw ex2;
            }
        }
    }
}
public final void rollback(TransactionStatus status) throws TransactionException {
    if (status.isCompleted()) {
        throw new IllegalTransactionStateException(
                "Transaction is already completed - do not call commit or rollback more than once per transaction");
    }

    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    processRollback(defStatus, false);// 进入这里
}
private void processRollback(DefaultTransactionStatus status, boolean unexpected) {
    try {
        boolean unexpectedRollback = unexpected;
        boolean rollbackListenerInvoked = false;

        try {
            triggerBeforeCompletion(status);

            if (status.hasSavepoint()) {
                if (status.isDebug()) {
                    logger.debug("Rolling back transaction to savepoint");
                }
                this.transactionExecutionListeners.forEach(listener -> listener.beforeRollback(status));
                rollbackListenerInvoked = true;
                status.rollbackToHeldSavepoint();
            }
            else if (status.isNewTransaction()) {
                if (status.isDebug()) {
                    logger.debug("Initiating transaction rollback");
                }
                this.transactionExecutionListeners.forEach(listener -> listener.beforeRollback(status));
                rollbackListenerInvoked = true;
                doRollback(status); // 进入这里
            }
            //....
        }
    }......
}

进入 doRollback ，直接调用connection.rollback完成回滚

protected void doRollback(DefaultTransactionStatus status) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) status.getTransaction();
    Connection con = txObject.getConnectionHolder().getConnection();
    if (status.isDebug()) {
        logger.debug("Rolling back JDBC transaction on Connection [" + con + "]");
    }
    try {
        con.rollback(); // 执行回滚
    }
    catch (SQLException ex) {
        throw translateException("JDBC rollback", ex);
    }
}

执行sql正常并提交

再次回到 invokeWithinTransaction

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
        final InvocationCallback invocation) throws Throwable {

        ......
    if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager cpptm)) {
        // Standard transaction demarcation with getTransaction and commit/rollback calls.
        TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification); // 刚才在这里创建了数据库连接，开启了事务

        Object retVal;
        try {
            // This is an around advice: Invoke the next interceptor in the chain.
            // This will normally result in a target object being invoked.
            retVal = invocation.proceedWithInvocation(); // 这里执行sql，这里就是aop的执行逻辑了，invocation.proceed()，开始执行我们的业务函数
        }
        catch (Throwable ex) { // 业务执行出问题会走到这里，这里会回滚
            // target invocation exception
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }
        finally {
            cleanupTransactionInfo(txInfo);
        }

        ......
        commitTransactionAfterReturning(txInfo); // 看一下提交
        return retVal;
    }
}
protected void commitTransactionAfterReturning(@Nullable TransactionInfo txInfo) {
    if (txInfo != null && txInfo.getTransactionStatus() != null) {
        if (logger.isTraceEnabled()) {
            logger.trace("Completing transaction for [" + txInfo.getJoinpointIdentification() + "]");
        }
        txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
    }
}
public final void commit(TransactionStatus status) throws TransactionException {
    if (status.isCompleted()) {
        throw new IllegalTransactionStateException(
                "Transaction is already completed - do not call commit or rollback more than once per transaction");
    }

    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    if (defStatus.isLocalRollbackOnly()) { // rollback-only 是必须回滚的情况，想要深入了解可以问下ai具体场景。简单来说，这个东西可以手动设置，也可以由嵌套事务失败触发。
        if (defStatus.isDebug()) {
            logger.debug("Transactional code has requested rollback");
        }
        processRollback(defStatus, false);
        return;
    }

    if (!shouldCommitOnGlobalRollbackOnly() && defStatus.isGlobalRollbackOnly()) {
        if (defStatus.isDebug()) {
            logger.debug("Global transaction is marked as rollback-only but transactional code requested commit");
        }
        processRollback(defStatus, true);
        return;
    }

    processCommit(defStatus);
}

进入processCommit

private void processCommit(DefaultTransactionStatus status) throws TransactionException {
    try {
        boolean beforeCompletionInvoked = false;
        boolean commitListenerInvoked = false;

        try {
            boolean unexpectedRollback = false;
            prepareForCommit(status);
            triggerBeforeCommit(status);
            triggerBeforeCompletion(status);
            beforeCompletionInvoked = true;

            if (status.hasSavepoint()) {
                if (status.isDebug()) {
                    logger.debug("Releasing transaction savepoint");
                }
                unexpectedRollback = status.isGlobalRollbackOnly();
                this.transactionExecutionListeners.forEach(listener -> listener.beforeCommit(status));
                commitListenerInvoked = true;
                status.releaseHeldSavepoint();
            }
            else if (status.isNewTransaction()) {
                if (status.isDebug()) {
                    logger.debug("Initiating transaction commit");
                }
                unexpectedRollback = status.isGlobalRollbackOnly();
                this.transactionExecutionListeners.forEach(listener -> listener.beforeCommit(status));
                commitListenerInvoked = true;
                doCommit(status); // 进去看一下
            }
            else if (isFailEarlyOnGlobalRollbackOnly()) {
                unexpectedRollback = status.isGlobalRollbackOnly();
            }

            // Throw UnexpectedRollbackException if we have a global rollback-only
            // marker but still didn't get a corresponding exception from commit.
            if (unexpectedRollback) {
                throw new UnexpectedRollbackException(
                        "Transaction silently rolled back because it has been marked as rollback-only");
            }
        }
    }
        //......
}
protected void doCommit(DefaultTransactionStatus status) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) status.getTransaction();
    Connection con = txObject.getConnectionHolder().getConnection();
    if (status.isDebug()) {
        logger.debug("Committing JDBC transaction on Connection [" + con + "]");
    }
    try {
        con.commit(); // 提交事务
    }
    catch (SQLException ex) {
        throw translateException("JDBC commit", ex);
    }
}

面试如何答

spring会为我们的transactional注解创建一个代理类，代理我们的函数执行。代理类在整个bean的生命周期中位于initBean的时候，也就是实例化完成，属性赋值完成之后，执行postProcessAfterInitialization回调函数创建代理类。代理类的生成要看有没有使用接口，如果实现了接口，就用jdk代理，否则就用cglib代理。 代理类生成完了。在使用的时候，需要先去获取数据库连接，没有的话要新建一个。然后把数据库连接放到当前线程的threadlocal里面，绑定一下。对于事务的处理，代理类会先关闭自动提交，这一步就表示开启事务了。然后执行我们的业务代码。外面用try-catch包住。抛出异常的时候，catch里面会执行回滚，conn.rollback。如果执行完成，会调用conn.commit进行提交。 因为这个数据库连接是和线程绑定的，所以多线程执行sql，子线程并不会持有事务。 如果a函数调用b函数，a函数没有transactional注解，b有注解，由于代理只代理了a函数，对于b函数不会执行代理，所以事务不会生效。 回滚是需要抛出异常的，如果异常被业务代码内catch了，没有抛出去，不会进行回滚。

附录

创建好的代理类如图，callback里面有一个transaction函数
