在 app 开发中,测试工程师经常会说,我要在一个手机上同时安装测试环境、预发布环境、正式环境的包,又或者一套代码上架多个 app,怎么搞,手动配置多个环境过程繁琐。无意间看到 flutter_flavorizr
插件 传送门,完美解决了我的问题
1.安装
yaml
dev_dependencies:
flutter_flavorizr: ^2.4.1
2.在项目根目录手动创建 flavorizr.yaml
文件,app icon 用 1024*1024

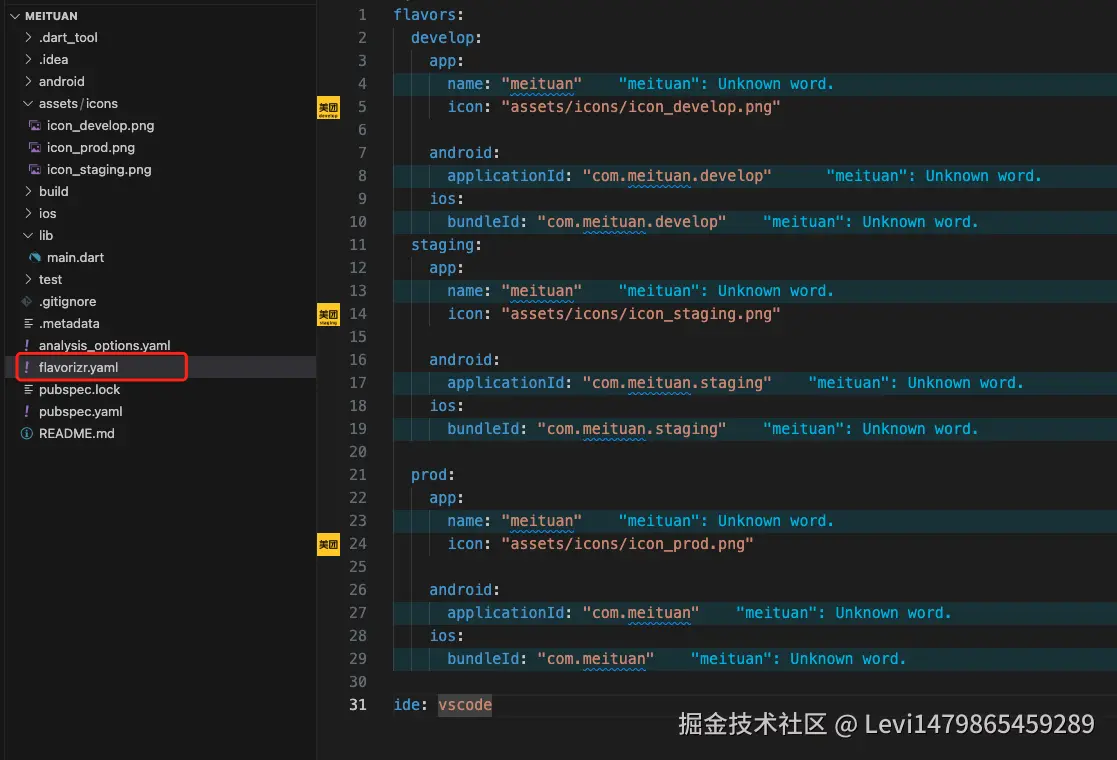

3.在flavorizr.yaml
文件中配置环境信息
less
flavors:
develop:
app:
name: "meituan"
icon: "assets/icons/icon_develop.png"
android:
applicationId: "com.meituan.develop"
ios:
bundleId: "com.meituan.develop"
staging:
app:
name: "meituan"
icon: "assets/icons/icon_staging.png"
android:
applicationId: "com.meituan.staging"
ios:
bundleId: "com.meituan.staging"
prod:
app:
name: "meituan"
icon: "assets/icons/icon_prod.png"
android:
applicationId: "com.meituan"
ios:
bundleId: "com.meituan"
ide: vscode
4.配置完毕后,运行下面脚本
arduino
flutter pub run flutter_flavorizr
如遇到下面提示 Do you want to proceed? (Y/n)
,直接回复 y
markdown
The following instructions will be executed:
- assets:download
- assets:extract
- android:androidManifest
- android:flavorizrGradle
- android:buildGradle
- android:dummyAssets
- android:icons
- flutter:flavors
- flutter:app
- flutter:pages
- flutter:main
- ios:podfile
- ios:xcconfig
- ios:buildTargets
- ios:schema
- ios:dummyAssets
- ios:icons
- ios:plist
- ios:launchScreen
- google:firebase
- huawei:agconnect
- assets:clean
- ide:config
Do you want to proceed? (Y/n) y
如遇到 Failed to update packages
, 需要科学上网
bash
⠏ [assets:download] Executing... (90.2s)Unhandled exception:
HttpException: Connection closed before full header was received, uri = https://github.com/AngeloAvv/flutter_flavorizr/releases/download/v2.4.1/assets.zip
Failed to update packages.

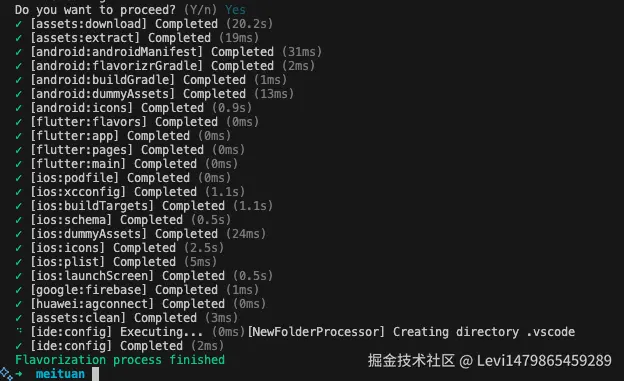

脚本执行完毕

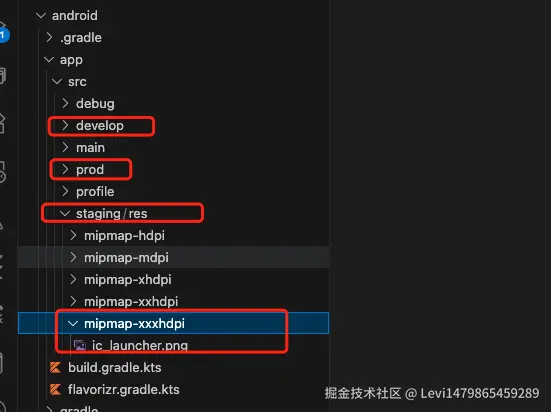

在 android/app/src中生成了 develop、staging 和 prod等目录,里面是 icon 等配置信息

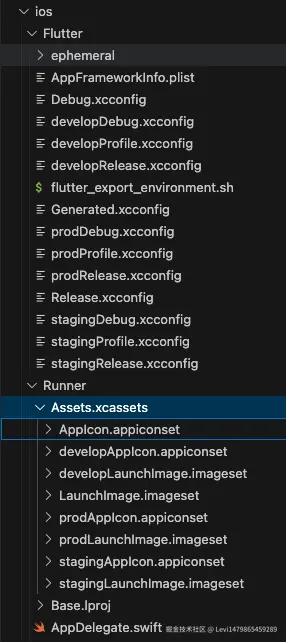

同样在 iOS文件中自动生成环境和 icon 等配置信息

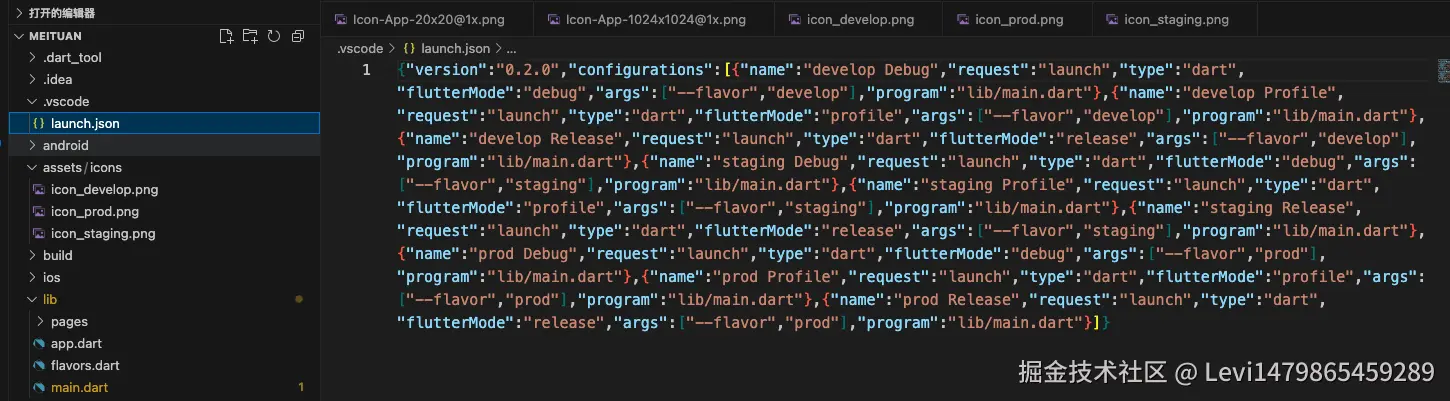

如果使用的是vscode
编辑器,还会生成 launch.json
配置,如下图,默认没有格式化,可使用 vscode 的格式工具,cmd+s
保存完成格式化

格式化后,launch.json
配置如下
json
{
"version": "0.2.0",
"configurations": [
{
"name": "develop Debug",
"request": "launch",
"type": "dart",
"flutterMode": "debug",
"args": [
"--flavor",
"develop"
],
"program": "lib/main.dart"
},
{
"name": "develop Profile",
"request": "launch",
"type": "dart",
"flutterMode": "profile",
"args": [
"--flavor",
"develop"
],
"program": "lib/main.dart"
},
{
"name": "develop Release",
"request": "launch",
"type": "dart",
"flutterMode": "release",
"args": [
"--flavor",
"develop"
],
"program": "lib/main.dart"
},
{
"name": "staging Debug",
"request": "launch",
"type": "dart",
"flutterMode": "debug",
"args": [
"--flavor",
"staging"
],
"program": "lib/main.dart"
},
{
"name": "staging Profile",
"request": "launch",
"type": "dart",
"flutterMode": "profile",
"args": [
"--flavor",
"staging"
],
"program": "lib/main.dart"
},
{
"name": "staging Release",
"request": "launch",
"type": "dart",
"flutterMode": "release",
"args": [
"--flavor",
"staging"
],
"program": "lib/main.dart"
},
{
"name": "prod Debug",
"request": "launch",
"type": "dart",
"flutterMode": "debug",
"args": [
"--flavor",
"prod"
],
"program": "lib/main.dart"
},
{
"name": "prod Profile",
"request": "launch",
"type": "dart",
"flutterMode": "profile",
"args": [
"--flavor",
"prod"
],
"program": "lib/main.dart"
},
{
"name": "prod Release",
"request": "launch",
"type": "dart",
"flutterMode": "release",
"args": [
"--flavor",
"prod"
],
"program": "lib/main.dart"
}
]
}

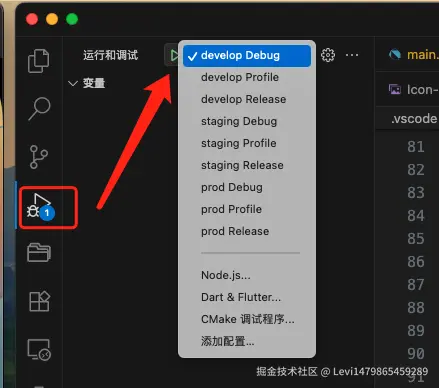

在 vscode
中选择一种模式运行代码

在运行 iOS 模拟器时,如果遇到 xcode 报下面的错误,
bash
# The Xcode project does not define custom schemes. You cannot use the --flavor option
那是因为没有安装 xcodeproj
,执行下面代码安装
arduino
sudo gem install xcodeproj
然后再执行
flutter pub run flutter_flavorizr

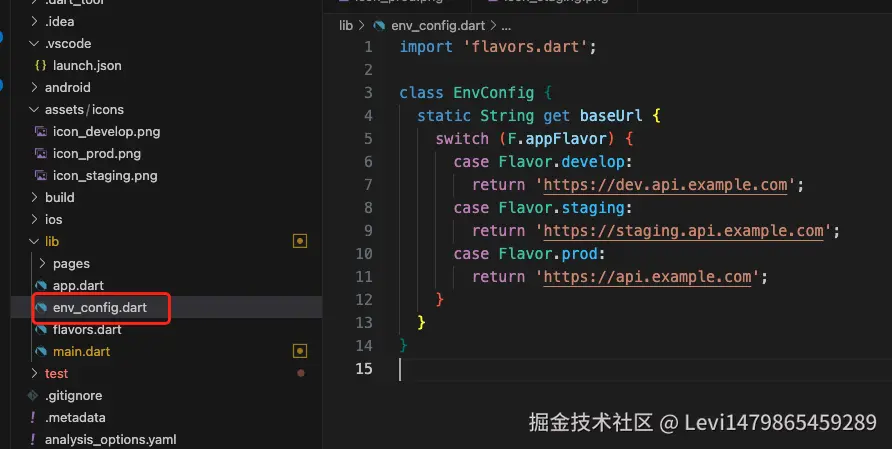

5.后续服务器、三方等配置信息,可根据 flavor
进行配置

arduino
import 'flavors.dart';
class EnvConfig {
static String get baseUrl {
switch (F.appFlavor) {
case Flavor.develop:
return 'https://dev.api.example.com';
case Flavor.staging:
return 'https://staging.api.example.com';
case Flavor.prod:
return 'https://api.example.com';
}
}
}
