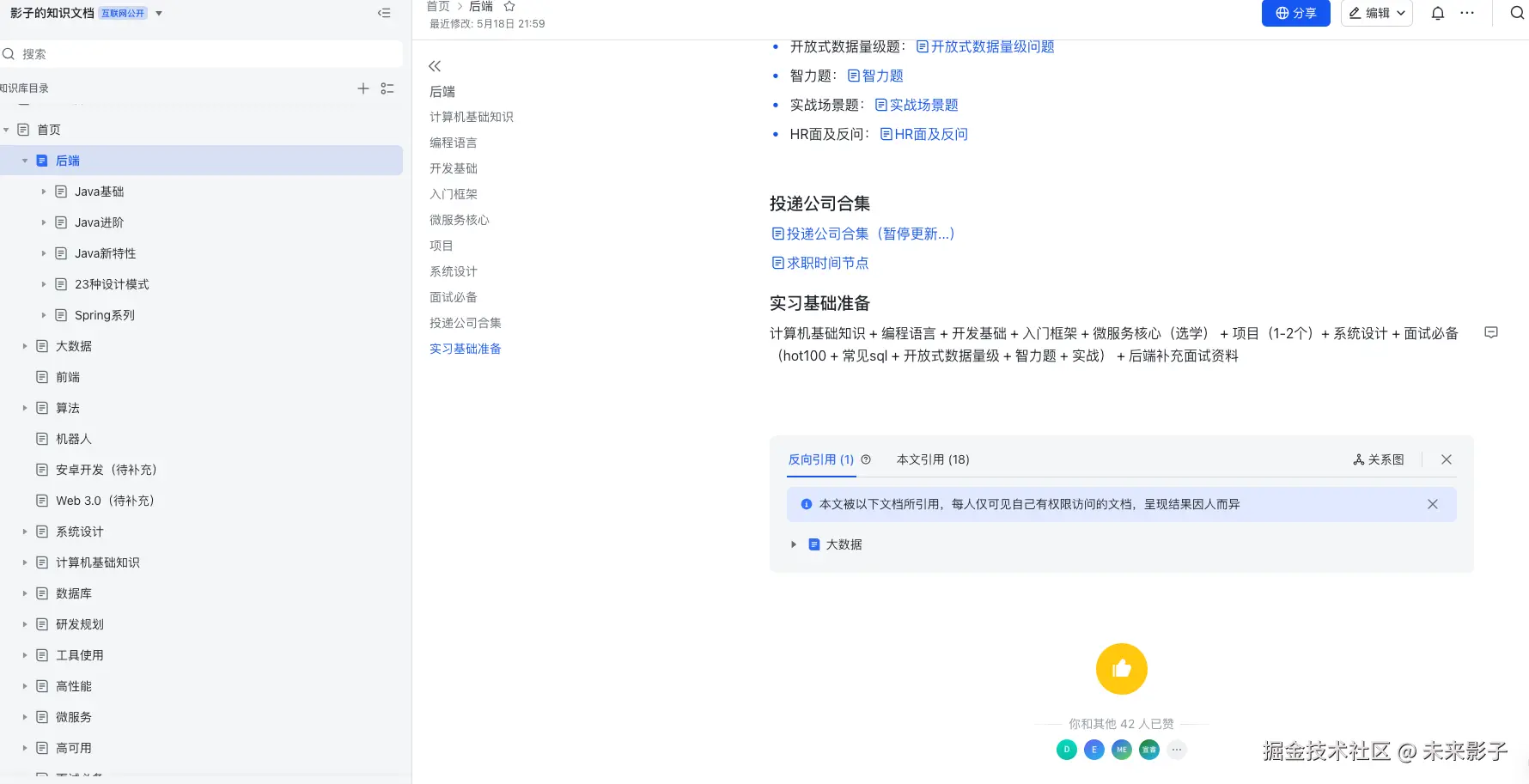

可付费（69.9元）获取飞书云文档在线版预览，及github.com/GTyingzi/sp...
本期是Spring Ai Aliabab Graph的Stream流机制
- • 项目源码地址：github.com/GTyingzi/sp...

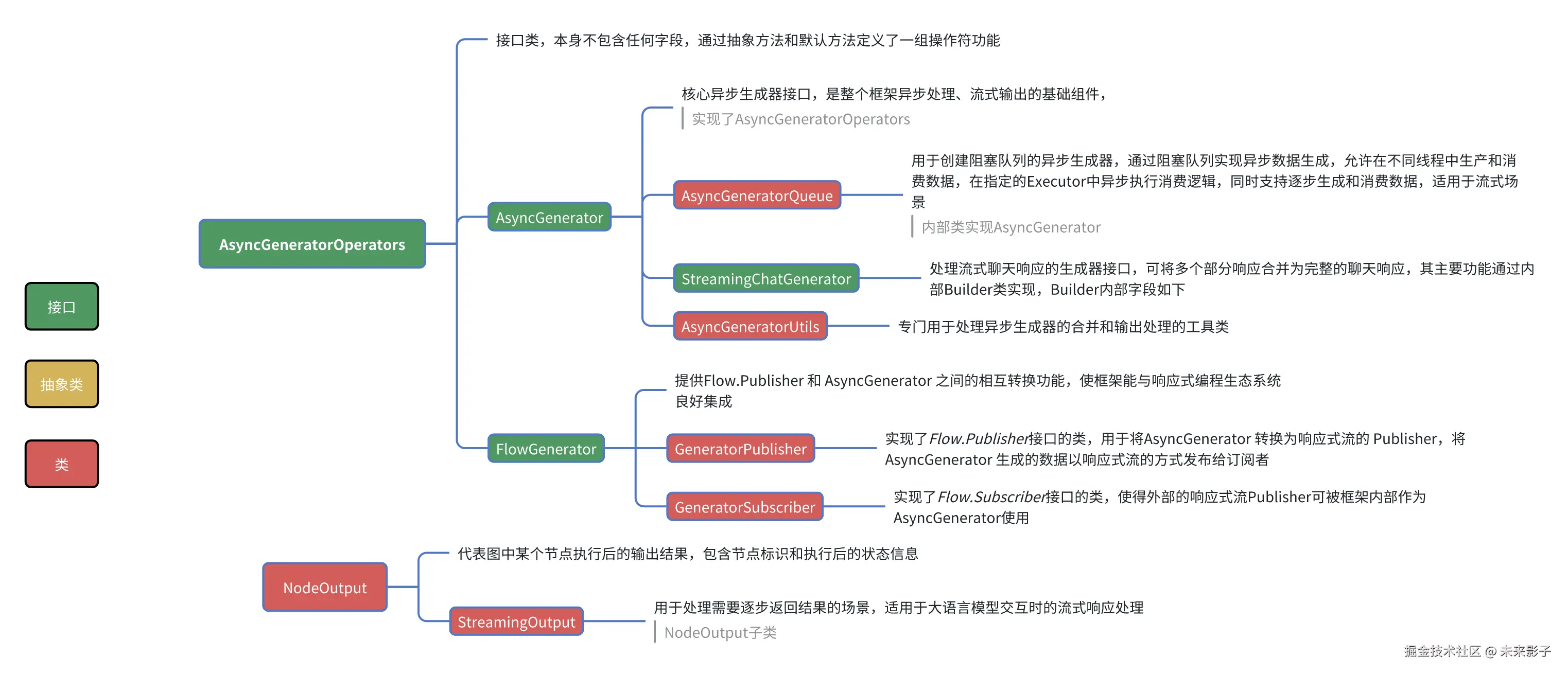

stream 流
AsyncGeneratorOperators
接口类，本身不包含任何字段，通过抽象方法和默认方法定义了一组操作符功能
|---------------------------------------------------------------|-------------------------------------------------------------------------------------------------------|
| 方法 | 描述 |
| AsyncGenerator.Data next() | 用于获取下一个数据元素 |
| Executor executor() | 返回执行器，在当前线程执行 |
| AsyncGenerator map(Function mapFunction) | 将生成器的元素映射到新的异步生成器 - 接受一个函数作为参数，用于将元素类型E转换为类型U - 返回一个新的AsyncGenerator实例 |
| AsyncGenerator flatMap(Function> mapFunction) | 将生成器的元素映射到新的异步生成器，并展平嵌套的生成器 - 接受一个函数作为参数，将元素类型 E 转换为 CompletableFuture - 与 map 不同，flatMap 处理的是嵌套的异步操作 |
| AsyncGenerator filter(Predicate predicate) | 根据给定的谓词去过滤生成器的元素 - 只有当满足谓词条件的元素时，才会包含在结果生成器中 - 返回一个过滤后的 AsyncGenerator 实例 |
| CompletableFuture forEachAsync(Consumer consumer) | 异步遍历 AsyncGenerator 的元素并对每个元素应用给定的消费者函数 - 返回一个 CompletableFuture，表示迭代过程的完成状态 |
| CompletableFuture collectAsync(R result, BiConsumer consumer) | 异步收集 AsyncGenerator 的元素到列表中 - 接受一个结果列表和一个消费者函数用于处理元素 - 返回一个 CompletableFuture，表示收集过程的完成状态 |
java
package com.alibaba.cloud.ai.graph.async;
import java.util.List;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.Executor;
import java.util.function.BiConsumer;
import java.util.function.Consumer;
import java.util.function.Function;
import java.util.function.Predicate;
import static java.util.concurrent.CompletableFuture.completedFuture;
public interface AsyncGeneratorOperators<E> {
AsyncGenerator.Data<E> next();
default Executor executor() {
return Runnable::run;
}
/**
* Maps the elements of this generator to a new asynchronous generator.
* @param mapFunction the function to map elements to a new asynchronous counterpart
* @param <U> the type of elements in the new generator
* @return a generator with mapped elements
*/
default <U> AsyncGenerator<U> map(Function<E, U> mapFunction) {
return () -> {
final AsyncGenerator.Data<E> next = next();
if (next.isDone()) {
return AsyncGenerator.Data.done(next.resultValue);
}
return AsyncGenerator.Data.of(next.data.thenApplyAsync(mapFunction, executor()));
};
}
/**
* Maps the elements of this generator to a new asynchronous generator, and flattens
* the resulting nested generators.
* @param mapFunction the function to map elements to a new asynchronous counterpart
* @param <U> the type of elements in the new generator
* @return a generator with mapped and flattened elements
*/
default <U> AsyncGenerator<U> flatMap(Function<E, CompletableFuture<U>> mapFunction) {
return () -> {
final AsyncGenerator.Data<E> next = next();
if (next.isDone()) {
return AsyncGenerator.Data.done(next.resultValue);
}
return AsyncGenerator.Data.of(next.data.thenComposeAsync(mapFunction, executor()));
};
}
/**
* Filters the elements of this generator based on the given predicate. Only elements
* that satisfy the predicate will be included in the resulting generator.
* @param predicate the predicate to test elements against
* @return a generator with elements that satisfy the predicate
*/
default AsyncGenerator<E> filter(Predicate<E> predicate) {
return () -> {
AsyncGenerator.Data<E> next = next();
while (!next.isDone()) {
final E value = next.data.join();
if (predicate.test(value)) {
return next;
}
next = next();
}
return AsyncGenerator.Data.done(next.resultValue);
};
}
/**
* Asynchronously iterates over the elements of the AsyncGenerator and applies the
* given consumer to each element.
* @param consumer the consumer function to be applied to each element
* @return a CompletableFuture representing the completion of the iteration process.
*/
default CompletableFuture<Object> forEachAsync(Consumer<E> consumer) {
CompletableFuture<Object> future = completedFuture(null);
for (AsyncGenerator.Data<E> next = next(); !next.isDone(); next = next()) {
final AsyncGenerator.Data<E> finalNext = next;
if (finalNext.embed != null) {
future = future.thenCompose(v -> finalNext.embed.generator.async(executor()).forEachAsync(consumer));
}
else {
future = future
.thenCompose(v -> finalNext.data.thenAcceptAsync(consumer, executor()).thenApply(x -> null));
}
}
return future;
}
/**
* Collects elements from the AsyncGenerator asynchronously into a list.
* @param <R> the type of the result list
* @param result the result list to collect elements into
* @param consumer the consumer function for processing elements
* @return a CompletableFuture representing the completion of the collection process
*/
default <R extends List<E>> CompletableFuture<R> collectAsync(R result, BiConsumer<R, E> consumer) {
CompletableFuture<R> future = completedFuture(result);
for (AsyncGenerator.Data<E> next = next(); !next.isDone(); next = next()) {
final AsyncGenerator.Data<E> finalNext = next;
future = future.thenCompose(res -> finalNext.data.thenApplyAsync(v -> {
consumer.accept(res, v);
return res;
}, executor()));
}
return future;
}
}AsyncGenerator
核心异步生成器接口，是整个框架异步处理、流式输出的基础组件
内部接口和类：
-
接口：
- HasResultValue：包含 resultValue()方法，标记可获取结果值的生成器
- EmbedCompletionHandler：包含 accept(Object t)方法，嵌入生成器完成时的回调处理函数接口
-
类：
- WithResult：AsyncGenerator 的装饰器类，运行获取异步操作的结果值
- 包含 delegate、resultValue 字段
- WithEmbed：AsyncGenerator 的装饰器类，支持生成器的嵌套组合
- 包含 generatorsStack（生成器栈）、returnValueStack（返回值栈）字段
- Embed：嵌入的生成器
- 包含 generator（嵌入的生成器）、onCompletion（完成回调）
- Data：表示 AsyncGenerator 中的数据元素
- 包含 data（CompletableFuture 类型的数据）、embed（嵌入的生成器）和 resultValue（结果值）等字段
- WithResult：AsyncGenerator 的装饰器类，运行获取异步操作的结果值
对外暴露的方法
|------------|----------------------------------------------------------------------------|-------------------------------------------|
| | 方法 | 描述 |
| 静态方法 | resultValue(AsyncGenerator generator) | 从生成器中获取结果值 |
| 静态方法 | resultValue(Iterator iterator) | 从迭代器中获取结果值的静态方法 |
| 静态方法 | empty() | 返回一个空的 AsyncGenerator 实例 |
| 静态方法 | map(Iterator iterator, Function> mapFunction) | 创建一个生成器，将每个元素映射到异步对应的元素 |
| 静态方法 | collect(Iterator iterator, BiConsumer>> consumer) | 从迭代器中收集异步元素 |
| 静态方法 | map(Collection collection, Function> mapFunction) | 创建一个生成器，将集合中的每个元素映射到异步对应的元素 |
| 静态方法 | ollect(Collection collection, BiConsumer>> consumer) | 从集合中收集异步元 |
| 实例方法 | next() | - 抽象方法，获取下一个异步元素 - 返回 Data 类型的对象 |
| 实例方法 | async(Executor executor) | 返回带有指定执行器的 AsyncGeneratorOperators 实例 |
| 实例方法 | toCompletableFuture() | 将 AsyncGenerator 转换为 CompletableFuture |
| 实例方法 | stream() | 返回一个顺序流，包含此 AsyncGenerator 的元素 |
| 实例方法 | iterator() | 回此 AsyncGenerator 元素的迭代器 |
| WithResult | resultValue() | 获取生成器的结果值 |
| WithResult | delegate() | 获取被装饰的生成器 |
| WithEmbed | resultValues() | 获取返回值栈 |
| WithEmbed | resultValue() | 获取顶层返回值 |
| Data | getData() | 获取数据 |
| Data | getEmbed() | 获取嵌入的生成器 |
| Data | resultValue() | 获取结果值的Optional形式 |
| Data | isDone() | 判断是否完成 |
| Data | isError() | 判断是否出错 |
| Data | of(CompletableFuture data) | 静态工厂方法，创建包含 CompletableFuture 数据的 Data 实例 |
| Data | of(E data) | 静态工厂方法，创建包含已完成数据的 Data 实例 |
| Data | composeWith(AsyncGenerator generator, EmbedCompletionHandler onCompletion) | 静态工厂方法，创建包含嵌入生成器的 Data 实 |
| Data | done() | 静态工厂方法，创建表示完成的 Data 实例 |
| Data | done(Object resultValue) | 静态工厂方法，创建包含结果值的完成 Data 实例 |
| Data | error(Throwable exception) | 静态工厂方法，创建表示错误的 Data 实例 |
java
package com.alibaba.cloud.ai.graph.async;
import com.alibaba.cloud.ai.graph.async.internal.UnmodifiableDeque;
import java.util.*;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.Executor;
import java.util.concurrent.atomic.AtomicReference;
import java.util.function.BiConsumer;
import java.util.function.Consumer;
import java.util.function.Function;
import java.util.stream.Stream;
import java.util.stream.StreamSupport;
import static java.util.Optional.ofNullable;
import static java.util.concurrent.CompletableFuture.completedFuture;
/**
* An asynchronous generator interface that allows generating asynchronous elements.
*
* @param <E> the type of elements. The generator will emit {@link CompletableFuture
* CompletableFutures<E>} elements
*/
public interface AsyncGenerator<E> extends Iterable<E>, AsyncGeneratorOperators<E> {
interface HasResultValue {
Optional<Object> resultValue();
}
static Optional<Object> resultValue(AsyncGenerator<?> generator) {
if (generator instanceof HasResultValue withResult) {
return withResult.resultValue();
}
return Optional.empty();
}
static Optional<Object> resultValue(Iterator<?> iterator) {
if (iterator instanceof HasResultValue withResult) {
return withResult.resultValue();
}
return Optional.empty();
}
/**
* An asynchronous generator decorator that allows retrieving the result value of the
* asynchronous operation, if any.
*
* @param <E> the type of elements in the generator
*/
class WithResult<E> implements AsyncGenerator<E>, HasResultValue {
protected final AsyncGenerator<E> delegate;
private Object resultValue;
public WithResult(AsyncGenerator<E> delegate) {
this.delegate = delegate;
}
public AsyncGenerator<E> delegate() {
return delegate;
}
/**
* Retrieves the result value of the generator, if any.
* @return an {@link Optional} containing the result value if present, or an empty
* Optional if not
*/
public Optional<Object> resultValue() {
return ofNullable(resultValue);
};
@Override
public final Data<E> next() {
final Data<E> result = delegate.next();
if (result.isDone()) {
resultValue = result.resultValue;
}
return result;
}
}
/**
* An asynchronous generator decorator that allows to generators composition embedding
* other generators.
*
* @param <E> the type of elements in the generator
*/
class WithEmbed<E> implements AsyncGenerator<E>, HasResultValue {
protected final Deque<Embed<E>> generatorsStack = new ArrayDeque<>(2);
private final Deque<Data<E>> returnValueStack = new ArrayDeque<>(2);
public WithEmbed(AsyncGenerator<E> delegate, EmbedCompletionHandler onGeneratorDoneWithResult) {
generatorsStack.push(new Embed<>(delegate, onGeneratorDoneWithResult));
}
public WithEmbed(AsyncGenerator<E> delegate) {
this(delegate, null);
}
public Deque<Data<E>> resultValues() {
return new UnmodifiableDeque<>(returnValueStack);
}
public Optional<Object> resultValue() {
return ofNullable(returnValueStack.peek()).map(r -> r.resultValue);
}
private void clearPreviousReturnsValuesIfAny() {
// Check if the return values are which ones from previous run
if (returnValueStack.size() > 1 && returnValueStack.size() == generatorsStack.size()) {
returnValueStack.clear();
}
}
// private AsyncGenerator.WithResult<E> toGeneratorWithResult( AsyncGenerator<E>
// generator ) {
// return ( generator instanceof WithResult ) ?
// (AsyncGenerator.WithResult<E>) generator :
// new WithResult<>(generator);
// }
protected boolean isLastGenerator() {
return generatorsStack.size() == 1;
}
@Override
public Data<E> next() {
if (generatorsStack.isEmpty()) { // GUARD
throw new IllegalStateException("no generator found!");
}
final Embed<E> embed = generatorsStack.peek();
final Data<E> result = embed.generator.next();
if (result.isDone()) {
clearPreviousReturnsValuesIfAny();
returnValueStack.push(result);
if (embed.onCompletion != null /* && result.resultValue != null */ ) {
try {
embed.onCompletion.accept(result.resultValue);
}
catch (Exception e) {
return Data.error(e);
}
}
if (isLastGenerator()) {
return result;
}
generatorsStack.pop();
return next();
}
if (result.embed != null) {
if (generatorsStack.size() >= 2) {
return Data.error(new UnsupportedOperationException(
"Currently recursive nested generators are not supported!"));
}
generatorsStack.push(result.embed);
return next();
}
return result;
}
}
@FunctionalInterface
interface EmbedCompletionHandler {
void accept(Object t) throws Exception;
}
class Embed<E> {
final AsyncGenerator<E> generator;
final EmbedCompletionHandler onCompletion;
public Embed(AsyncGenerator<E> generator, EmbedCompletionHandler onCompletion) {
Objects.requireNonNull(generator, "generator cannot be null");
this.generator = generator;
this.onCompletion = onCompletion;
}
public AsyncGenerator<E> getGenerator() {
return generator;
}
}
/**
* Represents a data element in the AsyncGenerator.
*
* @param <E> the type of the data element
*/
class Data<E> {
final CompletableFuture<E> data;
final Embed<E> embed;
final Object resultValue;
public Data(CompletableFuture<E> data, Embed<E> embed, Object resultValue) {
this.data = data;
this.embed = embed;
this.resultValue = resultValue;
}
public CompletableFuture<E> getData() {
return data;
}
public Embed<E> getEmbed() {
return embed;
}
public Optional<Object> resultValue() {
return resultValue == null ? Optional.empty() : Optional.of(resultValue);
}
public boolean isDone() {
return data == null && embed == null;
}
public boolean isError() {
return data != null && data.isCompletedExceptionally();
}
public static <E> Data<E> of(CompletableFuture<E> data) {
return new Data<>(data, null, null);
}
public static <E> Data<E> of(E data) {
return new Data<>(completedFuture(data), null, null);
}
public static <E> Data<E> composeWith(AsyncGenerator<E> generator, EmbedCompletionHandler onCompletion) {
return new Data<>(null, new Embed<>(generator, onCompletion), null);
}
public static <E> Data<E> done() {
return new Data<>(null, null, null);
}
public static <E> Data<E> done(Object resultValue) {
return new Data<>(null, null, resultValue);
}
public static <E> Data<E> error(Throwable exception) {
CompletableFuture<E> future = new CompletableFuture<>();
future.completeExceptionally(exception);
return Data.of(future);
}
}
default AsyncGeneratorOperators<E> async(Executor executor) {
return new AsyncGeneratorOperators<E>() {
@Override
public Data<E> next() {
return AsyncGenerator.this.next();
}
@Override
public Executor executor() {
return executor;
}
};
}
/**
* Retrieves the next asynchronous element.
* @return the next element from the generator
*/
Data<E> next();
/**
* Converts the AsyncGenerator to a CompletableFuture.
* @return a CompletableFuture representing the completion of the AsyncGenerator
*/
default CompletableFuture<Object> toCompletableFuture() {
final Data<E> next = next();
if (next.isDone()) {
return completedFuture(next.resultValue);
}
return next.data.thenCompose(v -> toCompletableFuture());
}
/**
* Returns a sequential Stream with the elements of this AsyncGenerator. Each
* CompletableFuture is resolved and then make available to the stream.
* @return a Stream of elements from the AsyncGenerator
*/
default Stream<E> stream() {
return StreamSupport.stream(Spliterators.spliteratorUnknownSize(iterator(), Spliterator.ORDERED), false);
}
/**
* Returns an iterator over the elements of this AsyncGenerator. Each call to `next`
* retrieves the next "resolved" asynchronous element from the generator.
* @return an iterator over the elements of this AsyncGenerator
*/
default Iterator<E> iterator() {
return new InternalIterator<E>(this);
}
/**
* Returns an empty AsyncGenerator.
* @param <E> the type of elements
* @return an empty AsyncGenerator
*/
static <E> AsyncGenerator<E> empty() {
return Data::done;
}
/**
* create a generator, mapping each element to an asynchronous counterpart.
* @param <E> the type of elements in the collection
* @param <U> the type of elements in the CompletableFuture
* @param iterator the elements iterator
* @param mapFunction the function to map elements to {@link CompletableFuture}
* @return an AsyncGenerator instance with mapped elements
*/
static <E, U> AsyncGenerator<U> map(Iterator<E> iterator, Function<E, CompletableFuture<U>> mapFunction) {
return () -> {
if (!iterator.hasNext()) {
return Data.done();
}
return Data.of(mapFunction.apply(iterator.next()));
};
}
/**
* Collects asynchronous elements from an iterator.
* @param <E> the type of elements in the iterator
* @param <U> the type of elements in the CompletableFuture
* @param iterator the iterator containing elements to collect
* @param consumer the function to consume elements and add them to the accumulator
* @return an AsyncGenerator instance with collected elements
*/
static <E, U> AsyncGenerator<U> collect(Iterator<E> iterator,
BiConsumer<E, Consumer<CompletableFuture<U>>> consumer) {
final List<CompletableFuture<U>> accumulator = new ArrayList<>();
final Consumer<CompletableFuture<U>> addElement = accumulator::add;
while (iterator.hasNext()) {
consumer.accept(iterator.next(), addElement);
}
final Iterator<CompletableFuture<U>> it = accumulator.iterator();
return () -> {
if (!it.hasNext()) {
return Data.done();
}
return Data.of(it.next());
};
}
/**
* create a generator, mapping each element to an asynchronous counterpart.
* @param <E> the type of elements in the collection
* @param <U> the type of elements in the CompletableFuture
* @param collection the collection of elements to map
* @param mapFunction the function to map elements to CompletableFuture
* @return an AsyncGenerator instance with mapped elements
*/
static <E, U> AsyncGenerator<U> map(Collection<E> collection, Function<E, CompletableFuture<U>> mapFunction) {
if (collection == null || collection.isEmpty()) {
return empty();
}
return map(collection.iterator(), mapFunction);
}
/**
* Collects asynchronous elements from a collection.
* @param <E> the type of elements in the iterator
* @param <U> the type of elements in the CompletableFuture
* @param collection the iterator containing elements to collect
* @param consumer the function to consume elements and add them to the accumulator
* @return an AsyncGenerator instance with collected elements
*/
static <E, U> AsyncGenerator<U> collect(Collection<E> collection,
BiConsumer<E, Consumer<CompletableFuture<U>>> consumer) {
if (collection == null || collection.isEmpty()) {
return empty();
}
return collect(collection.iterator(), consumer);
}
}
class InternalIterator<E> implements Iterator<E>, AsyncGenerator.HasResultValue {
private final AsyncGenerator<E> delegate;
final AtomicReference<AsyncGenerator.Data<E>> currentFetchedData;
public InternalIterator(AsyncGenerator<E> delegate) {
this.delegate = delegate;
currentFetchedData = new AtomicReference<>(delegate.next());
}
@Override
public boolean hasNext() {
final var value = currentFetchedData.get();
return value != null && !value.isDone();
}
@Override
public E next() {
var next = currentFetchedData.get();
if (next == null || next.isDone()) {
throw new IllegalStateException("no more elements into iterator");
}
if (!next.isError()) {
currentFetchedData.set(delegate.next());
}
return next.data.join();
}
@Override
public Optional<Object> resultValue() {
if (delegate instanceof AsyncGenerator.HasResultValue withResult) {
return withResult.resultValue();
}
return Optional.empty();
}
};FlowGenerator
提供 Flow.Publisher 和 AsyncGenerator 之间的相互转换功能，使框架能与响应式编程生态系统良好集成
|------------------------------------------------|-------------------------------------------------------------------------------------------------------------------------------------------|
| 方法 | 描述 |
| fromPublisher(P publisher, Supplier mapResult) | 1. 接收一个Publisher 作为数据源和一个 Supplier 作为结果映射函数 2. 从一个 Flow.Publisher 创建 AsyncGenerator 实例 3. 返回GeneratorSubscriber 实例，它实现了 AsyncGenerator 接口 |
| fromPublisher(P publisher) | 与上面方法重载，不需要Supplier |
| toPublisher(AsyncGenerator generator) | 将 AsyncGenerator 转换为 Flow.Publisher |
java
package com.alibaba.cloud.ai.graph.async;
import com.alibaba.cloud.ai.graph.async.internal.reactive.GeneratorPublisher;
import com.alibaba.cloud.ai.graph.async.internal.reactive.GeneratorSubscriber;
import java.util.concurrent.Flow;
import java.util.concurrent.LinkedBlockingQueue;
import java.util.function.Supplier;
/**
* Provides methods for converting between {@link FlowGenerator} and various
* {@link Flow.Publisher} types.
*
* @since 3.0.0
*/
public interface FlowGenerator {
/**
* Creates an {@code AsyncGenerator} from a {@code Flow.Publisher}.
* @param <T> the type of item emitted by the publisher
* @param <P> the type of the publisher
* @param publisher the publisher to subscribe to for retrieving items asynchronously
* @param mapResult function that will set generator's result
* @return an {@code AsyncGenerator} that emits items from the publisher
*/
@SuppressWarnings("unchecked")
static <T, P extends Flow.Publisher<T>, R> AsyncGenerator<T> fromPublisher(P publisher, Supplier<R> mapResult) {
var queue = new LinkedBlockingQueue<AsyncGenerator.Data<T>>();
return new GeneratorSubscriber<>(publisher, (Supplier<Object>) mapResult, queue);
}
/**
* Creates an {@code AsyncGenerator} from a {@code Flow.Publisher}.
* @param <T> the type of item emitted by the publisher
* @param <P> the type of the publisher
* @param publisher the publisher to subscribe to for retrieving items asynchronously
* @return an {@code AsyncGenerator} that emits items from the publisher
*/
static <T, P extends Flow.Publisher<T>> AsyncGenerator<T> fromPublisher(P publisher) {
return fromPublisher(publisher, null);
}
/**
* Converts an {@code AsyncGenerator} into a {@code Flow.Publisher}.
* @param <T> the type of elements emitted by the publisher
* @param generator the async generator to convert
* @return a flow publisher
*/
static <T> Flow.Publisher<T> toPublisher(AsyncGenerator<T> generator) {
return new GeneratorPublisher<>(generator);
}
}AsyncGeneratorQueue
用于创建阻塞队列的异步生成器，通过阻塞队列实现异步数据生成，允许在不同线程中生产和消费数据，在指定的 Executor 中异步执行消费逻辑，同时支持逐步生成和消费数据，适用于流式场景
内部类 Generator
- Data isEnd：标记生成器是否已经结束
- BlockingQueue<Data> queue：阻塞队列，存储生成的数据元素
对外暴露的静态方法
|---------------------------------------------------|---------------------------------------------------------------------------------|
| 方法 | 描述 |
| of(Q queue, Consumer consumer) | 创建一个AsyncGenerator 实例 1. 使用默认的ForkJoinPool.commonPool() 作为执行器 2. 在执行器中异步执行消费者逻辑 |
| of(Q queue, Consumer consumer, Executor executor) | 创建一个 AsyncGenerator 实例，更灵活的执行器配置选项 |
java
package com.alibaba.cloud.ai.graph.async;
import java.util.Objects;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.Executor;
import java.util.function.Consumer;
import static java.util.concurrent.ForkJoinPool.commonPool;
/**
* Represents a queue-based asynchronous generator.
*/
public class AsyncGeneratorQueue {
/**
* Inner class to generate asynchronous elements from the queue.
*
* @param <E> the type of elements in the queue
*/
public static class Generator<E> implements AsyncGenerator<E> {
Data<E> isEnd = null;
final BlockingQueue<Data<E>> queue;
/**
* Constructs a Generator with the specified queue.
* @param queue the blocking queue to generate elements from
*/
public Generator(BlockingQueue<Data<E>> queue) {
this.queue = queue;
}
public BlockingQueue<Data<E>> queue() {
return queue;
}
/**
* Retrieves the next element from the queue asynchronously.
* @return the next element from the queue
*/
@Override
public Data<E> next() {
while (isEnd == null) {
Data<E> value = queue.poll();
if (value != null) {
if (value.isDone()) {
isEnd = value;
}
return value;
}
}
return isEnd;
}
}
/**
* Creates an AsyncGenerator from the provided blocking queue and consumer.
* @param <E> the type of elements in the queue
* @param <Q> the type of blocking queue
* @param queue the blocking queue to generate elements from
* @param consumer the consumer for processing elements from the queue
* @return an AsyncGenerator instance
*/
public static <E, Q extends BlockingQueue<AsyncGenerator.Data<E>>> AsyncGenerator<E> of(Q queue,
Consumer<Q> consumer) {
return of(queue, consumer, commonPool());
}
/**
* Creates an AsyncGenerator from the provided queue, executor, and consumer.
* @param <E> the type of elements in the queue
* @param <Q> the type of blocking queue
* @param queue the blocking queue to generate elements from
* @param consumer the consumer for processing elements from the queue
* @param executor the executor for asynchronous processing
* @return an AsyncGenerator instance
*/
public static <E, Q extends BlockingQueue<AsyncGenerator.Data<E>>> AsyncGenerator<E> of(Q queue,
Consumer<Q> consumer, Executor executor) {
Objects.requireNonNull(queue);
Objects.requireNonNull(executor);
Objects.requireNonNull(consumer);
executor.execute(() -> {
try {
consumer.accept(queue);
}
catch (Throwable ex) {
CompletableFuture<E> error = new CompletableFuture<>();
error.completeExceptionally(ex);
queue.add(AsyncGenerator.Data.of(error));
}
finally {
queue.add(AsyncGenerator.Data.done());
}
});
return new Generator<>(queue);
}
}GeneratorPublisher
实现了Flow.Publisher接口的类，用于将 AsyncGenerator 转换为响应式流的 Publisher，将 AsyncGenerator 生成的数据以响应式流的方式发布给订阅者
- AsyncGenerator<? extends T> delegate：内部字段，代表被包装的异步生成器
|---------------------------------------|-----------------------------------------------------------------------------------------------|
| 方法 | 描述 |
| subscribe(Flow.Subscriber subscriber) | 实现Flow.Publisher 接口的 subscribe 方法 - 订阅指定的订阅者到此发布者 - 为订阅者创建并传递Subscription对象 - 使用异步生成器的数据填充订阅者 |
工作原理
GeneratorPublisher 的工作原理如下：
- 初始化阶段：
- 通过构造函数传入一个 AsyncGenerator 实例
- 保存该实例作为 delegate 字段
- 订阅阶段：
- 当有订阅者订阅时，调用订阅者的 onSubscribe 方法
- 传递一个 Subscription 实现，用于控制数据流
- 数据发布阶段：
- 使用 delegate 异步生成器的 forEachAsync 方法遍历所有元素
- 对每个元素调用订阅者的 onNext 方法进行发布
- 在遍历完成后调用订阅者的 onComplete 方法
- 异常处理阶段：
- 如果在数据处理过程中出现异常，调用订阅者的 onError 方法
- 将异常信息传递给订阅
java
package com.alibaba.cloud.ai.graph.async.internal.reactive;
import com.alibaba.cloud.ai.graph.async.AsyncGenerator;
import java.util.concurrent.Flow;
/**
* A {@code GeneratorPublisher} is a {@link Flow.Publisher} that generates items from an
* asynchronous generator.
*
* @param <T> the type of items to be published
*/
public class GeneratorPublisher<T> implements Flow.Publisher<T> {
private final AsyncGenerator<? extends T> delegate;
/**
* Constructs a new <code>GeneratorPublisher</code> with the specified async
* generator.
* @param delegate The async generator to be used by this publisher.
*/
public GeneratorPublisher(AsyncGenerator<? extends T> delegate) {
this.delegate = delegate;
}
/**
* Subscribes the provided {@code Flow.Subscriber} to this signal. The subscriber
* receives initial subscription, handles asynchronous data flow, and manages any
* errors or completion signals.
* @param subscriber The subscriber to which the signal will be delivered.
*/
@Override
public void subscribe(Flow.Subscriber<? super T> subscriber) {
subscriber.onSubscribe(new Flow.Subscription() {
/**
* Requests more elements from the upstream Publisher.
*
* <p>
* The Publisher calls this method to indicate that it wants more items. The
* parameter {@code n} specifies the number of additional items requested.
* @param n the number of items to request, a count greater than zero
*/
@Override
public void request(long n) {
}
/**
* Cancels the operation.
* @throws UnsupportedOperationException if the method is not yet implemented.
*/
@Override
public void cancel() {
throw new UnsupportedOperationException("cancel is not implemented yet!");
}
});
delegate.forEachAsync(subscriber::onNext).thenAccept(value -> {
subscriber.onComplete();
}).exceptionally(ex -> {
subscriber.onError(ex);
return null;
}).join();
}
}GeneratorSubscriber
实现了Flow.Subscriber接口的类，使得外部的响应式流 Publisher 可被框架内部作为 AsyncGenerator 使用
- AsyncGeneratorQueue.Generator delegate：委托的异步队列生成器
- Supplier mapResult：生成结果映射函数，在 onComplete 方法中使用，为生成器提供最终结果值
|---------------------------------------------|-------------------------------------------------------------------------------------------------------|
| 方法 | 名称 |
| mapResult() | 返回结果映射函数的 Optional 包装 |
| onSubscribe(Flow.Subscription subscription) | 实现 Flow.Subscriber 接口的 onSubscribe 方法 - 在订阅建立时被调用 - 调用 subscription.request(Long.MAXVALUE) 请求无限数量的数据项 |
| onNext(T item) | 实现 Flow.Subscriber 接口的 onNext 方法 - 在接收到新数据项时被调用 - 奖接收到的数据项添加到委托队列中 |
| onError(Throwable error) | 实现 Flow.Subscriber 接口的 onError 方法 - 在发生错误时被调用 - 将错误信息封装后添加到委托队列中 |
| onComplete() | 实现 Flow.Subscriber 接口的 onComplete 方法 - 在数据流完成时被调用 - 添加完成标记到队列中，并包含结果值 |
| next() | 实现 AsyncGenerator 接口的 next 方法 - 从委托生成器中获取下一个数据项 - 返回 Data 类型的对象，表示异步数据 |
java
package com.alibaba.cloud.ai.graph.async.internal.reactive;
import com.alibaba.cloud.ai.graph.async.AsyncGenerator;
import com.alibaba.cloud.ai.graph.async.AsyncGeneratorQueue;
import java.util.Optional;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.Flow;
import java.util.function.Supplier;
/**
* Represents a subscriber for generating asynchronous data streams.
*
* <p>
* This class implements the {@link Flow.Subscriber} and {@link AsyncGenerator} interfaces
* to handle data flow and produce asynchronous data. It is designed to subscribe to a
* publisher, process incoming items, and manage error and completion signals.
* </p>
*
* @param <T> The type of elements produced by this generator.
*/
public class GeneratorSubscriber<T> implements Flow.Subscriber<T>, AsyncGenerator<T> {
private final AsyncGeneratorQueue.Generator<T> delegate;
private final Supplier<Object> mapResult;
public Optional<Supplier<Object>> mapResult() {
return Optional.ofNullable(mapResult);
}
/**
* Constructs a new instance of {@code GeneratorSubscriber}.
* @param <P> the type of the publisher, which must extend {@link Flow.Publisher}
* @param mapResult function that will set generator's result
* @param publisher the source publisher that will push data to this subscriber
* @param queue the blocking queue used for storing asynchronous generator data
*/
public <P extends Flow.Publisher<T>> GeneratorSubscriber(P publisher, Supplier<Object> mapResult,
BlockingQueue<Data<T>> queue) {
this.delegate = new AsyncGeneratorQueue.Generator<>(queue);
this.mapResult = mapResult;
publisher.subscribe(this);
}
/**
* Constructs a new instance of {@code GeneratorSubscriber}.
* @param <P> the type of the publisher, which must extend {@link Flow.Publisher}
* @param publisher the source publisher that will push data to this subscriber
* @param queue the blocking queue used for storing asynchronous generator data
*/
public <P extends Flow.Publisher<T>> GeneratorSubscriber(P publisher, BlockingQueue<Data<T>> queue) {
this(publisher, null, queue);
}
/**
* Handles the subscription event from a Flux.
* <p>
* This method is called when a subscription to the source {@link Flow} has been
* established. The provided {@code Flow.Subscription} can be used to manage and
* control the flow of data emissions.
* @param subscription The subscription object representing this resource owner
* lifecycle. Used to signal that resources being subscribed to should not be released
* until this subscription is disposed.
*/
@Override
public void onSubscribe(Flow.Subscription subscription) {
subscription.request(Long.MAXVALUE);
}
/**
* Passes the received item to the delegated queue as an {@link Data} object.
* @param item The item to be processed and queued.
*/
@Override
public void onNext(T item) {
delegate.queue().add(Data.of(item));
}
/**
* Handles an error by queuing it in the delegate's queue with an errored data.
* @param error The Throwable that represents the error to be handled.
*/
@Override
public void onError(Throwable error) {
delegate.queue().add(Data.error(error));
}
/**
* This method is called when the asynchronous operation is completed successfully. It
* notifies the delegate that no more data will be provided by adding a done marker to
* the queue.
*/
@Override
public void onComplete() {
delegate.queue().add(Data.done(mapResult().map(Supplier::get).orElse(null)));
}
/**
* Returns the next {@code Data<T>} object from this iteration.
* @return the next element in the iteration, or null if there is no such element
*/
@Override
public Data<T> next() {
return delegate.next();
}
}AsyncGeneratorUtils
用于处理异步生成器的合并和输出处理
- 生成器合并：将多个异步生成器合并为一个统一的生成器，支持并行处理多个数据流
- 结果合并：将多个生成器的结果按照指定的键策略进行合并处理
- 轮询调度：通过轮询机制在多个活动生成器之间分配执行机会
- 并发安全：使用 StampedLock 和 CopyOnWriteArrayList 等并发工具确保线程安全
- 状态管理：跟踪活动生成器和已生成的结果，确保正确处理完成和错误状态
AsyncGeneratorUtils 是一个工具类，只包含静态方法，没有实例字段。但其内部创建的匿名 AsyncGenerator 类包含以下字段：
- StampedLock lock：用于确保并发安全的锁机制，使用 StampedLock 提供读写锁功能，提高并发性能
- AtomicInteger pollCounter：原子计数器，用于轮询调度活动生成器，确保在多个生成器之间公平分配执行机会
- Map<String, Object> mergedResult：存储合并后的结果，用于累积所有生成器的输出结果
- List<AsyncGenerator> activeGenerators：存储当前活动的生成器列表，使用 CopyOnWriteArrayList 确保线程安全
- Map<AsyncGenerator, Map<String, Object>> generatorResults：存储每个生成器的中间结果，用于跟踪各个生成器的执行状态
静态公共方法
|-----------------------------------------------------------------------------------------------------|------------------------|
| 方法 | 描述 |
| createAppropriateGenerator(List> generatorEntries, List> asyncNodeGenerators, Map keyStrategyMap) | 根据生成器条目数量创建合适的生成器 |
| createMergedGenerator(List> generators, Map keyStrategyMap) | 创建合并生成器，将多个生成器的输出合并为一个 |
java
package com.alibaba.cloud.ai.graph.streaming;
import com.alibaba.cloud.ai.graph.KeyStrategy;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.async.AsyncGenerator;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.util.List;
import java.util.Map;
import java.util.concurrent.CopyOnWriteArrayList;
import java.util.concurrent.atomic.AtomicInteger;
import java.util.concurrent.locks.StampedLock;
import java.util.stream.Collectors;
import java.util.HashMap;
/**
* Utility class for handling asynchronous generator merging and output processing
*/
public class AsyncGeneratorUtils {
private static final Logger log = LoggerFactory.getLogger(AsyncGeneratorUtils.class);
/**
* Creates an appropriate generator based on the number of generator entries
* @param generatorEntries list of generator entries
* @param <T> output type
* @return single generator or merged generator
*/
@SuppressWarnings("unchecked")
public static <T> AsyncGenerator<T> createAppropriateGenerator(List<Map.Entry<String, Object>> generatorEntries,
List<AsyncGenerator<T>> asyncNodeGenerators, Map<String, KeyStrategy> keyStrategyMap) {
if (generatorEntries.size() == 1) {
// Only one generator, return it directly
return (AsyncGenerator<T>) generatorEntries.get(0).getValue();
}
// Multiple generators, create a merged generator
List<AsyncGenerator<T>> generators = generatorEntries.stream()
.map(entry -> (AsyncGenerator<T>) entry.getValue())
.collect(Collectors.toList());
generators.addAll(asyncNodeGenerators);
return createMergedGenerator(generators, keyStrategyMap);
}
/**
* Creates a merged generator that combines outputs from multiple generators
* @param generators list of generators to merge
* @param <T> output type
* @return merged generator
*/
public static <T> AsyncGenerator<T> createMergedGenerator(List<AsyncGenerator<T>> generators,
Map<String, KeyStrategy> keyStrategyMap) {
return new AsyncGenerator<>() {
// Switch to StampedLock to simplify lock management
private final StampedLock lock = new StampedLock();
private AtomicInteger pollCounter = new AtomicInteger(0);
private Map<String, Object> mergedResult = new HashMap<>();
private final List<AsyncGenerator<T>> activeGenerators = new CopyOnWriteArrayList<>(generators);
private final Map<AsyncGenerator<T>, Map<String, Object>> generatorResults = new HashMap<>();
@Override
public Data<T> next() {
while (true) {
// Read optimistically and check quickly
long stamp = lock.tryOptimisticRead();
boolean empty = activeGenerators.isEmpty();
if (!lock.validate(stamp)) {
stamp = lock.readLock();
try {
empty = activeGenerators.isEmpty();
}
finally {
lock.unlockRead(stamp);
}
}
if (empty) {
return Data.done(mergedResult);
}
// Fine-grained lock control
final int currentIdx;
AsyncGenerator<T> current;
long writeStamp = lock.writeLock();
try {
final int size = activeGenerators.size();
if (size == 0)
return Data.done(mergedResult);
currentIdx = pollCounter.updateAndGet(i -> (i + 1) % size);
current = activeGenerators.get(currentIdx);
}
finally {
lock.unlockWrite(writeStamp);
}
// Execute the generator 'next()' in the unlocked state
Data<T> data = current.next();
writeStamp = lock.writeLock();
try {
// Double checks prevent status changes
if (!activeGenerators.contains(current)) {
continue;
}
if (data.isDone() || data.isError()) {
handleCompletedGenerator(current, data);
if (activeGenerators.isEmpty()) {
return Data.done(mergedResult);
}
continue;
}
handleCompletedGenerator(current, data);
return data;
}
finally {
lock.unlockWrite(writeStamp);
}
}
}
/**
* Helper method to handle completed or errored generators
*/
private void handleCompletedGenerator(AsyncGenerator<T> generator, Data<T> data) {
// Remove generator if done or error
if (data.isDone() || data.isError()) {
activeGenerators.remove(generator);
}
// Process result if exists
data.resultValue().ifPresent(result -> {
if (result instanceof Map) {
@SuppressWarnings("unchecked")
Map<String, Object> mapResult = (Map<String, Object>) result;
mergedResult = OverAllState.updateState(mergedResult, mapResult, keyStrategyMap);
}
});
// Remove from generator results if present
generatorResults.remove(generator);
}
};
}
}NodeOutput
代表图中某个节点执行后的输出结果，包含节点标识和执行后的状态信息
String node：代表节点的标识符，不可更改OverAllState state：代表与节点关联的状态信息，不可更改boolean subGraph：标识该节点是否为子图节点
java
package com.alibaba.cloud.ai.graph;
import static java.lang.String.format;
/**
* Represents the output of a node in a graph.
*
*/
public class NodeOutput {
public static NodeOutput of(String node, OverAllState state) {
return new NodeOutput(node, state);
}
/**
* The identifier of the node.
*/
private final String node;
/**
* The state associated with the node.
*/
private final OverAllState state;
private boolean subGraph = false;
public boolean isSubGraph() {
return subGraph;
}
public NodeOutput setSubGraph(boolean subGraph) {
this.subGraph = subGraph;
return this;
}
public String node() {
return node;
}
public OverAllState state() {
return state;
}
protected NodeOutput(String node, OverAllState state) {
this.node = node;
this.state = state;
}
@Override
public String toString() {
return format("NodeOutput{node=%s, state=%s}", node(), state());
}
}StreamingOutput
NodeOutput 子类，用于处理需要逐步返回结果的场景，适用于大语言模型交互时的流式响应处理
String chunk：流式输出的单个片段内容ChatResponse chatResponse：聊天响应对象，包含完整的聊天响应信息
java
package com.alibaba.cloud.ai.graph.streaming;
import com.alibaba.cloud.ai.graph.NodeOutput;
import com.alibaba.cloud.ai.graph.OverAllState;
import org.springframework.ai.chat.model.ChatResponse;
import static java.lang.String.format;
public class StreamingOutput extends NodeOutput {
private final String chunk; // null
private final ChatResponse chatResponse;
public StreamingOutput(ChatResponse chatResponse, String node, OverAllState state) {
super(node, state);
this.chatResponse = chatResponse;
this.chunk = null;
}
public StreamingOutput(String chunk, String node, OverAllState state) {
super(node, state);
this.chunk = chunk;
this.chatResponse = null;
}
public String chunk() {
return chunk;
}
public ChatResponse chatResponse() {
return chatResponse;
}
@Override
public String toString() {
if (node() == null) {
return format("StreamingOutput{chunk=%s}", chunk());
}
return format("StreamingOutput{node=%s, state=%s, chunk=%s}", node(), state(), chunk());
}
}StreamingChatGenerator
处理流式聊天响应的生成器接口，可将多个部分响应合并为完整的聊天响应，其主要功能通过内部 Builder 类实现，Builder 内部字段如下
|---------------|--------------|----------------------------------------------------|
| 字段名称 | 字段类型 | 描述 |
| mapResult | Function> | 1. 用于将ChatResponse转换为Map结果的映射函数 2. 该函数在构建最终结果时会被调用 |
| startingNode | String | 流式处理过程中的起始节点标识符号 |
| startingState | OverAllState | 流式处理过程的初始状态 |
对外暴露的核心方法
|----------------------------------|----------------------------------------------------------------------------------------------|
| 方法名称 | 描述 |
| build(Flux flux) | 1. 构建并返回处理聊天响应的 AsyncGenerator 实例 2. 生成器会合并响应并将其映射为最终输出 3. 使用响应文本构建StreamingOutput对象 |
| buildWithChatResponse(Flux flux) | 1. 构建并返回处理聊天响应的 AsyncGenerator 实例 2. 生成器会合并响应并将其映射为最终输出 3. 使用ChatResponse构建StreamingOutput对象 |
java
package com.alibaba.cloud.ai.graph.streaming;
import com.alibaba.cloud.ai.graph.NodeOutput;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.async.AsyncGenerator;
import com.alibaba.cloud.ai.graph.async.FlowGenerator;
import org.reactivestreams.FlowAdapters;
import org.springframework.ai.chat.messages.AssistantMessage;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.chat.model.Generation;
import reactor.core.publisher.Flux;
import java.util.List;
import java.util.Map;
import java.util.Objects;
import java.util.concurrent.atomic.AtomicReference;
import java.util.function.Consumer;
import java.util.function.Function;
import static java.util.Objects.requireNonNull;
/**
* A generator interface for streaming chat responses in a reactive manner. It provides a
* fluent API to configure and build a streaming generator that processes chat responses
* and produces output based on the streamed data.
*/
public interface StreamingChatGenerator {
/**
* Builder class for creating instances of {@link AsyncGenerator} that process chat
* responses. This builder allows setting mapping logic, starting node, and initial
* state before building.
*/
class Builder {
private Function<ChatResponse, Map<String, Object>> mapResult;
private String startingNode;
private OverAllState startingState;
/**
* Sets the mapping function that converts a ChatResponse into a Map result.
* @param mapResult a function to transform the final chat response into a result
* map
* @return the builder instance for method chaining
*/
public Builder mapResult(Function<ChatResponse, Map<String, Object>> mapResult) {
this.mapResult = mapResult;
return this;
}
/**
* Sets the starting node for the streaming process.
* @param node the identifier of the starting node in the flow
* @return the builder instance for method chaining
*/
public Builder startingNode(String node) {
this.startingNode = node;
return this;
}
/**
* Sets the initial state for the streaming process.
* @param state the overall state to start with
* @return the builder instance for method chaining
*/
public Builder startingState(OverAllState state) {
this.startingState = state;
return this;
}
/**
* Builds and returns an instance of AsyncGenerator that processes chat responses.
* The generator merges partial responses and maps them to final output.
* @param flux a Flux stream of ChatResponse objects
* @return an AsyncGenerator that produces NodeOutput instances
*/
public AsyncGenerator<? extends NodeOutput> build(Flux<ChatResponse> flux) {
return buildInternal(flux,
chatResponse -> new StreamingOutput(chatResponse.getResult().getOutput().getText(), startingNode,
startingState));
}
/**
* Builds and returns an instance of AsyncGenerator that processes chat responses,
* wrapping each ChatResponse into a StreamingOutput object. This method allows
* downstream consumers to access the full ChatResponse (not just the text chunk)
* for each streamed result, enabling richer output handling such as extracting
* metadata, finishReason, or tool call information.
* @param flux a Flux stream of ChatResponse objects
* @return an AsyncGenerator that produces StreamingOutput instances containing
* the full ChatResponse
*/
public AsyncGenerator<? extends NodeOutput> buildWithChatResponse(Flux<ChatResponse> flux) {
return buildInternal(flux, chatResponse -> new StreamingOutput(chatResponse, startingNode, startingState));
}
private AsyncGenerator<? extends NodeOutput> buildInternal(Flux<ChatResponse> flux,
Function<ChatResponse, StreamingOutput> outputMapper) {
Objects.requireNonNull(flux, "flux cannot be null");
Objects.requireNonNull(mapResult, "mapResult cannot be null");
var result = new AtomicReference<ChatResponse>(null);
Consumer<ChatResponse> mergeMessage = (response) -> {
result.updateAndGet(lastResponse -> {
if (lastResponse == null) {
return response;
}
final var currentMessage = response.getResult().getOutput();
if (currentMessage.hasToolCalls()) {
return response;
}
final var lastMessageText = requireNonNull(lastResponse.getResult().getOutput().getText(),
"lastResponse text cannot be null");
final var currentMessageText = currentMessage.getText();
var newMessage = new AssistantMessage(
currentMessageText != null ? lastMessageText.concat(currentMessageText) : lastMessageText,
currentMessage.getMetadata(), currentMessage.getToolCalls(), currentMessage.getMedia());
var newGeneration = new Generation(newMessage, response.getResult().getMetadata());
return new ChatResponse(List.of(newGeneration), response.getMetadata());
});
};
var processedFlux = flux
.filter(response -> response.getResult() != null && response.getResult().getOutput() != null)
.doOnNext(mergeMessage)
.map(outputMapper);
return FlowGenerator.fromPublisher(FlowAdapters.toFlowPublisher(processedFlux), () -> {
ChatResponse finalResult = result.get();
System.out.println("StreamingChatGenerator: mapResult called, finalResult: "
+ (finalResult != null ? "not null" : "null"));
if (finalResult == null) {
// 如果没有收到任何响应，返回空的结果
return Map.of();
}
return mapResult.apply(finalResult);
});
}
}
/**
* Returns a new instance of the StreamingChatGenerator builder.
* @return a new builder instance
*/
static Builder builder() {
return new Builder();
}
}学习交流圈
你好，我是影子，曾先后在🐻、新能源、老铁就职，兼任Spring AI Alibaba开源社区的Committer。目前新建了一个交流群，一个人走得快，一群人走得远，另外，本人长期维护一套飞书云文档笔记，涵盖后端、大数据系统化的面试资料，可私信免费获取
