路由综合实验RIP,OSPF,BGP

半路_出家ren2025-08-24 18:02

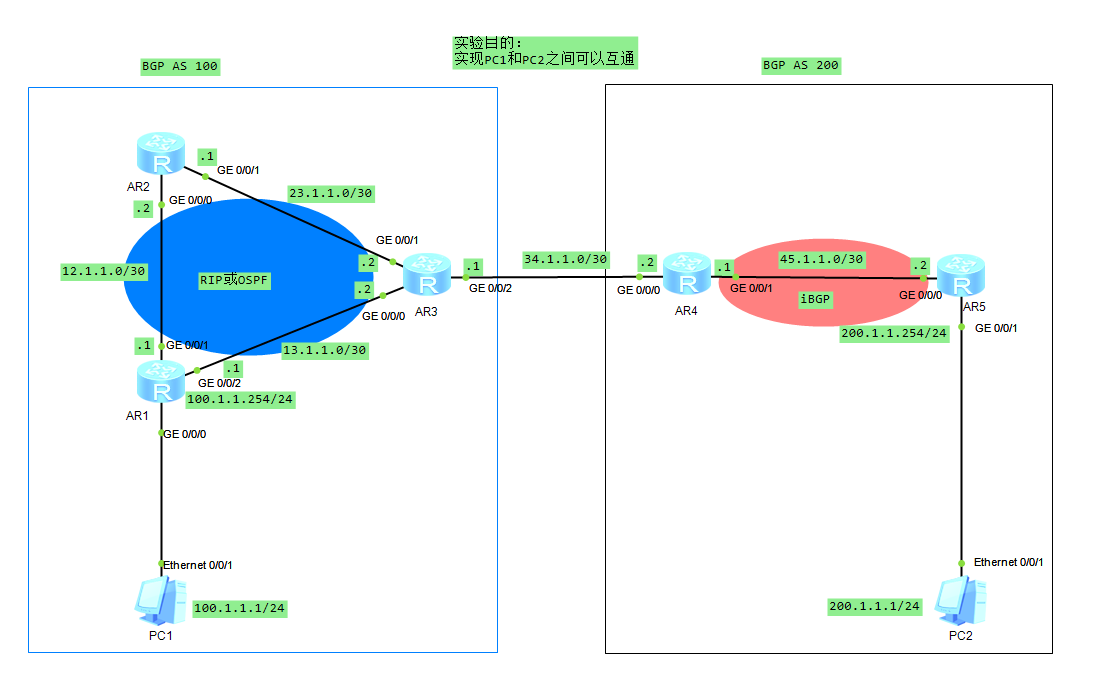

1、拓扑图

配置RIP和OSPF，为了让PC1和PC2实现通信。

2、实验配置

（1）配置IP地址

配置PC的IP地址和网关

（2）配置路由器IP地址

复制代码
配置AR1路由器对应接口的IP地址
<Huawei>sys
[Huawei]sysname AR1
[AR1]undo info-center enable
[AR1]interface g0/0/0
[AR1-GigabitEthernet0/0/0]ip add 100.1.1.254 24
[AR1-GigabitEthernet0/0/0]int g0/0/1
[AR1-GigabitEthernet0/0/1]ip add 12.1.1.1 30
[AR1-GigabitEthernet0/0/1]int g0/0/2
[AR1-GigabitEthernet0/0/2]ip add 13.1.1.1 30
[AR1-GigabitEthernet0/0/2]q

配置AR2路由器对应接口的IP地址
<Huawei>sys
[Huawei]sysname AR2
[AR2]undo info-center enable
[AR2]int g0/0/1
[AR2-GigabitEthernet0/0/1]ip add 23.1.1.1 30
[AR2-GigabitEthernet0/0/1]int g0/0/0
[AR2-GigabitEthernet0/0/0]ip add 12.1.1.2 30
[AR2-GigabitEthernet0/0/0]q

配置AR3路由器对应接口的IP地址
<Huawei>sys
[Huawei]sysname AR3
[AR3]int g0/0/0
[AR3-GigabitEthernet0/0/0]ip add 13.1.1.2 30
[AR3-GigabitEthernet0/0/0]q
[AR3]undo info-center enable
[AR3]int g0/0/1
[AR3-GigabitEthernet0/0/1]ip add 23.1.1.2 30
[AR3-GigabitEthernet0/0/1]int g0/0/2
[AR3-GigabitEthernet0/0/2]ip add 34.1.1.1 30
[AR3-GigabitEthernet0/0/2]q

配置AR4路由器对应接口的IP地址
<Huawei>sys
[Huawei]sysname AR4
[AR4]undo info-center enable
[AR4]int g0/0/0
[AR4-GigabitEthernet0/0/0]ip add 34.1.1.2 30
[AR4-GigabitEthernet0/0/0]int g0/0/1
[AR4-GigabitEthernet0/0/1]ip add 45.1.1.1 30
[AR4-GigabitEthernet0/0/1]q

配置AR5路由器对应接口的IP地址
<Huawei>sys
[Huawei]sysname AR5
[AR5]undo info-center enable
[AR5]int g0/0/0
[AR5-GigabitEthernet0/0/0]ip add 45.1.1.2 30
[AR5-GigabitEthernet0/0/0]int g0/0/1
[AR5-GigabitEthernet0/0/1]ip add 200.1.1.254 24
[AR5-GigabitEthernet0/0/1]q
[AR5]dis current-configuration

经过以上配置之后，一定要先检查一下IP地址是否配置正确，再进行下一步操作。

复制代码
[AR5]display  ip interface brief

或者ping 一下直连。

（3）配置AS 100内部的路由信息

在AR1、AR2、AR3中运行RIP协议。

复制代码
在AR1中进行配置
<AR1>sys
[AR1]rip ?
  INTEGER<1-65535>  Process ID
  mib-binding       Mib-Binding a process
  vpn-instance      VPN instance
  <cr>              Please press ENTER to execute command
[AR1]rip 1
将AR1的三个网段都宣告到RIP 1中
[AR1-rip-1]
[AR1-rip-1]network 100.1.1.0
Error: The network address is invalid, and the specified address must be major-n
et address without any subnets.
上述命令出错，默认是RIPv1
修改为RIPv2
[AR1-rip-1]version 2
[AR1-rip-1]network 100.1.1.0
Error: The network address is invalid, and the specified address must be major-n
et address without any subnets.
修改版本之后依旧报错。因为只能宣告主类网络。对外宣告路由时携带子网掩码。
[AR1-rip-1]net
[AR1-rip-1]network 100.0.0.0
[AR1-rip-1]net
[AR1-rip-1]network 12.0.0.0
[AR1-rip-1]net
[AR1-rip-1]network 13.0.0.0
[AR1-rip-1]q

在AR2中进行配置
<AR2>sys
[AR2]rip 1
[AR2-rip-1]version 2
[AR2-rip-1]net
[AR2-rip-1]network 12.0.0.0
[AR2-rip-1]net
[AR2-rip-1]network 23.0.0.0
[AR2-rip-1]q

在AR3中进行配置
<AR3>sys
[AR3]rip 1
[AR3-rip-1]version 2
[AR3-rip-1]net
[AR3-rip-1]network 23.0.0.0
[AR3-rip-1]net
[AR3-rip-1]network 13.0.0.0
[AR3-rip-1]q


[AR3]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 15       Routes : 16

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  RIP     100  1           D   23.1.1.1        GigabitEthernet
0/0/1
                    RIP     100  1           D   13.1.1.1        GigabitEthernet
0/0/0
       13.1.1.0/30  Direct  0    0           D   13.1.1.2        GigabitEthernet
0/0/0
       13.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       13.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       23.1.1.0/30  Direct  0    0           D   23.1.1.2        GigabitEthernet
0/0/1
       23.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       23.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       34.1.1.0/30  Direct  0    0           D   34.1.1.1        GigabitEthernet
0/0/2
       34.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       34.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
      100.1.1.0/24  RIP     100  1           D   13.1.1.1        GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR3]

上述配置是RIP，也可以配置成OSPF

（4）配置BGP

在AR3和AR4之间运行同一个EBGP。

复制代码
在AR3中配置
<AR3>sys
Enter system view, return user view with Ctrl+Z.
[AR3]bgp 100
[AR3-bgp]peer 34.1.1.2 as-number 200

在AR4中配置
<AR4>sys
[AR4]bgp 200
[AR4-bgp]peer 34.1.1.1 as-number 100
[AR4-bgp]peer 45.1.1.2 as-number 200

在AR5中配置
<AR5>
<AR5>sys
[AR5]bgp 200
[AR5-bgp]peer 45.1.1.1 as-number 200
[AR5-bgp]q

查看AR4中的配置信息
[AR4]dis bgp peer

 BGP local router ID : 34.1.1.2
 Local AS number : 200
 Total number of peers : 2		  Peers in established state : 2

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State Pre
fRcv

  34.1.1.1        4         100        4        4     0 00:02:39 Established
   0
  45.1.1.2        4         200        2        3     0 00:00:36 Established
   0
[AR4]


查看路由信息：都是直连的路由信息。
需要手工的宣告，或者把其他的路由导入。
[AR4]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       34.1.1.0/30  Direct  0    0           D   34.1.1.2        GigabitEthernet
0/0/0
       34.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       34.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.0/30  Direct  0    0           D   45.1.1.1        GigabitEthernet
0/0/1
       45.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

在AR5中宣告路由
宣告IPv4的单播路由
[AR5]bgp 200
[AR5-bgp]ipv4-family unicast
[AR5-bgp-af-ipv4]network 200.1.1.0 24

再次查看AR4中的路由信息，已经学到200.1.1.0网段的地址

[AR4]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 11       Routes : 11

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       34.1.1.0/30  Direct  0    0           D   34.1.1.2        GigabitEthernet
0/0/0
       34.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       34.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.0/30  Direct  0    0           D   45.1.1.1        GigabitEthernet
0/0/1
       45.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  IBGP    255  0          RD   45.1.1.2        GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

查看AR3中的路由信息，也学到200.1.1.0网段
[AR3]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 16       Routes : 17

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  RIP     100  1           D   23.1.1.1        GigabitEthernet
0/0/1
                    RIP     100  1           D   13.1.1.1        GigabitEthernet
0/0/0
       13.1.1.0/30  Direct  0    0           D   13.1.1.2        GigabitEthernet
0/0/0
       13.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       13.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       23.1.1.0/30  Direct  0    0           D   23.1.1.2        GigabitEthernet
0/0/1
       23.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       23.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       34.1.1.0/30  Direct  0    0           D   34.1.1.1        GigabitEthernet
0/0/2
       34.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       34.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
      100.1.1.0/24  RIP     100  1           D   13.1.1.1        GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  EBGP    255  0           D   34.1.1.2        GigabitEthernet
0/0/2
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR3]

PC1要想ping通PC2，AR1中必须有200.1.1.0网段的路由信息。

复制代码
[AR1]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 14       Routes : 15

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  Direct  0    0           D   12.1.1.1        GigabitEthernet
0/0/1
       12.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       12.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       13.1.1.0/30  Direct  0    0           D   13.1.1.1        GigabitEthernet
0/0/2
       13.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       13.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       23.1.1.0/30  RIP     100  1           D   12.1.1.2        GigabitEthernet
0/0/1
                    RIP     100  1           D   13.1.1.2        GigabitEthernet
0/0/2
      100.1.1.0/24  Direct  0    0           D   100.1.1.254     GigabitEthernet
0/0/0
    100.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
    100.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR1]

[AR5]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       45.1.1.0/30  Direct  0    0           D   45.1.1.2        GigabitEthernet
0/0/0
       45.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  Direct  0    0           D   200.1.1.254     GigabitEthernet
0/0/1
    200.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    200.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR5]

查看路由表之后，AR1和AR5都没有互相的路由，没办法通信。

这时，就需要将彼此的路由引进到彼此的网关中。AR3中有100.1.1.0和200.1.1.0两个网段的信息。

（5）引入路由信息

复制代码
在AR3中配置
[AR3]rip
[AR3-rip-1]import-route ?
  bgp     Border Gateway Protocol (BGP) routes
  direct  Direct routes
  isis    Intermediate System to Intermediate System (ISIS) routes
  ospf    Open Shortest Path First (OSPF) routes
  rip     Routing Information Protocol (RIP) routes
  static  Static routes
  unr     User Network Route
[AR3-rip-1]import-route bgp

查看AR1的路由信息，有200.1.1.0网段的信息

复制代码
<AR1>dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 15       Routes : 16

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  Direct  0    0           D   12.1.1.1        GigabitEthernet
0/0/1
       12.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       12.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       13.1.1.0/30  Direct  0    0           D   13.1.1.1        GigabitEthernet
0/0/2
       13.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       13.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
       23.1.1.0/30  RIP     100  1           D   12.1.1.2        GigabitEthernet
0/0/1
                    RIP     100  1           D   13.1.1.2        GigabitEthernet
0/0/2
      100.1.1.0/24  Direct  0    0           D   100.1.1.254     GigabitEthernet
0/0/0
    100.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
    100.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  RIP     100  1           D   13.1.1.2        GigabitEthernet
0/0/2
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

<AR1>

但是AR5中还没有100.1.1.0网段的信息

复制代码
<AR5>dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       45.1.1.0/30  Direct  0    0           D   45.1.1.2        GigabitEthernet
0/0/0
       45.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  Direct  0    0           D   200.1.1.254     GigabitEthernet
0/0/1
    200.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    200.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

<AR5>

在AR3中配置，引用配置
[AR3]bgp 100
[AR3-bgp]im
[AR3-bgp]import-route rip ?
  INTEGER<1-65535>  Specify a process id
[AR3-bgp]import-route rip 1

在AR4中查看配置信息，引入100.1.1.0网段的信息
<AR4>dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 15       Routes : 15

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  EBGP    255  1           D   34.1.1.1        GigabitEthernet
0/0/0
       13.1.1.0/30  EBGP    255  0           D   34.1.1.1        GigabitEthernet
0/0/0
       23.1.1.0/30  EBGP    255  0           D   34.1.1.1        GigabitEthernet
0/0/0
       34.1.1.0/30  Direct  0    0           D   34.1.1.2        GigabitEthernet
0/0/0
       34.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       34.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.0/30  Direct  0    0           D   45.1.1.1        GigabitEthernet
0/0/1
       45.1.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
      100.1.1.0/24  EBGP    255  1           D   34.1.1.1        GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  IBGP    255  0          RD   45.1.1.2        GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

上述配置之后AR5中还是没有100.1.1.0网段的路由信息，为什么呢？

AR5dis bgp routing-table 显示AR5已经学到100.1.1.0网段的信息，但是没有加入路由表中，因为显示的bgp路由表下一跳是 34.1.1.1，而AR5中没有这条路由，不可达。

复制代码
[AR5]dis bgp routing-table

 BGP Local router ID is 200.1.1.254
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Total Number of Routes: 5
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

   i  12.1.1.0/30        34.1.1.1        1          100        0      100?
   i  13.1.1.0/30        34.1.1.1        0          100        0      100?
   i  23.1.1.0/30        34.1.1.1        0          100        0      100?
   i  100.1.1.0/24       34.1.1.1        1          100        0      100?
 *>   200.1.1.0          0.0.0.0         0                     0      i
[AR5]

而AR5中没有这条路由，不可达，解决方法有两种，一种是直接写静态路由。

复制代码
[AR5]ip route-static 34.1.1.0 30 45.1.1.1

[AR5]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 15       Routes : 15

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  IBGP    255  1          RD   34.1.1.1        GigabitEthernet
0/0/0
       13.1.1.0/30  IBGP    255  0          RD   34.1.1.1        GigabitEthernet
0/0/0
       23.1.1.0/30  IBGP    255  0          RD   34.1.1.1        GigabitEthernet
0/0/0
       34.1.1.0/30  Static  60   0          RD   45.1.1.1        GigabitEthernet
0/0/0
       45.1.1.0/30  Direct  0    0           D   45.1.1.2        GigabitEthernet
0/0/0
       45.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      100.1.1.0/24  IBGP    255  1          RD   34.1.1.1        GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  Direct  0    0           D   200.1.1.254     GigabitEthernet
0/0/1
    200.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    200.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR5]

而AR5中没有这条路由，不可达，解决方法有两种，第二种方案在AR4上配置。有点难。

复制代码
在AR4中配置
[AR4]bgp 200
[AR4-bgp]peer 45.1.1.2 next-hop-local

进行上述配置之后AR5的路由表信息

[AR5]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 14       Routes : 14

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.1.1.0/30  IBGP    255  1          RD   45.1.1.1        GigabitEthernet
0/0/0
       13.1.1.0/30  IBGP    255  0          RD   45.1.1.1        GigabitEthernet
0/0/0
       23.1.1.0/30  IBGP    255  0          RD   45.1.1.1        GigabitEthernet
0/0/0
       45.1.1.0/30  Direct  0    0           D   45.1.1.2        GigabitEthernet
0/0/0
       45.1.1.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
       45.1.1.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
      100.1.1.0/24  IBGP    255  1          RD   45.1.1.1        GigabitEthernet
0/0/0
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      200.1.1.0/24  Direct  0    0           D   200.1.1.254     GigabitEthernet
0/0/1
    200.1.1.254/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    200.1.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[AR5]


[AR5]dis bgp routing-table

 BGP Local router ID is 200.1.1.254
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Total Number of Routes: 5
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  12.1.1.0/30        45.1.1.1        1          100        0      100?
 *>i  13.1.1.0/30        45.1.1.1        0          100        0      100?
 *>i  23.1.1.0/30        45.1.1.1        0          100        0      100?
 *>i  100.1.1.0/24       45.1.1.1        1          100        0      100?
 *>   200.1.1.0          0.0.0.0         0                     0      i
[AR5]

（6）实验结果验证

复制代码
PC>ping 200.1.1.1

Ping 200.1.1.1: 32 data bytes, Press Ctrl_C to break
Request timeout!
From 200.1.1.1: bytes=32 seq=2 ttl=124 time=31 ms
From 200.1.1.1: bytes=32 seq=3 ttl=124 time=32 ms
From 200.1.1.1: bytes=32 seq=4 ttl=124 time=31 ms
From 200.1.1.1: bytes=32 seq=5 ttl=124 time=31 ms

--- 200.1.1.1 ping statistics ---
  5 packet(s) transmitted
  4 packet(s) received
  20.00% packet loss
  round-trip min/avg/max = 0/31/32 ms

PC>tracert 200.1.1.1

traceroute to 200.1.1.1, 8 hops max
(ICMP), press Ctrl+C to stop
 1  100.1.1.254   16 ms  15 ms  16 ms
 2  13.1.1.2   16 ms  15 ms  31 ms
 3  34.1.1.2   32 ms  15 ms  16 ms
 4  45.1.1.2   31 ms  16 ms  31 ms
 5  200.1.1.1   16 ms  31 ms  16 ms

PC>
相关推荐
liulilittle14 小时前
bpftrace 跟踪 tcp_write_xmit （内核TCP写出提交）
网络·网络协议·tcp/ip
星光不负赶路人！14 小时前
【问题解决】xftp工具无法连接Windows问题解决
网络
liulilittle14 小时前
TCP KCC v1.0（卡尔曼拥塞控制）
linux·服务器·网络·tcp/ip·计算机网络·tcp·通信
Fnetlink115 小时前
SD-WAN前三供应商推荐
网络·sase
Bobolink_15 小时前
面向欧美用户实时直播场景的网络时延优化实践
网络·网络优化·跨境网络·跨境直播·直播网络
IpdataCloud16 小时前
遭遇DDoS攻击后如何快速分析攻击源？用IP离线库+威胁情报定位异常IP
网络·tcp/ip·游戏·智能路由器·ddos
机汇五金_16 小时前
影响交换机箱体使用寿命的几个关键因素
运维·服务器·网络·python
zhangjw3416 小时前
第18篇：Java网络编程零基础详解，IP、端口、TCP、UDP、Socket通信、实战文件传输
java·网络·tcp/ip
编程大师哥16 小时前
最高效的 IO 并发方案
linux·网络·python
酣大智16 小时前
BGP选路原则--下一跳IGP Metric小的（8）
网络·华为·路由·bgp
热门推荐
01GitHub 镜像站点02【AI】2026 年具身智能模型和世界模型总结03Codex 下载安装指南：Windows 和 macOS 官方版下载042026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf052026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？06【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法07CC-Switch 下载、安装与使用配置指南【2026.5.29】08Agnes AI 全模态 API 免费实测报告：文生图 + 文生视频完整测试09CC-Switch & Claude 基于 Linux 服务器安装使用指南10AI科技热点日报 | 2026年6月1日
