构建wezzer平台！

redis

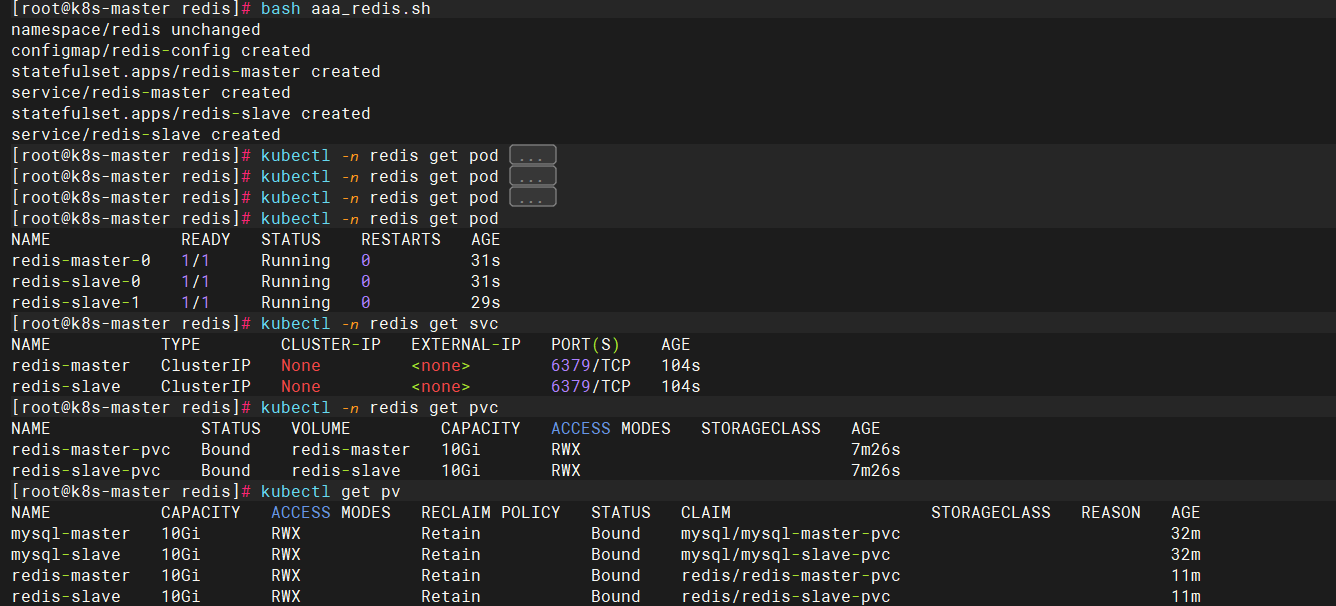

部署

[root@k8s-master redis]# ls
namespace.yaml  redis-config.yaml  redis-master.yaml  redis-slave.yaml
[root@k8s-master redis]# cat namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: redis
[root@k8s-master redis]# cat redis-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-config
  namespace: redis
data:
  redis-master.conf: |
    port 6379
    bind 0.0.0.0
    protected-mode no
    daemonize no
    timeout 0
    save ""
    appendonly no
    maxmemory 1gb
    maxmemory-policy allkeys-lru
  redis-slave.conf: |
    port 6379
    bind 0.0.0.0
    protected-mode no
    daemonize no
    timeout 0
    save ""
    appendonly no
    maxmemory 1gb
    maxmemory-policy allkeys-lru
    slaveof redis-master-0.redis-master.redis.svc.cluster.local 6379
    slave-read-only yes

redis-master

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis-master
  namespace: redis
spec:
  serviceName: redis-master
  replicas: 1
  selector:
    matchLabels:
      app: redis-master
  template:
    metadata:
      labels:
        app: redis-master
    spec:
      containers:
      - name: redis-master
        image: redis:6
        command:
        - /bin/sh
        - -c
        - |
          redis-cli FLUSHALL  # 清空所有缓存
          redis-server /etc/redis/redis-master.conf
        ports:
        - containerPort: 6379
        volumeMounts:
        - name: redis-config
          mountPath: /etc/redis
        - name: redis-data
          mountPath: /data

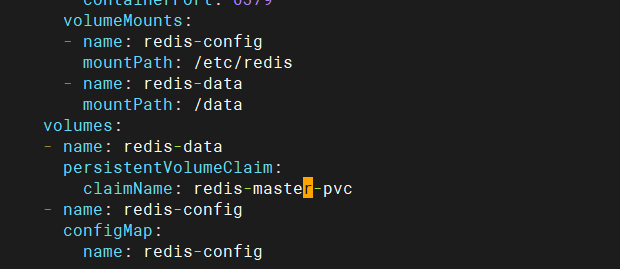

      volumes:
      - name: redis-data
        persistentVolumeClaim:
          claimName: redis-master-pvc
      - name: redis-config
        configMap:
          name: redis-config
---
apiVersion: v1
kind: Service
metadata:
  name: redis-master
  namespace: redis
spec:
  clusterIP: None
  selector:
    app: redis-master
  ports:
  - port: 6379
    targetPort: 6379

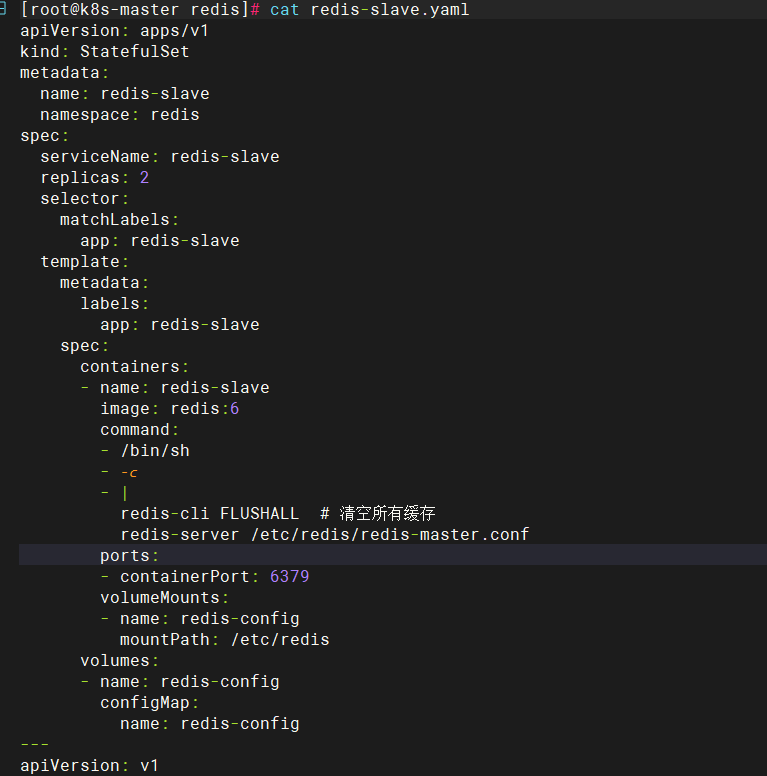

redis-slave

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis-slave
  namespace: redis
spec:
  serviceName: redis-slave
  replicas: 2
  selector:
    matchLabels:
      app: redis-slave
  template:
    metadata:
      labels:
        app: redis-slave
    spec:
      containers:
      - name: redis-slave
        image: redis:6
        command:
        - /bin/sh
        - -c
        - |
          redis-cli FLUSHALL  # 清空所有缓存
          redis-server /etc/redis/redis-master.conf
        ports:
        - containerPort: 6379

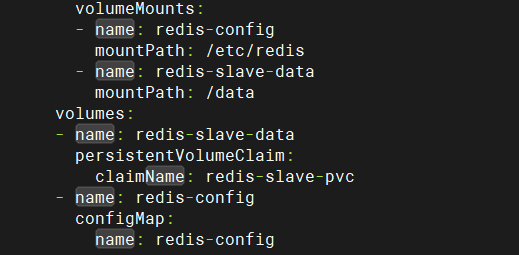

        volumeMounts:
        - name: redis-config
          mountPath: /etc/redis
      volumes:
      - name: redis-config
        configMap:
          name: redis-config
---

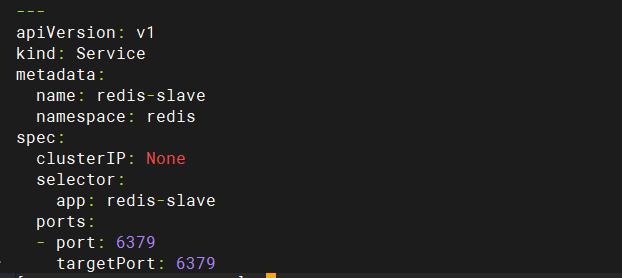

apiVersion: v1
kind: Service
metadata:
  name: redis-slave
  namespace: redis
spec:
  clusterIP: None
  selector:
    app: redis-slave
  ports:
  - port: 6379
    targetPort: 6379

mysql

部署

[root@k8s-master mysql]# ls
aaa_mysql.sh  configmap.yaml  init-scripts.yaml  master.yaml  mysql.yaml  secret.yaml  slave.yaml
[root@k8s-master mysql]# cat mysql.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: mysql
[root@k8s-master mysql]# cat secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: mysql-secrets
  namespace: mysql
type: Opaque
data:
  root-password: MTIzLmNvbQ==  # 解码后：123.com
[root@k8s-master mysql]# cat init-scripts.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-init-scripts
  namespace: mysql
data:
  master-init.sql: |
    # 从环境变量获取密码（避免明文）
    CREATE USER IF NOT EXISTS 'rsyncuser'@'%' IDENTIFIED BY '123.com';
    GRANT REPLICATION SLAVE ON *.* TO 'rsyncuser'@'%';

    CREATE DATABASE IF NOT EXISTS discuz;
    CREATE USER IF NOT EXISTS 'discuz'@'%' IDENTIFIED BY '123.com';
    GRANT ALL PRIVILEGES ON discuz.* TO 'discuz'@'%';

    CREATE DATABASE IF NOT EXISTS biyesheji;
    CREATE USER IF NOT EXISTS 'tomcat'@'%' IDENTIFIED BY '123.com';
    GRANT ALL PRIVILEGES ON biyesheji.* TO 'tomcat'@'%';

    FLUSH PRIVILEGES;
  slave-init.sql: |
    CHANGE MASTER TO
      MASTER_HOST = 'mysql-master-0.mysql-master.mysql.svc.cluster.local',
      MASTER_PORT = 3306,
      MASTER_USER = 'rsyncuser',
      MASTER_PASSWORD = '123.com',  # 从环境变量获取
      MASTER_AUTO_POSITION = 1;
    START SLAVE;
[root@k8s-master mysql]# cat configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-config
  namespace: mysql
data:
  master.cnf: |
    [mysqld]
    server-id=10
    log_bin=/var/lib/mysql/mysql-bin.log
    read_only=0
    bind-address=0.0.0.0
    gtid_mode=ON
    enforce_gtid_consistency=ON
    default_authentication_plugin=mysql_native_password

  slave1.cnf: |
    [mysqld]
    server-id=20
    relay_log=/var/lib/mysql/mysql-relay-bin.log
    log_bin=/var/lib/mysql/mysql-bin.log
    read_only=1
    bind-address=0.0.0.0
    gtid_mode=ON
    enforce_gtid_consistency=ON
    default_authentication_plugin=mysql_native_password

mysql-master

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql-master
  namespace: mysql
spec:
  serviceName: mysql-master
  replicas: 1
  selector:
    matchLabels:
      app: mysql-master
  template:
    metadata:
      labels:
        app: mysql-master
    spec:
      containers:
      - name: mysql
        image: mysql:8.0
        ports:
        - containerPort: 3306
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysql-secrets
              key: root-password
        volumeMounts:
        - name: mysql-config
          mountPath: /etc/mysql/conf.d/master.cnf
          subPath: master.cnf
        - name: master-init-script  # 仅挂载主库脚本
          mountPath: /docker-entrypoint-initdb.d/master-init.sql
          subPath: master-init.sql  # 明确指定脚本名
      volumes:
      - name: mysql-config
        configMap:
          name: mysql-config
          items:
          - key: master.cnf
            path: master.cnf
      - name: master-init-script  # 关联 ConfigMap 中的主库脚本
        configMap:
          name: mysql-init-scripts
          items:
          - key: master-init.sql
            path: master-init.sql
---
apiVersion: v1
kind: Service
metadata:
  name: mysql-master
  namespace: mysql
spec:
  ports:
  - port: 3306
    name: mysql
  clusterIP: None
  selector:
    app: mysql-master

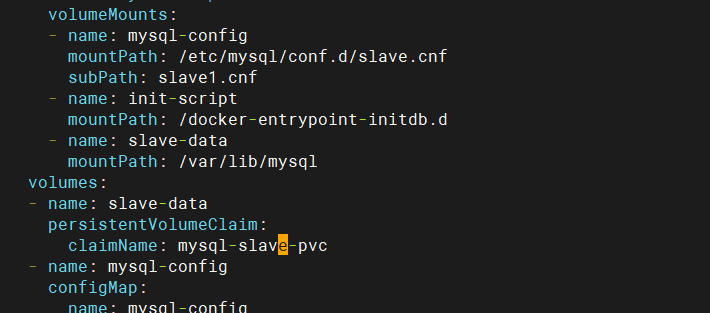

mysql-slave

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql-slave
  namespace: mysql
spec:
  serviceName: mysql-slave
  replicas: 1
  selector:
    matchLabels:
      app: mysql-slave
  template:
    metadata:
      labels:
        app: mysql-slave
    spec:
      containers:
      - name: mysql
        image: mysql:8.0
        ports:
        - containerPort: 3306
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysql-secrets
              key: root-password
        volumeMounts:
        - name: mysql-config
          mountPath: /etc/mysql/conf.d/slave.cnf
          subPath: slave1.cnf
        - name: init-script
          mountPath: /docker-entrypoint-initdb.d
      volumes:
      - name: mysql-config
        configMap:
          name: mysql-config
          items:
          - key: slave1.cnf
            path: slave1.cnf
      - name: init-script
        configMap:
          name: mysql-init-scripts


---
apiVersion: v1
kind: Service
metadata:
  name: mysql-slave
  namespace: mysql
spec:
  ports:
  - port: 3306
    name: mysql
  clusterIP: None
  selector:
    app: mysql-slave

web-nginx

构建自定义镜像

配置文件

nginx

server {
    listen 80;
    server_name localhost;
    root /var/www/html;
    index index.php index.html index.htm;

    access_log /var/log/nginx/discuz_access.log;
    error_log /var/log/nginx/discuz_error.log;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        fastcgi_pass unix:/run/php/php83-fpm.sock;
        fastcgi_index index.php;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include fastcgi_params;
    }

    location ~ /\.ht {
        deny all;
    }
}

php-fpm

[www]
user = nginx
group = nginx
listen = /run/php/php83-fpm.sock
listen.owner = nginx
listen.group = nginx
listen.mode = 0660

pm = dynamic
pm.max_children = 5
pm.start_servers = 2
pm.min_spare_servers = 1
pm.max_spare_servers = 3

php_admin_value[error_log] = /var/log/php83/www-error.log
php_admin_flag[log_errors] = on

Dockerfile

FROM alpine:latest
RUN  apk update && apk add --no-cache \
     php83 php83-fpm php83-mysqlnd php83-gd php83-mbstring \
     php83-curl php83-json php83-openssl php83-xml \
     php83-mysqli php83-tokenizer php83-pdo php83-pdo_mysql \
     nginx php83-redis vim
RUN mkdir -p \
    /run/nginx \
    /var/www/html \
    /run/php &&\
    chown -R nginx:nginx /var/www/html /run/nginx && \
    chmod 755 /var/www/html
#nginx配置
COPY discuz.conf /etc/nginx/http.d/default.conf
#php配置
COPY www.conf /etc/php83/php-fpm.d/www.conf
#暴露端口
EXPOSE 80
#运行
CMD ["sh","-c","php-fpm83 --nodaemonize & nginx -g 'daemon off;'"]

启动容器

编写测试文件

index.html
web-nginx

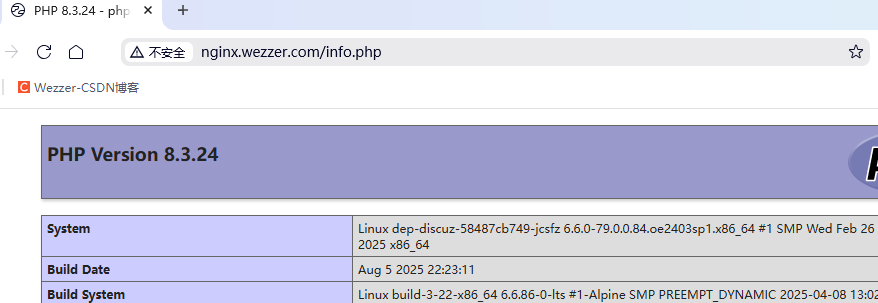

info.php
<?php
    phpinfo();
?>

<?php
error_reporting(E_ALL);
ini_set('display_errors', 1);
$host = 'mysql-master-0.mysql-master.mysql.svc.cluster.local';     // 数据库主机地址
$user = 'discuz';        // MySQL 用户名
$pass = '123.com';       // MySQL 用户密码
$dbname = 'discuz';      // 要连接的数据库名

// 尝试连接 MySQL
$conn = new mysqli($host, $user, $pass, $dbname);

// 检查连接错误
if ($conn->connect_error) {
    // 连接失败时终止脚本并输出错误
    die('连接失败：' . $conn->connect_error);
}

// 连接成功，输出数据库版本信息
echo "MySQL 连接成功！数据库版本：" . $conn->server_info;
?>

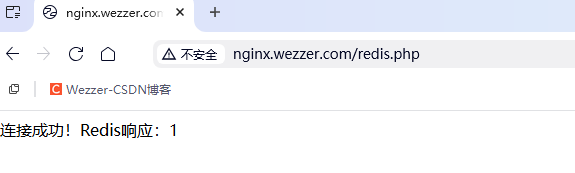

<?php
$redis = new Redis();
try {
    // 连接Master（替换为你的实际地址和端口）
    $conn = $redis->connect('redis-master.redis.svc.cluster.local', 6379, 2);
    if ($conn) {
        echo "连接成功！";
        echo "Redis响应：" . $redis->ping(); // 测试服务响应
    } else {
        echo "连接失败（无错误信息）";
    }
} catch (RedisException $e) {
    // 打印具体错误（如：连接超时、拒绝连接、认证失败等）
    echo "Redis连接错误：" . $e->getMessage();
}

导入dicuz文件

docker cp ./  c37e6292ca17:/var/www/html/

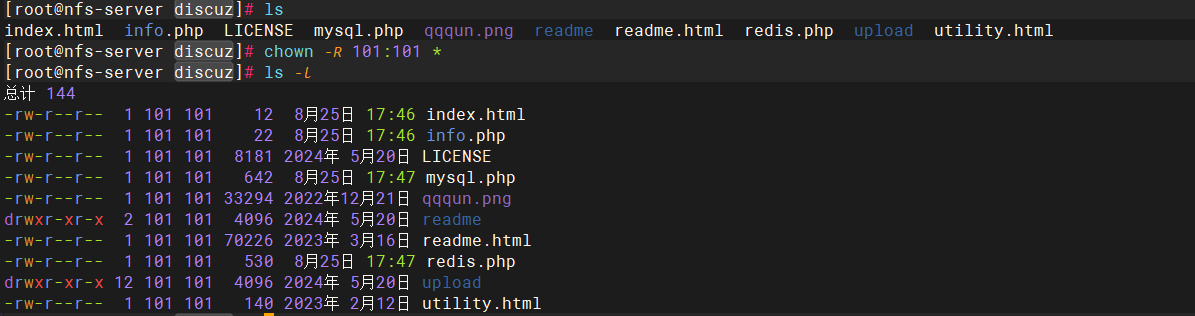

修改属主

修改discuz默认配置（upload/config/）

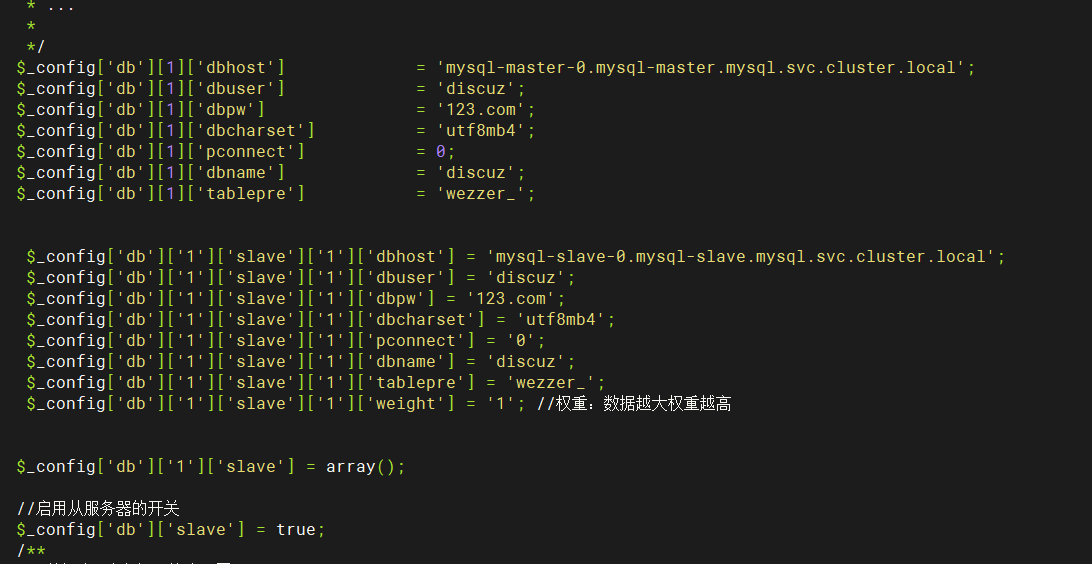

config_global_default.php

数据库

从库

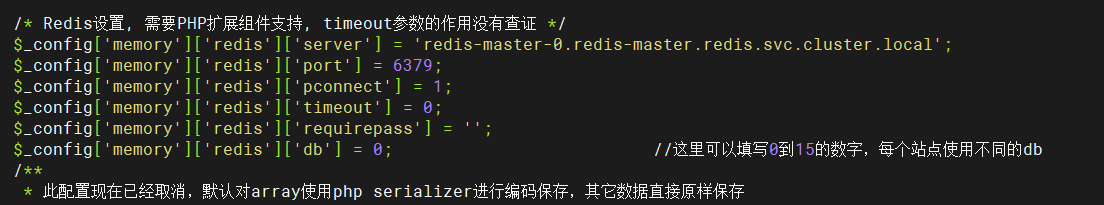

redis数据库

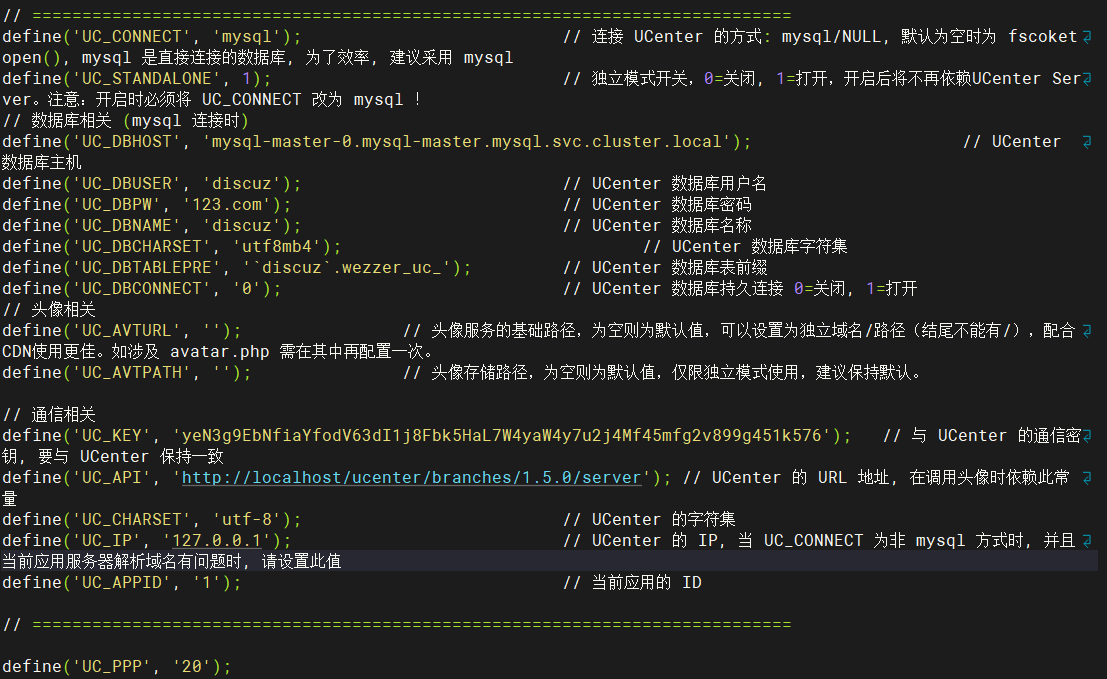

config_ucenter_default.php

镜像导出

[root@k8s-master web-nginx]# docker commit 9fbf6304f924 web-nginx:latest
sha256:79c04b1494346f3e4111229e2d902c40ee73c8beb1ad9d65df2111c0906fa73b
[root@k8s-master web-nginx]# docker save -o web-nginx.tar web-nginx:latest

镜像导入每个节点

部署web-nginx

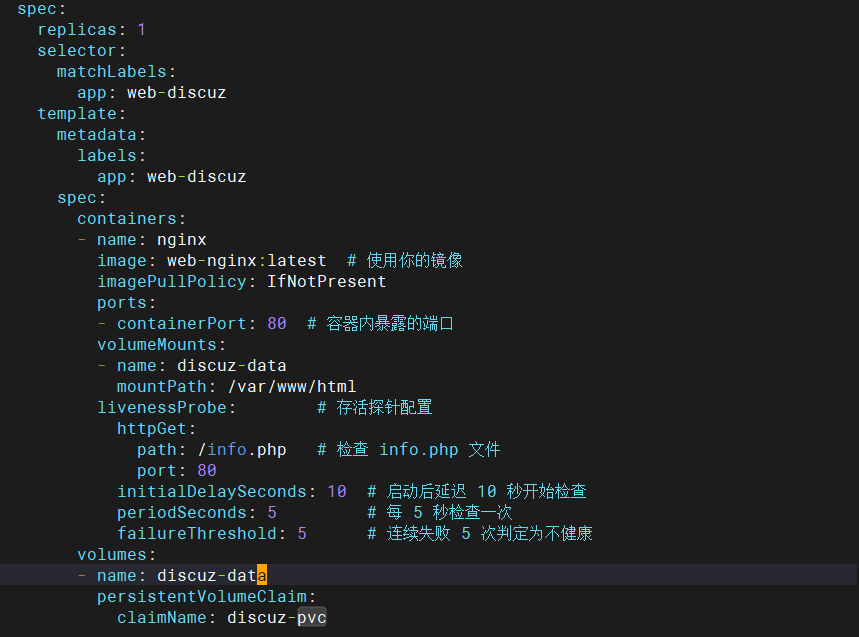

编写 启动文件

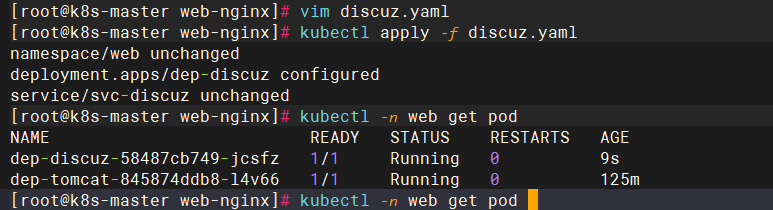

启动

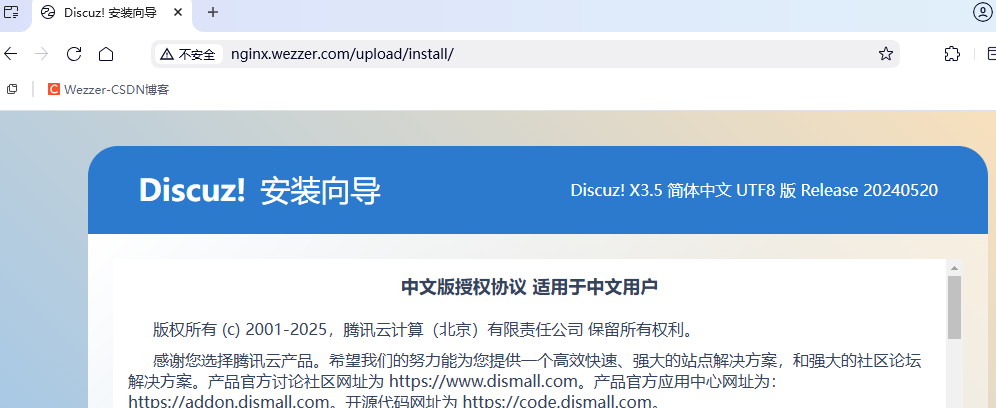

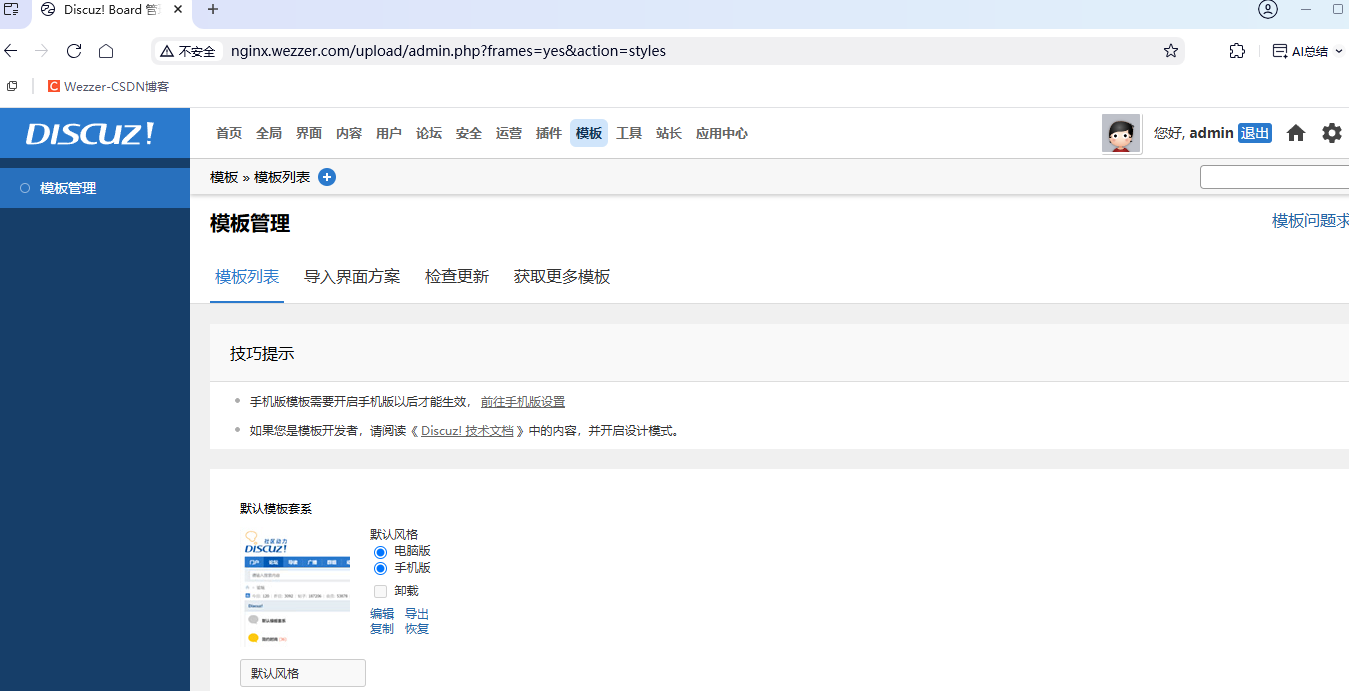

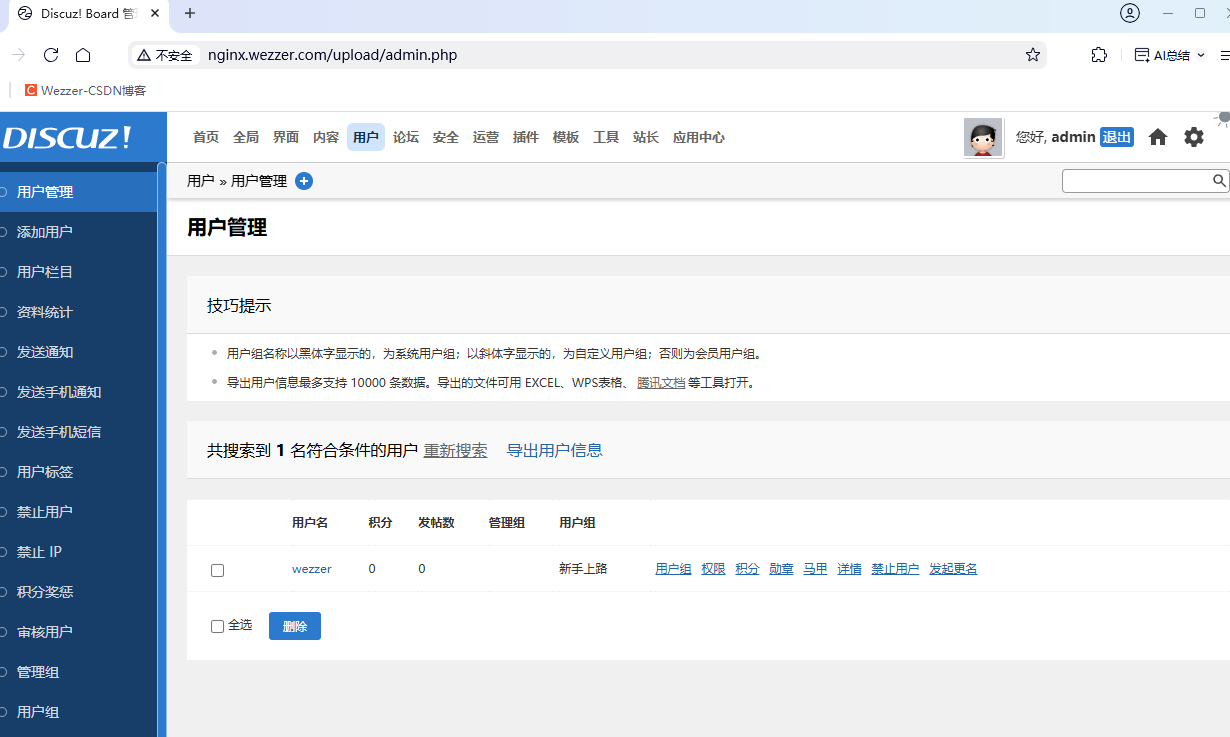

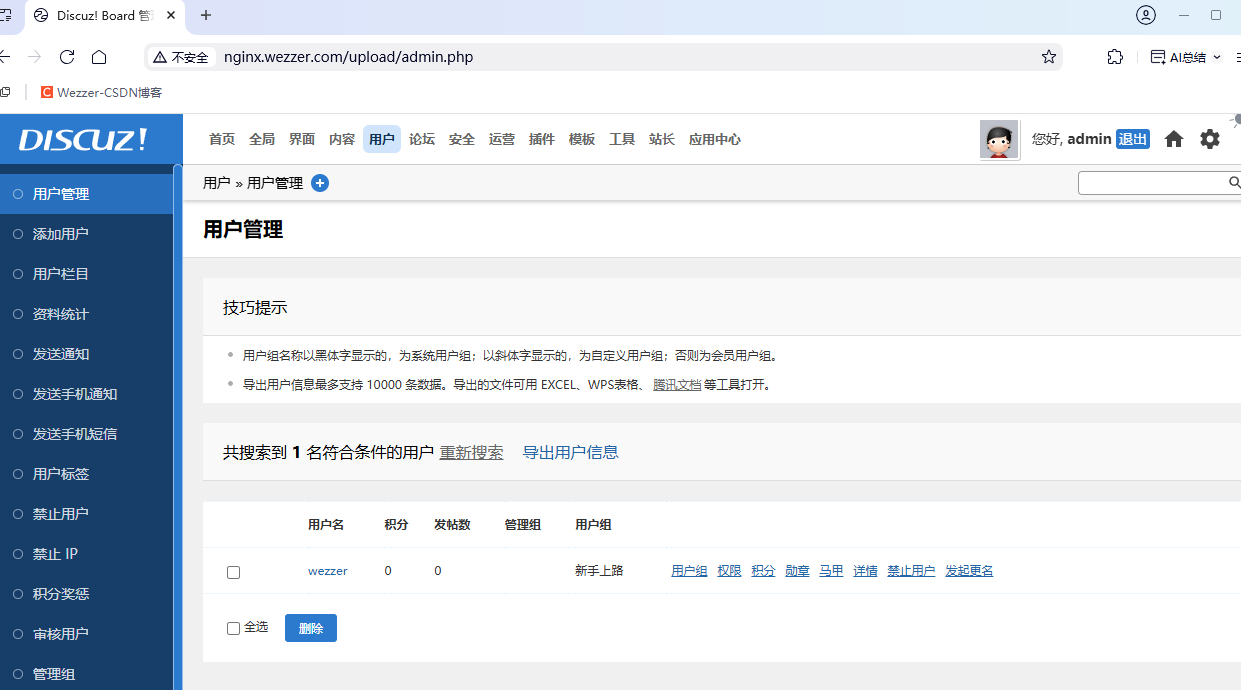

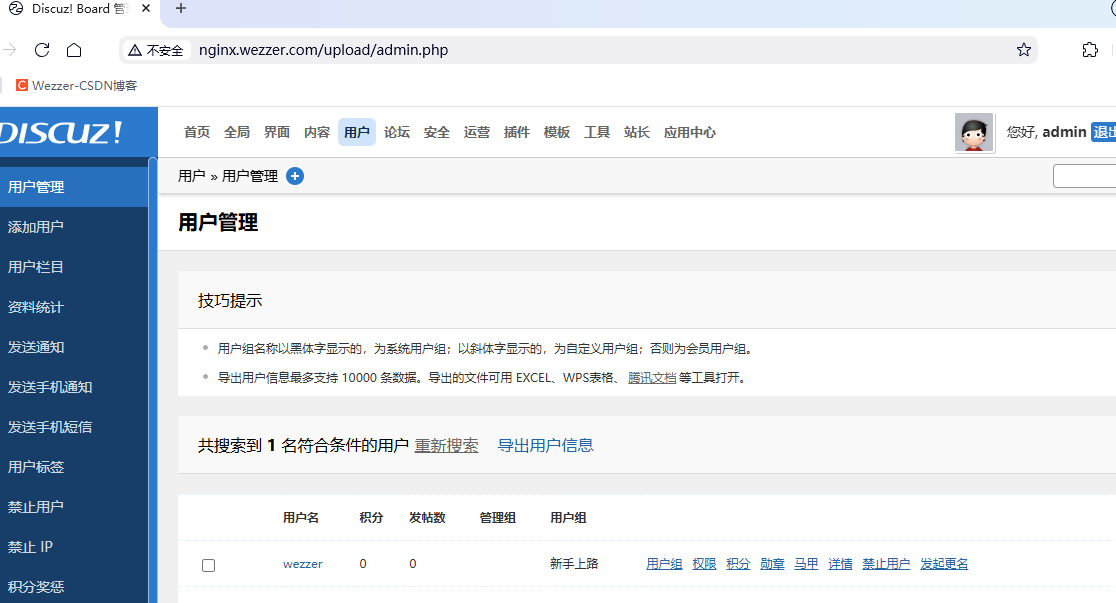

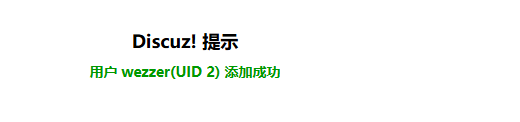

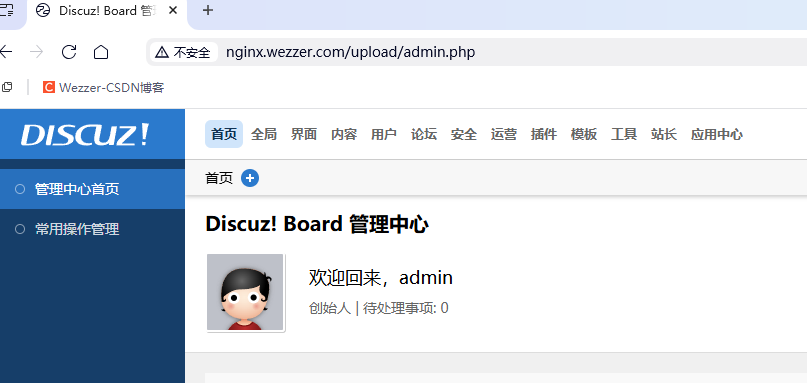

访问

默认即可

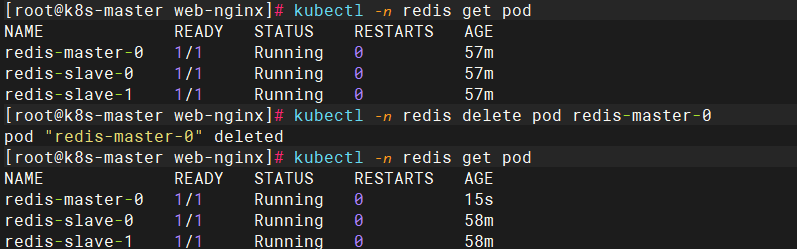

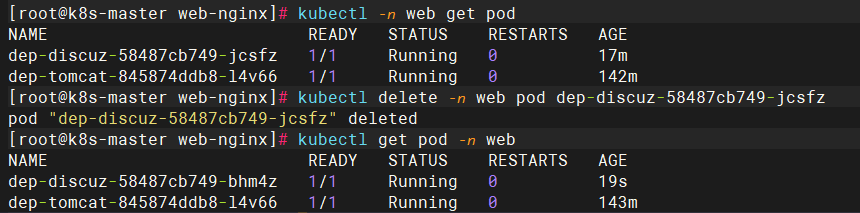

问题

出现这个页面时，将redi缓存清理就ok

taomcat

自定义镜像

下载镜像

docker pull tomcat:8

生成测试镜像

docker run -itd --name tomcat -v /root/xm/tomcat/shangcheng/:/usr/local/tomcat/webapps/  --restart=always tomcat:8

sql文件拷贝给mysql库

注入sql语句

将复制的 sql文件内容拷贝到 configmap.yaml 文件中

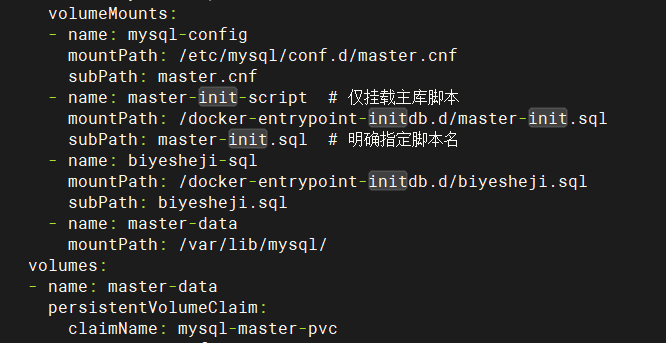

主配置 匹配cofihmap

     volumeMounts:
        - name: biyesheji-sql
          mountPath: /docker-entrypoint-initdb.d/biyesheji.sql
          subPath: biyesheji.sql
      volumes:
      - name: biyesheji-sql
        configMap:
          name: mysql-config
          items:
          - key: biyesheji.sql
            path: biyesheji.sql

验证

编写镜像

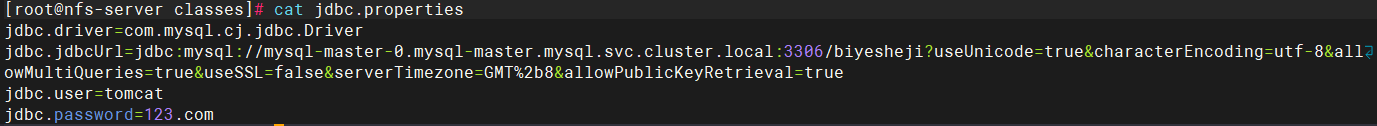

修改商城默认配置

vim WEB-INF/classes/jdbc.properties

 vim /usr/local/tomcat/webapps/biyesheji/WEB-INF/classes/jdbc.properties

docker commit d44d4163 shangcheng:v1

docker save -o shangcheng.tar   a4e0365

将镜像拷给各节点

docker tag a4e036 shangcheng:v1

如果
REPOSITORY                                           TAG          IMAGE ID       CREATED         SIZE
<none>                                               <none>       a4e0365f328b   6 minutes ago   208MB

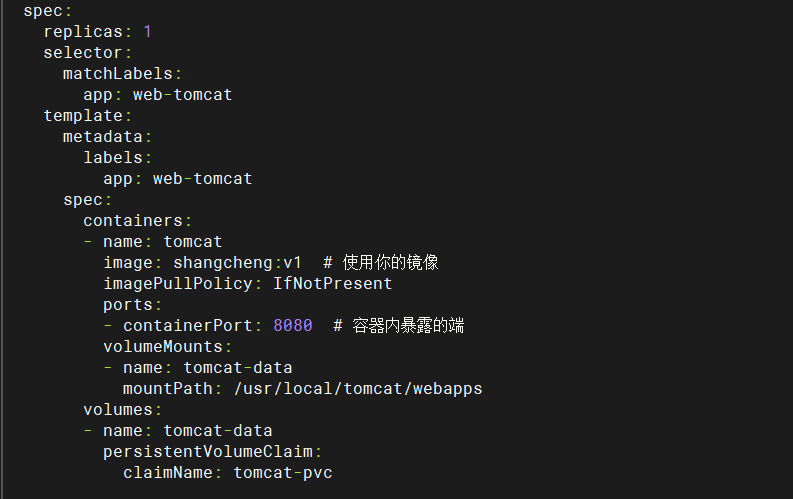

部署商城

apiVersion: v1
kind: Namespace
metadata:
  name: web
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dep-tomcat
  namespace: web
spec:
  replicas: 1
  selector:
    matchLabels:
      app: web-tomcat
  template:
    metadata:
      labels:
        app: web-tomcat
    spec:
      containers:
      - name: tomcat
        image: shangcheng:v1  # 使用你的镜像
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080  # 容器内暴露的端

---
apiVersion: v1
kind: Service
metadata:
  name: svc-tomcat
  namespace: web  # 指定命名空间为 discuz
spec:
  type: NodePort
  ports:
  - port: 8080        # 集群内访问端口
    targetPort: 8080  # 容器内端口
    nodePort: 30808 # 对外暴露的节点端口
  selector:
    app: web-tomcat  # 匹配 Deployment 的标签

启动

结论

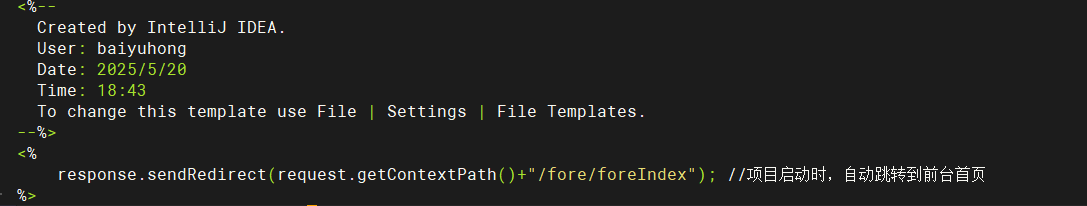

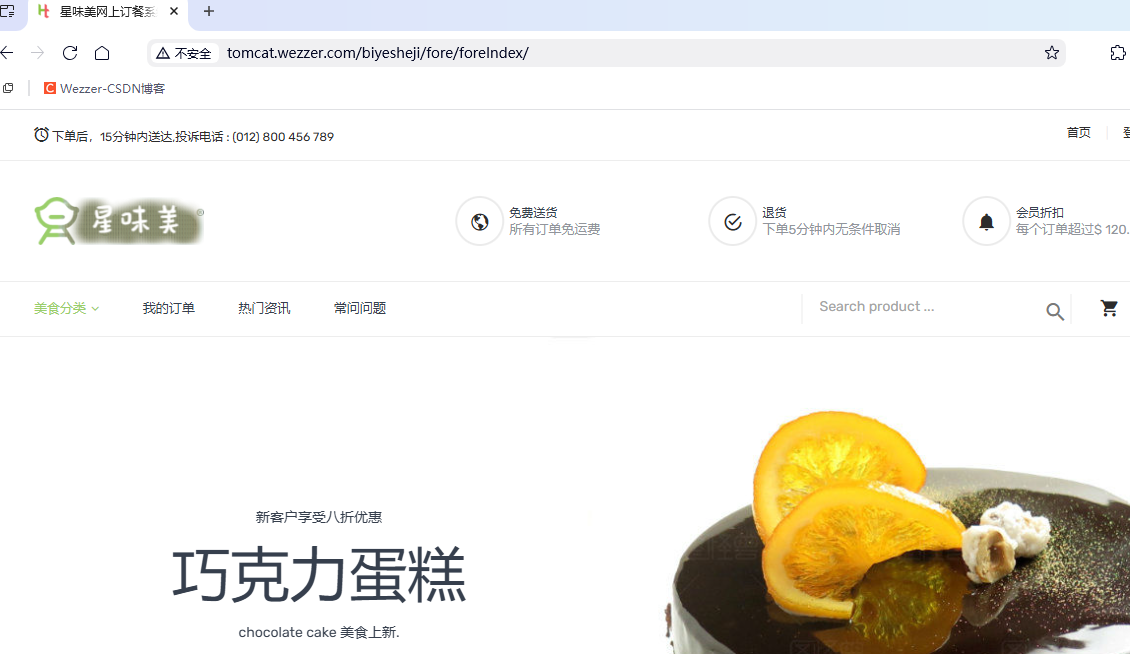

访问成功（/biyesheji/fore/foreIndex/）

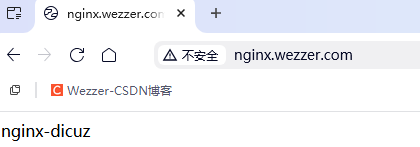

discuz与nginx基于域名访问

拷贝镜像并导入

解压并提交

loadbalance模式

kubectl -n ingress-nginx edit svc ingress-nginx-controller

创建ip池

cat >IPAddressPool.yaml<<EOF
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: planip-pool #这里与下面的L2Advertisement的ip池名称需要一样
  namespace: metallb-system
spec:
  addresses:
  - 192.168.11.140-192.168.11.170 #自定义ip段
EOF

关联IP池

cat >L2Advertisement.yaml<<EOF
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: planip-pool
  namespace: metallb-system
spec:
  ipAddressPools:
  - planip-pool #这里需要跟上面ip池的名称保持一致
EOF

提交

kubectl apply -f IPAddressPool.yaml
kubectl apply -f L2Advertisement.yaml

添加规则

kubectl apply -f ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress # 创建一个类型为Ingress的资源
metadata:
  name: nginx-ingress # 这个资源的名字为 nginx-ingress
  namespace: web
spec:
  ingressClassName: nginx # 使用nginx
  rules:
  - host: nginx.wezzer.com # 访问此内容的域名
    http:
      paths:
      - backend:
          service:
            name: svc-discuz # 对应nginx的服务名字,该规则的namespace必须与service的一致
            port:
              number: 80 # 访问的端口
        path: / # 匹配规则
        pathType: Prefix # 匹配类型，这里为前缀匹配
  - host: tomcat.wezzer.com # 访问此内容的域名
    http:
      paths:
      - backend:
          service:
            name: svc-tomcat # 对应nginx的服务名字,该规则的namespace必须与service的一致
            port:
              number: 8080 # 访问的端口
        path: / # 匹配规则
        pathType: Prefix # 匹配类型，这里为前缀匹配

修改hosts文件

结果

持久化部署(pvc)

确保每台主机下载 nfs-utils

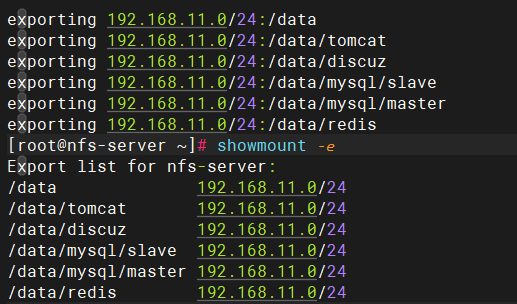

1、共享目录文件

vim /etc/exports

2、mysql 可持久化

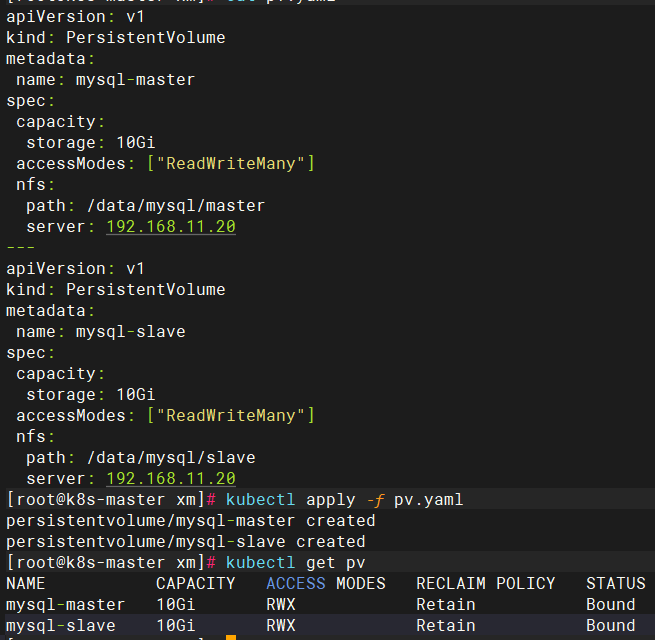

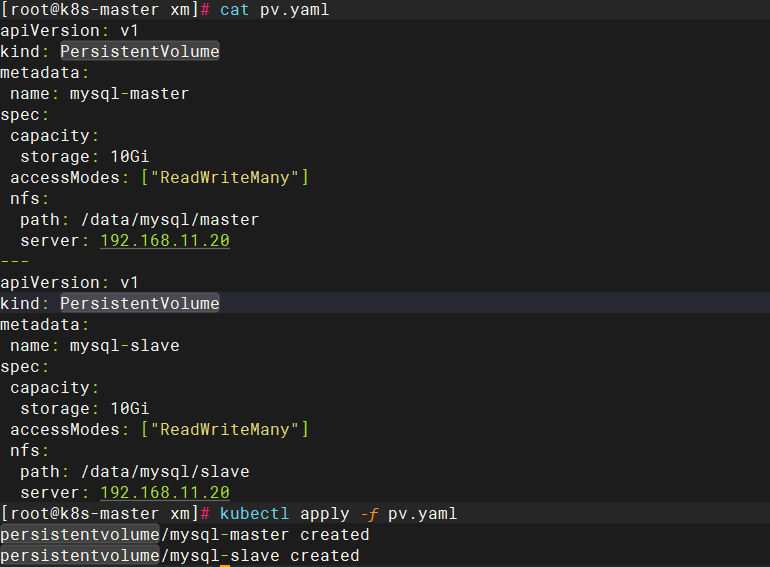

2.1、生成pv对应 共享目录

apiVersion: v1
kind: PersistentVolume
metadata:
 name: mysql-master
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/mysql/master
  server: 192.168.11.20
---
apiVersion: v1
kind: PersistentVolume
metadata:
 name: mysql-slave
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/mysql/slave
  server: 192.168.11.20

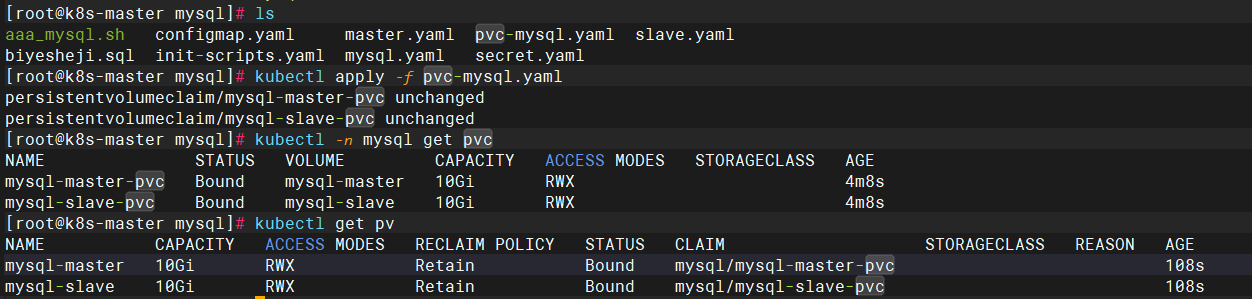

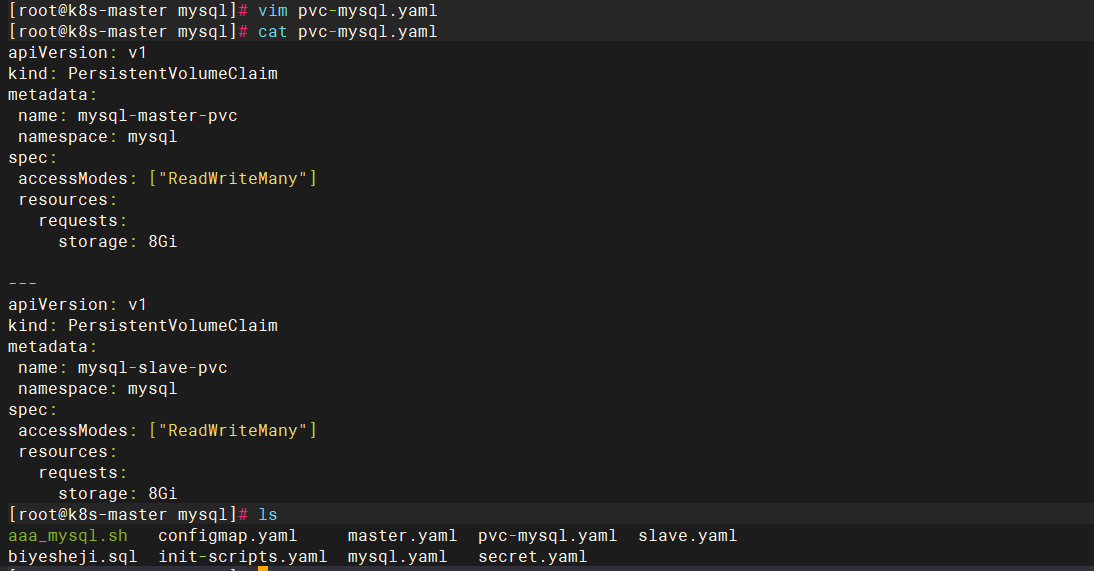

2.2、生成对应pvc 对应 pv

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: mysql-master-pvc
 namespace: mysql
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: mysql-slave-pvc
 namespace: mysql
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

2.3、修改配置文文件 对应 pvc

mysql启动时会查看 /var/lib/mysql/ 文件 ，如果是空，则进行初始化操作，如果有这继承该文件内容

master

slave

更新

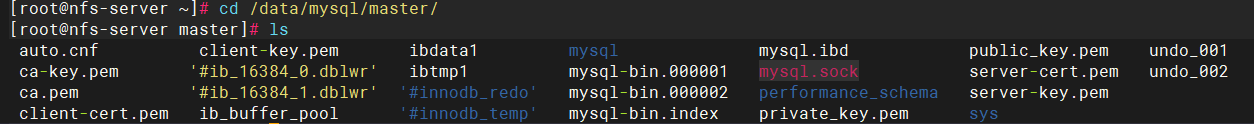

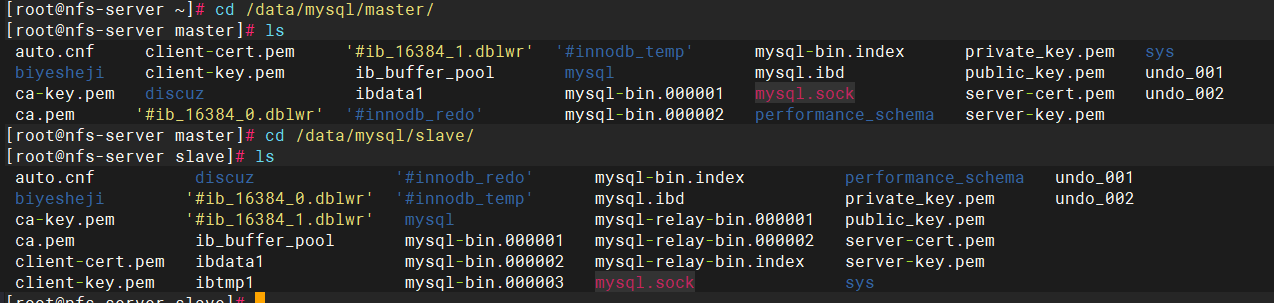

结果

3、redis 持久化

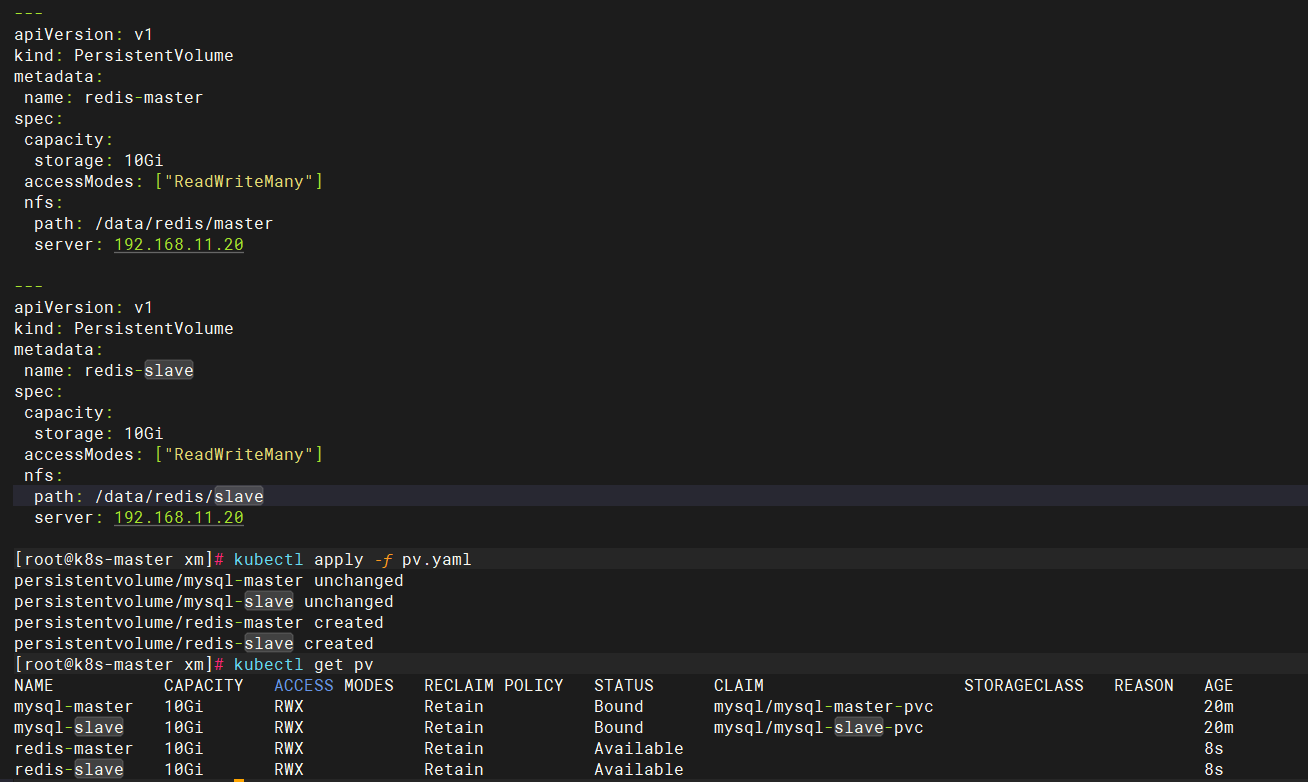

3.1、添加pv 对应 共享目录

---
apiVersion: v1
kind: PersistentVolume
metadata:
 name: redis-master
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/redis/master
  server: 192.168.11.20

---
apiVersion: v1
kind: PersistentVolume
metadata:
 name: redis-slave
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/redis/slave
  server: 192.168.11.20

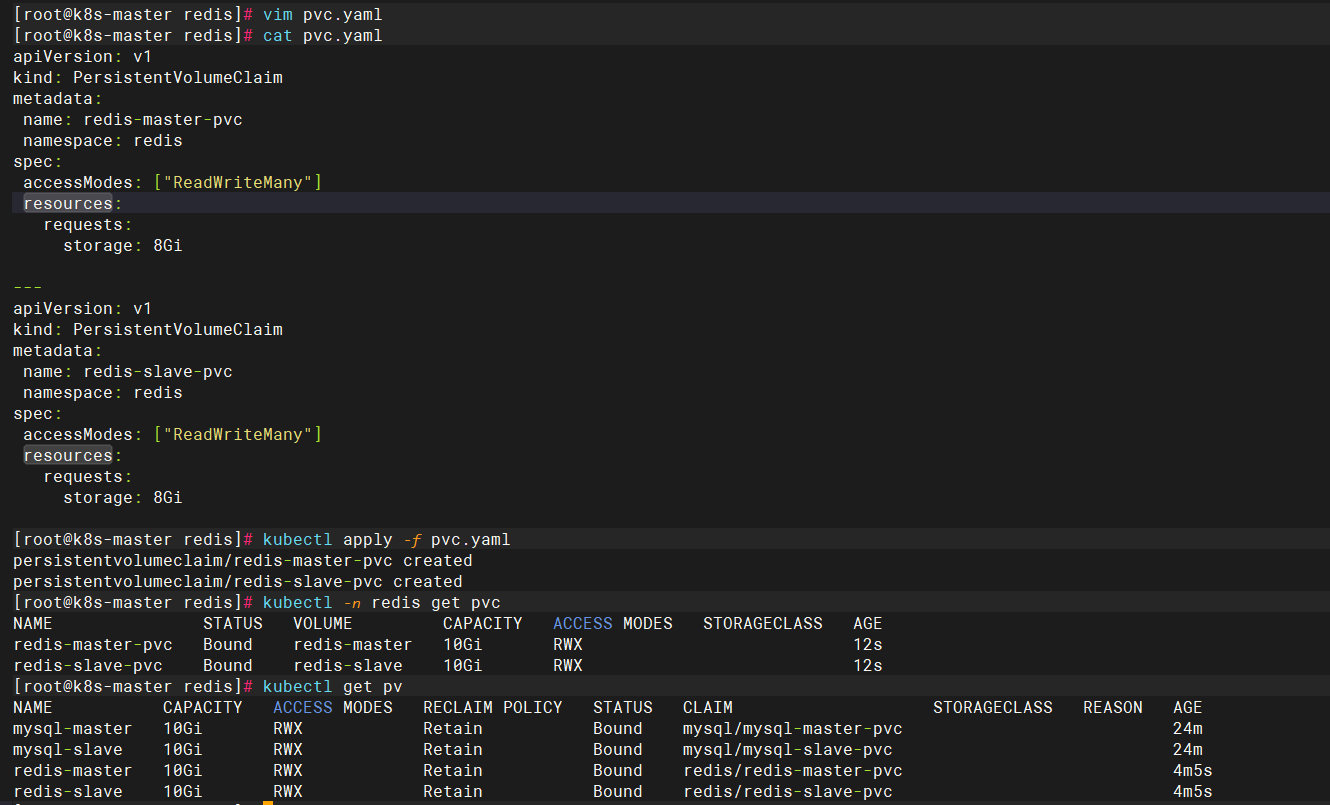

3.2、添加pvc 对应pv

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: redis-master-pvc
 namespace: redis
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: redis-slave-pvc
 namespace: redis
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

3.3、修改配置文件 对应 pvc

master

slave

更新

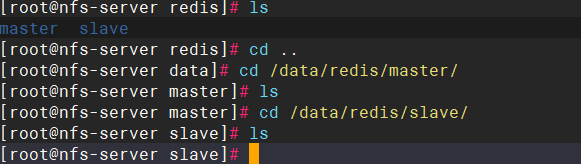

结果

4、web-discuz 持久化

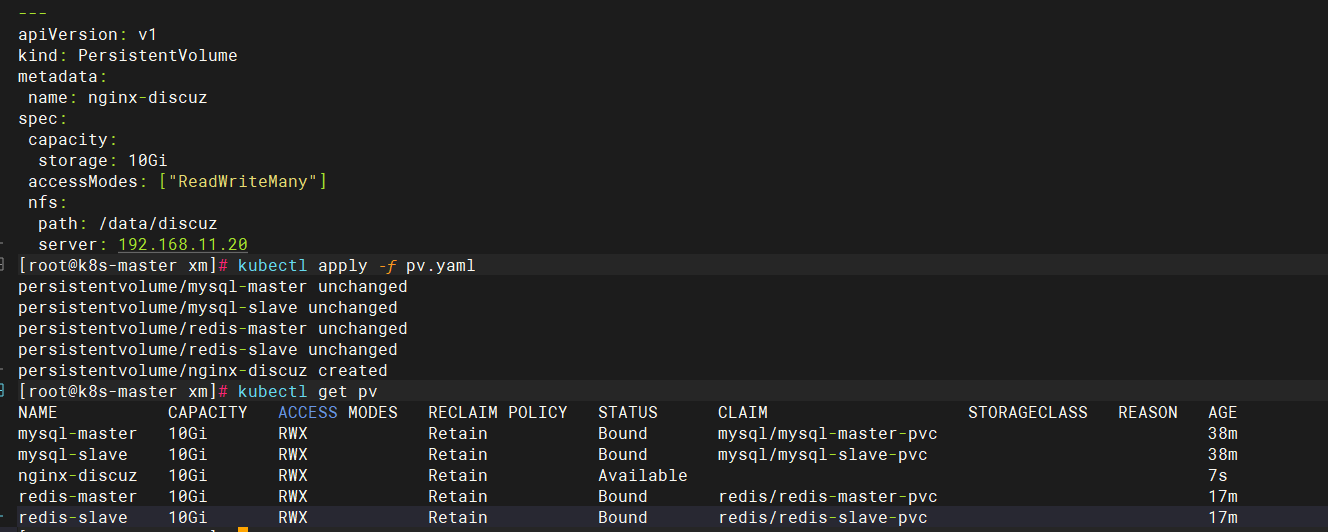

4.1、添加pv 对应 共享目录

apiVersion: v1
kind: PersistentVolume
metadata:
 name: nginx-discuz
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/discuz
  server: 192.168.11.20

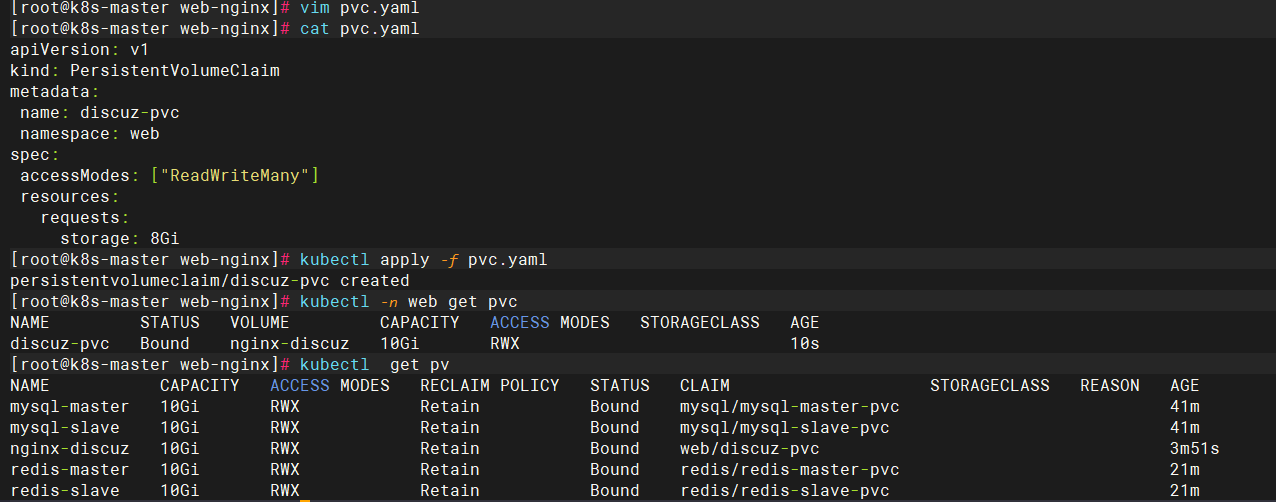

4.2、添加pvc 对应 pv

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: discuz-pvc
 namespace: web
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

4.3、再共享目录中添加对应文件

chown -R 100:101 *

4.4、修改配置文件 对应 pvc

spec.template.spec 下的 containers 添加 volumeMounts

spec.template.spec（与 containers 同级）中添加 volumes 部分

4.5、访问

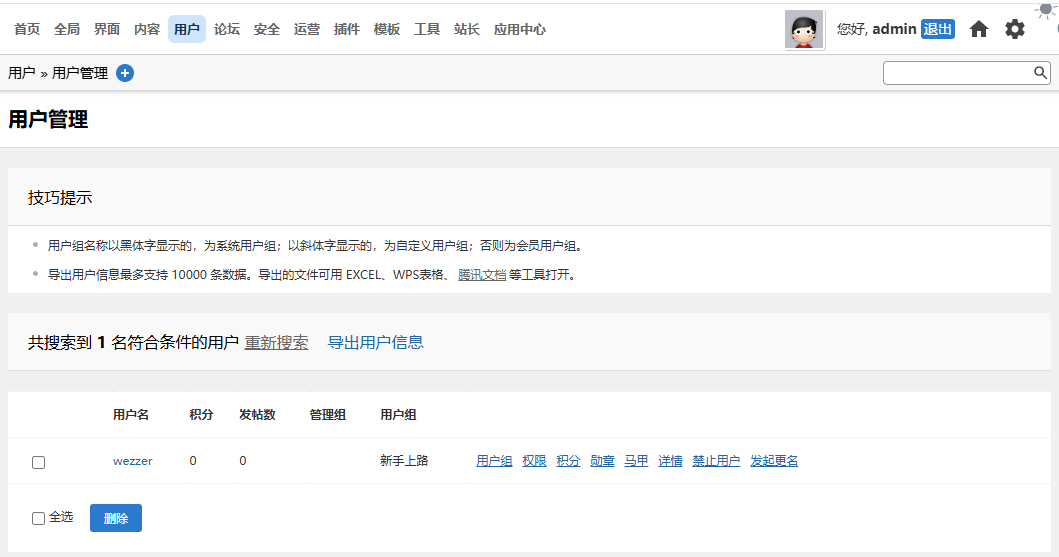

4.6、验证持久化

将discuz论坛部署后

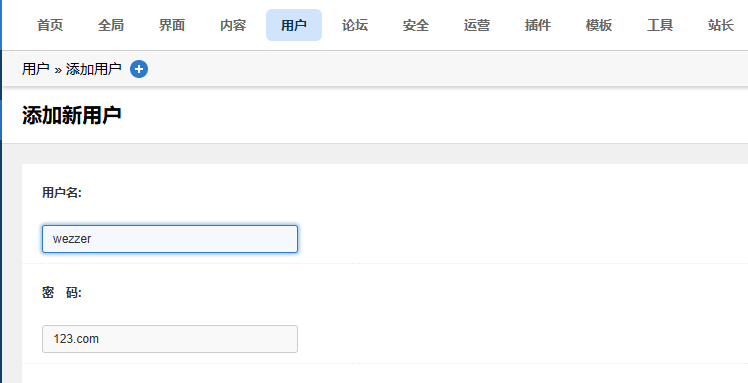

添加新用户

删除 nginx的pod

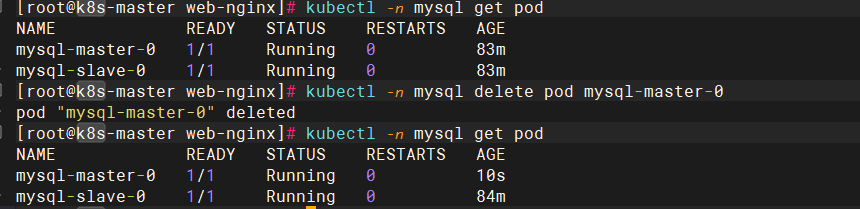

删除 mysql的pod

删除redis 的pod

5、tomcat 持久化

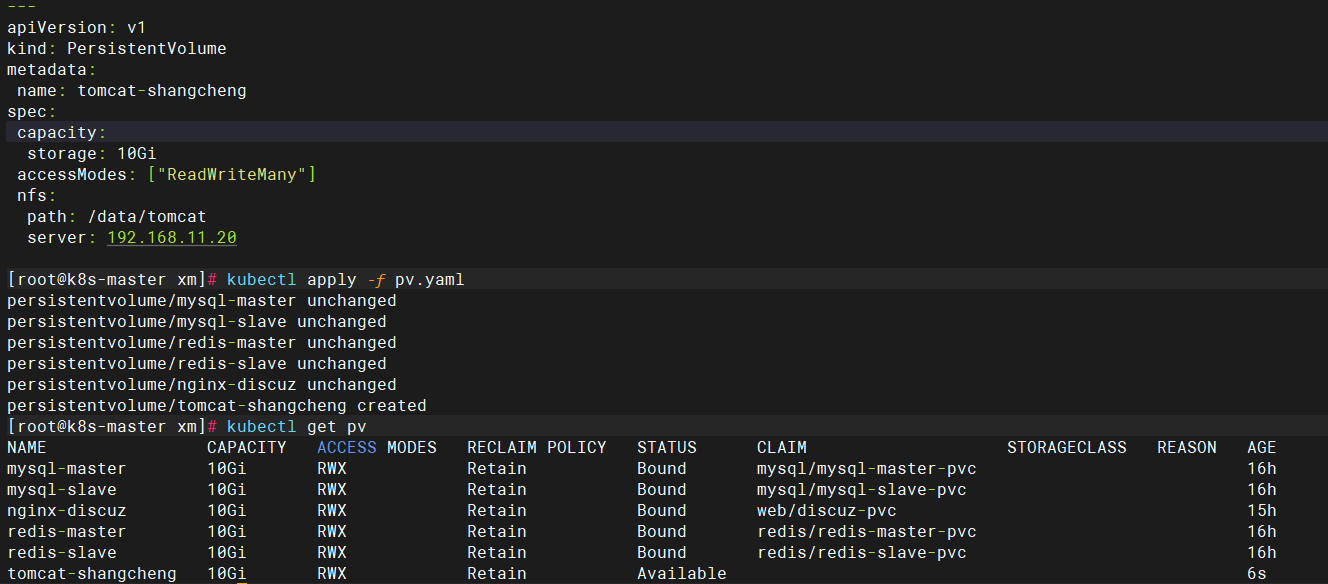

5.1、添加 pv 对应 共享目录

apiVersion: v1
kind: PersistentVolume
metadata:
 name: tomcat-shangcheng
spec:
 capacity:
  storage: 10Gi
 accessModes: ["ReadWriteMany"]
 nfs:
  path: /data/tomcat
  server: 192.168.11.20

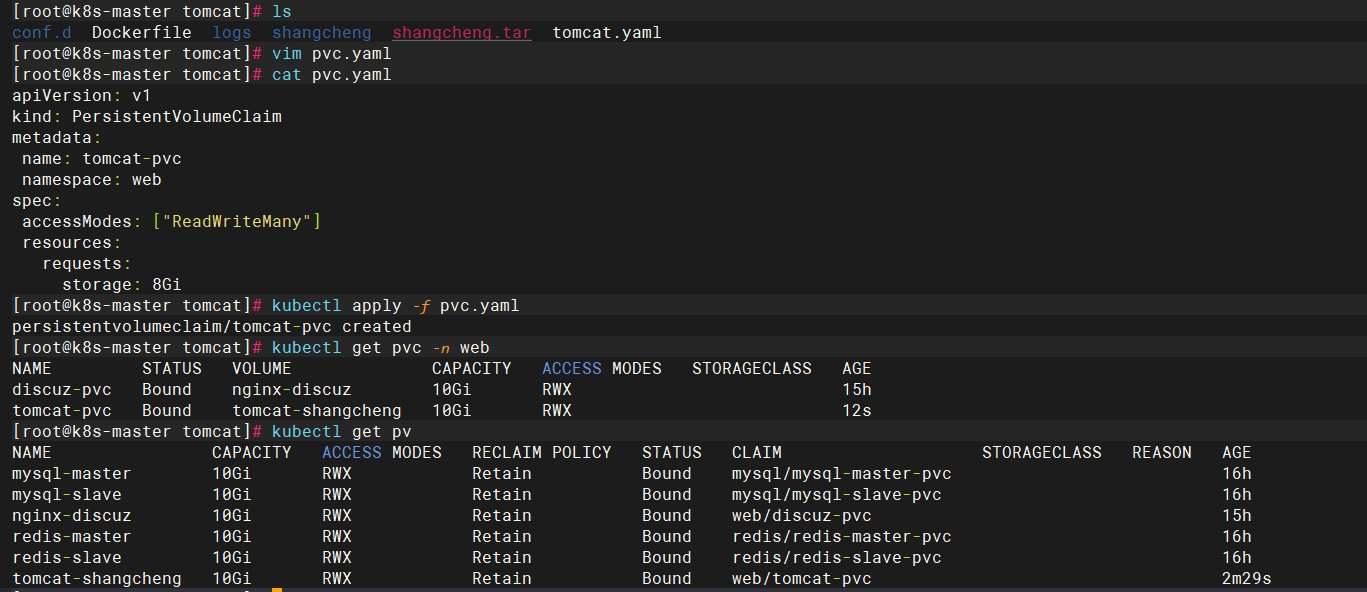

5.2、添加pvc 对应 pv

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: tomcat-pvc
 namespace: web
spec:
 accessModes: ["ReadWriteMany"]
 resources:
   requests:
     storage: 8Gi

5.3、修改配置文件 对应 pvc

        volumeMounts:
        - name: tomcat-data
          mountPath: /usr/local/tomcat/webapps
      volumes:
      - name: tomcat-data
        persistentVolumeClaim:
          claimName: tomcat-pvc

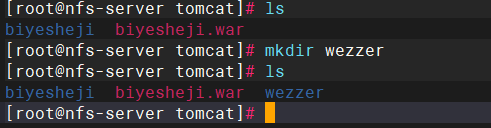

5.4、访问文件修改

结果

访问

（访问失败，可以删除tomcatpod尝试）
