脚手架简介
脚手架本质是一个操作系统的客户端,它通过命令行执行,比如:
js
vue create vue-test-app
上面这条命令由 3 个部分组成:
- 主命令:
vue
- command:
create
- command 的 param:
vue-test-app
它表示创建一个 vue 项目,项目的名称为vue-test-app
,以上是最一个较为简单的脚手架命令,但实际场景往往更加复杂,比如:
当前目录已经有文件了,我们需要覆盖当前目录下的文件,强制进行安装 vue 项目,此时我们就可以输入
js
vue create vue-test-app --force
这里的 --force
叫做 option,用来辅助脚手架确认在特定场景下用户的选择(可以理解为配置)。还有一种场景:
通过 vue create 创建项目时,会自动执行 npm install 帮用户安装依赖,如果我们希望使用淘宝源来安装,可以输入命令:
js
vue create vue-test-app --force -r https://registry.npm.taobao.org
这里的 -r
也叫做 option,它与 --force
不同的是它使用 -
,并且使用简写,这里的 -r
也可以替换成 --registry
-r https://registry.npm.taobao.org
后面的 registry.npm.taobao.org 成为 option 的 param,其实 --force
可以理解为:--force true
,简写为:--force
或 -f
脚手架执行原理
脚手架的执行原理如下:
- 在终端输入
vue create vue-test-app
- 终端解析出
vue
命令 - 终端在环境变量中找到
vue
命令 - 终端根据 vue 命令链接到实际文件 vue.js
- 终端利用 node 执行 vue.js
- vue.js 解析 command /options
- vue.js 执行 command
- 执行完毕,退出执行
从应用的角度看如何开发一个脚手架
这里以 vue-cli 为例
- 开发 npm 项目,该项目中应包含一个 bin/vue.js 文件,并将这个项目发布到 npm
- 将 npm 项目安装到 node 的 lib/node_modules
- 在 node 的 bin 目录下配置 vue 软链接指向 lib/node_modules/@vue/cli/bin/vue.js
这样我们在执行 vue 命令的时候就可以找到 vue.js 进行执行
为什么全局安装 @vue/cli 后会添加的命令为 vue?

全局安装 @vue/cli 时发生了什么?
- 把
@vue/cli

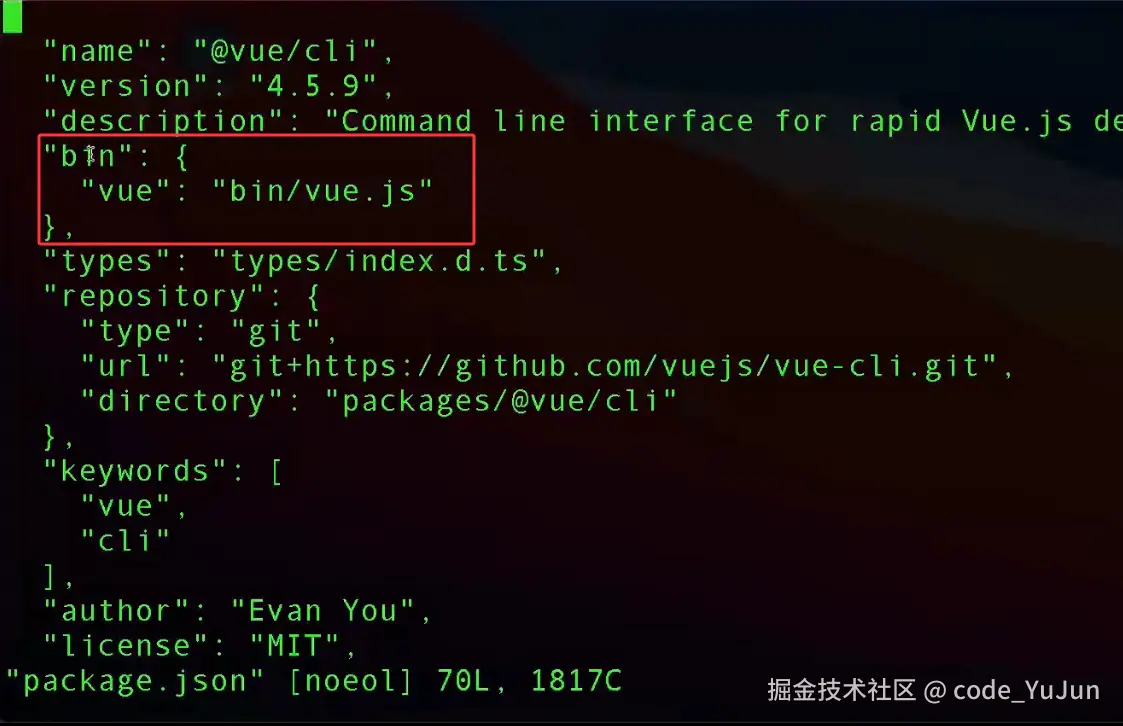

下载到 node/v12.11.1/lib/node_modules 目录中。 - 解析 package.json 中 bin 的配置,在 bin 配置的指令和实际执行的 JS 之间建立软连接。

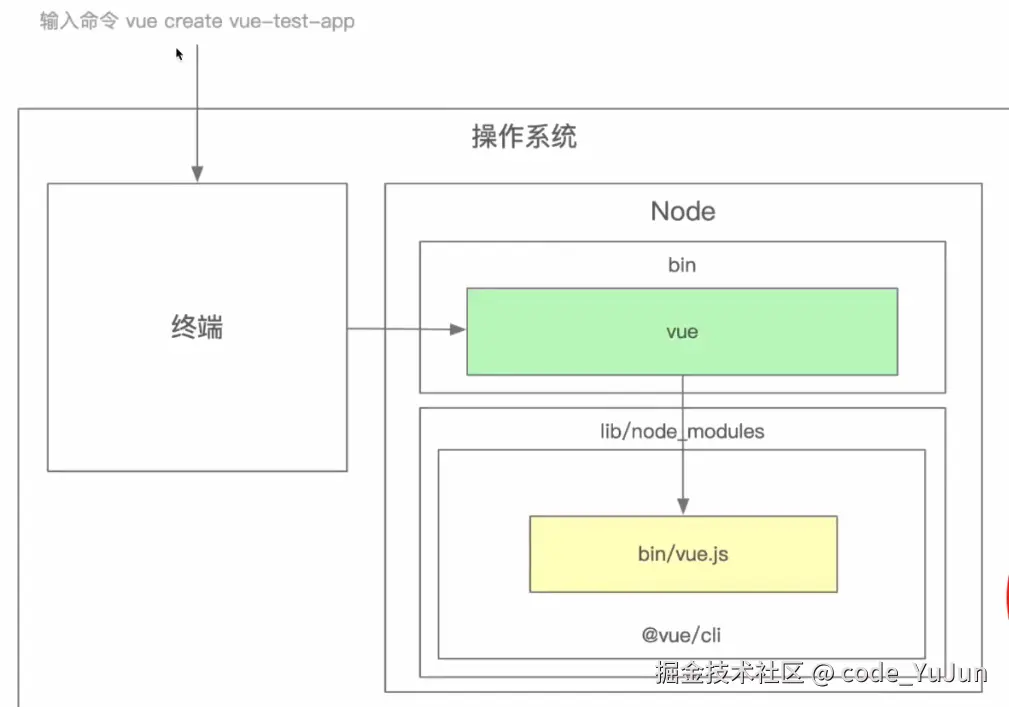

脚手架命令执行的全过程

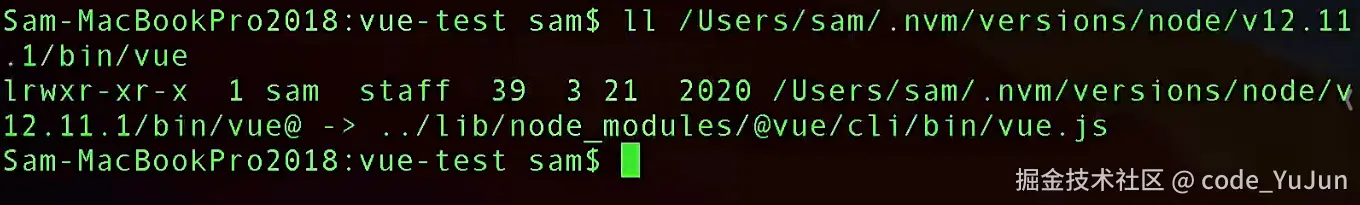

查看实际链接文件
脚手架开发流程
- 创建 npm 项目
- 创建脚手架入口文件,最上方添加:
#!/usr/bin/env node
- 配置 package.json,添加 bin 属性
- 编写脚手架代码 - 将脚手架发布到 npm
脚手架使用流程
- 安装脚手架
npm install -g your-own-cli
- 使用脚手架
your-own-cli
脚手架开发难点解析
- 分包:将复杂的系统拆分成若干个模块
- 命令注册:
vue create
vue add
vue invoke
- 参数解析:
vue command [options] <params>
- options 全称:
--version
、--help
- options 简写:
-v
、-h
- 带 params 的 options:
--path /Users/sam/Desktop/vue-test
- 帮助文档:
- global help
- Usage
- Options
- Commands
- global help
示例:vue 的帮助信息:
js
Usage: vue <command> [options]
Options:
-V, --version output the version number
-h, --help output usage information
Commands:
create [options] <app-name> create a new project powered by vue-cli-service
add [options] <plugin> [pluginOptions] install a plugin and invoke its generator in an already created project
invoke [options] <plugin> [pluginOptions] invoke the generator of a plugin in an already created project
inspect [options] [paths...] inspect the webpack config in a project with vue-cli-service
serve [options] [entry] serve a .js or .vue file in development
...
- command help
- Usage
- Options
vue create
的帮助信息:
js
Usage: create [options] <app-name>
create a new project powered by vue-cli-service
Options:
-p, --preset <presetName> Skip prompts and use saved or remote preset
-d, --default Skip prompts and use default preset
-i, --inlinePreset <json> Skip prompts and use inline JSON string as preset
-m, --packageManager <command> Use specified npm client when installing dependencies
-r, --registry <url> Use specified npm registry when installing
dependencies (only for npm)
-g, --git [message] Force git initialization with initial commit message
-n, --no-git Skip git initialization
-f, --force Overwrite target directory if it exists
