SpringBoot 「热补丁加载器」:线上紧急 bug 临时修复方案

每个程序员都有过这样的经历------凌晨三点被电话惊醒,生产环境出现紧急bug,而修复发布又需要漫长的流程。

今天我们来介绍如何用SpringBoot 打造一个热补丁加载器,让你在紧急时刻也能从容应对。

背景:为什么需要热补丁?

想象一下这个场景:周五晚上8点,你刚准备下班,突然收到监控报警------生产环境某个关键接口出现空指针异常,影响了大量用户。这时候你面临几个选择:

传统发布流程:修改代码 → 测试 → 打包 → 发布,至少需要1-2小时

回滚到上个版本:可能会丢失其他新功能

热补丁修复:几分钟内修复问题,不影响服务运行

显然,第三种方案可以解燃眉之急。

设计思路

我们的热补丁加载器基于以下几个核心思想:

动态类加载:利用Java的ClassLoader机制动态加载补丁类

多层次替换:支持Spring Bean、普通Java类、静态方法等多种替换方式

字节码增强:通过Java Agent和Instrumentation API实现任意类的运行时替换

版本管理:每个补丁都有版本号,支持回滚

安全可控:只允许特定路径的补丁文件,防止安全风险

核心实现

1. 项目结构

首先,我们来看看完整的项目结构:

bash 复制代码
springboot-hot-patch/
├── src/main/java/com/example/hotpatch/
│   ├── agent/              # Java Agent相关
│   │   └── HotPatchAgent.java
│   ├── annotation/         # 注解定义
│   │   ├── HotPatch.java
│   │   └── PatchType.java
│   ├── config/            # 配置类
│   │   ├── HotPatchConfig.java
│   │   └── HotPatchProperties.java
│   ├── controller/        # 控制器
│   │   ├── HotPatchController.java
│   │   └── TestController.java
│   ├── core/             # 核心热补丁加载器
│   │   └── HotPatchLoader.java
│   ├── example/          # 示例代码
│   │   ├── UserService.java
│   │   ├── StringUtils.java
│   │   └── MathHelper.java
│   ├── instrumentation/  # 字节码操作
│   │   └── InstrumentationHolder.java
│   ├── model/            # 数据模型
│   │   ├── PatchInfo.java
│   │   └── PatchResult.java
│   └── patches/          # 补丁示例
│       ├── UserServicePatch.java
│       ├── StringUtilsPatch.java
│       └── MathHelperDividePatch.java
├── src/main/resources/
│   ├── static/        # Web模板
│   │   ├── index.html
│   └── application.properties
├── patches/             # 补丁文件目录
└── pom.xml

2. Maven配置

xml 复制代码
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>springboot-hot-patch</artifactId>
    <version>1.0.0</version>
    <packaging>jar</packaging>
    <name>Spring Boot Hot Patch Loader</name>
    <description>A Spring Boot 3 based hot patch loader for runtime class replacement</description>
    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring-boot.version>3.2.0</spring-boot.version>
        <asm.version>9.5</asm.version>
        <micrometer.version>1.12.0</micrometer.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!-- Spring Boot Starters -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- ASM for bytecode manipulation -->
        <dependency>
            <groupId>org.ow2.asm</groupId>
            <artifactId>asm</artifactId>
            <version>${asm.version}</version>
        </dependency>

        <dependency>
            <groupId>org.ow2.asm</groupId>
            <artifactId>asm-commons</artifactId>
            <version>${asm.version}</version>
        </dependency>

        <dependency>
            <groupId>org.ow2.asm</groupId>
            <artifactId>asm-util</artifactId>
            <version>${asm.version}</version>
        </dependency>
        <!-- Lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>
</project>

3. 注解和枚举定义

scss 复制代码
/**
 * 补丁类型枚举
 */
public enum PatchType {
    /**
     * Spring Bean 替换
     */
    SPRING_BEAN,

    /**
     * 普通Java类替换(整个类)
     */
    JAVA_CLASS,

    /**
     * 静态方法替换
     */
    STATIC_METHOD,

    /**
     * 实例方法替换
     */
    INSTANCE_METHOD
}

/**
 * 增强的热补丁注解
 */
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface HotPatch {
    /**
     * 补丁类型
     */
    PatchType type() default PatchType.SPRING_BEAN;

    /**
     * 原始Bean名称(当type=SPRING_BEAN时使用)
     */
    String originalBean() default "";

    /**
     * 原始类的全限定名(当type=JAVA_CLASS或STATIC_METHOD时使用)
     */
    String originalClass() default "";

    /**
     * 要替换的方法名(当type=STATIC_METHOD或INSTANCE_METHOD时使用)
     */
    String methodName() default "";

    /**
     * 方法签名(用于方法重载区分)
     */
    String methodSignature() default "";

    /**
     * 补丁版本
     */
    String version() default "1.0";

    /**
     * 补丁描述
     */
    String description() default "";

    /**
     * 是否启用安全验证
     */
    boolean securityCheck() default true;
}

4. Java Agent支持

typescript 复制代码
/**
 * Instrumentation持有器 - 用于获取JVM的Instrumentation实例
 */
public class InstrumentationHolder {
    private static volatile Instrumentation instrumentation;

    public static void setInstrumentation(Instrumentation inst) {
        instrumentation = inst;
    }

    public static Instrumentation getInstrumentation() {
        return instrumentation;
    }

    public static boolean isAvailable() {
        return instrumentation != null;
    }
}

/**
 * Java Agent入口类
 */
public class HotPatchAgent {

    public static void premain(String agentArgs, Instrumentation inst) {
        System.out.println("HotPatch Agent 启动成功");
        InstrumentationHolder.setInstrumentation(inst);
    }

    public static void agentmain(String agentArgs, Instrumentation inst) {
        System.out.println("HotPatch Agent 动态加载成功");
        InstrumentationHolder.setInstrumentation(inst);
    }
}

5. 配置属性类

less 复制代码
/**
 * 热补丁配置属性
 */
@ConfigurationProperties(prefix = "hotpatch")
@Component
@Data
public class HotPatchProperties {
    /**
     * 是否启用热补丁功能
     */
    private boolean enabled = false;

    /**
     * 补丁文件存放路径
     */
    private String path = "./patches";

    /**
     * 允许的补丁文件最大大小(字节)
     */
    private long maxFileSize = 10 * 1024 * 1024;

    /**
     * 是否启用补丁签名验证
     */
    private boolean signatureVerification = false;

    /**
     * 允许执行热补丁操作的角色列表
     */
    private List<String> allowedRoles = List.of("ADMIN", "DEVELOPER");
}

6. 数据模型

typescript 复制代码
/**
 * 补丁信息类
 */
@Data
@AllArgsConstructor
public class PatchInfo {
    private String name;
    private String version;
    private Class<?> patchClass;
    private PatchType patchType;
    private long loadTime;
    private String originalTarget; // 原始目标(Bean名称或类名)

    public PatchInfo(String name, String version, Class<?> patchClass,
                    PatchType patchType, long loadTime) {
        this.name = name;
        this.version = version;
        this.patchClass = patchClass;
        this.patchType = patchType;
        this.loadTime = loadTime;
        this.originalTarget = extractOriginalTarget(patchClass);
    }

    private String extractOriginalTarget(Class<?> patchClass) {
        HotPatch annotation = patchClass.getAnnotation(HotPatch.class);
        if (annotation != null) {
            switch (annotation.type()) {
                case SPRING_BEAN:
                    return annotation.originalBean();
                case JAVA_CLASS:
                    return annotation.originalClass();
                case STATIC_METHOD:
                case INSTANCE_METHOD:
                    return annotation.originalClass() + "." + annotation.methodName();
                default:
                    return "Unknown";
            }
        }
        return "Unknown";
    }
}

/**
 * 补丁操作结果类
 */
@Data
@AllArgsConstructor
public class PatchResult {
    private boolean success;
    private String message;
    private Object data;

    public static PatchResult success(String message) {
        return new PatchResult(true, message, null);
    }

    public static PatchResult success(String message, Object data) {
        return new PatchResult(true, message, data);
    }

    public static PatchResult failed(String message) {
        return new PatchResult(false, message, null);
    }
}

7. 核心热补丁加载器

考虑篇幅,以下为部分关键代码

java 复制代码
/**
 * 增强版补丁加载器核心类
 */
@Component
@Slf4j
public class HotPatchLoader {

    private final ConfigurableApplicationContext applicationContext;
    private final HotPatchProperties properties;
    private final Map<String, PatchInfo> loadedPatches = new ConcurrentHashMap<>();
    private final Instrumentation instrumentation;

    public HotPatchLoader(ConfigurableApplicationContext applicationContext,
                         HotPatchProperties properties) {
        this.applicationContext = applicationContext;
        this.properties = properties;
        // 获取 Instrumentation 实例
        this.instrumentation = InstrumentationHolder.getInstrumentation();
    }

    /**
     * 加载热补丁 - 支持任意类替换
     * @param patchName 补丁名称
     * @param version 版本号
     */
    public PatchResult loadPatch(String patchName, String version) {
        if (!properties.isEnabled()) {
            return PatchResult.failed("热补丁功能未启用");
        }

        try {
            // 1. 验证补丁文件
            File patchFile = validatePatchFile(patchName, version);

            // 2. 创建专用的类加载器
            URLClassLoader patchClassLoader = createPatchClassLoader(patchFile);

            // 3. 加载补丁类
            Class<?> patchClass = loadPatchClass(patchClassLoader, patchName);

            // 4. 获取补丁注解信息
            HotPatch patchAnnotation = patchClass.getAnnotation(HotPatch.class);
            if (patchAnnotation == null) {
                return PatchResult.failed("补丁类缺少 @HotPatch 注解");
            }

            // 5. 根据补丁类型选择替换策略
            PatchType patchType = patchAnnotation.type();
            switch (patchType) {
                case SPRING_BEAN:
                    replaceSpringBean(patchClass, patchAnnotation);
                    break;
                case JAVA_CLASS:
                    replaceJavaClass(patchClass, patchAnnotation);
                    break;
                case STATIC_METHOD:
                    replaceStaticMethod(patchClass, patchAnnotation);
                    break;
                case INSTANCE_METHOD:
                    return PatchResult.failed("实例方法替换暂未实现,请使用动态代理方式");
                default:
                    return PatchResult.failed("不支持的补丁类型: " + patchType);
            }

            // 6. 记录补丁信息
            PatchInfo patchInfo = new PatchInfo(patchName, version,
                patchClass, patchType, System.currentTimeMillis());
            loadedPatches.put(patchName, patchInfo);

            log.info("热补丁 {}:{} ({}) 加载成功", patchName, version, patchType);
            return PatchResult.success("补丁加载成功");

        } catch (Exception e) {
            log.error("热补丁加载失败: {}", e.getMessage(), e);
            return PatchResult.failed("补丁加载失败: " + e.getMessage());
        }
    }
}

8. REST API控制器

less 复制代码
/**
 * 热补丁管理控制器
 */
@RestController
@RequestMapping("/api/hotpatch")
@Slf4j
public class HotPatchController {

    private final HotPatchLoader patchLoader;

    public HotPatchController(HotPatchLoader patchLoader) {
        this.patchLoader = patchLoader;
    }

    @PostMapping("/load")
    public ResponseEntity<PatchResult> loadPatch(
            @RequestParam String patchName,
            @RequestParam String version) {

        log.info("请求加载热补丁: {}:{}", patchName, version);
        PatchResult result = patchLoader.loadPatch(patchName, version);

        return ResponseEntity.ok(result);
    }

    @GetMapping("/list")
    public ResponseEntity<List<PatchInfo>> listPatches() {
        List<PatchInfo> patches = patchLoader.getLoadedPatches();
        return ResponseEntity.ok(patches);
    }

    @PostMapping("/rollback")
    public ResponseEntity<PatchResult> rollbackPatch(
            @RequestParam String patchName) {

        log.info("请求回滚补丁: {}", patchName);
        PatchResult result = patchLoader.rollbackPatch(patchName);
        return ResponseEntity.ok(result);
    }

    @GetMapping("/status")
    public ResponseEntity<String> getStatus() {
        return ResponseEntity.ok("Hot Patch Loader is running");
    }
}

9. Web管理界面

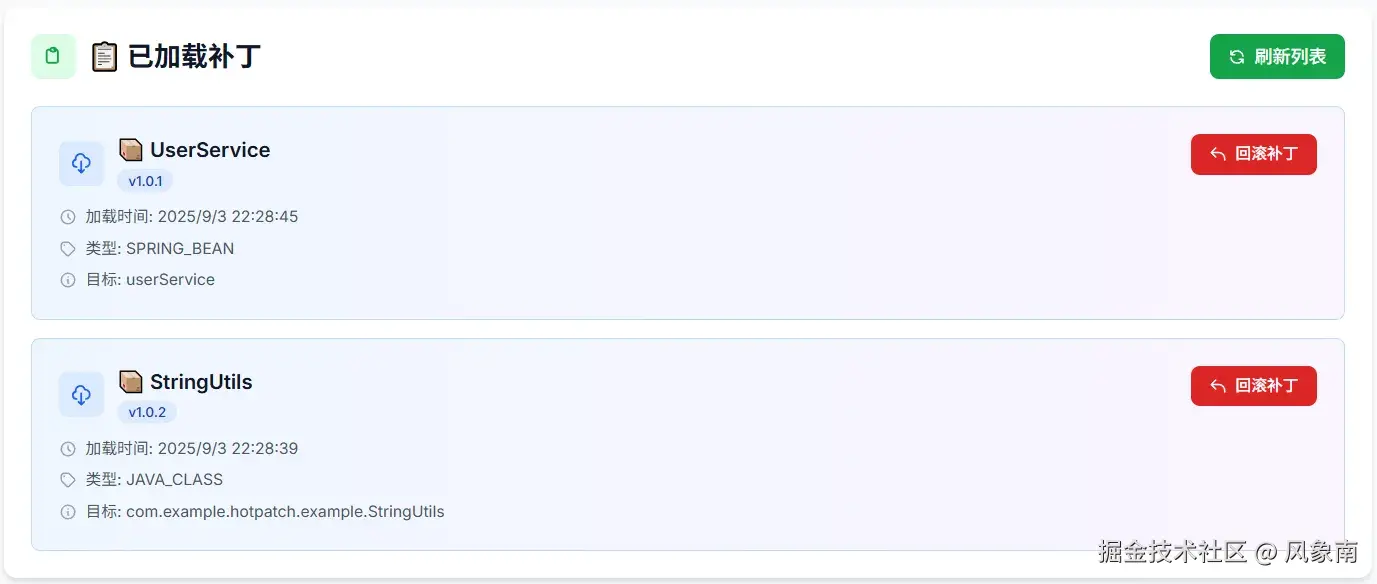

我们提供了一个美观实用的Web管理界面:

xml 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>热补丁管理器</title>
    <script src="https://cdn.tailwindcss.com"></script>
    <style>
        @import url('https://fonts.googleapis.com/css2?family=Inter:wght@300;400;500;600;700&display=swap');
        body { font-family: 'Inter', sans-serif; }
        .gradient-bg { background: linear-gradient(135deg, #667eea 0%, #764ba2 100%); }
        .card-shadow { box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1), 0 2px 4px -1px rgba(0, 0, 0, 0.06); }
        .hover-lift { transition: all 0.3s ease; }
        .hover-lift:hover { transform: translateY(-2px); box-shadow: 0 8px 25px -8px rgba(0, 0, 0, 0.2); }
    </style>
</head>
<body class="bg-gray-50 min-h-screen">
    <!-- Header -->
    <header class="gradient-bg text-white">
        <div class="max-w-7xl mx-auto px-4 sm:px-6 lg:px-8 py-8">
            <div class="text-center">
                <h1 class="text-4xl font-bold mb-2">🔥 热补丁管理器</h1>
                <p class="text-xl opacity-90">Spring Boot 线上紧急修复控制台</p>
            </div>
        </div>
    </header>

    <main class="max-w-7xl mx-auto px-4 sm:px-6 lg:px-8 py-8">
        <!-- 统计卡片 -->
        <div class="grid grid-cols-1 md:grid-cols-3 gap-6 mb-8">
            <div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
                <div class="inline-flex items-center justify-center w-12 h-12 bg-blue-100 rounded-lg mb-4">
                    <svg class="w-6 h-6 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M19 11H5m14-7l-3 3m0-3L13 7"/>
                    </svg>
                </div>
                <div class="text-3xl font-bold text-gray-900" id="totalPatches">0</div>
                <div class="text-sm text-gray-500 mt-1">已加载补丁</div>
            </div>

            <div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
                <div class="inline-flex items-center justify-center w-12 h-12 bg-green-100 rounded-lg mb-4">
                    <svg class="w-6 h-6 text-green-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 12l2 2 4-4m6 2a9 9 0 11-18 0 9 9 0 0118 0z"/>
                    </svg>
                </div>
                <div class="text-3xl font-bold text-gray-900" id="successCount">0</div>
                <div class="text-sm text-gray-500 mt-1">成功次数</div>
            </div>

            <div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
                <div class="inline-flex items-center justify-center w-12 h-12 bg-purple-100 rounded-lg mb-4">
                    <svg class="w-6 h-6 text-purple-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 8v4l3 3m6-3a9 9 0 11-18 0 9 9 0 0118 0z"/>
                    </svg>
                </div>
                <div class="text-xl font-bold text-gray-900" id="lastLoadTime">--</div>
                <div class="text-sm text-gray-500 mt-1">最后加载</div>
            </div>
        </div>

        <!-- 消息显示区域 -->
        <div id="message" class="mb-6"></div>

        <!-- 加载补丁区域 -->
        <div class="bg-white rounded-xl card-shadow p-6 mb-8">
            <div class="flex items-center mb-6">
                <div class="inline-flex items-center justify-center w-10 h-10 bg-blue-100 rounded-lg mr-3">
                    <svg class="w-5 h-5 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 16a4 4 0 01-.88-7.903A5 5 0 1115.9 6L16 6a5 5 0 011 9.9M9 19l3 3m0 0l3-3m-3 3V10"/>
                    </svg>
                </div>
                <h2 class="text-2xl font-bold text-gray-900">📦 加载补丁</h2>
            </div>

            <div class="space-y-4">
                <!-- 补丁选择下拉框 -->
                <div>
                    <label for="patchSelector" class="block text-sm font-medium text-gray-700 mb-2">选择补丁</label>
                    <div class="relative">
                        <select id="patchSelector" class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200 bg-white">
                            <option value="">正在扫描补丁目录...</option>
                        </select>
                        <div class="absolute inset-y-0 right-0 flex items-center pr-2 pointer-events-none">
                            <svg class="w-5 h-5 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M19 9l-7 7-7-7"/>
                            </svg>
                        </div>
                    </div>
                </div>

                <!-- 或者手动输入 -->
                <div class="border-t pt-4">
                    <p class="text-sm text-gray-600 mb-3">或者手动输入补丁信息:</p>
                    <div class="grid grid-cols-1 md:grid-cols-2 gap-4">
                        <div>
                            <label for="patchName" class="block text-sm font-medium text-gray-700 mb-2">补丁名称</label>
                            <input type="text" id="patchName" placeholder="如: UserService"
                                class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200">
                        </div>
                        <div>
                            <label for="patchVersion" class="block text-sm font-medium text-gray-700 mb-2">版本号</label>
                            <input type="text" id="patchVersion" placeholder="如: 1.0.1"
                                class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200">
                        </div>
                    </div>
                </div>

                <!-- 加载按钮 -->
                <div class="flex justify-end pt-4">
                    <button id="loadBtn" onclick="loadPatch()"
                        class="inline-flex items-center px-6 py-3 bg-blue-600 hover:bg-blue-700 text-white font-medium rounded-lg transition-colors duration-200">
                        <svg class="w-5 h-5 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                            <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 10V3L4 14h7v7l9-11h-7z"/>
                        </svg>
                        加载补丁
                    </button>
                </div>
            </div>
        </div>

        <!-- 补丁列表区域 -->
        <div class="bg-white rounded-xl card-shadow p-6">
            <div class="flex items-center justify-between mb-6">
                <div class="flex items-center">
                    <div class="inline-flex items-center justify-center w-10 h-10 bg-green-100 rounded-lg mr-3">
                        <svg class="w-5 h-5 text-green-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                            <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 5H7a2 2 0 00-2 2v10a2 2 0 002 2h8a2 2 0 002-2V7a2 2 0 00-2-2h-2M9 5a2 2 0 002 2h2a2 2 0 002-2M9 5a2 2 0 012-2h2a2 2 0 012 2"/>
                        </svg>
                    </div>
                    <h2 class="text-2xl font-bold text-gray-900">📋 已加载补丁</h2>
                </div>
                <button onclick="refreshPatches()"
                    class="inline-flex items-center px-4 py-2 bg-green-600 hover:bg-green-700 text-white font-medium rounded-lg transition-colors duration-200">
                    <svg class="w-4 h-4 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M4 4v5h.582m15.356 2A8.001 8.001 0 004.582 9m0 0H9m11 11v-5h-.581m0 0a8.003 8.003 0 01-15.357-2m15.357 2H15"/>
                    </svg>
                    刷新列表
                </button>
            </div>

            <!-- 加载状态 -->
            <div id="loading" class="hidden text-center py-12">
                <div class="inline-flex items-center">
                    <svg class="animate-spin -ml-1 mr-3 h-8 w-8 text-blue-600" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24">
                        <circle class="opacity-25" cx="12" cy="12" r="10" stroke="currentColor" stroke-width="4"></circle>
                        <path class="opacity-75" fill="currentColor" d="M4 12a8 8 0 018-8V0C5.373 0 0 5.373 0 12h4zm2 5.291A7.962 7.962 0 014 12H0c0 3.042 1.135 5.824 3 7.938l3-2.647z"></path>
                    </svg>
                    <span class="text-lg text-gray-600">正在加载补丁列表...</span>
                </div>
            </div>

            <!-- 补丁列表 -->
            <div id="patchList" class="space-y-4">
                <!-- 补丁项目将在这里显示 -->
            </div>
        </div>
    </main>

    <script>
        // API 基础路径
        const API_BASE = '/api/hotpatch';

        // 统计数据
        let stats = {
            total: 0,
            success: 0,
            lastLoad: null
        };

        // 页面加载完成后初始化
        document.addEventListener('DOMContentLoaded', function() {
            scanPatchesDirectory();
            refreshPatches();
            updateStats();
        });

        // 扫描补丁目录
        async function scanPatchesDirectory() {
            const selector = document.getElementById('patchSelector');

            try {
                // 这里模拟扫描补丁目录的API调用
                // 实际应该调用后端API来获取patches目录下的所有jar文件
                const response = await fetch(`${API_BASE}/scan-patches`);

                if (response.ok) {
                    const patches = await response.json();

                    selector.innerHTML = '<option value="">请选择一个补丁</option>';
                    patches.forEach(patch => {
                        const option = document.createElement('option');
                        option.value = JSON.stringify({name: patch.name, version: patch.version});
                        option.textContent = `${patch.name} (${patch.version})`;
                        selector.appendChild(option);
                    });
                } else {
                    // 如果API不存在,使用模拟数据
                    selector.innerHTML = `
                        <option value="">请选择一个补丁</option>
                        <option value='{"name":"StringUtils","version":"1.0.2"}'>StringUtils (1.0.2)</option>
                        <option value='{"name":"UserService","version":"1.0.1"}'>UserService (1.0.1)</option>
                    `;
                }
            } catch (error) {
                // 使用模拟数据
                selector.innerHTML = `
                    <option value="">请选择一个补丁</option>
                    <option value='{"name":"StringUtils","version":"1.0.2"}'>StringUtils (1.0.2)</option>
                    <option value='{"name":"UserService","version":"1.0.1"}'>UserService (1.0.1)</option>
                `;
            }
        }

        // 下拉框选择事件
        document.getElementById('patchSelector').addEventListener('change', function() {
            const selectedValue = this.value;
            if (selectedValue) {
                const patch = JSON.parse(selectedValue);
                document.getElementById('patchName').value = patch.name;
                document.getElementById('patchVersion').value = patch.version;
            } else {
                document.getElementById('patchName').value = '';
                document.getElementById('patchVersion').value = '';
            }
        });

        // 显示消息
        function showMessage(text, type = 'success') {
            const messageDiv = document.getElementById('message');
            let bgColor = type === 'success' ? 'bg-green-50 border-green-200 text-green-800' : 'bg-red-50 border-red-200 text-red-800';
            let icon = type === 'success' ?
                '<svg class="w-5 h-5 text-green-400" fill="none" stroke="currentColor" viewBox="0 0 24 24"><path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 12l2 2 4-4m6 2a9 9 0 11-18 0 9 9 0 0118 0z"/></svg>' :
                '<svg class="w-5 h-5 text-red-400" fill="none" stroke="currentColor" viewBox="0 0 24 24"><path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M10 14l2-2m0 0l2-2m-2 2l-2-2m2 2l2 2m7-2a9 9 0 11-18 0 9 9 0 0118 0z"/></svg>';

            messageDiv.innerHTML = `
                <div class="border rounded-lg p-4 ${bgColor} mb-4">
                    <div class="flex">
                        <div class="flex-shrink-0">
                            ${icon}
                        </div>
                        <div class="ml-3">
                            <p class="text-sm font-medium">${text}</p>
                        </div>
                    </div>
                </div>
            `;

            // 3秒后自动隐藏
            setTimeout(() => {
                messageDiv.innerHTML = '';
            }, 3000);
        }

        // 加载补丁
        async function loadPatch() {
            const patchName = document.getElementById('patchName').value.trim();
            const version = document.getElementById('patchVersion').value.trim();

            if (!patchName || !version) {
                showMessage('请选择补丁或手动输入补丁名称和版本号', 'error');
                return;
            }

            const loadBtn = document.getElementById('loadBtn');
            loadBtn.disabled = true;
            loadBtn.innerHTML = `
                <svg class="animate-spin -ml-1 mr-2 h-5 w-5" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24">
                    <circle class="opacity-25" cx="12" cy="12" r="10" stroke="currentColor" stroke-width="4"></circle>
                    <path class="opacity-75" fill="currentColor" d="M4 12a8 8 0 018-8V0C5.373 0 0 5.373 0 12h4zm2 5.291A7.962 7.962 0 014 12H0c0 3.042 1.135 5.824 3 7.938l3-2.647z"></path>
                </svg>
                加载中...
            `;

            try {
                const response = await fetch(`${API_BASE}/load`, {
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/x-www-form-urlencoded',
                    },
                    body: `patchName=${encodeURIComponent(patchName)}&version=${encodeURIComponent(version)}`
                });

                const result = await response.json();

                if (result.success) {
                    showMessage(`✅ ${result.message}`, 'success');
                    stats.success++;
                    stats.lastLoad = new Date().toLocaleTimeString();

                    // 清空输入框和选择器
                    document.getElementById('patchName').value = '';
                    document.getElementById('patchVersion').value = '';
                    document.getElementById('patchSelector').value = '';

                    // 刷新列表
                    refreshPatches();
                    updateStats();
                } else {
                    showMessage(`❌ ${result.message}`, 'error');
                }
            } catch (error) {
                showMessage(`网络错误: ${error.message}`, 'error');
            } finally {
                loadBtn.disabled = false;
                loadBtn.innerHTML = `
                    <svg class="w-5 h-5 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 10V3L4 14h7v7l9-11h-7z"/>
                    </svg>
                    加载补丁
                `;
            }
        }

        // 刷新补丁列表
        async function refreshPatches() {
            const loading = document.getElementById('loading');
            const patchList = document.getElementById('patchList');

            loading.classList.remove('hidden');

            try {
                const response = await fetch(`${API_BASE}/list`);
                const patches = await response.json();

                stats.total = patches.length;
                updateStats();

                if (patches.length === 0) {
                    patchList.innerHTML = `
                        <div class="text-center py-16">
                            <div class="inline-flex items-center justify-center w-16 h-16 bg-gray-100 rounded-full mb-4">
                                <svg class="w-8 h-8 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                    <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M20 13V6a2 2 0 00-2-2H6a2 2 0 00-2 2v7m16 0v5a2 2 0 01-2 2H6a2 2 0 01-2-2v-5m16 0h-2M4 13h2m13-8V4a2 2 0 00-2-2H9a2 2 0 00-2 2v1M8 7V4a2 2 0 012-2h4a2 2 0 012 2v3"/>
                                </svg>
                            </div>
                            <h3 class="text-lg font-medium text-gray-900 mb-2">暂无已加载的补丁</h3>
                            <p class="text-gray-500">在上方选择补丁并点击"加载补丁"开始使用</p>
                        </div>
                    `;
                } else {
                    patchList.innerHTML = patches.map(patch => `
                        <div class="bg-gradient-to-r from-blue-50 to-purple-50 border border-blue-200 rounded-lg p-6 hover-lift">
                            <div class="flex items-start justify-between">
                                <div class="flex-1">
                                    <div class="flex items-center mb-3">
                                        <div class="inline-flex items-center justify-center w-10 h-10 bg-blue-100 rounded-lg mr-3">
                                            <svg class="w-5 h-5 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 16a4 4 0 01-.88-7.903A5 5 0 1115.9 6L16 6a5 5 0 011 9.9M9 19l3 3m0 0l3-3m-3 3V10"/>
                                            </svg>
                                        </div>
                                        <div>
                                            <h3 class="text-lg font-semibold text-gray-900">📦 ${patch.name}</h3>
                                            <span class="inline-flex items-center px-2.5 py-0.5 rounded-full text-xs font-medium bg-blue-100 text-blue-800">
                                                v${patch.version}
                                            </span>
                                        </div>
                                    </div>

                                    <div class="space-y-2 text-sm text-gray-600">
                                        <div class="flex items-center">
                                            <svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 8v4l3 3m6-3a9 9 0 11-18 0 9 9 0 0118 0z"/>
                                            </svg>
                                            加载时间: ${new Date(patch.loadTime).toLocaleString()}
                                        </div>
                                        <div class="flex items-center">
                                            <svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 7h.01M7 3h5c.512 0 1.024.195 1.414.586l7 7a2 2 0 010 2.828l-7 7a2 2 0 01-2.828 0l-7-7A1.994 1.994 0 013 12V7a4 4 0 014-4z"/>
                                            </svg>
                                            类型: ${patch.patchType}
                                        </div>
                                        <div class="flex items-center">
                                            <svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 16h-1v-4h-1m1-4h.01M21 12a9 9 0 11-18 0 9 9 0 0118 0z"/>
                                            </svg>
                                            目标: ${patch.originalTarget}
                                        </div>
                                    </div>
                                </div>

                                <button onclick="rollbackPatch('${patch.name}')"
                                    class="inline-flex items-center px-4 py-2 bg-red-600 hover:bg-red-700 text-white text-sm font-medium rounded-lg transition-colors duration-200">
                                    <svg class="w-4 h-4 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                        <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 10h10a8 8 0 018 8v2M3 10l6 6m-6-6l6-6"/>
                                    </svg>
                                    回滚补丁
                                </button>
                            </div>
                        </div>
                    `).join('');
                }
            } catch (error) {
                patchList.innerHTML = `
                    <div class="text-center py-16">
                        <div class="inline-flex items-center justify-center w-16 h-16 bg-red-100 rounded-full mb-4">
                            <svg class="w-8 h-8 text-red-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
                                <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 9v2m0 4h.01m-6.938 4h13.856c1.54 0 2.502-1.667 1.732-3L13.732 4c-.77-1.333-2.694-1.333-3.464 0L3.34 16c-.77 1.333.192 3 1.732 3z"/>
                            </svg>
                        </div>
                        <h3 class="text-lg font-medium text-red-900 mb-2">加载失败</h3>
                        <p class="text-red-600">❌ 加载补丁列表失败: ${error.message}</p>
                    </div>
                `;
            } finally {
                loading.classList.add('hidden');
            }
        }

        // 回滚补丁
        async function rollbackPatch(patchName) {
            if (!confirm(`确定要回滚补丁 "${patchName}" 吗?`)) {
                return;
            }

            try {
                const response = await fetch(`${API_BASE}/rollback`, {
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/x-www-form-urlencoded',
                    },
                    body: `patchName=${encodeURIComponent(patchName)}`
                });

                const result = await response.json();

                if (result.success) {
                    showMessage(`✅ ${result.message}`, 'success');
                    refreshPatches();
                } else {
                    showMessage(`❌ ${result.message}`, 'error');
                }
            } catch (error) {
                showMessage(`网络错误: ${error.message}`, 'error');
            }
        }

        // 更新统计信息
        function updateStats() {
            document.getElementById('totalPatches').textContent = stats.total;
            document.getElementById('successCount').textContent = stats.success;
            document.getElementById('lastLoadTime').textContent = stats.lastLoad || '--';
        }

        // 键盘事件:回车加载补丁
        document.addEventListener('keypress', function(e) {
            if (e.key === 'Enter') {
                const target = e.target;
                if (target.id === 'patchName' || target.id === 'patchVersion') {
                    loadPatch();
                }
            }
        });
    </script>
</body>
</html>

实际使用示例

1. Spring Bean替换示例

假设我们的原始服务类有bug:

kotlin 复制代码
@Service
public class UserService {

    public String getUserInfo(Long userId) {
        // 这里有空指针异常的bug
        if (userId == null) {
            return null; // 这里会导致后续调用出现问题
        }

        if (userId == 1L) {
            return "Alice";
        } else if (userId == 2L) {
            return "Bob";
        } else {
            return null; // 这里会导致后续调用出现空指针异常
        }
    }

    public int getUserNameLength(Long userId) {
        String userName = getUserInfo(userId);
        return userName.length(); // 当userName为null时会抛出空指针异常
    }
}

创建Spring Bean补丁:

kotlin 复制代码
@HotPatch(
    type = PatchType.SPRING_BEAN,
    originalBean = "userService",
    version = "1.0.1",
    description = "修复getUserInfo空指针异常"
)
@Service
public class UserServicePatch {

    public String getUserInfo(Long userId) {
        // 修复空指针异常问题
        if (userId == null) {
            return "未知用户"; // 返回默认值而不是null
        }

        if (userId == 1L) {
            return "Alice";
        } else if (userId == 2L) {
            return "Bob";
        } else {
            return "未知用户"; // 返回默认值而不是null
        }
    }

    public int getUserNameLength(Long userId) {
        String userName = getUserInfo(userId);
        return userName != null ? userName.length() : 0; // 安全的长度计算
    }
}

2. 普通Java类替换示例

假设有一个工具类需要修复:

typescript 复制代码
// 原始类
public class StringUtils {
    public static boolean isEmpty(String str) {
        return str == null || str.length() == 0; // 忘记考虑空白字符
    }
}

创建类替换补丁:

typescript 复制代码
@HotPatch(
    type = PatchType.JAVA_CLASS,
    originalClass = "com.example.hotpatch.example.StringUtils",
    version = "1.0.2",
    description = "修复isEmpty方法逻辑,考虑空白字符"
)
public class StringUtilsPatch {

    public static boolean isEmpty(String str) {
        // 修复:考虑空白字符
        return str == null || str.trim().length() == 0;
    }

    public static String trim(String str) {
        return str == null ? null : str.trim();
    }
}

4. 打包和部署补丁

编译补丁
bash 复制代码
# 1. 编译补丁类(需要依赖原项目的classpath)
javac -cp "target/classes:target/lib/*" src/main/java/patches/UserServicePatch.java

# 2. 打包为jar(包含补丁注解信息)
jar cf UserService-1.0.1.jar -C target/classes patches/UserServicePatch.class

# 3. 将补丁放到指定目录
cp *.jar ./patches/
启动应用(带Agent支持)
ini 复制代码
# 启动Spring Boot应用,加载Java Agent
java -javaagent:target/springboot-hot-patch-1.0.0-agent.jar \
     -Dhotpatch.enabled=true \
     -Dhotpatch.path=./patches \
     -jar target/springboot-hot-patch-1.0.0.jar
动态加载补丁
bash 复制代码
# 通过API加载不同类型的补丁

# 1. 加载Spring Bean补丁
curl -X POST "http://localhost:8080/api/hotpatch/load" \
     -d "patchName=UserService&version=1.0.1"

# 2. 加载Java类补丁
curl -X POST "http://localhost:8080/api/hotpatch/load" \
     -d "patchName=StringUtils&version=1.0.2"

5. 应用配置

ini 复制代码
# application.properties
spring.application.name=springboot-hot-patch
server.port=8080

# Hot Patch Configuration
hotpatch.enabled=true
hotpatch.path=./patches

6. 测试验证

创建测试控制器验证补丁效果:

less 复制代码
/**
 * 测试控制器 - 用于测试热补丁功能
 */
@RestController
@RequestMapping("/api/test")
public class TestController {

    @Autowired
    private UserService userService;

    // 测试Spring Bean补丁
    @GetMapping("/user")
    public String testUser(@RequestParam(value = "id",required = false) Long id) {
        try {
            int userNameLength = userService.getUserNameLength(id);
            return "用户名长度: " + userNameLength;
        } catch (Exception e) {
            return "错误: " + e.getMessage();
        }
    }

    // 测试工具类补丁
    @GetMapping("/string-utils")
    public boolean testStringUtils(@RequestParam(defaultValue = "  ") String str) {
        return StringUtils.isEmpty(str);
    }

    // 测试静态方法补丁
    @GetMapping("/math/{a}/{b}")
    public String testMath(@PathVariable int a, @PathVariable int b) {
        try {
            int result = MathHelper.divide(a, b);
            return "计算结果: " + a + " / " + b + " = " + result;
        } catch (Exception e) {
            return "错误: " + e.getMessage();
        }
    }
}

测试步骤:

bash 复制代码
# 1. 测试原始版本(会出错)
curl "http://localhost:8080/api/test/user"    # 返回null或异常

# 2. 通过Web界面加载补丁
访问 http://localhost:8080/index.html 加载对应补丁

# 3. 再次测试(已修复)
curl "http://localhost:8080/api/test/user"    # 返回"用户名长度: 4"

最佳实践

1. 补丁开发规范

明确的命名约定:补丁类名 = 原类名 + Patch

版本管理:使用语义化版本号

充分测试:补丁代码必须经过严格测试

最小化改动:只修复必要的问题,避免引入新功能

2. 部署流程

1. 开发阶段:本地开发并测试补丁

2. 测试阶段:在测试环境验证补丁效果

3. 审核阶段:代码审核和安全检查

4. 部署阶段:生产环境热加载

5. 监控阶段:观察补丁效果和系统稳定性

3. 监控告警

less 复制代码
@EventListener
public void onPatchLoaded(PatchLoadedEvent event) {
    // 发送告警通知
    alertService.sendAlert(
        "热补丁加载通知",
        String.format("补丁 %s:%s 已成功加载",
            event.getPatchName(), event.getVersion())
    );

    // 记录审计日志
    auditService.log("PATCH_LOADED", event.getPatchName(),
        SecurityContextHolder.getContext().getAuthentication().getName());
}

适用场景

这个热补丁系统特别适合以下场景:

🎯 紧急Bug修复 :生产环境出现严重bug,需要快速修复

🎯 性能优化 :发现性能瓶颈,需要临时优化逻辑

🎯 功能开关 :需要临时快速开启/关闭某些功能特性

🎯 参数调优:需要临时调整算法参数或配置值

注意事项

⚠️ 谨慎使用:热补丁虽然强大,但应当作为应急手段,不能替代正常的发版流程

⚠️ 充分测试:每个补丁都必须经过严格测试,确保不会引入新问题

⚠️ 权限控制:建立严格的权限管理体系,防止误操作

写在最后

作为一名程序员,我们都经历过被生产bug"半夜惊醒"的痛苦。

传统的修复流程往往需要1-2小时,而用户可能在这期间流失,业务损失难以估量。

热补丁技术让我们能够在几分钟内修复问题,虽然不是银弹,但确实是应急工具箱中的一件利器。

当然,好的架构设计和充分的测试永远是避免生产问题的最佳实践。热补丁只是我们技术工具链中的一环,真正的稳定性还是要从设计、开发、测试、部署等各个环节来保障。

github.com/yuboon/java...

相关推荐
Victor3565 小时前
Redis(43)Redis哨兵(Sentinel)是什么?
后端
Victor3566 小时前
Redis(42)Redis集群如何处理键的迁移?
后端
程序员爱钓鱼8 小时前
Go语言实战案例- Redis实现简单排行榜
后端·google·go
angushine8 小时前
Spring Boot 工程启动时自动执行任务方法
java·spring boot·后端
野犬寒鸦10 小时前
力扣hot100:缺失的第一个正数(哈希思想)(41)
java·数据结构·后端·算法·leetcode·哈希算法
重生成为编程大王11 小时前
Java中使用JSONUtil处理JSON数据:从前端到后端的完美转换
java·后端·json
天若有情67312 小时前
《JAVA EE企业级应用开发》第一课笔记
java·笔记·后端·java-ee·javaee
技术小泽13 小时前
Redis-底层数据结构篇
数据结构·数据库·redis·后端·性能优化
