二、WPF——Style样式玩法(通过资源字典将Style独立,全局调用)

该博文参考B站博主丑萌气质狗 视频学习小笔记,如有侵权联系立删

视频链接:WPF入门

第一篇博文链接:一、WPF入门介绍+Grid和StackPanel布局介绍+实战模拟Notepad++页面布局

接着第一篇博文继续哈,添加一个窗口

App.xaml中修改启动页面为StartupUri="Btn_Style.xaml"

一、给Button更换风格

首先我们使用了一个StackPanel布局,默认是水平布局(Orientation="Vertical"),每个button都可以设置很多属性,比如宽高、字体大小、背景颜色等

xml 复制代码
<Window x:Class="WpfApp1.Btn_Style"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="Btn_Style" Height="450" Width="800">
    <StackPanel>
        <Button Content="登录" Height="50" Width="100" FontSize="20" Background="Green"/>
        <Button Content="退出" Height="50" Width="100" FontSize="20" Background="Green"/>
    </StackPanel>
</Window>

二、提取Button共有Style,其他Button直接延用

上面案例我们可以看到,两个button其实是一样的,那我们就没必要去重复代码了

我们可以通过Window.Resources里面的Style TargetType="Button"来绑定Button控件

通过<Setter Property="Height" Value="50"/>开抽离公共属性,后续所有的Button 控件都可以使用

xml 复制代码
<Window x:Class="WpfApp1.Btn_Style"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="Btn_Style" Height="450" Width="800">
    <Window.Resources>
        <Style TargetType="Button">
            <Setter Property="Height" Value="50"/>
            <Setter Property="Width" Value="100"/>
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Background" Value="Green"/>
        </Style>
    </Window.Resources>

    <StackPanel>
        <Button Content="登录"/>
        <Button Content="退出"/>
    </StackPanel>

</Window>

三、多个Style,指定哪个,应用哪个

我们可以看到,所有的Button都一样了,但是我们的现实需求是,需要用到的时候再用该style,不需要的时候保持默认样式

我们可以通过Style x:Key="Login" TargetType="Button"中的x:Key来指定关键字,例如是Login

后面的Button可以通过<Button Content="登录" Style="{StaticResource Login}"/>中的StaticResource Login进行调用即可

xml 复制代码
<Window x:Class="WpfApp1.Btn_Style"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="Btn_Style" Height="450" Width="800">
    <Window.Resources>
        <Style x:Key="Login" TargetType="Button">
            <Setter Property="Height" Value="70"/>
            <Setter Property="Width" Value="120"/>
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Background" Value="Green"/>
        </Style>

        <Style x:Key="Quit" TargetType="Button">
            <Setter Property="Height" Value="50"/>
            <Setter Property="Width" Value="100"/>
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Background" Value="Red"/>
        </Style>
    </Window.Resources>

    <StackPanel Orientation="Vertical">
        <Button Content="登录" Style="{StaticResource Login}"/>
        <Button Content="退出" Style="{StaticResource Quit}"/>
    </StackPanel>

</Window>

四、多个Style,指定哪个,应用哪个,若不指定则使用BaseStyle

我们需要将BaseStyle表示默认的Button风格,其他的Style可以继承此,方便后续进行操作,特例化
<Style TargetType="Button">定义一个应用于所有Button的风格

<Style x:Key="Login" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">表明该Style是基于x:Type Button的原先Button控件,后续的可以覆盖前面的

之前是白色的,后面的<Style x:Key="Login" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}"><Style x:Key="Quit" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">均继承了前面的风格,但若有重复的则会覆盖掉,这里以Background进行覆盖演示

xml 复制代码
<Window x:Class="WpfApp1.Btn_Style"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="Btn_Style" Height="450" Width="800">
    <Window.Resources>
        <Style TargetType="Button">
            <Setter Property="Height" Value="70"/>
            <Setter Property="Width" Value="120"/>
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Background" Value="White"/>
        </Style>

        <Style x:Key="Login" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
            <Setter Property="Background" Value="Green"/>
        </Style>

        <Style x:Key="Quit" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
            <Setter Property="Background" Value="Red"/>
        </Style>
    </Window.Resources>

    <StackPanel Orientation="Vertical">
        <Button Content="登录" Style="{StaticResource Login}"/>
        <Button Content="退出" Style="{StaticResource Quit}"/>
        <Button Content="test"/>
    </StackPanel>

</Window>

五、使用资源字典将所有的Style独立到其他XAML文件中,通过外部调用

1,新建资源字典,用于存放所有的Style格式


xml 复制代码
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <Style TargetType="Button">
        <Setter Property="Height" Value="70"/>
        <Setter Property="Width" Value="120"/>
        <Setter Property="FontSize" Value="20"/>
        <Setter Property="Background" Value="White"/>
    </Style>

    <Style x:Key="Login" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
        <Setter Property="Content" Value="Login"/>
        <Setter Property="Background" Value="Green"/>
    </Style>

    <Style x:Key="Quit" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
        <Setter Property="Content" Value="Quit"/>
        <Setter Property="Background" Value="Red"/>
    </Style>
</ResourceDictionary>

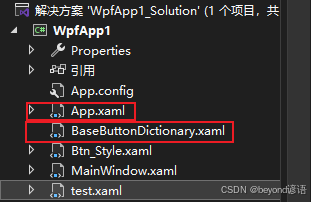

2,在App.xaml中引入该资源字典

把资源字典(BaseButtonDictionary.xaml)的相对路径填入即可

xml 复制代码
<Application x:Class="WpfApp1.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WpfApp1"
             StartupUri="Btn_Style.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="/BaseButtonDictionary.xaml"/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

3,在其他窗口中直接使用


使用一个2列的Grid表格布局,每一列都占1/2

每一列都放一个button,一个是Login 风格,一个是Quit风格

需要在App.xaml 中修改启动窗口StartupUri="test.xaml"

xml 复制代码
<Window x:Class="WpfApp1.test"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="test" Height="450" Width="800">
    <Grid Grid.Row="2">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="1*"/>
            <ColumnDefinition Width="1*"/>
        </Grid.ColumnDefinitions>
        <Button Style="{StaticResource Login}" Grid.Column="0"/>
        <Button Style="{StaticResource Quit}"  Grid.Column="1"/>
    </Grid>
</Window>

4,完整代码

①App.xaml

xml 复制代码
<Application x:Class="WpfApp1.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WpfApp1"
             StartupUri="test.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="/BaseButtonDictionary.xaml"/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

②BaseButtonDictionary.xaml

xml 复制代码
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <Style TargetType="Button">
        <Setter Property="Height" Value="70"/>
        <Setter Property="Width" Value="120"/>
        <Setter Property="FontSize" Value="20"/>
        <Setter Property="Background" Value="White"/>
    </Style>

    <Style x:Key="Login" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
        <Setter Property="Content" Value="Login"/>
        <Setter Property="Background" Value="Green"/>
    </Style>

    <Style x:Key="Quit" TargetType="Button" BasedOn="{StaticResource {x:Type Button}}">
        <Setter Property="Content" Value="Quit"/>
        <Setter Property="Background" Value="Red"/>
    </Style>
</ResourceDictionary>

③test.xaml

xml 复制代码
<Window x:Class="WpfApp1.test"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        Title="test" Height="450" Width="800">
    <Grid Grid.Row="2">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="1*"/>
            <ColumnDefinition Width="1*"/>
        </Grid.ColumnDefinitions>
        <Button Style="{StaticResource Login}" Grid.Column="0"/>
        <Button Style="{StaticResource Quit}"  Grid.Column="1"/>
    </Grid>
</Window>

效果展示:
