如何用 Vue3 打造高级音乐播放器？进度条+可视化效果，代码简洁可复用！

大家好，我是大华！ 这篇文章将分享一下如何使用Vue3打造一个优雅的音乐播放器。这个播放器拥有精美的视觉效果，包括旋转专辑封面、动态进度条和音频可视化效果。

效果预览

我们最终实现的音乐播放器将包含以下特性：

• 专辑封面旋转动画
• 歌曲信息展示
• 可交互的进度条
• 播放控制按钮
• 音频可视化效果

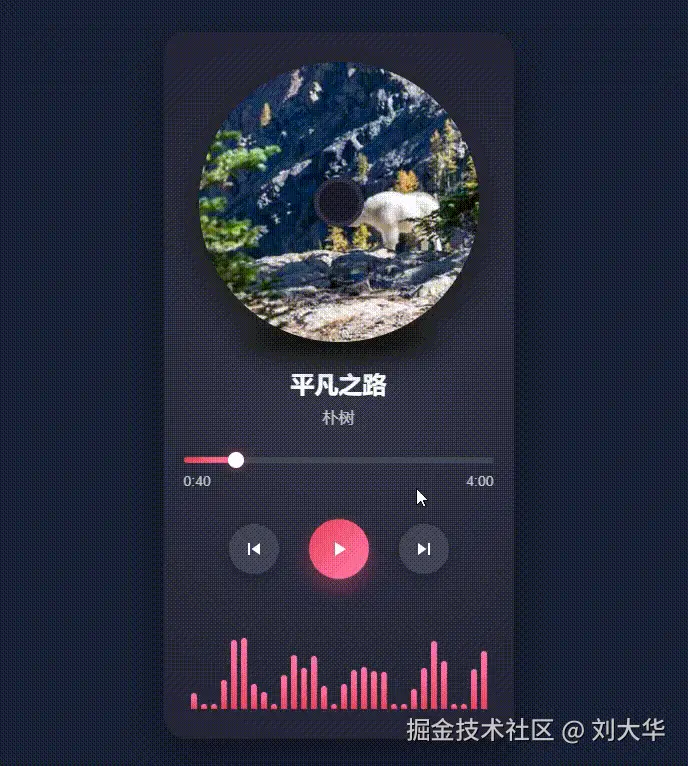

效果图：

实现步骤

1. 播放器布局设计

播放器主要分为以下几个区域：

<div class="music-player">
  <!-- 专辑区域 -->
  <div class="album-container">
    <!-- 专辑封面和底座 -->
  </div>

  <!-- 歌曲信息 -->
  <div class="song-info">
    <!-- 歌曲标题和艺术家 -->
  </div>

  <!-- 进度条 -->
  <div class="progress-container">
    <!-- 可交互进度条和时间显示 -->
  </div>

  <!-- 控制按钮 -->
  <div class="controls">
    <!-- 播放/暂停、上一曲、下一曲按钮 -->
  </div>

  <!-- 音频可视化 -->
  <div class="visualizer">
    <!-- 动态音频条 -->
  </div>
</div>

2. 响应式数据与计算属性

使用Vue 3的ref和computed来管理播放器状态：

import { ref, computed, onMounted } from 'vue';

// 响应式数据
const isPlaying = ref(false);
const currentTime = ref(0);
const duration = ref(240); // 4分钟
const currentSongIndex = ref(0);

// 歌曲列表
const songs = ref([
  {
    title: '夜空中最亮的星',
    artist: '逃跑计划',
    cover: 'https://picsum.photos/400/400?random=1',
  },
  // 更多歌曲...
]);

// 计算当前歌曲
const currentSong = computed(() => songs.value[currentSongIndex.value]);

// 计算进度百分比
const progressPercent = computed(() => {
  return (currentTime.value / duration.value) * 100 + '%';
});

3. 核心功能实现

播放控制

// 播放/暂停切换
const togglePlay = () => {
  isPlaying.value = !isPlaying.value;
};

// 上一曲
const prevSong = () => {
  currentSongIndex.value =
    currentSongIndex.value > 0 ? currentSongIndex.value - 1 : songs.value.length - 1;
  resetPlayback();
};

// 下一曲
const nextSong = () => {
  currentSongIndex.value =
    currentSongIndex.value < songs.value.length - 1 ? currentSongIndex.value + 1 : 0;
  resetPlayback();
};

// 重置播放状态
const resetPlayback = () => {
  currentTime.value = 0;
  if (!isPlaying.value) isPlaying.value = true;
};

进度条交互

// 设置播放进度
const setProgress = (e) => {
  const progressBar = e.currentTarget;
  const clickX = e.offsetX;
  const width = progressBar.offsetWidth;
  const percent = clickX / width;
  currentTime.value = percent * duration.value;
};

// 时间格式化
const formatTime = (seconds) => {
  const mins = Math.floor(seconds / 60);
  const secs = Math.floor(seconds % 60);
  return `${mins}:${secs < 10 ? '0' : ''}${secs}`;
};

4. 音频可视化效果

虽然我们无法直接获取音频数据，但可以模拟可视化效果：

// 可视化数据
const visualizerData = ref([]);

// 初始化可视化
const initVisualizer = () => {
  visualizerData.value = Array.from({ length: 30 }, () => Math.random() * 80 + 10);
};

// 更新可视化效果
const updateVisualizer = () => {
  if (!isPlaying.value) return;

  visualizerData.value = visualizerData.value.map((value, index) => {
    const intensity = Math.sin(Date.now() * 0.01 + index) * 30 + 30;
    const change = (Math.random() - 0.5) * 40;
    let newValue = intensity + change;
    return Math.max(5, Math.min(95, newValue));
  });
};

6. 播放模拟与可视化更新

在组件挂载后，设置定时器模拟播放进度和更新可视化：

onMounted(() => {
  initVisualizer();
  setInterval(() => {
    if (isPlaying.value) {
      if (currentTime.value < duration.value) {
        currentTime.value += 0.1;
      } else {
        nextSong();
      }
      updateVisualizer();
    }
  }, 100);
});

7. 样式设计要点

专辑封面旋转动画

.album-cover.playing {
  animation: rotate 20s linear infinite;
}

@keyframes rotate {
  from { transform: rotate(0deg); }
  to { transform: rotate(360deg); }
}

进度条样式

.progress {
  height: 100%;
  background: linear-gradient(90deg, #e94560, #ff7aa8);
  border-radius: 3px;
  position: relative;
  transition: width 0.1s linear;
}

控制按钮交互效果

.control-btn {
  transition: all 0.3s ease;
  box-shadow: 0 5px 15px rgba(0, 0, 0, 0.2);
}

.control-btn:active {
  transform: scale(0.95);
}

完整代码

<template>
  <div class="music-player">
    <!-- 专辑区域 -->
    <div class="album-container">
      <div class="album-cover" :class="{ playing: isPlaying }">
        <img :src="currentSong.cover" alt="专辑封面" />
        <div class="album-center"></div>
      </div>
      <div class="album-base"></div>
    </div>

    <!-- 歌曲信息 -->
    <div class="song-info">
      <h2 class="song-title">{{ currentSong.title }}</h2>
      <p class="song-artist">{{ currentSong.artist }}</p>
    </div>

    <!-- 进度条 -->
    <div class="progress-container">
      <div class="progress-bar" @click="setProgress">
        <div class="progress" :style="{ width: progressPercent }">
          <div class="progress-handle"></div>
        </div>
      </div>
      <div class="time-display">
        <span>{{ formatTime(currentTime) }}</span>
        <span>{{ formatTime(duration) }}</span>
      </div>
    </div>

    <!-- 控制按钮 -->
    <div class="controls">
      <button class="control-btn" @click="prevSong">
        <svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg">
          <path d="M6 6H8V18H6V6ZM9.5 12L18 18V6L9.5 12Z" fill="currentColor" />
        </svg>
      </button>
      <button class="control-btn play-btn" @click="togglePlay">
        <svg v-if="!isPlaying" width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg">
          <path d="M8 5V19L19 12L8 5Z" fill="currentColor" />
        </svg>
        <svg v-else width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg">
          <path d="M6 19H10V5H6V19ZM14 5V19H18V5H14Z" fill="currentColor" />
        </svg>
      </button>
      <button class="control-btn" @click="nextSong">
        <svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg">
          <path d="M6 18L14.5 12L6 6V18ZM16 6V18H18V6H16Z" fill="currentColor" />
        </svg>
      </button>
    </div>

    <!-- 音频可视化 -->
    <div class="visualizer">
      <div
        v-for="(height, index) in visualizerData"
        :key="index"
        class="bar"
        :style="{ height: height + '%' }"
      ></div>
    </div>
  </div>
</template>

<script setup>
import { ref, computed, onMounted } from 'vue';

// 响应式数据
const isPlaying = ref(false);
const currentTime = ref(0);
const duration = ref(240); // 4分钟（秒）
const currentSongIndex = ref(0);

// 歌曲列表
const songs = ref([
  {
    title: '夜空中最亮的星',
    artist: '逃跑计划',
    cover: 'https://picsum.photos/400/400?random=1',
  },
  {
    title: '平凡之路',
    artist: '朴树',
    cover: 'https://picsum.photos/400/400?random=2',
  },
  {
    title: '光年之外',
    artist: 'G.E.M.邓紫棋',
    cover: 'https://picsum.photos/400/400?random=3',
  },
]);

// 当前歌曲
const currentSong = computed(() => songs.value[currentSongIndex.value]);

// 进度条百分比
const progressPercent = computed(() => {
  return (currentTime.value / duration.value) * 100 + '%';
});

// 时间格式化
const formatTime = (seconds) => {
  const mins = Math.floor(seconds / 60);
  const secs = Math.floor(seconds % 60);
  return `${mins}:${secs < 10 ? '0' : ''}${secs}`;
};

// 播放/暂停
const togglePlay = () => {
  isPlaying.value = !isPlaying.value;
};

// 上一曲
const prevSong = () => {
  currentSongIndex.value =
    currentSongIndex.value > 0 ? currentSongIndex.value - 1 : songs.value.length - 1;
  currentTime.value = 0;
  if (!isPlaying.value) isPlaying.value = true;
};

// 下一曲
const nextSong = () => {
  currentSongIndex.value =
    currentSongIndex.value < songs.value.length - 1 ? currentSongIndex.value + 1 : 0;
  currentTime.value = 0;
  if (!isPlaying.value) isPlaying.value = true;
};

// 设置进度
const setProgress = (e) => {
  const progressBar = e.currentTarget;
  const clickX = e.offsetX;
  const width = progressBar.offsetWidth;
  const percent = clickX / width;
  currentTime.value = percent * duration.value;
};

// 可视化数据
const visualizerData = ref([]);

// 初始化可视化
const initVisualizer = () => {
  visualizerData.value = Array.from({ length: 30 }, () => Math.random() * 80 + 10);
};

// 更新可视化
const updateVisualizer = () => {
  if (!isPlaying.value) return;

  visualizerData.value = visualizerData.value.map((value, index) => {
    const intensity = Math.sin(Date.now() * 0.01 + index) * 30 + 30;
    const change = (Math.random() - 0.5) * 40;
    let newValue = intensity + change;
    return Math.max(5, Math.min(95, newValue));
  });
};

// 模拟播放进度和可视化更新
onMounted(() => {
  initVisualizer();
  setInterval(() => {
    if (isPlaying.value) {
      if (currentTime.value < duration.value) {
        currentTime.value += 0.1;
      } else {
        nextSong();
      }
      updateVisualizer();
    }
  }, 100);
});
</script>

<style scoped>
* {
  margin: 0;
  padding: 0;
  box-sizing: border-box;
  -webkit-tap-highlight-color: transparent;
}

.music-player {
  width: 100%;
  max-width: 350px;
  background: rgba(30, 30, 46, 0.8);
  border-radius: 24px;
  padding: 30px 20px;
  box-shadow: 0 20px 40px rgba(0, 0, 0, 0.3);
  backdrop-filter: blur(10px);
  position: relative;
  overflow: hidden;
  font-family: 'PingFang SC', 'Helvetica Neue', Arial, sans-serif;
  color: #fff;
  margin: 0 auto;
}

.music-player::before {
  content: '';
  position: absolute;
  top: -50%;
  left: -50%;
  width: 200%;
  height: 200%;
  background: radial-gradient(circle, rgba(255, 255, 255, 0.1) 0%, transparent 70%);
  z-index: -1;
}

.album-container {
  position: relative;
  width: 280px;
  height: 280px;
  margin: 0 auto 30px;
  perspective: 1000px;
}

.album-base {
  position: absolute;
  bottom: -15px;
  left: 50%;
  transform: translateX(-50%);
  width: 200px;
  height: 30px;
  background: rgba(0, 0, 0, 0.5);
  border-radius: 50%;
  filter: blur(10px);
  z-index: -1;
}

.album-cover {
  width: 100%;
  height: 100%;
  border-radius: 50%;
  overflow: hidden;
  box-shadow: 0 15px 35px rgba(0, 0, 0, 0.5);
  position: relative;
  transition: transform 0.3s ease;
}

.album-cover img {
  width: 100%;
  height: 100%;
  object-fit: cover;
}

.album-center {
  position: absolute;
  top: 50%;
  left: 50%;
  transform: translate(-50%, -50%);
  width: 50px;
  height: 50px;
  background: #1a1a2e;
  border-radius: 50%;
  border: 5px solid rgba(255, 255, 255, 0.1);
  box-shadow: 0 0 10px rgba(0, 0, 0, 0.5);
}

.album-cover.playing {
  animation: rotate 20s linear infinite;
}

@keyframes rotate {
  from { transform: rotate(0deg); }
  to { transform: rotate(360deg); }
}

.song-info {
  text-align: center;
  margin-bottom: 30px;
}

.song-title {
  font-size: 24px;
  font-weight: 600;
  margin-bottom: 8px;
  white-space: nowrap;
  overflow: hidden;
  text-overflow: ellipsis;
}

.song-artist {
  font-size: 16px;
  color: rgba(255, 255, 255, 0.7);
}

.progress-container {
  margin-bottom: 30px;
}

.progress-bar {
  width: 100%;
  height: 6px;
  background: rgba(255, 255, 255, 0.1);
  border-radius: 3px;
  position: relative;
  margin-bottom: 10px;
  cursor: pointer;
}

.progress {
  height: 100%;
  background: linear-gradient(90deg, #e94560, #ff7aa8);
  border-radius: 3px;
  width: 30%;
  position: relative;
  transition: width 0.1s linear;
}

.progress-handle {
  position: absolute;
  right: -8px;
  top: 50%;
  transform: translateY(-50%);
  width: 16px;
  height: 16px;
  background: #fff;
  border-radius: 50%;
  box-shadow: 0 0 10px rgba(233, 69, 96, 0.8);
}

.time-display {
  display: flex;
  justify-content: space-between;
  font-size: 14px;
  color: rgba(255, 255, 255, 0.7);
}

.controls {
  display: flex;
  justify-content: center;
  align-items: center;
  margin-bottom: 30px;
}

.control-btn {
  width: 50px;
  height: 50px;
  border-radius: 50%;
  display: flex;
  justify-content: center;
  align-items: center;
  background: rgba(255, 255, 255, 0.1);
  border: none;
  color: white;
  font-size: 20px;
  margin: 0 15px;
  cursor: pointer;
  transition: all 0.3s ease;
  box-shadow: 0 5px 15px rgba(0, 0, 0, 0.2);
}

.control-btn:active {
  transform: scale(0.95);
}

.play-btn {
  width: 60px;
  height: 60px;
  background: linear-gradient(135deg, #e94560, #ff7aa8);
  box-shadow: 0 10px 20px rgba(233, 69, 96, 0.4);
}

.visualizer {
  height: 100px;
  display: flex;
  align-items: flex-end;
  justify-content: center;
  gap: 4px;
  margin-top: 20px;
}

.bar {
  width: 6px;
  background: linear-gradient(to top, #e94560, #ff7aa8);
  border-radius: 3px 3px 0 0;
  transition: height 0.2s ease;
}
</style>

扩展思路

1.真实音频集成 ：使用Web Audio API替换模拟音频，实现真实的可视化效果 2.播放列表 ：添加播放列表功能，支持歌曲选择 3.主题切换 ：实现明暗主题切换功能 4.响应式优化 ：针对不同屏幕尺寸进行优化 5.离线功能：添加PWA支持，实现离线播放

你可以在此基础上继续扩展功能，打造属于自己的独特音乐播放体验。

本文首发于公众号：程序员刘大华，专注分享前后端开发的实战笔记。关注我，少走弯路，一起进步！

📌往期精彩

《SpringBoot 中的 7 种耗时统计方式，你用过几种？》

《Spring事件的3种高级玩法，90%的人根本不会用》

《Vue3 如何优雅地实现一个全局的 loading 组件》

《我用 Vue3 + Canvas 做了个超实用的水印工具，同事都在抢着用》
