toLua[六] Examples 05_LuaCoroutine分析

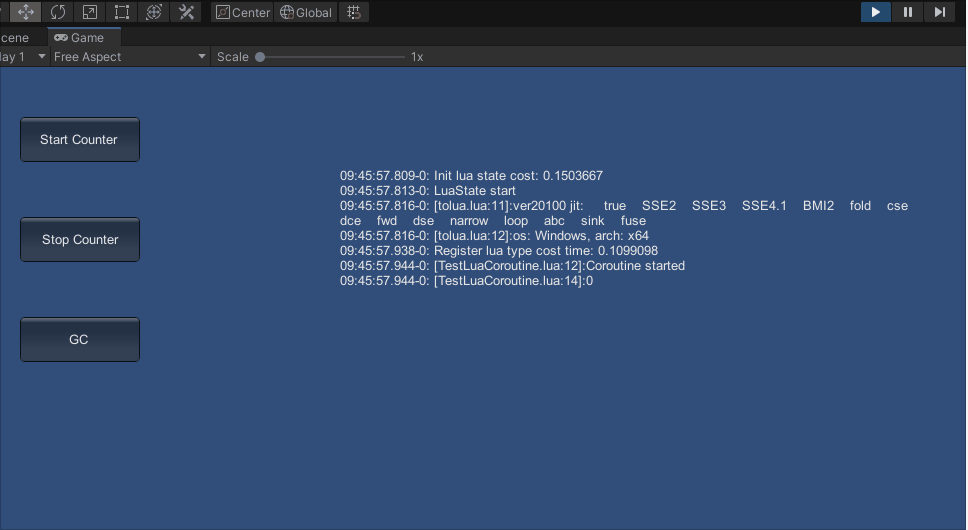

一.运行工程

本例展示Lua模拟Unity的Coroutine携程

二.C#代码分析

cs 复制代码

using UnityEngine;
using System;
using System.Collections;
using LuaInterface;

//例子5和6展示的两套协同系统勿交叉使用，此为推荐方案
public class TestCoroutine : MonoBehaviour
{
    public TextAsset luaFile = null;
    private LuaState lua = null;
    private LuaLooper looper = null;

	void Awake ()
    {
#if UNITY_5 || UNITY_2017 || UNITY_2018
        Application.logMessageReceived += ShowTips;
#else
        Application.RegisterLogCallback(ShowTips);
#endif
        new LuaResLoader();
        lua  = new LuaState();
        lua.Start();
        LuaBinder.Bind(lua);
        DelegateFactory.Init();
        looper = gameObject.AddComponent<LuaLooper>();
        looper.luaState = lua;

        lua.DoString(luaFile.text, "TestLuaCoroutine.lua");
        LuaFunction f = lua.GetFunction("TestCortinue");
        f.Call();
        f.Dispose();
        f = null;
    }

    void OnApplicationQuit()
    {
        looper.Destroy();
        lua.Dispose();
        lua = null;
#if UNITY_5 || UNITY_2017 || UNITY_2018
        Application.logMessageReceived -= ShowTips;
#else
        Application.RegisterLogCallback(null);
#endif
    }

    string tips = null;

    void ShowTips(string msg, string stackTrace, LogType type)
    {
        tips += msg;
        tips += "\r\n";
    }

    void OnGUI()
    {
        GUI.Label(new Rect(Screen.width / 2 - 300, Screen.height / 2 - 200, 600, 400), tips);

        if (GUI.Button(new Rect(50, 50, 120, 45), "Start Counter"))
        {
            tips = null;
            LuaFunction func = lua.GetFunction("StartDelay");
            func.Call();
            func.Dispose();
        }
        else if (GUI.Button(new Rect(50, 150, 120, 45), "Stop Counter"))
        {
            LuaFunction func = lua.GetFunction("StopDelay");
            func.Call();
            func.Dispose();
        }
        else if (GUI.Button(new Rect(50, 250, 120, 45), "GC"))
        {
            lua.DoString("collectgarbage('collect')", "TestCoroutine.cs");
            Resources.UnloadUnusedAssets();
        }
    }
}

2.1 DoString执行文件的方式

首先来看第九行：

cs 复制代码

public TextAsset luaFile = null;

TextAsset类可以获取文件的文本内容；用TextAsset.text可以访问文件的文本

因此第28行可以用DoString来执行TestLuaCoroutine.lua文件

cs 复制代码

lua.DoString(luaFile.text, "TestLuaCoroutine.lua");

故本例演示了除LuaState：DoFile(string fileName)和LuaState：Require(string fileName)之外执行Lua文件的第三种方式

Unity手册的解释：

文本资源的一个特性就在于它可用于存储二进制数据。通过为文件提供扩展名 .bytes，即可将其作为文本资源加载，并可通过 bytes 属性来访问数据。

这解释了TestLuaCoroutine文件为什么以.bytes为后缀名

参考：

文本资源

2.2 LuaLooper类

第25行给对象加了脚本组件LuaLooper

cs 复制代码

looper = gameObject.AddComponent<LuaLooper>();

cs 复制代码

/*
Copyright (c) 2015-2017 topameng(topameng@qq.com)

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
*/
using System;
using UnityEngine;
using LuaInterface;

public class LuaLooper : MonoBehaviour
{
    public LuaBeatEvent UpdateEvent
    {
        get;
        private set;
    }

    public LuaBeatEvent LateUpdateEvent
    {
        get;
        private set;
    }

    public LuaBeatEvent FixedUpdateEvent
    {
        get;
        private set;
    }

    public LuaState luaState = null;

    void Start()
    {
        try
        {
            UpdateEvent = GetEvent("UpdateBeat");
            LateUpdateEvent = GetEvent("LateUpdateBeat");
            FixedUpdateEvent = GetEvent("FixedUpdateBeat");
        }
        catch (Exception e)
        {
            Destroy(this);
            throw e;
        }
	}

    LuaBeatEvent GetEvent(string name)
    {
        LuaTable table = luaState.GetTable(name);

        if (table == null)
        {
            throw new LuaException(string.Format("Lua table {0} not exists", name));
        }

        LuaBeatEvent e = new LuaBeatEvent(table);
        table.Dispose();
        table = null;
        return e;
    }

    void ThrowException()
    {
        string error = luaState.LuaToString(-1);
        luaState.LuaPop(2);
        throw new LuaException(error, LuaException.GetLastError());
    }

    void Update()
    {
#if UNITY_EDITOR
        if (luaState == null)
        {
            return;
        }
#endif
        if (luaState.LuaUpdate(Time.deltaTime, Time.unscaledDeltaTime) != 0)
        {
            ThrowException();
        }

        luaState.LuaPop(1);
        luaState.Collect();
#if UNITY_EDITOR
        luaState.CheckTop();
#endif
    }

    void LateUpdate()
    {
#if UNITY_EDITOR
        if (luaState == null)
        {
            return;
        }
#endif
        if (luaState.LuaLateUpdate() != 0)
        {
            ThrowException();
        }

        luaState.LuaPop(1);
    }

    void FixedUpdate()
    {
#if UNITY_EDITOR
        if (luaState == null)
        {
            return;
        }
#endif
        if (luaState.LuaFixedUpdate(Time.fixedDeltaTime) != 0)
        {
            ThrowException();
        }

        luaState.LuaPop(1);
    }

    public void Destroy()
    {
        if (luaState != null)
        {
            if (UpdateEvent != null)
            {
                UpdateEvent.Dispose();
                UpdateEvent = null;
            }

            if (LateUpdateEvent != null)
            {
                LateUpdateEvent.Dispose();
                LateUpdateEvent = null;
            }

            if (FixedUpdateEvent != null)
            {
                FixedUpdateEvent.Dispose();
                FixedUpdateEvent = null;
            }

            luaState = null;
        }
    }

    void OnDestroy()
    {
        if (luaState != null)
        {
            Destroy();
        }
    }
}

LuaLooper的作用是驱动协程的运行，这里暂不作展开

三.Lua代码分析

3.1 TestLuaCoroutine.lua.bytes

Lua 复制代码

function fib(n)
    local a, b = 0, 1
    while n > 0 do
        a, b = b, a + b
        n = n - 1
    end

    return a
end

function CoFunc()
    print('Coroutine started')
    for i = 0, 10, 1 do
        print(fib(i))
        coroutine.wait(0.1)
    end
	print("current frameCount: "..Time.frameCount)
	coroutine.step()
	print("yield frameCount: "..Time.frameCount)

	local www = UnityEngine.WWW("http://www.baidu.com")
	coroutine.www(www)
	local s = tolua.tolstring(www.bytes)
	print(s:sub(1, 128))
    print('Coroutine ended')
end

function TestCortinue()
    coroutine.start(CoFunc)
end

local coDelay = nil

function Delay()
	local c = 1

	while true do
		coroutine.wait(1)
		print("Count: "..c)
		c = c + 1
	end
end

function StartDelay()
	coDelay = coroutine.start(Delay)
end

function StopDelay()
	coroutine.stop(coDelay)
end

* fib函数负责计算一个斐那波契n

* coroutine.start 启动一个lua协同

* coroutine.wait 协同中等待一段时间，单位:秒

* coroutine.step 协同中等待一帧.

* coroutine.www 等待一个WWW完成.

* tolua.tolstring 转换byte数组为lua字符串缓冲

* coroutine.stop 停止一个正在lua将要执行的协同

TestLuaCoroutine中全部围绕者全局模块coroutine中函数的使用，接下来看coroutine模块

3.2 coroutine.lua

Lua 复制代码

local create = coroutine.create
local running = coroutine.running
local resume = coroutine.resume
local yield = coroutine.yield
local error = error
local unpack = unpack
local debug = debug
local FrameTimer = FrameTimer
local CoTimer = CoTimer

local comap = {}
local pool = {}
setmetatable(comap, {__mode = "kv"})

function coroutine.start(f, ...)
	local co = create(f)

	if running() == nil then
		local flag, msg = resume(co, ...)

		if not flag then
			error(debug.traceback(co, msg))
		end
	else
		local args = {...}
		local timer = nil

		local action = function()
			comap[co] = nil
			timer.func = nil
			local flag, msg = resume(co, unpack(args))
			table.insert(pool, timer)

			if not flag then
				timer:Stop()
				error(debug.traceback(co, msg))
			end
		end

		if #pool > 0 then
			timer = table.remove(pool)
			timer:Reset(action, 0, 1)
		else
			timer = FrameTimer.New(action, 0, 1)
		end

		comap[co] = timer
		timer:Start()
	end

	return co
end

function coroutine.wait(t, co, ...)
	local args = {...}
	co = co or running()
	local timer = nil

	local action = function()
		comap[co] = nil
		timer.func = nil
		local flag, msg = resume(co, unpack(args))

		if not flag then
			timer:Stop()
			error(debug.traceback(co, msg))
			return
		end
	end

	timer = CoTimer.New(action, t, 1)
	comap[co] = timer
	timer:Start()
	return yield()
end

function coroutine.step(t, co, ...)
	local args = {...}
	co = co or running()
	local timer = nil

	local action = function()
		comap[co] = nil
		timer.func = nil
		local flag, msg = resume(co, unpack(args))
		table.insert(pool, timer)

		if not flag then
			timer:Stop()
			error(debug.traceback(co, msg))
			return
		end
	end

	if #pool > 0 then
		timer = table.remove(pool)
		timer:Reset(action, t or 1, 1)
	else
		timer = FrameTimer.New(action, t or 1, 1)
	end

	comap[co] = timer
	timer:Start()
	return yield()
end

function coroutine.www(www, co)
	co = co or running()
	local timer = nil

	local action = function()
		if not www.isDone then
			return
		end

		comap[co] = nil
		timer:Stop()
		timer.func = nil
		local flag, msg = resume(co)
		table.insert(pool, timer)

		if not flag then
			error(debug.traceback(co, msg))
			return
		end
	end

	if #pool > 0 then
		timer = table.remove(pool)
		timer:Reset(action, 1, -1)
	else
		timer = FrameTimer.New(action, 1, -1)
	end
	comap[co] = timer
 	timer:Start()
 	return yield()
end

function coroutine.stop(co)
 	local timer = comap[co]

 	if timer ~= nil then
 		comap[co] = nil
 		timer:Stop()
 	end
end

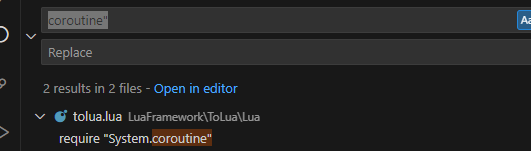

哪里导入了coroutine模块呢，全局搜索coroutine"可以看到是tolua.lua的require

3.3 tolua.lua

Lua 复制代码

if jit then
	if jit.opt then
		jit.opt.start(3)
	end

	print("ver"..jit.version_num.." jit: ", jit.status())
	print(string.format("os: %s, arch: %s", jit.os, jit.arch))
end

if DebugServerIp then
  require("mobdebug").start(DebugServerIp)
end

require "misc.functions"
Mathf		= require "UnityEngine.Mathf"
Vector3 	= require "UnityEngine.Vector3"
Quaternion	= require "UnityEngine.Quaternion"
Vector2		= require "UnityEngine.Vector2"
Vector4		= require "UnityEngine.Vector4"
Color		= require "UnityEngine.Color"
Ray			= require "UnityEngine.Ray"
Bounds		= require "UnityEngine.Bounds"
RaycastHit	= require "UnityEngine.RaycastHit"
Touch		= require "UnityEngine.Touch"
LayerMask	= require "UnityEngine.LayerMask"
Plane		= require "UnityEngine.Plane"
Time		= reimport "UnityEngine.Time"

list		= require "list"
utf8		= require "misc.utf8"

require "event"
require "typeof"
require "slot"
require "System.Timer"
require "System.coroutine"
require "System.ValueType"
require "System.Reflection.BindingFlags"

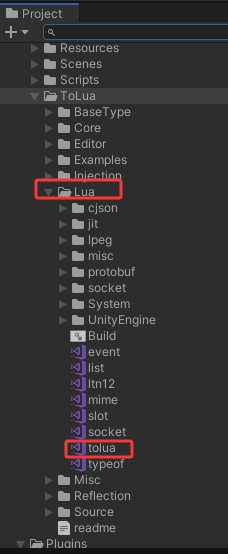

可以看到tolua.lua对同级目录包括子目录(LuaFramework\ToLua\Lua)下多个lua文件进行require

3.4 tolua库的导入

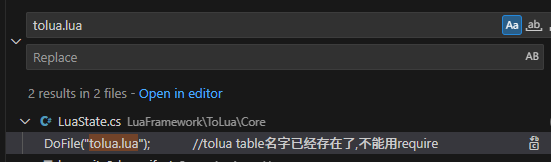

通过搜索tolua.lua可以看到其执行来自在LuaState

Tip:lua文件的执行如果搜索名称没搜到需要加.lua后缀名一起搜索

LuaState.cs：

cs 复制代码

        void OpenBaseLuaLibs()
        {
            DoFile("tolua.lua");            //tolua table名字已经存在了,不能用require
            LuaUnityLibs.OpenLuaLibs(L);
        }

四.小结

至此，该携程example所涉及代码及其先后执行逻辑有了整体的把握和理解，具体coroutine的实现先没有深究的必要，等用到时再回来看即可
