应用商城发布项目

Gss7772025-10-30 12:01

应用商城案例发布项目

实验需求

搭建一个gpmall应用商城系统，所使用的技术有：数据库主从+书写分离、zookeeper+Kafka、redis、

nginx部署负载均衡

主机 ip地址 服务部署
node1 192.168.100.10 zookeeper、Kafka、部署mycat
node2/db1 192.168.100.20 zookeeper、Kafka、数据库主库
node3/db2 192.168.100.30 zookeeper、Kafka、数据库从库
node4 192.168.100.40 httpd

Kafka+zookeeper之前已部署

配置环境具体示例：

四台主机已关闭防火墙与selinux

4台主机设置时钟同步：

复制代码
[root@node1 ~]# systemctl restart chronyd
[root@node1 ~]# systemctl enable chronyd
Created symlink from /etc/systemd/system/multi-user.target.wants/chronyd.service to /usr/lib/systemd/system/chronyd.service.
[root@node1 ~]# hwclock -w

[root@db1 ~]# systemctl restart chronyd
[root@db1 ~]# systemctl enable chronyd
Created symlink from /etc/systemd/system/multi-user.target.wants/chronyd.service to /usr/lib/systemd/system/chronyd.service.
[root@db1 ~]# hwclock -w

[root@db2 ~]# systemctl restart chronyd
[root@db2 ~]# systemctl enable chronyd
Created symlink from /etc/systemd/system/multi-user.target.wants/chronyd.service to /usr/lib/systemd/system/chronyd.service.
[root@db2 ~]# hwclock -w

[root@node4 ~]# systemctl restart chronyd
[root@node4 ~]# systemctl enable chronyd
Created symlink from /etc/systemd/system/multi-user.target.wants/chronyd.service to /usr/lib/systemd/system/chronyd.service.
[root@node4 ~]# hwclock -w

node4主机配置yum仓库：

复制代码
[root@node4 ~]# cd /etc/yum.repos.d/
[root@node4 yum.repos.d]# ls
CentOS-Base.repo  epel.repo  epel-testing.repo
[root@node4 yum.repos.d]# rm -rf *
[root@node4 yum.repos.d]# vim server.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~
[root@node4 yum.repos.d]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only

安装httpd：

复制代码
[root@node4 ~]# yum -y install httpd

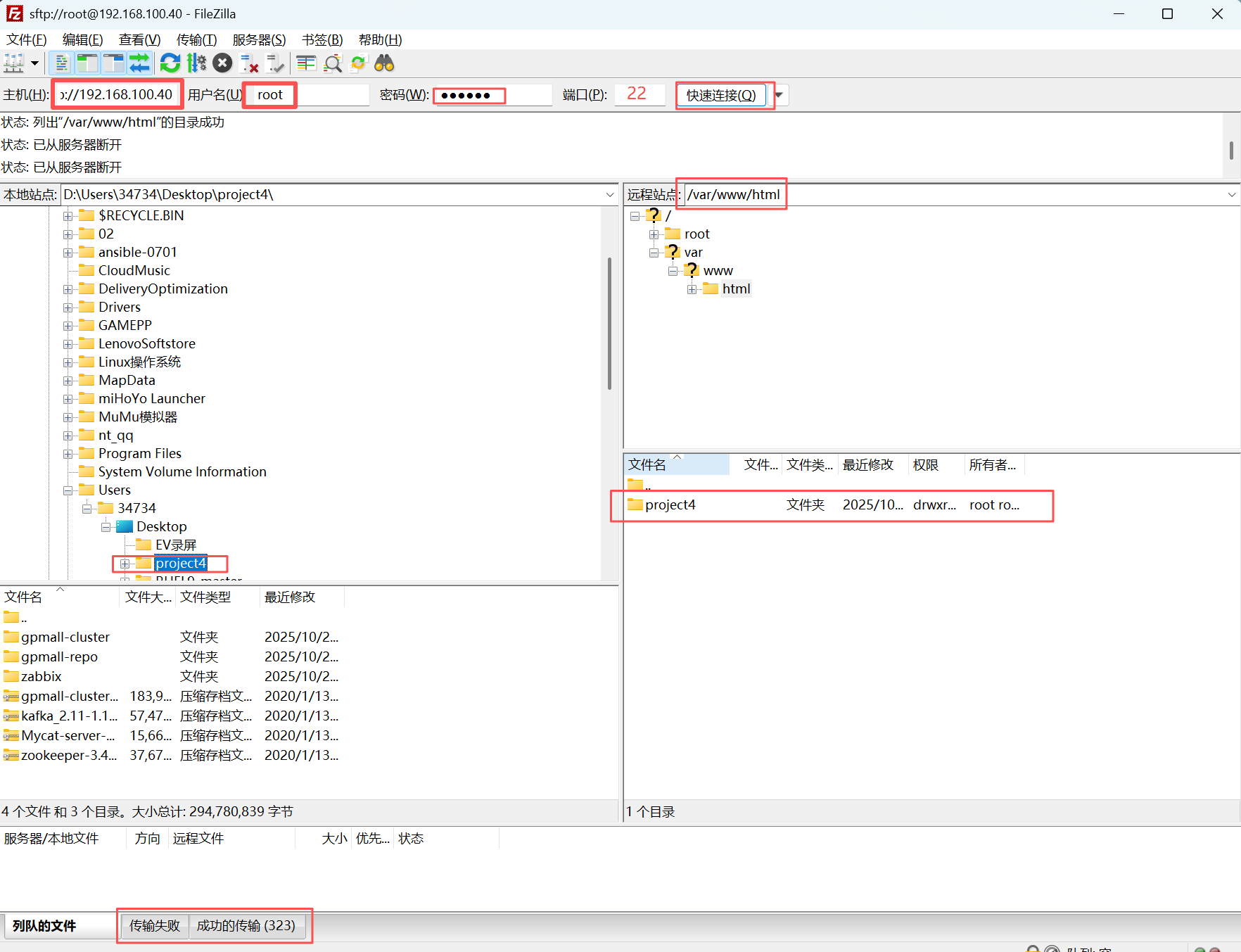

传输需要的文件：

复制代码
[root@node4 ~]# cd /var/www/html/
[root@node4 html]# ls
project4
[root@node4 html]# cd project4/
[root@node4 project4]# ls
gpmall-cluster         Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz
gpmall-cluster.tar.gz  zabbix
gpmall-repo            zookeeper-3.4.14.tar.gz
kafka_2.11-1.1.1.tgz
[root@node4 project4]# cd ..
[root@node4 html]# systemctl restart httpd
[root@node4 html]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

配置db1、db2的/etc/hosts解析文件：

复制代码
[root@db1 ~]# vim /etc/hosts
192.168.100.20 db1
192.168.100.30 db2
~

[root@db2 ~]# vim /etc/hosts
192.168.100.20 db1
192.168.100.30 db2
~

db1、db2配置 yum 仓库：

db1：

复制代码
[root@db1 ~]# cd /etc/yum.repos.d/
[root@db1 yum.repos.d]# ls
CentOS-Base.repo  CentOS-Debuginfo.repo  CentOS-Media.repo    CentOS-Vault.repo
CentOS-CR.repo    CentOS-fasttrack.repo  CentOS-Sources.repo
[root@db1 yum.repos.d]# rm -rf *
[root@db1 yum.repos.d]# vim server.repo
[mariadb]
name=mariadb1
baseurl=http://192.168.100.40/project4/gpmall-repo
enabled=1
gpgcheck=0
~

db2：

复制代码
[root@db2 ~]# cd /etc/yum.repos.d/
[root@db2 yum.repos.d]# ls
CentOS-Base.repo  CentOS-Debuginfo.repo  CentOS-Media.repo    CentOS-Vault.repo
CentOS-CR.repo    CentOS-fasttrack.repo  CentOS-Sources.repo
[root@db2 yum.repos.d]# rm -rf *

db1：

复制代码
[root@db1 yum.repos.d]# scp server.repo root@db2:/etc/yum.repos.d/
The authenticity of host 'db2 (192.168.100.30)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'db2' (ECDSA) to the list of known hosts.
server.repo                                                         100%   96    22.9KB/s   00:00

db2：

复制代码
[root@db2 yum.repos.d]# cat server.repo
[mariadb]
name=mariadb1
baseurl=http://192.168.100.40/project4/gpmall-repo
enabled=1
gpgcheck=0

db1、db2安装mariadb mariadb-server软件包：

复制代码
[root@db1 ~]# yum -y install mariadb-server mariadb
.....
[root@db1 ~]# systemctl restart mariadb
[root@db1 ~]# systemctl enable mariadb

[root@db2 ~]# yum -y install mariadb-server mariadb
.....
[root@db2 ~]# systemctl restart mariadb
[root@db2 ~]# systemctl enable mariadb

初始化数据库：

db1：

复制代码
[root@db1 ~]# mysql_secure_installation

NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
      SERVERS IN PRODUCTION USE!  PLEASE READ EACH STEP CAREFULLY!

In order to log into MariaDB to secure it, we'll need the current
password for the root user.  If you've just installed MariaDB, and
you haven't set the root password yet, the password will be blank,
so you should just press enter here.

Enter current password for root (enter for none):
OK, successfully used password, moving on...

Setting the root password ensures that nobody can log into the MariaDB
root user without the proper authorisation.

Set root password? [Y/n] y
New password:
Re-enter new password:
Password updated successfully!
Reloading privilege tables..
 ... Success!


By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created for
them.  This is intended only for testing, and to make the installation
go a bit smoother.  You should remove them before moving into a
production environment.

Remove anonymous users? [Y/n] y
 ... Success!

Normally, root should only be allowed to connect from 'localhost'.  This
ensures that someone cannot guess at the root password from the network.

Disallow root login remotely? [Y/n] n
 ... skipping.

By default, MariaDB comes with a database named 'test' that anyone can
access.  This is also intended only for testing, and should be removed
before moving into a production environment.

Remove test database and access to it? [Y/n] y
 - Dropping test database...
 ... Success!
 - Removing privileges on test database...
 ... Success!

Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.

Reload privilege tables now? [Y/n] y
 ... Success!

Cleaning up...

All done!  If you've completed all of the above steps, your MariaDB
installation should now be secure.

Thanks for using MariaDB!

db2：

复制代码
[root@db2 ~]# mysql_secure_installation

NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
      SERVERS IN PRODUCTION USE!  PLEASE READ EACH STEP CAREFULLY!

In order to log into MariaDB to secure it, we'll need the current
password for the root user.  If you've just installed MariaDB, and
you haven't set the root password yet, the password will be blank,
so you should just press enter here.

Enter current password for root (enter for none):
OK, successfully used password, moving on...

Setting the root password ensures that nobody can log into the MariaDB
root user without the proper authorisation.

Set root password? [Y/n] y
New password:
Re-enter new password:
Password updated successfully!
Reloading privilege tables..
 ... Success!


By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created for
them.  This is intended only for testing, and to make the installation
go a bit smoother.  You should remove them before moving into a
production environment.

Remove anonymous users? [Y/n] y
 ... Success!

Normally, root should only be allowed to connect from 'localhost'.  This
ensures that someone cannot guess at the root password from the network.

Disallow root login remotely? [Y/n] n
 ... skipping.

By default, MariaDB comes with a database named 'test' that anyone can
access.  This is also intended only for testing, and should be removed
before moving into a production environment.

Remove test database and access to it? [Y/n] y
 - Dropping test database...
 ... Success!
 - Removing privileges on test database...
 ... Success!

Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.

Reload privilege tables now? [Y/n] y
 ... Success!

Cleaning up...

All done!  If you've completed all of the above steps, your MariaDB
installation should now be secure.

Thanks for using MariaDB!

db1：

复制代码
[root@db1 ~]# vim /etc/my.cnf
...
[mysqld]
log_bin=mysql-bin
server_id=20
...
[root@db1 ~]# systemctl restart mariadb

db2：

复制代码
[root@db2 ~]# vim /etc/my.cnf
...
[mysqld]
log_bin=mysql-bin
server_id=30
...
[root@db2 ~]# systemctl restart mariadb

db1、db2数据库权限设置，允许远程登录：

db1：

复制代码
[root@db1 ~]# mysql -uroot -p123456
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 9
Server version: 10.3.18-MariaDB-log MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> grant all privileges on *.* to root@'%' identified by '123456';
Query OK, 0 rows affected (0.001 sec)

db2：

复制代码
[root@db2 ~]# mysql -uroot -p123456
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 9
Server version: 10.3.18-MariaDB-log MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> grant all privileges on *.* to root@'%' identified by '123456';
Query OK, 0 rows affected (0.001 sec)

db1、db2数据库主从：

db1：

复制代码
MariaDB [(none)]> grant replication slave on *.* to 'luoqi'@'192.168.100.30' identified by '123456';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.001 sec)

db2：

复制代码
MariaDB [(none)]> change master to
    -> master_host='192.168.100.20',
    -> master_user='luoqi',
    -> master_password='123456';
Query OK, 0 rows affected (0.008 sec)

MariaDB [(none)]> start slave;
Query OK, 0 rows affected (0.001 sec)

.....
              Slave_IO_Running: Yes
             Slave_SQL_Running: Yes
.....
ERROR: No query specified

测试效果：

db1：

复制代码
MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
+--------------------+
3 rows in set (0.001 sec)

MariaDB [(none)]> create database test;
Query OK, 1 row affected (0.001 sec)

MariaDB [(none)]> use test;
Database changed
MariaDB [test]> create table company(id int not null primary key,name varchar(50),addr varchar(255));
Query OK, 0 rows affected (0.008 sec)

MariaDB [test]> insert into company values(1,'redhat','usa');
Query OK, 1 row affected (0.003 sec)

db2（查看）：

复制代码
MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.001 sec)

MariaDB [(none)]> use test;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
MariaDB [test]> show tables;
+----------------+
| Tables_in_test |
+----------------+
| company        |
+----------------+
1 row in set (0.000 sec)

MariaDB [test]> select * from company;
+----+--------+------+
| id | name   | addr |
+----+--------+------+
|  1 | redhat | usa  |
+----+--------+------+
1 row in set (0.000 sec)

mycat 做数据库读写分离：

复制代码
[root@node1 ~]# vim /etc/hosts
....
192.168.100.10 mycat
192.168.100.20 db1
192.168.100.30 db2
~
[root@node1 ~]# scp /etc/hosts root@db1:/etc/hosts
The authenticity of host 'db1 (192.168.100.20)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'db1' (ECDSA) to the list of known hosts.
hosts                                                     100%  217    59.3KB/s   00:00
[root@node1 ~]# scp /etc/hosts root@db2:/etc/hosts
The authenticity of host 'db2 (192.168.100.30)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'db2' (ECDSA) to the list of known hosts.
hosts                                                     100%  217   132.3KB/s   00:00

在mycat节点安装java环境------mycat是基于java的：

复制代码
[root@node1 ~]# rpm -qa | grep java
python-javapackages-3.4.1-11.el7.noarch
tzdata-java-2018e-3.el7.noarch
javapackages-tools-3.4.1-11.el7.noarch

上传压缩包：

复制代码
[root@node1 ~]# rz -E
rz waiting to receive.
[root@node1 ~]# tar -zxvf jdk-8u181-linux-x64.tar.gz -C /usr/local/
.....
[root@node1 ~]# cd /usr/local/
[root@node1 local]# ls
bin  etc  games  include  jdk1.8.0_181  lib  lib64  libexec  sbin  share  src
[root@node1 local]# vim /etc/profile
....
export JAVA_HOME=/usr/local/jdk1.8.0_181
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
~
[root@node1 local]# source /etc/profile
[root@node1 local]# java -version
java version "1.8.0_181"
Java(TM) SE Runtime Environment (build 1.8.0_181-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.181-b13, mixed mode)

部署mycat服务，将Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz上传到mycat的/root目录下，并解压到/use/local：

复制代码
[root@node1 ~]# rz -E
rz waiting to receive.
[root@node1 ~]# tar -xzvf Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz -C /usr/local/
.....
[root@node1 ~]# cd /usr/local/
[root@node1 local]# ls
bin  etc  games  include  jdk1.8.0_181  lib  lib64  libexec  mycat  sbin  share  src

定义环境变量：

复制代码
[root@node1 local]# vim /etc/profile
....
export MYCAT_HOME=/usr/local/mycat
~
[root@node1 local]# source /etc/profile

编辑mycat服务读写分离的schema.xml，设置数据库写入节点为db1，读取节点db2，注意IP要修改：

复制代码
[root@node1 local]# cd mycat/conf/
[root@node1 conf]# ls
autopartition-long.txt       rule.xml
auto-sharding-long.txt       schema.xml
auto-sharding-rang-mod.txt   sequence_conf.properties
cacheservice.properties      sequence_db_conf.properties
ehcache.xml                  sequence_distributed_conf.properties
index_to_charset.properties  sequence_time_conf.properties
log4j2.xml                   server.xml
migrateTables.properties     sharding-by-enum.txt
myid.properties              wrapper.conf
partition-hash-int.txt       zkconf
partition-range-mod.txt      zkdownload

[root@node1 conf]# vim schema.xml
<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">
<schema name="USERDB" checkSQLschema="true" sqlMaxLimit="100" dataNode="dn1"></schema>
<dataNode name="dn1" dataHost="localhost1" database="test" />
<dataHost name="localhost1" maxCon="1000" minCon="10" balance="3" dbType="mysql" dbDriver="native" writeType="0" switchType="1"  slaveThreshold="100">
    <heartbeat>select user()</heartbeat>
    <writeHost host="hostM1" url="192.168.100.20:3306" user="root" password="123456">
        <readHost host="hostS1" url="192.168.100.30:3306" user="root" password="123456" />
    </writeHost></dataHost>
</mycat:schema>
~

编辑mycat用户的/usr/local/mycat/conf/目录下的server.xml，修改root用户的密码123456，访问mycat的逻辑库为USERDB，注意删除后几行

复制代码
[root@node1 conf]# vim server.xml
删除如下5行，在文件最末尾处
        <user name="user">
                <property name="password">user</property>
                <property name="schemas">TESTDB</property>
                <property name="readOnly">true</property>
        </user>

然后需要修改一出地方-----改成USERDB：

复制代码
        <user name="root">
                <property name="password">123456</property>
                <property name="schemas">USERDB</property>

启动mycat服务：

复制代码
[root@node1 conf]# cd ..
[root@node1 mycat]# ls
bin  catlet  conf  lib  logs  version.txt
[root@node1 mycat]# cd bin/
[root@node1 bin]# ls
dataMigrate.sh   mycat      startup_nowrap.sh     wrapper-linux-x86-32
init_zk_data.sh  rehash.sh  wrapper-linux-ppc-64  wrapper-linux-x86-64
[root@node1 bin]# ./mycat start
Starting Mycat-server...

（查看8066、9066端口是否开启，如果有开放8066和9066端口，则表示mycat服务开启成功 mycat服务默认的数据端口是8066，而9066端口则是mycat管理端口，用于管理mycat的整个集群状态）

复制代码
[root@node1 bin]# ss -anlt
State      Recv-Q Send-Q Local Address:Port                Peer Address:Port
LISTEN     0      128                *:111                            *:*
LISTEN     0      128                *:6000                           *:*
LISTEN     0      5      192.168.122.1:53                             *:*
LISTEN     0      128                *:22                             *:*
LISTEN     0      128        127.0.0.1:631                            *:*
LISTEN     0      100        127.0.0.1:25                             *:*
LISTEN     0      128        127.0.0.1:6010                           *:*
LISTEN     0      1          127.0.0.1:32000                          *:*
LISTEN     0      100               :::9066                          :::*
LISTEN     0      128               :::111                           :::*
LISTEN     0      50     ::ffff:192.168.100.10:3888                          :::*
LISTEN     0      128               :::6000                          :::*
LISTEN     0      128               :::22                            :::*
LISTEN     0      50                :::39607                         :::*
LISTEN     0      128              ::1:631                           :::*
LISTEN     0      50                :::45849                         :::*
LISTEN     0      100              ::1:25                            :::*
LISTEN     0      128              ::1:6010                          :::*
LISTEN     0      50                :::42427                         :::*
LISTEN     0      50                :::1984                          :::*
LISTEN     0      100               :::8066                          :::*
LISTEN     0      50     ::ffff:192.168.100.10:9092                          :::*
LISTEN     0      50                :::38852                         :::*
LISTEN     0      50                :::2181

[root@node1 bin]# cd /etc/yum.repos.d/
[root@node1 yum.repos.d]# rm -rf *
[root@node1 yum.repos.d]# scp root@192.168.100.20:/etc/yum.repos.d/server.repo .
server.repo                                               100%   96    30.7KB/s   00:00
[root@node1 yum.repos.d]# cat server.repo
[mariadb]
name=mariadb1
baseurl=http://192.168.100.40/project4/gpmall-repo
enabled=1
gpgcheck=0

在mycat节点验证

安装MariaDB-client客户端：

mycat：

复制代码
[root@node1 ~]# yum -y install MariaDB-client

在本地使用数据端口登录到mysql数据中，查询和插入数据，然后使用管理端口查看读写分离效果：

复制代码
[root@node1 ~]# mysql -h127.0.0.1 -P8066 -uroot -p123456
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.6.29-mycat-1.6-RELEASE-20161028204710 MyCat Server (OpenCloundDB)

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [(none)]> show databases;
+----------+
| DATABASE |
+----------+
| USERDB   |
+----------+
1 row in set (0.003 sec)

MySQL [(none)]> use USERDB;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
MySQL [USERDB]> show tables;
+----------------+
| Tables_in_test |
+----------------+
| company        |
+----------------+
1 row in set (0.002 sec)

MySQL [USERDB]> select * from company;
+----+--------+------+
| id | name   | addr |
+----+--------+------+
|  1 | redhat | usa  |
+----+--------+------+
1 row in set (0.057 sec)

MySQL [USERDB]> insert into company values(2,'AWS','usa');
Query OK, 1 row affected (0.020 sec)

MySQL [USERDB]> select * from company;
+----+--------+------+
| id | name   | addr |
+----+--------+------+
|  1 | redhat | usa  |
|  2 | AWS    | usa  |
+----+--------+------+
2 rows in set (0.002 sec)

db1：

复制代码
MariaDB [test]> select * from company;
+----+--------+------+
| id | name   | addr |
+----+--------+------+
|  1 | redhat | usa  |
|  2 | AWS    | usa  |
+----+--------+------+
2 rows in set (0.002 sec)

验证mycat服务对数据库读写操作分离：

复制代码
[root@node1 ~]# mysql -h127.0.0.1 -P9066 -uroot -p123456 -e 'show @@datasource;'
+----------+--------+-------+----------------+------+------+--------+------+------+---------+-----------+------------+
| DATANODE | NAME   | TYPE  | HOST           | PORT | W/R  | ACTIVE | IDLE | SIZE | EXECUTE | READ_LOAD | WRITE_LOAD |
+----------+--------+-------+----------------+------+------+--------+------+------+---------+-----------+------------+
| dn1      | hostM1 | mysql | 192.168.100.20 | 3306 | W    |      0 |   10 | 1000 |      75 |         0 |          1 |
| dn1      | hostS1 | mysql | 192.168.100.30 | 3306 | R    |      0 |    7 | 1000 |      73 |         4 |          0 |
+----------+--------+-------+----------------+------+------+--------+------+------+---------+-----------+------------+

db1：

复制代码
[root@db1 ~]# rpm -qa | grep java
python-javapackages-3.4.1-11.el7.noarch
tzdata-java-2018e-3.el7.noarch
javapackages-tools-3.4.1-11.el7.noarch

db2：

复制代码
[root@db2 ~]# rpm -qa | grep java
python-javapackages-3.4.1-11.el7.noarch
tzdata-java-2018e-3.el7.noarch
javapackages-tools-3.4.1-11.el7.noarch

mycat：

复制代码
[root@node1 ~]# cd /usr/local/
[root@node1 local]# ls
bin  etc  games  include  jdk1.8.0_181  lib  lib64  libexec  mycat  sbin  share  src
[root@node1 local]# scp -r jdk1.8.0_181/ root@192.168.100.20:/usr/local/

[root@node1 local]# scp -r jdk1.8.0_181/ root@192.168.100.30:/usr/local/

[root@node1 local]# scp /etc/profile root@192.168.100.20:/etc/profile
profile                                                   100% 1994   365.0KB/s   00:00
[root@node1 local]# scp /etc/profile root@192.168.100.30:/etc/profile
profile                                                   100% 1994   608.4KB/s   00:00

db1：

复制代码
[root@db1 ~]# vim /etc/profile
//删除最后一行
[root@db1 ~]# source /etc/profile
[root@db1 ~]# java -version
java version "1.8.0_181"
Java(TM) SE Runtime Environment (build 1.8.0_181-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.181-b13, mixed mode)

db2：

复制代码
[root@db2 ~]# vim /etc/profile
//删除最后一行
[root@db2 ~]# source /etc/profile
[root@db2 ~]# java -version
java version "1.8.0_181"
Java(TM) SE Runtime Environment (build 1.8.0_181-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.181-b13, mixed mode)

gpmall集群：

mycat：

复制代码
[root@node1 ~]# vim /etc/hosts
....
192.168.100.10 zookeeper1
192.168.100.20 zookeeper2
192.168.100.30 zookeeper3
~
[root@node1 ~]# scp /etc/hosts root@192.168.100.20:/etc/hosts
hosts                                                     100%  295   220.6KB/s   00:00
[root@node1 ~]# scp /etc/hosts root@192.168.100.30:/etc/hosts
hosts

scp拷贝到另外两台计算机：

上传压缩包并解压：

复制代码
[root@node1 ~]# rz -E
rz waiting to receive.
[root@node1 ~]# tar -zxvf zookeeper-3.4.8.tar.gz
....
[root@node1 ~]# mv zookeeper-3.4.8 zookeeper
[root@node1 ~]# cd zookeeper/
[root@node1 zookeeper]# ls
bin          contrib          ivy.xml      README_packaging.txt  zookeeper-3.4.8.jar
build.xml    dist-maven       lib          README.txt            zookeeper-3.4.8.jar.asc
CHANGES.txt  docs             LICENSE.txt  recipes               zookeeper-3.4.8.jar.md5
conf         ivysettings.xml  NOTICE.txt   src                   zookeeper-3.4.8.jar.sha1
[root@node1 zookeeper]# cd conf/
[root@node1 conf]# ls
configuration.xsl  log4j.properties  zoo_sample.cfg
[root@node1 conf]# cp zoo_sample.cfg zoo.cfg
[root@node1 conf]# ll
total 16
-rw-rw-r-- 1 shenyifeng shenyifeng  535 Feb  6  2016 configuration.xsl
-rw-rw-r-- 1 shenyifeng shenyifeng 2161 Feb  6  2016 log4j.properties
-rw-r--r-- 1 root       root        922 Oct 27 20:55 zoo.cfg
-rw-rw-r-- 1 shenyifeng shenyifeng  922 Feb  6  2016 zoo_sample.cfg
[root@node1 conf]# cd
[root@node1 ~]# ll
total 286788
-rw-------.  1 root       root            2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Downloads
-rw-r--r--.  1 root       root            2076 Jul 23 11:42 initial-setup-ks.cfg
-rw-r--r--   1 root       root       185646832 Oct  9  2022 jdk-8u181-linux-x64.tar.gz
drwxr-xr-x   7 root       root             101 Oct 27 16:31 kafka_2.11-2.4.0
-rw-r--r--   1 root       root        70057083 Oct  9  2022 kafka_2.11-2.4.0.tgz
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Music
-rw-r--r--   1 root       root        15662280 Jan 13  2020 Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Public
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root       root               6 Jul 23 11:43 Videos
drwxr-xr-x  10 shenyifeng shenyifeng      4096 Feb  6  2016 zookeeper
-rw-r--r--   1 root       root        22261552 Aug  8  2022 zookeeper-3.4.8.tar.gz
-rw-r--r--   1 root       root           27838 Oct 27 16:37 zookeeper.out
[root@node1 ~]# chown -R root.root zookeeper
[root@node1 ~]# ll
total 286788
-rw-------.  1 root root      2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Downloads
-rw-r--r--.  1 root root      2076 Jul 23 11:42 initial-setup-ks.cfg
-rw-r--r--   1 root root 185646832 Oct  9  2022 jdk-8u181-linux-x64.tar.gz
drwxr-xr-x   7 root root       101 Oct 27 16:31 kafka_2.11-2.4.0
-rw-r--r--   1 root root  70057083 Oct  9  2022 kafka_2.11-2.4.0.tgz
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Music
-rw-r--r--   1 root root  15662280 Jan 13  2020 Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Public
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root      4096 Feb  6  2016 zookeeper
-rw-r--r--   1 root root  22261552 Aug  8  2022 zookeeper-3.4.8.tar.gz
-rw-r--r--   1 root root     27838 Oct 27 16:37 zookeeper.out

[root@node1 ~]# cd zookeeper/
[root@node1 zookeeper]# cd conf/
[root@node1 conf]# ll
total 16
-rw-rw-r-- 1 root root  535 Feb  6  2016 configuration.xsl
-rw-rw-r-- 1 root root 2161 Feb  6  2016 log4j.properties
-rw-r--r-- 1 root root  922 Oct 27 20:55 zoo.cfg
-rw-rw-r-- 1 root root  922 Feb  6  2016 zoo_sample.cfg

scp -r 同步到三台机器上：

mycat：

复制代码
[root@node1 conf]# mkdir /tmp/zookeeper
[root@node1 conf]# ll /tmp/
total 0
drwxr-xr-x 2 root root   6 Oct 27 20:59 hsperfdata_root
drwxr-xr-x 3 root root 230 Oct 27 20:59 kafka-logs
drwx------ 3 root root  17 Oct 29 10:18 systemd-private-b292bd7d937e42f6b53bd69dee1bb580-bolt.service-ou8MXz
drwx------ 3 root root  17 Oct 29 10:18 systemd-private-b292bd7d937e42f6b53bd69dee1bb580-chronyd.service-be3JcF
drwx------ 3 root root  17 Oct 29 10:18 systemd-private-b292bd7d937e42f6b53bd69dee1bb580-colord.service-TlcAsF
drwx------ 3 root root  17 Oct 29 10:18 systemd-private-b292bd7d937e42f6b53bd69dee1bb580-cups.service-r3cEEC
drwx------ 3 root root  17 Oct 29 10:18 systemd-private-b292bd7d937e42f6b53bd69dee1bb580-rtkit-daemon.service-JQbalc
drwx------ 2 root root   6 Oct 27 10:35 vmware-root_8711-3853422910
drwx------ 2 root root   6 Oct 29 10:18 vmware-root_8721-3886323497
drwxr-xr-x 2 root root   6 Oct 29 10:32 zookeeper

[root@node1 conf]# vim zoo.cfg
....
server.1=192.168.100.10:2888:3888
server.2=192.168.100.20:2888:3888
server.3=192.168.100.30:2888:3888
~
[root@node1 conf]# echo 1 > /tmp/zookeeper/myid

[root@node1 ~]# scp -r zookeeper root@192.168.100.20:/root/
....
[root@node1 ~]# scp -r zookeeper root@192.168.100.30:/root/
....

db1：

复制代码
[root@db1 ~]# mkdir /tmp/zookeeper
[root@db1 ~]# ll
total 40
-rw-------.  1 root root  2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Downloads
-rw-r--r--.  1 root root  2076 Jul 23 11:42 initial-setup-ks.cfg
drwxr-xr-x   7 root root   101 Oct 27 16:32 kafka_2.11-2.4.0
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Music
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Public
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root  4096 Oct 29 10:40 zookeeper
-rw-r--r--   1 root root 25733 Oct 27 20:59 zookeeper.out

[root@db1 ~]# cd zookeeper/
[root@db1 zookeeper]# ll
total 1556
drwxr-xr-x  2 root root     149 Oct 29 10:40 bin
-rw-r--r--  1 root root   83235 Oct 29 10:40 build.xml
-rw-r--r--  1 root root   88625 Oct 29 10:40 CHANGES.txt
drwxr-xr-x  2 root root      92 Oct 29 10:40 conf
drwxr-xr-x 10 root root     130 Oct 29 10:40 contrib
drwxr-xr-x  2 root root    4096 Oct 29 10:40 dist-maven
drwxr-xr-x  6 root root    4096 Oct 29 10:40 docs
-rw-r--r--  1 root root    1953 Oct 29 10:40 ivysettings.xml
-rw-r--r--  1 root root    3498 Oct 29 10:40 ivy.xml
drwxr-xr-x  4 root root     266 Oct 29 10:40 lib
-rw-r--r--  1 root root   11938 Oct 29 10:40 LICENSE.txt
-rw-r--r--  1 root root     171 Oct 29 10:40 NOTICE.txt
-rw-r--r--  1 root root    1770 Oct 29 10:40 README_packaging.txt
-rw-r--r--  1 root root    1585 Oct 29 10:40 README.txt
drwxr-xr-x  5 root root      47 Oct 29 10:40 recipes
drwxr-xr-x  8 root root     191 Oct 29 10:40 src
-rw-r--r--  1 root root 1360961 Oct 29 10:40 zookeeper-3.4.8.jar
-rw-r--r--  1 root root     819 Oct 29 10:40 zookeeper-3.4.8.jar.asc
-rw-r--r--  1 root root      33 Oct 29 10:40 zookeeper-3.4.8.jar.md5
-rw-r--r--  1 root root      41 Oct 29 10:40 zookeeper-3.4.8.jar.sha1

[root@db1 ~]# echo 2 > /tmp/zookeeper/myid

db2：

复制代码
[root@db2 ~]# mkdir /tmp/zookeeper
[root@db2 ~]# ll
total 28
-rw-------.  1 root root  2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Downloads
-rw-r--r--.  1 root root  2076 Jul 23 11:42 initial-setup-ks.cfg
drwxr-xr-x   7 root root   101 Oct 27 16:32 kafka_2.11-2.4.0
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Music
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Public
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root  4096 Oct 29 10:41 zookeeper
-rw-r--r--   1 root root 16170 Oct 27 20:59 zookeeper.out

[root@db2 ~]# echo 3 > /tmp/zookeeper/myid

mycat：

复制代码
[root@node1 ~]# vim /etc/profile
...
export ZOOKEEPER_HOME=/root/zookeeper
export PATH=$PATH:$ZOOKEEPER_HOME/bin
~
[root@node1 ~]# source /etc/profile

db1：

复制代码
[root@db1 ~]# vim /etc/profile
...
export ZOOKEEPER_HOME=/root/zookeeper
export PATH=$PATH:$ZOOKEEPER_HOME/bin
~
[root@db1 ~]# source /etc/profile

db2：

复制代码
[root@db2 ~]# vim /etc/profile
...
export ZOOKEEPER_HOME=/root/zookeeper
export PATH=$PATH:$ZOOKEEPER_HOME/bin
~
[root@db2 ~]# source /etc/profile

mycat：

复制代码
[root@node1 ~]# zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@node1 ~]# zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Mode: follower
[root@node1 ~]# jps
10401 QuorumPeerMain
10674 Jps
10598 WrapperSimpleApp

db1：

复制代码
[root@db1 ~]# zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@db1 ~]# zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Mode: leader
[root@db1 ~]# jps
10518 Jps
10439 QuorumPeerMain

db2：

复制代码
[root@db2 ~]# zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@db2 ~]# zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /root/zookeeper/bin/../conf/zoo.cfg
Mode: follower
[root@db2 ~]# jps
10518 Jps
10439 QuorumPeerMain

Kafka集群部署：

mycat：

复制代码
[root@node1 ~]# ls
anaconda-ks.cfg             kafka_2.11-2.4.0                                      Templates
Desktop                     kafka_2.11-2.4.0.tgz                                  Videos
Documents                   Music                                                 zookeeper
Downloads                   Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz  zookeeper-3.4.8.tar.gz
initial-setup-ks.cfg        Pictures                                              zookeeper.out
jdk-8u181-linux-x64.tar.gz  Public
[root@node1 ~]# mv kafka_2.11-2.4.0 kafka

[root@node1 ~]# vim /etc/profile
...    //添加两行
export KAFKA_HOME=/root/kafka
export PATH=$PATH:$KAFKA_HOME/bin
~
[root@node1 ~]# source /etc/profile

db1：

复制代码
[root@db1 ~]# vim /etc/profile
...    //添加两行
export KAFKA_HOME=/root/kafka
export PATH=$PATH:$KAFKA_HOME/bin
~
[root@db1 ~]# source /etc/profile

db2：

复制代码
[root@db2 ~]# vim /etc/profile
...    //添加两行
export KAFKA_HOME=/root/kafka
export PATH=$PATH:$KAFKA_HOME/bin
~
[root@db2 ~]# source /etc/profile

mycat：

复制代码
[root@node1 ~]# kafka-server-start.sh -daemon ./kafka/config/server.properties
[root@node1 ~]# jps
10401 QuorumPeerMain
10598 WrapperSimpleApp
16873 Kafka
16969 Jps

db1：

复制代码
[root@db1 ~]# kafka-server-start.sh -daemon ./kafka/config/server.properties
[root@db1 ~]# jps
13651 Kafka
13720 Jps
10447 QuorumPeerMain

db2：

复制代码
[root@db2 ~]# kafka-server-start.sh -daemon ./kafka/config/server.properties
[root@db2 ~]# jps
10439 QuorumPeerMain
13207 Jps
13135 Kafka

jps

测试服务

mycat节点：

复制代码
[root@node1 ~]# kafka-topics.sh --create --zookeeper 192.168.100.10:2181 --replication-factor 1 --partitions 1 --topic test
Created topic test.

db1：

复制代码
[root@db1 ~]# kafka-topics.sh --list --zookeeper 192.168.100.20:2181
test
[root@db1 ~]# kafka-topics.sh --list --zookeeper 192.168.100.30:2181
test

db2：

复制代码
[root@db2 ~]# kafka-topics.sh --list --zookeeper 192.168.100.20:2181
test
[root@db2 ~]# kafka-topics.sh --list --zookeeper 192.168.100.30:2181
test

应用集群nginx，java（tomcat）

数据库的导入：

db1：

复制代码
[root@db1 ~]# rz -E
rz waiting to receive.
[root@db1 ~]# ll
total 168
-rw-------.  1 root root  2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Downloads
-rw-r--r--   1 root root 59239 Jan 13  2020 gpmall.sql
-rw-r--r--.  1 root root  2076 Jul 23 11:42 initial-setup-ks.cfg
drwxr-xr-x   7 root root   101 Oct 27 16:32 kafka
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Music
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Public
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root root     6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root  4096 Oct 29 10:40 zookeeper
-rw-r--r--   1 root root 96151 Oct 29 16:22 zookeeper.out

[root@db1 ~]# mysql -uroot -p123456
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 20
Server version: 10.3.18-MariaDB-log MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| test               |
+--------------------+
4 rows in set (0.002 sec)

MariaDB [(none)]> create database gpmall;
Query OK, 1 row affected (0.006 sec)

MariaDB [(none)]> use gpmall;
Database changed
MariaDB [gpmall]> source /root/gpmall.sql;
.....
MariaDB [gpmall]> show tables;
+--------------------+
| Tables_in_gpmall   |
+--------------------+
| tb_address         |
| tb_base            |
| tb_comment         |
| tb_comment_picture |
| tb_comment_reply   |
| tb_dict            |
| tb_express         |
| tb_item            |
| tb_item_cat        |
| tb_item_desc       |
| tb_log             |
| tb_member          |
| tb_order           |
| tb_order_item      |
| tb_order_shipping  |
| tb_panel           |
| tb_panel_content   |
| tb_payment         |
| tb_refund          |
| tb_stock           |
| tb_user_verify     |
+--------------------+
21 rows in set (0.000 sec)

mycat：(修改表名gpmall,gpmall)

复制代码
[root@node1 ~]# cd /usr/local/mycat/
[root@node1 mycat]# ls
bin  catlet  conf  lib  logs  version.txt
[root@node1 mycat]# cd conf/
[root@node1 conf]# ls
autopartition-long.txt       migrateTables.properties     sequence_distributed_conf.properties
auto-sharding-long.txt       myid.properties              sequence_time_conf.properties
auto-sharding-rang-mod.txt   partition-hash-int.txt       server.xml
cacheservice.properties      partition-range-mod.txt      sharding-by-enum.txt
dnindex.properties           rule.xml                     wrapper.conf
ehcache.xml                  schema.xml                   zkconf
index_to_charset.properties  sequence_conf.properties     zkdownload
log4j2.xml                   sequence_db_conf.properties
[root@node1 conf]# vim schema.xml
<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">
<schema name="gpmall" checkSQLschema="true" sqlMaxLimit="100" dataNode="dn1"></schema>
<dataNode name="dn1" dataHost="localhost1" database="gpmall" />
<dataHost name="localhost1" maxCon="1000" minCon="10" balance="3" dbType="mysql" dbDriver="native" writeType="0" switchType="1"  slaveThreshold="100">
    <heartbeat>select user()</heartbeat>
    <writeHost host="hostM1" url="192.168.100.20:3306" user="root" password="123456">
        <readHost host="hostS1" url="192.168.100.30:3306" user="root" password="123456" />
    </writeHost>
</dataHost>
</mycat:schema>
~

[root@node1 conf]# vim server.xml
....
                <property name="schemas">gpmall</property>
....
[root@node1 conf]# cd ..
[root@node1 mycat]# cd bin/
[root@node1 bin]# ./mycat restart
Stopping Mycat-server...
Stopped Mycat-server.
Starting Mycat-server...

查看Mycat服务是否启动，命令如下：（看到8066端口说明Mycat服务启动）

复制代码
[root@node1 bin]# ss -anlt
State       Recv-Q Send-Q        Local Address:Port                       Peer Address:Port
LISTEN      0      128                       *:111                                   *:*
LISTEN      0      128                       *:6000                                  *:*
LISTEN      0      5             192.168.122.1:53                                    *:*
LISTEN      0      128                       *:22                                    *:*
LISTEN      0      128               127.0.0.1:631                                   *:*
LISTEN      0      100               127.0.0.1:25                                    *:*
LISTEN      0      128               127.0.0.1:6010                                  *:*
LISTEN      0      1                 127.0.0.1:32000                                 *:*
LISTEN      0      100                      :::9066                                 :::*
LISTEN      0      50                       :::45674                                :::*
LISTEN      0      128                      :::111                                  :::*
LISTEN      0      50        ::ffff:192.168.100.10:3888                                 :::*
LISTEN      0      128                      :::6000                                 :::*
LISTEN      0      50                       :::33842                                :::*
LISTEN      0      128                      :::22                                   :::*
LISTEN      0      128                     ::1:631                                  :::*
LISTEN      0      100                     ::1:25                                   :::*
LISTEN      0      128                     ::1:6010                                 :::*
LISTEN      0      50                       :::33853                                :::*
LISTEN      0      50                       :::1984                                 :::*
LISTEN      0      100                      :::8066                                 :::*
LISTEN      0      50        ::ffff:192.168.100.10:9092                                 :::*
LISTEN      0      50                       :::2181                                 :::*
LISTEN      0      50                       :::44326                                :::*

缓存服务器redis：

mycat：

复制代码
[root@node1 bin]# vim /etc/hosts
.....
192.168.100.10 mycat
192.168.100.20 db1
192.168.100.30 db2
192.168.100.10 zookeeper1
192.168.100.20 zookeeper2
192.168.100.30 zookeeper3
192.168.100.10 redis
~

db1：

复制代码
[root@db1 ~]# vim /etc/hosts
....
192.168.100.10 mycat
192.168.100.20 db1
192.168.100.30 db2
192.168.100.10 zookeeper1
192.168.100.20 zookeeper2
192.168.100.30 zookeeper3
192.168.100.10 redis
~

db2：

复制代码
[root@db2 ~]# vim /etc/hosts
.....
192.168.100.10 mycat
192.168.100.20 db1
192.168.100.30 db2
192.168.100.10 zookeeper1
192.168.100.20 zookeeper2
192.168.100.30 zookeeper3
192.168.100.10 redis
~

mycat：

复制代码
[root@node1 ~]# ls /etc/yum.repos.d/
server.repo
[root@node1 ~]# yum -y install redis
....
[root@node1 ~]# vim /etc/redis.conf
....
#bind 127.0.0.1
....
protected-mode no     //yes改为no
....
[root@node1 ~]# systemctl restart redis
[root@node1 ~]# systemctl enable redis
Created symlink from /etc/systemd/system/multi-user.target.wants/redis.service to /usr/lib/systemd/system/redis.service.

检查Redis服务启动，命令如下：（检查到6379端口即证明Redis服务运行）

复制代码
[root@node1 ~]# ss -anlt
State       Recv-Q Send-Q        Local Address:Port                       Peer Address:Port
LISTEN      0      128                       *:6379                                  *:*
LISTEN      0      128                       *:111                                   *:*
LISTEN      0      128                       *:6000                                  *:*
LISTEN      0      5             192.168.122.1:53                                    *:*
LISTEN      0      128                       *:22                                    *:*
LISTEN      0      128               127.0.0.1:631                                   *:*
LISTEN      0      100               127.0.0.1:25                                    *:*
LISTEN      0      128               127.0.0.1:6010                                  *:*
LISTEN      0      1                 127.0.0.1:32000                                 *:*
LISTEN      0      100                      :::9066                                 :::*
LISTEN      0      50                       :::45674                                :::*
LISTEN      0      128                      :::6379                                 :::*
LISTEN      0      128                      :::111                                  :::*
LISTEN      0      50        ::ffff:192.168.100.10:3888                                 :::*
LISTEN      0      128                      :::6000                                 :::*
LISTEN      0      50                       :::33842                                :::*
LISTEN      0      128                      :::22                                   :::*
LISTEN      0      128                     ::1:631                                  :::*
LISTEN      0      100                     ::1:25                                   :::*
LISTEN      0      128                     ::1:6010                                 :::*
LISTEN      0      50                       :::33853                                :::*
LISTEN      0      50                       :::1984                                 :::*
LISTEN      0      100                      :::8066                                 :::*
LISTEN      0      50        ::ffff:192.168.100.10:9092                                 :::*
LISTEN      0      50                       :::2181                                 :::*
LISTEN      0      50                       :::44326                                :::*

部署集群应用系统：

mycat：

复制代码
[root@node1 ~]# vim /etc/hosts
.....
192.168.100.10 mysql.mall
192.168.100.10 zk1.mall
192.168.100.20 zk2.mall
192.168.100.30 zk3.mall
192.168.100.10 kafka1.mall
192.168.100.20 kafka2.mall
192.168.100.30 kafka3.mall
192.168.100.10 redis.mall
~
[root@node1 ~]# scp /etc/hosts root@192.168.100.20:/etc/hosts
hosts                                                                    100%  521   277.0KB/s   00:00
[root@node1 ~]# scp /etc/hosts root@192.168.100.30:/etc/hosts
hosts                                                                    100%  521   415.4KB/s   00:00

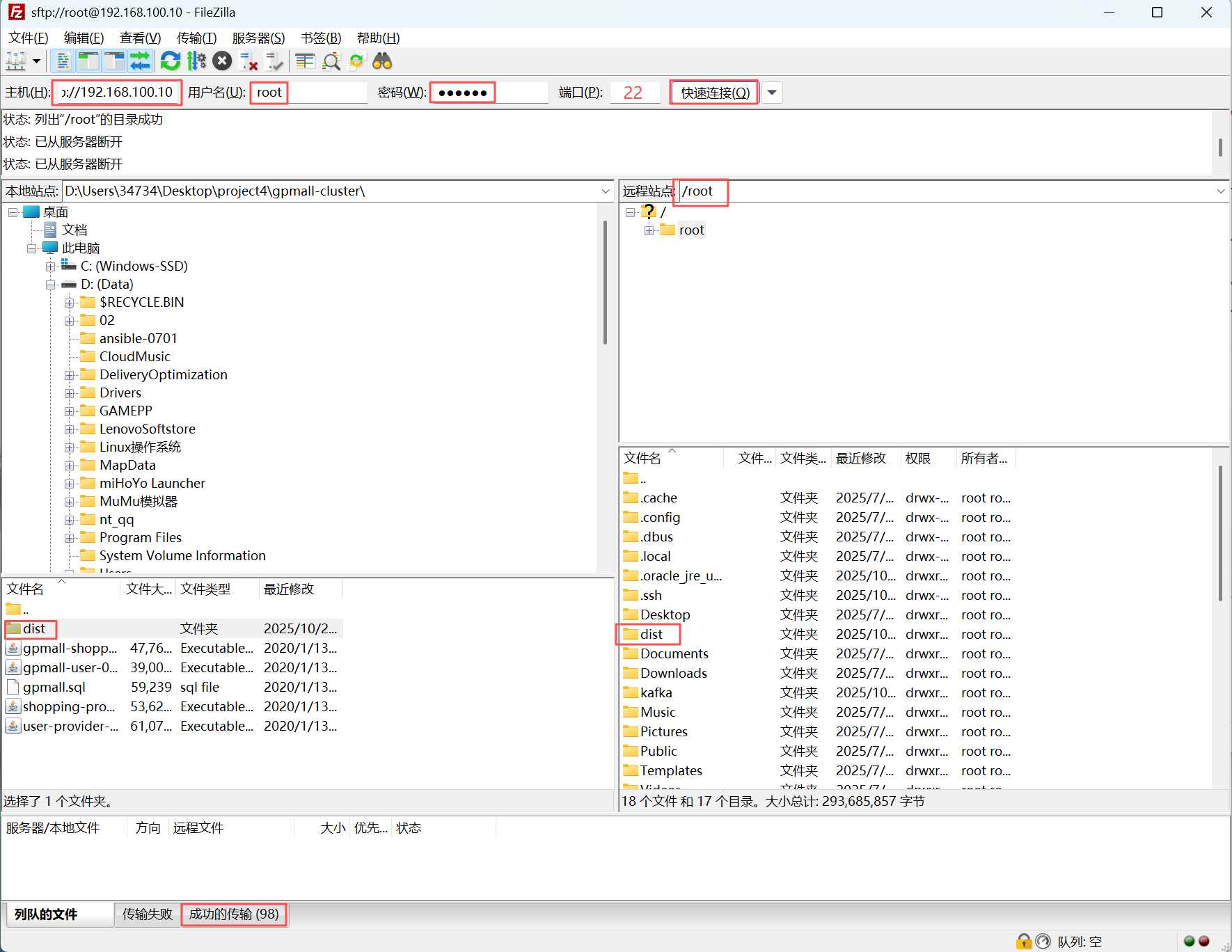

上传所需文件：

db1：

复制代码
[root@db1 ~]# rz -E
rz waiting to receive.
[root@db1 ~]# ll
total 196928
-rw-------.  1 root root     2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Downloads
-rw-r--r--   1 root root 47765234 Jan 13  2020 gpmall-shopping-0.0.1-SNAPSHOT.jar
-rw-r--r--   1 root root    59239 Jan 13  2020 gpmall.sql
-rw-r--r--   1 root root 39005479 Jan 13  2020 gpmall-user-0.0.1-SNAPSHOT.jar
-rw-r--r--.  1 root root     2076 Jul 23 11:42 initial-setup-ks.cfg
drwxr-xr-x   7 root root      101 Oct 27 16:32 kafka
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Music
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Public
-rw-r--r--   1 root root 53627038 Jan 13  2020 shopping-provider-0.0.1-SNAPSHOT.jar
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Templates
-rw-r--r--   1 root root 61077919 Jan 13  2020 user-provider-0.0.1-SNAPSHOT.jar
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root     4096 Oct 29 10:40 zookeeper
-rw-r--r--   1 root root    96151 Oct 29 16:22 zookeeper.out

[root@db1 ~]# nohup java -jar user-provider-0.0.1-SNAPSHOT.jar &
[1] 17361
[root@db1 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db1 ~]# jps
17392 Jps
17361 jar
13651 Kafka
10447 QuorumPeerMain
[root@db1 ~]# nohup java -jar shopping-provider-0.0.1-SNAPSHOT.jar &
[2] 17471
[root@db1 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db1 ~]# nohup java -jar gpmall-user-0.0.1-SNAPSHOT.jar &
[3] 17546
[root@db1 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db1 ~]# nohup java -jar gpmall-shopping-0.0.1-SNAPSHOT.jar &
[4] 17609
[root@db1 ~]# nohup: ignoring input and appending output to 'nohup.out'
[root@db1 ~]# jobs -l
[1]  17361 Running                 nohup java -jar user-provider-0.0.1-SNAPSHOT.jar &
[2]  17471 Running                 nohup java -jar shopping-provider-0.0.1-SNAPSHOT.jar &
[3]- 17546 Running                 nohup java -jar gpmall-user-0.0.1-SNAPSHOT.jar &
[4]+ 17609 Running                 nohup java -jar gpmall-shopping-0.0.1-SNAPSHOT.jar &

db2：

复制代码
[root@db2 ~]# rz -E
rz waiting to receive.
[root@db2 ~]# ll
total 196788
-rw-------.  1 root root     2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Desktop
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Downloads
-rw-r--r--   1 root root 47765234 Jan 13  2020 gpmall-shopping-0.0.1-SNAPSHOT.jar
-rw-r--r--   1 root root 39005479 Jan 13  2020 gpmall-user-0.0.1-SNAPSHOT.jar
-rw-r--r--.  1 root root     2076 Jul 23 11:42 initial-setup-ks.cfg
drwxr-xr-x   7 root root      101 Oct 27 16:32 kafka
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Music
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Public
-rw-r--r--   1 root root 53627038 Jan 13  2020 shopping-provider-0.0.1-SNAPSHOT.jar
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Templates
-rw-r--r--   1 root root 61077919 Jan 13  2020 user-provider-0.0.1-SNAPSHOT.jar
drwxr-xr-x.  2 root root        6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root     4096 Oct 29 10:41 zookeeper
-rw-r--r--   1 root root    15641 Oct 29 16:22 zookeeper.out

[root@db2 ~]# nohup java -jar user-provider-0.0.1-SNAPSHOT.jar &
[1] 16944
[root@db2 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db2 ~]# nohup java -jar shopping-provider-0.0.1-SNAPSHOT.jar &
[2] 16995
[root@db2 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db2 ~]# nohup java -jar gpmall-user-0.0.1-SNAPSHOT.jar &
[3] 17052
[root@db2 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db2 ~]# nohup java -jar gpmall-shopping-0.0.1-SNAPSHOT.jar &
[4] 17107
[root@db2 ~]# nohup: ignoring input and appending output to 'nohup.out'

[root@db2 ~]# jobs -l
[1]  16944 Running                 nohup java -jar user-provider-0.0.1-SNAPSHOT.jar &
[2]  16995 Running                 nohup java -jar shopping-provider-0.0.1-SNAPSHOT.jar &
[3]- 17052 Running                 nohup java -jar gpmall-user-0.0.1-SNAPSHOT.jar &
[4]+ 17107 Running                 nohup java -jar gpmall-shopping-0.0.1-SNAPSHOT.jar &

网站前端：

复制代码
![ScreenShot_2025-10-29_192632_360](d:\Users\34734\Desktop\ScreenShot_2025-10-29_192632_360.png)[root@node1 ~]# yum -y install nginx
.....
[root@node1 ~]# cd /usr/share/nginx/html/
[root@node1 html]# ls
50x.html  index.html
[root@node1 html]# rm -rf *
复制代码
[root@node1 ~]# ls
anaconda-ks.cfg       jdk-8u181-linux-x64.tar.gz                            Public
Desktop               kafka                                                 Templates
dist                  kafka_2.11-2.4.0.tgz                                  Videos
Documents             Music                                                 zookeeper
Downloads             Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz  zookeeper-3.4.8.tar.gz
initial-setup-ks.cfg  Pictures                                              zookeeper.out
[root@node1 ~]# ll
total 286800
-rw-------.  1 root root      2028 Jul 23 11:40 anaconda-ks.cfg
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Desktop
drwxr-xr-x   3 root root        38 Oct 29 19:23 dist
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Documents
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Downloads
-rw-r--r--.  1 root root      2076 Jul 23 11:42 initial-setup-ks.cfg
-rw-r--r--   1 root root 185646832 Oct  9  2022 jdk-8u181-linux-x64.tar.gz
drwxr-xr-x   7 root root       101 Oct 27 16:31 kafka
-rw-r--r--   1 root root  70057083 Oct  9  2022 kafka_2.11-2.4.0.tgz
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Music
-rw-r--r--   1 root root  15662280 Jan 13  2020 Mycat-server-1.6-RELEASE-20161028204710-linux.tar.gz
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Pictures
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Public
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Templates
drwxr-xr-x.  2 root root         6 Jul 23 11:43 Videos
drwxr-xr-x  10 root root      4096 Feb  6  2016 zookeeper
-rw-r--r--   1 root root  22261552 Aug  8  2022 zookeeper-3.4.8.tar.gz
-rw-r--r--   1 root root     40561 Oct 29 17:05 zookeeper.out

[root@node1 ~]# cd dist/
[root@node1 dist]# ls
index.html  static
[root@node1 dist]# ll
total 4
-rw-r--r--  1 root root 727 Oct 29 19:23 index.html
drwxr-xr-x 10 root root 101 Oct 29 19:23 static
[root@node1 ~]# cp -rvf dist/* /usr/share/nginx/html/
....
[root@node1 ~]# cd /usr/share/nginx/html/
[root@node1 html]# ls
index.html  static
[root@node1 html]# ll
total 4
-rw-r--r--  1 root root 727 Oct 29 19:29 index.html
drwxr-xr-x 10 root root 101 Oct 29 19:29 static
[root@node1 html]# cd /etc/nginx/
[root@node1 nginx]# ls
conf.d          koi-utf  mime.types  nginx.conf   uwsgi_params
fastcgi_params  koi-win  modules     scgi_params  win-utf
[root@node1 nginx]# cd conf.d/
[root@node1 conf.d]# ls
default.conf
[root@node1 conf.d]# cp default.conf default.conf.bak
[root@node1 conf.d]# vim default.conf
        upstream myuser {
            server 192.168.100.20:8082;
            server 192.168.100.30:8082;
            ip_hash;
        }

        upstream myshopping {
            server 192.168.100.20:8081;
            server 192.168.100.30:8081;
            ip_hash;
        }
        upstream mycashier {
            server 192.168.100.20:8083;
            server 192.168.100.30:8083;
            ip_hash;
        }

server {
    listen       80;
    server_name  localhost;

    #charset koi8-r;
    #access_log  /var/log/nginx/host.access.log  main;

    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }
    location /user {
            proxy_pass http://myuser;
        }

        location /shopping {
            proxy_pass http://myshopping;
        }
        location /cashier {
            proxy_pass http://mycashier;
        }

    #error_page  404              /404.html;
......
[root@node1 conf.d]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@node1 conf.d]# systemctl restart nginx
[root@node1 conf.d]# systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.

浏览器访问：http://192.168.100.10

相关推荐
大头an3 小时前
一网打尽：手把手教你搭建PXE网络启动服务器
运维
阿沁QWQ3 小时前
Linux进程信号
linux·运维·服务器
云动雨颤4 小时前
Docker容器使用指南：从概念到命令实操
运维·docker·容器
北邮-吴怀玉4 小时前
1.4.5 大数据方法论与实践指南-安全&合规
大数据·运维·网络·数据治理
dessler5 小时前
Elasticsearch（ES）常用运维命令
linux·运维·elasticsearch
凯子坚持 c5 小时前
Docker镜像仓库的深度解析与实战指南
运维·docker·容器
东亚_劲夫5 小时前
Linux线程
linux·运维
搬砖的小码农_Sky5 小时前
Ubuntu Server 命令行关机指南
linux·运维·ubuntu
yangmf20406 小时前
如何使用证书认证连接 Easysearch
运维·elasticsearch·搜索引擎
热门推荐
01GitHub 镜像站点02UV安装并设置国内源03BongoCat - 跨平台键盘猫动画工具04GitLab 零基础入门指南：从安装到项目管理全流程05Linux下V2Ray安装配置指南06NVIDIA显卡驱动、CUDA、cuDNN 和 TensorRT 版本匹配指南07Labelme从安装到标注：零基础完整指南08安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）09jdk21下载、安装（Windows、Linux、macOS）10在VSCode配置Java开发环境的保姆级教程（适配各类AI编程IDE）
