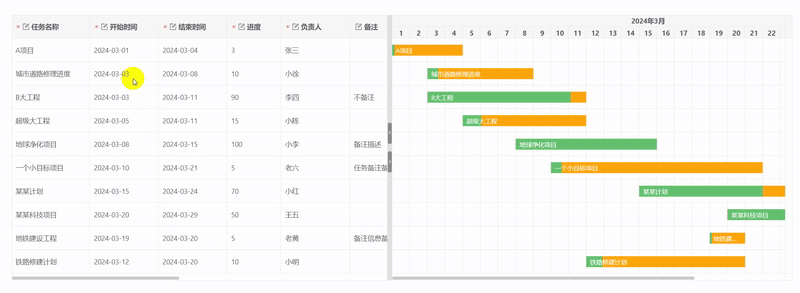

如何实现 vxe-gantt 甘特图编辑左侧表格数据自动更新右侧进度视图，，通过监听左侧表格的 edit-closed 编辑结束事件，然后在调用 refreshTaskView 方法来刷新视图，就可以达到实时更新进度效果效果
html
<template>
<div>
<vxe-gantt ref="ganttRef" v-bind="ganttOptions" v-on="ganttEvents"></vxe-gantt>
</div>
</template>
<script setup>
import { ref, reactive } from 'vue'
const ganttRef = ref()
const ganttOptions = reactive({
border: true,
taskConfig: {
titleField: 'name',
startField: 'startDate',
endField: 'endDate',
progressField: 'progress'
},
taskBarConfig: {
showProgress: true,
showContent: true,
barStyle: {
bgColor: '#fca60b',
completedBgColor: '#65c16f'
}
},
taskViewConfig: {
tableStyle: {
width: 380
}
},
editConfig: {
mode: 'cell',
trigger: 'click'
},
editRules: {
name: [
{ required: true, message: '任务名称必填' }
],
startDate: [
{ required: true, message: '开始时间必填' }
],
endDate: [
{ required: true, message: '结束时间必填' }
],
progress: [
{ required: true, message: '进度必填' }
],
responsibleBy: [
{ required: true, message: '进度必填' }
]
},
columns: [
{ field: 'name', title: '任务名称', minWidth: 160, editRender: { name: 'VxeInput' } },
{ field: 'startDate', title: '开始时间', width: 140, editRender: { name: 'VxeDatePicker' } },
{ field: 'endDate', title: '结束时间', width: 140, editRender: { name: 'VxeDatePicker' } },
{ field: 'progress', title: '进度', width: 110, editRender: { name: 'VxeNumberInput', props: { type: 'integer', min: 0, max: 100 } } },
{ field: 'responsibleBy', title: '负责人', width: 140, editRender: { name: 'VxeInput' } },
{ field: 'description', title: '备注', width: 200, editRender: { name: 'VxeInput' } },
{ field: 'createBy', title: '创建人', width: 160 },
{ field: 'updateBy', title: '最后更新人', width: 180 },
{ field: 'createDate', title: '创建时间', width: 140 },
{ field: 'updateDate', title: '更新时间', width: 140 }
],
data: [
{ id: 10001, name: 'A项目', startDate: '2024-03-01', endDate: '2024-03-04', progress: 3, responsibleBy: '张三', description: '', createBy: '小明', updateBy: '小陈', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/bq475.gif'], fileList: [{ name: 'fj577.jpg', url: 'https://vxeui.com/resource/img/fj577.jpg', size: 6054 }] },
{ id: 10002, name: '城市道路修理进度', startDate: '2024-03-03', endDate: '2024-03-08', progress: 10, responsibleBy: '小徐', description: '', createBy: '小徐', updateBy: '小徐', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/bq673.gif'], fileList: [] },
{ id: 10003, name: 'B大工程', startDate: '2024-03-03', endDate: '2024-03-11', progress: 90, responsibleBy: '李四', description: '不备注', createBy: '李四', updateBy: '老黄', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: [], fileList: [{ name: 'bq987.gif', url: 'https://vxeui.com/resource/img/bq987.gif', size: 6054 }] },
{ id: 10004, name: '超级大工程', startDate: '2024-03-05', endDate: '2024-03-11', progress: 15, responsibleBy: '小陈', description: '', createBy: '小红', updateBy: '小陈', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/fj577.jpg'], fileList: [] },
{ id: 10005, name: '地球净化项目', startDate: '2024-03-08', endDate: '2024-03-15', progress: 100, responsibleBy: '小李', description: '备注描述', createBy: '小李', updateBy: '小李', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: [], fileList: [] },
{ id: 10006, name: '一个小目标项目', startDate: '2024-03-10', endDate: '2024-03-21', progress: 5, responsibleBy: '老六', description: '任务备注备注备注', createBy: '小陈', updateBy: '王五', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/fj124.jpeg'], fileList: [{ name: 'fj586.pn', url: 'https://vxeui.com/resource/img/fj586.png', size: 75064 }] },
{ id: 10007, name: '某某计划', startDate: '2024-03-15', endDate: '2024-03-24', progress: 70, responsibleBy: '小红', description: '', createBy: '张三', updateBy: '小红', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/fj581.jpeg'], fileList: [] },
{ id: 10008, name: '某某科技项目', startDate: '2024-03-20', endDate: '2024-03-29', progress: 50, responsibleBy: '王五', description: '', createBy: '小明', updateBy: '小徐', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/fj586.png'], fileList: [{ name: 'fj843.jpg', url: 'https://vxeui.com/resource/img/fj843.jpg', size: 10240 }] },
{ id: 10009, name: '地铁建设工程', startDate: '2024-03-19', endDate: '2024-03-20', progress: 5, responsibleBy: '老黄', description: '备注信息备注信息', createBy: '李四', updateBy: '小明', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: [], fileList: [] },
{ id: 10010, name: '铁路修建计划', startDate: '2024-03-12', endDate: '2024-03-20', progress: 10, responsibleBy: '小明', description: '', createBy: '王五', updateBy: '老黄', createDate: '2024-03-01', updateDate: '2024-03-02', imgList: ['https://vxeui.com/resource/img/fj843.jpg'], fileList: [] }
]
})
const ganttEvents = {
editClosed () {
const $gantt = ganttRef.value
if ($gantt) {
// 修改任务时间后刷新视图
$gantt.refreshTaskView()
}
}
}
</script>
