前言
Xmind 是全球领先的思维导图软件,能够快速整理思路、激发灵感、规划项目与高效协作，操作起来也很方便。
本文做一个简单版的类似Xmind的思维导图Demo，可供学习参考。
本文测试运行环境：Qt5.15+vs2019

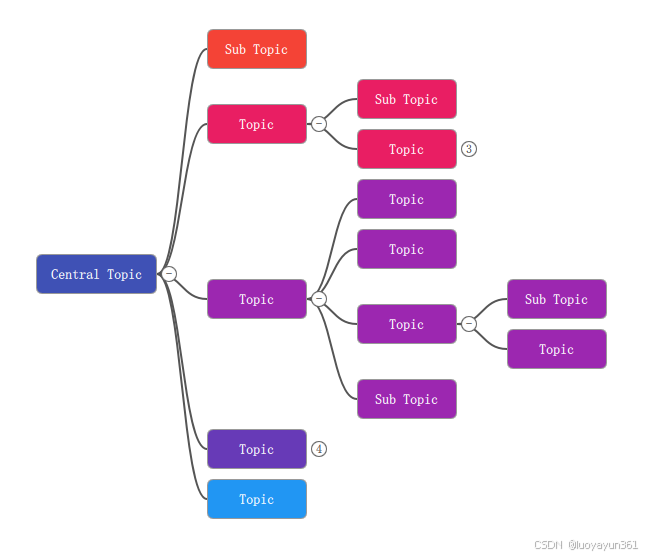

Demo使用简介
跟Xmind的快捷键一样，选中当前节点后，
Enter：创建同级节点
Tab：创建子节点
键盘方向键：切换当前节点
Delete：删除当前节点
点击节点交接处：可折叠所有子节点树，折叠后数字显示下一级的节点数量（不会递归遍历；
拖动根节点：可以移动整个节点树；
拖动根节点到右侧和下侧边缘，自动拓展画布，保证节点树完整显示在画布中；
关键代码

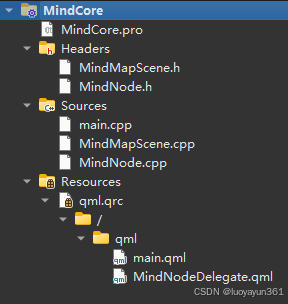

目录结构：
节点代码：
cpp
import QtQuick 2.15
import QtQuick.Shapes 1.15
import QtQuick.Controls 2.15
import MindCore 1.0
Item {
id: root
property MindNode node
property real pressSceneX: 0
property real pressSceneY: 0
property int rootStartX: 0
property int rootStartY: 0
property bool draggingRoot: false
// Position is controlled by C++ Layout
x: (node && node.parentNode) ? (node.x - node.parentNode.x) : (node ? node.x : 0)
y: (node && node.parentNode) ? (node.y - node.parentNode.y) : (node ? node.y : 0)
width: bg.width
height: bg.height
// Push size changes to Node
onWidthChanged: {
if (node && node.width !== width) {
node.width = width
debouncedLayoutUpdate.restart()
}
}
onHeightChanged: {
if (node && node.height !== height) {
node.height = height
debouncedLayoutUpdate.restart()
}
}
Timer {
id: debouncedLayoutUpdate
interval: 10
repeat: false
onTriggered: mindMapScene.updateLayout()
}
// Connection Line (Canvas-based to reduce jagged edges)
Item {
id: linkLayer
visible: node && node.parentNode
z: -1
property real gap: (node && node.parentNode) ? (node.x - node.parentNode.x - node.parentNode.width) : 0
property real extendLeft: Math.max(0, gap)
property real parentCenterRel: (node && node.parentNode) ? (node.parentNode.y - node.y) + (node.parentNode.height / 2) : 0
property real childCenter: root.height / 2
property int vpad: 6
x: -extendLeft
y: Math.min(parentCenterRel, childCenter) - vpad
width: root.width + extendLeft
height: Math.abs(parentCenterRel - childCenter) + vpad * 2
Canvas {
id: connectionCanvas
anchors.fill: parent
antialiasing: true
onPaint: {
var ctx = connectionCanvas.getContext('2d')
ctx.clearRect(0, 0, width, height)
ctx.lineWidth = 2
ctx.strokeStyle = (node && node.selected) ? '#2196F3' : '#555'
ctx.lineJoin = 'round'
ctx.lineCap = 'round'
var parentX = (node && node.parentNode) ? node.parentNode.x : 0
var parentY = (node && node.parentNode) ? node.parentNode.y : 0
var parentW = (node && node.parentNode) ? node.parentNode.width : 0
var parentH = (node && node.parentNode) ? node.parentNode.height : 0
var myX = node ? node.x : 0
var myY = node ? node.y : 0
var startX = 0
var startY = linkLayer.parentCenterRel - linkLayer.y
var endX = linkLayer.extendLeft
var endY = linkLayer.childCenter - linkLayer.y
var cpOffset = Math.abs(endX - startX) / 2
ctx.beginPath()
ctx.moveTo(startX, startY)
ctx.bezierCurveTo(startX + cpOffset, startY, endX - cpOffset, endY, endX, endY)
ctx.stroke()
}
onVisibleChanged: if (visible) connectionCanvas.requestPaint()
onWidthChanged: connectionCanvas.requestPaint()
onHeightChanged: connectionCanvas.requestPaint()
Component.onCompleted: connectionCanvas.requestPaint()
}
Connections {
target: node
function onXChanged() { connectionCanvas.requestPaint() }
function onYChanged() { connectionCanvas.requestPaint() }
function onWidthChanged() { connectionCanvas.requestPaint() }
function onHeightChanged() { connectionCanvas.requestPaint() }
function onSelectedChanged() { connectionCanvas.requestPaint() }
}
Connections {
target: node ? node.parentNode : null
function onXChanged() { connectionCanvas.requestPaint() }
function onYChanged() { connectionCanvas.requestPaint() }
function onWidthChanged() { connectionCanvas.requestPaint() }
function onHeightChanged() { connectionCanvas.requestPaint() }
}
Connections {
target: linkLayer
function onExtendLeftChanged() { connectionCanvas.requestPaint() }
function onYChanged() { connectionCanvas.requestPaint() }
function onHeightChanged() { connectionCanvas.requestPaint() }
function onParentCenterRelChanged() { connectionCanvas.requestPaint() }
function onChildCenterChanged() { connectionCanvas.requestPaint() }
}
}
// Node Visual
Rectangle {
id: bg
// Size determined by text
width: Math.max(100, textInput.contentWidth + 30)
height: Math.max(40, textInput.contentHeight + 20)
radius: 6
color: (node && node.selected) ? "#E3F2FD" : ((node && node.color) || "#E0E0E0")
border.color: (node && node.selected) ? "#2196F3" : "#999"
border.width: (node && node.selected) ? 3 : 1
TextInput {
id: textInput
anchors.centerIn: parent
text: node ? node.text : ""
color: (node && node.selected) ? "black" : "white"
font.pixelSize: 14
font.bold:true
selectByMouse: true
// Update node text
onTextEdited: if (node) node.text = text
// Prevent Enter from adding new line, instead trigger "done"
Keys.onReturnPressed: {
if (node) node.text = text
parent.forceActiveFocus() // De-focus
}
activeFocusOnTab: false
}
MouseArea {
id: dragArea
anchors.fill: parent
propagateComposedEvents: true
preventStealing: true
acceptedButtons: Qt.LeftButton
onPressed: {
if (node) {
mindMapScene.selectNode(node)
root.forceActiveFocus()
}
if (node && !node.parentNode) {
var p = dragArea.mapToItem(canvas, mouse.x, mouse.y)
pressSceneX = p.x
pressSceneY = p.y
rootStartX = node.x
rootStartY = node.y
draggingRoot = true
console.log('[Drag] press at scene(', pressSceneX, ',', pressSceneY, ') rootStart(', rootStartX, ',', rootStartY, ')')
}
}
onPositionChanged: {
if (draggingRoot) {
var p = dragArea.mapToItem(canvas, mouse.x, mouse.y)
mindMapScene.setRootPosition(rootStartX + (p.x - pressSceneX), rootStartY + (p.y - pressSceneY))
console.log('[Drag] move to scene(', p.x, ',', p.y, ')')
}
}
onReleased: {
draggingRoot = false
console.log('[Drag] released')
}
onDoubleClicked: {
textInput.forceActiveFocus()
textInput.selectAll()
}
}
}
// Collapse toggle button at junction when node has children
Rectangle {
id: toggleBtn
width: 16
height: 16
radius: 8
color: "#FFFFFF"
border.color: "#666"
border.width: 1
x: bg.width + 4
y: bg.height / 2 - height / 2
visible: node && node.childNodes && node.childNodes.length > 0
z: 10
MouseArea {
anchors.fill: parent
onClicked: {
mindMapScene.toggleCollapse(node)
}
}
Text {
text: (node && node.childNodes && node.childNodes.length > 0) ? (node.collapsed ? String(node.childNodes.length) : "-") : ""
anchors.centerIn: parent
font.pixelSize: 12
color: "#333"
}
}
// Recursively render children
Repeater {
model: (node && !node.collapsed) ? node.childNodes : null
delegate: Loader {
// Use Loader to break recursive dependency at parse time
source: "MindNodeDelegate.qml"
// Pass the node to the loaded delegate
onLoaded: {
if (item) {
item.node = modelData
}
}
// Ensure the binding stays active if modelData changes
Binding {
target: item
property: "node"
value: modelData
when: item !== null
}
}
}
}主场景代码，C++实现
cpp
// 在指定父节点下添加一个子节点，并自动选中与重新布局
void MindMapScene::addNode(MindNode* parent)
{
if (!parent) return;
MindNode* newNode = new MindNode(this);
newNode->setText("Sub Topic");
parent->addChild(newNode);
qDebug() << "[addNode] parent=" << parent->text() << ", children after=" << parent->children().size();
// Auto select new node
selectNode(newNode);
updateLayout();
}
// 在当前节点的同一父节点下添加一个兄弟节点
void MindMapScene::addSibling(MindNode* node)
{
if (!node) return;
if (node == m_rootNode) return; // Root has no sibling
MindNode* parent = node->parentNode();
if (parent) {
MindNode* newNode = new MindNode(this);
newNode->setText("Topic");
parent->addChild(newNode);
qDebug() << "[addSibling] base=" << node->text() << ", parent=" << parent->text() << ", children after=" << parent->children().size();
selectNode(newNode);
updateLayout();
}
}
// 递归平移整棵子树，用于拖拽根节点移动
void MindMapScene::translateTree(MindNode* node, int dx, int dy)
{
if (!node) return;
node->setX(node->x() + dx);
node->setY(node->y() + dy);
for (MindNode* child : node->children()) {
translateTree(child, dx, dy);
}
}
// 为当前选中节点添加子节点
void MindMapScene::addChildToSelected()
{
if (m_selectedNode) {
addNode(m_selectedNode);
}
}
// 为当前选中节点添加兄弟节点
void MindMapScene::addSiblingToSelected()
{
if (m_selectedNode) {
addSibling(m_selectedNode);
}
}
// 切换选中节点（仅一个选中态）
void MindMapScene::selectNode(MindNode* node)
{
if (m_selectedNode) {
m_selectedNode->setSelected(false);
}
m_selectedNode = node;
if (m_selectedNode) {
m_selectedNode->setSelected(true);
qDebug() << "[selectNode]" << m_selectedNode->text() << "pos(" << m_selectedNode->x() << "," << m_selectedNode->y() << ")";
}
}
// Helper to store calculated subtree heights
struct NodeLayoutInfo {
int totalHeight;
};
QMap<MindNode*, NodeLayoutInfo> layoutCache;
// 计算某节点子树的垂直占用高度（用于自顶向下布局）
int MindMapScene::calculateSubtreeHeight(MindNode* node)
{
if (node->children().isEmpty() || node->collapsed()) {
int h = node->height();
layoutCache[node] = { h };
// qDebug() << "[height]" << node->text() << "leaf height=" << h;
return h;
}
int childrenHeight = 0;
for (MindNode* child : node->children()) {
childrenHeight += calculateSubtreeHeight(child);
}
// Add spacing
childrenHeight += (node->children().count() - 1) * 10; // 10px vertical gap
int totalH = qMax(node->height(), childrenHeight);
layoutCache[node] = { totalH };
// qDebug() << "[height]" << node->text() << "childrenH=" << childrenHeight << "selfH=" << node->height() << "totalH=" << totalH;
return totalH;
}
void recursiveSetPos(MindNode* node, int x, int centerY) {
// Set current node position
// node->y should be top-left
node->setX(x);
node->setY(centerY - node->height() / 2);
if (!node->parentNode()) {
qDebug() << "[layout-root] x=" << x << " centerY=" << centerY << " topLeftY=" << node->y();
}
if (node->children().isEmpty() || node->collapsed()) return;
int startY = centerY - layoutCache[node].totalHeight / 2;
// If node height is larger than children total height, we center children relative to node?
// Or we just use the total height which covers both.
// Actually, if children height < node height, we should center children.
// But layoutCache[node].totalHeight is max(node->h, childrenH).
// Recalculate exact startY for children to be centered
int childrenTotalHeight = 0;
for (MindNode* child : node->children()) {
childrenTotalHeight += layoutCache[child].totalHeight;
}
childrenTotalHeight += (node->children().count() - 1) * 10;
int currentChildY = centerY - childrenTotalHeight / 2;
for (MindNode* child : node->children()) {
int childH = layoutCache[child].totalHeight;
recursiveSetPos(child, x + node->width() + 50, currentChildY + childH / 2);
currentChildY += childH + 10;
}
}
// 重新计算并应用整棵树的布局，保持根节点位置（已移动过）不变
void MindMapScene::updateLayout()
{
layoutCache.clear();
calculateSubtreeHeight(m_rootNode);
// Start layout from center of the view?
// For now, let's say root is at (50, 50 + totalHeight/2)
// Or just (50, totalHeight/2)
int totalH = layoutCache[m_rootNode].totalHeight;
if (m_rootNode->x() == 0 && m_rootNode->y() == 0) {
const int canvasW = 2000;
const int canvasH = 2000;
int rootX = canvasW / 2 - m_rootNode->width() / 2;
int rootCenterY = canvasH / 2;
qDebug() << "[updateLayout] first layout, center root at" << rootX << "," << rootCenterY << " totalH=" << totalH;
recursiveSetPos(m_rootNode, rootX, rootCenterY);
} else {
recursiveSetPos(m_rootNode, m_rootNode->x(), m_rootNode->y() + m_rootNode->height() / 2);
}
setNodeColorRecursive(m_rootNode, 0);
// 根据树的包围盒调整画布尺寸与位置
updateContentSizeAndClampToEdges();
emit layoutChanged();
}
// 拖拽根节点时的移动（整棵树平移）
void MindMapScene::moveRootNode(int deltaX, int deltaY)
{
if (m_rootNode) {
qDebug() << "[moveRootNode] dx=" << deltaX;
translateTree(m_rootNode, deltaX, deltaY);
updateContentSizeAndClampToEdges();
emit layoutChanged();
}
}
// 精确设置根节点位置（按鼠标场景坐标）
void MindMapScene::setRootPosition(int x, int y)
{
if (!m_rootNode) return;
int dx = x - m_rootNode->x();
int dy = y - m_rootNode->y();
qDebug() << "[setRootPosition] target(" << x << "," << y << ") dx=" << dx << " dy=" << dy;
translateTree(m_rootNode, dx, dy);
updateContentSizeAndClampToEdges();
emit layoutChanged();
}
