Flutter---通用子项的图片个数不同（1）

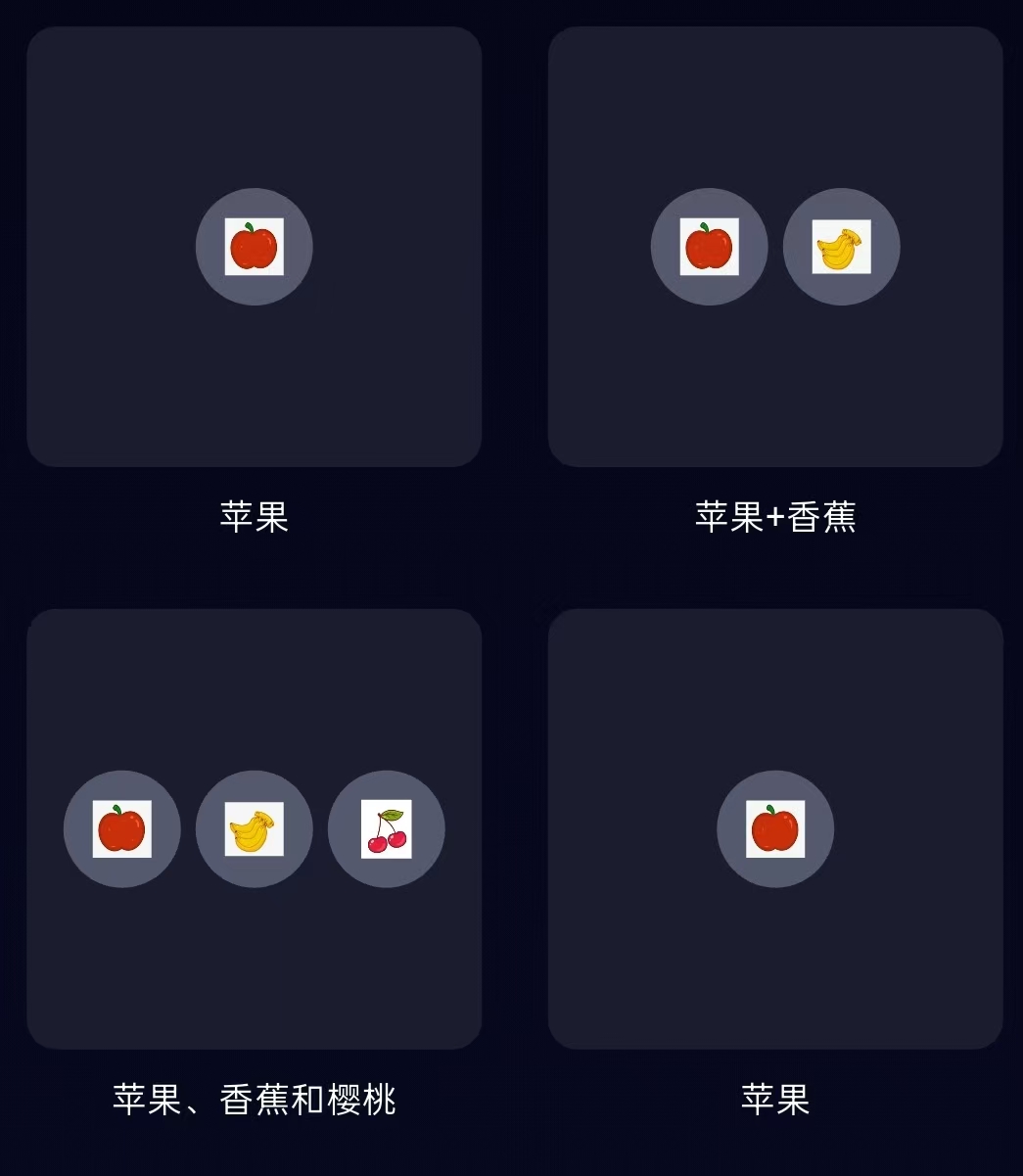

效果图

实现步骤

1.构建网格通用子项

Dart 复制代码

Widget _buildInAudioItem({
    required String name,
    required List<String> images, //关键：使用列表存储图片
    required VoidCallback onTap,
    double imageSize = 40,
  }){
    return Column(
      children: [
        GestureDetector(
          onTap: onTap,
          child: Container(
            height: 150,
            width: 155,
            decoration: BoxDecoration(
                color:Color(0xFF1B1D2E),
                borderRadius: BorderRadius.circular(10)
            ),
            child: Center(
              child: _buildImageLayout(images,imageSize:imageSize), //关键：传递图片和图片尺寸给显示图片的方法
            ),
          ),
        ),
        SizedBox(height: 8),

        Text(name,style: TextStyle(color: Colors.white,fontSize: 12),),
      ],
    );
  }

2.构建图片的布局，根据用户传递的图片个数传递不同的UI格式

Dart 复制代码

  Widget _buildImageLayout(List<String> images, {double imageSize = 40}) {
    int count = images.length; //传递的图片个数

    if (count == 1) {
      // 单个图片居中显示
      return Container(
        height: imageSize,
        width: imageSize,
        decoration: BoxDecoration(
          color: Color(0xFF55596D),
          borderRadius: BorderRadius.circular(imageSize / 2),
        ),
        child: Center(
          child: Image.asset(
            images[0],
            width: imageSize * 0.5,
            height: imageSize * 0.5,
          ),
        ),
      );
    } else if (count == 2) {
      // 两个图片并排
      return Row(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          _buildSingleImage(images[0], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[1], imageSize: imageSize),
        ],
      );
    } else if (count == 3) {
      // 三个或以上图片，显示前三个
      return Row(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          _buildSingleImage(images[0], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[1], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[2], imageSize: imageSize),
        ],
      );
    }

    return SizedBox.shrink();
  }

3.构建单个图片的组件：用圆包裹传递过来的图片

Dart 复制代码

Widget _buildSingleImage(String imagePath, {double imageSize = 40}) {
    return Container(
      height: imageSize,
      width: imageSize,
      decoration: BoxDecoration(
        color: Color(0xFF55596D),
        borderRadius: BorderRadius.circular(imageSize / 2),
      ),
      child: Center(
        child: Image.asset(
          imagePath,
          width: imageSize * 0.5,
          height: imageSize * 0.5,
        ),
      ),
    );
  }

4.使用网格列表构建整个列表UI

Dart 复制代码

  Widget buildInAudioList() {
    return Expanded(
      child: Padding(
        padding: EdgeInsets.symmetric(horizontal: 10,vertical: 40),
        child: GridView.count(
          crossAxisCount: 2,//固定列数
          crossAxisSpacing: 15,//列间距
          mainAxisSpacing: 20,//行间距
          childAspectRatio: 155/170,//子项的宽高比

          children: [

            _buildInAudioItem(
              name: "苹果",
              images: ["assets/images/apple.png"],
              onTap: () => print("点击苹果"),
            ),

            _buildInAudioItem(
              name: "苹果+香蕉",
              images: ["assets/images/apple.png", "assets/images/banana.png"],
              onTap: () => print("点击苹果+香蕉"),
            ),

            _buildInAudioItem(
              name: "苹果、香蕉和樱桃",
              images: ["assets/images/apple.png", "assets/images/banana.png", "assets/images/cherry.png"],
              onTap: () => print("点击苹果、香蕉和樱桃"),
            ),

            _buildInAudioItem(
              name: "苹果",
              images: ["assets/images/apple.png"],
              onTap: () => print("点击苹果"),
            ),

          ],
        ),
      ),


    );
  }

5.整个背景图

Dart 复制代码

@override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: Colors.transparent,
      body: Container(
        width: double.infinity,
        height: double.infinity,
        decoration: const BoxDecoration(
          gradient: LinearGradient(
            begin: Alignment.topCenter,
            end: Alignment.bottomCenter,
            colors: [
              Color(0xFF060618),
              Color(0xFF070A23),
            ],
          ),
        ),

        child: Expanded( // 使用Expanded包裹GridView
          child: buildInAudioList(),
        ),
      ),
    );
  }

代码实例

Dart 复制代码

import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';



class DemoPage extends StatefulWidget {


  const DemoPage({
    super.key,
  });

  @override
  State<DemoPage> createState() => _DemoPageState();
}

class _DemoPageState extends State<DemoPage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: Colors.transparent,
      body: Container(
        width: double.infinity,
        height: double.infinity,
        decoration: const BoxDecoration(
          gradient: LinearGradient(
            begin: Alignment.topCenter,
            end: Alignment.bottomCenter,
            colors: [
              Color(0xFF060618),
              Color(0xFF070A23),
            ],
          ),
        ),

        child: Expanded( // 使用Expanded包裹GridView
          child: buildInAudioList(),
        ),
      ),
    );
  }

  Widget buildInAudioList() {
    return Expanded(
      child: Padding(
        padding: EdgeInsets.symmetric(horizontal: 10,vertical: 40),
        child: GridView.count(
          crossAxisCount: 2,//固定列数
          crossAxisSpacing: 15,//列间距
          mainAxisSpacing: 20,//行间距
          childAspectRatio: 155/170,//子项的宽高比

          children: [

            _buildInAudioItem(
              name: "苹果",
              images: ["assets/images/apple.png"],
              onTap: () => print("点击苹果"),
            ),

            _buildInAudioItem(
              name: "苹果+香蕉",
              images: ["assets/images/apple.png", "assets/images/banana.png"],
              onTap: () => print("点击苹果+香蕉"),
            ),

            _buildInAudioItem(
              name: "苹果、香蕉和樱桃",
              images: ["assets/images/apple.png", "assets/images/banana.png", "assets/images/cherry.png"],
              onTap: () => print("点击苹果、香蕉和樱桃"),
            ),

            _buildInAudioItem(
              name: "苹果",
              images: ["assets/images/apple.png"],
              onTap: () => print("点击苹果"),
            ),

          ],
        ),
      ),


    );
  }

  //网格子项
  Widget _buildInAudioItem({
    required String name,
    required List<String> images, //关键：使用列表存储图片
    required VoidCallback onTap,
    double imageSize = 40,
  }){
    return Column(
      children: [
        GestureDetector(
          onTap: onTap,
          child: Container(
            height: 150,
            width: 155,
            decoration: BoxDecoration(
                color:Color(0xFF1B1D2E),
                borderRadius: BorderRadius.circular(10)
            ),
            child: Center(
              child: _buildImageLayout(images,imageSize:imageSize), //关键：传递图片和图片尺寸给显示图片的方法
            ),
          ),
        ),
        SizedBox(height: 8),

        Text(name,style: TextStyle(color: Colors.white,fontSize: 12),),
      ],
    );
  }

  // 构建图片布局
  Widget _buildImageLayout(List<String> images, {double imageSize = 40}) {
    int count = images.length; //传递的图片个数

    if (count == 1) {
      // 单个图片居中显示
      return Container(
        height: imageSize,
        width: imageSize,
        decoration: BoxDecoration(
          color: Color(0xFF55596D),
          borderRadius: BorderRadius.circular(imageSize / 2),
        ),
        child: Center(
          child: Image.asset(
            images[0],
            width: imageSize * 0.5,
            height: imageSize * 0.5,
          ),
        ),
      );
    } else if (count == 2) {
      // 两个图片并排
      return Row(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          _buildSingleImage(images[0], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[1], imageSize: imageSize),
        ],
      );
    } else if (count == 3) {
      // 三个或以上图片，显示前三个
      return Row(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          _buildSingleImage(images[0], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[1], imageSize: imageSize),
          SizedBox(width: 5,),
          _buildSingleImage(images[2], imageSize: imageSize),
        ],
      );
    }

    return SizedBox.shrink();
  }

// 单个图片组件
  Widget _buildSingleImage(String imagePath, {double imageSize = 40}) {
    return Container(
      height: imageSize,
      width: imageSize,
      decoration: BoxDecoration(
        color: Color(0xFF55596D),
        borderRadius: BorderRadius.circular(imageSize / 2),
      ),
      child: Center(
        child: Image.asset(
          imagePath,
          width: imageSize * 0.5,
          height: imageSize * 0.5,
        ),
      ),
    );
  }


}
