【UniApp实战】手撸面包屑导航与路由管理 (拒绝页面闪烁)

欢迎来到UniApp 实战 GitCode系列的第四篇!

现在的代码仓详情页看起来很像样了,但它还是个"哑巴"------点击文件夹没反应,点击文件也看不见代码。

今天,我们要为这个应用注入灵魂实现丝滑的层级导航与代码阅读跳转逻辑

本期我们将解决两个核心交互痛点:

  1. 文件夹"无刷新"下钻: 点击文件夹,列表原地更新,顶部出现面包屑,体验如原生 App 般流畅。

  2. 文件"新页面"打开: 点击代码文件,优雅地推入新页面,展示代码详情。

目录

第一部分:设计导航状态机

[1. 核心状态定义 (useRepoFiles.js)](#1. 核心状态定义 (useRepoFiles.js))

第二部分:实现文件夹"无刷新"下钻

[1. 面包屑导航栏 (Breadcrumb)](#1. 面包屑导航栏 (Breadcrumb))

[2. 交互逻辑实现](#2. 交互逻辑实现)

第三部分:文件内容展示 (新页面)

[1. 新建页面 /pages/code/read.vue](#1. 新建页面 /pages/code/read.vue)

深度解析:为什么这么设计?

[Q1: 为什么要用"无刷新"模式浏览文件夹?](#Q1: 为什么要用“无刷新”模式浏览文件夹?)

[Q2: 为什么点击文件要跳转新页面?](#Q2: 为什么点击文件要跳转新页面?)

[Q3: 路径参数传递的坑?](#Q3: 路径参数传递的坑?)

总结


第一部分:设计导航状态机

要实现"无刷新"进入下一级,核心思路是:不要跳转页面(不要用 uni.navigateTo),而是改变数据源。

我们需要一个"大脑"来记住当前我们在哪一层。

1. 核心状态定义 (useRepoFiles.js)

为了逻辑清晰,我们可以把文件获取逻辑抽离成一个 Composable (组合式函数)。

javascript 复制代码
// composables/useRepoFiles.js
import { ref, computed } from 'vue';

export function useRepoFiles(owner, repo, defaultBranch = 'master') {
  const currentPath = ref(''); // 当前路径,空字符串代表根目录
  const fileList = ref([]);    // 当前路径下的文件列表
  const loading = ref(false);

  // 面包屑数据计算属性
  // 输入: "src/components/Header"
  // 输出: [{name: '根目录', path: ''}, {name: 'src', path: 'src'}, ...]
  const breadcrumbs = computed(() => {
    const parts = currentPath.value ? currentPath.value.split('/') : [];
    const crumbs = [{ name: '根目录', path: '' }];

    let tempPath = '';
    parts.forEach(part => {
      tempPath = tempPath ? `${tempPath}/${part}` : part;
      crumbs.push({ name: part, path: tempPath });
    });

    return crumbs;
  });

  // 获取文件 (核心方法)
  const fetchFiles = async (path = '') => {
    loading.value = true;
    try {
      // 模拟 API 请求 (真实请替换为 uni.request)
      // URL: https://gitcode.com/api/v5/repos/{owner}/{repo}/contents/{path}
      const res = await mockApiRequest(path);

      // 排序:文件夹在文件前面
      fileList.value = res.sort((a, b) =>
        (a.type === b.type ? 0 : a.type === 'tree' ? -1 : 1)
      );

      // 更新当前路径状态
      currentPath.value = path;
    } catch (e) {
      uni.showToast({ title: '获取失败', icon: 'none' });
    } finally {
      loading.value = false;
    }
  };

  return {
    currentPath,
    fileList,
    loading,
    breadcrumbs,
    fetchFiles
  };
}

// 简单的 API 模拟
function mockApiRequest(path) {
  return new Promise(resolve => {
    setTimeout(() => {
      // ...根据 path 返回不同数据的逻辑
      resolve([]);
    }, 300);
  });
}

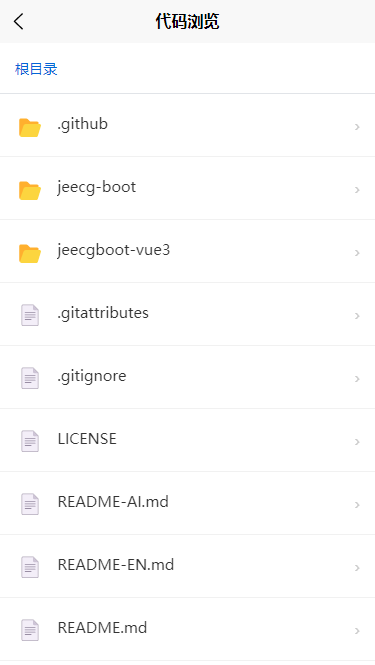

第二部分:实现文件夹"无刷新"下钻

现在回到 RepoDetail.vue 页面,我们将 UI 与上面的逻辑绑定。

1. 面包屑导航栏 (Breadcrumb)

这是层级导航的视觉核心,用户通过它知道自己在哪里,并能快速返回。

html 复制代码
<template>
  <view class="container">

    <scroll-view scroll-x class="breadcrumb-bar">
      <view class="crumb-list">
        <view
          v-for="(crumb, index) in breadcrumbs"
          :key="crumb.path"
          class="crumb-item"
          @click="handleNavigate(crumb.path)"
        >
          <text :class="{'active-crumb': index === breadcrumbs.length - 1}">
            {{ crumb.name }}
          </text>
          <text v-if="index < breadcrumbs.length - 1" class="separator">/</text>
        </view>
      </view>
    </scroll-view>

    <view class="file-list">
      <view v-if="loading" class="loading">加载中...</view>

      <view
        v-else
        v-for="file in fileList"
        :key="file.path"
        class="file-row"
        @click="handleFileClick(file)"
      >
        <text class="icon">{{ file.type === 'tree' ? '📂' : '📄' }}</text>
        <text class="name">{{ file.name }}</text>
        <text class="arrow">></text>
      </view>
    </view>

  </view>
</template>

2. 交互逻辑实现

这里是关键!点击文件夹时,我们只更新 currentPath 并重新请求 API ,而不是使用 uni.navigateTo 跳转页面。

javascript 复制代码
<script setup>
import { onLoad } from '@dcloudio/uni-app';
import { useRepoFiles } from '@/composables/useRepoFiles';

// 1. 初始化 Composable
// 假设 owner 和 repo 从 onLoad 参数获取
const {
  fileList,
  loading,
  breadcrumbs,
  fetchFiles
} = useRepoFiles('dcloud', 'uni-app');

// 2. 页面加载初始化
onLoad(() => {
  fetchFiles(''); // 加载根目录
});

// 3. 核心交互处理
const handleFileClick = (file) => {
  if (file.type === 'tree') {
    // --- 情况 A: 点击文件夹 ---
    // 无刷新进入:直接用 API 获取新路径数据
    // 下一级路径 = 当前文件对象的 path 属性
    fetchFiles(file.path);
  } else {
    // --- 情况 B: 点击文件 ---
    // 新页面打开:跳转到代码阅读页
    openCodeReader(file);
  }
};

// 4. 面包屑点击 (返回上一级/跳转)
const handleNavigate = (targetPath) => {
  fetchFiles(targetPath);
};

// 5. 跳转到代码阅读页
const openCodeReader = (file) => {
  // 必须对路径进行编码,防止路径中包含特殊字符破坏 URL 结构
  const encodedPath = encodeURIComponent(file.path);
  const encodedName = encodeURIComponent(file.name);

  uni.navigateTo({
    url: `/pages/code/read?path=${encodedPath}&name=${encodedName}`
  });
};
</script>

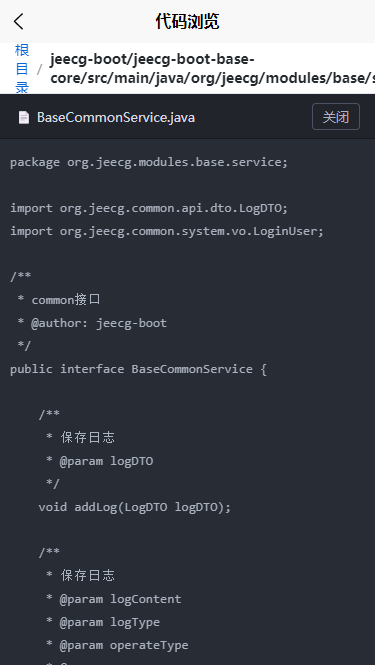

第三部分:文件内容展示 (新页面)

当用户点击文件(如 main.js)时,我们需要一个全新的页面来承载内容。因为代码阅读往往需要全屏沉浸体验。

1. 新建页面 /pages/code/read.vue

这个页面接收上一个页面传来的 path,然后请求文件内容接口(获取 Blob 数据)。

html 复制代码
<template>
  <view class="code-container">
    <view class="nav-header">{{ fileName }}</view>

    <view v-if="loading" class="loading">正在解码...</view>

    <scroll-view scroll-x scroll-y v-else class="code-box">
      <rich-text :nodes="highlightedCode"></rich-text>
    </scroll-view>
  </view>
</template>

<script setup>
import { ref } from 'vue';
import { onLoad } from '@dcloudio/uni-app';
import { Base64 } from 'js-base64';
// 假设你有一个简单的代码高亮工具函数
import { highlightCode } from '@/utils/highlighter';

const fileName = ref('');
const highlightedCode = ref('');
const loading = ref(true);

onLoad(async (options) => {
  // 1. 接收参数 (记得解码)
  fileName.value = decodeURIComponent(options.name || '');
  const filePath = decodeURIComponent(options.path || '');

  // 2. 请求文件内容
  await fetchFileContent(filePath);
});

const fetchFileContent = async (path) => {
  loading.value = true;
  try {
    // 调用 GitCode/GitHub Blob API
    const res = await uni.request({
      url: `https://gitcode.com/api/v5/repos/.../contents/${path}`
    });

    // 3. 解码 Base64 内容
    const rawContent = Base64.decode(res.data.content);

    // 4. 语法高亮处理 (转成 HTML 字符串)
    highlightedCode.value = highlightCode(rawContent, fileName.value);

  } catch (e) {
    uni.showToast({ title: '读取失败', icon: 'none' });
  } finally {
    loading.value = false;
  }
};
</script>

<style scoped>
.code-box {
  background: #282c34; /* 深色主题背景 */
  min-height: 100vh;
  padding: 20rpx;
}
</style>

深度解析:为什么这么设计?

Q1: 为什么要用"无刷新"模式浏览文件夹?

如果每点一个文件夹都 uni.navigateTo 到一个新页面:

  1. 栈溢出风险: 小程序限制页面栈深度(通常是 10 层)。如果你的目录有 11 层,用户点到第 11 层就会报错无法跳转。

  2. 体验割裂: 频繁的页面切换动画会让浏览变得很"重"。原地更新数据(AJAX 风格)才是最符合文件管理器直觉的。

Q2: 为什么点击文件要跳转新页面?

  1. 沉浸式体验: 代码阅读需要最大的屏幕空间,可能有横屏需求。

  2. 独立逻辑: 代码阅读页涉及复杂的语法高亮、行号渲染、Raw 模式切换,逻辑很重,适合拆分到独立页面。

Q3: 路径参数传递的坑?

在 uni.navigateTo 中传递 URL 参数时,如果 path 是 src/utils/index.js,里面的 / 会干扰 URL 解析。

必须使用 encodeURIComponent 对参数进行编码,在接收页使用 decodeURIComponent 解码。


总结

今天我们完成了一个类似 GitHub App 的核心导航体验:

  1. 面包屑导航:不仅好看,还是状态管理的"可视化映射"。

  2. 数据驱动视图 :通过改变 currentPath 驱动列表刷新,避免了页面栈溢出。

  3. 路由管理:合理区分"页内更新"和"页面跳转"的使用场景。

现在的 GitCode 小程序已经"动"起来了!下一期,我们将挑战更高级的功能:代码文件的语法高亮与行号显示(不仅仅是 rich-text 那么简单哦)!

觉得硬核?点个赞再走吧!
