背景需求

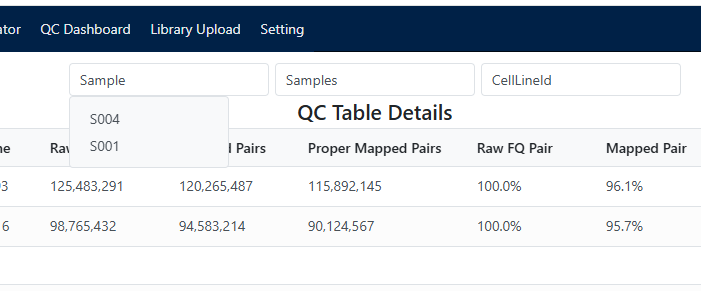

最近在开发一个Odoo项目时，客户提出了一个特定的搜索需求：希望在列表页面中展示多个多选下拉框作为过滤条件。用户选中任意下拉选项时，列表需要实时查询并显示对应的结果。
这种设计相较于Odoo原生搜索更为直观，特别是当用户需要同时基于多个维度筛选数据时，操作更加便捷。
Odoo原生搜索的局限性
Odoo作为一款国际化的开源ERP系统，其搜索功能设计理念与国内用户的使用习惯存在一定差异：
- 搜索模式单一：默认采用"搜索框+预设过滤器"的模式

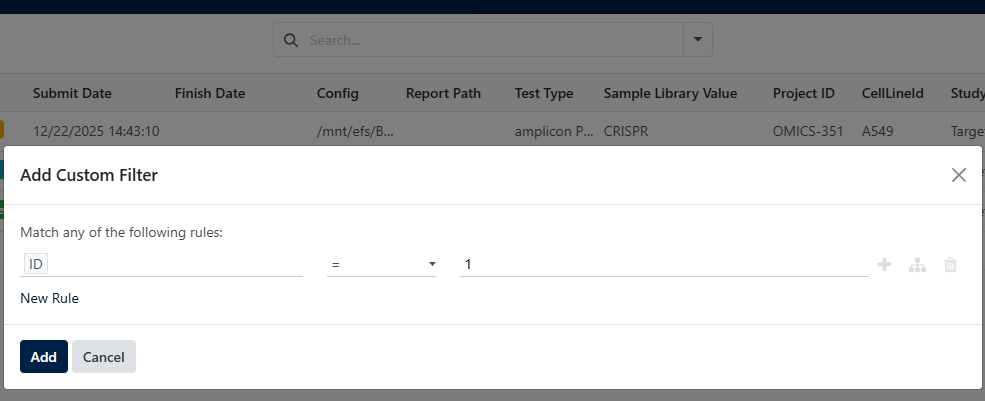

- 多条件过滤不够直观：需要点击过滤器图标，在弹出窗口中配置多个条件
- 用户体验差异：国外用户习惯文本搜索+条件组合，国内用户更习惯可视化的多选过滤
解决方案：自定义控件开发
面对这种需求差异，我们决定采用Odoo的自定义开发能力。Odoo提供了灵活的扩展机制，特别是基于QWeb模板引擎，我们可以通过以下方式实现自定义搜索控件：
- 自定义多选下拉框组件
- 集成到搜索面板
- 重写列表视图控制器
- 动态构建搜索条件
完整方案实现
1. 多选下拉框组件 (XML模板)
首先需要在XML文件中定义自定义下拉框控件视图(multi_select_widget.xml)：
<?xml version="1.0" encoding="UTF-8"?>
<templates xml:space="preserve">
<t t-name="multi_select" owl="1">
<div class="multiselect-container" t-ref="multi_select_dropdown">
<div class="form-control" t-on-click="toggleDropdown">
<span t-if="state.selected.size === 0">
<t t-esc="props.placeholder || 'Select options'"/>
</span>
<div t-if="state.selected.size === 1" class="selected-options" >
<span class="badge bg-primary me-1"
t-esc="[...state.selected][0]"/>
</div>
<div t-if="state.selected.size > 1" class="selected-options" >
<span class="badge bg-primary me-1">已选择<t t-esc="state.selected.size"></t>个<t t-esc="props.fieldName"/></span>
</div>
</div>
<div t-if="state.isOpen" class="dropdown-menu show">
<t t-foreach="props.options" t-as="option" t-key="option">
<a href="#" class="dropdown-item"
t-att-class="{'active': state.selected.has(option)}"
t-on-click="(ev) => this.selectOption(option, ev)">
<t t-esc="option"/>
</a>
</t>
</div>
<style>
.multiselect-container{
margin: 3px;
width: 200px;
}
</style>
</div>
</t>
</templates>2. 多选下拉框组件逻辑 (JavaScript)
业务逻辑我们用js来实现(multi_select_widget.js)
import { Component, useState, useRef, onMounted, onWillUnmount } from "@odoo/owl";
export class MultiSelectField extends Component {
static template = "multi_select";
static props = {
options: Array,
placeholder: { type: String, optional: true },
fieldName: String,
onChange: Function,
};
setup() {
this.dropdownRef = useRef("multi_select_dropdown");
this.state = useState({
isOpen: false,
selected: new Set(),
});
this.clickOutsideHandler = null;
this.keydownHandler = null;
onMounted(() => {
this.setupEventListeners();
});
onWillUnmount(() => {
this.cleanupEventListeners();
});
}
toggleDropdown() {
this.state.isOpen = !this.state.isOpen;
}
selectOption = (option, ev) => {
if (this.state.selected.has(option)) {
this.state.selected.delete(option);
} else {
this.state.selected.add(option);
}
this.props.onChange(this.props.fieldName, [...this.state.selected]);
}
setupEventListeners() {
this.clickOutsideHandler = (event) => {
if (!this.dropdownRef || !this.dropdownRef.el) return;
if (!this.dropdownRef.el.contains(event.target)) {
this.state.isOpen = false;
}
}
this.keydownHandler = (event) => {
if (event.key === 'Escape' && this.state.isOpen) {
event.preventDefault();
event.stopPropagation();
event.stopImmediatePropagation();
this.state.isOpen = false;
}
}
document.addEventListener('mousedown', this.clickOutsideHandler, true);
document.addEventListener('touchstart', this.clickOutsideHandler, true);
document.addEventListener('keydown', this.keydownHandler, true);
}
cleanupEventListeners() {
if (this.clickOutsideHandler) {
document.removeEventListener('mousedown', this.clickOutsideHandler, true);
document.removeEventListener('touchstart', this.clickOutsideHandler, true);
}
if (this.keydownHandler) {
document.removeEventListener('keydown', this.keydownHandler, true);
}
this.clickOutsideHandler = null;
this.keydownHandler = null;
}
}3.自定义搜索面板 (XML模板)
同样定义一个xml(search_widget.xml)
<?xml version="1.0" encoding="UTF-8"?>
<templates xml:space="preserve">
<t t-name="custom_search_panel" owl="1">
<div class="custom-search-panel" t-att-data-loading="state.loading">
<!-- 加载状态 -->
<t t-if="state.loading">
<div class="loading-state text-center p-3">
<i class="fa fa-spinner fa-spin me-2"></i>
<span>正在加载数据...</span>
</div>
</t>
<!-- 错误状态 -->
<t t-if="state.error">
<div class="error-state alert alert-warning m-3">
<i class="fa fa-exclamation-triangle me-2"></i>
<span t-esc="state.error"></span>
</div>
</t>
<!-- 正常状态 -->
<t t-if="!state.loading and !state.error">
<div class="search-filters-container">
<!-- 多选下拉框组件 -->
<MultiSelectField
fieldName="field_a"
options="state.dropdownData.field_a"
placeholder="'字段A筛选'"
onChange="(field, values) => handleSelection(field, values)"
/>
<MultiSelectField
fieldName="field_b"
options="state.dropdownData.field_b"
placeholder="'字段B筛选'"
onChange="(field, values) => handleSelection(field, values)"
/>
<MultiSelectField
fieldName="field_c"
options="state.dropdownData.field_c"
placeholder="'字段C筛选'"
onChange="(field, values) => handleSelection(field, values)"
/>
</div>
</t>
<style>
.custom-search-panel {
padding: 16px;
background: #f8f9fa;
border-bottom: 1px solid #dee2e6;
}
.search-filters-container {
display: flex;
flex-wrap: wrap;
align-items: center;
gap: 12px;
}
.loading-state {
color: #6c757d;
}
.error-state {
max-width: 600px;
margin: 0 auto;
}
</style>
</div>
</t>
</templates>4.搜索面板业务逻辑 (JavaScript)
search_widget.js
import { Component, useState, onWillStart } from "@odoo/owl";
import { registry } from "@web/core/registry";
import { useService } from "@web/core/utils/hooks";
import { MultiSelectField } from "./multi_select_widget";
export class CustomSearchPanel extends Component {
static template = "custom_search_panel";
static components = { MultiSelectField };
setup() {
// 获取服务
this.ormService = useService("orm");
// 初始化响应式状态
this.state = useState({
dropdownData: {
field_a: [],
field_b: [],
field_c: [],
},
selectedValues: {
field_a: [],
field_b: [],
field_c: [],
},
loading: false,
error: null,
});
// 组件挂载前加载数据
onWillStart(async () => {
await this.loadDropdownData();
});
}
// 加载下拉框数据
loadDropdownData = async () => {
this.state.loading = true;
this.state.error = null;
try {
// 调用后端方法获取下拉框数据
const dropdownData = await this.ormService.call(
"your.model.name", // 替换为实际模型名
"get_filter_dropdown_data", // 后端方法名
[],
{}
);
this.state.dropdownData = dropdownData;
} catch (error) {
console.error("加载下拉框数据失败:", error);
this.state.error = "加载筛选数据失败，请稍后重试";
} finally {
this.state.loading = false;
}
}
// 处理选择变化
handleSelection = async (fieldName, selectedValues) => {
// 更新选中值
this.state.selectedValues[fieldName] = selectedValues;
// 生成搜索条件
const domain = this.generateSearchDomain();
// 触发搜索更新
this.triggerSearchUpdate(domain);
}
// 生成搜索条件
generateSearchDomain() {
const domain = [];
Object.entries(this.state.selectedValues).forEach(([field, values]) => {
if (values && values.length > 0) {
// 使用 'in' 操作符支持多选
domain.push([field, 'in', values]);
}
});
return domain;
}
// 触发搜索更新
triggerSearchUpdate(domain) {
// 更新搜索模型
this.env.searchModel.updateDomain(domain);
// 发送自定义事件通知列表刷新
this.env.bus.trigger('custom_search:updated', {
domain,
timestamp: Date.now()
});
}
}
// 注册组件
registry.category("view_components").add("custom_search_panel", CustomSearchPanel);5.自定义列表控制器 (JavaScript)
import { registry } from "@web/core/registry";
import { listView } from "@web/views/list/list_view";
import { ListController } from "@web/views/list/list_controller";
import { CustomSearchPanel } from "./search_widget";
import { useBus } from "@web/core/utils/hooks";
// 扩展原生列表控制器
export class CustomListController extends ListController {
static components = {
...ListController.components,
SearchPanel: CustomSearchPanel, // 替换搜索组件
};
static template = "web.ListView";
setup() {
super.setup();
// 监听自定义搜索事件
useBus(this.env.bus, "custom_search:updated", (ev) => {
this.handleCustomSearch(ev.detail.domain);
});
}
// 处理自定义搜索
async handleCustomSearch(domain) {
try {
// 显示加载状态
this.model.isLoading = true;
this.render();
// 加载数据
await this.model.load({ domain });
// 更新分页信息
if (this.model.data) {
this.model.pager.limit = this.model.data.length;
}
} catch (error) {
console.error("搜索数据失败:", error);
} finally {
this.model.isLoading = false;
this.render();
}
}
}
// 注册自定义列表视图
registry.category("views").add("custom_multi_select_list", {
...listView,
Controller: CustomListController,
display: {
controlPanel: {
'bottom-left': false,
'bottom-right': false,
},
},
});6.后端数据接口 (Python)
# models/your_model.py
from odoo import models, fields, api
class YourModel(models.Model):
_name = 'your.model.name'
_description = '示例模型'
# 定义字段
field_a = fields.Selection([
('option1', '选项1'),
('option2', '选项2'),
('option3', '选项3'),
], string='字段A')
field_b = fields.Char(string='字段B')
field_c = fields.Many2one('related.model', string='字段C')
# 获取下拉框数据的方法
@api.model
def get_filter_dropdown_data(self):
"""返回所有下拉框的选项数据"""
return {
'field_a': self._get_field_a_options(),
'field_b': self._get_field_b_options(),
'field_c': self._get_field_c_options(),
}
def _get_field_a_options(self):
"""获取字段A的选项"""
return [
display_value
for value, display_value in self._fields['field_a'].selection
]
def _get_field_b_options(self):
"""获取字段B的去重值"""
records = self.search_read(
[('field_b', '!=', False)],
['field_b'],
limit=100
)
return sorted(list(set([
record['field_b']
for record in records
if record['field_b']
])))
def _get_field_c_options(self):
"""获取字段C的关联选项"""
related_records = self.env['related.model'].search_read(
[],
['name'],
limit=50
)
return [record['name'] for record in related_records]7. 视图配置 (XML)
<?xml version="1.0" encoding="UTF-8"?>
<odoo>
<!-- 自定义列表视图 -->
<record id="view_custom_list" model="ir.ui.view">
<field name="name">your.model.custom.list</field>
<field name="model">your.model.name</field>
<field name="arch" type="xml">
<list js_class="custom_multi_select_list">
<field name="name" string="名称"/>
<field name="field_a" string="字段A"/>
<field name="field_b" string="字段B"/>
<field name="field_c" string="字段C"/>
<!-- 其他字段 -->
</list>
</field>
</record>
</odoo>
