概念：GridView 是 Flutter 中用于创建网格布局的滚动组件，类似于表格但支持滚动。
四种创建方式
①GridView.count - 固定列数，适合简单布局
②GridView.extent - 固定最大宽度，适合简单布局
③GridView.builder - 动态创建，适合大量数据
④GridView.custom - 完全自定义，适合复杂需求
当需要瀑布流UI时需要使用到第三方库
1.GridView.count - 固定列数
Dart
GridView.count(
crossAxisCount: 3,// 每行3列
crossAxisSpacing: 10,// 列间距
mainAxisSpacing: 10,// 行间距
padding: EdgeInsets.all(10),// 内边距
childAspectRatio: 1,//子项的宽高比
children: List.generate(20, (index) {
return Container(
decoration: BoxDecoration(
color: Colors.primaries[index % Colors.primaries.length],
borderRadius: BorderRadius.circular(10),
),
child: Center(
child: Text(
'Item $index',
style: TextStyle(
color: Colors.white,
fontSize: 16,
fontWeight: FontWeight.bold,
),
),
),
);
}),

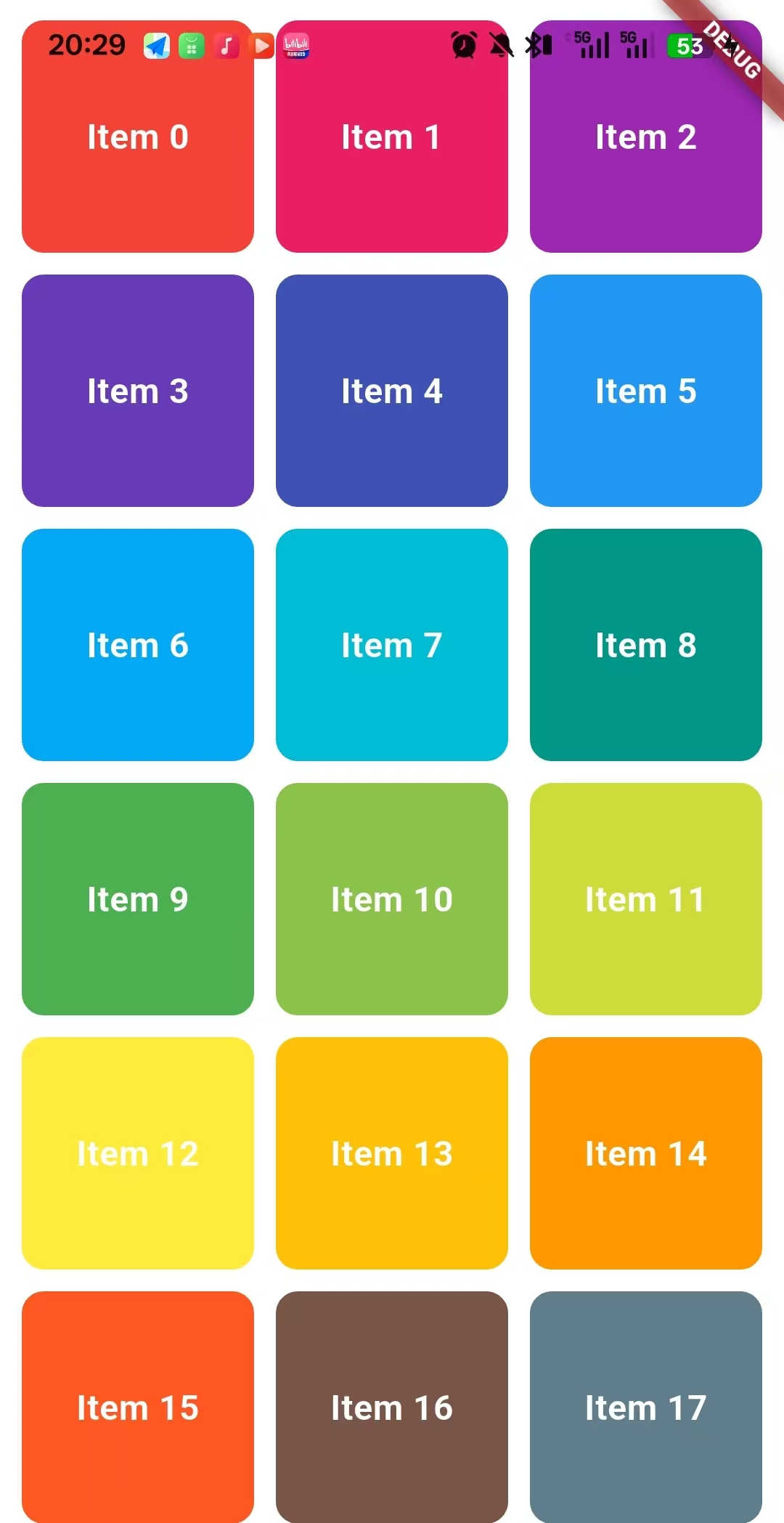

)效果图
2.GridView.extent - 固定最大宽度
Dart
GridView.extent(
maxCrossAxisExtent: 150, // 每个格子最大宽度150
crossAxisSpacing: 8, //列间距
mainAxisSpacing: 8,//行间距
padding: EdgeInsets.all(12),
children: List.generate(15, (index) {
return Card(
elevation: 3,
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Icon(
Icons.star,
size: 40,
color: Colors.amber,
),
SizedBox(height: 8),
Text(
'产品 $index',
style: TextStyle(
fontWeight: FontWeight.bold,
),
),
Text(
'\$${(index + 1) * 9.99}',
style: TextStyle(
color: Colors.green,
fontSize: 14,
),
),
],
),
);
}),

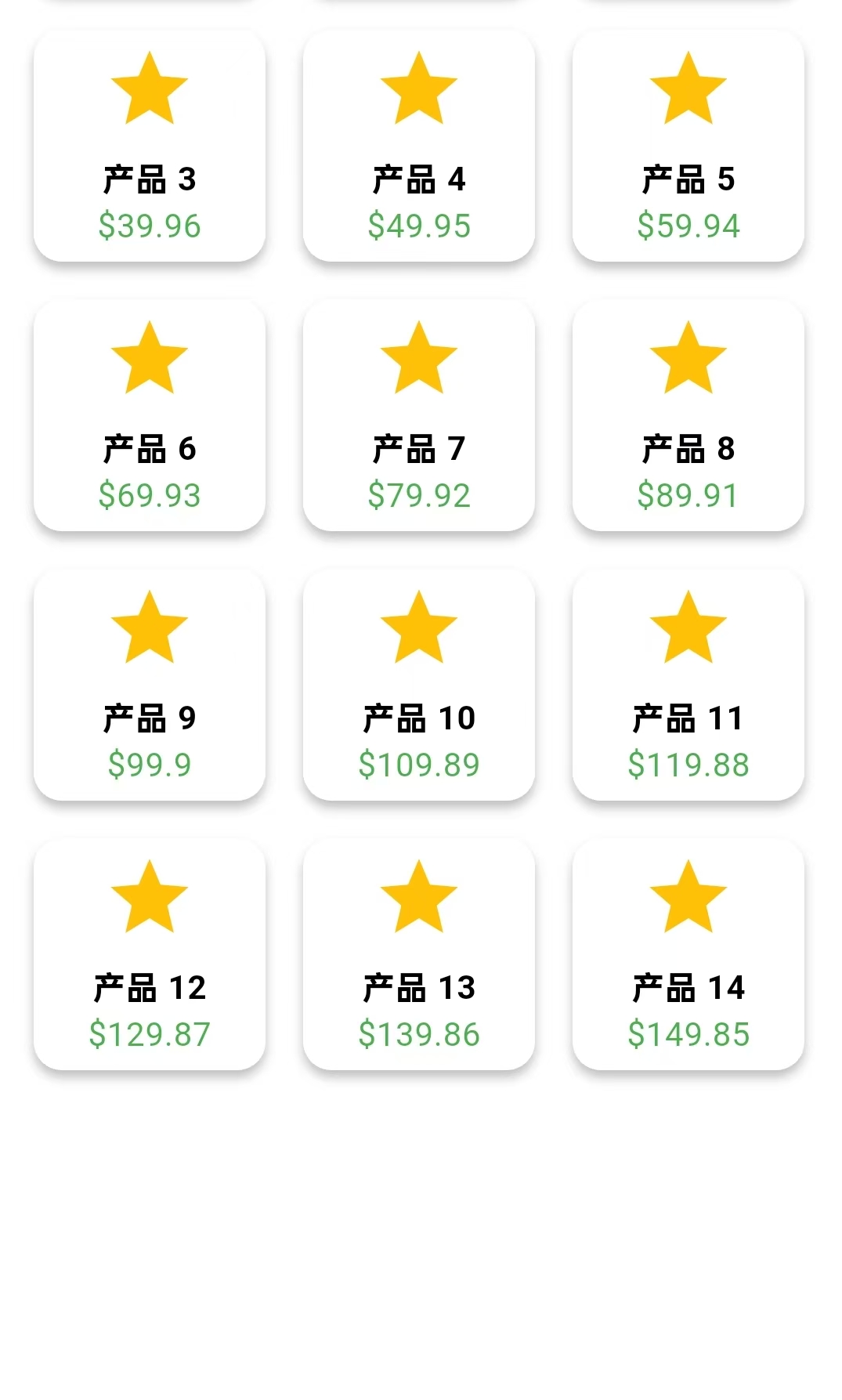

),效果图
3.GridView.builder
Dart
import 'dart:async';
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';
import 'package:my_flutter/time_page.dart';
//产品类
class Product {
final String name; //名字
final double price; //价钱
final String imageUrl;//图片
Product({required this.name, required this.price, required this.imageUrl});
}
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<StatefulWidget> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
// 准备数据
final List<Product> products = List.generate(20, (index) {
return Product(
name: '商品 $index',
price: (index + 1) * 10.0,
imageUrl: 'https://picsum.photos/seed/$index/200/200',
);
});
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: GridView.builder(
gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2, // 每行2列
crossAxisSpacing: 8,//列间距
mainAxisSpacing: 8,//行间距
childAspectRatio: 0.6, // 宽高比（宽/高）
),
padding: EdgeInsets.all(8),
itemCount: products.length, // 总项数
itemBuilder: (context, index) { //构建单个子项
final product = products[index];
return Card(
elevation: 2, //阴影大小
shape: RoundedRectangleBorder( //卡片形状
borderRadius: BorderRadius.circular(12),
),
child: InkWell(//点击效果
borderRadius: BorderRadius.circular(12),
onTap: () {
print('点击了：${product.name}');
},
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
// 图片区域
ClipRRect(
borderRadius: BorderRadius.vertical(
top: Radius.circular(12),
),
child: Image.network(
product.imageUrl,
height: 120,
width: double.infinity,
fit: BoxFit.cover,
errorBuilder: (context, error, stackTrace) { //错误时显示占位图
return Container(
height: 120,
color: Colors.grey[200],
child: Icon(Icons.broken_image),
);
},
),
),
// 商品信息
Padding(
padding: EdgeInsets.all(12),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
//商品名称
Text(
product.name,
style: TextStyle(
fontWeight: FontWeight.bold,
fontSize: 14,
),
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
SizedBox(height: 4),
//价格
Text(
'\$${product.price.toStringAsFixed(2)}',
style: TextStyle(
color: Colors.red,
fontWeight: FontWeight.bold,
fontSize: 16,
),
),
SizedBox(height: 8),
//评分和购物车按钮
Row(
children: [
//评分星星
Icon(Icons.star, color: Colors.amber, size: 16),
Icon(Icons.star, color: Colors.amber, size: 16),
Icon(Icons.star, color: Colors.amber, size: 16),
Icon(Icons.star, color: Colors.amber, size: 16),
Icon(Icons.star_half, color: Colors.amber, size: 16),
Spacer(),
//购物车按钮
IconButton(
icon: Icon(Icons.add_shopping_cart, size: 20),
onPressed: () {},
padding: EdgeInsets.zero,
),
],
),
],
),
),
],
),
),
);
},
),
),
);
}

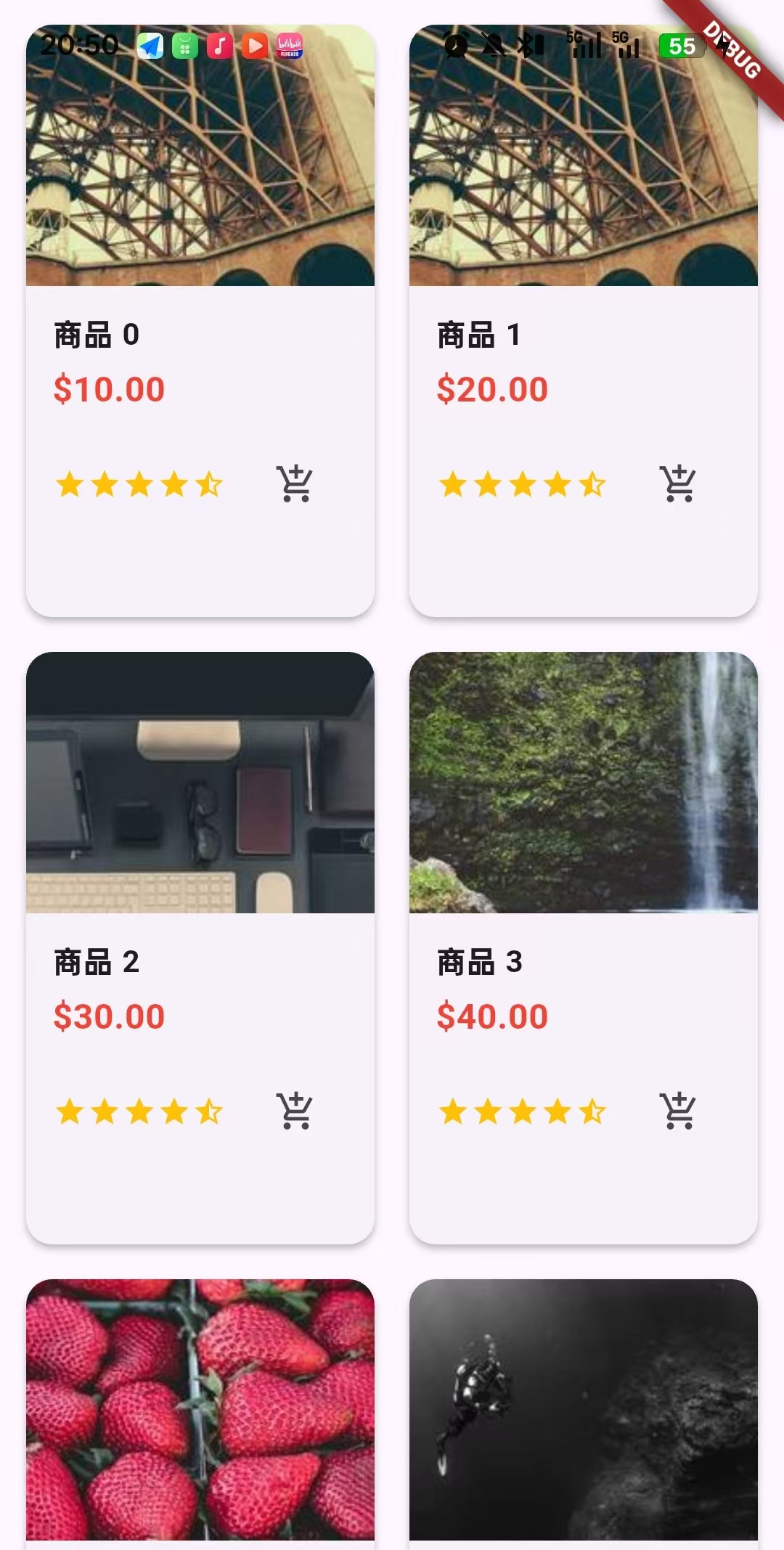

}效果图
4.GridView.custom
Dart
import 'package:flutter/material.dart';
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<StatefulWidget> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
// ================1. 自定义的SliverChildDelegate ================================
late final SliverChildDelegate delegate = SliverChildBuilderDelegate(
(BuildContext context, int index) {
// 使用自定义的KeepAlive包装器
return _CustomKeepAliveWidget(
key: ValueKey(index), // 为每个项提供唯一key
index: index, //传递索引给自定义组件
);
},
childCount: 30, //项目个数
// 1. findChildIndexCallback - 查找特定子项的索引
findChildIndexCallback: (Key key) {
if (key is ValueKey<int>) {
return key.value;
}
return null;
},
// 2. addSemanticIndexes - 语义索引
addSemanticIndexes: true,
// 3. semanticIndexCallback - 自定义语义索引
semanticIndexCallback: (Widget widget, int localIndex) {
return localIndex;
},
);
//=========================2.自定义的KeepAlive包装器===============================
Widget _CustomKeepAliveWidget({required Key key, required int index}) {
return KeepAlive(
key: key,
keepAlive: index % 3 == 0, // 每3个项目保持一个活跃状态
child: Container(
color: Colors.primaries[index % Colors.primaries.length], //颜色计算
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
// 显示保持状态的信息
if (index % 3 == 0) //条件显示图标
Icon(Icons.check_circle, color: Colors.white),
SizedBox(height: 10),
//文本
Text(
'Item $index',
style: TextStyle(
fontSize: 20,
color: Colors.white,
fontWeight: FontWeight.bold,
),
),
//状态文本
Text(
index % 3 == 0 ? '保持活跃' : '可销毁',
style: TextStyle(color: Colors.white70),
),
],
),
),
);
}
// ==========================3. 自定义的SliverGridDelegate==============================
late final SliverGridDelegate gridDelegate = SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 3,
crossAxisSpacing: 10,
mainAxisSpacing: 10,
// childAspectRatio: 1.0, // 固定比例
);
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('GridView.custom独特功能'),
),
body: GridView.custom(
gridDelegate: gridDelegate, //控制怎么布局
childrenDelegate: delegate, //控制构建什么
// 高级滚动控制
physics: const AlwaysScrollableScrollPhysics(
parent: BouncingScrollPhysics(),
),
// 性能优化
cacheExtent: 500,
// 语义化支持
semanticChildCount: 30,
// 自定义padding
padding: EdgeInsets.all(15),
// 反向滚动（如果需要）
reverse: false,
// 主滚动方向
scrollDirection: Axis.vertical,
// 是否根据内容收缩
shrinkWrap: false,
),
);
}
}
// 自定义KeepAlive组件 - 展示高级状态管理
class KeepAlive extends StatefulWidget {
final Widget child;
final bool keepAlive;
const KeepAlive({
Key? key,
required this.child,
required this.keepAlive,
}) : super(key: key);
@override
_KeepAliveState createState() => _KeepAliveState();
}
class _KeepAliveState extends State<KeepAlive>
with AutomaticKeepAliveClientMixin {
@override
bool get wantKeepAlive => widget.keepAlive;
@override
Widget build(BuildContext context) {
super.build(context); // 必须调用
return widget.child;
}

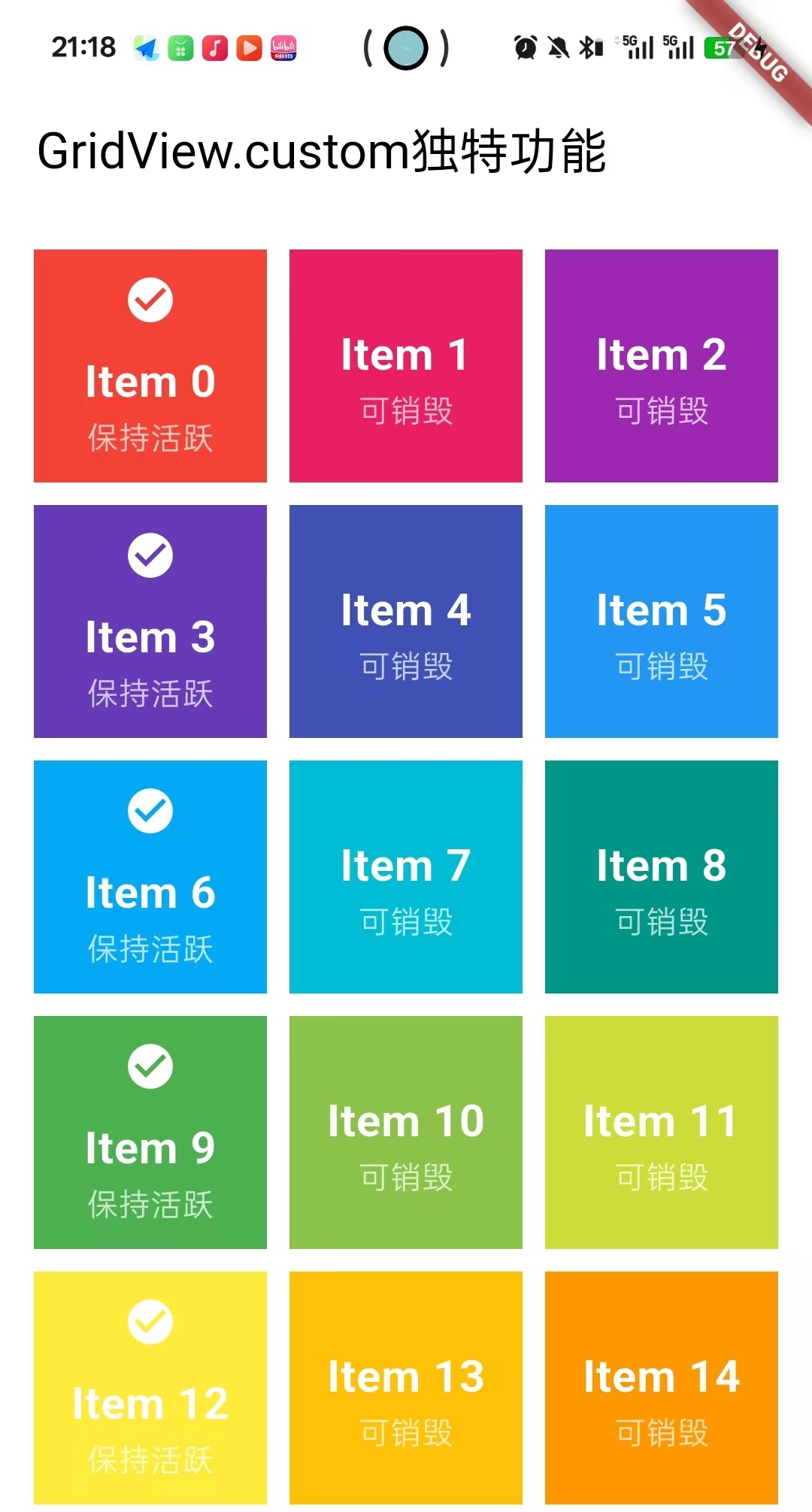

}效果图
