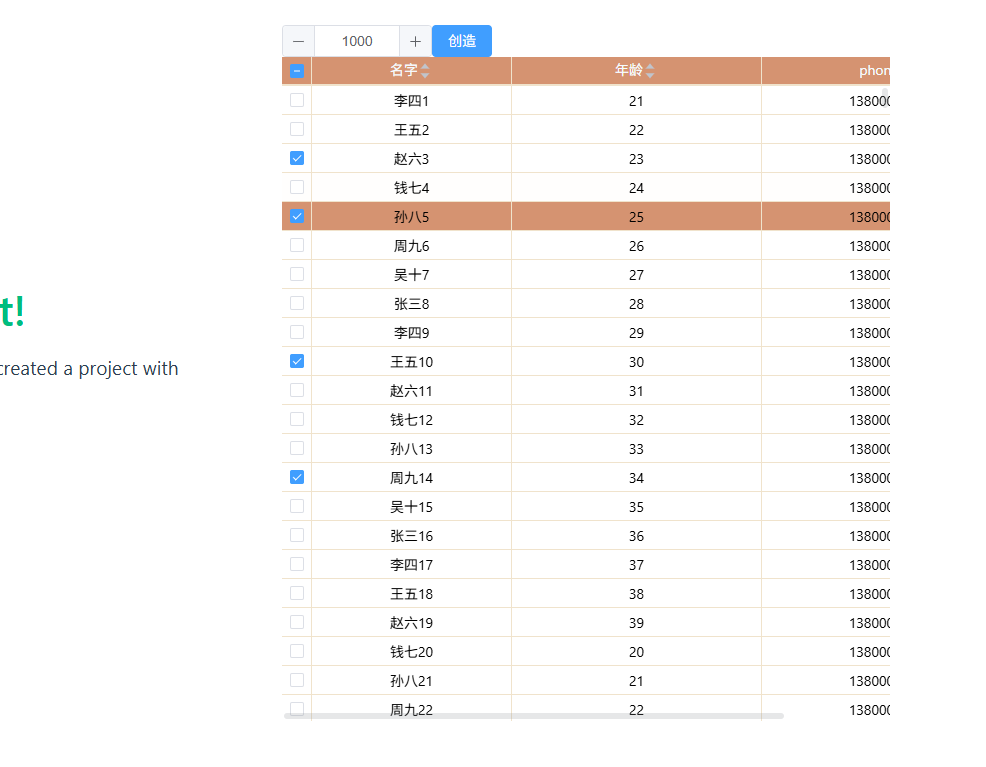

2.使用cellRenderer，headerCellRenderer构造表格的头部和表结构
<template>
<div>
<el-input-number
v-model="total"
></el-input-number>
<el-button type="primary" @click="initData">创造</el-button>
<div style="height: 685px">
<el-auto-resizer>
<template #default="{ height, width }">
<el-table-v2
highlight-current-row
header-class="table_header"
class="custom-table"
:row-class="rowClass"
:row-height="29"
:estimated-row-height="29"
:columns="columns"
:data="tableData"
:width="width"
:height="height"
fixed
/>
</template>
</el-auto-resizer>
</div>
</div>
</template>
<script setup >
import { onMounted } from "vue";
import { ref, unref,reactive,h } from "vue";
import { ElCheckbox, ElButton,ElMessage } from "element-plus";
import { CaretTop, CaretBottom } from "@element-plus/icons-vue";
const parameColums = [
{
"key": "name",
"title": "名字",
"dataKey": "name",
"width": 200,
"align": "center",
"sortable": true
},
{
"key": "age",
"title": "年龄",
"dataKey": "age",
"width": 250,
"align": "center",
"sortable": true
},
{
"key": "phone",
"title": "phone",
"dataKey": "phone",
"width": 250,
"align": "center",
"sortable": true
},
]
const queryParams = ref({
pageNum: 1,
pageSize: 100000,
orderByColumn: null,
isAsc: null,
isToUnder: "1",
// orderByChinese:"1",
url: 'tablelistUrL',
});
const total = ref(1000)
// 表格数据
const tableData = ref([]);
// 选中状态
const selectedRowKeys = ref(new Set());
const selectedRows = ref([]);
const getTestData=()=>{
const data = []
const names = ['张三', '李四', '王五', '赵六', '钱七', '孙八', '周九', '吴十']
const positions = ['前端工程师', '后端工程师', 'UI设计师', '产品经理', '测试工程师', '运维工程师', '项目经理']
const departments = ['技术部', '产品部', '设计部', '市场部', '销售部', '人事部']
for (let i = 1; i <= total.value; i++) {
const nameIndex = i % names.length
const positionIndex = i % positions.length
const deptIndex = i % departments.length
data.push({
deviceId: i,
name: names[nameIndex] + i,
gender: i % 2 === 0 ? '男' : '女',
age: 20 + (i % 20),
position: positions[positionIndex],
department: departments[deptIndex],
phone: `138${String(10000000 + i).slice(1)}`,
hireDate: `202${i % 4}-${String((i % 12) + 1).padStart(2, '0')}-${String((i % 28) + 1).padStart(2, '0')}`,
status: i % 3 === 0 ? '在职' : (i % 3 === 1 ? '离职' : '休假')
})
}
return data
}
function applySorting(data) {
const { orderByColumn, isAsc } = queryParams.value
// 如果没有排序要求，返回原始数据
if (!orderByColumn || !isAsc) {
return data
}
// 创建数据副本以避免修改原始数据
const sortedData = [...data]
// 根据字段进行排序
sortedData.sort((a, b) => {
let valueA = a[orderByColumn]
let valueB = b[orderByColumn]
// 如果是age字段，确保转换为数字进行比较
if (orderByColumn === 'age') {
valueA = Number(valueA)
valueB = Number(valueB)
}
// 如果是phone字段，直接比较字符串
if (orderByColumn === 'phone') {
// 直接比较字符串即可
}
// 根据排序方向返回值
if (isAsc === 'asc') {
return valueA > valueB ? 1 : (valueA < valueB ? -1 : 0)
} else if (isAsc === 'desc') {
return valueA < valueB ? 1 : (valueA > valueB ? -1 : 0)
}
return 0
})
return sortedData
}
function initData() {
//造假数据
const data = getTestData()
//模拟后端排序
const sortedData = applySorting(data)
console.log('sortedData',sortedData)
tableData.value = sortedData
if (data.length<1500) {
const validDeviceIDs = new Set(
tableData.value
.filter((item) => item.deviceId !== undefined)
.map((item) => item.deviceId)
);
selectedRowKeys.value = new Set(
[...selectedRowKeys.value].filter((key) => validDeviceIDs.has(key))
);
updateSelectedRows();
} else {
ElMessage.error("为避免数据量过大，请填后查询！");
tableData.value = [];
clearSelection();
}
}
// 全选/取消全选当前页
const handleSelectAll = (checked) => {
if (checked) {
// 获取当前页的数据ID
selectedRowKeys.value = new Set(
tableData.value.map((item) => item.deviceId)
);
} else {
// 获取当前页的数据ID
// clearSelection()
selectedRowKeys.value.clear();
}
updateSelectedRows();
};
// 更新选中的行数据
const updateSelectedRows = () => {
selectedRows.value = tableData.value.filter((item) =>
selectedRowKeys.value.has(item.deviceId)
);
};
const getSortAsc = (isAsc) => {
queryParams.value.isAsc = queryParams.value.isAsc === isAsc ? null : isAsc;
};
// 单行选择
const handleSelect = (rowId, checked) => {
if (checked) {
selectedRowKeys.value.add(rowId);
} else {
selectedRowKeys.value.delete(rowId);
}
updateSelectedRows();
};
const currentIndex = ref(null)
// 行点击事件
const handleRowClick = ({rowIndex}) => {
currentIndex.value = rowIndex
};
// 清空选择
const clearSelection = () => {
selectedRowKeys.value.clear();
selectedRows.value = [];
};
initColumns();
function initColumns(params) {
parameColums.forEach((item, index) => {
if (item.sortable === true) {
parameColums[index].headerCellRenderer = ({ column }) => {
return h("div", { class: "sortable-header" }, [
h("span", column.title),
h("div", { class: "sort_icon_box" }, [
h(CaretTop, {
class: [
"sort-icon",
"sort-icon-top",
"sort-caret ascending",
queryParams.value.sortColumn === item.key &&
queryParams.value.isAsc === "asc"
? "active"
: "",
],
onClick: (e) => {
e.stopPropagation();
handleSortChange({
column,
key: item.key,
order: "asc",
});
},
}),
h(CaretBottom, {
class: [
"sort-icon",
"sort-icon-bottom",
queryParams.value.sortColumn === item.key &&
queryParams.value.isAsc === "desc"
? "active"
: "",
],
onClick: (e) => {
e.stopPropagation();
handleSortChange({
column,
key: item.key,
order: "desc",
});
},
}),
]),
]);
};
}
parameColums[index].cellRenderer = ({ rowData, column,rowIndex }) => {
return h("div", { style: "width:100%", onClick: (e) => {
e.stopPropagation();
handleRowClick({
rowIndex
});
}, }, [
h("span", rowData[item.key]),
]);
};
});
}
// 表格列定义
const columns = reactive([
...[
{
key: "selection",
width: 30,
align: "center",
cellRenderer: ({ rowData }) => {
return h(ElCheckbox, {
modelValue: selectedRowKeys.value.has(rowData.deviceId),
"onUpdate:modelValue": (val) => handleSelect(rowData.deviceId, val),
onClick: (e) => e.stopPropagation(), // 阻止事件冒泡，避免触发行点击
});
},
headerCellRenderer: () => {
// 检查当前页是否全部选中
let allSelected = false;
if (selectedRowKeys.value.length === 0) {
allSelected = false;
} else if (selectedRowKeys.value.length === tableData.value.length) {
allSelected = true;
}
return h(ElCheckbox, {
modelValue: allSelected,
"onUpdate:modelValue": handleSelectAll,
indeterminate: selectedRowKeys.value.size > 0 && !allSelected,
});
},
},
],
...parameColums,
]);
const handleSortChange = ({ column, key, order }) => {
queryParams.value.sortColumn = key
if (key) {
getSortAsc(order);
if (queryParams.value.isAsc) {
queryParams.value.orderByColumn = key;
queryParams.value.nullLast = true;
} else {
queryParams.value.orderByColumn = undefined;
queryParams.value.nullLast = undefined;
}
}
initData();
};
const rowClass = ({ rowIndex,row }) => {
if (rowIndex === currentIndex.value) {
return 'table-v2_row_active'
} else {
return ''
}
return ''
}
</script>
<style scoped>
/* 头部图标 */
.tablev2_box {
height: 400px;
width: 100%;
}
:deep(.sortable-header) {
display: flex;
align-items: center;
justify-content: space-between;
cursor: pointer;
user-select: none;
color: var(--custom-head-color);
}
:deep(.sort-icon) {
width: 14px;
height: 14px;
color: #c0c4cc;
transition: color 0.2s;
position: absolute;
}
:deep(.sort-icon-top) {
border-bottom-color: var(--el-text-color-placeholder);
top: 3px;
}
:deep(.sort-icon-bottom) {
border-top-color: var(--el-text-color-placeholder);
bottom: 3px;
}
:deep(.sort-icon.active) {
color: #409eff;
}
:deep(.el-table-v2__sort-icon) {
display: none !important;
}
:deep(.sort_icon_box) {
height: 29px;
flex-direction: column;
display: flex;
width: 15px;
color: #a8abb2;
padding-top: 3px;
cursor: pointer;
position: relative;
}
</style>
<style scoped>
:deep(.el-table-v2) {
--table-border-color: #f0e3cc; /* 自定义边框颜色变量 */
--row-height: 29px;
--custom-head-color:#f6fcff;
--custom-head-bgcolor:#d59371;
--custom-table-bgcolor:#ffffff;
--custom-table-color:#000;
--table-cell-hover:#fee4d7;
}
:deep(.el-table-v2__body) {
background: var(--custom-table-bgcolor) !important;
color: var(--custom-table-color);
}
:deep(.el-table-v2) {
border-color: var(--table-border-color);
}
:deep(.el-empty__image) {
opacity: 0 !important;
}
:deep(.el-table-v2__row) {
height: var(--row-height) !important;
min-height: var(--row-height) !important;
max-height: var(--row-height) !important;
line-height: var(--row-height) !important; /* 确保文字垂直居中 */
border: 0 solid var(--table-border-color) !important;
background-color: var(--custom-table-bgcolor) !important;
}
:deep(.el-table-v2__row:hover) {
background: var(--table-cell-hover) !important;
}
:deep(.table-v2_row_active) {
background: var(--custom-head-bgcolor) !important;
}
:deep(.el-table-v2__row-cell) {
padding: 0 !important;
border-bottom: var(--el-table-border);
border-right: var(--el-table-border);
border-color: var(--table-border-color);
}
:deep(.el-table-v2__header) {
height: "32px!important";
border: 0 solid var(--table-border-color) !important;
line-height: "32px";
}
:deep(.el-table-v2__header-row) {
border-color: var(--table-border-color);
height: var(--row-height) !important ;
}
:deep(.el-table-v2__header-wrapper) {
height: var(--row-height) !important ;
}
:deep(.el-table-v2__header-cell) {
background-color: var(--custom-head-bgcolor) !important;
border-bottom: var(--el-table-border);
border-right: var(--el-table-border);
border-color: var(--table-border-color);
padding: 0 !important;
color: var( --custom-head-color);
}
</style>
<style>
.hover_row_pointer:hover {
cursor: pointer;
}
</style>
<style scoped>
:deep(.el-table-v2) {
row-gap: 0 !important;
gap: 0 !important;
}
</style>
