前言

在还原这个字段之前，我先看了路飞学院的课程，初步了解unidbg。（不是推广，我觉得路飞的课讲得比较浅，达不到逆向就业的水平）

在网上找shield的相关文章时，我发现很多人都在使用unidbg的trace功能打印调用的代码，并且用unidbg打印寄存器。最重要的是，unidbg能实现汇编指令级别的hook，而frida只能实现函数级别的hook，遇到复杂一点的so算法就难以分析。

在分析某度加固的时候，frida这玩意一直断连，有时候运行一个脚本要重新加载好多次frida。使用frida-stalker对某一个函数进行trace，我也执行了三次才将汇编代码完整打印下来

微信公众号同名。未经允许，禁止转载

如果嫌分析过程太长，最后有总结

定位java层（hook request类）

hook "NewStringUTF"，如果字段中存在XYAA，则打印字段的调用栈

java 复制代码

[Pixel 3::小红书 ]-> 打印出的字符串: XYAAQAAwAAAAEAAABTAAAAUzUWEe0xG1IbD9/c+qCLOlKGmTtFa+lG438PfeFeRKhCzNW5zLc1GZ3w+rIOz8N5jph+2fc1EQxOFzTcYrzz2isx0uYEH2oxANALruvQwKOpkuzA
0xb4a6a5ff libxyass.so!0x245ff
0xe

java.lang.Throwable
        at com.xingin.shield.http.Native.intercept(Native Method)
        at com.xingin.shield.http.XhsHttpInterceptor.intercept(SourceFile:8)
        at okhttp3.internal.http.RealInterceptorChain.proceed(SourceFile:10)

执行结果

java 复制代码

function hook_newStr() {
  var symbols = Module.enumerateSymbolsSync("libart.so");
  var NewStringUTFAddress = null;
  for (var i = 0; i < symbols.length; i++) {
    var symbol = symbols[i];
    if (
      symbol.name.indexOf("NewStringUTF") >= 0 &&
      symbol.name.indexOf("CheckJNI") < 0
    ) {
      NewStringUTFAddress = symbol.address;
    }
  }
  if (NewStringUTFAddress != null) {
    Interceptor.attach(NewStringUTFAddress, {
      onEnter: function (args) {
        var CString = args[1].readCString();
        //根据密文特征去筛选我们想要的数据.

        //
        if (CString.indexOf("XYAAQ") != -1) {
          console.log("打印出的字符串:", CString);
          //打印调用堆栈
          console.log(
            Thread.backtrace(this.context, Backtracer.ACCURATE)
              .map(DebugSymbol.fromAddress)
              .join("\n") + "\n"
          );
          console.log(
            Java.use("android.util.Log").getStackTraceString(
              Java.use("java.lang.Throwable").$new()
            )
          );
        }
      },
    });
  }
}
hook_newStr();

在jadx里函数的声明如下：

java 复制代码

public static native Response intercept(Interceptor.Chain chain, long j60) throws IOException;

用frida hook 观察这个函数调用前和调用后的数据，观察是否生成sheild。 hook代码如下

js 复制代码

Java.perform(function () {
  let xxxHttpInterceptor = Java.use("com.xingin.shield.http.Native");
  xxxHttpInterceptor["intercept"].overload(
    "okhttp3.Interceptor$Chain",
    "long"
  ).implementation = function (chain, j2) {
    var request = chain.request();
    console.log("1111111111111111111111:", j2);
    var url = request.url().toString();
    console.log("url:", url);
    var headerString = request.headers().toString();
    console.log("调用函数前的请求头字段", headerString);
    console.log("1111111111111111111111");
    let result = this["intercept"](chain, j2);
    let resultResonseHeader = result.request().headers().toString();
    console.log("调用函数之后的请求头字段", resultResonseHeader);
    return result;
  };
});

代码运行结果：

cpp 复制代码

url: https://edith.xiaohongshu.com/api/push/badge/clear_v2?deviceId=09a9b1be-85ba-3cbe-8e71-06ad67760ad2
调用函数前的请求头字段 xy-direction: 93
X-B3-TraceId: 0505066e701c0e0f
x-xray-traceid: cd8bd7b00018c2644fb3ddb5e73ef5a0
xy-scene: fs=0&point=3019
x-legacy-did: 09a9b1be-85ba-3cbe-8e71-06ad67760ad2
x-legacy-fid: 176476455610a006500aeedc7aa3708a8be3031932d7
x-legacy-sid: session.1764773982217321578270
x-mini-gid: 7cde9a1712bc54f4e2ae3d76cedcd371ad7e14c947359ce37789292d
x-mini-sig: adeb8424258e7ad9ebc7db47838d60461860fb568ebd3cc318dc774cd8c82e88
x-mini-mua: eyJhIjoiRUNGQUFGMDEiLCJjIjoyMCwiayI6IjQyZmFkZWU1Njg0N2RlNTNhMDRjY2QwMjc3ZmNmODY2ZmVkYmVlNmViODdhN2NiNDgzZWJjYTYxNDdiMmQwNmMiLCJwIjoiYSIsInMiOiI0NjYxZTQ3NTkzNzljNzZmZWNmNTdhZDYxYTc1OTI5MGExN2YxNzI0ZTZhMzM0Nzc4NjAwNDM1MTc0NTQ5MzM3OWMzMGRmNzM0YzY3ZTc3NDlmMTI2Mzk4MjQ5ZGJhNzZlODdiN2MyMzg4M2ZjMmZhMDdmOWU3ZWE1ZDI1MjIzZiIsInQiOnsiYyI6MCwiZCI6MCwiZiI6MCwicyI6NDA5OCwidCI6MCwidHQiOltdfSwidSI6IjAwMDAwMDAwNGI0ZjkwN2EyMDc1YTViZDM4MzdiZGIyYTNlZjczYWEiLCJ2IjoiMi45LjQ5MyJ9.oiK0gpZTEferc_JrD_TiPIjJyIKgNGYPV2C0dypk23Zz89YGSXQ49kpob_mSb6z1Lc4CBqWB1OPqDJEQgYw9liISWJwwvkdg55eK6Z9t_nehCZlA-fO2wPS9woVGxol3oV9KH8Gl-AE36Ky3K2QMVxdM2rCTv6PKc4szyEbU_b-MiI63dFirTw_m50051h_MbIEffRxJuTInitYuoHfBzl7MeP7zcC4luwAOh8pyrapJDjucmUmP_fmZjNAdriKXGNkPF9uiFsZj8smKQJzSXkSmpHXe6tFjR2_UnJW8BlhfT7aArnjOWO0VP-a3X9B9GGuwjSKhjszuC-vPGGUD07ciBLmpz37ZJseXl6XDpNodnu3EK6FfGGdR7wV7_7RV6XLwU_q96HOQOeyxzpwY8D3wW3JDqbJJwCmdABQUOCVUBV3eC4_gGpnZ0NQTMy6LrdRiaWXQOCn-OSvKNGVwL9r-SzEeJvHbeOgTm1N60VBpbWMXmYHn1NGohwsKYLggw8-djH-z0rL91waZVJES7HZZYp58kk_BCh7TY2SsuUrUKWYyG4mPR9Bx7MOAv106XGe3a9xsA35L1OY8nkoGGhEY0Z2SBf00jdf4yi9i9rkrTS-0T4L_Vdcb-TLxQIlNSVI1KXVIoBeqeJ5RHS7Q6GDHC-SEjs8vct9KTUnNyQNW_WWwJkJgV4OYVvmA4k8Rxduwi0nwP0ubUGnvLsP3oUdFZjzC1krjvzO2WX21Zz2ZkWh3FNdgfIELDoMiQNpwsKMYfSTA4K8saWq2HRCNUOXfKb7aNAR5RA_LTSn52OE7Ohl-bdnvqWnf8BdG1-6vBQjNJvrEwdbstnvUIxI0LUq7gXB_M23vdkanWVxXk8Itbg_nL5bsuV1vUTf_5zdcYAz4I6NRzKApfwSix3YDvO9FJJLopPRA0PFPAgBD_jkN1wIsmOL8KJp-vHtWdjoHqEiruUWPFFBzueb6HepohmuwJOtZpr3s2wmUXvT0dScbQhfzYJ0Ir4aML-7xBwUyRn9ymqeJs8G0mi2iy9RX2gr-SB6PFIL6qjSAykgwTEtzhRQyTwHYbz6z-JWXg2wltBjT_ZUxlKmZuIs53IuMnMP6J11Dy-yGzBf2ZqquS_SHqumEhIW8zxlnYvrbxoXM1HeX9GVII9cTvESzfOr6dZ95ro3OORrihkHcBGv1E6iRKw24t0TsEbeApwvxC7qdSXT6qN4N7E1ARqMTAf4spYYtzWsclJj5SWk0vSbNnoENr32MDEvlVNqugDpwfiX-CBH35tyBYdOaHnpc1OxZ_n8zwlbX2dzc2UFNk3PxOoKuJDr575oyfzNJKHmidalI44JlOlleRTkGjT6CB4ozVszVX6-VbWIFbJHG_2pg8_8.
xy-common-params: fid=176476455610a006500aeedc7aa3708a8be3031932d7&gid=7cde9a1712bc54f4e2ae3d76cedcd371ad7e14c947359ce37789292d&device_model=phone&tz=Asia%2FShanghai&channel=YingYongBao&versionName=9.11.0&deviceId=09a9b1be-85ba-3cbe-8e71-06ad67760ad2&platform=android&sid=session.1764773982217321578270&identifier_flag=4&cpu_abi=armeabi-v7a&nqe_score=0&project_id=ECFAAF&x_trace_page_current=welcome_page&lang=zh-Hans&app_id=ECFAAF01&uis=light&teenager=0&active_ctry=&cpu_name=Qualcomm+Technologies%2C+Inc+SDM845&dlang=zh&data_ctry=CN&SUE=1&launch_id=1765628918&device_level=3&origin_channel=YingYongBao&overseas_channel=0&mlanguage=zh_cn&folder_type=none&auto_trans=0&t=1765628811&build=9110805&holder_ctry=CN&did=9d29cd0e55089e8e17beb8757715900b
User-Agent: Dalvik/2.1.0 (Linux; U; Android 9; Pixel 3 Build/PD1A.180720.030) Resolution/1080*2160 Version/9.11.0 Build/9110805 Device/(Google;Pixel 3) discover/9.11.0 NetType/WiFi
Referer: https://app.xhs.cn/


1111111111111111111111
调用函数之后的请求头字段 xy-direction: 93
X-B3-TraceId: f4f4b9547613080f
x-xray-traceid: cd8bd7afdf98c2633fa7d74afd95f050
xy-scene: fs=0&point=3019
x-legacy-did: 09a9b1be-85ba-3cbe-8e71-06ad67760ad2
x-legacy-fid: 176476455610a006500aeedc7aa3708a8be3031932d7
x-legacy-sid: session.1764773982217321578270
x-mini-gid: 7cde9a1712bc54f4e2ae3d76cedcd371ad7e14c947359ce37789292d
x-mini-s1: AA8AAAABCo8q8RuPvNsq3I+dgloICOWZH5sfCGHvaWqVNXWQmRMOWuMqx5T/OETaAtyRHFu4SpOdhUSZEgw=
x-mini-sig: a362dcc4e6dd7ec7c159ebb36c1fc9f73e5f0de713aa37a57c72682dafc10d85
x-mini-mua: eyJhIjoiRUNGQUFGMDEiLCJjIjoxOSwiayI6IjQyZmFkZWU1Njg0N2RlNTNhMDRjY2QwMjc3ZmNmODY2ZmVkYmVlNmViODdhN2NiNDgzZWJjYTYxNDdiMmQwNmMiLCJwIjoiYSIsInMiOiI0NjYxZTQ3NTkzNzljNzZmZWNmNTdhZDYxYTc1OTI5MGExN2YxNzI0ZTZhMzM0Nzc4NjAwNDM1MTc0NTQ5MzM3OWMzMGRmNzM0YzY3ZTc3NDlmMTI2Mzk4MjQ5ZGJhNzZlODdiN2MyMzg4M2ZjMmZhMDdmOWU3ZWE1ZDI1MjIzZiIsInQiOnsiYyI6MCwiZCI6MCwiZiI6MCwicyI6NDA5OCwidCI6MCwidHQiOltdfSwidSI6IjAwMDAwMDAwNGI0ZjkwN2EyMDc1YTViZDM4MzdiZGIyYTNlZjczYWEiLCJ2IjoiMi45LjQ5MyJ9.oiK0gpZTEferc_JrD_TiPIjJyIKgNGYPV2C0dypk23Zz89YGSXQ49kpob_mSb6z1Lc4CBqWB1OPqDJEQgYw9liISWJwwvkdg55eK6Z9t_nehCZlA-fO2wPS9woVGxol3oV9KH8Gl-AE36Ky3K2QMVxdM2rCTv6PKc4szyEbU_b-MiI63dFirTw_m50051h_MbIEffRxJuTInitYuoHfBzl7MeP7zcC4luwAOh8pyrapJDjucmUmP_fmZjNAdriKXGNkPF9uiFsZj8smKQJzSXkSmpHXe6tFjR2_UnJW8BlhfT7aArnjOWO0VP-a3X9B9GGuwjSKhjszuC-vPGGUD07ciBLmpz37ZJseXl6XDpNodnu3EK6FfGGdR7wV7_7RV6XLwU_q96HOQOeyxzpwY8D3wW3JDqbJJwCmdABQUOCVUBV3eC4_gGpnZ0NQTMy6LrdRiaWXQOCn-OSvKNGVwL9r-SzEeJvHbeOgTm1N60VBpbWMXmYHn1NGohwsKYLggw8-djH-z0rL91waZVJES7HZZYp58kk_BCh7TY2SsuUrUKWYyG4mPR9Bx7MOAv106XGe3a9xsA35L1OY8nkoGGhEY0Z2SBf00jdf4yi9i9rkrTS-0T4L_Vdcb-TLxQIlNSVI1KXVIoBeqeJ5RHS7Q6GDHC-SEjs8vct9KTUnNyQNW_WWwJkJgV4OYVvmA4k8Rxduwi0nwP0ubUGnvLsP3oUdFZjzC1krjvzO2WX21Zz2ZkWh3FNdgfIELDoMiQNpwsKMYfSTA4K8saWq2HRCNUOXfKb7aNAR5RA_LTSn52OE7Ohl-bdnvqWnf8BdG1-6vBQjNJvrEwdbstnvUIxI0LUq7gXB_M23vdkanWVxXk8Itbg_nL5bsuV1vUTf_5zdcYAz4I6NRzKApfwSix3YDvO9FJJLopPRA0PFPAgBD_jkN1wIsmOL8KJp-vHtWdjoHqEiruUWPFFBzueb6HepohmuwJOtZpr3s2wmUXvT0dScbQhfzYJ0Ir4aML-7xBwUyRn9ymqeJs8G0mi2iy9RX2gr-SB6PFIL6qjSAykgwTEtzhRQyTwHYbz6z-JWXg2wltBjT_ZUxlKmZuIs53IuMnMP6J11Dy-yGzBf2ZqquS_SHqumEhIW8zxlnYvrbxoXM1HeX9GVII9cTvESzfOr6dZ95ro3OORrihkHcBGv1E6iRKw24t0TsEbeApwvxC7qdSXT6qN4N7E1ARqMTAf4spYYtzWsclJj5SWk0vSbNnoENr32MDEvlVNqugDpwfiX-CBH35tyBYdOaHnpc1OxZ_n8zwlbX2dzc2UFNk3PxOoKuJDr575oyfzNJKHmidalI44JlOlleRTkGjT6CB4ozVszVX6-VbWIFbJHG_2pg8_8.
xy-common-params: fid=176476455610a006500aeedc7aa3708a8be3031932d7&gid=7cde9a1712bc54f4e2ae3d76cedcd371ad7e14c947359ce37789292d&device_model=phone&tz=Asia%2FShanghai&channel=YingYongBao&versionName=9.11.0&deviceId=09a9b1be-85ba-3cbe-8e71-06ad67760ad2&platform=android&sid=session.1764773982217321578270&identifier_flag=4&cpu_abi=armeabi-v7a&nqe_score=0&project_id=ECFAAF&x_trace_page_current=welcome_page&lang=zh-Hans&app_id=ECFAAF01&uis=light&teenager=0&active_ctry=&cpu_name=Qualcomm+Technologies%2C+Inc+SDM845&dlang=zh&data_ctry=CN&SUE=1&launch_id=1765628918&device_level=3&origin_channel=YingYongBao&overseas_channel=0&mlanguage=zh_cn&folder_type=none&auto_trans=0&t=1765628811&build=9110805&holder_ctry=CN&did=9d29cd0e55089e8e17beb8757715900b
User-Agent: Dalvik/2.1.0 (Linux; U; Android 9; Pixel 3 Build/PD1A.180720.030) Resolution/1080*2160 Version/9.11.0 Build/9110805 Device/(Google;Pixel 3) discover/9.11.0 NetType/WiFi
Referer: https://app.xhs.cn/
shield: XYAAQAAwAAAAEAAABTAAAAUzUWEe0xG1IbD9/c+qCLOlKGmTtFa+lG438PfeFeRKhCzNW5zLc1GZ3w+rIOz8N5jph+2fc1EQxOFzTcYrzz2isx0uYOPwf5N4FgHzrMVmNUyxZ0
xy-platform-info: platform=android&build=9110805&deviceId=09a9b1be-85ba-3cbe-8e71-06ad67760ad2

代码运行之后，添加shield与xy-platform-info字段

定位so层

根据调用堆栈，java最后调用intercept函数。用hook_RegisterNatives来查找intercept在so文件的位置。定位到在libxyass.so的0x23d55中

cpp 复制代码

.text:000245F8                 ADDEQ           R1, R5, #1
.text:000245FA                 MOV             R0, R4
.text:000245FC                 BLX             R3
.text:000245FE                 LDR             R4, [SP,#0x120+var_F8]
.text:00024600                 MOV             R10, R0
.text:00024602                 LDR             R0, [R4]
.text:00024604                 CBNZ            R0, loc_24636
.text:00024606                 MOVS            R0, #0x50 ; 'P'
.text:00024608                 BL              loc_D434

使用frida hook 0x23d55函数，结果函数没有调用。。。。试一下使用unidbg trace

在使用unidbg trace之前，需要用unidbg完成函数模拟执行。

unidbg 模拟执行

java 复制代码

package com.demo;


import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Module;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.memory.Memory;

import java.io.File;

public class XhsShield extends AbstractJni {
    private static AndroidEmulator emulator;
    private static Memory memory;
    private static VM vm;
    private static Module module;
    public XhsShield(){
        //1.初始化
        emulator = AndroidEmulatorBuilder.for32Bit().setProcessName("com.che168.autotradercloud").build();

        //2.设置内存对象
        memory = emulator.getMemory();
        // 3.设置安卓版本
        memory.setLibraryResolver(new AndroidResolver(23));

        //4. 创建虚拟机
        vm = emulator.createDalvikVM(new File("apks/xhs/9.11.0.apk"));
        vm.setJni(this);  // 补jni环境

        //5. 加载so文件
        DalvikModule dm = vm.loadLibrary(new File("apks/xhs/libxyass.so"),false);
        dm.callJNI_OnLoad(emulator); // 动态注册

        // 6 基于module访问so文件的成员
        module = dm.getModule();
    }

    // 签名方法
    public void intercept(){

        // 找到java中的native类
        DvmClass xhsNative = vm.resolveClass("com/xingin/shield/http/Native");
        // 找到类的方法
        String method = "intercept(Lokhttp3/Interceptor$Chain;J)Lokhttp3/Response;";
        Long cptr = 1765721609L;

        // 执行方法
        // 第一个参数：设备对象
        // 第二个参数： 方法
        // 之后的参数：方法使用的参数
        DvmObject<?> obj = xhsNative.callStaticJniMethodObject(
                emulator,
                method,
                vm.resolveClass("okhttp3/Interceptor$Chain").newObject(null),
                cptr
        );

        // DvmObject<?> result = obj;
        System.out.println(obj);
    }

    public static void main(String[] args){
        XhsShield xhsShield = new XhsShield();
        xhsShield.intercept();
    }
}

开始补还境

1.writeLog

报错信息

复制代码

java.lang.UnsupportedOperationException: com/xingin/shield/http/ContextHolder->writeLog(I)V
	at com.github.unidbg.linux.android.dvm.AbstractJni.callStaticVoidMethodV(AbstractJni.java:708)

因为是打印日志的函数，不影响字段生成，所以不用补逻辑

java 复制代码

@Override
public void callStaticVoidMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
    switch (signature) {
        case "com/xingin/shield/http/ContextHolder->writeLog(I)V" :{
            // vm.resolveClass("com/xingin/shield/http/ShieldLogger").newObject(null);
        }
    }  //  super.callStaticVoidMethodV(vm, dvmClass, signature, vaList);
}

2. 初始化函数

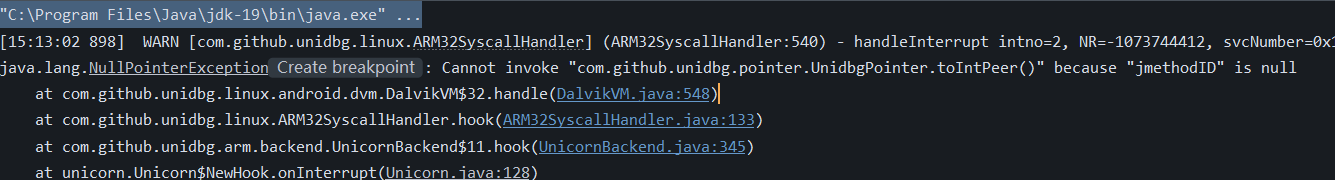

运行出现如下报错：Cannot invoke "com.github.unidbg.pointer.UnidbgPointer.toIntPeer()" because "jmethodID" is null

报错提示函数还未注册，[求助]某红薯x-mini-mua算法unidbg问题-Android安全-看雪论坛-安全社区|非营利性质技术交流社区里解释这种情况缺少初始化操作的调用

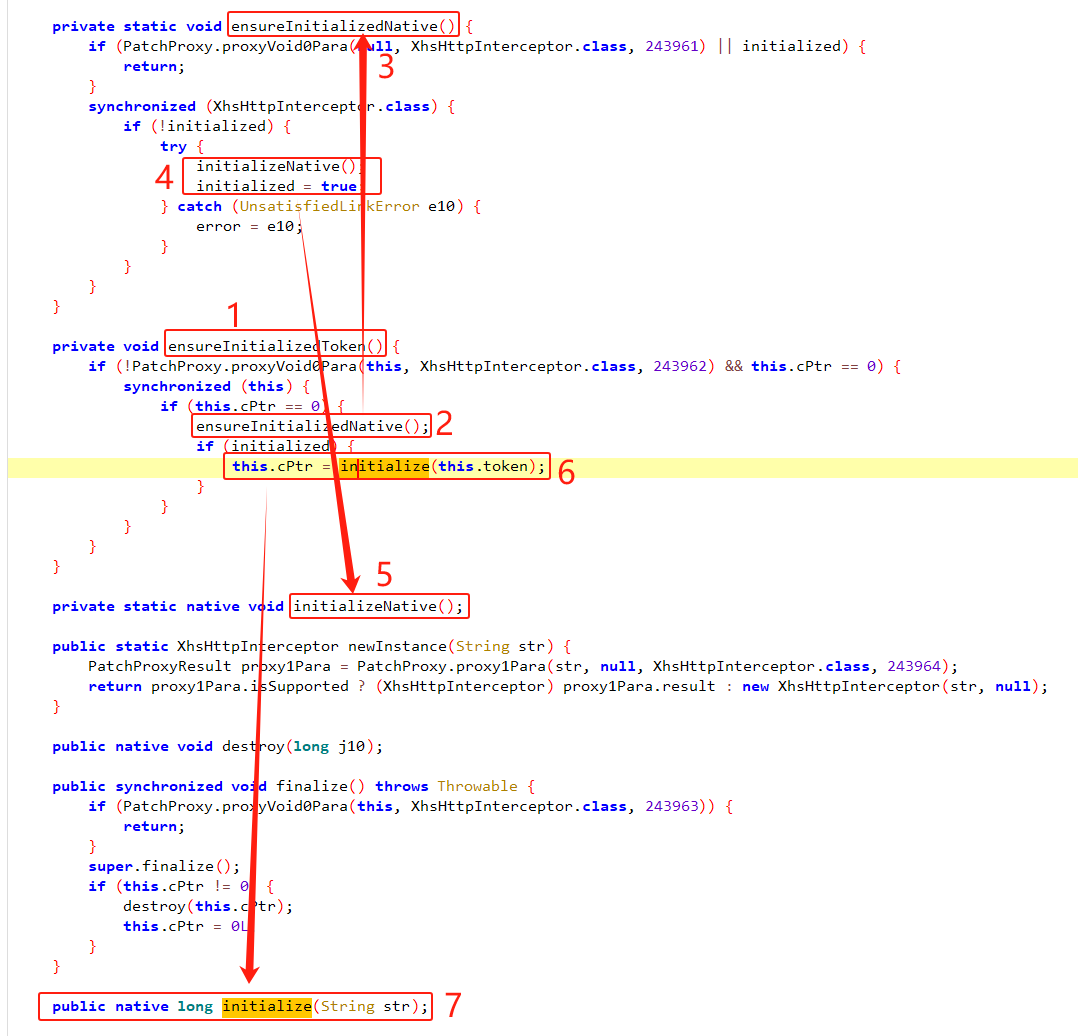

xhs分析------shield字段 | Hexo 的这张图片捋清楚了函数的调用过程。于是模拟的时候可以先调用initalizeNative函数，之后再调用initialize函数，最后调用intercepte函数

现在的代码变成这样，

java 复制代码

package com.xhs;

public class XhsShield extends AbstractJni {
    private static AndroidEmulator emulator;
    private static Memory memory;
    private static VM vm;
    private static Module module;
    private static DvmClass XhsNativeClass;
    private static DvmObject XhsNativeObject;
    private static  long cPtr;

    public XhsShield(){
    //1.初始化
    emulator = AndroidEmulatorBuilder.for32Bit().setProcessName("com.che168.autotradercloud").build();

    //2.设置内存对象
    memory = emulator.getMemory();
    // 3.设置安卓版本
    memory.setLibraryResolver(new AndroidResolver(23));

    //4. 创建虚拟机
    vm = emulator.createDalvikVM(new File("apks/xhs/9.11.0.apk"));
    vm.setJni(this);  // 补jni环境

    //5. 加载so文件
    DalvikModule dm = vm.loadLibrary(new File("apks/xhs/libxyass.so"),false);
    dm.callJNI_OnLoad(emulator); // 动态注册

    // 6 基于module访问so文件的成员
    module = dm.getModule();

    XhsNativeClass = vm.resolveClass("com/xingin/shield/http/Native");
    XhsNativeObject = XhsNativeClass.newObject(null);
}
    public void initializeNative(){
        String method = "initializeNative()V";
        XhsNativeClass.callStaticJniMethod(emulator,method);
    }
    // 初始化
    public void initialize(){
        XhsNativeClass = vm.resolveClass("com/xingin/shield/http/Native");
        XhsNativeObject = XhsNativeClass.newObject(null);
        cPtr = XhsNativeObject.callJniMethodLong(emulator, "initialize(Ljava/lang/String;)J", "main");
        System.out.println("cPtr = " + cPtr);
    }

    // 签名方法
    public void intercept(){

        // 找到类的方法
        String method = "intercept(Lokhttp3/Interceptor$Chain;J)Lokhttp3/Response;";

        DvmObject<?> obj = XhsNativeClass.callStaticJniMethodObject(
                emulator,
                method,
                vm.resolveClass("okhttp3/Interceptor$Chain").newObject(null),
                cPtr
        );

        // DvmObject<?> result = obj;        System.out.println(obj);
    }


  public static void main(String[] args){
    XhsShield xhsShield = new XhsShield();
    xhsShield.initializeNative();
    xhsShield.initialize();
    xhsShield.intercept();
}
    @Override
    public void callStaticVoidMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
        switch (signature) {
            case "com/xingin/shield/http/ContextHolder->writeLog(I)V" :{
                // vm.resolveClass("com/xingin/shield/http/ShieldLogger").newObject(null);
            }
        }      //  super.callStaticVoidMethodV(vm, dvmClass, signature, vaList);
    }
}

3. Charset的defaultCharset

报错如下

复制代码

[21:31:55 347]  WARN [com.github.unidbg.linux.ARM32SyscallHandler] (ARM32SyscallHandler:540) - handleInterrupt intno=2, NR=-1073744764, svcNumber=0x170, PC=unidbg@0xfffe0794, LR=RX@0x4001ebf7[libxyass.so]0x1ebf7, syscall=null
java.lang.UnsupportedOperationException: java/nio/charset/Charset->defaultCharset()Ljava/nio/charset/Charset;

按照报错补充代码就可以

java 复制代码

@Override
public DvmObject<?> callStaticObjectMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
    switch (signature) {
        case "java/nio/charset/Charset->defaultCharset()Ljava/nio/charset/Charset;" :{
            Charset defaultCharset = Charset.defaultCharset();
            return ProxyDvmObject.createObject(vm, defaultCharset);
        }

    }    return super.callStaticObjectMethodV(vm, dvmClass, signature, vaList);
}

4. 补充sDeviceId、sAppId

报错如下

复制代码

java.lang.UnsupportedOperationException: com/xingin/shield/http/ContextHolder->sDeviceId:Ljava/lang/String;
	at com.github.unidbg.linux.android.dvm.AbstractJni.getStaticObjectField(AbstractJni.java:103)

需要补充代码，用来获取ContextHolder类的sDeviceId属性。最简单的想法就是hook 得到结果

花一早上尝试使用java反射获取ContextHolder的sDeviceId的属性，打印结果为null。

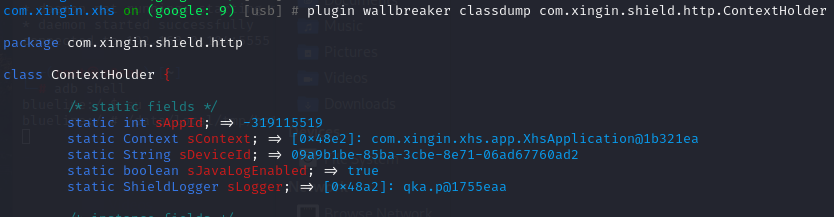

最后使用[[objection]]的Wallbreaker插件，打印出sDeviceId

hook结果

复制代码

   /* static fields */
        static int sAppId; => -319115519
        static Context sContext; => [0x48e2]: com.xingin.xhs.app.XhsApplication@1b321ea
        static String sDeviceId; => 09a9b1be-85ba-3cbe-8e71-06ad67760ad2
        static boolean sJavaLogEnabled; => true

将hook结果补充到unidbg里

java 复制代码

@Override
public int getStaticIntField(BaseVM vm, DvmClass dvmClass, String signature) {
    switch (signature) {
        case "com/xingin/shield/http/ContextHolder->sAppId:I": {
            return -319115519;
        }
    }    return super.getStaticIntField(vm, dvmClass, signature);
}

@Override
public DvmObject<?> getStaticObjectField(BaseVM vm, DvmClass dvmClass, String signature) {
    switch (signature){
        case "com/xingin/shield/http/ContextHolder->sDeviceId:Ljava/lang/String;" :{
            return new StringObject(vm, "09a9b1be-85ba-3cbe-8e71-06ad67760ad2");
        }

    }    return super.getStaticObjectField(vm, dvmClass, signature);
}

5. SharedPreferences补充

依旧查看报错信息

复制代码

java.lang.UnsupportedOperationException: android/content/Context->getSharedPreferences(Ljava/lang/String;I)Landroid/content/SharedPreferences;
	at com.github.unidbg.linux.android.dvm.AbstractJni.callObjectMethodV(AbstractJni.java:417)

这次缺少的是安卓类 Context和SharedPreferences。因为安卓类的代码太多，如果使用复制源代码的方式补还境很麻烦。直接模拟代码

$\[sharepreference\]\]介绍了sharepreference的基本概念。$

先看程序访问了哪一个SharedPreferences文件。发现是s.xml

java 复制代码

@Override
public DvmObject<?> callObjectMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
    switch (signature) {
        case "android/content/Context->getSharedPreferences(Ljava/lang/String;I)Landroid/content/SharedPreferences;" :{
            String sharedPreferencesFileName = vaList.getObjectArg(0).toString();
            System.out.println("sharedPreferencesFileName:"+sharedPreferencesFileName);
            return vm.resolveClass("android/content/SharedPreferences").newObject(sharedPreferencesFileName);
        }
    }    return super.callObjectMethodV(vm, dvmObject, signature, vaList);
}

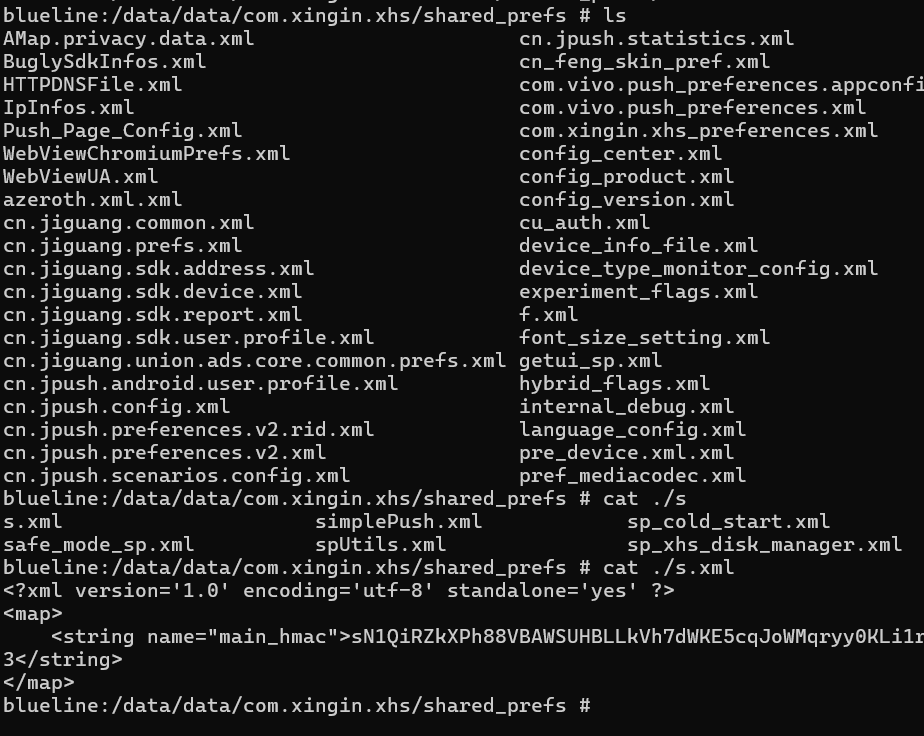

查看app下的s.xml文件，发现里面只有main_hmac键值对

补充代码逻辑和上面类似，假设main_hmac不变，返回已经生成的main_hmac就行

6.Base64Helper

报错信息

复制代码

java.lang.UnsupportedOperationException: com/xingin/shield/http/Base64Helper->decode(Ljava/lang/String;)[B
	at com.github.unidbg.linux.android.dvm.AbstractJni.callStaticObjectMethodV(AbstractJni.java:504)

用java自带的base64类完成解密即可

java 复制代码

case "com/xingin/shield/http/Base64Helper->decode(Ljava/lang/String;)[B" :{
    String cipher = vaList.getObjectArg(0).toString();
    return new ByteArray(vm, Base64.getMimeDecoder().decode(cipher));

7. request函数

接下来补充interpret函数的环境

报错信息

复制代码

java.lang.UnsupportedOperationException: okhttp3/Interceptor$Chain->request()Lokhttp3/Request;
	at com.github.unidbg.linux.android.dvm.AbstractJni.callObjectMethodV(AbstractJni.java:417)

定义一个chain对象,将其添加到代码里

java 复制代码

public class XhsShield extends AbstractJni {
    private static AndroidEmulator emulator;
    private static Memory memory;
    private static VM vm;
    private static Module module;
    private static DvmClass XhsNativeClass;
    private static DvmObject XhsNativeObject;
    private static  long cPtr;
    private static DvmObject chain = null;



public void intercept(){
    chain =  vm.resolveClass("okhttp3/Interceptor$Chain").newObject(null);
    // 找到类的方法
    String method = "intercept(Lokhttp3/Interceptor$Chain;J)Lokhttp3/Response;";

    DvmObject<?> response = XhsNativeClass.callStaticJniMethodObject(
            emulator,
            method,
            chain,
            cPtr
    );

接下来补充okhttp的环境。下载okhttp , 最新的5.3.2版本有问题，所以使用老版本

xml 复制代码

<dependency>
    <groupId>com.squareup.okhttp3</groupId>
    <artifactId>okhttp</artifactId>
    <version>4.9.0</version>
</dependency>

这里设置idea的maven：打开下图的目录，将自动下载的三个多选框勾上

开始补充request函数

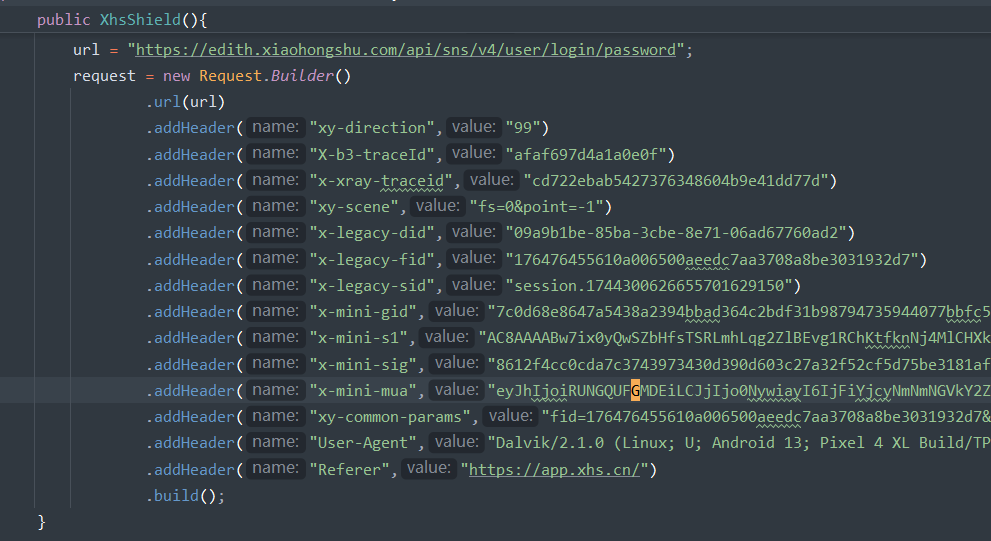

在构造函数中，为request变量赋值

返回构造好的request变量

java 复制代码

case "okhttp3/Interceptor$Chain->request()Lokhttp3/Request;" :{
    return vm.resolveClass("okhttp3/Request").newObject(request);
}

8. okhttp的其他环境

依旧按照报错信息补环境

复制代码

java.lang.UnsupportedOperationException: okhttp3/Request->url()Lokhttp3/HttpUrl;
	at com.github.unidbg.linux.android.dvm.AbstractJni.callObjectMethodV(AbstractJni.java:417)

其他函数逻辑是一样的，这里就直接给出代码了

java 复制代码

 case "okhttp3/Request->url()Lokhttp3/HttpUrl;" :{
    return vm.resolveClass("okhttp3/HttpUrl").newObject(request.url());
} case "okhttp3/HttpUrl->encodedPath()Ljava/lang/String;" :{
    HttpUrl httpUrl = (HttpUrl) dvmObject.getValue();
    return new StringObject(vm, httpUrl.encodedPath());
} case "okhttp3/HttpUrl->encodedQuery()Ljava/lang/String;" :{
    HttpUrl httpUrl = (HttpUrl) dvmObject.getValue();
    return new StringObject(vm,httpUrl.encodedQuery());
} case "okhttp3/Request->body()Lokhttp3/RequestBody;" :{
    Request request = (Request) dvmObject.getValue();
    return ProxyDvmObject.createObject(vm, request.body());
} case "okhttp3/Request->headers()Lokhttp3/Headers;" :{
    Request request = (Request) dvmObject.getValue();
    return ProxyDvmObject.createObject(vm, request.headers());
} case "okhttp3/Headers->name(I)Ljava/lang/String;":{
    Headers headers = (Headers) dvmObject.getValue();
    int arg1 = (int)vaList.getIntArg(0);
    return new StringObject(vm, headers.name(arg1));
} case "okhttp3/Headers->value(I)Ljava/lang/String;" :{
    Headers headers = (Headers) dvmObject.getValue();
    int arg1 = (int)vaList.getIntArg(0);
    return new StringObject(vm, headers.value(arg1));
}

9. okio

报错

复制代码

java.lang.UnsupportedOperationException: okio/Buffer-><init>()V
	at com.github.unidbg.linux.android.dvm.AbstractJni.newObjectV(AbstractJni.java:803)

java 复制代码

case "okio/Buffer-><init>()V" : {
    return  dvmClass.newObject(new Buffer());
}

复制代码

okio/Buffer->writeString(Ljava/lang/String;Ljava/nio/charset/Charset;)Lokio/Buffer;
	at com.github.unidbg.linux.android.dvm.AbstractJni.callObjectMethodV(AbstractJni.java:417)

java 复制代码

case "okio/Buffer->writeString(Ljava/lang/String;Ljava/nio/charset/Charset;)Lokio/Buffer;" :{
    Buffer buffer = (Buffer) dvmObject.getValue();
    String arg1 = vaList.getObjectArg(0).getValue().toString();
    Charset arg2 = (Charset) vaList.getObjectArg(1).getValue();
    return vm.resolveClass("okio/Buffer").newObject(buffer.writeString(arg1,arg2));
}

还有其他需要补的环境

java 复制代码

case "okio/Buffer->clone()Lokio/Buffer;" :{
    Buffer buffer = (Buffer) dvmObject.getValue();
    return vm.resolveClass("okio/Buffer").newObject(buffer.clone());
}

10 proceed

报错

复制代码

java.lang.NullPointerException: Cannot invoke "okhttp3.Interceptor$Chain.proceed(okhttp3.Request)" because "interceptor_chain" is null
	at com.xhs.XhsShield.callObjectMethodV(XhsShield.java:244)
	at com.github.unidbg.linux.android.dvm.AbstractJni.callObjectMethodV(AbstractJni.java:262)

这段代码用于发送请求，但是我们只需要关注shield生成，不需要发送请求数据

java 复制代码

case "okhttp3/Interceptor$Chain->proceed(Lokhttp3/Request;)Lokhttp3/Response;" :{
    return vm.resolveClass("okhttp3/Response").newObject(null);
}

11.状态码

java 复制代码

case "okhttp3/Response->code()I" :{
    return 200;
}

12. 打印shield

java 复制代码

public static void main(String[] args){
    XhsShield xhsShield = new XhsShield();
    xhsShield.initializeNative();
    xhsShield.initialize();
    xhsShield.intercept();
    System.out.println("shield:"+ xhsShield.request.headers().get("shield"));
}

打印结果是null

复制代码

sharedPreferencesFileName:"s"
key:"main_hmac"
defaultValue:""
cPtr = 1076277248
okhttp3.Response@62ddbd7e
shield:null

这是因为我们在补还境的时候，没有更新request属性。导致打印的时候，使用的还是构造函数构造的request属性

在补环境的最后几步，我们会 Hook 到这样一个函数： "okhttp3/Request$Builder->build()Lokhttp3/Request;"。在该函数执行之后，代码将继续调用 proceed()，从而完成网络请求的发送。所以build()函数就是最后返回request的位置。

java 复制代码

 case "okhttp3/Request$Builder->build()Lokhttp3/Request;" :{
    Request.Builder requestObj_Builder = (Request.Builder) dvmObject.getValue();
    Request resultRequest = requestObj_Builder.build();
    request = resultRequest;
    return vm.resolveClass("okhttp3/Request").newObject(resultRequest);
}

运行结果

复制代码

sharedPreferencesFileName:"s"
key:"main_hmac"
defaultValue:""
cPtr = 1076277248
okhttp3.Response@62ddbd7e
shield:XYAAAAAwAAAAEAAABTAAAAUzUWEe0xG1IbD9/c+aCLOlKGmTtFa+lG438PfeFeRKhCzNW5zLc1GZ3w+rIOz8N5jph+2fc1EQxOFzTcYrzz2isx0uaV0XzforuR6ZR7O0hWI/e7

完整代码

java 复制代码

package com.xhs;


import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Module;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.linux.android.dvm.array.ByteArray;
import com.github.unidbg.linux.android.dvm.jni.ProxyDvmObject;
import com.github.unidbg.memory.Memory;

import java.io.File;
import java.io.IOException;
import java.nio.charset.Charset;
import java.util.Base64;

import okhttp3.*;
import okio.Buffer;

public class XhsShield extends AbstractJni {
    private static AndroidEmulator emulator;
    private static Memory memory;
    private static VM vm;
    private static Module module;
    private static DvmClass XhsNativeClass;
    private static DvmObject XhsNativeObject;
    private static  long cPtr;
    private static DvmObject chain = null;
    private Request request;
    private static String url;
    public XhsShield(){
        //1.初始化
        emulator = AndroidEmulatorBuilder.for32Bit().setProcessName("com.che168.autotradercloud").build();

        //2.设置内存对象
        memory = emulator.getMemory();
        // 3.设置安卓版本
        memory.setLibraryResolver(new AndroidResolver(23));

        //4. 创建虚拟机
        vm = emulator.createDalvikVM(new File("apks/xhs/9.11.0.apk"));
        vm.setJni(this);  // 补jni环境

        //5. 加载so文件
        DalvikModule dm = vm.loadLibrary(new File("apks/xhs/libxyass.so"),false);
        dm.callJNI_OnLoad(emulator); // 动态注册

        // 6 基于module访问so文件的成员
        module = dm.getModule();

        XhsNativeClass = vm.resolveClass("com/xingin/shield/http/Native");
        XhsNativeObject = XhsNativeClass.newObject(null);
        url = "https://edith.xiaohongshu.com/api/sns/v4/user/login/password?";
        request = new Request.Builder()
                .url(url)
                .addHeader("xy-direction","99")
                .addHeader("X-b3-traceId","afaf697d4a1a0e0f")
                .addHeader("x-xray-traceid","cd722ebab5427376348604b9e41dd77d")
                .addHeader("xy-scene","fs=0&point=-1")
                .addHeader("x-legacy-did","09a9b1be-85ba-3cbe-8e71-06ad67760ad2")
                .addHeader("x-legacy-fid","176476455610a006500aeedc7aa3708a8be3031932d7")
                .addHeader("x-legacy-sid","session.1744300626655701629150")
                .addHeader("x-mini-gid","7c0d68e8647a5438a2394bbad364c2bdf31b98794735944077bbfc55")
                .addHeader("x-mini-s1","AC8AAAABw7ix0yQwSZbHfsTSRLmhLqg2ZlBEvg1RChKtfknNj4MlCHXkhCnmOPmKhVcyD73CaW60vx60csU=")
                .addHeader("x-mini-sig","8612f4cc0cda7c3743973430d390d603c27a32f52cf5d75be3181aff61cbec57")
                .addHeader("x-mini-mua","eyJhIjoiRUNGQUFGMDEiLCJjIjo0NywiayI6IjFiYjcyNmNmNGVkY2ZhYzdhYjcxODY4MWZjMGEwNjMyODlhZDVhN2M3YzA0NzA5ZTcyYjAyOWQyYWQ2NmI2NzYiLCJwIjoiYSIsInMiOiI0OWEyYWM0N2Q5OTIzMWFhMjdjZDYzYTMwNzFlMjAyZDk0OWQwNTQ3NDYwNDllNWIyMDAwYjBmZmE2OWU5ZDA2MTIxODA1MWVkMjhiMWNiNThmZjI1OGQzY2FmMmQ2OWU1NzAyYWZiNWY3MzRkZmJkZmM3YmJlMzcyZDY5MTdiYyIsInQiOnsiYyI6NDIsImQiOjIsImYiOjAsInMiOjQwOTgsInQiOjM5MDMyNDgsInR0IjpbMV19LCJ2IjoiMi45LjQ5MyJ9.piPax876l_Uzi3JLBE_LVR4mbEXCfUFOO_IE7eGf4a1e-Q4N6yvIFvokAc6yg03quMvk_xMgRKpSdg4c4AFoN6cuy4UzwjoJPzVRAS2ADlR3voF_xSDbc4pmdUMU36wDPzHDhadZTrCra_BAP6sxJvA7bk8gsO7BcTxKi168KORV9eII9b0WSCKFOPMtWTnyvkTrEdU4Ig7Xe7XrSJ4qNE4Mznd3i1hnO6Jca9kdS40ASw4XE9aw1ShQsWB0KnhL4GI18FsPMnYv8lmdDOPfwpm8XHf5jlHVjMJjNEq9ep2hKoD2ZVcl11Fw2WW_TeAPWfVmsy0KbZ1SUm3JIu0DDlh-Ods6axb2u9j2RjXKrME4uAShQjorQDMhFEP_2Ba1gpCWKZigvCvg3ib_4yNNAWAvaqQ_ROAUhKVZyNPKq4WFC8hSSfCSVSmc1tx4CeMYCv_vmCigzhxkXdUbz6-Mlj5CzAmUVXIwoG-3siN9QjrtN0lBeF3nVWCkgKt_rJ3iM93ezBAeVnDa8jqmbjtrJ-0_LUhgtebU3jiJWLIJQWolzKYRDP5cmrgsUwM0CwNWypp5B8XHEjRQ0PmpAmfnHYewSmHI2YSw_OiaCpQdu1dMTsPcfbAukG9y_X9JirLl9pej6bJY7j95nQPv71VT7Z8JPpri1V8nlwglGnKH_Fh7QHWk23tCwUhbz6eCTDlADtR8-eMDJNAyi8gKLmWIzPfqQ1ihdwvuJ-EQsYmbZNepdNpProRoNIWJM5xpOlCKrEwyOXxjmpg2lL4RhS7sgTYnFUX9WmWIR1BeR_xe9q7dhR0xI_5igza-bjppCqmU8Ece4ScaDtAP-esT9JTkOcmdi9g48FJMxbaGuq_PzRLRGpA06azEqJh-CCQuvHaFm2yPntXq76QMvs12hJzNc6B7IsFGTJokkW2uNWT_KYgVufS9T0BhrjXu0ZHYfx-gyhkvNXU52ZYyxAi-2uKPXdLYOuvFT1VluZlv0ufnRIxxRW-9okL1zxsYPAyRldtFciJNo-_axTMy-9gEDlaNMUhQhRGMMfO_bst11dFznUyfYQfHcusuNR30xpA95_Bb3q1sS6fFO5OwEFeY1l6vWhsORVKuPYmZMNmwG0OjDyXB-YEqNLxl7hGQ9nvrbYUA8tgOeeRMQ_hqzta69hAIPz7oCt2ey08ljVhKYlqTRx8PTUPfR2yJO3-sg4XPZK-f6UlL1NfScP8CvQdkXt_7X1DfDr765o0gjcuu0nr9zwO_J6bubgB3yLd6BsFLkLpY.")
                .addHeader("xy-common-params","fid=176476455610a006500aeedc7aa3708a8be3031932d7&gid=&device_model=phone&tz=Asia%2FShanghai&channel=YingYongBao&versionName=9.11.0&deviceId=09a9b1be-85ba-3cbe-8e71-06ad67760ad2&platform=android&sid=&identifier_flag=4&cpu_abi=armeabi-v7a&nqe_score=91&project_id=ECFAAF&x_trace_page_current=&lang=zh-Hans&app_id=ECFAAF01&uis=light&teenager=0&active_ctry=&cpu_name=Qualcomm+Technologies%2C+Inc+SDM845&dlang=zh&data_ctry=CN&SUE=0&launch_id=1764767679&device_level=3&origin_channel=YingYongBao&overseas_channel=0&mlanguage=zh_cn&folder_type=none&auto_trans=0&t=1764767921&build=9110805&holder_ctry=CN&did=9d29cd0e55089e8e17beb8757715900b")
                .addHeader("User-Agent","Dalvik/2.1.0 (Linux; U; Android 13; Pixel 4 XL Build/TP1A.221005.002.B2) Resolution/1440*3040 Version/8.77.0 Build/8770299 Device/(Google;Pixel 4 XL) discover/8.77.0 NetType/WiFi")
                .addHeader("Referer","https://app.xhs.cn/")
                .build();
    }

    public void initializeNative(){
        String method = "initializeNative()V";
        XhsNativeClass.callStaticJniMethod(emulator,method);
    }
    // 初始化
    public void initialize(){

        cPtr = XhsNativeObject.callJniMethodLong(emulator, "initialize(Ljava/lang/String;)J", "main");
        System.out.println("cPtr = " + cPtr);
    }

    public void intercept(){
        chain =  vm.resolveClass("okhttp3/Interceptor$Chain").newObject(null);
        // 找到类的方法
        String method = "intercept(Lokhttp3/Interceptor$Chain;J)Lokhttp3/Response;";

        DvmObject<?> response = XhsNativeClass.callStaticJniMethodObject(
                emulator,
                method,
                chain,
                cPtr
        );

        // DvmObject<?> result = obj;        System.out.println(response);
    }


    public static void main(String[] args){
        XhsShield xhsShield = new XhsShield();
        xhsShield.initializeNative();
        xhsShield.initialize();
        xhsShield.intercept();
        System.out.println("shield:"+ xhsShield.request.headers().get("shield"));
    }

    @Override
    public int callIntMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
        switch (signature) {
            case "okhttp3/Headers->size()I": {
                Headers headers = (Headers) dvmObject.getValue();
                return headers.size();
            } case "okhttp3/Response->code()I" :{
                return 200;
            }
        }        return super.callIntMethodV(vm, dvmObject, signature, vaList);
    }

    @Override
    public DvmObject<?> newObjectV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
        switch (signature) {
            case "okio/Buffer-><init>()V" : {
                return  dvmClass.newObject(new Buffer());
            }
        }        return super.newObjectV(vm, dvmClass, signature, vaList);
    }

    @Override
    public DvmObject<?> callStaticObjectMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
        switch (signature) {
            case "com/xingin/shield/http/Base64Helper->decode(Ljava/lang/String;)[B" :{
                String cipher = vaList.getObjectArg(0).toString();
                return new ByteArray(vm, Base64.getMimeDecoder().decode(cipher));
            }case "java/nio/charset/Charset->defaultCharset()Ljava/nio/charset/Charset;" :{
                Charset defaultCharset = Charset.defaultCharset();
                return ProxyDvmObject.createObject(vm, defaultCharset);
            }
        }        return super.callStaticObjectMethodV(vm, dvmClass, signature, vaList);
    }



    @Override
    public int getStaticIntField(BaseVM vm, DvmClass dvmClass, String signature) {
        switch (signature) {
            case "com/xingin/shield/http/ContextHolder->sAppId:I": {
                return -319115519;
            }
        }        return super.getStaticIntField(vm, dvmClass, signature);
    }

    @Override
    public DvmObject<?> getStaticObjectField(BaseVM vm, DvmClass dvmClass, String signature) {
        switch (signature){
            case "com/xingin/shield/http/ContextHolder->sDeviceId:Ljava/lang/String;" :{
                return new StringObject(vm, "09a9b1be-85ba-3cbe-8e71-06ad67760ad2");
            }

        }        return super.getStaticObjectField(vm, dvmClass, signature);
    }

    @Override
    public DvmObject<?> callObjectMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
        switch (signature) {
            case "android/content/Context->getSharedPreferences(Ljava/lang/String;I)Landroid/content/SharedPreferences;": {
                String sharedPreferencesFileName = vaList.getObjectArg(0).toString();
                System.out.println("sharedPreferencesFileName:" + sharedPreferencesFileName);
                return vm.resolveClass("android/content/SharedPreferences").newObject(sharedPreferencesFileName);
            }
            case "android/content/SharedPreferences->getString(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;": {
                String key = vaList.getObjectArg(0).toString();
                String defaultValue = vaList.getObjectArg(1).toString();

                System.out.println("key:" + key);
                System.out.println("defaultValue:" + defaultValue);
                switch (key) {
                    case "main_hmac": {
                        return new StringObject(vm, "sN1QiRZkXPh88VBAWSUHBLLkVh7dWKE5cqJoWMqryy0KLi1rLzpDRoQLUQmUqmpp4QCRV1uX7HrWBmlmdgiqyAyJiPKE7Wqv/93mDZrGiQRHIBzvt8PmktASa8izEcM3");
                    }
                }                return new StringObject(vm, defaultValue);
            }
            case "okhttp3/Interceptor$Chain->request()Lokhttp3/Request;": {
                return vm.resolveClass("okhttp3/Request").newObject(request);
            }
            case "okhttp3/Request->url()Lokhttp3/HttpUrl;": {
                return vm.resolveClass("okhttp3/HttpUrl").newObject(request.url());
            }
            case "okhttp3/HttpUrl->encodedPath()Ljava/lang/String;": {
                HttpUrl httpUrl = (HttpUrl) dvmObject.getValue();
                return new StringObject(vm, httpUrl.encodedPath());
            }
            case "okhttp3/HttpUrl->encodedQuery()Ljava/lang/String;": {
                HttpUrl httpUrl = (HttpUrl) dvmObject.getValue();
                return new StringObject(vm, httpUrl.encodedQuery());
            }
            case "okhttp3/Request->body()Lokhttp3/RequestBody;": {
                Request request = (Request) dvmObject.getValue();
                return ProxyDvmObject.createObject(vm, request.body());
            }
            case "okhttp3/Request->headers()Lokhttp3/Headers;": {
                Request request = (Request) dvmObject.getValue();
                return ProxyDvmObject.createObject(vm, request.headers());
            }
            case "okio/Buffer->writeString(Ljava/lang/String;Ljava/nio/charset/Charset;)Lokio/Buffer;": {
                Buffer buffer = (Buffer) dvmObject.getValue();
                String arg1 = vaList.getObjectArg(0).getValue().toString();
                Charset arg2 = (Charset) vaList.getObjectArg(1).getValue();
                return vm.resolveClass("okio/Buffer").newObject(buffer.writeString(arg1, arg2));
            }
            case "okhttp3/Headers->name(I)Ljava/lang/String;": {
                Headers headers = (Headers) dvmObject.getValue();
                int arg1 = (int) vaList.getIntArg(0);
                return new StringObject(vm, headers.name(arg1));
            }
            case "okhttp3/Headers->value(I)Ljava/lang/String;": {
                Headers headers = (Headers) dvmObject.getValue();
                int arg1 = (int) vaList.getIntArg(0);
                return new StringObject(vm, headers.value(arg1));
            }
            case "okio/Buffer->clone()Lokio/Buffer;": {
                Buffer buffer = (Buffer) dvmObject.getValue();
                return vm.resolveClass("okio/Buffer").newObject(buffer.clone());
            }
            case "okhttp3/Request->newBuilder()Lokhttp3/Request$Builder;": {
                Request requestObj_newBuilder = (Request) dvmObject.getValue();
                return vm.resolveClass("okhttp3/Request$Builder").newObject(requestObj_newBuilder.newBuilder());
            } case "okhttp3/Request$Builder->header(Ljava/lang/String;Ljava/lang/String;)Lokhttp3/Request$Builder;" :{
                Request.Builder requestObj_Builder = (Request.Builder) dvmObject.getValue();
                String arg0 = vaList.getObjectArg(0).getValue().toString();
                String arg1 = vaList.getObjectArg(1).getValue().toString();
                return vm.resolveClass("okhttp3/Request$Builder").newObject(requestObj_Builder.header(arg0,arg1));
            } case "okhttp3/Request$Builder->build()Lokhttp3/Request;" :{
                Request.Builder requestObj_Builder = (Request.Builder) dvmObject.getValue();
                Request resultRequest = requestObj_Builder.build();
                request = resultRequest;
                return vm.resolveClass("okhttp3/Request").newObject(resultRequest);
            } case "okhttp3/Interceptor$Chain->proceed(Lokhttp3/Request;)Lokhttp3/Response;" :{
                return vm.resolveClass("okhttp3/Response").newObject(null);
            }
        }        return super.callObjectMethodV(vm, dvmObject, signature, vaList);
    }



    @Override
    public void callStaticVoidMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
        switch (signature) {
            case "com/xingin/shield/http/ContextHolder->writeLog(I)V" :{
                // vm.resolveClass("com/xingin/shield/http/ShieldLogger").newObject(null);
            }
        }      //  super.callStaticVoidMethodV(vm, dvmClass, signature, vaList);
    }
}

字段流程分析，在另一篇文章里

参考文章

c++的String

新版红薯shield字段（1） --- unidgb补还境

文章目录

前言

定位java层 （hook request类）

定位so层

unidbg 模拟执行

1.writeLog

2. 初始化函数

3. Charset的defaultCharset

4. 补充sDeviceId、sAppId

5. SharedPreferences补充

6.Base64Helper

7. request函数

8. okhttp的其他环境

9. okio

10 proceed

11.状态码

12. 打印shield

完整代码

字段流程分析，在另一篇文章里

参考文章

定位java层（hook request类）
