Jenkins升级版本（2.289.3-2.528.3）

1. 背景

目前使用的Jenkins 版本2.289.3 很旧了，运行在Cenos6上。本次升级操作系统，升级新版Jenkins 2.528.3 LTS。为启用"参数化构建"功能，支持自由风格使用tag发版做准备。

参见：配置Jenkins使用tag发布

2. 参考

官方安装文档

3. 环境

• 操作系统 Ubuntu24.04
• 主服务器配置 VM 16C/64G/800G
• Jenkins版本 2.528.3 LTS
• Java版本 JDK21

4. 操作系统安装

略

5. Jenkins升级

5.1 整理当前Jenkins工作路径

1. Jenkins安装目录和所有程序目录

tree -d -L 1 /public/
/public/
├── ant
├── apache-maven-3.3.9
├── apache-maven-3.9.12
├── apache-maven-3.9.9
├── application
├── gradle-6.3-bin
├── java
├── jenkins
├── repository
├── software
└── spark-1.6.1

• jenkins目录是程序主目录。为了保持备份脚本目录统一（每天定时rsync备份），在其中定义了两个子目录
  • jenkins-war -> /usr/lib/jenkins/ 链接指向真实程序目录
  • root.jenkins -> /root/.jenkins/ 链接指向工作空间目录

2. Jenkins工作空间目录（每天定时rsync备份）

tree -a -d -L 1 /root/ | grep jenkins
├── .jenkins

5.2 同步所有文件到新服务器

rsync -avz  /public/  root@192.168.7.132:/public
rsync -avz  /root/.jenkins  root@192.168.7.132:/root/
rsync -avz  /usr/lib/jenkins  root@192.168.7.132:/usr/lib

5.3 同步Java环境到新服务器

• 本次升级使用jdk21

# 新增加的jdk17和jdk21
rsync -avz /usr/local/jvm  root@192.168.7.132: /usr/local/
# 保持旧jdk1.8不变，防止jenkins中有项目使用绝对路径
rsync -avz /usr/java root@192.168.7.132: /usr/

5.4 安装新版Jenkins

1. 备份旧版Jenkins

cd /usr/lib/jenkins && mv jenkins.war jenkins.war.20251223

2. 下载最新Stable (LTS)
   官网下载地址

root@ubuntu24-192-168-007-132:/usr/lib/jenkins# sha256sum /usr/lib/jenkins/jenkins.war
bfa31f1e3aacebb5bce3d5076c73df97bf0c0567eeb8d8738f54f6bac48abd74  /usr/lib/jenkins/jenkins.warjenkins.war

5.5 启动新版Jenkins

1. 使用java21，启动新版Jenkins 2.528.3

/usr/local/jvm/java21/bin/java -jar /usr/lib/jenkins/jenkins.war --httpPort=8899 > jenkins.log 2>&1 &

5.6 解决启动插件错误

1. 启动失败，报以下错误

• 原因是Matrix Authorization Strategy Plugin需要更新的Folders Plugin版本

Plugin v3.2.8 (matrix-auth)
java.io.IOException: Failed to load: Matrix Authorization Strategy Plugin (matrix-auth 3.2.8)
[LF]>  - Update required: Folders Plugin (cloudbees-folder 6.15) to be updated to 6.1026.ve06dfa_cf31c3 or higher

2. 更新Folder插件
   官方插件下载地址

• 进入插件目录

cd /root/.jenkins/plugins

• 备份旧cloudbees-folder

mv  cloudbees-folder cloudbees-folder.old
mv  cloudbees-folder.jpi  cloudbees-folder.jpi.old

• 下载新cloudbees-folder.hpi并创建子目录

ll | grep -i cloudbees-folder
# 新下载插件和新创建的子目录
drwxr-xr-x   5 root root       70 12月 17 18:41 cloudbees-folder/
-rw-r--r--   1 root root   243117 12月 17 18:24 cloudbees-folder.hpi
# 旧备份文件
-rw-r--r--   1 root root   223145  5月 12  2021 cloudbees-folder.jpi.old
drwxr-xr-x   5 root root       70 12月 15 01:32 cloudbees-folder.old/

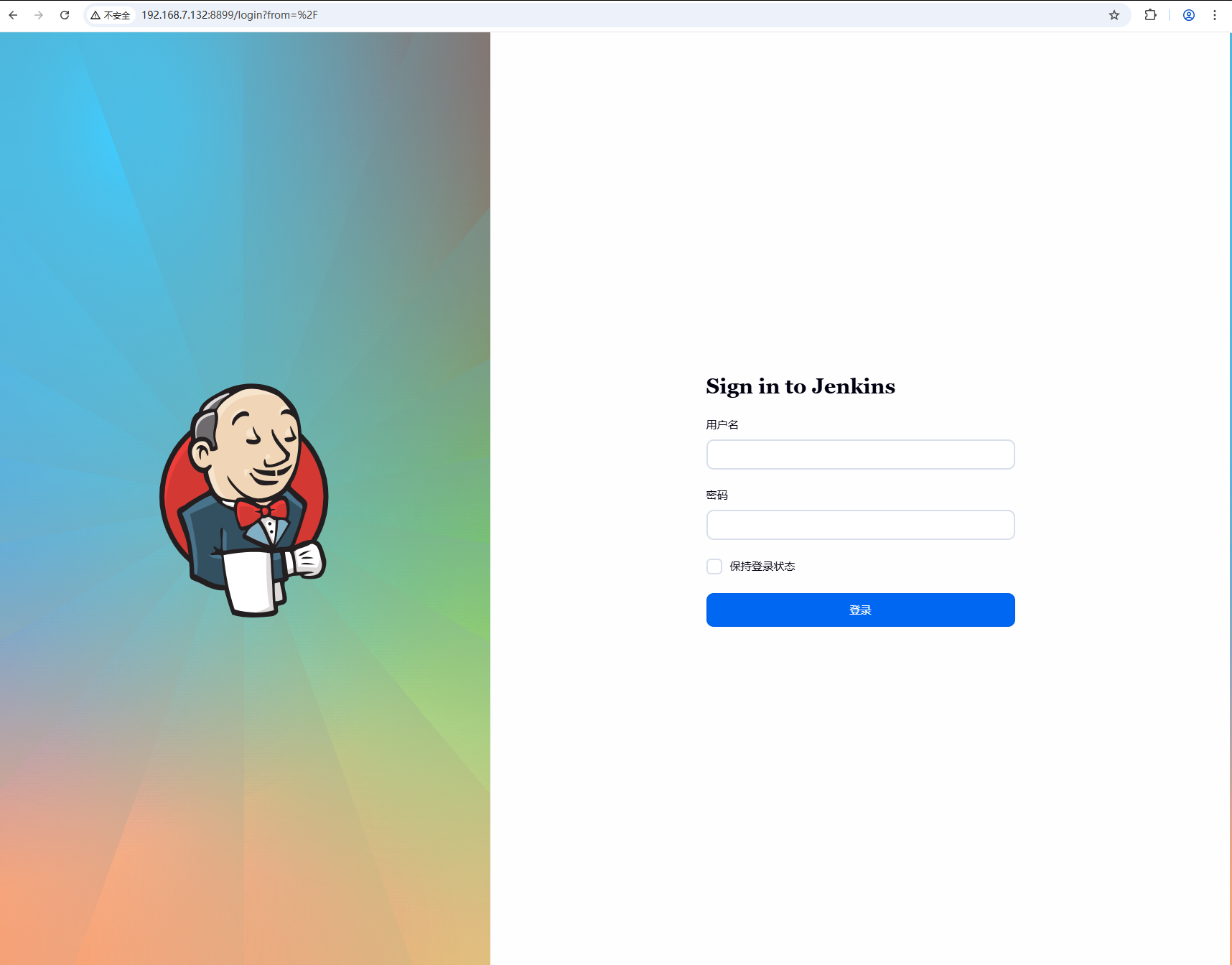

5.7 新版Jenkins启动成功

http://192.168.7.132:8899/login?from=%2F

5.8 升级Jenkins所有插件

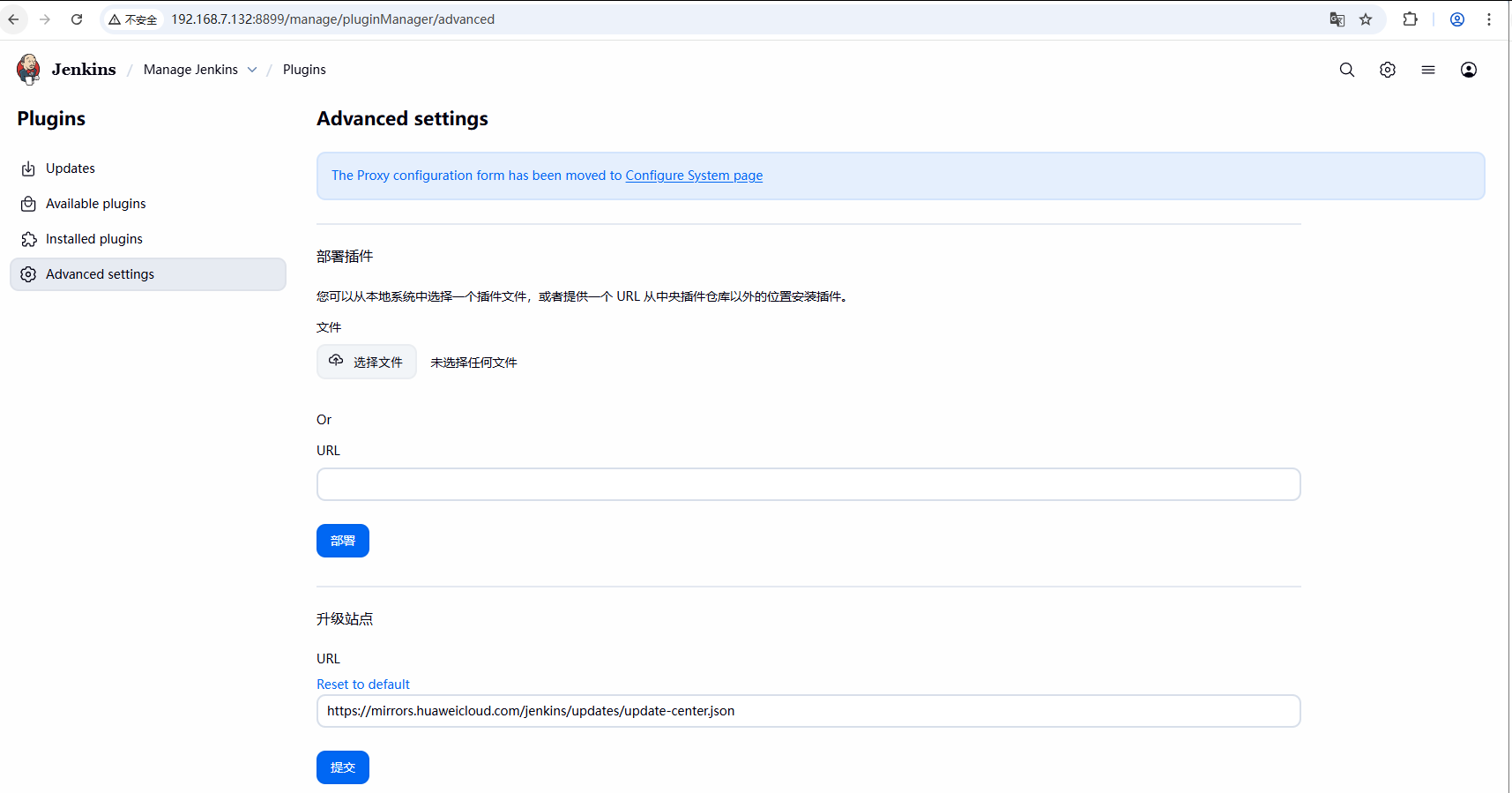

1. 更换国内镜像源

• 华为源：https://mirrors.huaweicloud.com/jenkins/updates/update-center.json
• Jenkins-->ManageJenkins-->Plugins-->Advanced settings下配置

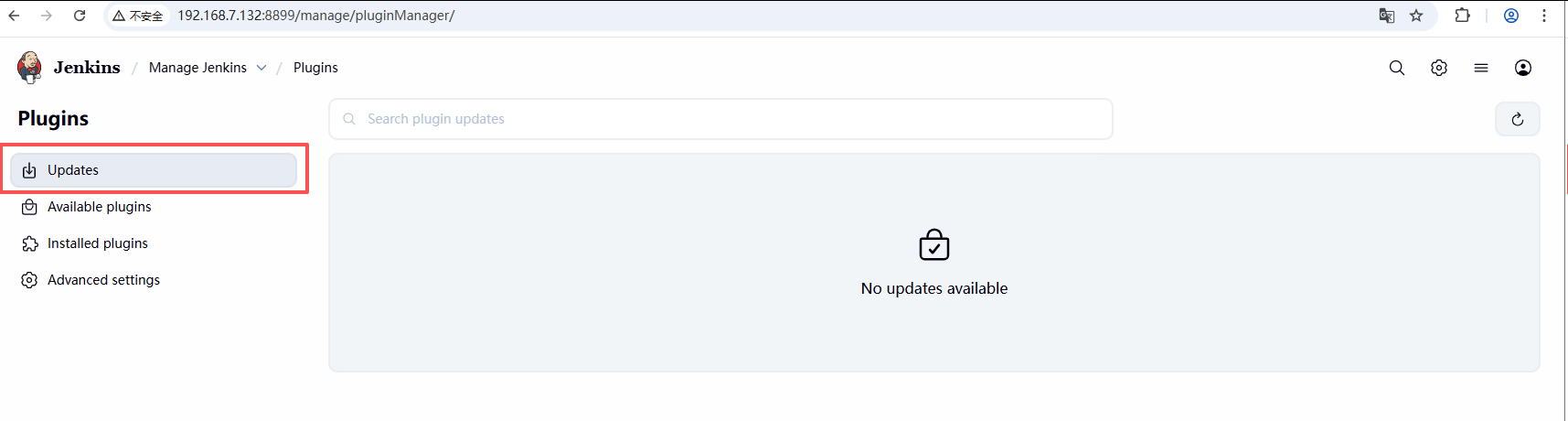

2. 确保Jenkins-->ManageJenkins-->Plugins-->Updates 下再没有需要升级的插件

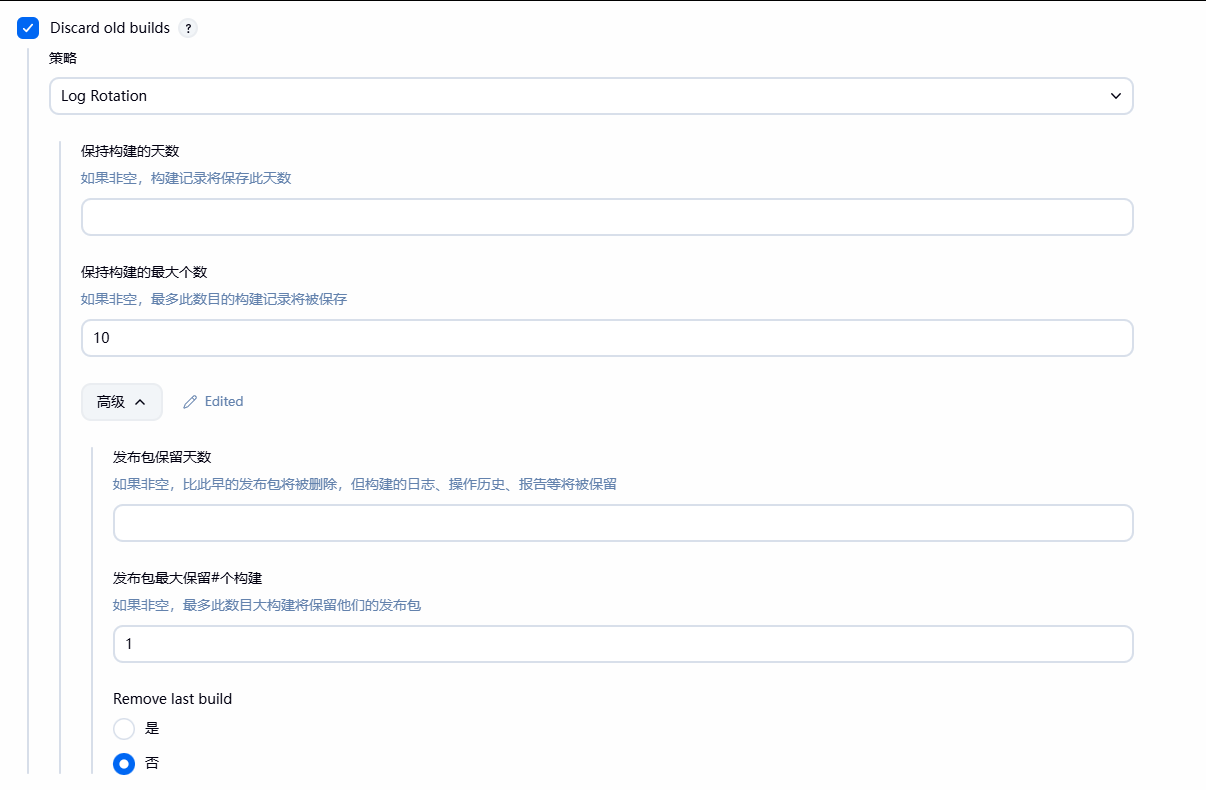

5.9 配置"抛弃旧构建"

1. 旧版Jenkins升级后，需要单独配置抛弃旧构建(Discard old builds)
2. 所有每个项目都重新配置（建议与下列修改built-in配置一并完成）


• 保持构建的天数 与 保持构建的最大个数是"或"关系
• 发布包保留天数 与 发布包保留最大个数也是"或"关系
• 为了节省空间，上述定义保留了10次构建记录 和 1个构建发布包

注意 ：Jenkins升级成功后，如果不配置"抛弃旧构建(Discard old builds)"，Jenkins会自动启动构建，生成并保留所有发布包，很容易撑满磁盘空间。

5.10 消除主节点术语变更警告

1. Jenkins-->ManageJenkins下出现以下警告信息

The word "master" is being retired as the term for the main Jenkins process and the built-in node. The main process is now called "controller" and the built-in node is called just "built-in node". The UI has been updated with these changes. The following features are also affected:
The implicit label of the built-in node changes from master to built-in.
The built-in node's NODE_NAME environment variable also changes from master to built-in.
These changes could affect build behavior, so are not applied automatically. Before you apply these changes, you should do the following:
Review label assignments in job configurations and tool installers for uses of master label. Any such label assignments will not match the built-in node after migration. Besides updating these assignments, you could also explicitly add the master label to the built-in node.
Review use of the NODE_NAME environment variable in build scripts.

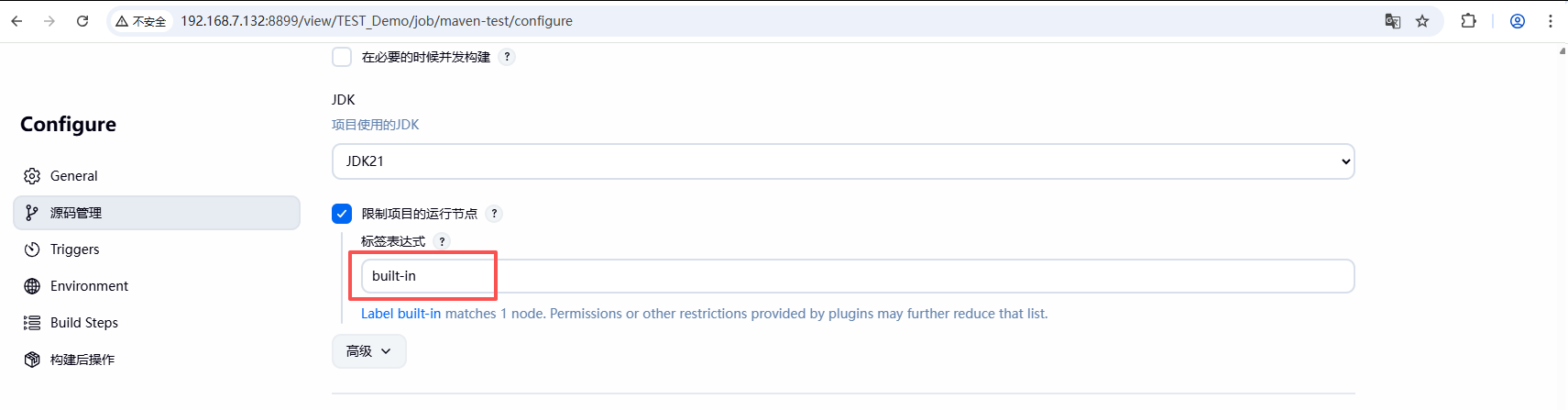

2. 新版Jenkins启用"built-in"替代之前的"master"节点标签

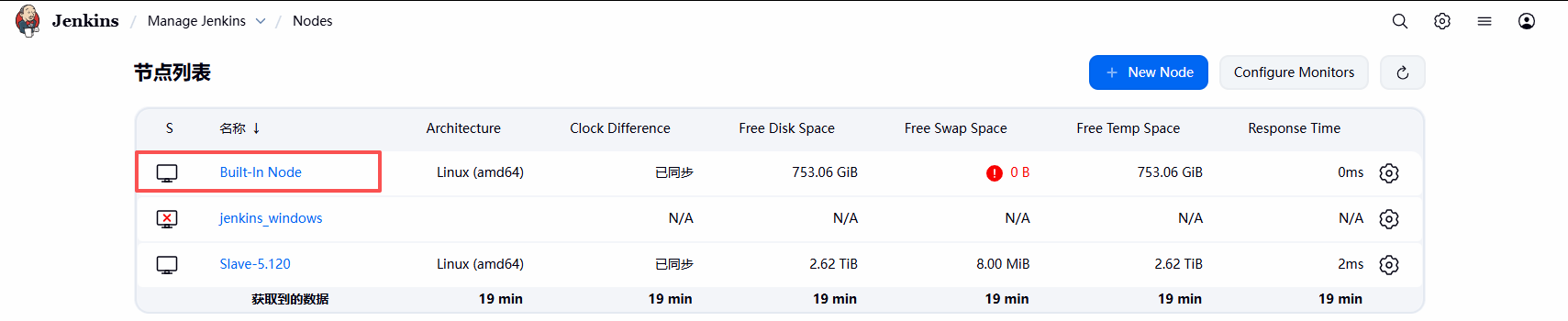

• 这个变更不是必须的操作，如果不修改（Jenkins-->Manage Jenkins-->Nodes）,之前每个项目配置的"master"节点仍然生效，如果修改（Jenkins-->Manage Jenkins-->Nodes），那么每个项目就必须重新配置，使用"built-in"替代之前的"master"。

5.11 消除基于角色的权限策略配置警告

1. Jenkins-->ManageJenkins下出现以下警告信息

There are several permissions declared in Role Based Strategy plugin configuration, that are ambiguous. Classify them correctly with 'USER:username' or 'GROUP:groupname'.

2. 新版Jenkins必须明确权限是组或用户，不允许旧版中模糊定义

• 通过web管理界面定义权限绑定组或用户功能不成功（页面刷新后仍然定义模糊）
• 因此只能通过修改config.xml文件方式定义
• 备份配置文件

cp -rf   /root/.jenkins/config.xml   /root/.jenkins/config.bak

• 修改type="EITHER" 为准确组（group）或用户（user），举例如下：

vim config.xml

# 修改前原始记录
<assignedSIDs>
  <sid type="EITHER">shijin</sid>
</assignedSIDs>

# 修改后记录，绑定到用户上
<assignedSIDs>
  <sid type="USER">shijin</sid>
</assignedSIDs>

注意： 需要停服修改对应记录，重启服务后才生效

5.12 消除SSL证书已过期警告

1. Jenkins-->ManageJenkins-->Plugins下出现以下警告信息

There were errors checking the update sites: Signature verification failed in update site &#039;default&#039; </div><div><a href='#' class='showDetails'>（显示详情）</a><pre style='display:none'>java.security.cert.CertificateExpiredException: NotAfter: Tue Jun 14 18:42:00 CST 2022<br> at java.base/sun.security.x509.CertificateValidity.valid(CertificateValidity.java:182)<br> at java.base/sun.security.x509.X509CertImpl.checkValidity(X509CertImpl.java:534)<br> at java.base/sun.security.provider.certpath.BasicChecker.verifyValidity(BasicChecker.java:190)<br> at java.base/sun.security.provider.certpath.BasicChecker.check(BasicChecker.java:144)<br> at java.base/sun.security.provider.certpath.PKIXMasterCertPathValidator.validate(PKIXMasterCertPathValidator.java:125)<br>Caused: java.security.cert.CertPathValidatorException: validity check failed<br> at java.base/sun.security.provider.certpath.PKIXMasterCertPathValidator.validate(PKIXMasterCertPathValidator.java:135)<br> at java.base/sun.security.provider.certpath.PKIXCertPathValidator.validate(PKIXCertPathValidator.java:224)<br> at java.base/sun.security.provider.certpath.PKIXCertPathValidator.validate(PKIXCertPathValidator.java:144)<br> at java.base/sun.security.provider.certpath.PKIXCertPathValidator.engineValidate(PKIXCertPathValidator.java:83)<br> at java.base/java.security.cert.CertPathValidator.validate(CertPathValidator.java:309)<br> at org.jvnet.hudson.crypto.CertificateUtil.validatePath(CertificateUtil.java:93)<br> at jenkins.util.JSONSignatureValidator.verifySignature(JSONSignatureValidator.java:88)<br> at hudson.model.UpdateSite.verifySignatureInternal(UpdateSite.java:297)<br> at hudson.model.UpdateSite.updateData(UpdateSite.java:260)<br> at hudson.model.UpdateSite.updateDirectlyNow(UpdateSite.java:240)<br> at hudson.model.UpdateSite.updateDirectlyNow(UpdateSite.java:235)<br> at hudson.PluginManager.checkUpdatesServer(PluginManager.java:2177)<br> at hudson.util.Retrier.start(Retrier.java:62)<br> at hudson.PluginManager.doCheckUpdatesServer(PluginManager.java:2148)<br> at jenkins.DailyCheck.execute(DailyCheck.java:93)<br> at hudson.model.AsyncPeriodicWork.lambda$doRun$0(AsyncPeriodicWork.java:110)<br> at java.base/java.lang.Thread.run(Thread.java:1583)<br></pre>

2. 新版Jenkin提示证书过期，通过启动命令增加禁用签名检查参数消除

/usr/local/jvm/java21/bin/java -Dhudson.model.DownloadService.noSignatureCheck=true -jar jenkins.war --httpPort=8899  > jenkins.log 2>&1 &

注意： 需要停服修改对应记录，重启服务后才生效

5.13 设置Jenkins语言

1. 确保操作系统安装中文语言包并正确设置时区

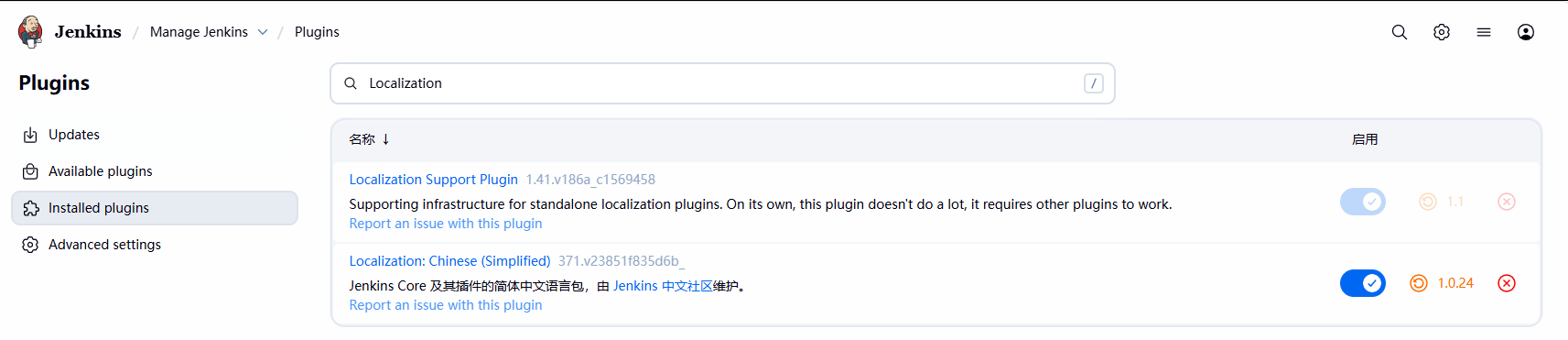

2. Jenkins-->ManageJenkins-->Plugins-->Available Plugins 下安装Localization: Chinese (Simplified) 或 Localization Support Plugin

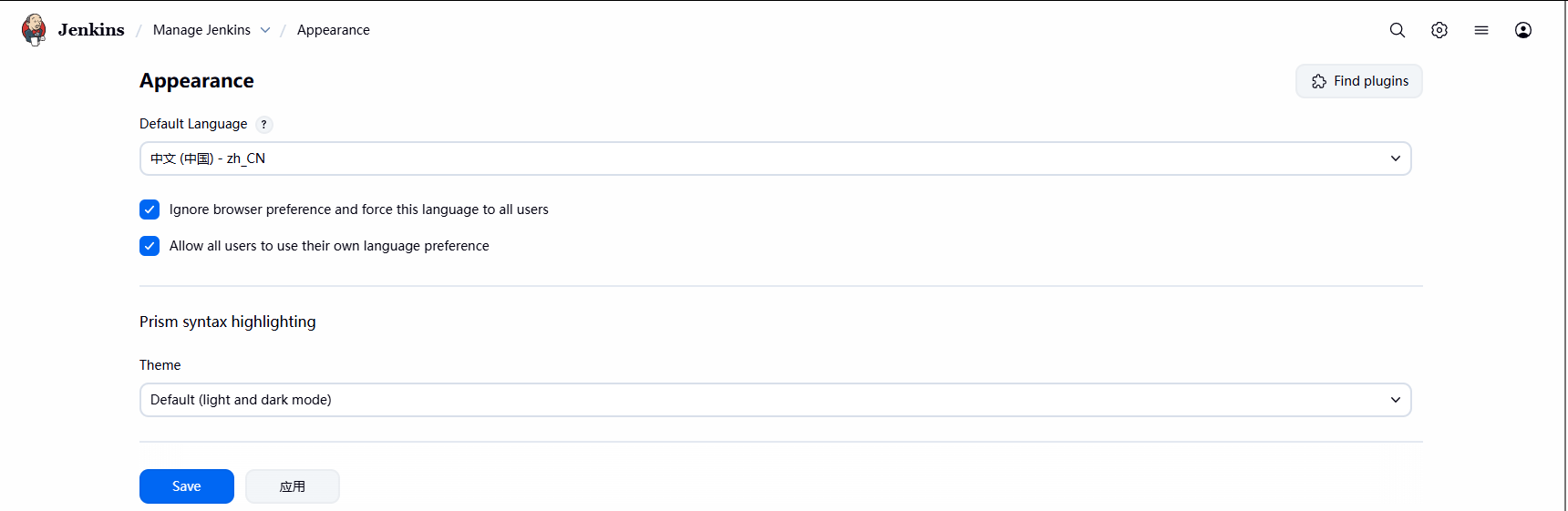

3. Jenkins-->ManageJenkins-->Appearance 设置中文


• 选中 Ignore browser preference and force this language to all users
• 选中 Allow all users to use their own language preference

5.14 设置Jenkins时区

• 通过启动命令增加时区参数设置

/usr/local/jvm/java21/bin/java --Duser.timezone=Asia/Shanghai -jar jenkins.war --httpPort=8899  > jenkins.log 2>&1 &

5.15 配置Jenkins启动脚本

vim /public/jenkins/restart.sh

#!/bin/bash

JENKINS_WAR="/usr/lib/jenkins/jenkins.war"
PORT="8899"
LOG="/public/jenkins/jenkins.log"

# 64GB内存优化配置
JAVA_OPTS="-Xmx32g -Xms16g -XX:MaxMetaspaceSize=1g -XX:ReservedCodeCacheSize=512m"
JAVA_OPTS="$JAVA_OPTS -XX:+UseG1GC -XX:MaxGCPauseMillis=200 -XX:G1HeapRegionSize=8m"
JAVA_OPTS="$JAVA_OPTS -XX:InitiatingHeapOccupancyPercent=35 -XX:+ExplicitGCInvokesConcurrent"
JAVA_OPTS="$JAVA_OPTS -Dfile.encoding=UTF-8 -Dhudson.DNSMultiCast.disabled=true"
# 设置时区
JAVA_OPTS="$JAVA_OPTS -Duser.timezone=Asia/Shanghai"
# 关闭签名检查
JAVA_OPTS="$JAVA_OPTS -Dhudson.model.DownloadService.noSignatureCheck=true"


# 停止命令
PID=`ps -ef | grep '/usr/lib/jenkins/jenkins.war' |grep -v grep |awk '{print $2}'`

if [ -n "$PID" ]; then

    echo -e "\n停止jenkins进程，PID: ${PID}"

    kill -TERM "$PID" 2>/dev/null
    sleep 3

    # 等待优雅停止，最多15秒
    for i in {1..5}; do
        kill -0 "$PID" 2>/dev/null || break
        echo "等待进程结束... ($i/5)"
        sleep 2
    done

    # 强制停止（如果仍在运行）
    if kill -0 "$PID" 2>/dev/null; then
        echo "强制终止进程..."
        kill -KILL "$PID" 2>/dev/null
        sleep 2
    fi

else
    echo -e "\n没有jenkins进程在运行，准备启动"
fi

# 启动命令
nohup /usr/local/jvm/java21/bin/java $JAVA_OPTS -jar "$JENKINS_WAR" --httpPort="$PORT" > "$LOG" 2>&1 &


New_PID=`ps -ef | grep '/usr/lib/jenkins/jenkins.war' |grep -v grep |awk '{print $2}'`

[ -n "$New_PID"  ] && echo -e "\njenkins启动成功，PID: ${New_PID}"  || echo -e "\njenkins启动失败！"
