React Native 横向滚动指示器组件库(淘宝|京东...&旧版|新版)

React Native 横向滚动指示器组件库

前言

在 React Native 开发中,横向滚动是常见需求,但原生 ScrollView 的滚动条样式有限。本文介绍一个带自定义滚动指示器的组件库:@zhenryx/react-native-indicator-scrollview,提供两种组件,提升滚动体验。 组件参考为淘宝京东等app金刚区旧版和新版滚动实现。

组件库简介

@zhenryx/react-native-indicator-scrollview 提供两个组件:

  1. IndicatorScrollView - 基础横向滚动视图,带滚动指示器
  2. PaginatedIndicatorScrollView - 分页式横向滚动视图,支持第一页固定、第二页展开,带双指示器

快速开始

安装

bash 复制代码
npm install @zhenryx/react-native-indicator-scrollview

基础使用

tsx 复制代码
import { IndicatorScrollView } from '@zhenryx/react-native-indicator-scrollview';

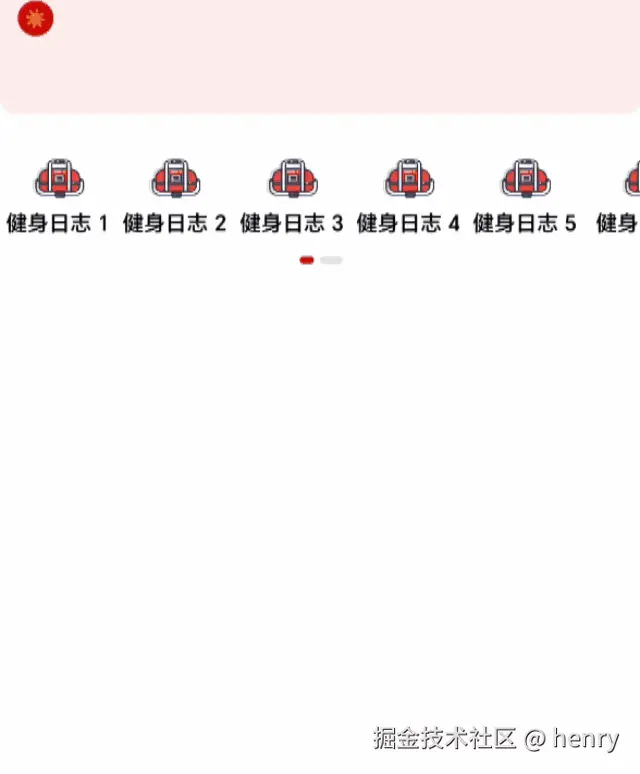

组件一:IndicatorScrollView

代码示例

tsx 复制代码
import React from 'react';
import { View, Text, StyleSheet } from 'react-native';
import { IndicatorScrollView } from '@zhenryx/react-native-indicator-scrollview';

export default function TagList() {
  const tags = ['React', 'React Native', 'TypeScript', 'JavaScript', 'Node.js', 'Vue', 'Angular'];

  return (
    <IndicatorScrollView
      trackWidth={60}      // 指示器轨道宽度
      thumbWidth={20}      // 指示器滑块宽度
      trackColor="#e2e2e2" // 轨道颜色
      thumbColor="#f35c10" // 滑块颜色
      scrollMarginVertical={10}
    >
      <View style={styles.tagContainer}>
        {tags.map((tag, index) => (
          <View key={index} style={styles.tag}>
            <Text style={styles.tagText}>{tag}</Text>
          </View>
        ))}
      </View>
    </IndicatorScrollView>
  );
}
const styles = StyleSheet.create({
  tagContainer: {
    flexDirection: 'row',
    paddingHorizontal: 10,
  },
  tag: {
    paddingHorizontal: 16,
    paddingVertical: 8,
    marginRight: 10,
    backgroundColor: '#f0f0f0',
    borderRadius: 20,
  },
  tagText: {
    fontSize: 14,
    color: '#333',
  },
});

Props 说明

属性 类型 默认值 说明
trackWidth number 20 指示器轨道宽度(水平长度)
trackHeight number 4 指示器轨道高度
trackColor string #e2e2e2ff 指示器轨道颜色
thumbWidth number 8 指示器滑块宽度
thumbColor string #f35c10ff 指示器滑块颜色
showIndicator boolean true 是否显示指示器
style StyleProp<ViewStyle> - 外层容器样式
scrollMarginVertical number 10 滚动区域的上下外边距

实现原理

  • 使用 Animated.ScrollView 监听滚动
  • 通过 interpolate 将滚动偏移映射到指示器位置
  • 根据内容宽度与布局宽度决定是否显示指示器

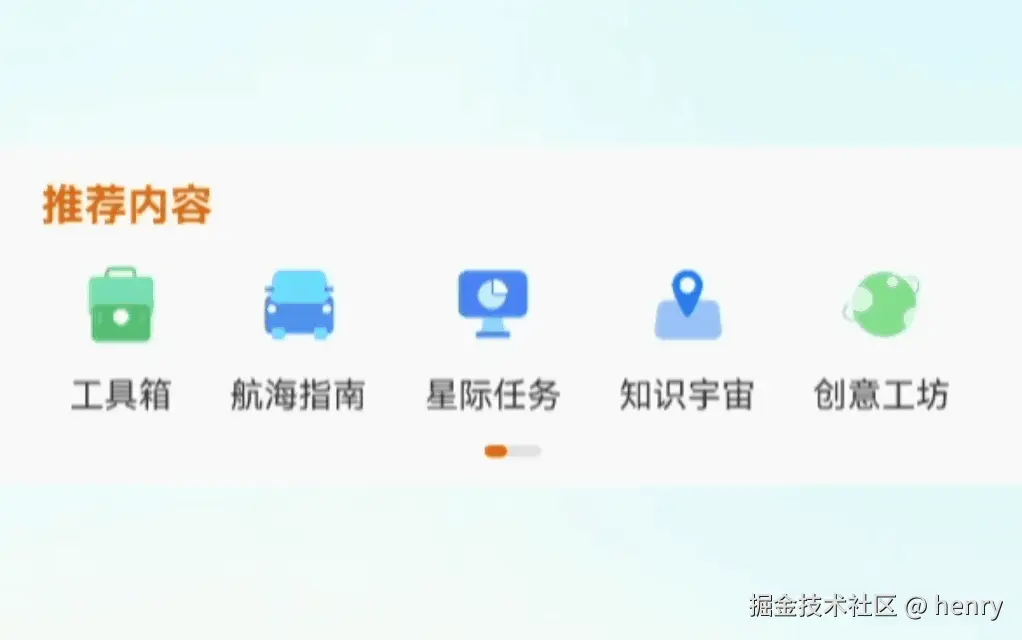

组件二:PaginatedIndicatorScrollView

代码示例

tsx 复制代码
import React from 'react';
import { PaginatedIndicatorScrollView, MenuItem } from '@zhenryx/react-native-indicator-scrollview';

const menuData: MenuItem[] = [
  { id: 1, name: '首页', icon: require('./assets/home.png'), href: '/' },
  { id: 2, name: '分类', icon: require('./assets/category.png'), href: '/category' },
  { id: 3, name: '购物车', icon: require('./assets/cart.png'), href: '/cart' },
  { id: 4, name: '我的', icon: require('./assets/user.png'), href: '/user' },
  { id: 5, name: '搜索', icon: require('./assets/search.png'), href: '/search' },
  { id: 6, name: '收藏', icon: require('./assets/favorite.png'), href: '/favorite' },
  { id: 7, name: '订单', icon: require('./assets/order.png'), href: '/order' },
  { id: 8, name: '设置', icon: require('./assets/settings.png'), href: '/settings' },
  // ... 更多菜单项
];

export default function MenuScreen() {
  const handleItemPress = (item: MenuItem) => {
    console.log('点击了菜单项:', item.name);
    // 处理导航逻辑
    // navigation.navigate(item.href);
  };

  return (
    <PaginatedIndicatorScrollView
      data={menuData}
      firstPageCount={5}  // 第一页显示5个
      onItemPress={handleItemPress}
      activeColor="#ce0707"    // 激活状态颜色
      inactiveColor="#e2e2e2"  // 非激活状态颜色
    />
  );
}

核心特性解析

1. 分页机制
  • 第一页:固定显示 firstPageCount 个菜单项
  • 第二页:剩余菜单项以网格形式展开
  • 滚动切换:左右滑动切换页面
2. 双指示器系统
  • 左侧指示器:第一页激活时高亮
  • 右侧指示器:第二页激活时高亮
  • 颜色过渡:使用 Animated 实现平滑过渡
3. 动态高度计算

第二页高度根据菜单项数量自动计算,确保内容完整显示。

Props 说明

属性 类型 默认值 说明
data MenuItem[] - 菜单数据数组(必需)
onItemPress (item: MenuItem) => void - 点击菜单项的回调函数
firstPageCount number 5 第一页显示的数量
activeColor string #ce0707ff 激活状态颜色
inactiveColor string #e2e2e2ff 非激活状态颜色
containerStyle StyleProp<ViewStyle> - 容器样式
pageStyle StyleProp<ViewStyle> - 页面样式
itemStyle StyleProp<ViewStyle> - 菜单项样式
menuIconStyle StyleProp<ImageStyle> - 菜单图标样式
menuTextStyle StyleProp<TextStyle> - 菜单文字样式
indicatorStyle StyleProp<ViewStyle> - 指示器容器样式
trackStyle StyleProp<ViewStyle> - 指示器轨道样式
thumbStyle StyleProp<ViewStyle> - 指示器滑块样式
typescript 复制代码
interface MenuItem {
  id: number;        // 唯一标识
  name: string;      // 菜单名称
  icon: any;         // React Native Image source
  href: string;      // 跳转路径(可自定义使用)
}

总结

@zhenryx/react-native-indicator-scrollview 提供了两个实用的横向滚动组件:

  • IndicatorScrollView:适合通用横向滚动场景
  • PaginatedIndicatorScrollView:适合菜单、分类等分页场景

两个组件都支持样式定制,API 简洁,易于集成。如果你需要更好的横向滚动体验,可以尝试这个组件库。

相关链接


希望这篇文章能帮助你了解和使用这个组件库。如有问题或建议,欢迎在 GitHub 上提出 Issue 或 PR。
