I.MX6ULL Uboot-2020.04 移植（1）：开发环境搭建以及NXP源码编译

Bin Watson2026-01-18 22:18

前提说明

本专题基于正点原子 ALPHA 开发板，移植 NXP 的原厂 U-Boot 2020.04 版本，后续也可能新增新版本的 U-Boot 移植；

本文参考了 i.MX6ULL - 从零开始移植uboot-imx_v2020.04_5.4.70_2.3.0。在其基础上，详细记录说明每一步操作的缘由，基于个人学习体会。

开发环境搭建

  1. 基于 WSL2 + Ubuntu-22.04 TLS 开发环境（自行搭建）

  2. 交叉编译工具，可以参考此篇 下载较老版本或最新版本的ARM Linux gcc 交叉编译工具链 详细介绍了各种交叉编译工具链的下载

    个人使用的 Linaro GCC

    旧版本下载链接 4.x~7.x

    新版本下载链接 11.x ~ 14.x

    我个人使用的 gcc-linaro-12.3.1-2023.06-x86_64_arm-linux-gnueabihf 版本，版本并没有太大关系，只要版本能运行在当前宿主机上（Ubuntu-22.04 TLS）即可。

    自行解压并存放在 Ubuntu 里面，目录位置任意，自己记住即可！

  3. 编译uboot和内核所必须的依赖库安装

    bash 复制代码
    sudo apt-get install -y libncurses5-dev lsb-core lib32stdc++6 bison flex lzop git bear

NXP 官方 U-Boot 编译

  1. 官方 U-Boot 位于 Github 上：

    bash 复制代码
    git clone https://github.com/nxp-imx/uboot-imx.git
cd uboot-imx

    使用 git branch --all 可以参考所以的分支

    我们切换到分支 remotes/origin/imx_v2020.04_5.4.70_2.3.0 上面，后续实验基于该分支进行。

  2. 编写一个构建脚本 build.sh 在 uboot-imx 目录，既当前 U-Boot 的根目录下面

    shell 复制代码
    #!/bin/bash
make ARCH=arm CROSS_COMPILE=/home/binwatson/.tools/gcc-linaro-12.3.1-2023.06-x86_64_arm-linux-gnueabihf/bin/arm-linux-gnueabihf- distclean
make ARCH=arm CROSS_COMPILE=/home/binwatson/.tools/gcc-linaro-12.3.1-2023.06-x86_64_arm-linux-gnueabihf/bin/arm-linux-gnueabihf- mx6ull_14x14_evk_emmc_defconfig
bear -- make ARCH=arm CROSS_COMPILE=/home/binwatson/.tools/gcc-linaro-12.3.1-2023.06-x86_64_arm-linux-gnueabihf/bin/arm-linux-gnueabihf- -j4 V=1
    • CROSS_COMPILE：指定前面安装交叉编译工具链的位置，参考我的修改成你自己的即可；
    • -j4：指定使用 4 个线程进行编译，可自行修改；
    • bear -- make：目的是生成 compile_commands.json 用于 clangd 跳转；

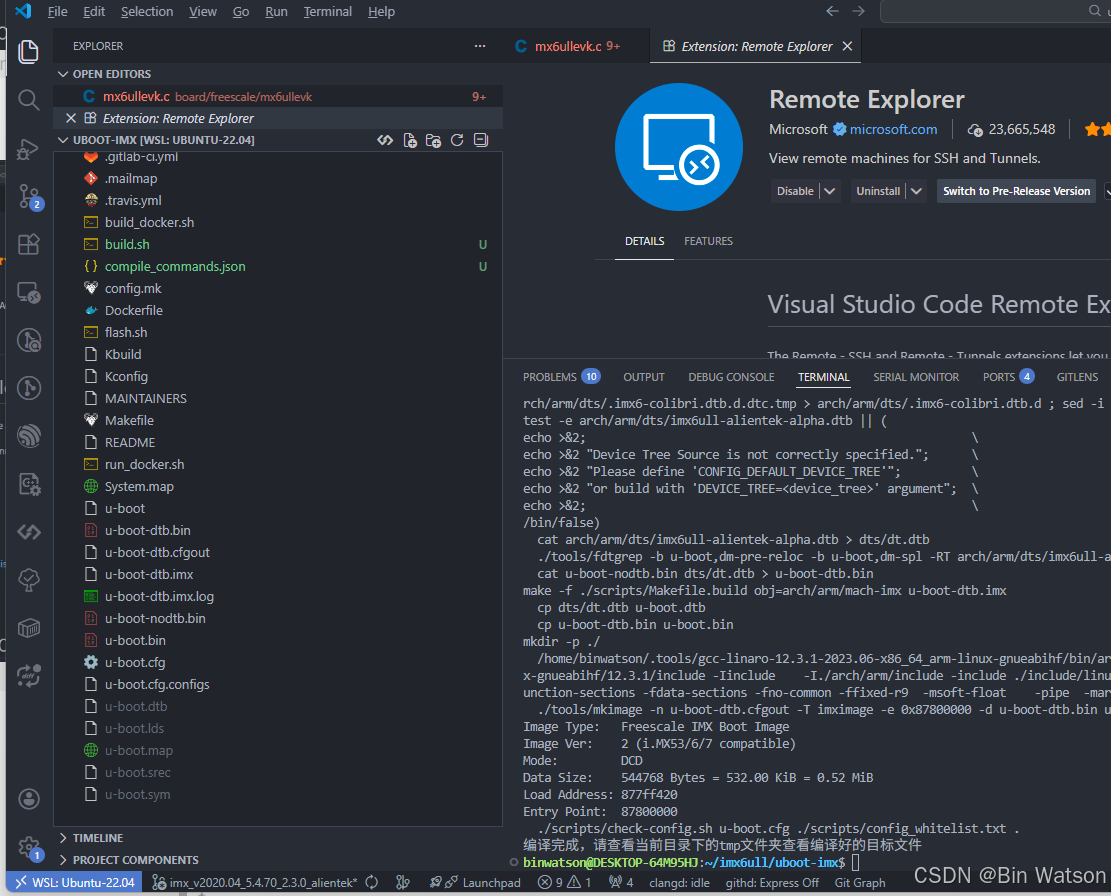

  3. 给 build.sh 脚本新增执行权限，并且进行编译：

    bash 复制代码
    chmod +x build.sh
./build.sh

  4. 编写 usb 下载脚本，用于通过 usb 烧录镜像到开发板，方便后续开发验证程序，如果你使用 SD 卡，跳过该步骤即可。

    在 Ubuntu-22.04 环境下直接通过 sudo apt-get install uuu 即可下载 uuu 工具，如果其它环境请自行参考官方 mfgtools

    编写烧录脚本 flash.sh

    bash 复制代码
    #!/bin/bash
SCRIPT_DIR=$(cd "$(dirname "$(readlink -f "${BASH_SOURCE[0]}")")" &> /dev/null && pwd)
BUILD_DIR="."
UUU_TOOL=uuu

echo "Start Download u-boot-dtb.imx ..."
sudo ${UUU_TOOL} ${BUILD_DIR}/u-boot-dtb.imx
echo "Download u-boot-dtb.imx done."

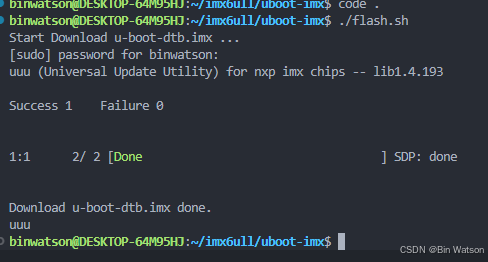

  5. 将开发板切换到 USB 启动，然后复位即可通过 flash.sh 脚本将镜像烧录。

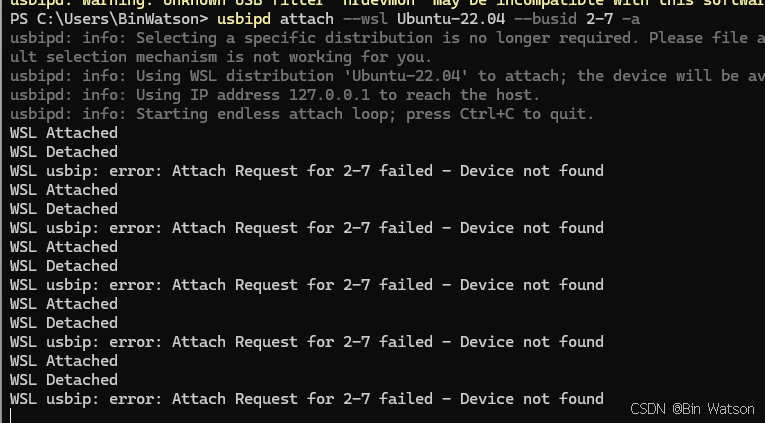

    将 USB-OTG 挂在到 WSL2 需要借助 usbipd-win 工具，请自行参考安装

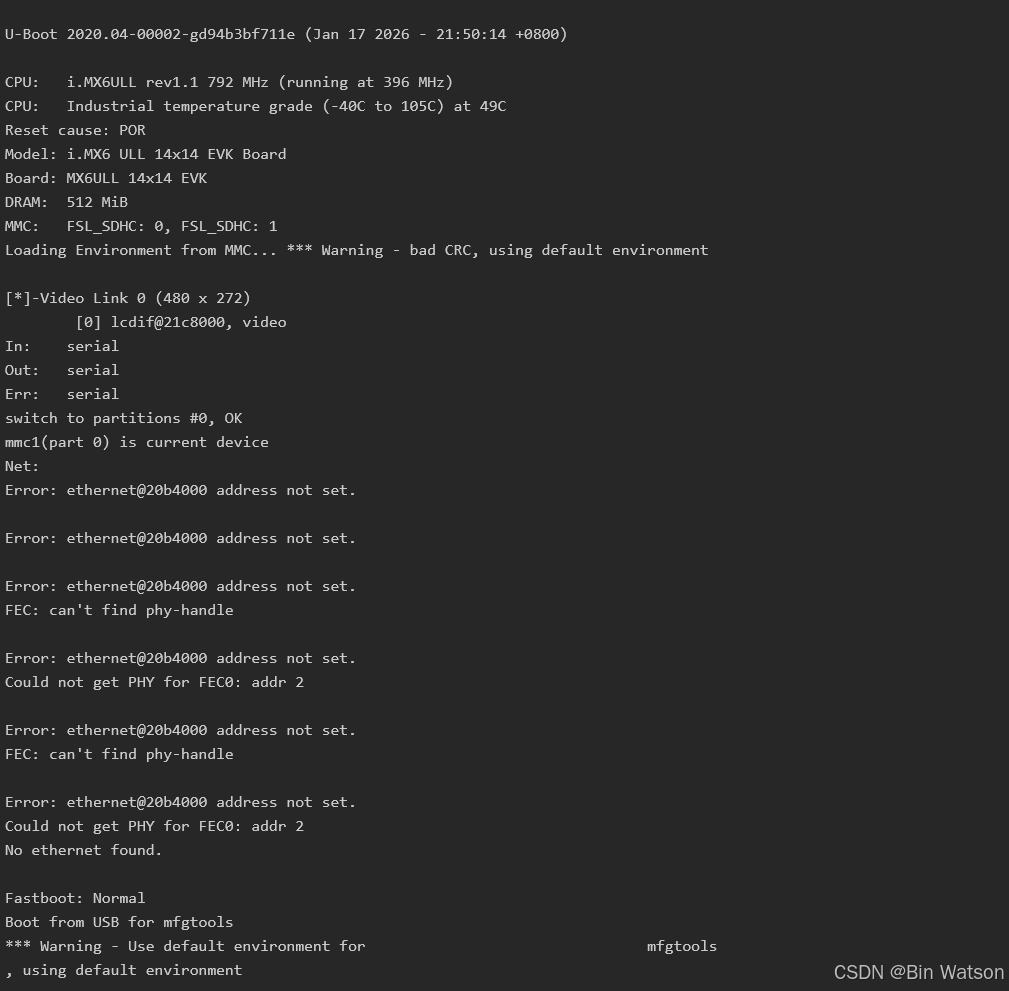

烧录成功后，可以通过串口查看运行情况：

配置 VSCode 作为后续的开发平台

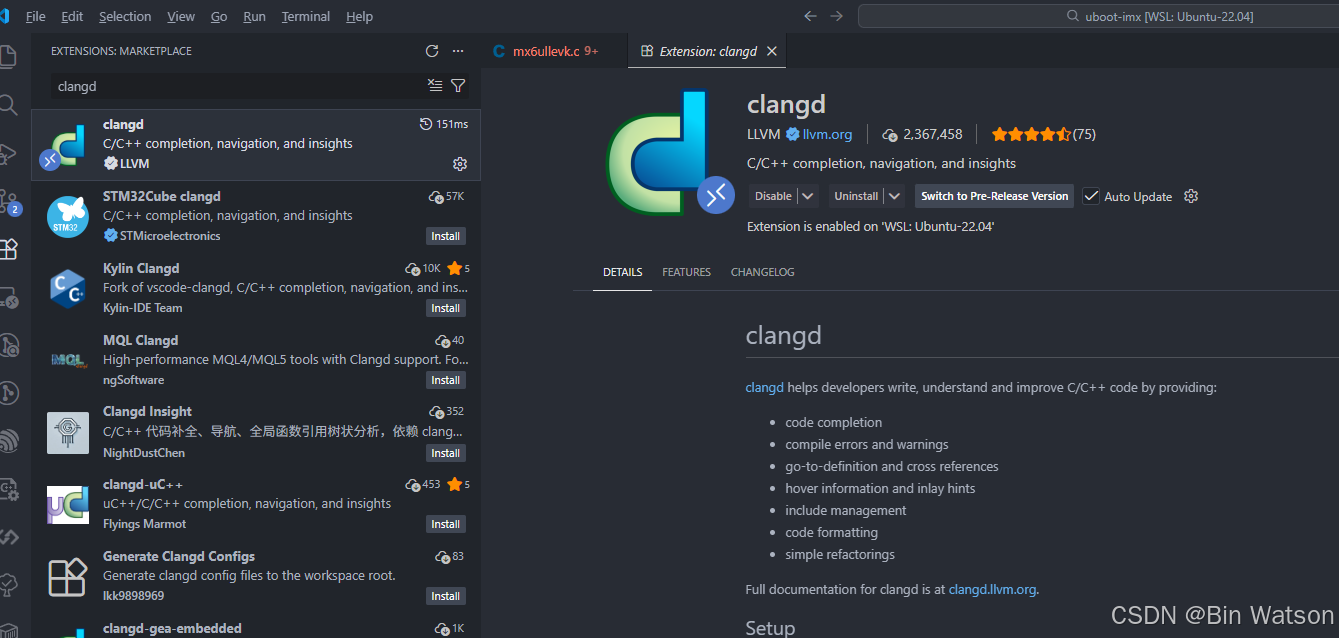

  1. 前面我们生成了 compile_commands.json ，因此使用 VSCode 中的 clangd 插件即可完成代码的跳转、智能提示等功能（具体请自行查找资料研究）：

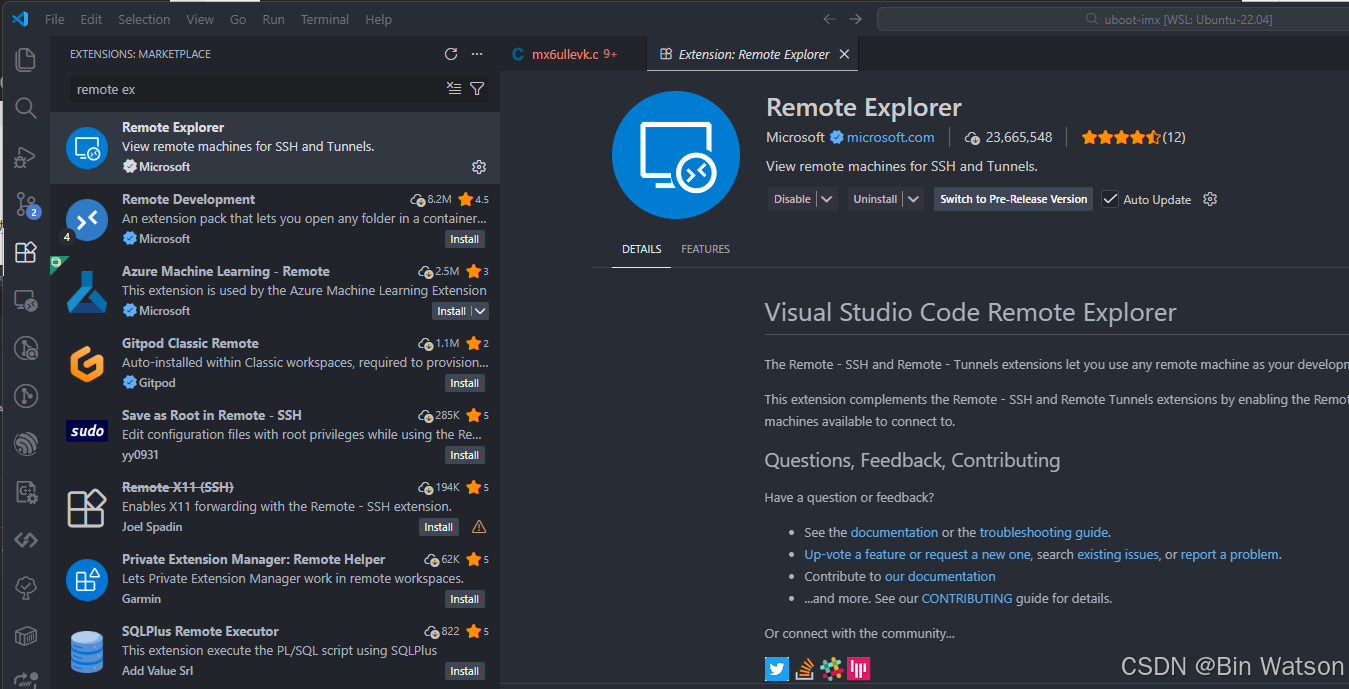

  2. WLS2 可以通过 Remote Exploerer 插件，实现 Window 远程链接（具体请自行查找资料研究）

  3. 如上即可完成开发环境的搭建

  4. 屏蔽掉一些非 NXP I.MX6ULL 的文件，防止干扰我们搜索和阅读源码，在工程目录下，创建一个 .vscode/settings.json 文件，填充如下内容：

    json 复制代码
    {
    "search.exclude": {
        "**/node_modules": true,
        "**/bower_components": true,
        "**/*.o":true,
        "**/*.su":true,
        "**/*.cmd":true,
        "arch/arc":true,
        "arch/arm/dts/am*":true,
        "arch/avr32":true,
        "arch/blackfin":true,
        "arch/m68k":true,
        "arch/microblaze":true,
        "arch/mips":true,
        "arch/nds32":true,
        "arch/nios2":true,
        "arch/openrisc":true,
        "arch/powerpc":true,
        "arch/sandbox":true,
        "arch/sh":true,
        "arch/sparc":true,
        "arch/x86":true,
        "arch/arm/mach-[a-h]*":true,
        "arch/arm/mach-in*":true,
        "arch/arm/mach-[j-z]*":true,
        "arch/arm/mach-imx/imx9*":true,
        "arch/arm/mach-imx/imx8*":true,
        "arch/arm/mach-imx/imx7*":true,
        "arch/arm/mach-imx/imx2*":true,
        "arch/arm/mach-imx/imx3*":true,
        "arch/arm/mach-imx/imx5*":true,
        "arch/arm/mach-imx/imxr*":true,
        "arch/arm/mach-imx/mx7*":true,
        "arch/arm/mach-imx/mx2*":true,
        "arch/arm/mach-imx/mx3*":true,
        "arch/arm/mach-imx/mx5*":true,
        "arch/arm/mach-imx/mxs*":true,
        "arch/arm/cpu/arm11*":true,
        "arch/arm/cpu/arm720t":true,
        "arch/arm/cpu/arm9*":true,
        "arch/arm/cpu/armv7m":true,
        "arch/arm/cpu/armv8":true,
        "arch/arm/cpu/pxa":true,
        "arch/arm/cpu/sa1100":true,
        "board/[a-e]*":true,
        "board/[g-z]*":true,
        "board/[0-9]*":true,
        "board/[A-Z]*":true,
        "board/fir*":true,
        "board/freescale/b*":true,
        "board/freescale/l*":true,
        "board/freescale/m5*":true,
        "board/freescale/mp*":true,
        "board/freescale/c29*":true,
        "board/freescale/cor*":true,
        "board/freescale/mx7*":true,
        "board/freescale/mx2*":true,
        "board/freescale/mx3*":true,
        "board/freescale/mx5*":true,
        "board/freescale/p*":true,
        "board/freescale/q*":true,
        "board/freescale/t*":true,
        "board/freescale/v*":true,
        "board/freescale/mx6d*":true,
        "board/freescale/mx6q*":true,
        "board/freescale/mx6s*":true,
        "board/freescale/mx6m*":true,
        "board/freescale/mx6ul_*":true,
        "board/freescale/mx6ull_*":true,
        "board/freescale/s32*":true,
        "board/freescale/imx8*":true,
        "board/freescale/imxr*":true,
        "configs/[a-l]*":true,
        "configs/[n-z]*":true,
        "configs/[A-Z]*":true,
        "configs/M[a-z]*":true,
        "configs/M[A-Z]*":true,
        "configs/M[0-9]*":true,
        "configs/m[a-w]*":true,
        "configs/m[0-9]*":true,
        "configs/[0-9]*":true,
        "configs/mx6d*":true,
        "configs/mx6c*":true,
        "configs/mx6s*":true,
        "configs/mx6q*":true,
        "configs/mx6ul_*":true,
        "configs/mx6ulz_*":true,
        "configs/mx6m*":true,
        "configs/mx7*":true,
        "configs/mx23*":true,
        "configs/mx25*":true,
        "configs/mx28*":true,
        "configs/mx3*":true,
        "configs/mx5*":true,
        "include/configs/[a-l]*":true,
        "include/configs/[n-z]*":true,
        "include/configs/[A-Z]*":true,
        "include/configs/m[a-w]*":true,
        "include/configs/mx6c*":true,
        "include/configs/mx6d*":true,
        "include/configs/mx6q*":true,
        "include/configs/mx6s*":true,
        "include/configs/mx6ul_*":true,
        "include/configs/mx6ulz_*":true,
        "include/configs/mx7*":true,
        "include/configs/mx2*":true,
        "include/configs/mx3*":true,
        "include/configs/mx5*":true,
        "include/configs/m2*":true,
        "include/configs/m5*":true,
        "include/configs/[0-9]*":true
    },
    "files.exclude": {
        "**/.git": true,
        "**/.svn": true,
        "**/.hg": true,
        "**/CVS": true,
        "**/.DS_Store": true,
        "**/*.o": true,
        "**/*.su":true,
        "**/*.cmd":true,
        "arch/arc":true,
        "arch/arm/dts/[a-h]*":true,
        "arch/arm/dts/[j-z]*":true,
        "arch/arm/dts/imx6-*":true,
        "arch/arm/dts/imx6d*":true,
        "arch/arm/dts/imx6q*":true,
        "arch/arm/dts/imx6sl*":true,
        "arch/arm/dts/imx6sx*":true,
        "arch/arm/dts/imx7*":true,
        "arch/arm/dts/imx8*":true,
        "arch/arm/dts/imx28*":true,
        "arch/arm/dts/imx53*":true,
        "arch/arm/dts/imx6ulz*":true,
        "arch/arm/dts/imxr*":true,
        "arch/arm/dts/imx6ull-14x14-ddr3*":true,
        "arch/avr32":true,
        "arch/blackfin":true,
        "arch/m68k":true,
        "arch/microblaze":true,
        "arch/mips":true,
        "arch/nds32":true,
        "arch/nios2":true,
        "arch/openrisc":true,
        "arch/powerpc":true,
        "arch/sandbox":true,
        "arch/sh":true,
        "arch/sparc":true,
        "arch/x86":true,
        "arch/arm/mach-[a-h]*":true,
        "arch/arm/mach-in*":true,
        "arch/arm/mach-[j-z]*":true,
        "arch/arm/mach-imx/imx9*":true,
        "arch/arm/mach-imx/imx8*":true,
        "arch/arm/mach-imx/imx7*":true,
        "arch/arm/mach-imx/imx2*":true,
        "arch/arm/mach-imx/imx3*":true,
        "arch/arm/mach-imx/imx5*":true,
        "arch/arm/mach-imx/imxr*":true,
        "arch/arm/mach-imx/mx7*":true,
        "arch/arm/mach-imx/mx2*":true,
        "arch/arm/mach-imx/mx3*":true,
        "arch/arm/mach-imx/mx5*":true,
        "arch/arm/mach-imx/mxs*":true,
        "arch/arm/cpu/arm11*":true,
        "arch/arm/cpu/arm720t":true,
        "arch/arm/cpu/arm9*":true,
        "arch/arm/cpu/armv7m":true,
        "arch/arm/cpu/armv8":true,
        "arch/arm/cpu/pxa":true,
        "arch/arm/cpu/sa1100":true,
        "board/[a-e]*":true,
        "board/[g-z]*":true,
        "board/[0-9]*":true,
        "board/[A-Z]*":true,
        "board/fir*":true,
        "board/freescale/b*":true,
        "board/freescale/l*":true,
        "board/freescale/m5*":true,
        "board/freescale/mp*":true,
        "board/freescale/c29*":true,
        "board/freescale/cor*":true,
        "board/freescale/mx7*":true,
        "board/freescale/mx2*":true,
        "board/freescale/mx3*":true,
        "board/freescale/mx5*":true,
        "board/freescale/p*":true,
        "board/freescale/q*":true,
        "board/freescale/t*":true,
        "board/freescale/v*":true,
        "board/freescale/mx6d*":true,
        "board/freescale/mx6q*":true,
        "board/freescale/mx6s*":true,
        "board/freescale/mx6m*":true,
        "board/freescale/mx6ul_*":true,
        "board/freescale/mx6ull_*":true,
        "board/freescale/imx8*":true,
        "board/freescale/imxr*":true,
        "board/freescale/s32*":true,
        "configs/[a-l]*":true,
        "configs/[n-z]*":true,
        "configs/[A-Z]*":true,
        "configs/M[a-z]*":true,
        "configs/M[A-Z]*":true,
        "configs/M[0-9]*":true,
        "configs/m[a-w]*":true,
        "configs/m[0-9]*":true,
        "configs/[0-9]*":true,
        "configs/mx6d*":true,
        "configs/mx6c*":true,
        "configs/mx6s*":true,
        "configs/mx6q*":true,
        "configs/mx6ul_*":true,
        "configs/mx6ulz_*":true,
        "configs/mx6m*":true,
        "configs/mx7*":true,
        "configs/mx23*":true,
        "configs/mx25*":true,
        "configs/mx28*":true,
        "configs/mx3*":true,
        "configs/mx5*":true,
        "include/configs/[a-l]*":true,
        "include/configs/[n-z]*":true,
        "include/configs/[A-Z]*":true,
        "include/configs/m[a-w]*":true,
        "include/configs/mx6c*":true,
        "include/configs/mx6d*":true,
        "include/configs/mx6q*":true,
        "include/configs/mx6s*":true,
        "include/configs/mx6ul_*":true,
        "include/configs/mx6ulz_*":true,
        "include/configs/mx7*":true,
        "include/configs/mx2*":true,
        "include/configs/mx3*":true,
        "include/configs/mx5*":true,
        "include/configs/m2*":true,
        "include/configs/m5*":true,
        "include/configs/[0-9]*":true
    }
}

    上面将非 IMX6ULL 相关的内容都从搜索和文件夹里屏蔽掉了。
