android9_box hdmi铺不满的问题

侧耳4292026-01-20 8:14

一、问题点

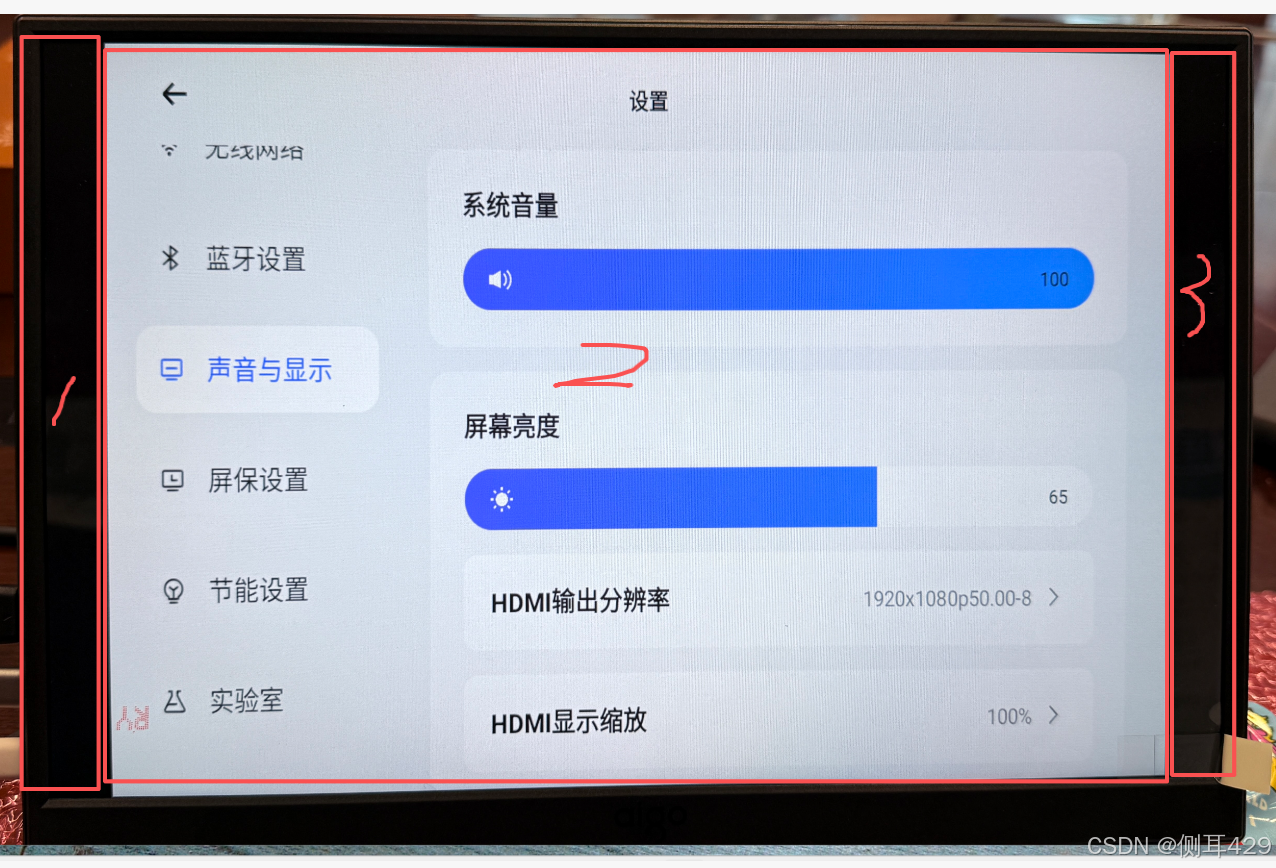

rk3566 android9 box版本，接的主屏是mipi，分辨率为800x1280，接入hdmi显示后，hdmi存在2边黑边，未能铺满的问题。如下图1、3区域：

前面有修改persist.vendor.framebuffer.main=1080x1920@60，这样子hdim可铺满，但是ui的适配这些均是参照800*1280进行的，会造成主屏mipi，显示有拉伸的现象。

所以需求是，在不影响主屏mipi的情况下，对外接显示hdmi进行铺满。

二、补丁

这里可以理解为hdmi为副屏显示，而RK的sdk中并未对hdmi做副显有处理，所以添加以下属性，作铺满处理。

复制代码

//frameworks/base
diff --git a/services/core/java/com/android/server/display/LogicalDisplay.java b/services/core/java/com/android/server/display/LogicalDisplay.java
index 5b7c5205ce3..e66652f2e13 100644
--- a/services/core/java/com/android/server/display/LogicalDisplay.java
+++ b/services/core/java/com/android/server/display/LogicalDisplay.java
@@ -30,6 +30,7 @@ import java.io.PrintWriter;
 import java.util.Arrays;
 import java.util.List;
 import java.util.Objects;
+import android.util.Slog;

 /**
  * Describes how a logical display is configured.
@@ -422,6 +423,15 @@ final class LogicalDisplay {
         mTempDisplayRect.right += mDisplayOffsetX;
         mTempDisplayRect.top += mDisplayOffsetY;
         mTempDisplayRect.bottom += mDisplayOffsetY;
+       if(device.getDisplayDeviceInfoLocked().type==Display.TYPE_HDMI) {
+            if(SystemProperties.getBoolean("persist.sys.rotation.efull",false)) {
+                mTempDisplayRect.top=0;
+                mTempDisplayRect.left=0;
+                mTempDisplayRect.right=physWidth;
+                mTempDisplayRect.bottom=physHeight;
+                Slog.d("dzy","physWidth="+physWidth+" physHeight="+physHeight);
+            }
+        }
         device.setProjectionLocked(t, orientation, mTempLayerStackRect, mTempDisplayRect);
     }

//device/rockchip/rk356x
diff --git a/rk356x_box_32/rk356x_box_32.mk b/rk356x_box_32/rk356x_box_32.mk
index af9dcb9..9e73cee 100755
--- a/rk356x_box_32/rk356x_box_32.mk
+++ b/rk356x_box_32/rk356x_box_32.mk
TARGET_RECOVERY_DEFAULT_ROTATION ?= ROTATION_RIGHT
+
+# support extend panel
+PRODUCT_PROPERTY_OVERRIDES += \
+       persist.sys.rotation.efull=true \
+
