Android Le Audio framework api接口介绍

Wireless_Link2026-01-25 11:44

蓝牙低功耗音频 (LEA) 可确保用户接收到高保真度的音频，而不必牺牲电池续航时间，并且还可以在不同使用情形之间无缝切换。Android 13（API 级别 33）内置了对 LEA 的支持。

在 LEA 源设备市场份额增长之前，大多数 LEA 耳机将采用双模式。用户应该能够在双模式头显上配对和设置这两种传输方式。

更多的内容可以参照谷歌的链接：ps://developer.android.google.cn/develop/connectivity/bluetooth/ble-audio/overview?hl=zh-cn

一. Android Framework API

这个是APP直接调用Framework的API，当然这里说的APP包含内部系统级的APP以及外部APP，要看权限，如果是系统权限，只能预设APP才能调用

1. connect

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是初始化连接到远程蓝牙设备的LE Audio配置文件的方法。

主要作用

发起与远程蓝牙设备LE Audio配置文件的连接。

关键特性

  • 异步操作 - 返回true只表示请求已发送，不代表连接已建立

  • 连接状态广播 - 连接状态变化会通过意图广播

  • 检查条件 - 需要蓝牙已开启且设备有效

    /packages/modules/Bluetooth/framework/java/android/bluetooth/BluetoothLeAudio.java
    /**

    • Initiate connection to a profile of the remote bluetooth device.

    • This API returns false in scenarios like the profile on the device is already connected or

    • Bluetooth is not turned on. When this API returns true, it is guaranteed that connection
    • state intent for the profile will be broadcasted with the state. Users can get the connection
    • state of the profile from this intent.
    • @param device Remote Bluetooth Device
    • @return false on immediate error, true otherwise
    • @hide
      */
      @RequiresBluetoothConnectPermission
      @RequiresPermission(BLUETOOTH_CONNECT)
      public boolean connect(@Nullable BluetoothDevice device) {
      if (DBG) log("connect(" + device + ")");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled() && isValidDevice(device)) {
      try {
      return service.connect(device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

2. disconnect

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是断开与远程蓝牙设备的LE Audio连接的方法。

主要作用

主动断开与指定蓝牙设备在LE Audio配置文件上的连接。

关键特性

  • 异步操作 - 返回true只表示断开请求已发送，不代表连接已断开
  • 连接状态广播 - 断开连接过程中会通过意图广播状态变化
  • 本地/远程区别：

    • 本地发起断开 ：状态从 STATE_CONNECTED → STATE_DISCONNECTING → STATE_DISCONNECTED

    • 远程发起断开 ：状态从 STATE_CONNECTED → STATE_DISCONNECTED

      /packages/modules/Bluetooth/framework/java/android/bluetooth/BluetoothLeAudio.java
      /**

      • Initiate disconnection from a profile

      • This API will return false in scenarios like the profile on the Bluetooth device is not in

      • connected state etc. When this API returns, true, it is guaranteed that the connection state
      • change intent will be broadcasted with the state. Users can get the disconnection state of
      • the profile from this intent.

      • If the disconnection is initiated by a remote device, the state will transition from

      • {@link #STATE_CONNECTED} to {@link #STATE_DISCONNECTED}. If the disconnect is initiated by
      • the host (local) device the state will transition from {@link #STATE_CONNECTED} to state
      • {@link #STATE_DISCONNECTING} to state {@link #STATE_DISCONNECTED}. The transition to {@link
      • #STATE_DISCONNECTING} can be used to distinguish between the two scenarios.
      • @param device Remote Bluetooth Device
      • @return false on immediate error, true otherwise
      • @hide
        */
        @RequiresBluetoothConnectPermission
        @RequiresPermission(BLUETOOTH_CONNECT)
        public boolean disconnect(@Nullable BluetoothDevice device) {
        if (DBG) log("disconnect(" + device + ")");
        final IBluetoothLeAudio service = getService();
        if (service == null) {
        Log.w(TAG, "Proxy not attached to service");
        if (DBG) log(Log.getStackTraceString(new Throwable()));
        } else if (mAdapter.isEnabled() && isValidDevice(device)) {
        try {
        return service.disconnect(device, mAttributionSource);
        } catch (RemoteException e) {
        Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
        }
        }
        return false;
        }

3. getConnectedGroupLeadDevice

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是用于获取LE Audio（低功耗蓝牙音频）群组的Lead设备（主导设备）。让我详细解释一下它的作用：

  • 获取群组的代表设备：LE Audio支持多设备组成一个音频群组（比如多个耳机同时播放同一音频）。这个API返回群组中的"领头羊"设备。

  • 确定活动设备：系统需要将一个音频流关联到一个具体的蓝牙设备。对于LE Audio群组，系统会使用Lead设备作为整个群组的代表设备。

    /packages/modules/Bluetooth/framework/java/android/bluetooth/BluetoothLeAudio.java
    /**

    • Get Lead device for the group.

    • Lead device is the device that can be used as an active device in the system. Active

    • devices points to the Audio Device for the Le Audio group. This method returns the Lead
    • devices for the connected LE Audio group and this device should be used in the
    • setActiveDevice() method by other parts of the system, which wants to set to active a
    • particular Le Audio group.

    • Note: getActiveDevice() returns the Lead device for the currently active LE Audio group.

    • Note: When Lead device gets disconnected while Le Audio group is active and has more devices
    • in the group, then Lead device will not change. If Lead device gets disconnected, for the Le
    • Audio group which is not active, a new Lead device will be chosen
    • @param groupId The group id.
    • @return group lead device.
      */
      @RequiresBluetoothConnectPermission
      @RequiresPermission(BLUETOOTH_CONNECT)
      public @Nullable BluetoothDevice getConnectedGroupLeadDevice(int groupId) {
      if (VDBG) log("getConnectedGroupLeadDevice()");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      return Attributable.setAttributionSource(
      service.getConnectedGroupLeadDevice(groupId, mAttributionSource),
      mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return null;
      }

4. getConnectedDevices

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

获取与当前设备通过LE Audio协议连接的所有蓝牙设备的列表。

返回值

  • 类型 : @NonNull List<BluetoothDevice> （非空列表）

  • 内容: 所有已连接的LE Audio设备

  • 空值情况 : 如果没有连接设备，返回空列表（Collections.emptyList()），而不是null

    /** {@inheritDoc} */
    @Override
    @RequiresBluetoothConnectPermission
    @RequiresPermission(BLUETOOTH_CONNECT)
    public @NonNull List<BluetoothDevice> getConnectedDevices() {
    if (VDBG) log("getConnectedDevices()");
    final IBluetoothLeAudio service = getService();
    if (service == null) {
    Log.w(TAG, "Proxy not attached to service");
    if (DBG) log(Log.getStackTraceString(new Throwable()));
    } else if (mAdapter.isEnabled()) {
    try {
    return Attributable.setAttributionSource(
    service.getConnectedDevices(mAttributionSource), mAttributionSource);
    } catch (RemoteException e) {
    Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
    }
    }
    return Collections.emptyList();
    }

5. getDevicesMatchingConnectionStates

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

根据指定的连接状态数组，返回所有处于这些状态的LE Audio设备列表。

参数

  • @NonNull int[] states: 要匹配的连接状态数组
    • 可以包含一个或多个连接状态
    • 用于筛选设备

返回值

  • @NonNull List<BluetoothDevice>: 匹配指定连接状态的设备列表

  • 如果没有匹配的设备，返回空列表（Collections.emptyList()）

    /** {@inheritDoc} */
    @Override
    @RequiresBluetoothConnectPermission
    @RequiresPermission(BLUETOOTH_CONNECT)
    @NonNull
    public List<BluetoothDevice> getDevicesMatchingConnectionStates(@NonNull int[] states) {
    if (VDBG) log("getDevicesMatchingStates()");
    final IBluetoothLeAudio service = getService();
    if (service == null) {
    Log.w(TAG, "Proxy not attached to service");
    if (DBG) log(Log.getStackTraceString(new Throwable()));
    } else if (mAdapter.isEnabled()) {
    try {
    return Attributable.setAttributionSource(
    service.getDevicesMatchingConnectionStates(states, mAttributionSource),
    mAttributionSource);
    } catch (RemoteException e) {
    Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
    }
    }
    return Collections.emptyList();
    }

6. getConnectionState

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

查询指定蓝牙设备在LE Audio配置文件中的当前连接状态。

参数

  • @NonNull BluetoothDevice device: 要查询的蓝牙设备对象

返回值

  • @BtProfileState int: 连接状态值

  • 返回 STATE_DISCONNECTED（0）如果出现错误或设备未连接

    /** {@inheritDoc} */
    @Override
    @RequiresLegacyBluetoothPermission
    @RequiresBluetoothConnectPermission
    @RequiresPermission(BLUETOOTH_CONNECT)
    public @BtProfileState int getConnectionState(@NonNull BluetoothDevice device) {
    if (VDBG) log("getState(" + device + ")");
    final IBluetoothLeAudio service = getService();
    if (service == null) {
    Log.w(TAG, "Proxy not attached to service");
    if (DBG) log(Log.getStackTraceString(new Throwable()));
    } else if (mAdapter.isEnabled() && isValidDevice(device)) {
    try {
    return service.getConnectionState(device, mAttributionSource);
    } catch (RemoteException e) {
    Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
    }
    }
    return STATE_DISCONNECTED;
    }

7. registerCallback

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

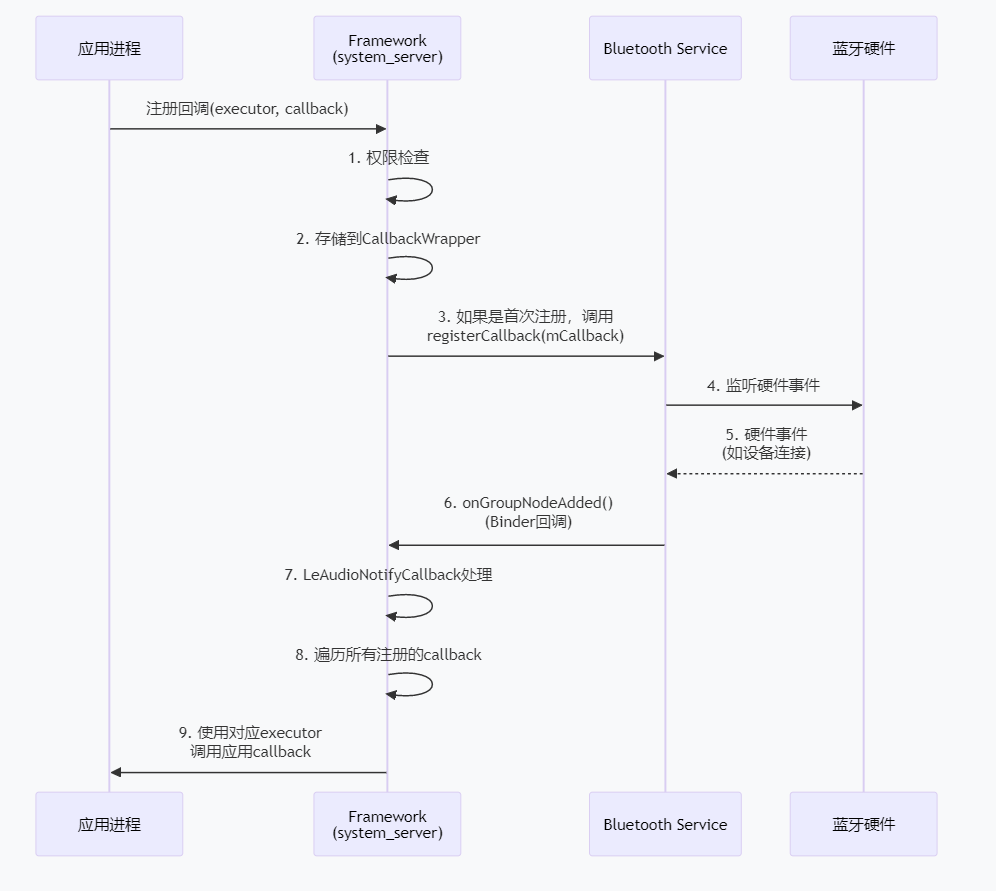

这个API是注册LE Audio状态回调 的方法，允许应用监听LE Audio相关的状态变化。这是一个系统级API，只有系统应用可以使用。

主要作用

注册一个回调监听器，用于接收LE Audio的各种状态变化通知。

触发回调的事件

根据文档说明，回调会在以下情况下被触发：

  • 编解码器状态变化 - 远程设备的编解码器状态发生变化

  • 设备连接/断开 - 设备在特定群组中的连接状态变化

  • 群组状态变化 - LE Audio群组的状态发生变化

    /**

    • Register a {@link Callback} that will be invoked during the operation of this profile.

    • Repeated registration of the same <var>callback</var> object will have no effect after the

    • first call to this method, even when the <var>executor</var> is different. API caller must

    • call {@link #unregisterCallback(Callback)} with the same callback object before registering

    • it again.

    • The {@link Callback} will be invoked only if there is codec status changed for the remote

    • device or the device is connected/disconnected in a certain group or the group status is

    • changed.

    • @param executor an {@link Executor} to execute given callback

    • @param callback user implementation of the {@link Callback}

    • @throws NullPointerException if a null executor or callback is given

    • @throws IllegalArgumentException the callback is already registered

    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public void registerCallback(
      @NonNull @CallbackExecutor Executor executor, @NonNull Callback callback) {
      // Enforcing permission in the framework is useless from security point of view.
      // This is being done to help normal app developer to catch the missing permission, since
      // the call to the service is oneway and the SecurityException will just be logged
      final int pid = Process.myPid();
      final int uid = Process.myUid();
      mContext.enforcePermission(BLUETOOTH_CONNECT, pid, uid, null);
      mContext.enforcePermission(BLUETOOTH_PRIVILEGED, pid, uid, null);

      mCallbackWrapper.registerCallback(getService(), callback, executor);
      }

8. unregisterCallback

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是注销LE Audio状态回调 的方法，用于取消之前注册的回调监听器。这也是一个系统级API。

主要作用

注销之前通过 registerCallback() 注册的回调监听器，停止接收LE Audio状态变化通知。

关键特性

  • 必须使用相同的回调对象 - 必须传入与注册时相同的callback实例

  • 自动注销 - 当应用进程退出时，回调会自动注销

  • 系统权限 - 需要系统级权限才能调用

    /**

    • Unregister the specified {@link Callback}.

    • The same {@link Callback} object used when calling {@link #registerCallback(Executor,

    • Callback)} must be used.

    • Callbacks are automatically unregistered when the application process goes away

    • @param callback user implementation of the {@link Callback}

    • @throws NullPointerException when callback is null

    • @throws IllegalArgumentException when no callback is registered

    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public void unregisterCallback(@NonNull Callback callback) {
      // Enforcing permission in the framework is useless from security point of view.
      // This is being done to help normal app developer to catch the missing permission, since
      // the call to the service is oneway and the SecurityException will just be logged
      final int pid = Process.myPid();
      final int uid = Process.myUid();
      mContext.enforcePermission(BLUETOOTH_CONNECT, pid, uid, null);
      mContext.enforcePermission(BLUETOOTH_PRIVILEGED, pid, uid, null);

      mCallbackWrapper.unregisterCallback(getService(), callback);
      }

9. setActiveDevice

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是设置LE Audio活跃设备的方法，用于选择当前用于音频流的设备。

主要作用

将一个已连接的LE Audio设备设置为活跃设备，用于音频流传输。活跃设备的选择是按配置文件（Profile）进行的，每个配置文件的活跃设备是独立的。

关键特性

  • 只能选择已连接的设备 - 如果设备未连接，不能设置为活跃设备

  • 可以清除活跃设备 - 传入null清除当前活跃设备，停止向蓝牙设备传输音频

  • 事件通知 - 设置成功后会广播 ACTION_LE_AUDIO_ACTIVE_DEVICE_CHANGED 意图

  • 异步操作 - 返回true只表示命令已发送，实际生效需要等待广播

    /**

    • Select a connected device as active.

    • The active device selection is per profile. An active device's purpose is

    • profile-specific. For example, LeAudio audio streaming is to the active LeAudio device. If a
    • remote device is not connected, it cannot be selected as active.

    • This API returns false in scenarios like the profile on the device is not connected or

    • Bluetooth is not turned on. When this API returns true, it is guaranteed that the {@link
    • #ACTION_LE_AUDIO_ACTIVE_DEVICE_CHANGED} intent will be broadcasted with the active device.
    • @param device the remote Bluetooth device. Could be null to clear the active device and stop
    • 复制代码
      streaming audio to a Bluetooth device.
    • @return false on immediate error, true otherwise
    • @hide
      */
      @RequiresBluetoothConnectPermission
      @RequiresPermission(BLUETOOTH_CONNECT)
      public boolean setActiveDevice(@Nullable BluetoothDevice device) {
      if (DBG) log("setActiveDevice(" + device + ")");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled() && ((device == null) || isValidDevice(device))) {
      try {
      return service.setActiveDevice(device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

10. getActiveDevices

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是获取当前活跃的LE Audio设备列表 的方法。注意这里返回的是列表（List），意味着LE Audio可以同时有多个活跃设备。

主要作用

获取当前所有设置为活跃状态的已连接LE Audio设备列表。

关键特性

  • 返回列表 - LE Audio支持多个设备同时活跃（比如双耳耳机算两个设备）

  • 非空保证 - 使用@NonNull注解，保证不返回null，而是空列表

  • 只返回已连接的设备 - 只会返回当前已连接且被设置为活跃的设备

    /**

    • Get the connected LeAudio devices that are active
    • @return the list of active devices. Returns empty list on error.
    • @hide
      */
      @NonNull
      @RequiresLegacyBluetoothPermission
      @RequiresBluetoothConnectPermission
      @RequiresPermission(BLUETOOTH_CONNECT)
      public List<BluetoothDevice> getActiveDevices() {
      if (VDBG) log("getActiveDevice()");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      return Attributable.setAttributionSource(
      service.getActiveDevices(mAttributionSource), mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return Collections.emptyList();
      }

11. getGroupId

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是获取LE Audio设备所属的群组ID的方法，用于确定设备在哪个音频群组中。

主要作用

获取指定LE Audio设备当前所属的群组ID。群组ID用于标识一组协同工作的LE Audio设备（如左右耳塞、多房间音频设备等）。

关键特性

  • 设备分组 - LE Audio支持设备分组，如左右耳塞属于同一组

  • 群组标识 - 相同群组ID的设备属于同一逻辑组

  • 无效群组 - 如果设备不属于任何群组，返回 GROUP_ID_INVALID

    /**

    • Get device group id. Devices with same group id belong to same group (i.e left and right
    • earbud)
    • @param device LE Audio capable device
    • @return group id that this device currently belongs to, {@link #GROUP_ID_INVALID} when this
    • 复制代码
      device does not belong to any group

    */
    @RequiresLegacyBluetoothPermission
    @RequiresBluetoothConnectPermission
    @RequiresPermission(BLUETOOTH_CONNECT)
    public int getGroupId(@NonNull BluetoothDevice device) {
    if (VDBG) log("getGroupId()");
    final IBluetoothLeAudio service = getService();
    if (service == null) {
    Log.w(TAG, "Proxy not attached to service");
    if (DBG) log(Log.getStackTraceString(new Throwable()));
    } else if (mAdapter.isEnabled()) {
    try {
    return service.getGroupId(device, mAttributionSource);
    } catch (RemoteException e) {
    Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
    }
    }
    return GROUP_ID_INVALID;
    }

12. setVolume

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是设置LE Audio音频流音量的方法，用于控制正在播放音频的LE Audio设备的音量。

主要作用

统一设置当前正在流式传输音频的LE Audio设备的音量。

关键特性

  • 系统级API - 只有系统应用才能调用（@SystemApi）

  • 统一音量控制 - 设置所有流式传输设备的音量

  • 音量范围 - 0到255（@IntRange(from = 0, to = 255)）

  • 需要特权权限 - 需要 BLUETOOTH_PRIVILEGED 权限

    /**

    • Set volume for the streaming devices
    • @param volume volume to set
    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public void setVolume(@IntRange(from = 0, to = 255) int volume) {
      if (VDBG) log("setVolume(vol: " + volume + " )");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      service.setVolume(volume, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      }

13. groupAddNode

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是将设备添加到指定LE Audio群组的方法，用于动态管理设备分组。

主要作用

将一个活跃的LE Audio设备添加到指定的群组中。

关键特性

  • 动态分组 - 可以在运行时动态调整设备分组

  • 需要特权权限 - 只有系统应用才能调用

  • 设备必须活跃 - 设备需要是活跃状态才能添加到群组

    /**

    • Add device to the given group.
    • @param groupId group ID the device is being added to
    • @param device the active device
    • @return true on success, otherwise false
    • @hide
      */
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public boolean groupAddNode(int groupId, @NonNull BluetoothDevice device) {
      if (VDBG) log("groupAddNode()");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      return service.groupAddNode(groupId, device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

14. groupRemoveNode

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是从指定LE Audio群组中移除设备 的方法，与groupAddNode()相对应，用于动态管理设备分组。

主要作用

从指定的LE Audio群组中移除一个设备，使其不再是该群组的成员。

关键特性

  • 动态分组管理 - 可以在运行时动态调整设备分组

  • 需要特权权限 - 只有系统应用才能调用

  • 设备必须活跃 - 设备需要是活跃状态才能从群组中移除

    /**

    • Remove device from a given group.
    • @param groupId group ID the device is being removed from
    • @param device the active device
    • @return true on success, otherwise false
    • @hide
      */
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public boolean groupRemoveNode(int groupId, @NonNull BluetoothDevice device) {
      if (VDBG) log("groupRemoveNode()");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      return service.groupRemoveNode(groupId, device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

15. getAudioLocation

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是获取蓝牙设备的音频位置信息的方法，用于确定设备在空间音频系统中的位置（如左声道、右声道、中央声道等）。

主要作用

获取指定LE Audio设备在音频空间中的位置信息，返回一个位字段（bit field），表示设备支持的音频声道位置。

关键特性

  • 位字段表示 - 使用位掩码组合表示一个或多个音频位置

  • 蓝牙标准定义 - 遵循蓝牙SIG的音频位置定义标准

  • 系统级API - 只有系统应用才能调用

  • 兼容性处理 - 包含对旧版本API的兼容性处理

    /**

    • Get the audio location for the device. The return value is a bit field. The bit definition is

    • included in Bluetooth SIG Assigned Numbers - Generic Audio - Audio Location Definitions. ex.

    • Front Left: 0x00000001 Front Right: 0x00000002 Front Left | Front Right: 0x00000003

    • @param device the bluetooth device

    • @return The bit field of audio location for the device.

    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      @SuppressWarnings("FlaggedApi") // Due to deprecated AUDIO_LOCATION_INVALID
      public @AudioLocation int getAudioLocation(@NonNull BluetoothDevice device) {
      if (VDBG) log("getAudioLocation()");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled() && isValidDevice(device)) {
      try {
      return service.getAudioLocation(device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }

      if (Flags.leaudioMonoLocationErrataApi()
      && CompatChanges.isChangeEnabled(LEAUDIO_MONO_LOCATION_ERRATA)) {
      return AUDIO_LOCATION_UNKNOWN;
      }

      return AUDIO_LOCATION_INVALID;
      }

16. isInbandRingtoneEnabled

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | N | Y | Y | Y |

这个API是检查指定LE Audio群组是否启用了带内铃声的方法。带内铃声（inband ringtone）是指通过蓝牙音频流传输的铃声，而不是通过手机扬声器播放的铃声。

主要作用

查询指定LE Audio群组是否启用了带内铃声功能。

关键特性

  • 群组级别设置 - 检查特定群组的铃声设置

  • 系统级API - 只有系统应用才能调用

  • 返回布尔值 - 返回true表示启用，false表示禁用或错误

    /**

    • Check if inband ringtone is enabled by the LE Audio group. Group id for the device can be
    • found with {@link BluetoothLeAudio#getGroupId}.
    • @param groupId LE Audio group id
    • @return {@code true} if inband ringtone is enabled, {@code false} otherwise
    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public boolean isInbandRingtoneEnabled(int groupId) {
      if (VDBG) {
      log("isInbandRingtoneEnabled(), groupId: " + groupId);
      }
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) {
      log(Log.getStackTraceString(new Throwable()));
      }
      } else if (mAdapter.isEnabled()) {
      try {
      return service.isInbandRingtoneEnabled(mAttributionSource, groupId);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

17. setConnectionPolicy

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这是一个设置LE Audio配置文件连接策略的API，用于控制设备是否允许自动连接。

主要作用

设置已配对蓝牙设备在LE Audio配置文件上的连接策略，控制设备是否可以自动连接。

连接策略常量

|---------------------------------|----|-------------|
| 策略 | 值 | 说明 |
| CONNECTION_POLICY_ALLOWED | 1 | 允许自动连接 |
| CONNECTION_POLICY_FORBIDDEN | 0 | 禁止自动连接 |
| CONNECTION_POLICY_UNKNOWN | -1 | 未知策略（仅用于查询） |

关键特性

  • 设备必须已配对 - 只能设置已配对设备的连接策略

  • 系统级API - 需要BLUETOOTH_PRIVILEGED权限

  • 仅允许两种策略 - 代码中只接受FORBIDDEN(0)或ALLOWED(1)，不接受UNKNOWN(-1)

    /**

    • Set connection policy of the profile

    • The device should already be paired. Connection policy can be one of {@link

    • #CONNECTION_POLICY_ALLOWED}, {@link #CONNECTION_POLICY_FORBIDDEN}, {@link
    • #CONNECTION_POLICY_UNKNOWN}
    • @param device Paired bluetooth device
    • @param connectionPolicy is the connection policy to set to for this profile
    • @return true if connectionPolicy is set, false on error
    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public boolean setConnectionPolicy(
      @NonNull BluetoothDevice device, @ConnectionPolicy int connectionPolicy) {
      if (DBG) log("setConnectionPolicy(" + device + ", " + connectionPolicy + ")");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()
      && isValidDevice(device)
      && (connectionPolicy == CONNECTION_POLICY_FORBIDDEN
      || connectionPolicy == CONNECTION_POLICY_ALLOWED)) {
      try {
      return service.setConnectionPolicy(device, connectionPolicy, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return false;
      }

18. getConnectionPolicy

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

这个API是获取LE Audio配置文件的连接策略的方法，用于查询设备是否允许自动连接。

主要作用

获取指定蓝牙设备在LE Audio配置文件上的当前连接策略。

连接策略返回值

|---------------------------------|----|--------|
| 策略 | 值 | 说明 |
| CONNECTION_POLICY_ALLOWED | 1 | 允许自动连接 |
| CONNECTION_POLICY_FORBIDDEN | 0 | 禁止自动连接 |
| CONNECTION_POLICY_UNKNOWN | -1 | 未知策略 |

关键特性

  • 与设置对应 - 与 setConnectionPolicy() 方法对应使用

  • 系统级API - 需要 BLUETOOTH_PRIVILEGED 权限

  • 默认返回值 - 出错时返回 CONNECTION_POLICY_FORBIDDEN (0)

    /**

    • Get the connection policy of the profile.

    • The connection policy can be any of: {@link #CONNECTION_POLICY_ALLOWED}, {@link

    • #CONNECTION_POLICY_FORBIDDEN}, {@link #CONNECTION_POLICY_UNKNOWN}
    • @param device Bluetooth device
    • @return connection policy of the device
    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public @ConnectionPolicy int getConnectionPolicy(@Nullable BluetoothDevice device) {
      if (VDBG) log("getConnectionPolicy(" + device + ")");
      final IBluetoothLeAudio service = getService();
      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled() && isValidDevice(device)) {
      try {
      return service.getConnectionPolicy(device, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return CONNECTION_POLICY_FORBIDDEN;
      }

19. getCodecStatus

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是获取LE Audio群组的编解码器状态的方法，用于查询指定群组当前使用的音频编解码器配置和支持的能力。

主要作用

获取指定LE Audio群组的当前编解码器状态信息，包括：

  • 当前编解码器配置 - 群组正在使用的编解码器参数
  • 编解码器能力 - 群组支持的编解码器选项

关键特性

  • 群组级别 - 编解码器状态是群组级别的，群组内设备共享相同的编解码器配置

  • 系统级API - 只有系统应用才能调用

  • 可能返回null - 如果出错或服务不可用，返回null

    /**

    • Gets the current codec status (configuration and capability).

    • @param groupId The group id

    • @return the current codec status

    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public @Nullable BluetoothLeAudioCodecStatus getCodecStatus(int groupId) {
      if (DBG) {
      Log.d(TAG, "getCodecStatus(" + groupId + ")");
      }

      final IBluetoothLeAudio service = getService();

      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      return service.getCodecStatus(groupId, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      return null;
      }

20. setCodecConfigPreference

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | Y | Y | Y | Y |

这个API是设置LE Audio编解码器配置偏好的方法，用于指定输入和输出音频流的编解码器配置。

主要作用

为指定的LE Audio群组设置编解码器配置偏好，包括：

  • 输入编解码器配置 - 用于音频输入（麦克风、录音等）
  • 输出编解码器配置 - 用于音频输出（扬声器、播放等）

关键特性

  • 区分输入输出 - 可以分别设置输入和输出的编解码器配置

  • 系统级API - 只有系统应用才能调用

  • 非空参数 - 输入和输出配置都不能为null

  • 异常处理 - 可能抛出IllegalStateException或NullPointerException

    /**

    • Sets the codec configuration preference.

    • @param groupId the groupId

    • @param inputCodecConfig the input codec configuration preference

    • @param outputCodecConfig the output codec configuration preference

    • @throws IllegalStateException if LE Audio Service is null

    • @throws NullPointerException if any of the configs is null

    • @hide
      */
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public void setCodecConfigPreference(
      int groupId,
      @NonNull BluetoothLeAudioCodecConfig inputCodecConfig,
      @NonNull BluetoothLeAudioCodecConfig outputCodecConfig) {
      if (DBG) Log.d(TAG, "setCodecConfigPreference(" + groupId + ")");

      requireNonNull(inputCodecConfig);
      requireNonNull(outputCodecConfig);

      final IBluetoothLeAudio service = getService();

      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      throw new IllegalStateException("Service is unavailable");
      } else if (mAdapter.isEnabled()) {
      try {
      service.setCodecConfigPreference(
      groupId, inputCodecConfig, outputCodecConfig, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      }

21. setBroadcastToUnicastFallbackGroup

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | N | N | N | Y |

这个API是设置广播到单播的回退群组的方法，用于在广播切换到单播失败时提供一个备用方案。

主要作用

当广播（Broadcast）需要切换到单播（Unicast）但切换失败时，指定一个群组作为回退目标。

关键概念

  • 广播（Broadcast）：一个音频源同时向多个设备发送音频（如音频共享）
  • 单播（Unicast）：点对点的音频传输（如普通蓝牙耳机连接）
  • 回退群组：广播切换到单播失败时的备选音频输出目标

触发场景

  • 正在进行广播时，有单播音频流请求（如接听电话）

  • 系统尝试将广播切换到单播

  • 如果单播连接失败，则回退到指定的群组

    /**

    • Sets broadcast to unicast fallback group.

    • In broadcast handover situations where unicast is unavailable, this group acts as the

    • fallback.

    • A handover can occur when ongoing broadcast is interrupted with unicast streaming request.

    • On fallback group changed, {@link Callback#onBroadcastToUnicastFallbackGroupChanged} will

    • be invoked.

    • @param groupId the ID of the group to switch to if unicast fails during a broadcast handover,

    • 复制代码
      {@link #GROUP_ID_INVALID} when there should be no such fallback group.

    • @see BluetoothLeAudio#getGroupId()

    • @hide
      */
      @FlaggedApi(Flags.FLAG_LEAUDIO_BROADCAST_API_MANAGE_PRIMARY_GROUP)
      @SystemApi
      @RequiresBluetoothConnectPermission
      @RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
      public void setBroadcastToUnicastFallbackGroup(int groupId) {
      if (DBG) Log.d(TAG, "setBroadcastToUnicastFallbackGroup(" + groupId + ")");

      final IBluetoothLeAudio service = getService();

      if (service == null) {
      Log.w(TAG, "Proxy not attached to service");
      if (DBG) log(Log.getStackTraceString(new Throwable()));
      } else if (mAdapter.isEnabled()) {
      try {
      service.setBroadcastToUnicastFallbackGroup(groupId, mAttributionSource);
      } catch (RemoteException e) {
      Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
      }
      }
      }

22. getBroadcastToUnicastFallbackGroup

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | N | N | N | N | Y |

这个API是获取当前设置的广播到单播回退群组 的方法，与setBroadcastToUnicastFallbackGroup方法配对使用。

主要作用

获取当前设置的广播到单播回退群组的ID。

返回值

  • 有效的群组ID：如果已经设置了回退群组
  • GROUP_ID_INVALID：如果没有设置回退群组，或者蓝牙适配器未启用，或者服务不可用

关键特性

  • 与设置方法对应 ：与setBroadcastToUnicastFallbackGroup方法配对使用
  • 系统级API：需要系统权限
  • 实时查询：返回当前设置的回退群组ID

23. 实际使用示例

复制代码
/**
 * Gets broadcast to unicast fallback group.
 *
 * <p>In broadcast handover situations where unicast is unavailable, this group acts as the
 * fallback.
 *
 * <p>A broadcast handover can occur when a {@link BluetoothLeBroadcast#startBroadcast} call is
 * successful and there's an active unicast group.
 *
 * @return groupId the ID of the fallback group, {@link #GROUP_ID_INVALID} when adapter is
 *     disabled
 * @hide
 */
@FlaggedApi(Flags.FLAG_LEAUDIO_BROADCAST_API_MANAGE_PRIMARY_GROUP)
@SystemApi
@RequiresBluetoothConnectPermission
@RequiresPermission(allOf = {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED})
public int getBroadcastToUnicastFallbackGroup() {
    if (DBG) Log.d(TAG, "getBroadcastToUnicastFallbackGroup()");

    final IBluetoothLeAudio service = getService();

    if (service == null) {
        Log.w(TAG, "Proxy not attached to service");
        if (DBG) log(Log.getStackTraceString(new Throwable()));
    } else if (mAdapter.isEnabled()) {
        try {
            return service.getBroadcastToUnicastFallbackGroup(mAttributionSource);
        } catch (RemoteException e) {
            Log.e(TAG, e.toString() + "\n" + Log.getStackTraceString(new Throwable()));
        }
    }

    return GROUP_ID_INVALID;
}

二. Android Frameowrk Callback

这个是APP注册callback到framework,然后有了特定的动作，framework回调到APP

真个callback的interface定义如下：

复制代码
/**
 * This class provides a callback that is invoked when audio codec config changes on the remote
 * device.
 *
 * @hide
 */
@SystemApi
public interface Callback {
    /** @hide */
    @Retention(RetentionPolicy.SOURCE)
    @IntDef(
            value = {
                GROUP_STATUS_ACTIVE,
                GROUP_STATUS_INACTIVE,
            })
    @interface GroupStatus {}

    /** @hide */
    @Retention(RetentionPolicy.SOURCE)
    @IntDef(
            value = {
                 GROUP_STREAM_STATUS_IDLE,
                 GROUP_STREAM_STATUS_STREAMING,
             })
     @interface GroupStreamStatus {}

     /**
      * Callback invoked when callback is registered and when codec config changes on the remote
      * device.
      *
      * @param groupId the group id
      * @param status latest codec status for this group
      * @hide
      */
     @SystemApi
     void onCodecConfigChanged(int groupId, @NonNull BluetoothLeAudioCodecStatus status);

     /**
      * Callback invoked when a device has been added to the group. It usually happens after
      * connection or on bluetooth startup if the device is bonded.
      *
      * @param device the device which is added to the group
      * @param groupId the group id
      * @hide
      */
     @SystemApi
     void onGroupNodeAdded(@NonNull BluetoothDevice device, int groupId);

     /**
      * Callback invoked when a device has been removed from the group. It usually happens when
      * device gets unbonded.
      *
      * @param device the device which is removed from the group
      * @param groupId the group id
      * @hide
      */
     @SystemApi
     void onGroupNodeRemoved(@NonNull BluetoothDevice device, int groupId);

     /**
      * Callback invoked the group's active state changes.
      *
      * @param groupId the group id
      * @param groupStatus active or inactive state.
      * @hide
      */
     @SystemApi
     void onGroupStatusChanged(int groupId, @GroupStatus int groupStatus);

     /**
      * Callback invoked when the group's stream status changes.
      *
      * @param groupId the group id
      * @param groupStreamStatus streaming or idle state.
      * @hide
      */
     @SystemApi
     default void onGroupStreamStatusChanged(
             int groupId, @GroupStreamStatus int groupStreamStatus) {
         if (DBG) {
             Log.d(TAG, " onGroupStreamStatusChanged is not implemented.");
         }
     }

     /**
      * Callback invoked when the broadcast to unicast fallback group changes.
      *
      * <p>This callback provides the new broadcast to unicast fallback group ID. It is invoked
      * when the broadcast to unicast fallback group is initially set, or when it subsequently
      * changes.
      *
      * @param groupId The ID of the new broadcast to unicast fallback group.
      * @hide
      */
     @FlaggedApi(Flags.FLAG_LEAUDIO_BROADCAST_API_MANAGE_PRIMARY_GROUP)
     @SystemApi
     default void onBroadcastToUnicastFallbackGroupChanged(int groupId) {
         if (DBG) {
             Log.d(TAG, "onBroadcastToUnicastFallbackGroupChanged is not implemented.");
         }
     }
 }

这是典型的 Android 蓝牙 LE Audio 回调接口设计：

特点：

  • 定义在某个类内部 - 从注释看，它是外部类的一个内部接口
  • 系统级 API - 使用 @SystemApi 和 @hide 注解，表示这是供系统应用使用的隐藏 API
  • 事件驱动 - 当蓝牙设备状态发生变化时，系统会通过这个接口通知应用程序

包含的回调方法：

  • onCodecConfigChanged - 远程设备音频编解码器配置变化时调用
  • onGroupNodeAdded - 设备加入组时调用（连接或配对后）
  • onGroupNodeRemoved - 设备从组移除时调用（取消配对时）
  • onGroupStatusChanged - 组的激活状态变化时调用
  • onGroupStreamStatusChanged - 音频流状态变化时调用（默认空实现）
  • onBroadcastToUnicastFallbackGroupChanged - 广播到单播回退组变化时调用（默认空实现）

|------------------------------------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| onCodecConfigChanged | N | Y | Y | Y | Y |
| onGroupNodeAdded | N | Y | Y | Y | Y |
| onGroupNodeRemoved | N | Y | Y | Y | Y |
| onGroupStatusChanged | N | Y | Y | Y | Y |
| onGroupStreamStatusChanged | N | N | N | Y | Y |
| onBroadcastToUnicastFallbackGroupChanged | N | N | N | N | Y |

三. Service发送广播给APP

1. ACTION_LE_AUDIO_CONNECTION_STATE_CHANGED

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

当le audio连接状态发生改变的时候，le service会发送一个广播

复制代码
/packages/modules/Bluetooth/android/app/src/com/android/bluetooth/le_audio/LeAudioService.java
/**
 * Send broadcast intent about LeAudio connection state changed. This is called by
 * LeAudioStateMachine.
 */
void notifyConnectionStateChanged(BluetoothDevice device, int newState, int prevState) {
    Log.d(
            TAG,
            "Notify connection state changed."
                    + device
                    + "("
                    + prevState
                    + " -> "
                    + newState
                    + ")");

    mAdapterService.notifyProfileConnectionStateChangeToGatt(
            BluetoothProfile.LE_AUDIO, prevState, newState);
    mAdapterService.handleProfileConnectionStateChange(
            BluetoothProfile.LE_AUDIO, device, prevState, newState);
    mAdapterService
            .getActiveDeviceManager()
            .profileConnectionStateChanged(
                    BluetoothProfile.LE_AUDIO, device, prevState, newState);
    mAdapterService.updateProfileConnectionAdapterProperties(
            device, BluetoothProfile.LE_AUDIO, newState, prevState);

    Intent intent = new Intent(BluetoothLeAudio.ACTION_LE_AUDIO_CONNECTION_STATE_CHANGED);
    intent.putExtra(BluetoothProfile.EXTRA_PREVIOUS_STATE, prevState);
    intent.putExtra(BluetoothProfile.EXTRA_STATE, newState);
    intent.putExtra(BluetoothDevice.EXTRA_DEVICE, device);
    intent.addFlags(
            Intent.FLAG_RECEIVER_REGISTERED_ONLY_BEFORE_BOOT
                    | Intent.FLAG_RECEIVER_INCLUDE_BACKGROUND);
    sendBroadcastAsUser(
            intent,
            UserHandle.ALL,
            BLUETOOTH_CONNECT,
            Utils.getTempBroadcastOptions().toBundle());
}

应用注册广播

复制代码
private void registerConnectionStateReceiver() {
    Log.d(TAG, "registerConnectionStateReceiver()");
    IntentFilter filter =
        new IntentFilter(BluetoothLeAudio.ACTION_LE_AUDIO_CONNECTION_STATE_CHANGED);
    filter.addAction(BluetoothDevice.ACTION_UUID);
    mContext.registerReceiver(mConnectionStateReceiver, filter);
    mConnectionStateReceiverRegistered = true;
}

广播的处理

复制代码
private BroadcastReceiver mConnectionStateReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
        BluetoothDevice device =
                (BluetoothDevice) intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);
        if (DEBUG) {
            Log.d(TAG, "There was a connection status change for: " + device.getAddress());
        }

        if (!device.equals(mTarget)) {
            return;
        }

        if (BluetoothDevice.ACTION_UUID.equals(intent.getAction())) {
            // regardless of the UUID content, at this point, we're sure we can initiate a
            // profile connection.
            Log.d(TAG,
                "mHandler.sendEmptyMessageDelayed(MSG_CONNECT_TIMEOUT, CONNECT_TIMEOUT_MS)");
            mHandler.sendEmptyMessageDelayed(MSG_CONNECT_TIMEOUT, CONNECT_TIMEOUT_MS);
            if (!mHandler.hasMessages(MSG_CONNECT)) {
                Log.d(TAG,
                    "mHandler.sendEmptyMessageDelayed(MSG_CONNECT, CONNECT_DELAY) now 10");
                mHandler.sendEmptyMessageDelayed(MSG_CONNECT, CONNECT_DELAY);
             }
         } else { // BluetoothLeAudio.ACTION_CONNECTION_STATE_CHANGED

             int previousState = intent.getIntExtra(
                     BluetoothLeAudio.EXTRA_PREVIOUS_STATE, BluetoothLeAudio.STATE_CONNECTING);
             int state = intent.getIntExtra(
                     BluetoothLeAudio.EXTRA_STATE, BluetoothLeAudio.STATE_CONNECTING);

             if (DEBUG) {
                 Log.d(TAG, "Connection states: old = " + previousState + ", new = " + state);
             }

             if (previousState == BluetoothLeAudio.STATE_CONNECTING) {
                 if (state == BluetoothLeAudio.STATE_CONNECTED) {
                     Log.i(TAG, "onReceive(): connected");
                     succeeded();
                 } else if (state == BluetoothLeAudio.STATE_DISCONNECTED) {
                     Log.e(TAG, "onReceive(): Failed to connect");
                     failed();
                 }

                 // TODO: Evaluate the correct action for LE Audio

                 Log.d(TAG, "Normally we would unregister and close here: "
                     + device.getAddress());
                 //unregisterConnectionStateReceiver();
                 //closeLeAudioProfileProxy();
             }
         }
     }
 };

2. ACTION_LE_AUDIO_ACTIVE_DEVICE_CHANGED

|---------------|----------------|----------------|----------------|----------------|----------------|
| Android版本 | Android 12 | Android 13 | Android 14 | Android 15 | Android 16 |
| 支持情况 | Y | Y | Y | Y | Y |

service发送广播

复制代码
/packages/modules/Bluetooth/android/app/src/com/android/bluetooth/le_audio/LeAudioService.java
void sendActiveDeviceChangeIntent(BluetoothDevice device) {
    Intent intent = new Intent(BluetoothLeAudio.ACTION_LE_AUDIO_ACTIVE_DEVICE_CHANGED);
    intent.putExtra(BluetoothDevice.EXTRA_DEVICE, device);
    intent.addFlags(
            Intent.FLAG_RECEIVER_REGISTERED_ONLY_BEFORE_BOOT
                    | Intent.FLAG_RECEIVER_INCLUDE_BACKGROUND);
    createContextAsUser(UserHandle.ALL, /* flags= */ 0)
            .sendBroadcastWithMultiplePermissions(
                    intent, new String[] {BLUETOOTH_CONNECT, BLUETOOTH_PRIVILEGED});
    mEventLogger.logd(
            TAG, "[Intent] Active Device Changed:" + mExposedActiveDevice + " -> " + device);
    mExposedActiveDevice = device;
}
热门推荐
01GitHub 镜像站点02OpenCode 入门教程：介绍 · 安装 · 配置第三方 API (如 Claude)03Claude Code Skills 实用使用手册04Linux下V2Ray安装配置指南05Open Code教程（四）| 高级配置与集成06UV安装并设置国内源07BongoCat - 跨平台键盘猫动画工具08安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）09MC.JS 网页版《我的世界》 免安装中文版10在VSCode配置Java开发环境的保姆级教程（适配各类AI编程IDE）
