Vue super flow 基于vue的流程图组件
相比较其他流程，简单易懂
安装
bash
npm install vue-super-flow
yran add vue-spuer-flow
javascript
// 全局引用
import SuperFlow from 'vue-super-flow'
import 'vue-super-flow/lib/index.css'
Vue.use(SuperFlow)
// 局部引用
<template>
<super-flow></super-flow>
</template>
<script >
import SuperFlow from 'vue-super-flow'
import 'vue-super-flow/lib/index.css'
export default {
components: {SuperFlow}
}

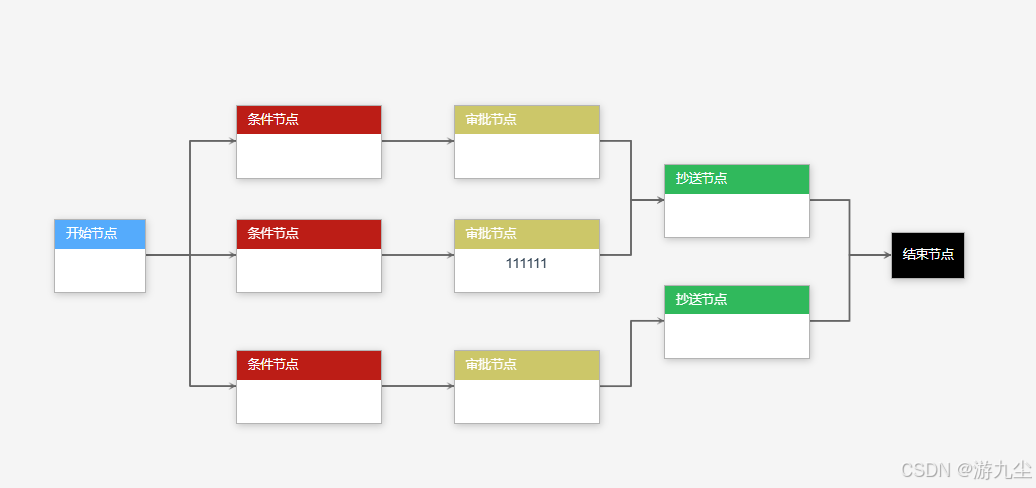

</script>一、默认示例
javascript
<!--
* User: CHT
* Date: 2020/5/27
* Time: 9:52
-->
<template>
<div class="super-flow-base-demo">
<super-flow
ref="superFlow"
:node-list="nodeList"
:link-list="linkList"
:origin="origin"
:graph-menu="graphMenuList"
:node-menu="nodeMenuList"
:link-menu="linkMenuList"
:enter-intercept="enterIntercept"
:output-intercept="outputIntercept"
:link-desc="linkDesc">
<template v-slot:node="{meta}">
<div :class="`flow-node flow-node-${meta.prop}`">
<header class="ellipsis">
{{ meta.name }}
</header>
<section>
{{ meta.desc }}
</section>
</div>
</template>
</super-flow>
<el-dialog
:title="drawerConf.title"
:visible.sync="drawerConf.visible"
:close-on-click-modal="false"
width="500px">
<el-form
@keyup.native.enter="settingSubmit"
@submit.native.prevent
v-show="drawerConf.type === drawerType.node"
ref="nodeSetting"
:model="nodeSetting">
<el-form-item
label="节点名称"
prop="name">
<el-input
v-model="nodeSetting.name"
placeholder="请输入节点名称"
maxlength="30">
</el-input>
</el-form-item>
<el-form-item
label="节点描述"
prop="desc">
<el-input
v-model="nodeSetting.desc"
placeholder="请输入节点描述"
maxlength="30">
</el-input>
</el-form-item>
</el-form>
<el-form
@keyup.native.enter="settingSubmit"
@submit.native.prevent
v-show="drawerConf.type === drawerType.link"
ref="linkSetting"
:model="linkSetting">
<el-form-item
label="连线描述"
prop="desc">
<el-input
v-model="linkSetting.desc"
placeholder="请输入连线描述">
</el-input>
</el-form-item>
</el-form>
<span
slot="footer"
class="dialog-footer">
<el-button
@click="drawerConf.cancel">
取 消
</el-button>
<el-button
type="primary"
@click="settingSubmit">
确 定
</el-button>
</span>
</el-dialog>
</div>
</template>
<script>
const drawerType = {
node: 0,
link: 1
}
export default {
data () {
return {
drawerType,
drawerConf: {
title: '',
visible: false,
type: null,
info: null,
open: (type, info) => {
const conf = this.drawerConf
conf.visible = true
conf.type = type
conf.info = info
if (conf.type === drawerType.node) {
conf.title = '节点'
if (this.$refs.nodeSetting) this.$refs.nodeSetting.resetFields()
this.$set(this.nodeSetting, 'name', info.meta.name)
this.$set(this.nodeSetting, 'desc', info.meta.desc)
} else {
conf.title = '连线'
if (this.$refs.linkSetting) this.$refs.linkSetting.resetFields()
this.$set(this.linkSetting, 'desc', info.meta ? info.meta.desc : '')
}
},
cancel: () => {
this.drawerConf.visible = false
if (this.drawerConf.type === drawerType.node) {
this.$refs.nodeSetting.clearValidate()
} else {
this.$refs.linkSetting.clearValidate()
}
}
},
linkSetting: {
desc: ''
},
nodeSetting: {
name: '',
desc: ''
},
origin: [2000, 2000],
nodeList: [],
linkList: [],
graphMenuList: [
[
{
label: '开始节点',
disable (graph) {
return !!graph.nodeList.find(node => node.meta.prop === 'start')
},
selected: (graph, coordinate) => {
const start = graph.nodeList.find(node => node.meta.prop === 'start')
if (!start) {
graph.addNode({
width: 100,
height: 80,
coordinate: coordinate,
meta: {
prop: 'start',
name: '开始节点'
}
})
}
}
},
{
label: '条件节点',
disable: false,
selected: (graph, coordinate) => {
graph.addNode({
width: 160,
height: 80,
coordinate: coordinate,
meta: {
prop: 'condition',
name: '条件节点'
}
})
}
},
{
label: '审批节点',
disable: false,
selected: (graph, coordinate) => {
graph.addNode({
width: 160,
height: 80,
coordinate: coordinate,
meta: {
prop: 'approval',
name: '审批节点'
}
})
}
},
{
label: '抄送节点',
disable: false,
selected: (graph, coordinate) => {
graph.addNode({
width: 160,
height: 80,
coordinate: coordinate,
meta: {
prop: 'cc',
name: '抄送节点'
}
})
}
},
{
label: '结束节点',
disable (graph) {
return !!graph.nodeList.find(point => point.meta.prop === 'end')
},
selected: (graph, coordinate) => {
graph.addNode({
width: 80,
height: 50,
coordinate: coordinate,
meta: {
prop: 'end',
name: '结束节点'
}
})
}
}
],
[
{
label: '打印数据',
selected: (graph, coordinate) => {
console.log(JSON.stringify(graph.toJSON(), null, 2))
}
},
{
label: '全选',
selected: (graph, coordinate) => {
graph.selectAll()
}
}
]
],
nodeMenuList: [
[
{
label: '删除',
disable: false,
hidden (node) {
return node.meta.prop === 'start'
},
selected (node, coordinate) {
node.remove()
}
}
],
[
{
label: '编辑',
selected: (node, coordinate) => {
this.drawerConf.open(drawerType.node, node)
}
}
]
],
linkMenuList: [
[
{
label: '删除',
disable: false,
selected: (link, coordinate) => {
link.remove()
}
}
],
[
{
label: '编辑',
disable: false,
selected: (link, coordinate) => {
this.drawerConf.open(drawerType.link, link)
}
}
]
]
}
},
created () {
const nodeList = [
{
'id': 'nodeS3WgFnzCI15X58Qw',
'width': 100,
'height': 80,
'coordinate': [-644, -148],
'meta': {
'prop': 'start',
'name': '开始节点'
}
},
{
'id': 'nodefHsy9uJObPtdHZv1',
'width': 160,
'height': 80,
'coordinate': [-200, -148],
'meta': {
'prop': 'approval',
'name': '审批节点',
'desc': '111111'
}
},
{
'id': 'nodeni9QOqT3mI7hsMau',
'width': 160,
'height': 80,
'coordinate': [-442, -275],
'meta': {
'prop': 'condition',
'name': '条件节点'
}
},
{
'id': 'nodeZBK0ZPpgMe1exezE',
'width': 160,
'height': 80,
'coordinate': [-200, -275],
'meta': {
'prop': 'approval',
'name': '审批节点'
}
},
{
'id': 'nodeqkK9zjcDz53xKRlK',
'width': 160,
'height': 80,
'coordinate': [34, -209],
'meta': {
'prop': 'cc',
'name': '抄送节点'
}
},
{
'id': 'nodeDhVU6w2KbEnJCjZs',
'width': 80,
'height': 50,
'coordinate': [286, -133],
'meta': {
'prop': 'end',
'name': '结束节点'
}
},
{
'id': 'nodesyxisLH1hJDdPsxx',
'width': 160,
'height': 80,
'coordinate': [34, -75],
'meta': {
'prop': 'cc',
'name': '抄送节点'
}
},
{
'id': 'node0aiA9VuhjkiAdZCs',
'width': 160,
'height': 80,
'coordinate': [-200, -2],
'meta': {
'prop': 'approval',
'name': '审批节点'
}
},
{
'id': 'nodeG3WeFnzCI15X58Qw',
'width': 160,
'height': 80,
'coordinate': [-442, -2],
'meta': {
'prop': 'condition',
'name': '条件节点'
}
},
{
'id': 'node7WXbwOR6kSFD53Hf',
'width': 160,
'height': 80,
'coordinate': [-442, -148],
'meta': {
'prop': 'condition',
'name': '条件节点'
}
}
]
const linkList = [
{
'id': 'linkcs9ZhumWeTHrtUy8',
'startId': 'nodeS3WgFnzCI15X58Qw',
'endId': 'nodeni9QOqT3mI7hsMau',
'startAt': [100, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'linkBDld5rDBw4C6kiva',
'startId': 'nodefHsy9uJObPtdHZv1',
'endId': 'nodeqkK9zjcDz53xKRlK',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'linkA0ZZxRlDI9AOonuq',
'startId': 'node7WXbwOR6kSFD53Hf',
'endId': 'nodefHsy9uJObPtdHZv1',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'linkhCKTpRAf89gcujGS',
'startId': 'nodeni9QOqT3mI7hsMau',
'endId': 'nodeZBK0ZPpgMe1exezE',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'link2o7VZ7DRaSFKtB0g',
'startId': 'nodeqkK9zjcDz53xKRlK',
'endId': 'nodeDhVU6w2KbEnJCjZs',
'startAt': [160, 40],
'endAt': [0, 25],
'meta': null
},
{
'id': 'linkII013ovDctUDuPLu',
'startId': 'nodeS3WgFnzCI15X58Qw',
'endId': 'nodeG3WeFnzCI15X58Qw',
'startAt': [100, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'link6MOmsq1EqzlWcG1n',
'startId': 'nodeZBK0ZPpgMe1exezE',
'endId': 'nodeqkK9zjcDz53xKRlK',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'link52SczSXHmuyKDzRU',
'startId': 'nodesyxisLH1hJDdPsxx',
'endId': 'nodeDhVU6w2KbEnJCjZs',
'startAt': [160, 40],
'endAt': [0, 25],
'meta': null
},
{
'id': 'link2hBQDTuIG4ZFYyE0',
'startId': 'node0aiA9VuhjkiAdZCs',
'endId': 'nodesyxisLH1hJDdPsxx',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'linkrwdW87FmOma5rPVo',
'startId': 'nodeG3WeFnzCI15X58Qw',
'endId': 'node0aiA9VuhjkiAdZCs',
'startAt': [160, 40],
'endAt': [0, 40],
'meta': null
},
{
'id': 'linknL75dQV0AWZA85sq',
'startId': 'nodeS3WgFnzCI15X58Qw',
'endId': 'node7WXbwOR6kSFD53Hf',
'startAt': [100, 40],
'endAt': [0, 40],
'meta': null
}
]
setTimeout(() => {
this.nodeList = nodeList
this.linkList = linkList
}, 100)
},
mounted () {
this.$nextTick(() => {
this.$el.scrollBy({
left: (this.$el.scrollWidth - this.$el.clientWidth) / 2,
top: (this.$el.scrollHeight - this.$el.clientHeight) / 2
})
})
},
methods: {
enterIntercept (formNode, toNode, graph) {
const formType = formNode.meta.prop
switch (toNode.meta.prop) {
case 'start':
return false
case 'approval':
return [
'start',
'approval',
'condition',
'cc'
].includes(formType)
case 'condition':
return [
'start',
'approval',
'condition',
'cc'
].includes(formType)
case 'end':
return [
'approval',
'cc'
].includes(formType)
default:
return true
}
},
outputIntercept (node, graph) {
return !(node.meta.prop === 'end')
},
linkDesc (link) {
return link.meta ? link.meta.desc : ''
},
settingSubmit () {
const conf = this.drawerConf
if (this.drawerConf.type === drawerType.node) {
if (!conf.info.meta) conf.info.meta = {}
Object.keys(this.nodeSetting).forEach(key => {
this.$set(conf.info.meta, key, this.nodeSetting[key])
})
this.$refs.nodeSetting.resetFields()
} else {
if (!conf.info.meta) conf.info.meta = {}
Object.keys(this.linkSetting).forEach(key => {
this.$set(conf.info.meta, key, this.linkSetting[key])
})
this.$refs.linkSetting.resetFields()
}
conf.visible = false
}
}
}
</script>
<style lang="less">
.ellipsis {
white-space : nowrap;
text-overflow : ellipsis;
overflow : hidden;
word-wrap : break-word;
}
.super-flow-base-demo {
width : 100%;
height : 800px;
margin : 0 auto;
background-color : #f5f5f5;
overflow : scroll;
.super-flow {
width : 4000px;
height : 4000px;
}
.super-flow__node {
.flow-node {
> header {
font-size : 14px;
height : 32px;
line-height : 32px;
padding : 0 12px;
color : #ffffff;
}
> section {
text-align : center;
line-height : 20px;
overflow : hidden;
padding : 6px 12px;
word-break : break-all;
}
&.flow-node-start {
> header {
background-color : #55abfc;
}
}
&.flow-node-condition {
> header {
background-color : #BC1D16;
}
}
&.flow-node-approval {
> header {
background-color : rgba(188, 181, 58, 0.76);
}
}
&.flow-node-cc {
> header {
background-color : #30b95c;
}
}
&.flow-node-end {
> header {
height : 50px;
line-height : 50px;
background-color : rgb(0, 0, 0);
}
}
}
}
}

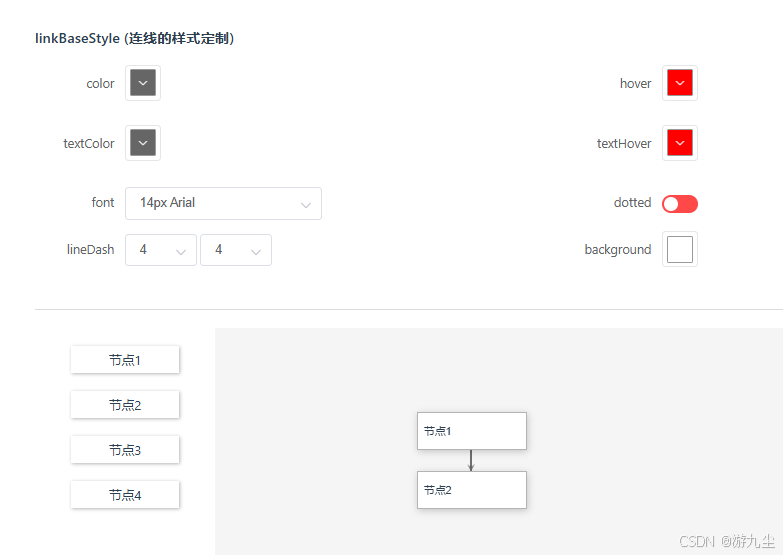

</style>二、进阶示例
javascript
<!--
* User: CHT
* Date: 2020/6/28
* Time: 17:48
-->
<template>
<div>
<div>
<el-form
class="link-base-style-form"
ref="linkBaseStyle"
label-width="100px"
@submit.native.prevent
:model="linkBaseStyle">
<h4>linkBaseStyle (连线的样式定制)</h4>
<el-row :gutter="10">
<el-col :span="12">
<el-form-item label="color">
<el-color-picker
v-model="linkBaseStyle.color">
</el-color-picker>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="hover">
<el-color-picker
v-model="linkBaseStyle.hover">
</el-color-picker>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="textColor">
<el-color-picker
v-model="linkBaseStyle.textColor">
</el-color-picker>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="textHover">
<el-color-picker
v-model="linkBaseStyle.textHover">
</el-color-picker>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="font">
<el-select
size="medium"
v-model="linkBaseStyle.font">
<el-option
v-for="item in fontList"
:key="item"
:label="item"
:value="item">
</el-option>
</el-select>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="dotted">
<el-switch
v-model="linkBaseStyle.dotted"
active-color="#13ce66"
inactive-color="#ff4949">
</el-switch>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="lineDash">
<el-select
size="medium"
style="width: 80px"
v-model="linkBaseStyle.lineDash[0]">
<el-option
v-for="item in [1,2,3,4,5,6,7,8]"
:key="item"
:label="item"
:value="item">
</el-option>
</el-select>
<el-select
size="medium"
style="width: 80px"
v-model="linkBaseStyle.lineDash[1]">
<el-option
v-for="item in [1,2,3,4,5,6,7,8]"
:key="item"
:label="item"
:value="item">
</el-option>
</el-select>
</el-form-item>
</el-col>
<el-col :span="12">
<el-form-item label="background">
<el-color-picker
v-model="linkBaseStyle.background">
</el-color-picker>
</el-form-item>
</el-col>
</el-row>
</el-form>
</div>
<div class="super-flow-demo1">
<div class="node-container">
<span
class="node-item"
v-for="item in nodeItemList"
@mousedown="evt => nodeItemMouseDown(evt, item.value)">
{{ item.label }}
</span>
</div>
<div
class="flow-container"
ref="flowContainer">
<super-flow
ref="superFlow"
:graph-menu="graphMenu"
:node-menu="nodeMenu"
:link-menu="linkMenu"
:link-base-style="linkBaseStyle"
:link-style="linkStyle"
:link-desc="linkDesc">
<template v-slot:node="{meta}">
<div
@mouseup="nodeMouseUp"
@click="nodeClick"
class="flow-node ellipsis">
{{ meta.name }}
</div>
</template>
</super-flow>
</div>
</div>
<el-dialog
:title="drawerConf.title"
:visible.sync="drawerConf.visible"
:close-on-click-modal="false"
width="500px">
<el-form
@keyup.native.enter="settingSubmit"
@submit.native.prevent
v-show="drawerConf.type === drawerType.node"
ref="nodeSetting"
:model="nodeSetting">
<el-form-item
label="节点名称"
prop="name">
<el-input
v-model="nodeSetting.name"
placeholder="请输入节点名称"
maxlength="30">
</el-input>
</el-form-item>
<el-form-item
label="节点描述"
prop="desc">
<el-input
v-model="nodeSetting.desc"
placeholder="请输入节点描述"
maxlength="30">
</el-input>
</el-form-item>
</el-form>
<el-form
@keyup.native.enter="settingSubmit"
@submit.native.prevent
v-show="drawerConf.type === drawerType.link"
ref="linkSetting"
:model="linkSetting">
<el-form-item
label="连线描述"
prop="desc">
<el-input
v-model="linkSetting.desc"
placeholder="请输入连线描述">
</el-input>
</el-form-item>
</el-form>
<span
slot="footer"
class="dialog-footer">
<el-button
@click="drawerConf.cancel">
取 消
</el-button>
<el-button
type="primary"
@click="settingSubmit">
确 定
</el-button>
</span>
</el-dialog>
</div>
</template>
<script>
const drawerType = {
node: 0,
link: 1
}
export default {
data () {
return {
drawerType,
drawerConf: {
title: '',
visible: false,
type: null,
info: null,
open: (type, info) => {
const conf = this.drawerConf
conf.visible = true
conf.type = type
conf.info = info
if (conf.type === drawerType.node) {
conf.title = '节点'
if (this.$refs.nodeSetting) this.$refs.nodeSetting.resetFields()
this.$set(this.nodeSetting, 'name', info.meta.name)
this.$set(this.nodeSetting, 'desc', info.meta.desc)
} else {
conf.title = '连线'
if (this.$refs.linkSetting) this.$refs.linkSetting.resetFields()
this.$set(this.linkSetting, 'desc', info.meta ? info.meta.desc : '')
}
},
cancel: () => {
this.drawerConf.visible = false
if (this.drawerConf.type === drawerType.node) {
this.$refs.nodeSetting.clearValidate()
} else {
this.$refs.linkSetting.clearValidate()
}
}
},
linkSetting: {
desc: ''
},
nodeSetting: {
name: '',
desc: ''
},
dragConf: {
isDown: false,
isMove: false,
offsetTop: 0,
offsetLeft: 0,
clientX: 0,
clientY: 0,
ele: null,
info: null
},
nodeItemList: [
{
label: '节点1',
value: () => ({
width: 120,
height: 40,
meta: {
label: '1',
name: '1'
}
})
},
{
label: '节点2',
value: () => ({
width: 120,
height: 40,
meta: {
label: '2',
name: '2'
}
})
},
{
label: '节点3',
value: () => ({
width: 120,
height: 40,
meta: {
label: '3',
name: '3'
}
})
},
{
label: '节点4',
value: () => ({
width: 120,
height: 40,
meta: {
label: '4',
name: '4'
}
})
}
],
graphMenu: [
[
{
// 选项 label
label: '节点1',
// 选项是否禁用
disable (graph) {
return !!graph.nodeList.find(node => node.meta.label === '1')
},
// 选项选中后回调函数
selected (graph, coordinate) {
graph.addNode({
width: 120,
height: 40,
coordinate,
meta: {
label: '1',
name: '1'
}
})
}
},
{
label: '节点2',
selected (graph, coordinate) {
graph.addNode({
width: 120,
height: 40,
coordinate,
meta: {
label: '2',
name: '2'
}
})
}
},
{
label: '节点3',
selected (graph, coordinate) {
graph.addNode({
width: 120,
height: 40,
coordinate,
meta: {
label: '3',
name: '3'
}
})
}
}
],
[
{
label: '节点4',
selected (graph, coordinate) {
graph.addNode({
width: 120,
height: 40,
coordinate,
meta: {
label: '4',
name: '4'
}
})
}
}
],
[
{
label: '全选',
selected: graph => {
graph.selectAll()
}
}
]
],
nodeMenu: [
[
{
label: '删除',
selected: node => {
node.remove()
}
},
{
label: '编辑',
selected: node => {
this.drawerConf.open(drawerType.node, node)
}
}
]
],
linkMenu: [
[
{
label: '删除',
selected: link => {
link.remove()
}
},
{
label: '编辑',
selected: link => {
this.drawerConf.open(drawerType.link, link)
}
}
]
],
linkBaseStyle: {
color: '#666666', // line 颜色
hover: '#FF0000', // line hover 的颜色
textColor: '#666666', // line 描述文字颜色
textHover: '#FF0000', // line 描述文字 hover 颜色
font: '14px Arial', // line 描述文字 字体设置 参考 canvas font
dotted: false, // 是否是虚线
lineDash: [4, 4], // 虚线时生效
background: 'rgba(255,255,255,0.6)' // 描述文字背景色
},
fontList: [
'14px Arial',
'italic small-caps bold 12px arial'
]
}
},
mounted () {
document.addEventListener('mousemove', this.docMousemove)
document.addEventListener('mouseup', this.docMouseup)
this.$once('hook:beforeDestroy', () => {
document.removeEventListener('mousemove', this.docMousemove)
document.removeEventListener('mouseup', this.docMouseup)
})
},
methods: {
flowNodeClick (meta) {
console.log(this.$refs.superFlow.graph)
},
linkStyle (link) {
if (link.meta && link.meta.desc === '1') {
return {
color: 'red',
hover: '#FF00FF',
dotted: true
}
} else {
return {}
}
},
linkDesc (link) {
return link.meta ? link.meta.desc : ''
},
settingSubmit () {
const conf = this.drawerConf
if (this.drawerConf.type === drawerType.node) {
if (!conf.info.meta) conf.info.meta = {}
Object.keys(this.nodeSetting).forEach(key => {
this.$set(conf.info.meta, key, this.nodeSetting[key])
})
this.$refs.nodeSetting.resetFields()
} else {
if (!conf.info.meta) conf.info.meta = {}
Object.keys(this.linkSetting).forEach(key => {
this.$set(conf.info.meta, key, this.linkSetting[key])
})
this.$refs.linkSetting.resetFields()
}
conf.visible = false
},
nodeMouseUp (evt) {
evt.preventDefault()
},
nodeClick () {
console.log(arguments)
},
docMousemove ({ clientX, clientY }) {
const conf = this.dragConf
if (conf.isMove) {
conf.ele.style.top = clientY - conf.offsetTop + 'px'
conf.ele.style.left = clientX - conf.offsetLeft + 'px'
} else if (conf.isDown) {
// 鼠标移动量大于 5 时 移动状态生效
conf.isMove =
Math.abs(clientX - conf.clientX) > 5
|| Math.abs(clientY - conf.clientY) > 5
}
},
docMouseup ({ clientX, clientY }) {
const conf = this.dragConf
conf.isDown = false
if (conf.isMove) {
const {
top,
right,
bottom,
left
} = this.$refs.flowContainer.getBoundingClientRect()
// 判断鼠标是否进入 flow container
if (
clientX > left
&& clientX < right
&& clientY > top
&& clientY < bottom
) {
// 获取拖动元素左上角相对 super flow 区域原点坐标
const coordinate = this.$refs.superFlow.getMouseCoordinate(
clientX - conf.offsetLeft,
clientY - conf.offsetTop
)
// 添加节点
this.$refs.superFlow.addNode({
coordinate,
...conf.info
})
}
conf.isMove = false
}
if (conf.ele) {
conf.ele.remove()
conf.ele = null
}
},
nodeItemMouseDown (evt, infoFun) {
const {
clientX,
clientY,
currentTarget
} = evt
const {
top,
left
} = evt.currentTarget.getBoundingClientRect()
const conf = this.dragConf
const ele = currentTarget.cloneNode(true)
Object.assign(this.dragConf, {
offsetLeft: clientX - left,
offsetTop: clientY - top,
clientX: clientX,
clientY: clientY,
info: infoFun(),
ele,
isDown: true
})
ele.style.position = 'fixed'
ele.style.margin = '0'
ele.style.top = clientY - conf.offsetTop + 'px'
ele.style.left = clientX - conf.offsetLeft + 'px'
this.$el.appendChild(this.dragConf.ele)
}
}
}
</script>
<style lang="less">
.ellipsis {
white-space : nowrap;
text-overflow : ellipsis;
overflow : hidden;
word-wrap : break-word;
}
.link-base-style-form {
.el-form-item {
margin-bottom : 12px;
}
padding-bottom : 20px;
border-bottom : 1px solid #DCDCDC;
}
.super-flow-demo1 {
margin-top : 20px;
width : 100%;
height : 800px;
background-color : #f5f5f5;
@list-width : 200px;
> .node-container {
width : @list-width;
float : left;
height : 100%;
text-align : center;
background-color : #FFFFFF;
}
> .flow-container {
width : calc(100% - @list-width);
float : left;
height : 100%;
overflow : hidden;
}
.super-flow__node {
.flow-node {
box-sizing : border-box;
width : 100%;
height : 100%;
line-height : 40px;
padding : 0 6px;
font-size : 12px;
}
}
}
.node-item {
@node-item-height : 30px;
font-size : 14px;
display : inline-block;
height : @node-item-height;
width : 120px;
margin-top : 20px;
background-color : #FFFFFF;
line-height : @node-item-height;
box-shadow : 1px 1px 4px rgba(0, 0, 0, 0.3);
cursor : pointer;
user-select : none;
text-align : center;
z-index : 6;
&:hover {
box-shadow : 1px 1px 8px rgba(0, 0, 0, 0.4);
}
}
</style>
