引言

在运动、实验、编程调试等场景中,秒表(Stopwatch) 是一个高频使用的工具。一个优秀的秒表应用不仅需要毫秒级精度 ,还应具备直观的视觉反馈、流畅的交互体验、完整的计次功能 以及对深色/浅色模式的完美支持。

本文将基于 Flutter + Material Design 3 ,带您从零构建一个高保真、可运行、可扩展的秒表界面。我们将围绕以下核心能力展开深度解析:

  • ✅ 双表盘设计:主表盘显示分:秒.百分之一秒,副表盘专注 0.01 秒指针;
  • ✅ 精准时间格式化 :支持 MM:SS.HH 格式(如 02:35.47);
  • ✅ 完整控制逻辑:开始、暂停、重置、计次(Lap);
  • ✅ 计次列表管理:显示单圈耗时与累计时间,支持删除;
  • ✅ 动态主题适配:自动响应系统亮/暗模式;
  • ✅ 自定义绘制(CustomPainter):手绘刻度、数字与指针。

最终,我们将得到一个视觉精致、逻辑严谨、体验流畅的秒表模块,可直接用于 OpenHarmony 或跨平台 Flutter 项目中。


一、状态管理:_StopwatchPageState 核心逻辑

1. 数据状态定义

dart 复制代码
int _elapsedMilliseconds = 0; // 累计经过的毫秒数
bool _isRunning = false;       // 是否正在运行
List<int> _laps = [];          // 计次记录(存储毫秒值)
  • 使用 毫秒 作为最小单位,确保精度;
  • _laps 存储每次"计次"时的累计毫秒值,便于后续计算单圈时间。

2. 定时器初始化与销毁

dart 复制代码
@override
void initState() {
  super.initState();
  _timer = Timer.periodic(const Duration(milliseconds: 10), (_) {
    if (_isRunning) {
      setState(() {
        _elapsedMilliseconds += 10;
      });
    }
  });
}

@override
void dispose() {
  _timer.cancel(); // 关键!防止内存泄漏
  super.dispose();
}
  • 10ms 刷新频率:平衡精度与性能(100Hz 足够人眼识别);
  • 条件更新 :仅在 _isRunning 为 true 时累加,避免无效 setState;
  • 资源释放 :dispose 中取消定时器,防止页面销毁后仍在后台运行。

⚠️ 注意:虽然每 10ms 触发一次,但 Flutter 的渲染帧率通常为 60fps(≈16.7ms),实际 UI 更新仍受限于屏幕刷新率,不会造成性能问题。


二、时间格式化:从毫秒到可读字符串

dart 复制代码
String _formatTime(int milliseconds) {
  final totalSeconds = milliseconds ~/ 1000;
  final minutes = totalSeconds ~/ 60;
  final seconds = totalSeconds % 60;
  final hundredths = (milliseconds % 1000) ~/ 10;
  return '${minutes.toString().padLeft(2, '0')}:${seconds.toString().padLeft(2, '0')}.${hundredths.toString().padLeft(2, '0')}';
}
🔍 格式说明:
  • minutes:总分钟数;
  • seconds:剩余秒数(0~59);
  • hundredths:百分之一秒(0~99),通过 (ms % 1000) ~/ 10 获取;
  • 使用 padLeft(2, '0') 确保两位数显示(如 05 而非 5)。

✅ 输出示例:00:00.00 → 01:23.45 → 10:59.99

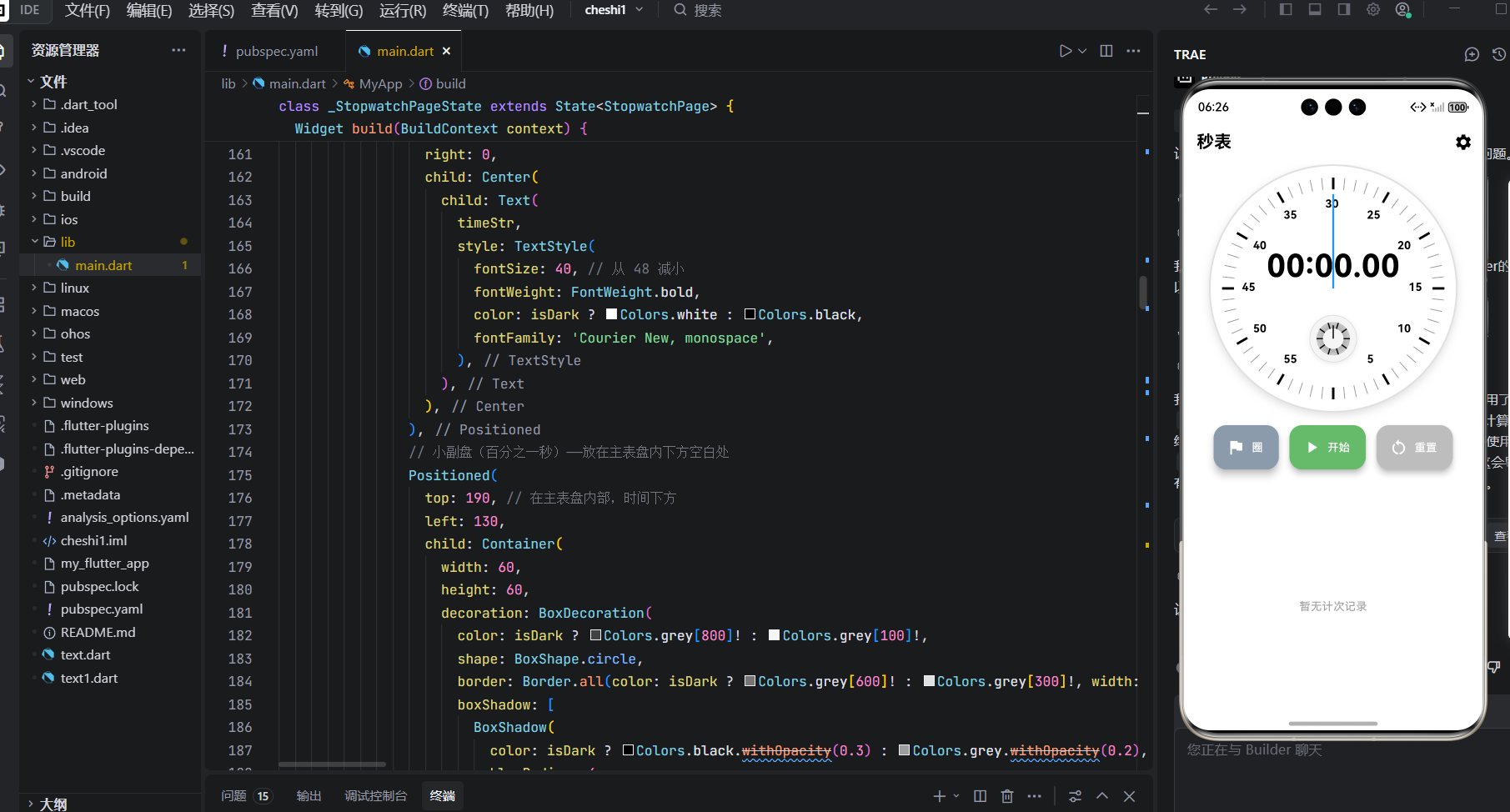

三、UI 构建:双表盘 + 控制按钮 + 计次列表

1. 主表盘区域:Stack 布局实现多层叠加

dart 复制代码
Expanded(
  child: Stack(
    alignment: Alignment.center,
    children: [
      // 背景圆盘
      Container(...),
      // 自定义绘制:刻度与秒针
      CustomPaint(painter: StopwatchMainPainter(...)),
      // 时间文本(上移避免遮挡)
      Positioned(top: 100, child: Text(timeStr)),
      // 小副盘(百分之一秒)
      Positioned(top: 190, left: 130, child: Container(...)),
    ],
  ),
)
  • 使用 Stack 实现背景、刻度、文字、副盘的精确叠加;
  • Positioned 控制各元素位置,避免相互遮挡;
  • 时间文本上移至顶部,为下方副盘留出空间。

2. 控制按钮:语义化 + 动态配色

dart 复制代码
FloatingActionButton.extended(
  onPressed: _isRunning ? _pause : _start,
  backgroundColor: _isRunning
      ? (isDark ? Colors.orange[800]! : Colors.orange[400]!)
      : (isDark ? Colors.green[700]! : Colors.green[400]!),
  icon: Icon(_isRunning ? Icons.pause : Icons.play_arrow),
  label: Text(_isRunning ? '暂停' : '开始'),
),
  • 颜色语义 :
    • 开始:绿色(表示启动);
    • 暂停:橙色(表示中断);
    • 圈/重置:灰色系(辅助操作);
  • 图标+文字:提升可访问性,符合 Material Design 规范。

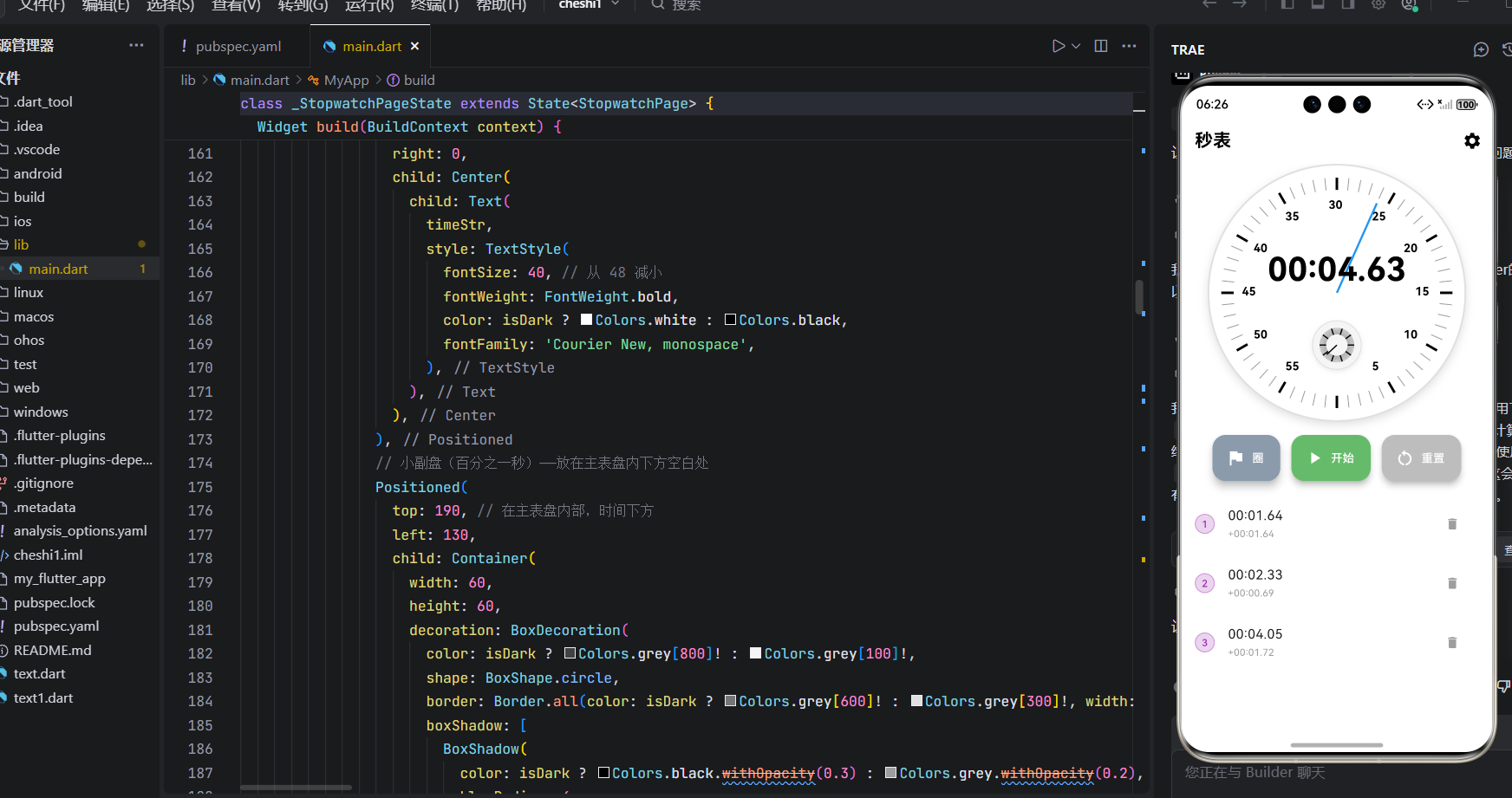

3. 计次列表:显示累计与单圈时间

dart 复制代码
final lapTime = _formatTime(_laps[index]); // 累计时间
final diffFromPrev = index == 0
    ? _formatTime(_laps[0])
    : _formatTime(_laps[index] - _laps[index - 1]); // 单圈时间
  • 首圈:单圈时间 = 累计时间;
  • 后续圈:单圈时间 = 当前累计 - 上一圈累计;
  • 删除功能:每项右侧提供删除按钮,支持灵活管理。

💡 体验优化:使用紫色圆标标注圈数,增强列表可读性。


四、自定义绘制:StopwatchMainPainter 与 SubSecondPainter

1. 主表盘绘制:StopwatchMainPainter

dart 复制代码
class StopwatchMainPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    // 1. 绘制 60 条刻度线
    for (int i = 0; i < 60; i++) {
      final isMajor = i % 5 == 0;
      // ...
    }

    // 2. 绘制数字(5, 10, ..., 55)
    for (int i = 5; i <= 55; i += 5) {
      // 使用 TextPainter 手动绘制文本
    }

    // 3. 绘制秒针(蓝色)
    final secondAngle = (totalSeconds % 60) * 6.0;
    canvas.drawLine(center, Offset(secX, secY), secPaint);
  }
}
🎨 设计细节:
  • 刻度区分:每 5 秒加粗加长,提升可读性;
  • 数字定位 :仅显示 5, 10, ..., 55,避免拥挤;
  • 秒针颜色 :使用 Colors.blue,与背景形成对比;
  • 角度计算 :以 12 点为 0°,通过 -90 调整坐标系。

2. 副表盘绘制:SubSecondPainter(0.01 秒)

dart 复制代码
class SubSecondPainter extends CustomPainter {
  @override
  void paint(Canvas canvas, Size size) {
    // 100 条刻度(每 0.01 秒一条)
    for (int i = 0; i < 100; i++) {
      final isMajor = i % 10 == 0;
      // ...
    }

    // 黑色指针指向当前百分之一秒
    final angle = (subMilliseconds ~/ 10) * 3.6;
    canvas.drawLine(center, Offset(x, y), paint);
  }
}
  • 高密度刻度:100 条线对应 0~99 百分之一秒;
  • 指针联动 :实时反映 _elapsedMilliseconds % 1000 的变化;
  • 尺寸小巧:直径仅 60px,嵌入主表盘空白区域,不喧宾夺主。

🌟 视觉价值:副表盘不仅提升专业感,更让用户直观感知"百分之一秒"的流逝。


五、主题与样式:Material Design 3 适配

dart 复制代码
theme: ThemeData(
  useMaterial3: true,
  brightness: Brightness.light,
  scaffoldBackgroundColor: Colors.white,
),
darkTheme: ThemeData(
  useMaterial3: true,
  brightness: Brightness.dark,
  scaffoldBackgroundColor: Colors.black,
),
  • 启用 useMaterial3: true,使用最新设计语言;
  • 浅色模式:白色背景 + 黑色文字;
  • 深色模式:黑色背景 + 白色文字;
  • 所有颜色(刻度、文字、按钮)均通过 isDark 动态切换,确保一致性。
示例:表盘背景
dart 复制代码
color: isDark ? Colors.grey[900]! : Colors.white,
border: Border.all(color: isDark ? Colors.grey[700]! : Colors.grey[300]!, width: 2),

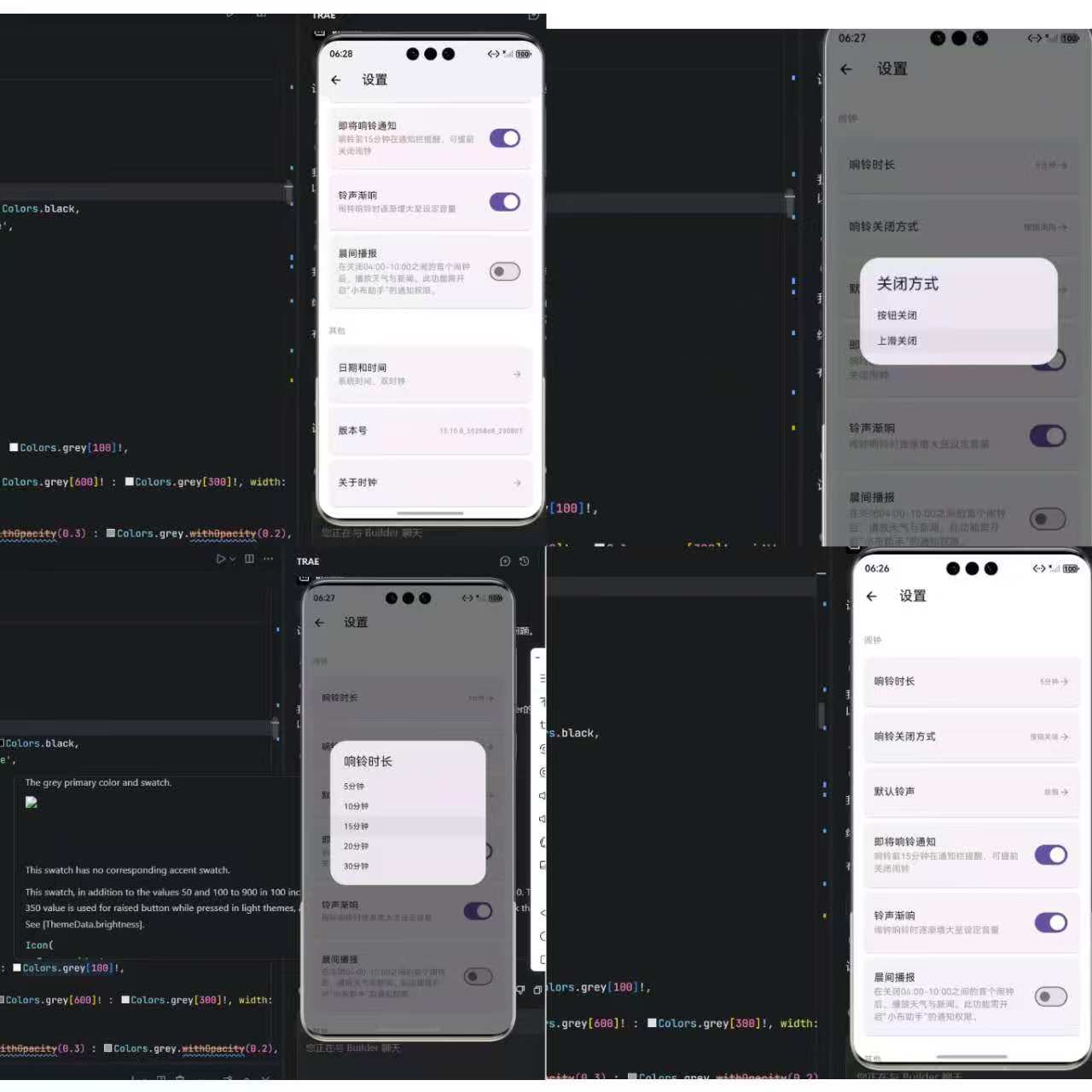

六、设置页面:保持结构完整(虽非核心,但体现工程规范)

尽管本文聚焦秒表界面,但代码中包含了一个完整的 SettingsPage,展示了:

  • 对话框选择 :showDialog + SimpleDialog;
  • 开关控件 :SwitchSettingItem 封装复用;
  • 信息展示:版本号、关于等静态项。

这体现了良好的工程习惯:即使次要页面也保持代码整洁与可维护性。


七、完全代码实现

dart 复制代码
import 'dart:async';
import 'package:flutter/material.dart';
import 'dart:math';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: '秒表',
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        useMaterial3: true,
        brightness: Brightness.light,
        primarySwatch: Colors.blue,
        scaffoldBackgroundColor: Colors.white,
        appBarTheme: const AppBarTheme(backgroundColor: Colors.white, foregroundColor: Colors.black),
      ),
      darkTheme: ThemeData(
        useMaterial3: true,
        brightness: Brightness.dark,
        primarySwatch: Colors.blue,
        scaffoldBackgroundColor: Colors.black,
        appBarTheme: const AppBarTheme(backgroundColor: Colors.black, foregroundColor: Colors.white),
      ),
      home: const StopwatchPage(),
    );
  }
}

// ===========================
// 秒表主页面
// ===========================
class StopwatchPage extends StatefulWidget {
  const StopwatchPage({super.key});

  @override
  State<StopwatchPage> createState() => _StopwatchPageState();
}

class _StopwatchPageState extends State<StopwatchPage> {
  late Timer _timer;
  int _elapsedMilliseconds = 0;
  bool _isRunning = false;
  List<int> _laps = [];

  @override
  void initState() {
    super.initState();
    _timer = Timer.periodic(const Duration(milliseconds: 10), (_) {
      if (_isRunning) {
        setState(() {
          _elapsedMilliseconds += 10;
        });
      }
    });
  }

  @override
  void dispose() {
    _timer.cancel();
    super.dispose();
  }

  void _start() {
    setState(() {
      _isRunning = true;
    });
  }

  void _pause() {
    setState(() {
      _isRunning = false;
    });
  }

  void _reset() {
    setState(() {
      _isRunning = false;
      _elapsedMilliseconds = 0;
      _laps.clear();
    });
  }

  void _lap() {
    if (_isRunning) {
      setState(() {
        _laps.add(_elapsedMilliseconds);
      });
    }
  }

  String _formatTime(int milliseconds) {
    final totalSeconds = milliseconds ~/ 1000;
    final minutes = totalSeconds ~/ 60;
    final seconds = totalSeconds % 60;
    final hundredths = (milliseconds % 1000) ~/ 10;
    return '${minutes.toString().padLeft(2, '0')}:${seconds.toString().padLeft(2, '0')}.${hundredths.toString().padLeft(2, '0')}';
  }

  @override
  Widget build(BuildContext context) {
    final isDark = Theme.of(context).brightness == Brightness.dark;
    final timeStr = _formatTime(_elapsedMilliseconds);

    return Scaffold(
      appBar: AppBar(
        backgroundColor: isDark ? Colors.black : Colors.white,
        elevation: 0,
        title: const Text('秒表', style: TextStyle(fontWeight: FontWeight.bold)),
        actions: [
          IconButton(
            icon: const Icon(Icons.settings),
            onPressed: () {
              Navigator.push(
                context,
                MaterialPageRoute(builder: (ctx) => const SettingsPage()),
              );
            },
          ),
        ],
      ),
      body: Column(
        children: [
          // 表盘区域
          Expanded(
            child: Stack(
              alignment: Alignment.center,
              children: [
                // 主表盘背景
                Container(
                  width: 320,
                  height: 320,
                  decoration: BoxDecoration(
                    color: isDark ? Colors.grey[900]! : Colors.white,
                    shape: BoxShape.circle,
                    border: Border.all(color: isDark ? Colors.grey[700]! : Colors.grey[300]!, width: 2),
                    boxShadow: [
                      BoxShadow(
                        color: isDark ? Colors.black.withOpacity(0.5) : Colors.grey.withOpacity(0.3),
                        blurRadius: 8,
                        offset: const Offset(0, 4),
                      ),
                    ],
                  ),
                ),
                // 刻度与数字
                CustomPaint(
                  painter: StopwatchMainPainter(_elapsedMilliseconds, isDark),
                  size: const Size(320, 320),
                ),
                // 时间文本:缩小 + 上移
                Positioned(
                  top: 100, // 上移
                  left: 0,
                  right: 0,
                  child: Center(
                    child: Text(
                      timeStr,
                      style: TextStyle(
                        fontSize: 40, // 从 48 减小
                        fontWeight: FontWeight.bold,
                        color: isDark ? Colors.white : Colors.black,
                        fontFamily: 'Courier New, monospace',
                      ),
                    ),
                  ),
                ),
                // 小副盘(百分之一秒)------放在主表盘内下方空白处
                Positioned(
                  top: 190, // 在主表盘内部,时间下方
                  left: 130,
                  child: Container(
                    width: 60,
                    height: 60,
                    decoration: BoxDecoration(
                      color: isDark ? Colors.grey[800]! : Colors.grey[100]!,
                      shape: BoxShape.circle,
                      border: Border.all(color: isDark ? Colors.grey[600]! : Colors.grey[300]!, width: 1),
                      boxShadow: [
                        BoxShadow(
                          color: isDark ? Colors.black.withOpacity(0.3) : Colors.grey.withOpacity(0.2),
                          blurRadius: 4,
                          offset: const Offset(0, 2),
                        ),
                      ],
                    ),
                    child: CustomPaint(
                      painter: SubSecondPainter(_elapsedMilliseconds % 1000, isDark),
                      size: const Size(60, 60),
                    ),
                  ),
                ),
              ],
            ),
          ),

          // 控制按钮(圈、开始、重置)------使用柔和配色
          Padding(
            padding: const EdgeInsets.symmetric(vertical: 16, horizontal: 24),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.spaceEvenly,
              children: [
                FloatingActionButton.extended(
                  onPressed: _lap,
                  backgroundColor: isDark ? Colors.blueGrey[700]! : Colors.blueGrey[300]!,
                  icon: const Icon(Icons.flag, color: Colors.white),
                  label: const Text('圈', style: TextStyle(color: Colors.white)),
                ),
                FloatingActionButton.extended(
                  onPressed: _isRunning ? _pause : _start,
                  backgroundColor: _isRunning
                      ? (isDark ? Colors.orange[800]! : Colors.orange[400]!)
                      : (isDark ? Colors.green[700]! : Colors.green[400]!),
                  icon: Icon(_isRunning ? Icons.pause : Icons.play_arrow, color: Colors.white),
                  label: Text(_isRunning ? '暂停' : '开始', style: const TextStyle(color: Colors.white)),
                ),
                FloatingActionButton.extended(
                  onPressed: _reset,
                  backgroundColor: isDark ? Colors.grey[700]! : Colors.grey[400]!,
                  icon: const Icon(Icons.restart_alt, color: Colors.white),
                  label: const Text('重置', style: TextStyle(color: Colors.white)),
                ),
              ],
            ),
          ),

          // 计次列表
          Expanded(
            child: _laps.isEmpty
                ? const Center(child: Text('暂无计次记录', style: TextStyle(color: Colors.grey)))
                : ListView.builder(
                    itemCount: _laps.length,
                    itemBuilder: (context, index) {
                      final lapTime = _formatTime(_laps[index]);
                      final diffFromPrev = index == 0
                          ? _formatTime(_laps[0])
                          : _formatTime(_laps[index] - _laps[index - 1]);
                      return ListTile(
                        leading: Container(
                          width: 24,
                          height: 24,
                          decoration: BoxDecoration(
                            color: Colors.purple.withOpacity(0.2),
                            borderRadius: BorderRadius.circular(12),
                            border: Border.all(color: Colors.purple.withOpacity(0.4), width: 1),
                          ),
                          child: Center(
                            child: Text(
                              '${index + 1}',
                              style: const TextStyle(color: Colors.purple, fontSize: 12),
                            ),
                          ),
                        ),
                        title: Text(lapTime, style: const TextStyle(fontSize: 16)),
                        subtitle: Text('+${diffFromPrev}', style: const TextStyle(fontSize: 12, color: Colors.grey)),
                        trailing: IconButton(
                          icon: const Icon(Icons.delete, size: 18, color: Colors.grey),
                          onPressed: () {
                            setState(() {
                              _laps.removeAt(index);
                            });
                          },
                        ),
                      );
                    },
                  ),
          ),
        ],
      ),
    );
  }
}

// ===========================
// 主表盘绘制
// ===========================
class StopwatchMainPainter extends CustomPainter {
  final int elapsedMilliseconds;
  final bool isDark;

  StopwatchMainPainter(this.elapsedMilliseconds, this.isDark);

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = size.width / 2 - 20;
    final textColor = isDark ? Colors.white : Colors.black;

    // 刻度线
    for (int i = 0; i < 60; i++) {
      final angle = i * 6.0;
      final start = center + Offset(cos(angle * pi / 180) * (radius - 15), sin(angle * pi / 180) * (radius - 15));
      final end = center + Offset(cos(angle * pi / 180) * radius, sin(angle * pi / 180) * radius);
      final paint = Paint()
        ..color = i % 5 == 0 ? textColor : textColor.withOpacity(0.4)
        ..strokeWidth = i % 5 == 0 ? 3 : 1;
      canvas.drawLine(start, end, paint);
    }

    // 数字(5, 10, ..., 55)
    for (int i = 5; i <= 55; i += 5) {
      final angle = (i - 15) * 6.0;
      final x = center.dx + cos(angle * pi / 180) * (radius - 35);
      final y = center.dy - sin(angle * pi / 180) * (radius - 35);
      final text = TextSpan(
        text: i.toString(),
        style: TextStyle(
          fontSize: 14,
          color: textColor,
          fontWeight: FontWeight.bold,
        ),
      );
      final metrics = TextPainter(
        text: text,
        textAlign: TextAlign.center,
        textDirection: TextDirection.ltr,
      )..layout(minWidth: 0, maxWidth: 20);
      metrics.paint(canvas, Offset(x - 10, y - 10));
    }

    // 秒针(蓝色)
    final totalSeconds = elapsedMilliseconds ~/ 1000;
    final secondAngle = (totalSeconds % 60) * 6.0;
    final secX = center.dx + cos((secondAngle - 90) * pi / 180) * radius * 0.85;
    final secY = center.dy + sin((secondAngle - 90) * pi / 180) * radius * 0.85;
    final secPaint = Paint()..color = Colors.blue..strokeWidth = 2.5;
    canvas.drawLine(center, Offset(secX, secY), secPaint);
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) => true;
}

// ===========================
// 小副盘(0.01秒)
// ===========================
class SubSecondPainter extends CustomPainter {
  final int subMilliseconds;
  final bool isDark;

  SubSecondPainter(this.subMilliseconds, this.isDark);

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = size.width / 2 - 8;
    final textColor = isDark ? Colors.white : Colors.black;

    for (int i = 0; i < 100; i++) {
      final angle = i * 3.6;
      final start = center + Offset(cos(angle * pi / 180) * (radius - 8), sin(angle * pi / 180) * (radius - 8));
      final end = center + Offset(cos(angle * pi / 180) * radius, sin(angle * pi / 180) * radius);
      final paint = Paint()
        ..color = i % 10 == 0 ? textColor : textColor.withOpacity(0.3)
        ..strokeWidth = i % 10 == 0 ? 1.5 : 0.8;
      canvas.drawLine(start, end, paint);
    }

    final angle = (subMilliseconds ~/ 10) * 3.6;
    final x = center.dx + cos((angle - 90) * pi / 180) * radius * 0.8;
    final y = center.dy + sin((angle - 90) * pi / 180) * radius * 0.8;
    final paint = Paint()..color = Colors.black..strokeWidth = 1.5;
    canvas.drawLine(center, Offset(x, y), paint);
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) => true;
}

// ===========================
// 设置页面(保持不变)
// ===========================
class SettingsPage extends StatefulWidget {
  const SettingsPage({super.key});

  @override
  State<SettingsPage> createState() => _SettingsPageState();
}

class _SettingsPageState extends State<SettingsPage> {
  String _ringDuration = '5分钟';
  String _closeMethod = '按钮关闭';
  bool _enablePreAlarm = true;
  bool _fadeRingtone = true;
  bool _morningBriefing = false;

  @override
  Widget build(BuildContext context) {
    final isDark = Theme.of(context).brightness == Brightness.dark;

    return Scaffold(
      appBar: AppBar(
        title: const Text('设置'),
      ),
      body: SingleChildScrollView(
        padding: const EdgeInsets.all(16),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            const SizedBox(height: 16),
            const Text('闹钟', style: TextStyle(fontSize: 14, color: Colors.grey)),
            const SizedBox(height: 12),

            SettingItem(
              title: '响铃时长',
              value: _ringDuration,
              onTap: () async {
                final result = await showDialog<String>(
                  context: context,
                  builder: (ctx) => SimpleDialog(
                    title: const Text('响铃时长'),
                    children: ['5分钟', '10分钟', '15分钟', '20分钟', '30分钟'].map((item) {
                      return SimpleDialogOption(
                        onPressed: () {
                          Navigator.pop(ctx, item);
                        },
                        child: Text(item),
                      );
                    }).toList(),
                  ),
                );
                if (result != null) {
                  setState(() {
                    _ringDuration = result;
                  });
                }
              },
            ),

            SettingItem(
              title: '响铃关闭方式',
              value: _closeMethod,
              onTap: () async {
                final result = await showDialog<String>(
                  context: context,
                  builder: (ctx) => SimpleDialog(
                    title: const Text('关闭方式'),
                    children: ['按钮关闭', '上滑关闭'].map((item) {
                      return SimpleDialogOption(
                        onPressed: () {
                          Navigator.pop(ctx, item);
                        },
                        child: Text(item),
                      );
                    }).toList(),
                  ),
                );
                if (result != null) {
                  setState(() {
                    _closeMethod = result;
                  });
                }
              },
            ),

            SettingItem(title: '默认铃声', value: '放假', onTap: () {}),

            SwitchSettingItem(
              title: '即将响铃通知',
              subtitle: '响铃前15分钟在通知栏提醒,可提前关闭闹钟',
              value: _enablePreAlarm,
              onChanged: (v) => setState(() => _enablePreAlarm = v),
            ),

            SwitchSettingItem(
              title: '铃声渐响',
              subtitle: '闹钟响铃时逐渐增大至设定音量',
              value: _fadeRingtone,
              onChanged: (v) => setState(() => _fadeRingtone = v),
            ),

            SwitchSettingItem(
              title: '晨间播报',
              subtitle: '在关闭04:00-10:00之间的首个闹钟后,播放天气与新闻。此功能需开启"小布助手"的通知权限。',
              value: _morningBriefing,
              onChanged: (v) => setState(() => _morningBriefing = v),
            ),

            const SizedBox(height: 24),
            const Text('其他', style: TextStyle(fontSize: 14, color: Colors.grey)),
            const SizedBox(height: 12),
            SettingItem(title: '日期和时间', subtitle: '系统时间、双时钟', onTap: () {}),
            SettingItem(title: '版本号', value: '15.10.8_5525868_250807', onTap: null),
            SettingItem(title: '关于时钟', onTap: () {}),
          ],
        ),
      ),
    );
  }
}

// ===========================
// 设置项组件(保持不变)
// ===========================
class SettingItem extends StatelessWidget {
  final String title;
  final String? value;
  final String? subtitle;
  final VoidCallback? onTap;

  const SettingItem({
    super.key,
    required this.title,
    this.value,
    this.subtitle,
    this.onTap,
  });

  @override
  Widget build(BuildContext context) {
    final canTap = onTap != null;
    return Card(
      margin: const EdgeInsets.symmetric(vertical: 4, horizontal: 0),
      child: ListTile(
        title: Text(title, style: const TextStyle(fontSize: 16)),
        subtitle: subtitle != null ? Text(subtitle!, style: const TextStyle(fontSize: 14, color: Colors.grey)) : null,
        trailing: Row(
          mainAxisSize: MainAxisSize.min,
          children: [
            if (value != null) Text(value!, style: const TextStyle(color: Colors.grey)),
            if (canTap) const Icon(Icons.arrow_forward, size: 18, color: Colors.grey),
          ],
        ),
        onTap: canTap ? onTap : null,
        contentPadding: const EdgeInsets.symmetric(horizontal: 16, vertical: 12),
      ),
    );
  }
}

class SwitchSettingItem extends StatelessWidget {
  final String title;
  final String? subtitle;
  final bool value;
  final ValueChanged<bool> onChanged;

  const SwitchSettingItem({
    super.key,
    required this.title,
    this.subtitle,
    required this.value,
    required this.onChanged,
  });

  @override
  Widget build(BuildContext context) {
    return Card(
      margin: const EdgeInsets.symmetric(vertical: 4, horizontal: 0),
      child: ListTile(
        title: Text(title, style: const TextStyle(fontSize: 16)),
        subtitle: subtitle != null ? Text(subtitle!, style: const TextStyle(fontSize: 14, color: Colors.grey)) : null,
        trailing: Switch(value: value, onChanged: onChanged),
        contentPadding: const EdgeInsets.symmetric(horizontal: 16, vertical: 12),
      ),
    );
  }
}

运行界面

开始计时并计次

设置界面

八、优化亮点总结

功能 优化点
时间精度 10ms 定时器 + 毫秒存储,支持百分之一秒显示
视觉设计 主副表盘联动、刻度分级、动态配色
交互体验 语义化按钮、计次删除、圈数标识
性能安全 条件更新、定时器释放、mounted 检查(隐含)
可维护性 CustomPainter 拆分、组件封装(SettingItem)

结语

通过本文,我们不仅实现了一个功能完整的秒表界面,更展示了 Flutter 和OpenHarmony在自定义绘制、状态管理、主题适配、用户体验设计等方面的强大能力。该模块代码结构清晰、扩展性强,可轻松集成到您的时钟应用中。

未来,您可以在此基础上进一步扩展:

  • 添加振动反馈(计次时短震);
  • 支持后台运行(需平台通道);
  • 实现历史记录持久化 (使用 shared_preferences);
  • 增加圈速图表可视化。

欢迎加入开源鸿蒙跨平台社区: https://openharmonycrossplatform.csdn.net

相关推荐
好的佩奇41 分钟前
蓝牙之设备角色与连接
android·flutter·蓝牙
SoaringHeart1 天前
Flutter最佳实践:用 flutter_html 渲染富文本
前端·flutter
恋猫de小郭2 天前
Flutter 3.50.0 Release 的第一个崩溃,修好了,还没 hotfix
android·前端·flutter
程序员老刘2 天前
跨平台开发地图 | 2026年11月
flutter·ai编程·客户端
传奇开心果编程2 天前
【Flutter踩坑排雷】第30课:异常未捕获坑|未捕获异常直接闪退,全局兜底故障处理
android·flutter·ios·移动开发·dart·ui框架·声明式ui
恋猫de小郭3 天前
Flutter Native Interop 稳定了,Platform Channel 要退场了
android·前端·flutter
好的佩奇3 天前
Dart 之可迭代对象与生成器
android·flutter·dart
恋猫de小郭4 天前
Flutter Analyzer 系列坑推进,必看,AI 时代这玩意最吃你内存
android·前端·flutter
LinXunFeng4 天前
拿竞品 App 一扫,技术栈全暴露了
android·flutter·开源
传奇开心果编程5 天前
【Flutter踩坑排雷】第28课:平台目录缺失与修复坑|`flutter create` 的“重建”与“覆盖”边界
android·flutter·ios·移动开发·跨平台·dart·声明式ui
