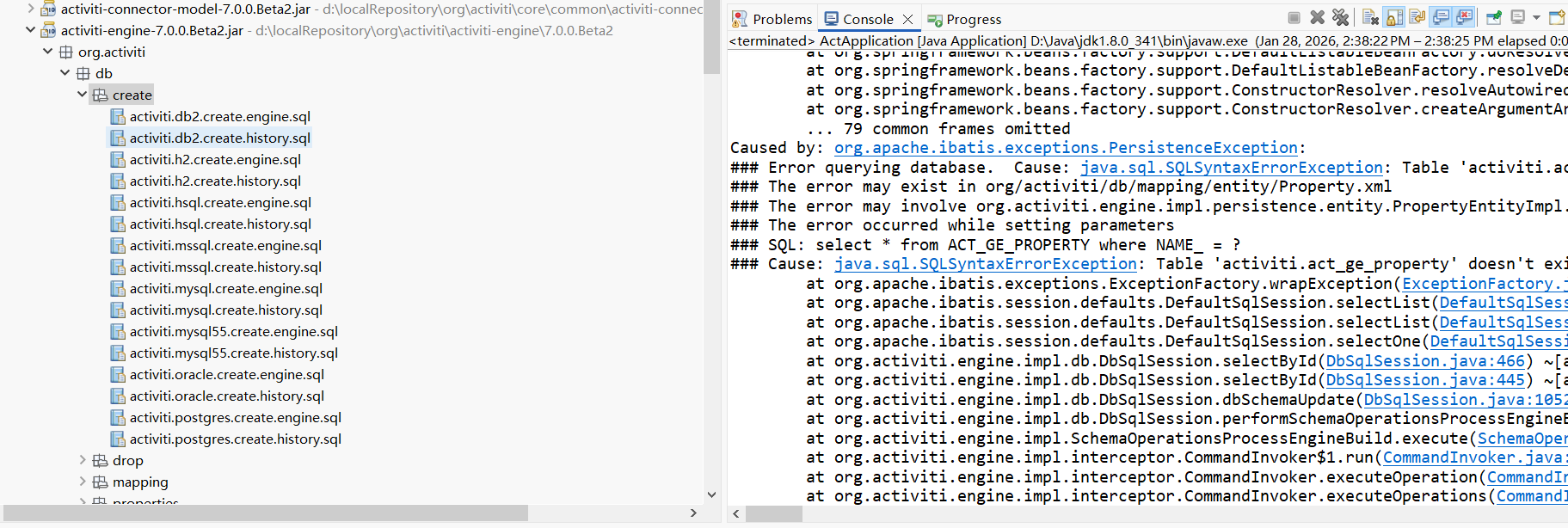

activiti-engine-7.0.0.Beta2.jar org/activiti/db/create/*.sql

spencer_tseng2026-01-31 16:05

activiti-engine-7.0.0.Beta2.jar org/activiti/db/create/*.sql 工作流表

一般会看到类似（不同版本文件名略有差异）：

  • org/activiti/db/create/activiti.mysql.create.engine.sql
  • org/activiti/db/create/activiti.mysql.create.history.sql
  • org/activiti/db/create/activiti.mysql.create.identity.sql

activiti.mysql.drop.sql

复制代码
drop index ACT_IDX_EXEC_BUSKEY on ACT_RU_EXECUTION;
drop index ACT_IDX_TASK_CREATE on ACT_RU_TASK;
drop index ACT_IDX_IDENT_LNK_USER on ACT_RU_IDENTITYLINK;
drop index ACT_IDX_IDENT_LNK_GROUP on ACT_RU_IDENTITYLINK;
drop index ACT_IDX_VARIABLE_TASK_ID on ACT_RU_VARIABLE;
drop index ACT_IDX_INFO_PROCDEF on ACT_PROCDEF_INFO;

alter table ACT_GE_BYTEARRAY
    drop FOREIGN KEY ACT_FK_BYTEARR_DEPL;

alter table ACT_RU_EXECUTION
    drop FOREIGN KEY ACT_FK_EXE_PROCINST;

alter table ACT_RU_EXECUTION
    drop FOREIGN KEY ACT_FK_EXE_PARENT;

alter table ACT_RU_EXECUTION
    drop FOREIGN KEY ACT_FK_EXE_SUPER;

alter table ACT_RU_EXECUTION
    drop FOREIGN KEY ACT_FK_EXE_PROCDEF;

alter table ACT_RU_IDENTITYLINK
    drop FOREIGN KEY ACT_FK_TSKASS_TASK;

alter table ACT_RU_IDENTITYLINK
    drop FOREIGN KEY ACT_FK_ATHRZ_PROCEDEF;

alter table ACT_RU_TASK
	drop FOREIGN KEY ACT_FK_TASK_EXE;

alter table ACT_RU_TASK
	drop FOREIGN KEY ACT_FK_TASK_PROCINST;

alter table ACT_RU_TASK
	drop FOREIGN KEY ACT_FK_TASK_PROCDEF;

alter table ACT_RU_VARIABLE
    drop FOREIGN KEY ACT_FK_VAR_EXE;

alter table ACT_RU_VARIABLE
	drop FOREIGN KEY ACT_FK_VAR_PROCINST;

alter table ACT_RU_VARIABLE
    drop FOREIGN KEY ACT_FK_VAR_BYTEARRAY;

alter table ACT_RU_JOB
    drop FOREIGN KEY ACT_FK_JOB_EXECUTION;

alter table ACT_RU_JOB
    drop foreign key ACT_FK_JOB_PROCESS_INSTANCE;

alter table ACT_RU_JOB
    drop foreign key ACT_FK_JOB_PROC_DEF;

alter table ACT_RU_JOB
    drop foreign key ACT_FK_JOB_EXCEPTION;

alter table ACT_RU_TIMER_JOB
    drop foreign key ACT_FK_TIMER_JOB_EXECUTION;

alter table ACT_RU_TIMER_JOB
    drop foreign key ACT_FK_TIMER_JOB_PROCESS_INSTANCE;

alter table ACT_RU_TIMER_JOB
    drop foreign key ACT_FK_TIMER_JOB_PROC_DEF;

alter table ACT_RU_TIMER_JOB
    drop foreign key ACT_FK_TIMER_JOB_EXCEPTION;

alter table ACT_RU_SUSPENDED_JOB
    drop foreign key ACT_FK_SUSPENDED_JOB_EXECUTION;

alter table ACT_RU_SUSPENDED_JOB
    drop foreign key ACT_FK_SUSPENDED_JOB_PROCESS_INSTANCE;

alter table ACT_RU_SUSPENDED_JOB
    drop foreign key ACT_FK_SUSPENDED_JOB_PROC_DEF;

alter table ACT_RU_SUSPENDED_JOB
    drop foreign key ACT_FK_SUSPENDED_JOB_EXCEPTION;

alter table ACT_RU_DEADLETTER_JOB
    drop foreign key ACT_FK_DEADLETTER_JOB_EXECUTION;

alter table ACT_RU_DEADLETTER_JOB
    drop foreign key ACT_FK_DEADLETTER_JOB_PROCESS_INSTANCE;

alter table ACT_RU_DEADLETTER_JOB
    drop foreign key ACT_FK_DEADLETTER_JOB_PROC_DEF;

alter table ACT_RU_DEADLETTER_JOB
    drop foreign key ACT_FK_DEADLETTER_JOB_EXCEPTION;

alter table ACT_RU_EVENT_SUBSCR
    drop FOREIGN KEY ACT_FK_EVENT_EXEC;

alter table ACT_RE_MODEL
    drop FOREIGN KEY ACT_FK_MODEL_SOURCE;

alter table ACT_RE_MODEL
    drop FOREIGN KEY ACT_FK_MODEL_SOURCE_EXTRA;

alter table ACT_RE_MODEL
    drop FOREIGN KEY ACT_FK_MODEL_DEPLOYMENT;

alter table ACT_PROCDEF_INFO
    drop FOREIGN KEY ACT_FK_INFO_JSON_BA;

alter table ACT_PROCDEF_INFO
    drop FOREIGN KEY ACT_FK_INFO_PROCDEF;

alter table ACT_RU_INTEGRATION
    drop foreign key ACT_FK_INT_EXECUTION;

alter table ACT_RU_INTEGRATION
    drop foreign key ACT_FK_INT_PROC_INST;

alter table ACT_RU_INTEGRATION
    drop foreign key ACT_FK_INT_PROC_DEF;

drop index ACT_IDX_ATHRZ_PROCEDEF on ACT_RU_IDENTITYLINK;
drop index ACT_IDX_EVENT_SUBSCR_CONFIG_ on ACT_RU_EVENT_SUBSCR;

drop table if exists ACT_GE_PROPERTY;
drop table if exists ACT_RU_VARIABLE;
drop table if exists ACT_GE_BYTEARRAY;
drop table if exists ACT_RE_DEPLOYMENT;
drop table if exists ACT_RE_MODEL;
drop table if exists ACT_RU_IDENTITYLINK;
drop table if exists ACT_RU_TASK;
drop table if exists ACT_RE_PROCDEF;
drop table if exists ACT_RU_EXECUTION;
drop table if exists ACT_RU_JOB;
drop table if exists ACT_RU_TIMER_JOB;
drop table if exists ACT_RU_SUSPENDED_JOB;
drop table if exists ACT_RU_DEADLETTER_JOB;
drop table if exists ACT_RU_EVENT_SUBSCR;
drop table if exists ACT_EVT_LOG;
drop table if exists ACT_PROCDEF_INFO;
drop table if exists ACT_RU_INTEGRATION;



drop index ACT_IDX_HI_PRO_INST_END on ACT_HI_PROCINST;
drop index ACT_IDX_HI_PRO_I_BUSKEY on ACT_HI_PROCINST;
drop index ACT_IDX_HI_ACT_INST_START on ACT_HI_ACTINST;
drop index ACT_IDX_HI_ACT_INST_END on ACT_HI_ACTINST;
drop index ACT_IDX_HI_DETAIL_PROC_INST on ACT_HI_DETAIL;
drop index ACT_IDX_HI_DETAIL_ACT_INST on ACT_HI_DETAIL;
drop index ACT_IDX_HI_DETAIL_TIME on ACT_HI_DETAIL;
drop index ACT_IDX_HI_DETAIL_NAME on ACT_HI_DETAIL;
drop index ACT_IDX_HI_DETAIL_TASK_ID on ACT_HI_DETAIL;
drop index ACT_IDX_HI_PROCVAR_PROC_INST on ACT_HI_VARINST;
drop index ACT_IDX_HI_PROCVAR_NAME_TYPE on ACT_HI_VARINST;
drop index ACT_IDX_HI_ACT_INST_PROCINST on ACT_HI_ACTINST;
drop index ACT_IDX_HI_IDENT_LNK_USER on ACT_HI_IDENTITYLINK;
drop index ACT_IDX_HI_IDENT_LNK_TASK on ACT_HI_IDENTITYLINK;
drop index ACT_IDX_HI_IDENT_LNK_PROCINST on ACT_HI_IDENTITYLINK;
drop index ACT_IDX_HI_TASK_INST_PROCINST on ACT_HI_TASKINST;

drop table if exists ACT_HI_PROCINST;
drop table if exists ACT_HI_ACTINST;
drop table if exists ACT_HI_VARINST;
drop table if exists ACT_HI_TASKINST;
drop table if exists ACT_HI_DETAIL;
drop table if exists ACT_HI_COMMENT;
drop table if exists ACT_HI_ATTACHMENT;
drop table if exists ACT_HI_IDENTITYLINK;

activiti.mysql.create.sql

复制代码
create table ACT_GE_PROPERTY (
    NAME_ varchar(64),
    VALUE_ varchar(300),
    REV_ integer,
    primary key (NAME_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

insert into ACT_GE_PROPERTY
values ('schema.version', '7.0.0.0', 1);

insert into ACT_GE_PROPERTY
values ('schema.history', 'create(7.0.0.0)', 1);

insert into ACT_GE_PROPERTY
values ('next.dbid', '1', 1);

create table ACT_GE_BYTEARRAY (
    ID_ varchar(64),
    REV_ integer,
    NAME_ varchar(255),
    DEPLOYMENT_ID_ varchar(64),
    BYTES_ LONGBLOB,
    GENERATED_ TINYINT,
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RE_DEPLOYMENT (
    ID_ varchar(64),
    NAME_ varchar(255),
    CATEGORY_ varchar(255),
    KEY_ varchar(255),
    TENANT_ID_ varchar(255) default '',
    DEPLOY_TIME_ timestamp(3) NULL,
    ENGINE_VERSION_ varchar(255),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RE_MODEL (
    ID_ varchar(64) not null,
    REV_ integer,
    NAME_ varchar(255),
    KEY_ varchar(255),
    CATEGORY_ varchar(255),
    CREATE_TIME_ timestamp(3) null,
    LAST_UPDATE_TIME_ timestamp(3) null,
    VERSION_ integer,
    META_INFO_ varchar(4000),
    DEPLOYMENT_ID_ varchar(64),
    EDITOR_SOURCE_VALUE_ID_ varchar(64),
    EDITOR_SOURCE_EXTRA_VALUE_ID_ varchar(64),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_EXECUTION (
    ID_ varchar(64),
    REV_ integer,
    PROC_INST_ID_ varchar(64),
    BUSINESS_KEY_ varchar(255),
    PARENT_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    SUPER_EXEC_ varchar(64),
    ROOT_PROC_INST_ID_ varchar(64),
    ACT_ID_ varchar(255),
    IS_ACTIVE_ TINYINT,
    IS_CONCURRENT_ TINYINT,
    IS_SCOPE_ TINYINT,
    IS_EVENT_SCOPE_ TINYINT,
    IS_MI_ROOT_ TINYINT,
    SUSPENSION_STATE_ integer,
    CACHED_ENT_STATE_ integer,
    TENANT_ID_ varchar(255) default '',
    NAME_ varchar(255),
    START_TIME_ datetime(3),
    START_USER_ID_ varchar(255),
    LOCK_TIME_ timestamp(3) NULL,
    IS_COUNT_ENABLED_ TINYINT,
    EVT_SUBSCR_COUNT_ integer,
    TASK_COUNT_ integer,
    JOB_COUNT_ integer,
    TIMER_JOB_COUNT_ integer,
    SUSP_JOB_COUNT_ integer,
    DEADLETTER_JOB_COUNT_ integer,
    VAR_COUNT_ integer,
    ID_LINK_COUNT_ integer,
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_JOB (
    ID_ varchar(64) NOT NULL,
    REV_ integer,
    TYPE_ varchar(255) NOT NULL,
    LOCK_EXP_TIME_ timestamp(3) NULL,
    LOCK_OWNER_ varchar(255),
    EXCLUSIVE_ boolean,
    EXECUTION_ID_ varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    RETRIES_ integer,
    EXCEPTION_STACK_ID_ varchar(64),
    EXCEPTION_MSG_ varchar(4000),
    DUEDATE_ timestamp(3) NULL,
    REPEAT_ varchar(255),
    HANDLER_TYPE_ varchar(255),
    HANDLER_CFG_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_TIMER_JOB (
    ID_ varchar(64) NOT NULL,
    REV_ integer,
    TYPE_ varchar(255) NOT NULL,
    LOCK_EXP_TIME_ timestamp(3) NULL,
    LOCK_OWNER_ varchar(255),
    EXCLUSIVE_ boolean,
    EXECUTION_ID_ varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    RETRIES_ integer,
    EXCEPTION_STACK_ID_ varchar(64),
    EXCEPTION_MSG_ varchar(4000),
    DUEDATE_ timestamp(3) NULL,
    REPEAT_ varchar(255),
    HANDLER_TYPE_ varchar(255),
    HANDLER_CFG_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_SUSPENDED_JOB (
    ID_ varchar(64) NOT NULL,
    REV_ integer,
    TYPE_ varchar(255) NOT NULL,
    EXCLUSIVE_ boolean,
    EXECUTION_ID_ varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    RETRIES_ integer,
    EXCEPTION_STACK_ID_ varchar(64),
    EXCEPTION_MSG_ varchar(4000),
    DUEDATE_ timestamp(3) NULL,
    REPEAT_ varchar(255),
    HANDLER_TYPE_ varchar(255),
    HANDLER_CFG_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_DEADLETTER_JOB (
    ID_ varchar(64) NOT NULL,
    REV_ integer,
    TYPE_ varchar(255) NOT NULL,
    EXCLUSIVE_ boolean,
    EXECUTION_ID_ varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    EXCEPTION_STACK_ID_ varchar(64),
    EXCEPTION_MSG_ varchar(4000),
    DUEDATE_ timestamp(3) NULL,
    REPEAT_ varchar(255),
    HANDLER_TYPE_ varchar(255),
    HANDLER_CFG_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RE_PROCDEF (
    ID_ varchar(64) not null,
    REV_ integer,
    CATEGORY_ varchar(255),
    NAME_ varchar(255),
    KEY_ varchar(255) not null,
    VERSION_ integer not null,
    DEPLOYMENT_ID_ varchar(64),
    RESOURCE_NAME_ varchar(4000),
    DGRM_RESOURCE_NAME_ varchar(4000),
    DESCRIPTION_ varchar(4000),
    HAS_START_FORM_KEY_ TINYINT,
    HAS_GRAPHICAL_NOTATION_ TINYINT,
    SUSPENSION_STATE_ integer,
    TENANT_ID_ varchar(255) default '',
    ENGINE_VERSION_ varchar(255),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_TASK (
    ID_ varchar(64),
    REV_ integer,
    EXECUTION_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    NAME_ varchar(255),
    PARENT_TASK_ID_ varchar(64),
    DESCRIPTION_ varchar(4000),
    TASK_DEF_KEY_ varchar(255),
    OWNER_ varchar(255),
    ASSIGNEE_ varchar(255),
    DELEGATION_ varchar(64),
    PRIORITY_ integer,
    CREATE_TIME_ timestamp(3) NULL,
    DUE_DATE_ datetime(3),
    CATEGORY_ varchar(255),
    SUSPENSION_STATE_ integer,
    TENANT_ID_ varchar(255) default '',
    FORM_KEY_ varchar(255),
    CLAIM_TIME_ datetime(3),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_IDENTITYLINK (
    ID_ varchar(64),
    REV_ integer,
    GROUP_ID_ varchar(255),
    TYPE_ varchar(255),
    USER_ID_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_VARIABLE (
    ID_ varchar(64) not null,
    REV_ integer,
    TYPE_ varchar(255) not null,
    NAME_ varchar(255) not null,
    EXECUTION_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    TASK_ID_ varchar(64),
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_ double,
    LONG_ bigint,
    TEXT_ varchar(4000),
    TEXT2_ varchar(4000),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_EVENT_SUBSCR (
    ID_ varchar(64) not null,
    REV_ integer,
    EVENT_TYPE_ varchar(255) not null,
    EVENT_NAME_ varchar(255),
    EXECUTION_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    ACTIVITY_ID_ varchar(64),
    CONFIGURATION_ varchar(255),
    CREATED_ timestamp(3) not null DEFAULT CURRENT_TIMESTAMP(3),
    PROC_DEF_ID_ varchar(64),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_EVT_LOG (
    LOG_NR_ bigint auto_increment,
    TYPE_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_ varchar(64),
    TIME_STAMP_ timestamp(3) not null,
    USER_ID_ varchar(255),
    DATA_ LONGBLOB,
    LOCK_OWNER_ varchar(255),
    LOCK_TIME_ timestamp(3) null,
    IS_PROCESSED_ tinyint default 0,
    primary key (LOG_NR_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_PROCDEF_INFO (
	ID_ varchar(64) not null,
    PROC_DEF_ID_ varchar(64) not null,
    REV_ integer,
    INFO_JSON_ID_ varchar(64),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_RU_INTEGRATION (
    ID_ varchar(64) not null,
    EXECUTION_ID_ varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_ varchar(64),
    FLOW_NODE_ID_ varchar(64),
    CREATED_DATE_ timestamp(3),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create index ACT_IDX_EXEC_BUSKEY on ACT_RU_EXECUTION(BUSINESS_KEY_);
create index ACT_IDC_EXEC_ROOT on ACT_RU_EXECUTION(ROOT_PROC_INST_ID_);
create index ACT_IDX_TASK_CREATE on ACT_RU_TASK(CREATE_TIME_);
create index ACT_IDX_IDENT_LNK_USER on ACT_RU_IDENTITYLINK(USER_ID_);
create index ACT_IDX_IDENT_LNK_GROUP on ACT_RU_IDENTITYLINK(GROUP_ID_);
create index ACT_IDX_EVENT_SUBSCR_CONFIG_ on ACT_RU_EVENT_SUBSCR(CONFIGURATION_);
create index ACT_IDX_VARIABLE_TASK_ID on ACT_RU_VARIABLE(TASK_ID_);
create index ACT_IDX_ATHRZ_PROCEDEF on ACT_RU_IDENTITYLINK(PROC_DEF_ID_);
create index ACT_IDX_INFO_PROCDEF on ACT_PROCDEF_INFO(PROC_DEF_ID_);

alter table ACT_GE_BYTEARRAY
    add constraint ACT_FK_BYTEARR_DEPL
    foreign key (DEPLOYMENT_ID_)
    references ACT_RE_DEPLOYMENT (ID_);

alter table ACT_RE_PROCDEF
    add constraint ACT_UNIQ_PROCDEF
    unique (KEY_,VERSION_, TENANT_ID_);

alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_) on delete cascade on update cascade;

alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PARENT
    foreign key (PARENT_ID_)
    references ACT_RU_EXECUTION (ID_) on delete cascade;

alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_SUPER
    foreign key (SUPER_EXEC_)
    references ACT_RU_EXECUTION (ID_) on delete cascade;

alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_TSKASS_TASK
    foreign key (TASK_ID_)
    references ACT_RU_TASK (ID_);

alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_ATHRZ_PROCEDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF(ID_);

alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_IDL_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_EXE
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_TASK
  	add constraint ACT_FK_TASK_PROCDEF
  	foreign key (PROC_DEF_ID_)
  	references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_EXE
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_PROCINST
    foreign key (PROC_INST_ID_)
    references ACT_RU_EXECUTION(ID_);

alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_BYTEARRAY
    foreign key (BYTEARRAY_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_PROCESS_INSTANCE
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_EXCEPTION
    foreign key (EXCEPTION_STACK_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RU_EVENT_SUBSCR
    add constraint ACT_FK_EVENT_EXEC
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION(ID_);

alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE
    foreign key (EDITOR_SOURCE_VALUE_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE_EXTRA
    foreign key (EDITOR_SOURCE_EXTRA_VALUE_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_DEPLOYMENT
    foreign key (DEPLOYMENT_ID_)
    references ACT_RE_DEPLOYMENT (ID_);

alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_JSON_BA
    foreign key (INFO_JSON_ID_)
    references ACT_GE_BYTEARRAY (ID_);

alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_PROCDEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);

alter table ACT_PROCDEF_INFO
    add constraint ACT_UNIQ_INFO_PROCDEF
    unique (PROC_DEF_ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_EXECUTION
    foreign key (EXECUTION_ID_)
    references ACT_RU_EXECUTION (ID_)
    on delete cascade;

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_INST
    foreign key (PROCESS_INSTANCE_ID_)
    references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_DEF
    foreign key (PROC_DEF_ID_)
    references ACT_RE_PROCDEF (ID_);




create table ACT_HI_PROCINST (
    ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64) not null,
    BUSINESS_KEY_ varchar(255),
    PROC_DEF_ID_ varchar(64) not null,
    START_TIME_ datetime(3) not null,
    END_TIME_ datetime(3),
    DURATION_ bigint,
    START_USER_ID_ varchar(255),
    START_ACT_ID_ varchar(255),
    END_ACT_ID_ varchar(255),
    SUPER_PROCESS_INSTANCE_ID_ varchar(64),
    DELETE_REASON_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    NAME_ varchar(255),
    primary key (ID_),
    unique (PROC_INST_ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_ACTINST (
    ID_ varchar(64) not null,
    PROC_DEF_ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64) not null,
    EXECUTION_ID_ varchar(64) not null,
    ACT_ID_ varchar(255) not null,
    TASK_ID_ varchar(64),
    CALL_PROC_INST_ID_ varchar(64),
    ACT_NAME_ varchar(255),
    ACT_TYPE_ varchar(255) not null,
    ASSIGNEE_ varchar(255),
    START_TIME_ datetime(3) not null,
    END_TIME_ datetime(3),
    DURATION_ bigint,
    DELETE_REASON_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_TASKINST (
    ID_ varchar(64) not null,
    PROC_DEF_ID_ varchar(64),
    TASK_DEF_KEY_ varchar(255),
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    NAME_ varchar(255),
    PARENT_TASK_ID_ varchar(64),
    DESCRIPTION_ varchar(4000),
    OWNER_ varchar(255),
    ASSIGNEE_ varchar(255),
    START_TIME_ datetime(3) not null,
    CLAIM_TIME_ datetime(3),
    END_TIME_ datetime(3),
    DURATION_ bigint,
    DELETE_REASON_ varchar(4000),
    PRIORITY_ integer,
    DUE_DATE_ datetime(3),
    FORM_KEY_ varchar(255),
    CATEGORY_ varchar(255),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_VARINST (
    ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_ varchar(64),
    NAME_ varchar(255) not null,
    VAR_TYPE_ varchar(100),
    REV_ integer,
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_ double,
    LONG_ bigint,
    TEXT_ varchar(4000),
    TEXT2_ varchar(4000),
    CREATE_TIME_ datetime(3),
    LAST_UPDATED_TIME_ datetime(3),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_DETAIL (
    ID_ varchar(64) not null,
    TYPE_ varchar(255) not null,
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_ varchar(64),
    ACT_INST_ID_ varchar(64),
    NAME_ varchar(255) not null,
    VAR_TYPE_ varchar(255),
    REV_ integer,
    TIME_ datetime(3) not null,
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_ double,
    LONG_ bigint,
    TEXT_ varchar(4000),
    TEXT2_ varchar(4000),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_COMMENT (
    ID_ varchar(64) not null,
    TYPE_ varchar(255),
    TIME_ datetime(3) not null,
    USER_ID_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    ACTION_ varchar(255),
    MESSAGE_ varchar(4000),
    FULL_MSG_ LONGBLOB,
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_ATTACHMENT (
    ID_ varchar(64) not null,
    REV_ integer,
    USER_ID_ varchar(255),
    NAME_ varchar(255),
    DESCRIPTION_ varchar(4000),
    TYPE_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    URL_ varchar(4000),
    CONTENT_ID_ varchar(64),
    TIME_ datetime(3),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;

create table ACT_HI_IDENTITYLINK (
    ID_ varchar(64),
    GROUP_ID_ varchar(255),
    TYPE_ varchar(255),
    USER_ID_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    primary key (ID_)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE utf8_bin;


create index ACT_IDX_HI_PRO_INST_END on ACT_HI_PROCINST(END_TIME_);
create index ACT_IDX_HI_PRO_I_BUSKEY on ACT_HI_PROCINST(BUSINESS_KEY_);
create index ACT_IDX_HI_ACT_INST_START on ACT_HI_ACTINST(START_TIME_);
create index ACT_IDX_HI_ACT_INST_END on ACT_HI_ACTINST(END_TIME_);
create index ACT_IDX_HI_DETAIL_PROC_INST on ACT_HI_DETAIL(PROC_INST_ID_);
create index ACT_IDX_HI_DETAIL_ACT_INST on ACT_HI_DETAIL(ACT_INST_ID_);
create index ACT_IDX_HI_DETAIL_TIME on ACT_HI_DETAIL(TIME_);
create index ACT_IDX_HI_DETAIL_NAME on ACT_HI_DETAIL(NAME_);
create index ACT_IDX_HI_DETAIL_TASK_ID on ACT_HI_DETAIL(TASK_ID_);
create index ACT_IDX_HI_PROCVAR_PROC_INST on ACT_HI_VARINST(PROC_INST_ID_);
create index ACT_IDX_HI_PROCVAR_NAME_TYPE on ACT_HI_VARINST(NAME_, VAR_TYPE_);
create index ACT_IDX_HI_PROCVAR_TASK_ID on ACT_HI_VARINST(TASK_ID_);
create index ACT_IDX_HI_ACT_INST_PROCINST on ACT_HI_ACTINST(PROC_INST_ID_, ACT_ID_);
create index ACT_IDX_HI_ACT_INST_EXEC on ACT_HI_ACTINST(EXECUTION_ID_, ACT_ID_);
create index ACT_IDX_HI_IDENT_LNK_USER on ACT_HI_IDENTITYLINK(USER_ID_);
create index ACT_IDX_HI_IDENT_LNK_TASK on ACT_HI_IDENTITYLINK(TASK_ID_);
create index ACT_IDX_HI_IDENT_LNK_PROCINST on ACT_HI_IDENTITYLINK(PROC_INST_ID_);
create index ACT_IDX_HI_TASK_INST_PROCINST on ACT_HI_TASKINST(PROC_INST_ID_);
相关推荐
hhzz1 个月前
Activiti7工作流（五）流程操作
java·activiti·工作流引擎·工作流
D_alyoo3 个月前
06 Activiti 与 Spring Boot 整合
java·activiti·activiti7源码
D_alyoo6 个月前
Activiti 中各种 startProcessInstance 接口之间的区别
java·activiti
老马啸西风8 个月前
工作流引擎-18-开源审批流项目之 plumdo-work 工作流，表单，报表结合的多模块系统
vue.js·开源·activiti·workflow·flowable·oa·bpm
老马啸西风8 个月前
工作流引擎-16-开源审批流项目之 整合Flowable官方的Rest包
开源·activiti·workflow·flowable·erp·oa·bpm
老马啸西风8 个月前
工作流引擎-11-开源 BPM 项目 jbpm
开源·activiti·workflow·oa·bpm
老马啸西风8 个月前
工作流引擎-03-聊一聊什么是流程引擎（Process Engine）？
activiti·workflow·erp·oa·bpm
老马啸西风8 个月前
工作流引擎-01-Activiti 是领先的轻量级、以 Java 为中心的开源 BPMN 引擎，支持现实世界的流程自动化需求
java·开源·自动化·activiti·workflow·flowable·bpm
我姓谭却弹不死你9 个月前
9、Activiti-任务（Task）的相关操作
activiti·工作流引擎·任务管理·业务流程管理
热门推荐
01GitHub 镜像站点02Clawdbot 中文汉化版 接入微信、飞书03OpenCode 入门教程：介绍 · 安装 · 配置第三方 API (如 Claude)042026数学建模美赛题目特点与选题建议，常用四大模型汇总05一种新的LCA算法06Claude Code Skills 实用使用手册07零门槛部署本地 AI 助手：Clawdbot/Meltbot 部署深度保姆级教程08在Trae中使用Pencil MCP09UV安装并设置国内源10Linux下V2Ray安装配置指南
