setupldr!BiosConsoleWrite函数中的setupldr!TextCharOut函数分析

VOID

SlWriteStatusText(

IN PTCHAR Text

)

{

ArcWrite(ARC_CONSOLE_OUTPUT,TEXT(" "),2*sizeof(TCHAR),&Count);

kd> kc 6

00 setupldr!AEWrite

01 setupldr!SlWriteStatusText

02 setupldr!BlOutputLoadMessage

03 setupldr!SlInit

04 setupldr!BlStartup

05 setupldr!NtProcessStartup

kd> kv 6

ChildEBP RetAddr Args to Child

00 00060a74 00329ea1 00000001 00329df6 00000002 setupldr!AEWrite (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\lib\i386\arcemul.c @ 1751]

01 00060aa0 00323287 00060aac 75746553 73692070 setupldr!SlWriteStatusText+0xa7 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\arcdisp.c @ 1180]

02 00060bac 00327f75 8021cb28 00348318 003842e4 setupldr!BlOutputLoadMessage+0x41 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\setup.c @ 4598]

03 00060df4 00322a21 01060e2c 0000000b 00000000 setupldr!SlInit+0x1f2f (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\setup.c @ 2858]

04 00060ed0 003015aa 00379400 0038164f 00061d68 setupldr!BlStartup+0x1bd (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\i386\initx86.c @ 208]

05 00061ff0 10101010 00000002 00810081 00810081 setupldr!NtProcessStartup+0x208 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\lib\i386\entry.c @ 348]

kd> dv

FileId = 1

Buffer = 0x00329df6

Length = 2

Count = 0x00060a9c

Status = 0x146

TmpBuffer = unsigned char [64] "???"

BytesWrote = 0x305998

i = 8

NumCharsToWrite = 1

kd> db 329df6

00329df6 20 20

kd> dv

FileId = 1

Buffer = 0x00329df6

Length = 2

Count = 0x00060a9c

Status = 0

TmpBuffer = unsigned char [64] " "

BytesWrote = 0

i = 2

NumCharsToWrite = 1

kd> dx -r1 (*((setupldr!unsigned char (*)[64])0x60a28))

(*((setupldr!unsigned char (*)[64])0x60a28)) [Type: unsigned char [64]]

0\] : 0x20 \[Type: unsigned char

1\] : 0x20 \[Type: unsigned char

2\] : 0x0 \[Type: unsigned char

3\] : 0x0 \[Type: unsigned char

kd> kc 8

00 setupldr!AEWriteEx

01 setupldr!AEWrite

02 setupldr!SlWriteStatusText

03 setupldr!BlOutputLoadMessage

04 setupldr!SlInit

05 setupldr!BlStartup

06 setupldr!NtProcessStartup

WARNING: Frame IP not in any known module. Following frames may be wrong.

07 0x0

kd> kv 7

ChildEBP RetAddr Args to Child

00 00060a04 00305a8b 00000001 00060a28 00000002 setupldr!AEWriteEx (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\lib\i386\arcemul.c @ 1897]

01 00060a74 00329ea1 00000001 00329df6 00000002 setupldr!AEWrite+0xf6 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\lib\i386\arcemul.c @ 1852]

02 00060aa0 00323287 00060aac 75746553 73692070 setupldr!SlWriteStatusText+0xa7 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\arcdisp.c @ 1180]

03 00060bac 00327f75 8021cb28 00348318 003842e4 setupldr!BlOutputLoadMessage+0x41 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\setup.c @ 4598]

04 00060df4 00322a21 01060e2c 0000000b 00000000 setupldr!SlInit+0x1f2f (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\setup.c @ 2858]

05 00060ed0 003015aa 00379400 0038164f 00061d68 setupldr!BlStartup+0x1bd (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\setup\i386\initx86.c @ 208]

06 00061ff0 10101010 00000002 00810081 00810081 setupldr!NtProcessStartup+0x208 (FPO: [Non-Fpo]) (CONV: stdcall) [d:\srv03rtm\base\boot\lib\i386\entry.c @ 348]

kd> dv

FileId = 1

Buffer = 0x00060a28

Length = 2

Count = 0x00060a68

Status = 0x60a68

PartCount = 0

Limit = 0x60a74

kd> db 0x00060a28

00060a28 20 20 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ..............

kd> kc 8

00 setupldr!BiosConsoleWrite

01 setupldr!AEWriteEx

02 setupldr!AEWrite

03 setupldr!SlWriteStatusText

04 setupldr!BlOutputLoadMessage

05 setupldr!SlInit

06 setupldr!BlStartup

07 setupldr!NtProcessStartup

kd> dv

FileId = 1

Buffer = 0x00060a28 " "

Length = 2

Count = 0x00060a68

String = 0x00000001 "--- memory read error at address 0x00000001 ---"

a = 0x28 '('

for ( *Count = 0 ;

*Count < Length ;

(*Count)++, String++ ) {

kd> x setupldr!ControlSequence

00343888 setupldr!ControlSequence = 0x00 ''

kd> x setupldr!EscapeSequence

00343889 setupldr!EscapeSequence = 0x00 ''

// This is not a control or escape sequence, process single character.

} else {

switch (*String) {

// Check for escape sequence.

case ASCI_ESC:

EscapeSequence = TRUE;

break;

default:

p = TextCharOut(String);

// Each pass through the loop increments String by 1.

// If we output a dbcs char we need to increment by

// one more.

(*Count) += (p - String) - 1;

String += (p - String) - 1;

break;

}

PUCHAR

TextCharOut(

IN PUCHAR pc

)

{

if(DbcsLangId) {

return(TextGrCharOut(pc));

} else {

return(TextTmCharOut(pc));

}

kd> kc 9

00 setupldr!TextCharOut

01 setupldr!BiosConsoleWrite

02 setupldr!AEWriteEx

03 setupldr!AEWrite

04 setupldr!SlWriteStatusText

05 setupldr!BlOutputLoadMessage

06 setupldr!SlInit

07 setupldr!BlStartup

08 setupldr!NtProcessStartup

kd> dv

pc = 0x00060a28 " "

kd> kc a

00 setupldr!TextTmCharOut

01 setupldr!BiosConsoleWrite

02 setupldr!AEWriteEx

03 setupldr!AEWrite

04 setupldr!SlWriteStatusText

05 setupldr!BlOutputLoadMessage

06 setupldr!SlInit

07 setupldr!BlStartup

08 setupldr!NtProcessStartup

WARNING: Frame IP not in any known module. Following frames may be wrong.

09 0x0

kd> dv

pc = 0x00060a28 " "

temp = 0x00 ''

kd> x setupldr!TextCurrentAttribute

00342044 setupldr!TextCurrentAttribute = 0x70 'p'

PUCHAR

TextTmCharOut(

PUCHAR pc

)

/*++

Routine Description:

Writes a character on the display at the current position.

Newlines and tabs are interpreted and acted upon.

Arguments:

c - pointer to character to write

Returns:

Pointer to next char in string

--*/

{

unsigned u;

UCHAR c;

UCHAR temp;

c = *pc;

switch (c) {

case '\n':

if(TextRow == (VIDEO_ROWS-1)) {

TextTmScrollDisplay();

TextSetCursorPosition(0,TextRow);

} else {

TextSetCursorPosition(0,TextRow+1);

}

break;

case '\r':

// ignore

break;

case '\t':

temp = ' ';

u = 8 - (TextColumn % 8);

while(u--) {

TextTmCharOut(&temp);

}

TextSetCursorPosition(TextColumn+u,TextRow);

break;

default :

*Vp++ = c;

*Vp++ = TextCurrentAttribute;

TextSetCursorPosition(TextColumn+1,TextRow);

}

return(pc+1);

}

default :

*Vp++ = c;

*Vp++ = TextCurrentAttribute;

TextSetCursorPosition(TextColumn+1,TextRow);

}

return(pc+1);

}

kd> x setupldr!Vp

003422b8 setupldr!Vp = 0x000b8f00

kd> db 0x000b8f00

000b8f00 20 70 20 70 53 70 65 70-74 70 75 70 70 70 20 70 p pSpeptpuppp p

000b8f10 69 70 73 70 20 70 6c 70-6f 70 61 70 64 70 69 70 ipsp plpopapdpip

20是字符ACSII码，70是属性。

p pSpeptpuppp pipsp plpopapdpip

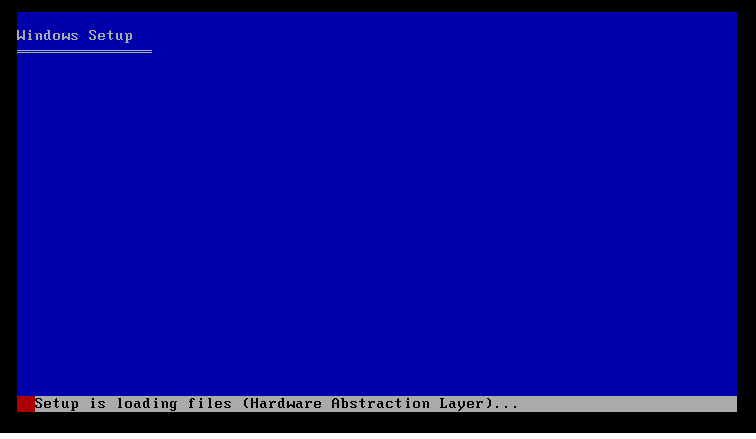

Setup is loadi

0111 0000

0-2位前景色字体颜色

4-6位背景色

3位高亮通常为0

背景蓝

前景白07

蓝底白字0x17

kd> db 0x000b8f00-80

000b8e80 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8e90 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8ea0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8eb0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8ec0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8ed0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8ee0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

000b8ef0 20 17 20 17 20 17 20 17-20 17 20 17 20 17 20 17 . . . . . . . .

背景红

前景白

kd> db 0x000b8f00

000b8f00 20 70 20 70 53 70 65 70-74 70 75 70 70 70 20 70 p pSpeptpuppp p

000b8f10 69 70 73 70 20 70 6c 70-6f 70 61 70 64 70 69 70 ipsp plpopapdpip

000b8f20 6e 70 67 70 20 70 66 70-69 70 6c 70 65 70 73 70 npgp pfpiplpepsp

000b8f30 20 70 28 70 48 70 61 70-72 70 64 70 77 70 61 70 p(pHpaprpdpwpap

000b8f40 72 70 65 70 20 70 41 70-62 70 73 70 74 70 72 70 rpep pApbpsptprp

000b8f50 61 70 63 70 74 70 69 70-6f 70 6e 70 20 70 4c 70 apcptpipopnp pLp

000b8f60 61 70 79 70 65 70 72 70-29 70 2e 70 2e 70 2e 70 apypeprp)p.p.p.p

000b8f70 20 70 20 70 20 70 20 70-20 70 20 70 20 70 20 70 p p p p p p p p

kd> eb 0x000b8f00+1 47

kd> db 0x000b8f00

000b8f00 20 47

kd> t

eax=00000001 ebx=00060a28 ecx=000b8f01 edx=00000048 esi=00060a68 edi=00060a28

eip=0030d4b8 esp=000609ac ebp=000609b8 iopl=0 nv up di pl nz na po nc

cs=0008 ss=0010 ds=0010 es=0010 fs=0030 gs=0000 efl=00000002

setupldr!TextTmCharOut+0x6c:

0030d4b8 e8b663ffff call setupldr!TextSetCursorPosition (00303873)

kd> t

eax=00000001 ebx=00060a28 ecx=000b8f01 edx=00000048 esi=00060a68 edi=00060a28

eip=00303873 esp=000609a8 ebp=000609b8 iopl=0 nv up di pl nz na po nc

cs=0008 ss=0010 ds=0010 es=0010 fs=0030 gs=0000 efl=00000002

setupldr!TextSetCursorPosition:

00303873 55 push ebp

kd> kc a

00 setupldr!TextSetCursorPosition

01 setupldr!TextTmCharOut

02 setupldr!BiosConsoleWrite

03 setupldr!AEWriteEx

04 setupldr!AEWrite

05 setupldr!SlWriteStatusText

06 setupldr!BlOutputLoadMessage

07 setupldr!SlInit

08 setupldr!BlStartup

09 setupldr!NtProcessStartup

kd> dv

X = 1

Y = 0x18

kd> x setupldr!Vp

003422b8 setupldr!Vp = 0x000b8f02 "

} else {

switch (*String) {

// Check for escape sequence.

case ASCI_ESC:

EscapeSequence = TRUE;

break;

default:

p = TextCharOut(String);

// Each pass through the loop increments String by 1.

// If we output a dbcs char we need to increment by

// one more.

(*Count) += (p - String) - 1;

String += (p - String) - 1;

break;

}

处理第二个字符，也是空格。

for ( *Count = 0 ;

*Count < Length ;

(*Count)++, String++ ) {

PUCHAR

TextCharOut(

IN PUCHAR pc

)

{

if(DbcsLangId) {

return(TextGrCharOut(pc));

} else {

return(TextTmCharOut(pc));

}

kd> kc 9

00 setupldr!TextCharOut

01 setupldr!BiosConsoleWrite

02 setupldr!AEWriteEx

03 setupldr!AEWrite

04 setupldr!SlWriteStatusText

05 setupldr!BlOutputLoadMessage

06 setupldr!SlInit

07 setupldr!BlStartup

08 setupldr!NtProcessStartup

kd> dv

pc = 0x00060a29 " "

kd> kc a

00 setupldr!TextTmCharOut

01 setupldr!BiosConsoleWrite

02 setupldr!AEWriteEx

03 setupldr!AEWrite

04 setupldr!SlWriteStatusText

05 setupldr!BlOutputLoadMessage

06 setupldr!SlInit

07 setupldr!BlStartup

08 setupldr!NtProcessStartup

WARNING: Frame IP not in any known module. Following frames may be wrong.

09 0x0

kd> dv

pc = 0x00060a29 " "

temp = 0x00 ''

default :

*Vp++ = c;

*Vp++ = TextCurrentAttribute;

TextSetCursorPosition(TextColumn+1,TextRow);

}

kd> x setupldr!TextColumn

003437fc setupldr!TextColumn = 1

kd> x setupldr!TextRow

00343800 setupldr!TextRow = 0x18

kd> db 0x000b8f02

000b8f02 20 70 53 70 65 70 74 70-75 70 70 70 20 70 69 70 pSpeptpuppp pip

000b8f12 73 70 20 70 6c 70 6f 70-61 70 64 70 69 70 6e 70 sp plpopapdpipnp

000b8f22 67 70 20 70 66 70 69 70-6c 70 65 70 73 70 20 70 gp pfpiplpepsp p

000b8f32 28 70 48 70 61 70 72 70-64 70 77 70 61 70 72 70 (pHpaprpdpwpaprp

000b8f42 65 70 20 70 41 70 62 70-73 70 74 70 72 70 61 70 ep pApbpsptprpap

000b8f52 63 70 74 70 69 70 6f 70-6e 70 20 70 4c 70 61 70 cptpipopnp pLpap

000b8f62 79 70 65 70 72 70 29 70-2e 70 2e 70 2e 70 20 70 ypeprp)p.p.p.p p

000b8f72 20 70 20 70 20 70 20 70-20 70 20 70 20 70 20 70 p p p p p p p p

kd> eb 0x000b8f03 47
