改写gtk4-demo的例子程序sliding_puzzle拼图游戏
在openSUSE-Leap-15.6-DVD-x86_64中改写gtk4-demo的例子程序sliding_puzzle拼图游戏
一、安装gtk4-demo
应用程序------工具------终端
ruhong@localhost:~> su -
密码：
localhost:~ # zypper install gtk4-devel-4.12.4-150600.1.5.x86_64 gtk4-devel-tools-4.12.4-150600.1.5.x86_64
从普通用户ruhong切换到root用户安装gtk4图形工具包

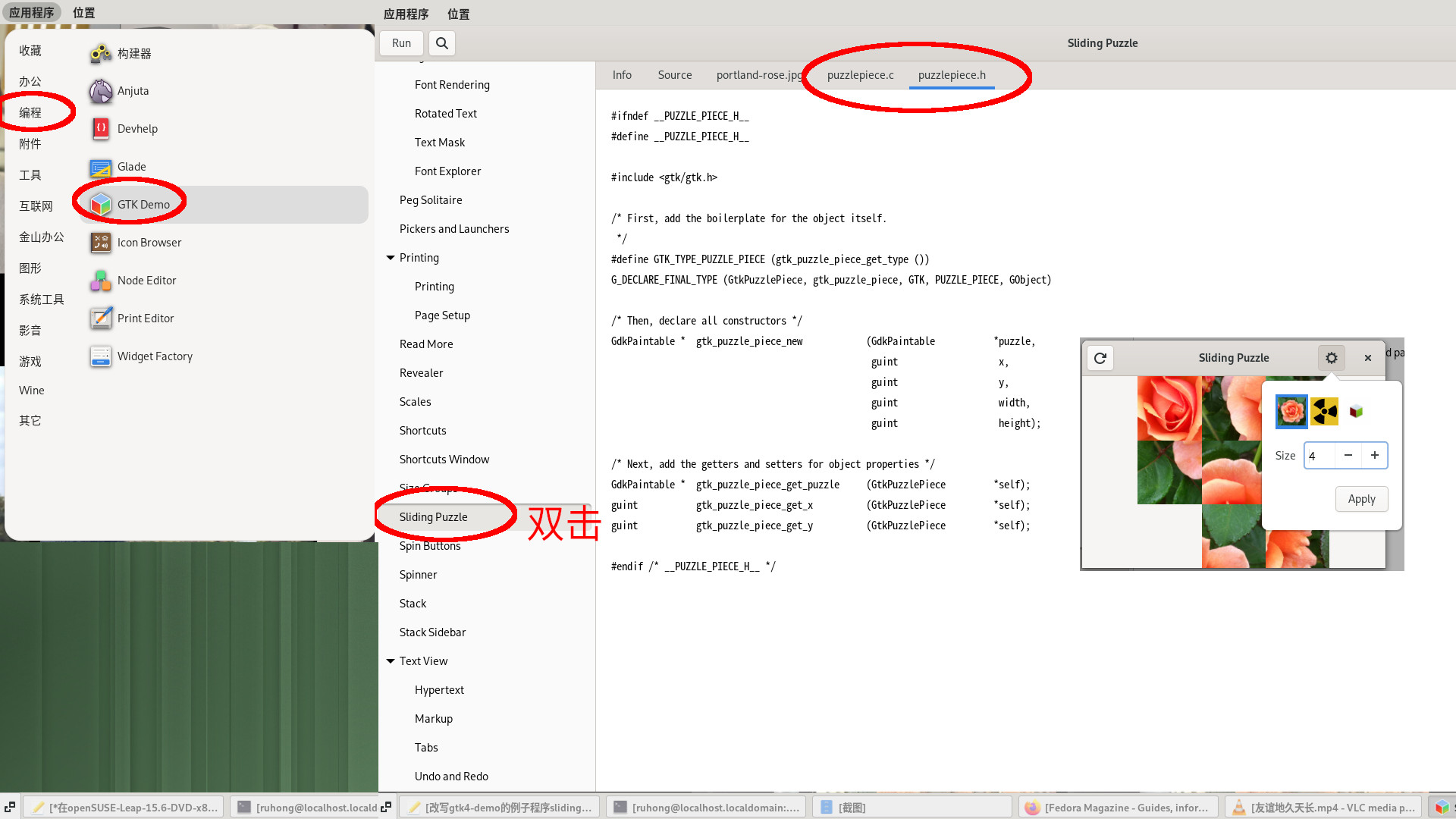

应用程序------编程------GTK Demo
双击sliding puzzle运行程序使用鼠标点击就可以开始游戏了，单击右上角的齿轮图标------选择图片------单击加号图标，将图片切割成3X3、4X4或者5X5------apply开始游戏，单击左上角是重新开始游戏，当你完成拼图后会自动补上最后缺失的小图片并响一声。
二、改写source.c
应用程序------工具------终端，不用切换到root，保持普通用户即可
ruhong@localhost:~> mkdir sliding_puzzle
ruhong@localhost:~> cd sliding_puzzle
ruhong@localhost:~/sliding_puzzle> touch source.c puzzlepiece.c puzzlepiece.h
ruhong@localhost:~/sliding_puzzle> gedit puzzlepiece.h
ruhong@localhost:~/sliding_puzzle> gedit puzzlepiece.c
使用文本编辑器gedit打开puzzlepiece.h，单击puzzlepiece.h标签卡，复制GTK Demo中puzzlepiece.h的代码内容，保持原样保存，不用修改，对于puzzlepiece.c也是同样操作
ruhong@localhost:~/sliding_puzzle> gedit source.c
使用文本编辑器gedit打开source.c，复制以下提供修改过的内容
c
/*
Sliding Puzzle
This demo demonstrates how to use gestures and paintables to create a small sliding puzzle game.
*/
#include <gtk/gtk.h>
#include <vlc/vlc.h>
/* Include the header for the puzzle piece */
#include "puzzlepiece.h"
/* #include "paintable.h" */
static GtkWidget *window = NULL;
static GtkWidget *frame = NULL;
static GtkWidget *choices = NULL;
static GtkWidget *size_spin = NULL;
static GdkPaintable *puzzle = NULL;
static GdkPaintable *puzzle02 = NULL;
static GdkPaintable *puzzle03 = NULL;
static gboolean solved = TRUE;
static guint width = 3;
static guint height = 3;
static guint pos_x;
static guint pos_y;
static void
ended (GObject *object)
{
g_object_unref (object);
}
static void
celebrate (gboolean win)
{
GtkMediaStream *stream;
if (win)
stream = gtk_media_file_new_for_filename ("/home/ruhong/sliding_puzzle/complete.oga");
gtk_media_stream_set_volume (stream, 1.0);
gtk_media_stream_play (stream);
g_signal_connect( stream, "notify::ended", G_CALLBACK( ended ), NULL );
}
static gboolean
move_puzzle (GtkWidget *grid,
int dx,
int dy)
{
GtkWidget *pos, *next;
GdkPaintable *piece;
guint next_x, next_y;
/* We don't move anything if the puzzle is solved */
if (solved)
return FALSE;
/* Return FALSE if we can't move to where the call
* wants us to move.
*/
if ((dx < 0 && pos_x < -dx) ||
dx + pos_x >= width ||
(dy < 0 && pos_y < -dy) ||
dy + pos_y >= height)
return FALSE;
/* Compute the new position */
next_x = pos_x + dx;
next_y = pos_y + dy;
/* Get the current and next image */
pos = gtk_grid_get_child_at (GTK_GRID (grid), pos_x, pos_y);
next = gtk_grid_get_child_at (GTK_GRID (grid), next_x, next_y);
/* Move the displayed piece. */
piece = gtk_picture_get_paintable (GTK_PICTURE (next));
gtk_picture_set_paintable (GTK_PICTURE (pos), piece);
gtk_picture_set_paintable (GTK_PICTURE (next), NULL);
/* Update the current position */
pos_x = next_x;
pos_y = next_y;
/* Return TRUE because we successfully moved the piece */
return TRUE;
}
static void
shuffle_puzzle (GtkWidget *grid)
{
guint i, n_steps;
/* Do this many random moves */
n_steps = width * height * 50;
for (i = 0; i < n_steps; i++)
{
/* Get a random number for the direction to move in */
switch (g_random_int_range (0, 4))
{
case 0:
/* left */
move_puzzle (grid, -1, 0);
break;
case 1:
/* up */
move_puzzle (grid, 0, -1);
break;
case 2:
/* right */
move_puzzle (grid, 1, 0);
break;
case 3:
/* down */
move_puzzle (grid, 0, 1);
break;
default:
g_assert_not_reached ();
continue;
}
}
}
static gboolean
check_solved (GtkWidget *grid)
{
GtkWidget *picture;
GdkPaintable *piece;
guint x, y;
/* Nothing to check if the puzzle is already solved */
if (solved)
return TRUE;
/* If the empty cell isn't in the bottom right,
* the puzzle is obviously not solved */
if (pos_x != width - 1 ||
pos_y != height - 1)
return FALSE;
/* Check that all pieces are in the right position */
for (y = 0; y < height; y++)
{
for (x = 0; x < width; x++)
{
picture = gtk_grid_get_child_at (GTK_GRID (grid), x, y);
piece = gtk_picture_get_paintable (GTK_PICTURE (picture));
/* empty cell */
if (piece == NULL)
continue;
if (gtk_puzzle_piece_get_x (GTK_PUZZLE_PIECE (piece)) != x ||
gtk_puzzle_piece_get_y (GTK_PUZZLE_PIECE (piece)) != y)
return FALSE;
}
}
/* We solved the puzzle!
*/
solved = TRUE;
/* Fill the empty cell to show that we're done.
*/
picture = gtk_grid_get_child_at (GTK_GRID (grid), 0, 0);
piece = gtk_picture_get_paintable (GTK_PICTURE (picture));
piece = gtk_puzzle_piece_new (gtk_puzzle_piece_get_puzzle (GTK_PUZZLE_PIECE (piece)),
pos_x, pos_y,
width, height);
picture = gtk_grid_get_child_at (GTK_GRID (grid), pos_x, pos_y);
gtk_picture_set_paintable (GTK_PICTURE (picture), piece);
celebrate (TRUE);
return TRUE;
}
static gboolean
puzzle_key_pressed (GtkWidget *grid,
GVariant *args,
gpointer unused)
{
int dx, dy;
g_variant_get (args, "(ii)", &dx, &dy);
if (!move_puzzle (grid, dx, dy))
{
/* Make the error sound and then return TRUE.
* We handled this key, even though we didn't
* do anything to the puzzle.
*/
gtk_widget_error_bell (grid);
return TRUE;
}
check_solved (grid);
return TRUE;
}
static void
puzzle_button_pressed (GtkGestureClick *gesture,
int n_press,
double x,
double y,
GtkWidget *grid)
{
GtkWidget *child;
int l, t, i;
int pos;
child = gtk_widget_pick (grid, x, y, GTK_PICK_DEFAULT);
if (!child)
{
gtk_widget_error_bell (grid);
return;
}
gtk_grid_query_child (GTK_GRID (grid), child, &l, &t, NULL, NULL);
if (l == pos_x && t == pos_y)
{
gtk_widget_error_bell (grid);
}
else if (l == pos_x)
{
pos = pos_y;
for (i = t; i < pos; i++)
{
if (!move_puzzle (grid, 0, -1))
gtk_widget_error_bell (grid);
}
for (i = pos; i < t; i++)
{
if (!move_puzzle (grid, 0, 1))
gtk_widget_error_bell (grid);
}
}
else if (t == pos_y)
{
pos = pos_x;
for (i = l; i < pos; i++)
{
if (!move_puzzle (grid, -1, 0))
gtk_widget_error_bell (grid);
}
for (i = pos; i < l; i++)
{
if (!move_puzzle (grid, 1, 0))
gtk_widget_error_bell (grid);
}
}
else
{
gtk_widget_error_bell (grid);
}
check_solved (grid);
}
static void
add_move_binding (GtkShortcutController *controller,
guint keyval,
guint kp_keyval,
int dx,
int dy)
{
GtkShortcut *shortcut;
shortcut = gtk_shortcut_new_with_arguments (
gtk_alternative_trigger_new (gtk_keyval_trigger_new (keyval, 0),
gtk_keyval_trigger_new (kp_keyval, 0)),
gtk_callback_action_new (puzzle_key_pressed, NULL, NULL),
"(ii)", dx, dy);
gtk_shortcut_controller_add_shortcut (controller, shortcut);
}
static void
start_puzzle (GdkPaintable *paintable)
{
GtkWidget *picture, *grid;
GtkEventController *controller;
guint x, y;
float aspect_ratio;
/* Create a new grid */
grid = gtk_grid_new ();
gtk_widget_set_focusable (grid, TRUE);
gtk_aspect_frame_set_child (GTK_ASPECT_FRAME (frame), grid);
aspect_ratio = gdk_paintable_get_intrinsic_aspect_ratio (paintable);
if (aspect_ratio == 0.0)
aspect_ratio = 1.0;
gtk_aspect_frame_set_ratio (GTK_ASPECT_FRAME (frame), aspect_ratio);
gtk_aspect_frame_set_obey_child (GTK_ASPECT_FRAME (frame), FALSE);
/* Add shortcuts so people can use the arrow
* keys to move the puzzle
*/
controller = gtk_shortcut_controller_new ();
gtk_shortcut_controller_set_scope (GTK_SHORTCUT_CONTROLLER (controller),
GTK_SHORTCUT_SCOPE_LOCAL);
add_move_binding (GTK_SHORTCUT_CONTROLLER (controller),
GDK_KEY_Left, GDK_KEY_KP_Left,
-1, 0);
add_move_binding (GTK_SHORTCUT_CONTROLLER (controller),
GDK_KEY_Right, GDK_KEY_KP_Right,
1, 0);
add_move_binding (GTK_SHORTCUT_CONTROLLER (controller),
GDK_KEY_Up, GDK_KEY_KP_Up,
0, -1);
add_move_binding (GTK_SHORTCUT_CONTROLLER (controller),
GDK_KEY_Down, GDK_KEY_KP_Down,
0, 1);
gtk_widget_add_controller (GTK_WIDGET (grid), controller);
controller = GTK_EVENT_CONTROLLER (gtk_gesture_click_new ());
g_signal_connect (controller, "pressed",
G_CALLBACK (puzzle_button_pressed),
grid);
gtk_widget_add_controller (GTK_WIDGET (grid), controller);
/* Make sure the cells have equal size */
gtk_grid_set_row_homogeneous (GTK_GRID (grid), TRUE);
gtk_grid_set_column_homogeneous (GTK_GRID (grid), TRUE);
/* Reset the variables */
solved = FALSE;
pos_x = width - 1;
pos_y = height - 1;
/* add a picture for every cell */
for (y = 0; y < height; y++)
{
for (x = 0; x < width; x++)
{
GdkPaintable *piece;
/* Don't paint anything for the lsiding part of the video */
if (x == pos_x && y == pos_y)
piece = NULL;
else
piece = gtk_puzzle_piece_new (paintable,
x, y,
width, height);
picture = gtk_picture_new_for_paintable (piece);
gtk_picture_set_content_fit (GTK_PICTURE (picture), GTK_CONTENT_FIT_FILL);
gtk_grid_attach (GTK_GRID (grid),
picture,
x, y,
1, 1);
}
}
shuffle_puzzle (grid);
}
static void
reshuffle (void)
{
GtkWidget *grid;
if (solved)
{
start_puzzle (puzzle);
grid = gtk_aspect_frame_get_child (GTK_ASPECT_FRAME (frame));
}
else
{
grid = gtk_aspect_frame_get_child (GTK_ASPECT_FRAME (frame));
shuffle_puzzle (grid);
}
gtk_widget_grab_focus (grid);
}
static void
reconfigure (void)
{
GtkWidget *popover;
GtkWidget *grid;
GtkWidget *child;
GtkWidget *image;
GList *selected;
width = height = gtk_spin_button_get_value_as_int (GTK_SPIN_BUTTON (size_spin));
selected = gtk_flow_box_get_selected_children (GTK_FLOW_BOX (choices));
if (selected == NULL)
child = gtk_widget_get_first_child (choices);
else
{
child = selected->data;
g_list_free (selected);
}
image = gtk_flow_box_child_get_child (GTK_FLOW_BOX_CHILD (child));
puzzle = gtk_image_get_paintable (GTK_IMAGE (image));
start_puzzle (puzzle);
popover = gtk_widget_get_ancestor (size_spin, GTK_TYPE_POPOVER);
gtk_popover_popdown (GTK_POPOVER (popover));
grid = gtk_aspect_frame_get_child (GTK_ASPECT_FRAME (frame));
gtk_widget_grab_focus (grid);
}
static void
add_choice (GtkWidget *container,
GdkPaintable *paintable)
{
GtkWidget *icon;
icon = gtk_image_new_from_paintable (paintable);
gtk_image_set_icon_size (GTK_IMAGE (icon), GTK_ICON_SIZE_LARGE);
gtk_flow_box_insert (GTK_FLOW_BOX (container), icon, -1);
}
static void
widget_destroyed (gpointer data,
GObject *widget)
{
if (data)
*(gpointer *) data = NULL;
}
static void
activate (GtkApplication *app,
gpointer user_data)
{
GtkWidget *header;
GtkWidget *restart;
GtkWidget *tweak;
GtkWidget *popover;
GtkWidget *tweaks;
GtkWidget *apply;
GtkWidget *label;
GtkWidget *sw;
/* GtkMediaStream *media; */
window = gtk_application_window_new (app);
gtk_window_set_title (GTK_WINDOW (window), "Sliding Puzzle");
gtk_window_set_default_size (GTK_WINDOW (window), 800, 600);
g_object_weak_ref (G_OBJECT (window), widget_destroyed, &window);
header = gtk_header_bar_new ();
gtk_window_set_titlebar (GTK_WINDOW (window), header);
restart = gtk_button_new_from_icon_name ("view-refresh-symbolic");
g_signal_connect (restart, "clicked", G_CALLBACK (reshuffle), NULL);
gtk_header_bar_pack_start (GTK_HEADER_BAR (header), restart);
popover = gtk_popover_new ();
tweak = gtk_menu_button_new ();
gtk_menu_button_set_popover (GTK_MENU_BUTTON (tweak), popover);
gtk_menu_button_set_icon_name (GTK_MENU_BUTTON (tweak), "emblem-system-symbolic");
gtk_header_bar_pack_end (GTK_HEADER_BAR (header), tweak);
tweaks = gtk_grid_new ();
gtk_popover_set_child (GTK_POPOVER (popover), tweaks);
gtk_grid_set_row_spacing (GTK_GRID (tweaks), 10);
gtk_grid_set_column_spacing (GTK_GRID (tweaks), 10);
gtk_widget_set_margin_start (tweaks, 10);
gtk_widget_set_margin_end (tweaks, 10);
gtk_widget_set_margin_top (tweaks, 10);
gtk_widget_set_margin_bottom (tweaks, 10);
choices = gtk_flow_box_new ();
gtk_widget_add_css_class (choices, "view");
puzzle = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture01.jpg", NULL));
add_choice (choices, puzzle);
puzzle02 = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture02.jpg", NULL));
add_choice (choices, puzzle02);
puzzle03 = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture03.jpg", NULL));
add_choice (choices, puzzle03);
/*
add_choice (choices, nuclear_animation_new (TRUE));
media = gtk_media_file_new_for_resource ("/images/gtk-logo.webm");
gtk_media_stream_set_loop (media, TRUE);
gtk_media_stream_set_muted (media, TRUE);
gtk_media_stream_play (media);
add_choice (choices, GDK_PAINTABLE (media));
*/
sw = gtk_scrolled_window_new ();
gtk_scrolled_window_set_child (GTK_SCROLLED_WINDOW (sw), choices);
gtk_grid_attach (GTK_GRID (tweaks), sw, 0, 0, 2, 1);
label = gtk_label_new ("Size");
gtk_label_set_xalign (GTK_LABEL (label), 0.0);
gtk_grid_attach (GTK_GRID (tweaks), label, 0, 1, 1, 1);
size_spin = gtk_spin_button_new_with_range (2, 10, 1);
gtk_spin_button_set_value (GTK_SPIN_BUTTON (size_spin), width);
gtk_grid_attach (GTK_GRID (tweaks), size_spin, 1, 1, 1, 1);
apply = gtk_button_new_with_label ("Apply");
gtk_widget_set_halign (apply, GTK_ALIGN_END);
gtk_grid_attach (GTK_GRID (tweaks), apply, 1, 2, 1, 1);
g_signal_connect (apply, "clicked", G_CALLBACK (reconfigure), NULL);
frame = gtk_aspect_frame_new (0.5, 0.5, (float) gdk_paintable_get_intrinsic_aspect_ratio (puzzle), FALSE);
gtk_window_set_child (GTK_WINDOW (window), frame);
gtk_widget_set_visible (window, TRUE);
start_puzzle (puzzle);
}
int
main (int argc,
char **argv)
{
GtkApplication *app;
int status;
app = gtk_application_new ("org.gtk.example", G_APPLICATION_DEFAULT_FLAGS);
g_signal_connect (app, "activate", G_CALLBACK (activate), NULL);
status = g_application_run (G_APPLICATION (app), argc, argv);
g_object_unref (app);
return status;
}将声音文件complete.oga和三张图片picture01.jpg改为为绝对路径
stream = gtk_media_file_new_for_filename ("/home/ruhong/sliding_puzzle/complete.oga");
puzzle = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture01.jpg", NULL));
puzzle02 = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture02.jpg", NULL));
puzzle03 = GDK_PAINTABLE (gdk_texture_new_from_filename ("/home/ruhong/sliding_puzzle/picture03.jpg", NULL));
三、使用原作者的素材图片和声音文件
这个拼图游戏是来自于
https://github.com/aeldemery/gtk4_sliding_puzzle

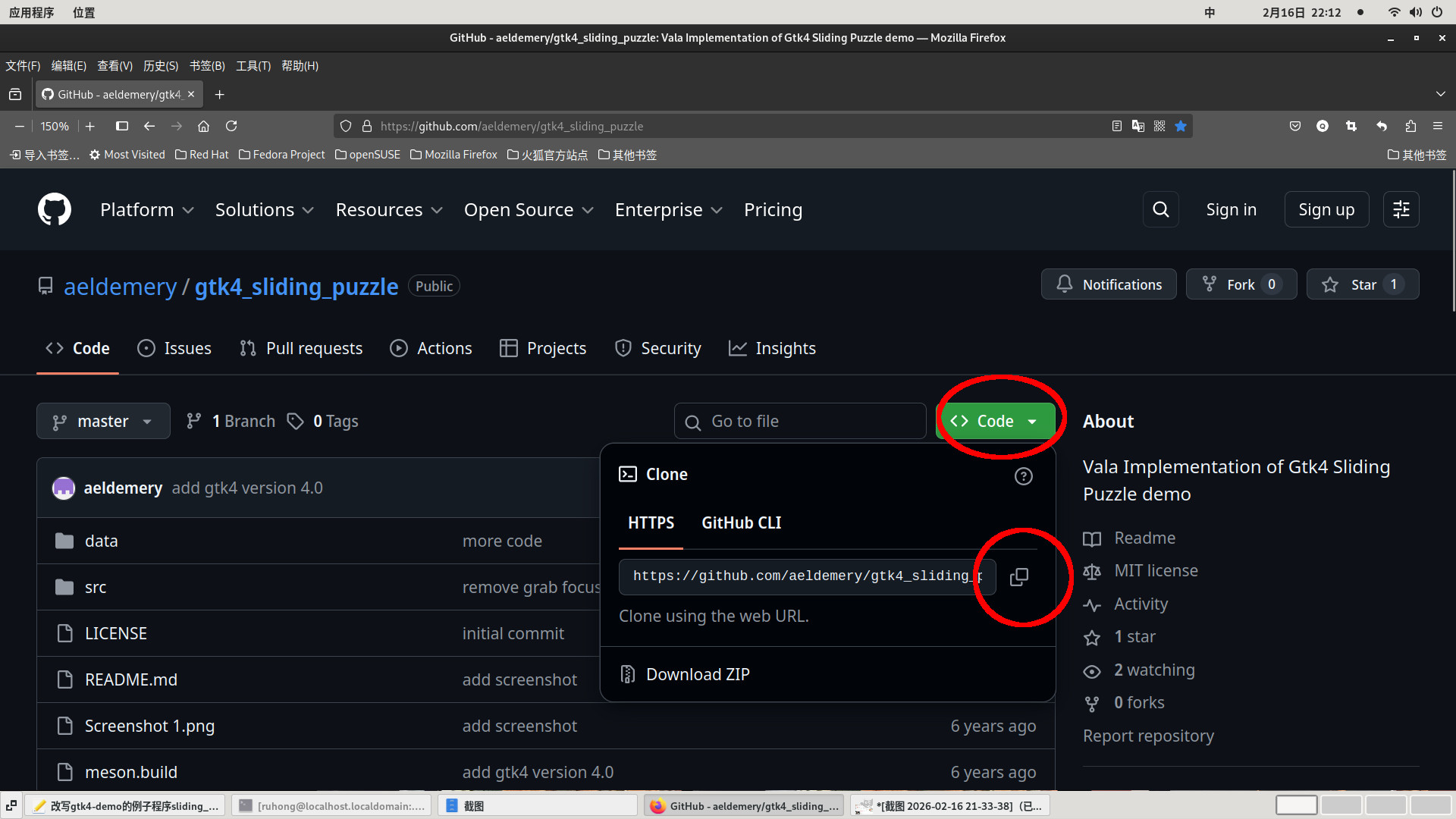

单击code------复制git地址------回到自己的家目录------git克隆整个项目文件
ruhong@localhost:~/sliding_puzzle> cd /home/ruhong
ruhong@localhost:/home/ruhong> git clone https://github.com/aeldemery/gtk4_sliding_puzzle.git
正克隆到 'gtk4_sliding_puzzle'...
remote: Enumerating objects: 50, done.
remote: Counting objects: 100% (50/50), done.
remote: Compressing objects: 100% (34/34), done.
remote: Total 50 (delta 20), reused 46 (delta 16), pack-reused 0 (from 0)
接收对象中: 100% (50/50), 992.13 KiB | 737.00 KiB/s, 完成.
处理 delta 中: 100% (20/20), 完成.
ruhong@localhost:~> cd gtk4_sliding_puzzle/
ruhong@localhost:~/gtk4_sliding_puzzle> ls
data LICENSE meson.build README.md Screenshot 1.png src
ruhong@localhost:~/gtk4_sliding_puzzle> cd data/
ruhong@localhost:~/gtk4_sliding_puzzle/data> ls
distribution-linux.jpg linuxadminhero.jpg penguine.jpg
github.aeldemery.gtk4_sliding_puzzle.gresource.xml linux-penguin-3d-model.jpg portland-rose.jpg
进入文件夹gtk4_sliding_puzzle/data复制三张图片到/home/ruhong/sliding_puzzle/，并依次改名为picture01.jpg，这个过程可以使用鼠标操作，不用全靠命令行操作
ruhong@localhost:~/gtk4_sliding_puzzle/data> cp portland-rose.jpg distribution-linux.jpg penguine.jpg /home/ruhong/sliding_puzzle/
ruhong@localhost:~/gtk4_sliding_puzzle/data> cd /home/ruhong/sliding_puzzle/
ruhong@localhost:~/sliding_puzzle> ls
distribution-linux.jpg penguine.jpg portland-rose.jpg puzzlepiece.c puzzlepiece.h source.c
ruhong@localhost:~/sliding_puzzle> mv portland-rose.jpg picture01.jpg
ruhong@localhost:~/sliding_puzzle> mv distribution-linux.jpg picture02.jpg
ruhong@localhost:~/sliding_puzzle> mv penguine.jpg picture03.jpg
ruhong@localhost:~/sliding_puzzle> ls
picture01.jpg picture02.jpg picture03.jpg puzzlepiece.c puzzlepiece.h source.c
搜索本机系统中所有oga格式的声音文件，找到complete.oga和复制到/home/ruhong/sliding_puzzle中
ruhong@localhost:~/sliding_puzzle> locate .oga
/home/ruhong/sliding_puzzle/complete.oga
/usr/share/novnc/app/sounds/bell.oga
/usr/share/sounds/freedesktop/stereo/alarm-clock-elapsed.oga
...
/usr/share/sounds/freedesktop/stereo/complete.oga
...
ruhong@localhost:~/sliding_puzzle> cp /usr/share/sounds/freedesktop/stereo/complete.oga /home/ruhong/sliding_puzzle/
四、编译与测试
要用到编译C语言的gcc，先查看系统上是否已经安装，没有就要切换root安装
ruhong@localhost:~/sliding_puzzle> su -
密码：
localhost:~ # zypper install gcc
Loading repository data...
Reading installed packages...
'gcc' is already installed.
No update candidate for 'gcc-7-3.9.1.x86_64'. The highest available version is already installed.
Nothing to do.
ruhong@localhost:~/sliding_puzzle> gcc --version
gcc (SUSE Linux) 7.5.0
Copyright © 2017 Free Software Foundation, Inc.
This is free software; see the source for copying conditions. There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
ruhong@localhost:~/sliding_puzzle> pkg-config --list-all |grep gtk4
vte-2.91-gtk4 vte - VTE widget for GTK+ 4.0
gtk4-wayland GTK - GTK Graphical UI Library
gtk4-broadway GTK - GTK Graphical UI Library
gtk4-unix-print GTK - GTK Unix print support
gtk4-x11 GTK - GTK Graphical UI Library
gtk4 GTK - GTK Graphical UI Library
bash
ruhong@localhost:~/sliding_puzzle> gcc -g -Wall `pkg-config --cflags gtk4` puzzlepiece.c source.c `pkg-config --libs gtk4` -o source没有报错就会在当前目录产生source，输入./source运行一下，英文句号右斜杠
ruhong@localhost:~/sliding_puzzle> ./source
单击右上角的齿轮图标------单击减号图标，将图片切割成2X2，完成拼图后是否有响一声
五、使用数字图片

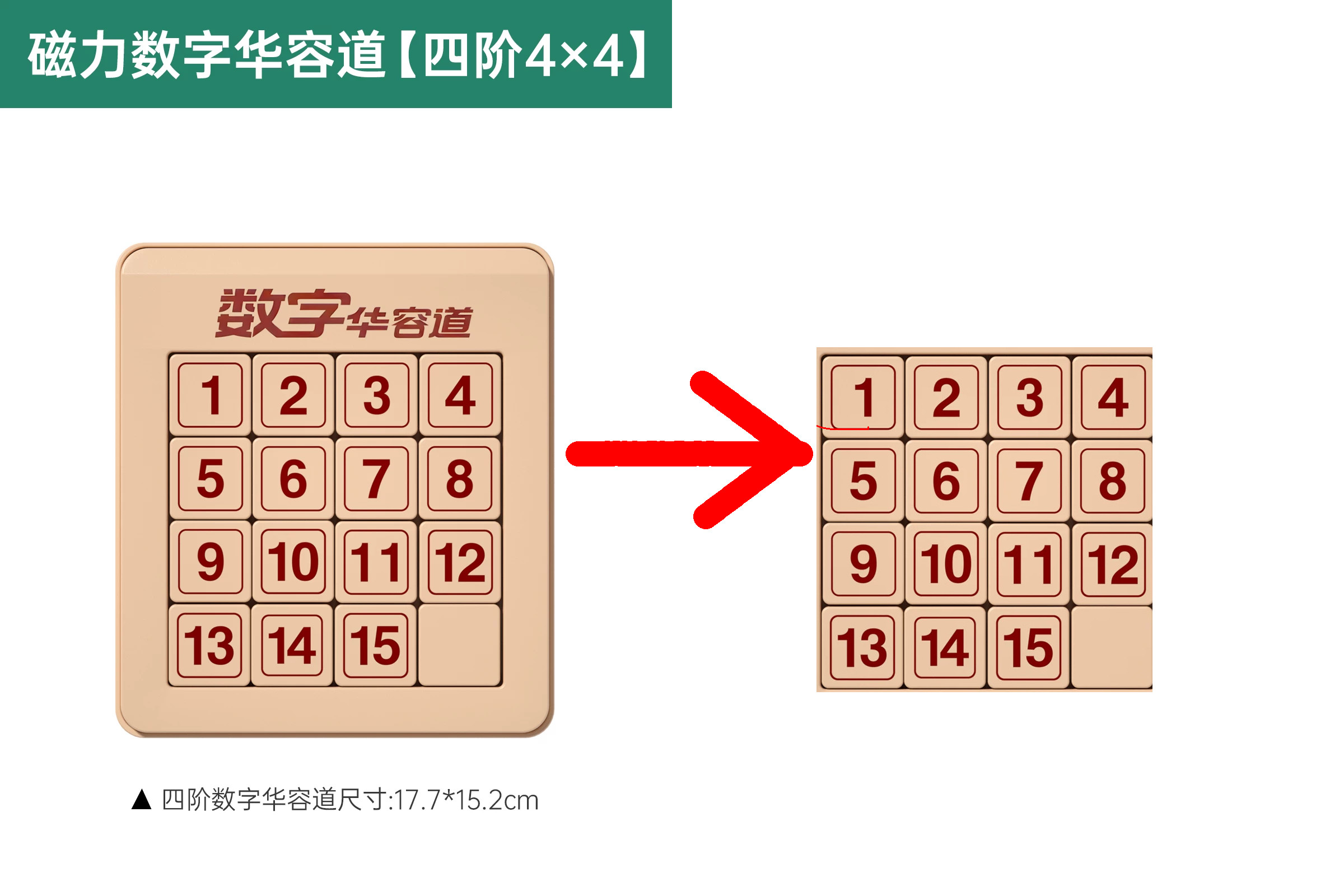

使用手机打开淘宝网，输入关键字"数字华容道"，下载3X3、4X4、5X5的图片，用数据线将手机与电脑连接，将三个图片复制到电脑中，使用图片编辑软件gimp截取数字部分内容，例如截取好4X4的图片改名为picture02.jpg替换原来的picture02.jpg，看一下实际效果，因为淘宝的图片像素很少，在电脑中会显示空白的
右击4X4的原图片------打开方式------单击gimp------打开
工具------选择工具------矩形选择------选择数字部分
编辑------复制
文件------第二个新建------从剪贴板
文件------保存------名称输入picture02.jpg------保存------带我到导出对话框------选择目录为/home/ruhong/sliding_puzzle/------替换------导出
ruhong@localhost:~/sliding_puzzle> ./source
运行一下，看一下实际效果

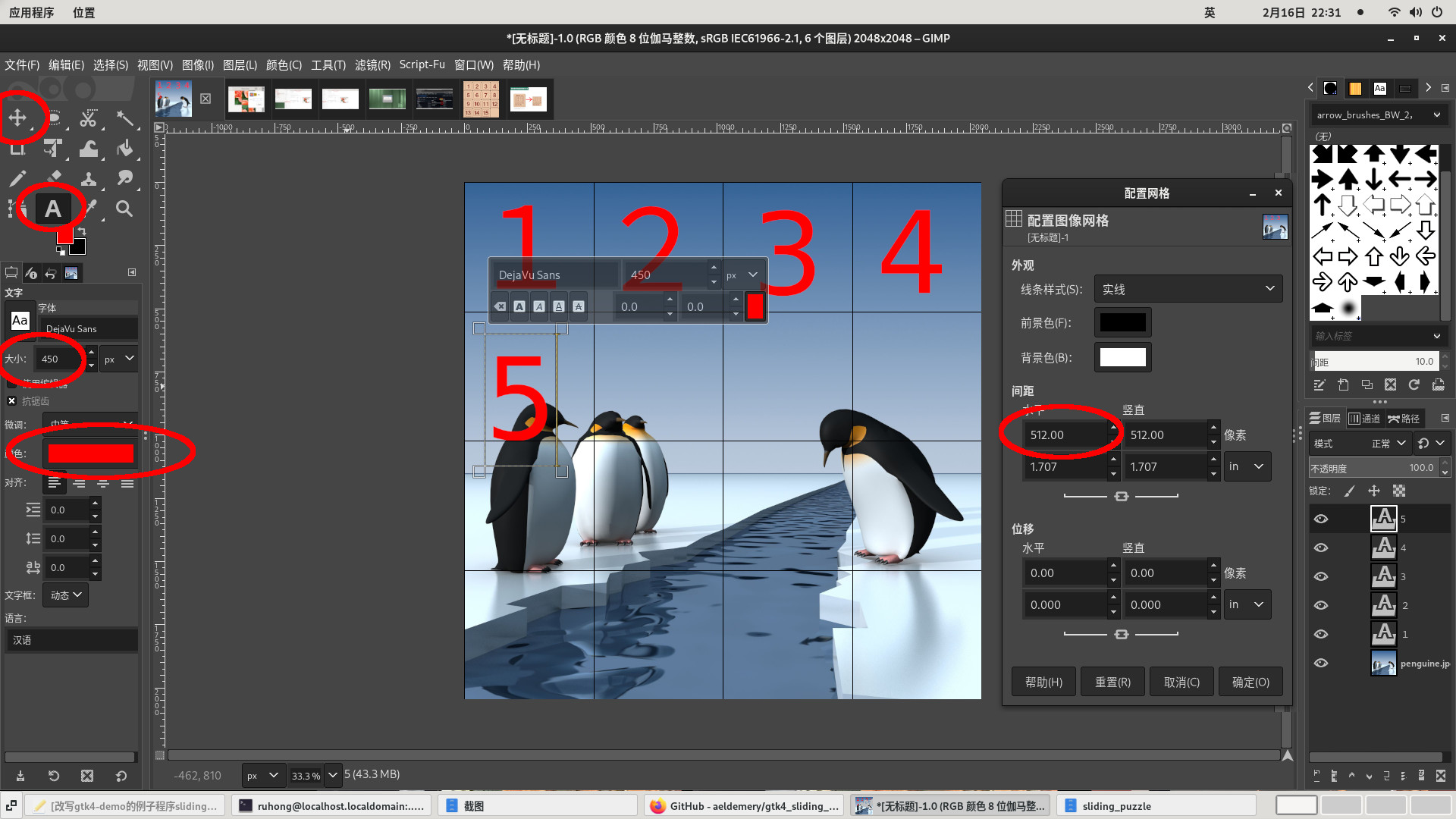

也可以直接在图片上画上数字，例如在picture03.jpg画上16个数字，右击picture03.jpg------------打开方式------单击gimp------打开------图像带有嵌入的色彩配置文件------保持
图像------图像属性------大小（像素）是2048X2048------用手机计算2048/4=512
图像------配置网格------间距水平，单击向上三角图标，将数值增加为512------确定
视图------显示网格
工具------文字------双击前景色选择红色------大小改为450------单击第一个小格------输入数字1------单击移动工具十字架图标------将数字移到小格的中间
单击文字工具A字母图标------单击第二个小格------输入数字2------单击移动工具十字架图标------将数字移到小格的中间
如此类推完成9个数字，将大小改为350，完成10到16的数字
文件------保存------名称输入picture03.jpg------保存------带我到导出对话框------选择目录为/home/ruhong/sliding_puzzle/------替换------导出

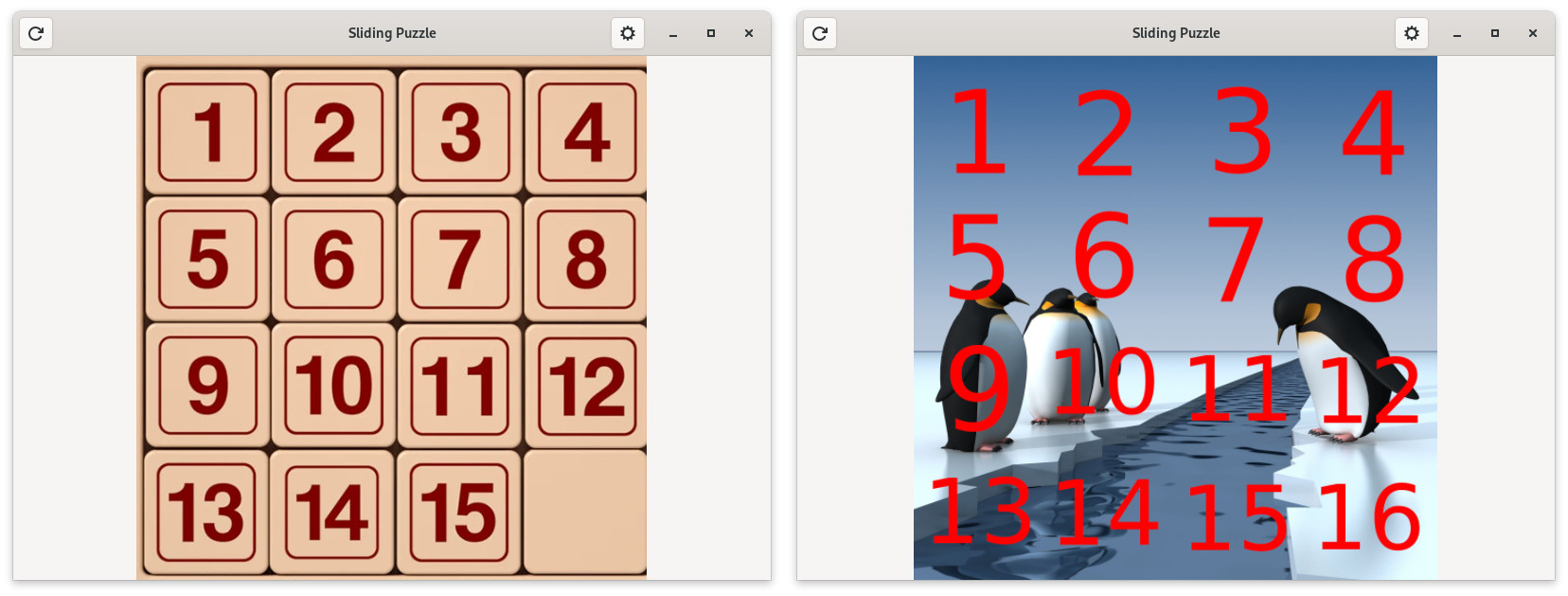

ruhong@localhost:~/sliding_puzzle> ./source
运行一下，看一下实际效果
右击picture02.jpg------打开方式------gimp------打开

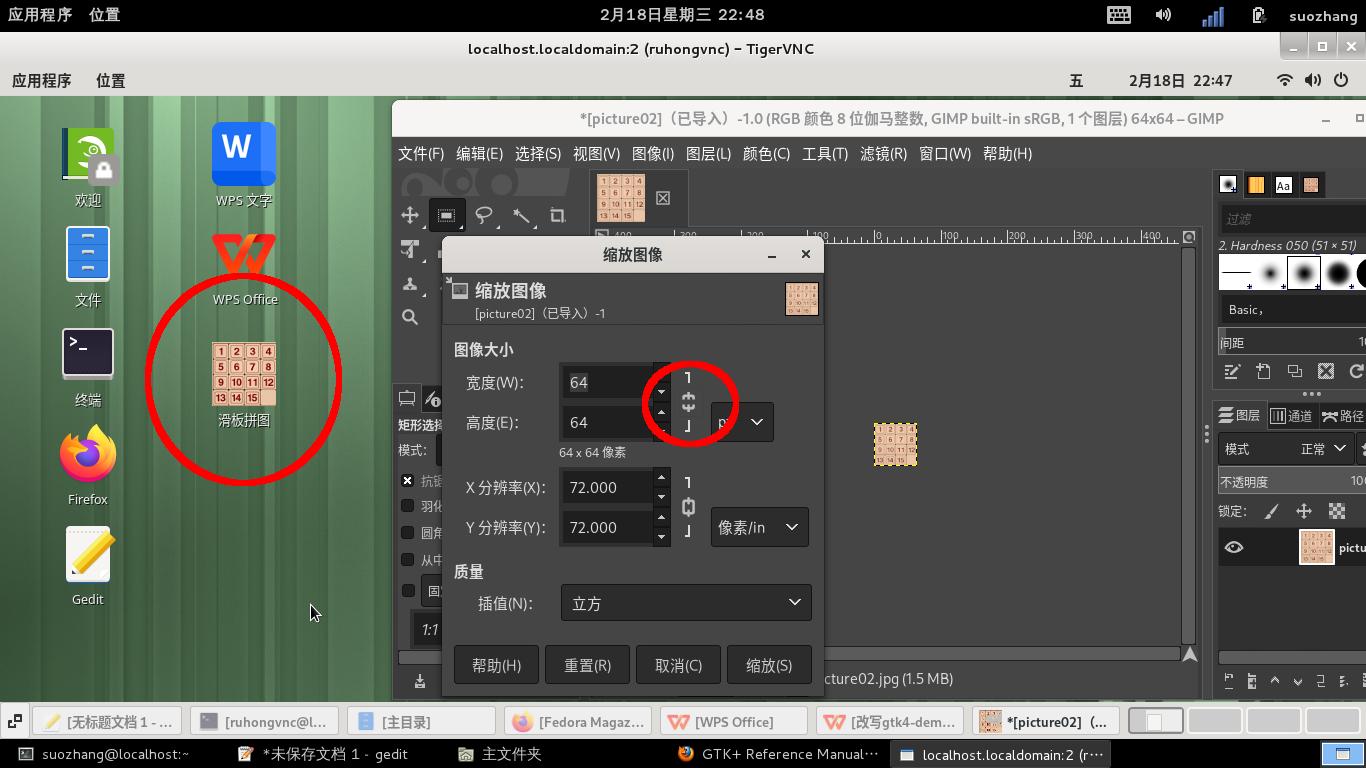

图像------缩放图像------单击解锁固定比例------宽度和高度都输入64------缩放
文件------另存为------保存文件夹为/home/ruhong/sliding_puzzle/------名称为sliding64x64.png------保存------带我到导出对话框------导出
ruhong@localhost:~/sliding_puzzle> cp /usr/share/applications/org.gnome.Chess.desktop sliding_puzzle.desktop
复制国际象棋游戏的桌面文件org.gnome.Chess.desktop并改名为sliding_puzzle.desktop
ruhong@localhost:~/sliding_puzzle> gedit sliding_puzzle.desktop
使用文本编辑器gedit打开修改成以下内容
Desktop Entry
Name[zh_CN]=滑板拼图
Name=Sliding
GenericName[zh_CN]=滑板拼图游戏
GenericName=Sliding Game
Comment[zh_CN]=经典的单人滑板拼图益智游戏
Comment=The classic single-player skateboard puzzle game
Keywords[zh_CN]=game;strategy;游戏;策略;棋;
Keywords=game;strategy;
Version=1.0
Exec=/home/ruhong/sliding_puzzle/source %U
Terminal=false
Type=Application
Categories=GNOME;GTK;Game;BoardGame;
StartupNotify=true
Icon=/home/ruhong/sliding_puzzle/sliding64x64.png
MimeType=application/x-chess-pgn;
DBusActivatable=true
X-Purism-FormFactor=Workstation;Mobile;
ruhong@localhost:~/sliding_puzzle> cp sliding_puzzle.desktop ~/桌面/
ruhong@localhost:~/sliding_puzzle> ll ~/桌面/
总用量 76
-rwxr-xr-x 1 ruhong users 9777 2月 17 21:06 firefox.desktop
-rwxr-xr-x 1 ruhong users 13826 2月 17 21:06 org.gnome.gedit.desktop
-rwxr-xr-x 1 ruhong users 14991 2月 17 21:06 org.gnome.Nautilus.desktop
-rwxr-xr-x 1 ruhong users 15693 2月 17 21:06 org.gnome.Terminal.desktop
-r-xr-xr-x 1 ruhong users 850 2月 17 21:06 org.opensuse.opensuse_welcome.desktop
-rw-r--r-- 1 ruhong users 917 2月 17 22:48 sliding_puzzle.desktop
-rwxr-xr-x 1 ruhong root 446 1月 15 21:10 wps-office-prometheus.desktop
-rwxr-xr-x 1 ruhong users 1247 2月 17 21:06 wps-office-wps.desktop
ruhong@localhost:~/sliding_puzzle> chmod a+x ~/桌面/sliding_puzzle.desktop
将sliding_puzzle.desktop复制到/home/ruhong/桌面和添加执行权限
设置opensuse15.6显示桌面图标
应用程序------工具------终端
ruhong@localhost:~> su -
密码：
localhost:~ # zypper install nemo
...
The following 20 NEW packages are going to be installed:
libnemo-extension1 libxapp1 libxklavier16 nemo nemo-extension-fileroller nemo-extension-seahorse
...
(19/20) Installing: nemo-extension-share-6.0.0-bp156.1.2.x86_64 ...[done]
(20/20) Installing: nemo-extension-fileroller-6.0.0-bp156.1.2.x86_64 ...[done]
localhost:~ # exit
logout
ruhong@localhost:~>
ruhong@localhost:~> vim ~/.config/autostart/nemo-autostart-with-gnome.desktop
新建文本文件/home/ruhong/.config/autostart/nemo-autostart-with-gnome.desktop并加入以下内容
Desktop Entry
Type=Application
Name=Nemo
Comment=Start Nemo desktop at log in
Exec=nemo-desktop
OnlyShowIn=GNOME;
AutostartCondition=GSettings org.nemo.desktop show-desktop-icons
X-GNOME-AutoRestart=true
NoDisplay=true
ruhong@localhost:~> gsettings set org.nemo.desktop use-desktop-grid false
ruhong@localhost:~> nemo.desktop ＆
到此桌面已经显示sliding_puzzle游戏程序图标，双击就可以开始游戏了，也可以复制其它常用程序desktop文件的到桌面也会显示出来的，双击就可以使用了
ruhong@localhost:~> cd /usr/share/applications/
ruhong@localhost:/usr/share/applications> ls ~/.config/autostart/
firefox.desktop org.gnome.Nautilus.desktop wps-office-wps.desktop
nemo-autostart-with-gnome.desktop org.gnome.Terminal.desktop
org.gnome.gedit.desktop org.opensuse.opensuse_welcome.desktop
ruhong@localhost:/usr/share/applications> cp firefox.desktop org.gnome.Nautilus.desktop org.gnome.Terminal.desktop org.gnome.gedit.desktop wps-office-wps.desktop /home/ruhong/桌面/
ruhong@localhost:/usr/share/applications> chmod a+x /home/ruhong/桌面/*
ruhong@localhost:/usr/share/applications> cd
七、结语
最后上网搜索数字华容道，就有许多视频讲解如何还原的方法和技巧了。阅读作者aeldemery的gtk4_sliding_puzzle原代码就好像阅读报纸上的文章很容易明白的，它是使用vala语言写的，gtk4-demo提供的原代码是C语言写的，而改写source.c的过程很主要还得要参考vala所写原代码的分析过程，尝试修改PuzzleBoard.vala，但是编译不成功，我也没有学过vala语言，只能修改source.c能编译通过，希望有人看过我这篇文章后能够修改PuzzleBoard.vala并编译成功。
