用Nano Banana验证UI设计

"尽早测试,经常测试"是产品设计中的强制性规则,尤其是对于 UI 设计而言。但 UI 设计验证是一项非常耗时的任务,因为您需要考虑很多事情。

在本文中,我分享了 5 个使用 Nano Banana Pro 对您的设计进行压力测试并在开发之前识别潜在可用性问题的案例。

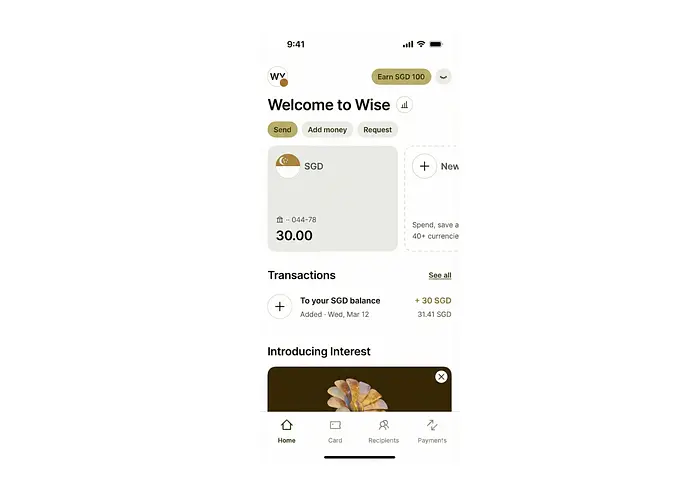

为了使本文非常实用,我将对一个真实的移动应用程序进行压力测试。

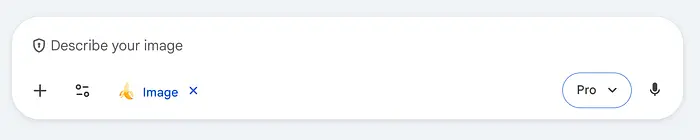

我将使用 Gemini 网页版中的 Nano Banana Pro,设置如下:生成图像Pro 模式。工作流程很简单:我上传移动屏幕截图(图像),然后提示工具执行测试。

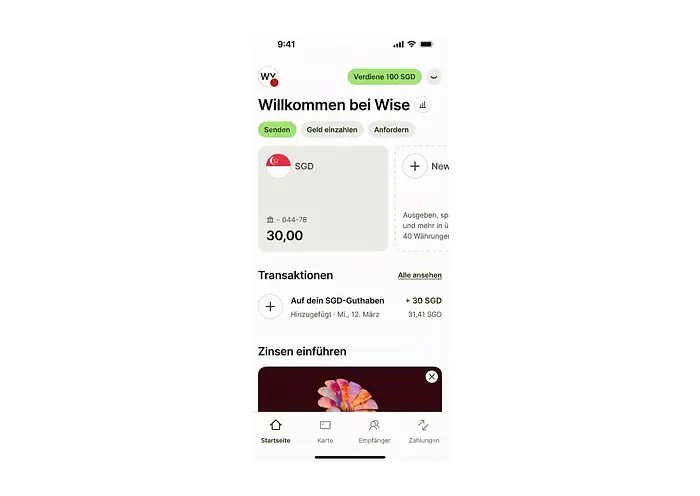

1、文本字符压力测试

当我们设计 UI 时,通常会针对主要语言(如英语)进行优化。但如果您的产品在多个地区可用,文本可能会轻松溢出内容容器。一个很好的例子是将英文翻译成德文,因为德语单词通常有更多字母。即使是不测试扩展,小标签也可能破坏布局。

Nano Banana Pro 提示和输出:

复制代码
Change text from English to German

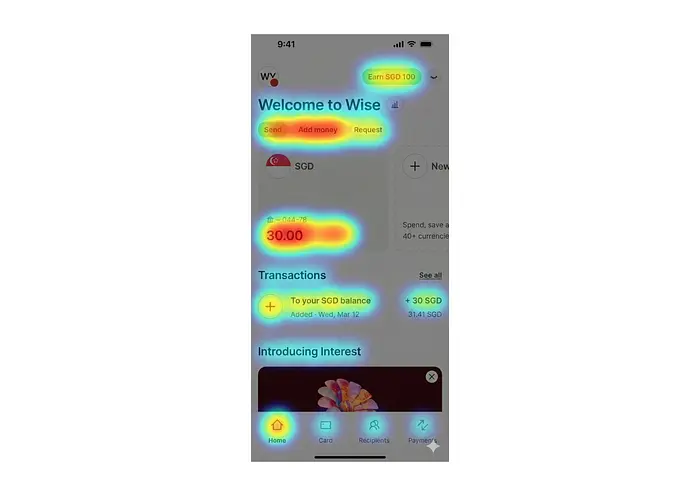

2、合成眼动热图

不确定您布局中的哪些区域会吸引最多的用户注意力?没问题。您可以使用 Nano Banana Pro 模拟用户兴趣。

它的工作原理是: Gemini 分析您上传的屏幕图像,预测感兴趣的区域,并将这些数据提供给 Nano Banana Pro,后者将其可视化为热图叠加层。

Nano Banana Pro 提示和输出:

复制代码
Analyze the screen layout and overlay a translucent, glowing heatmap onto
this UI screen, simulating areas of user interest to highlight the regions
that attract the most attention.

3、无障碍色盲预览

Nano Banana 还可以帮助您进行布局的无障碍测试,例如测试您的屏幕对于不同类型色觉缺陷用户(如绿色盲)的显示效果。

Nano Banana Pro 提示和输出:

复制代码
Re-render this specific UI screen as it would appear to a user with
Deuteranopia (red-green color blindness). Maintain the exact layout
and icons, but shift the color palette to represent the physiological
loss of red/green receptors, testing for functional legibility.

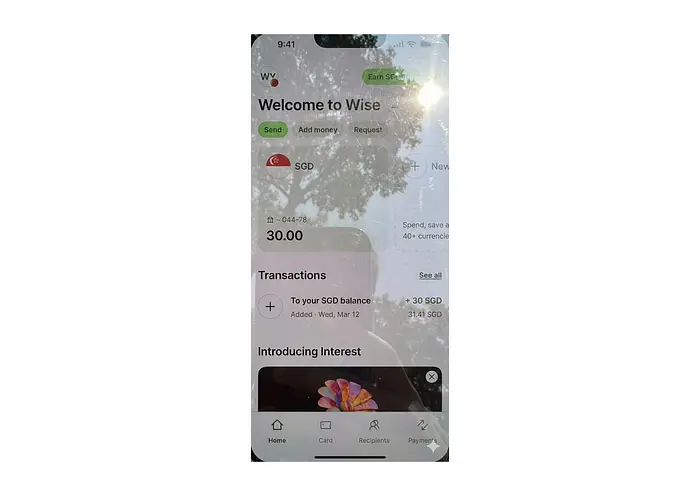

4、针对阳光眩光的设计

UI 设计中的常见问题之一:移动应用程序在设计师的屏幕上看起来很棒,但一旦在强阳光下的真实设备上查看,布局就变得无法阅读。Nano Banana 可以模拟真实世界的光照条件,帮助您在压力下验证对比度和可读性。

Nano Banana Pro 生成的提示和输出:

复制代码
Place this UI screen onto a realistic smartphone glass surface. Apply
a heavy 'outdoor midday' glare effect across the top-right corner,
including micro-scratches on the glass and a reflection of a tree.
Test if the high-contrast elements of the design still cut through
the reflection.

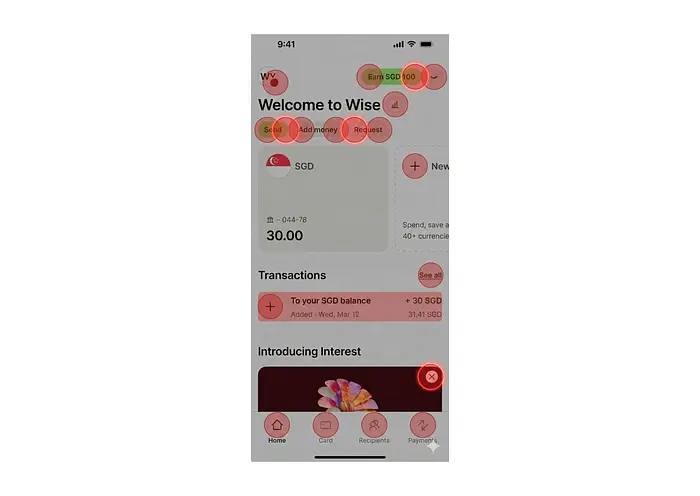

5、"胖手指"测试

点击不正确是移动 UI 设计中最常见的问题之一。当 UI 元素太小或彼此距离太近时,这个问题会变得尤为明显。Nano Banana Pro 可以添加触摸目标以确保它们符合可用性标准。

*快速说明:*这对于简单的屏幕效果很好,但对于更复杂的屏幕(比如我用于测试的屏幕),Nano Banana 可能会添加额外的对象。这不是一个关键问题,但如果您计划在产品中使用此功能,这是需要考虑的事情。

Nano Banana Pro 提示和输出:

复制代码
Overlay 44x44px translucent red 'touch target' circles on every
interactive element of this UI. Highlight areas where buttons
are too close together or overlap, visually auditing the interface
for mobile Fitts's Law compliance.

原文链接:用Nano Banana验证UI设计 - 汇智网
