一、RenderObject 渲染系统架构深度解析

Flutter 的渲染系统是其核心架构之一，RenderObject 作为渲染树的基本单元，负责布局计算、绘制和事件处理。深入理解这套架构，是构建高性能自定义组件的基础。

📱 1.1 Flutter 渲染管线架构

Flutter 的渲染管线由多个阶段组成，每个阶段都有明确的职责：

复制代码
┌─────────────────────────────────────────────────────────────────┐
│                    Flutter 渲染管线架构                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌─────────────┐    ┌─────────────┐    ┌─────────────┐         │
│  │   Widget    │───▶│   Element   │───▶│ RenderObject│         │
│  │   (配置)    │    │   (生命周期) │    │   (渲染)    │         │
│  └─────────────┘    └─────────────┘    └─────────────┘         │
│         │                  │                  │                 │
│         ▼                  ▼                  ▼                 │
│  ┌─────────────┐    ┌─────────────┐    ┌─────────────┐         │
│  │  不可变配置  │    │  状态管理   │    │  布局计算   │         │
│  │  声明式UI   │    │  树结构维护  │    │  绘制输出   │         │
│  └─────────────┘    └─────────────┘    └─────────────┘         │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

🔬 1.2 RenderObject 核心组件详解

Flutter 渲染系统的核心组件包括以下几个部分：

RenderObject（渲染对象）

RenderObject 是渲染树的基本单元，负责布局、绘制和命中测试。

dart 复制代码
abstract class RenderObject {
  void performLayout();
  void paint(PaintingContext context, Offset offset);
  bool hitTest(HitTestResult result, { required Offset position });
}

RenderBox（盒子渲染对象）

RenderBox 是最常用的 RenderObject 子类，实现了基于盒子模型的布局系统。

dart 复制代码
abstract class RenderBox extends RenderObject {
  BoxConstraints get constraints;
  Size get size;

  double computeMinIntrinsicWidth(double height);
  double computeMaxIntrinsicWidth(double height);
  double computeMinIntrinsicHeight(double width);
  double computeMaxIntrinsicHeight(double width);
}

ParentData（父节点数据）

ParentData 用于存储子节点在父节点中的布局信息。

dart 复制代码
class ParentData {
  Offset offset = Offset.zero;
}

class ContainerParentDataMixin<ChildType extends RenderObject> {
  ChildType? previousSibling;
  ChildType? nextSibling;
}

🎯 1.3 布局协议设计原则

Flutter 使用约束向下传递、尺寸向上返回的双向协议：

复制代码
┌─────────────────────────────────────────────────────────────────┐
│                    布局协议流程图                                │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│                    ┌───────────────┐                            │
│                    │   Parent      │                            │
│                    │  RenderBox    │                            │
│                    └───────┬───────┘                            │
│                            │                                    │
│         ┌──────────────────┼──────────────────┐                │
│         │                  │                  │                │
│         ▼                  ▼                  ▼                │
│   ┌───────────┐     ┌───────────┐     ┌───────────┐           │
│   │  Child 1  │     │  Child 2  │     │  Child 3  │           │
│   │ RenderBox │     │ RenderBox │     │ RenderBox │           │
│   └───────────┘     └───────────┘     └───────────┘           │
│                                                                 │
│   1. 父节点向下传递约束 (Constraints)                            │
│   2. 子节点根据约束计算自身大小 (Size)                           │
│   3. 子节点向上返回尺寸给父节点                                  │
│   4. 父节点根据子节点尺寸设置子节点位置                          │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

RenderObject 类型对比：

类型 特点 适用场景
RenderBox 盒子模型布局 大多数组件
RenderSliver 滑动布局协议 ListView, GridView
RenderEditable 文本编辑支持 TextField
RenderImage 图片渲染优化 Image
RenderParagraph 文本段落渲染 Text

二、基础 RenderObject 实现

基础 RenderObject 实现包括简单自定义渲染、颜色渐变渲染和尺寸计算布局。

👆 2.1 简单自定义渲染对象

简单自定义渲染对象是最基础的 RenderObject 实现形式。

dart 复制代码
import 'package:flutter/rendering.dart';

/// 简单自定义渲染对象示例
class SimpleRenderBox extends RenderBox {
  Color _color = Colors.blue;

  Color get color => _color;
  set color(Color value) {
    if (_color != value) {
      _color = value;
      markNeedsPaint();
    }
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()..color = _color;
    canvas.drawRect(offset & size, paint);
  }
}

🔄 2.2 颜色渐变渲染对象

颜色渐变渲染对象实现动态颜色变化的渲染效果。

dart 复制代码
/// 颜色渐变渲染对象示例
class GradientRenderBox extends RenderBox {
  double _progress = 0.0;
  Color _startColor = Colors.blue;
  Color _endColor = Colors.purple;

  double get progress => _progress;
  set progress(double value) {
    if (_progress != value) {
      _progress = value;
      markNeedsPaint();
    }
  }

  @override
  void performLayout() {
    size = constraints.constrain(
      Size(double.infinity, double.infinity),
    );
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final rect = offset & size;

    final gradient = LinearGradient(
      begin: Alignment.topLeft,
      end: Alignment.bottomRight,
      colors: [
        Color.lerp(_startColor, _endColor, _progress)!,
        Color.lerp(_endColor, _startColor, _progress)!,
      ],
    );

    final paint = Paint()
      ..shader = gradient.createShader(rect);

    canvas.drawRect(rect, paint);

    final borderPaint = Paint()
      ..color = Colors.white.withOpacity(0.3)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 2;
    canvas.drawRect(rect, borderPaint);
  }
}

🌊 2.3 固有尺寸计算

固有尺寸计算实现组件的固有宽高计算。

dart 复制代码
/// 固有尺寸计算示例
class IntrinsicSizeRenderBox extends RenderBox {
  double _preferredWidth = 100.0;
  double _preferredHeight = 100.0;

  double get preferredWidth => _preferredWidth;
  set preferredWidth(double value) {
    if (_preferredWidth != value) {
      _preferredWidth = value;
      markNeedsLayout();
    }
  }

  double get preferredHeight => _preferredHeight;
  set preferredHeight(double value) {
    if (_preferredHeight != value) {
      _preferredHeight = value;
      markNeedsLayout();
    }
  }

  @override
  double computeMinIntrinsicWidth(double height) {
    return _preferredWidth;
  }

  @override
  double computeMaxIntrinsicWidth(double height) {
    return _preferredWidth;
  }

  @override
  double computeMinIntrinsicHeight(double width) {
    return _preferredHeight;
  }

  @override
  double computeMaxIntrinsicHeight(double width) {
    return _preferredHeight;
  }

  @override
  void performLayout() {
    size = constraints.constrain(
      Size(_preferredWidth, _preferredHeight),
    );
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()
      ..color = Colors.teal
      ..style = PaintingStyle.fill;
    canvas.drawRRect(
      RRect.fromRectAndRadius(
        offset & size,
        const Radius.circular(12),
      ),
      paint,
    );
  }
}

三、高级 RenderObject 实现

高级 RenderObject 实现包括多子节点布局、自定义 ParentData 和命中测试优化。

📊 3.1 圆形布局 RenderObject

圆形布局 RenderObject 实现子节点围绕圆心排列。

dart 复制代码
import 'dart:math' as math;

/// 圆形布局 ParentData
class CircleLayoutParentData extends ParentData
    with ContainerParentDataMixin<RenderBox> {
  double angle = 0.0;
  Offset offset = Offset.zero;
}

/// 圆形布局 RenderObject
class RenderCircleLayout extends RenderBox
    with ContainerRenderObjectMixin<RenderBox, CircleLayoutParentData> {

  double _radius = 100.0;
  double get radius => _radius;
  set radius(double value) {
    if (_radius != value) {
      _radius = value;
      markNeedsLayout();
    }
  }

  double _startAngle = -math.pi / 2;
  double get startAngle => _startAngle;
  set startAngle(double value) {
    if (_startAngle != value) {
      _startAngle = value;
      markNeedsLayout();
    }
  }

  @override
  void setupParentData(RenderBox child) {
    if (child.parentData is! CircleLayoutParentData) {
      child.parentData = CircleLayoutParentData();
    }
  }

  @override
  void performLayout() {
    int childCount = 0;
    RenderBox? child = firstChild;
    while (child != null) {
      childCount++;
      child = childAfter(child);
    }

    if (childCount == 0) {
      size = constraints.smallest;
      return;
    }

    final angleStep = 2 * math.pi / childCount;
    double maxChildSize = 0.0;

    child = firstChild;
    int index = 0;
    while (child != null) {
      child.layout(constraints, parentUsesSize: true);
      maxChildSize = math.max(
        maxChildSize,
        math.max(child.size.width, child.size.height),
      );

      final parentData = child.parentData as CircleLayoutParentData;
      parentData.angle = _startAngle + angleStep * index;

      index++;
      child = childAfter(child);
    }

    final diameter = _radius * 2 + maxChildSize;
    size = constraints.constrain(Size(diameter, diameter));

    child = firstChild;
    while (child != null) {
      final parentData = child.parentData as CircleLayoutParentData;
      final angle = parentData.angle;

      final centerX = size.width / 2;
      final centerY = size.height / 2;

      final x = centerX + _radius * math.cos(angle) - child.size.width / 2;
      final y = centerY + _radius * math.sin(angle) - child.size.height / 2;

      parentData.offset = Offset(x, y);
      child = childAfter(child);
    }
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final center = Offset(size.width / 2, size.height / 2);

    final circlePaint = Paint()
      ..color = Colors.grey.withOpacity(0.1)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 1;
    canvas.drawCircle(center, _radius, circlePaint);

    RenderBox? child = firstChild;
    while (child != null) {
      final parentData = child.parentData as CircleLayoutParentData;
      context.paintChild(child, offset + parentData.offset);
      child = childAfter(child);
    }
  }

  @override
  bool hitTestChildren(BoxHitTestResult result, {required Offset position}) {
    RenderBox? child = lastChild;
    while (child != null) {
      final parentData = child.parentData as CircleLayoutParentData;
      final transformedPosition = position - parentData.offset;
      if (child.hitTest(result, position: transformedPosition)) {
        return true;
      }
      child = childBefore(child);
    }
    return false;
  }
}

🎨 3.2 瀑布流布局 RenderObject

瀑布流布局 RenderObject 实现多列不等高的瀑布流效果。

dart 复制代码
/// 瀑布流布局 ParentData
class WaterfallParentData extends ParentData
    with ContainerParentDataMixin<RenderBox> {
  int column = 0;
  Offset offset = Offset.zero;
}

/// 瀑布流布局 RenderObject
class RenderWaterfallFlow extends RenderBox
    with ContainerRenderObjectMixin<RenderBox, WaterfallParentData> {

  int _columnCount = 2;
  int get columnCount => _columnCount;
  set columnCount(int value) {
    if (_columnCount != value) {
      _columnCount = value;
      markNeedsLayout();
    }
  }

  double _spacing = 8.0;
  double get spacing => _spacing;
  set spacing(double value) {
    if (_spacing != value) {
      _spacing = value;
      markNeedsLayout();
    }
  }

  double _runSpacing = 8.0;
  double get runSpacing => _runSpacing;
  set runSpacing(double value) {
    if (_runSpacing != value) {
      _runSpacing = value;
      markNeedsLayout();
    }
  }

  @override
  void setupParentData(RenderBox child) {
    if (child.parentData is! WaterfallParentData) {
      child.parentData = WaterfallParentData();
    }
  }

  @override
  void performLayout() {
    if (firstChild == null) {
      size = constraints.smallest;
      return;
    }

    final columnWidth = (constraints.maxWidth - _spacing * (_columnCount - 1)) / _columnCount;
    final columnHeights = List<double>.filled(_columnCount, 0.0);

    RenderBox? child = firstChild;
    while (child != null) {
      final shortestColumn = columnHeights.indexOf(columnHeights.reduce(math.min));

      final childConstraints = BoxConstraints(
        minWidth: columnWidth,
        maxWidth: columnWidth,
        minHeight: 0.0,
        maxHeight: constraints.maxHeight,
      );

      child.layout(childConstraints, parentUsesSize: true);

      final parentData = child.parentData as WaterfallParentData;
      parentData.column = shortestColumn;

      final x = shortestColumn * (columnWidth + _spacing);
      final y = columnHeights[shortestColumn];

      parentData.offset = Offset(x, y);
      columnHeights[shortestColumn] += child.size.height + _runSpacing;

      child = childAfter(child);
    }

    final maxHeight = columnHeights.reduce(math.max) - _runSpacing;
    size = constraints.constrain(Size(constraints.maxWidth, maxHeight));
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    RenderBox? child = firstChild;
    while (child != null) {
      final parentData = child.parentData as WaterfallParentData;
      context.paintChild(child, offset + parentData.offset);
      child = childAfter(child);
    }
  }

  @override
  bool hitTestChildren(BoxHitTestResult result, {required Offset position}) {
    RenderBox? child = lastChild;
    while (child != null) {
      final parentData = child.parentData as WaterfallParentData;
      final transformedPosition = position - parentData.offset;
      if (child.hitTest(result, position: transformedPosition)) {
        return true;
      }
      child = childBefore(child);
    }
    return false;
  }
}

🎯 3.3 自定义命中测试

自定义命中测试实现非矩形区域的触摸响应。

dart 复制代码
/// 圆形命中测试 RenderObject
class CircleHitTestRenderBox extends RenderBox {
  @override
  bool hitTest(HitTestResult result, {required Offset position}) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = math.min(size.width, size.height) / 2;
    final distance = (position - center).distance;

    if (distance <= radius) {
      result.add(BoxHitTestEntry(this, position));
      return true;
    }
    return false;
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final center = Offset(size.width / 2, size.height / 2);
    final radius = math.min(size.width, size.height) / 2;

    final paint = Paint()
      ..color = Colors.blue
      ..style = PaintingStyle.fill;
    canvas.drawCircle(center, radius, paint);
  }
}

/// 多边形命中测试 RenderObject
class PolygonHitTestRenderBox extends RenderBox {
  int _sides = 6;
  int get sides => _sides;
  set sides(int value) {
    if (_sides != value) {
      _sides = value;
      markNeedsPaint();
    }
  }

  Path _createPolygonPath(Size size) {
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final radius = math.min(size.width, size.height) / 2;

    for (int i = 0; i < _sides; i++) {
      final angle = (i * 2 * math.pi / _sides) - math.pi / 2;
      final x = center.dx + radius * math.cos(angle);
      final y = center.dy + radius * math.sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    return path;
  }

  @override
  bool hitTest(HitTestResult result, {required Offset position}) {
    final path = _createPolygonPath(size);
    if (path.contains(position)) {
      result.add(BoxHitTestEntry(this, position));
      return true;
    }
    return false;
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final path = _createPolygonPath(size);

    final paint = Paint()
      ..color = Colors.purple
      ..style = PaintingStyle.fill;
    canvas.drawPath(path, paint);
  }
}

四、Widget 封装与集成

🔗 4.1 LeafRenderObjectWidget 封装

LeafRenderObjectWidget 用于封装没有子节点的 RenderObject。

dart 复制代码
/// 自定义颜色渲染 Widget
class CustomColorBox extends LeafRenderObjectWidget {
  final double colorValue;

  const CustomColorBox({
    super.key,
    required this.colorValue,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderCustomColorBox(colorValue: colorValue);
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderCustomColorBox renderObject,
  ) {
    renderObject.colorValue = colorValue;
  }
}

class RenderCustomColorBox extends RenderBox {
  double _colorValue;

  RenderCustomColorBox({required double colorValue})
      : _colorValue = colorValue;

  double get colorValue => _colorValue;
  set colorValue(double value) {
    if (_colorValue != value) {
      _colorValue = value;
      markNeedsPaint();
    }
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()
      ..color = Color.lerp(Colors.blue, Colors.red, _colorValue)!;
    canvas.drawRect(offset & size, paint);
  }
}

🔗 4.2 SingleChildRenderObjectWidget 封装

SingleChildRenderObjectWidget 用于封装单个子节点的 RenderObject。

dart 复制代码
/// 单子节点变换 Widget
class TransformBox extends SingleChildRenderObjectWidget {
  final double scale;
  final double rotation;

  const TransformBox({
    super.key,
    required this.scale,
    required this.rotation,
    super.child,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderTransformBox()
      ..scale = scale
      ..rotation = rotation;
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderTransformBox renderObject,
  ) {
    renderObject
      ..scale = scale
      ..rotation = rotation;
  }
}

class RenderTransformBox extends RenderBox
    with RenderObjectWithChildMixin<RenderBox> {
  double _scale = 1.0;
  double _rotation = 0.0;

  double get scale => _scale;
  set scale(double value) {
    if (_scale != value) {
      _scale = value;
      markNeedsLayout();
    }
  }

  double get rotation => _rotation;
  set rotation(double value) {
    if (_rotation != value) {
      _rotation = value;
      markNeedsPaint();
    }
  }

  @override
  void performLayout() {
    if (child != null) {
      child!.layout(constraints, parentUsesSize: true);
      size = child!.size;
    } else {
      size = constraints.smallest;
    }
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    if (child != null) {
      final transform = Matrix4.identity()
        ..translate(size.width / 2, size.height / 2)
        ..rotateZ(_rotation)
        ..scale(_scale)
        ..translate(-size.width / 2, -size.height / 2);

      context.pushTransform(
        needsCompositing,
        offset,
        transform,
        (context, offset) => context.paintChild(child!, offset),
      );
    }
  }
}

🔗 4.3 MultiChildRenderObjectWidget 封装

MultiChildRenderObjectWidget 用于封装多个子节点的 RenderObject。

dart 复制代码
/// 圆形布局 Widget
class CircleLayout extends MultiChildRenderObjectWidget {
  final double radius;
  final double startAngle;

  const CircleLayout({
    super.key,
    required this.radius,
    this.startAngle = -math.pi / 2,
    super.children,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderCircleLayout()
      ..radius = radius
      ..startAngle = startAngle;
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderCircleLayout renderObject,
  ) {
    renderObject
      ..radius = radius
      ..startAngle = startAngle;
  }
}

五、性能优化策略

⚡ 5.1 布局缓存优化

布局缓存优化避免不必要的布局计算。

dart 复制代码
/// 布局缓存 RenderObject
class CachedLayoutRenderBox extends RenderBox {
  bool _needsLayout = true;
  Size _cachedSize = Size.zero;
  BoxConstraints? _lastConstraints;

  @override
  void markNeedsLayout() {
    if (!_needsLayout) {
      _needsLayout = true;
      super.markNeedsLayout();
    }
  }

  @override
  void performLayout() {
    if (!_needsLayout &&
        _lastConstraints != null &&
        _lastConstraints == constraints) {
      size = _cachedSize;
      return;
    }

    size = constraints.biggest;
    _cachedSize = size;
    _lastConstraints = constraints;
    _needsLayout = false;
  }
}

⚡ 5.2 绘制缓存优化

绘制缓存优化避免不必要的绘制操作。

dart 复制代码
/// 绘制缓存 RenderObject
class CachedPaintRenderBox extends RenderBox {
  Picture? _cachedPicture;
  bool _needsPaint = true;

  @override
  void markNeedsPaint() {
    _needsPaint = true;
    _cachedPicture?.dispose();
    _cachedPicture = null;
    super.markNeedsPaint();
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    if (!_needsPaint && _cachedPicture != null) {
      context.canvas.drawPicture(_cachedPicture!);
      return;
    }

    final recorder = PictureRecorder();
    final canvas = Canvas(recorder);

    _drawContent(canvas, offset);

    _cachedPicture = recorder.endRecording();
    _needsPaint = false;

    context.canvas.drawPicture(_cachedPicture!);
  }

  void _drawContent(Canvas canvas, Offset offset) {
    final paint = Paint()..color = Colors.blue;
    canvas.drawRect(offset & size, paint);
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }
}

⚡ 5.3 RepaintBoundary 优化

RepaintBoundary 隔离重绘范围，提升渲染性能。

dart 复制代码
/// 重绘边界 RenderObject
class IsolatedRenderBox extends RenderBox {
  @override
  bool get isRepaintBoundary => true;

  @override
  bool get alwaysNeedsCompositing => false;
}

/// 使用示例
class OptimizedWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        const Text('静态内容'),
        RepaintBoundary(
          child: AnimatedBuilder(
            animation: _controller,
            builder: (context, child) {
              return CustomPaint(
                painter: AnimatedPainter(_controller.value),
              );
            },
          ),
        ),
      ],
    );
  }
}

六、OpenHarmony 适配说明

📱 6.1 平台差异处理

OpenHarmony 平台可能需要特殊的渲染优化。

dart 复制代码
import 'dart:io' show Platform;

/// 平台感知 RenderObject
class PlatformAwareRenderBox extends RenderBox {
  bool get isPlatformOpenHarmony {
    try {
      return Platform.operatingSystem == 'ohos';
    } catch (_) {
      return false;
    }
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    if (isPlatformOpenHarmony) {
      _paintForOpenHarmony(context, offset);
    } else {
      _paintForOtherPlatforms(context, offset);
    }
  }

  void _paintForOpenHarmony(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()
      ..color = Colors.blue
      ..isAntiAlias = false;
    canvas.drawRect(offset & size, paint);
  }

  void _paintForOtherPlatforms(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()
      ..color = Colors.blue
      ..isAntiAlias = true;
    canvas.drawRect(offset & size, paint);
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }
}

📱 6.2 性能监控集成

集成性能监控帮助识别渲染瓶颈。

dart 复制代码
/// 性能监控 RenderObject
class PerformanceTrackedRenderBox extends RenderBox {
  final String debugName;

  PerformanceTrackedRenderBox({required this.debugName});

  @override
  void performLayout() {
    final stopwatch = Stopwatch()..start();
    super.performLayout();
    stopwatch.stop();

    if (stopwatch.elapsedMilliseconds > 16) {
      debugPrint('[$debugName] Layout took ${stopwatch.elapsedMilliseconds}ms');
    }
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final stopwatch = Stopwatch()..start();
    super.paint(context, offset);
    stopwatch.stop();

    if (stopwatch.elapsedMilliseconds > 8) {
      debugPrint('[$debugName] Paint took ${stopwatch.elapsedMilliseconds}ms');
    }
  }
}

七、最佳实践总结

✅ 7.1 RenderObject 开发清单

复制代码
┌─────────────────────────────────────────────────────────────────┐
│                   RenderObject 开发清单                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  □ 1. 正确实现 performLayout()                                  │
│      - 必须设置 size 属性                                       │
│      - 正确处理 constraints                                     │
│      - 子节点布局时传递正确的约束                                │
│                                                                 │
│  □ 2. 正确实现 paint()                                          │
│      - 使用 context.canvas 进行绘制                              │
│      - 正确处理 offset 参数                                     │
│      - 子节点使用 context.paintChild()                          │
│                                                                 │
│  □ 3. 正确实现 hitTest()                                        │
│      - 检查触摸点是否在范围内                                    │
│      - 添加 BoxHitTestEntry 到结果集                            │
│      - 正确实现 hitTestChildren()                               │
│                                                                 │
│  □ 4. 正确使用 ParentData                                       │
│      - 实现 setupParentData()                                   │
│      - 使用 ContainerParentDataMixin                            │
│      - 存储子节点位置信息                                        │
│                                                                 │
│  □ 5. 性能优化                                                  │
│      - 避免不必要的 markNeedsLayout()                           │
│      - 避免不必要的 markNeedsPaint()                            │
│      - 考虑使用 RepaintBoundary                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

✅ 7.2 调试技巧

dart 复制代码
/// 调试 RenderObject
class DebugRenderBox extends RenderBox {
  @override
  void performLayout() {
    debugPrint('performLayout: constraints=$constraints');
    super.performLayout();
    debugPrint('performLayout: size=$size');
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    debugPaintSize(context.canvas, offset);
    super.paint(context, offset);
  }

  void debugPaintSize(Canvas canvas, Offset offset) {
    final paint = Paint()
      ..color = Colors.red.withOpacity(0.3)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 1.0;

    canvas.drawRect(offset & size, paint);

    final textPainter = TextPainter(
      text: TextSpan(
        text: '${size.width.toInt()}x${size.height.toInt()}',
        style: const TextStyle(
          color: Colors.red,
          fontSize: 10,
        ),
      ),
      textDirection: TextDirection.ltr,
    );
    textPainter.layout();
    textPainter.paint(canvas, offset);
  }
}

八、完整示例代码

以下是完整的自定义渲染引擎系统示例代码：

dart 复制代码
import 'dart:math' as math;
import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
        useMaterial3: true,
      ),
      home: const RenderObjectHomePage(),
    );
  }
}

class RenderObjectHomePage extends StatelessWidget {
  const RenderObjectHomePage({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(

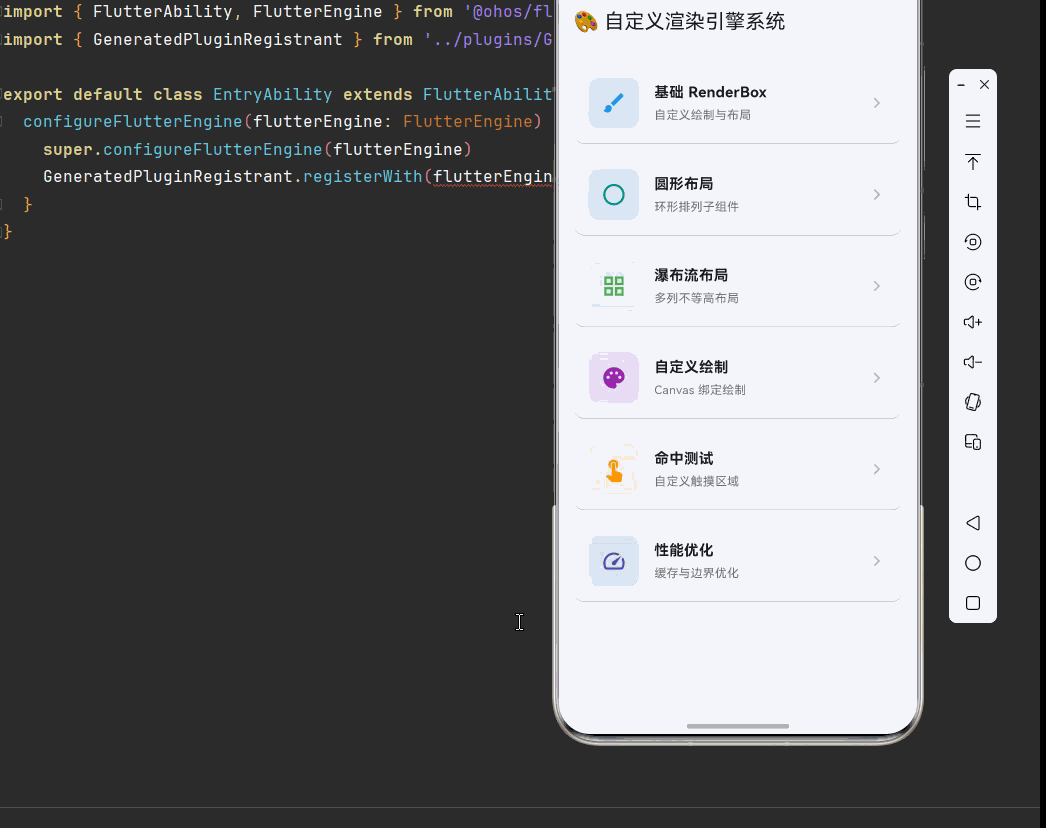

      appBar: AppBar(title: const Text('🎨 自定义渲染引擎系统')),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          _buildSectionCard(
            context,
            title: '基础 RenderBox',
            description: '自定义绘制与布局',
            icon: Icons.brush,
            color: Colors.blue,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const BasicRenderBoxDemo()),
            ),
          ),
          _buildSectionCard(
            context,
            title: '圆形布局',
            description: '环形排列子组件',
            icon: Icons.circle_outlined,
            color: Colors.teal,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const CircleLayoutDemo()),
            ),
          ),
          _buildSectionCard(
            context,
            title: '瀑布流布局',
            description: '多列不等高布局',
            icon: Icons.grid_view,
            color: Colors.green,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const WaterfallFlowDemo()),
            ),
          ),
          _buildSectionCard(
            context,
            title: '自定义绘制',
            description: 'Canvas 绑定绘制',
            icon: Icons.palette,
            color: Colors.purple,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const CustomPaintDemo()),
            ),
          ),
          _buildSectionCard(
            context,
            title: '命中测试',
            description: '自定义触摸区域',
            icon: Icons.touch_app,
            color: Colors.orange,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const HitTestDemo()),
            ),
          ),
          _buildSectionCard(
            context,
            title: '性能优化',
            description: '缓存与边界优化',
            icon: Icons.speed,
            color: Colors.indigo,
            onTap: () => Navigator.push(
              context,
              MaterialPageRoute(builder: (_) => const PerformanceDemo()),
            ),
          ),
        ],
      ),
    );
  }

  Widget _buildSectionCard(
    BuildContext context, {
    required String title,
    required String description,
    required IconData icon,
    required Color color,
    required VoidCallback onTap,
  }) {
    return Card(
      margin: const EdgeInsets.only(bottom: 12),
      child: InkWell(
        onTap: onTap,
        borderRadius: BorderRadius.circular(12),
        child: Padding(
          padding: const EdgeInsets.all(16),
          child: Row(
            children: [
              Container(
                width: 56,
                height: 56,
                decoration: BoxDecoration(
                  color: color.withOpacity(0.1),
                  borderRadius: BorderRadius.circular(12),
                ),
                child: Icon(icon, color: color, size: 28),
              ),
              const SizedBox(width: 16),
              Expanded(
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(
                      title,
                      style: const TextStyle(
                        fontSize: 16,
                        fontWeight: FontWeight.bold,
                      ),
                    ),
                    const SizedBox(height: 4),
                    Text(
                      description,
                      style: TextStyle(
                        fontSize: 13,
                        color: Colors.grey[600],
                      ),
                    ),
                  ],
                ),
              ),
              Icon(Icons.chevron_right, color: Colors.grey[400]),
            ],
          ),
        ),
      ),
    );
  }
}

class BasicRenderBoxDemo extends StatefulWidget {
  const BasicRenderBoxDemo({super.key});

  @override
  State<BasicRenderBoxDemo> createState() => _BasicRenderBoxDemoState();
}

class _BasicRenderBoxDemoState extends State<BasicRenderBoxDemo> {
  double _colorValue = 0.0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('基础 RenderBox')),
      body: Column(
        children: [
          Expanded(
            child: Center(
              child: SizedBox(
                width: 300,
                height: 300,
                child: CustomColorRenderBox(colorValue: _colorValue),
              ),
            ),
          ),
          Padding(
            padding: const EdgeInsets.all(16),
            child: Column(
              children: [
                Text('颜色值: ${_colorValue.toStringAsFixed(2)}'),
                const SizedBox(height: 8),
                Slider(
                  value: _colorValue,
                  onChanged: (value) => setState(() => _colorValue = value),
                ),
              ],
            ),
          ),
        ],
      ),
    );
  }
}

class CustomColorRenderBox extends LeafRenderObjectWidget {
  final double colorValue;

  const CustomColorRenderBox({
    super.key,
    required this.colorValue,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderCustomColorBox(colorValue: colorValue);
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderCustomColorBox renderObject,
  ) {
    renderObject.colorValue = colorValue;
  }
}

class RenderCustomColorBox extends RenderBox {
  double _colorValue;

  RenderCustomColorBox({required double colorValue}) : _colorValue = colorValue;

  double get colorValue => _colorValue;
  set colorValue(double value) {
    if (_colorValue != value) {
      _colorValue = value;
      markNeedsPaint();
    }
  }

  @override
  void performLayout() {
    size = constraints.biggest;
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final paint = Paint()
      ..color = Color.lerp(Colors.blue, Colors.red, _colorValue)!;
    canvas.drawRect(offset & size, paint);

    final borderPaint = Paint()
      ..color = Colors.white.withOpacity(0.5)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 2;
    canvas.drawRect(offset & size, borderPaint);
  }
}

class CircleLayoutDemo extends StatelessWidget {
  const CircleLayoutDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('圆形布局')),
      body: Center(
        child: SizedBox(
          width: 350,
          height: 350,
          child: CustomCircleLayout(
            radius: 120,
            children: List.generate(
              8,
              (index) => Container(
                width: 60,
                height: 60,
                decoration: BoxDecoration(
                  color: Colors.primaries[index % Colors.primaries.length],
                  borderRadius: BorderRadius.circular(12),
                ),
                child: Center(
                  child: Text(
                    '${index + 1}',
                    style: const TextStyle(
                      color: Colors.white,
                      fontSize: 20,
                      fontWeight: FontWeight.bold,
                    ),
                  ),
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class CustomCircleLayout extends MultiChildRenderObjectWidget {
  final double radius;

  const CustomCircleLayout({
    super.key,
    required this.radius,
    super.children,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderCustomCircleLayout(radius: radius);
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderCustomCircleLayout renderObject,
  ) {
    renderObject.radius = radius;
  }
}

class CircleParentData extends ParentData
    with ContainerParentDataMixin<RenderBox> {
  double angle = 0.0;
}

class RenderCustomCircleLayout extends RenderBox
    with ContainerRenderObjectMixin<RenderBox, CircleParentData> {
  double _radius;

  RenderCustomCircleLayout({required double radius}) : _radius = radius;

  double get radius => _radius;
  set radius(double value) {
    if (_radius != value) {
      _radius = value;
      markNeedsLayout();
    }
  }

  @override
  void setupParentData(RenderBox child) {
    if (child.parentData is! CircleParentData) {
      child.parentData = CircleParentData();
    }
  }

  @override
  void performLayout() {
    int childCount = 0;
    RenderBox? child = firstChild;
    while (child != null) {
      childCount++;
      child = childAfter(child);
    }

    if (childCount == 0) {
      size = constraints.smallest;
      return;
    }

    final angleStep = 2 * math.pi / childCount;
    double maxChildSize = 0.0;

    child = firstChild;
    int index = 0;
    while (child != null) {
      child.layout(constraints, parentUsesSize: true);
      maxChildSize = math.max(
        maxChildSize,
        math.max(child.size.width, child.size.height),
      );

      final parentData = child.parentData as CircleParentData;
      parentData.angle = -math.pi / 2 + angleStep * index;

      index++;
      child = childAfter(child);
    }

    final diameter = _radius * 2 + maxChildSize;
    size = constraints.constrain(Size(diameter, diameter));

    child = firstChild;
    while (child != null) {
      final parentData = child.parentData as CircleParentData;
      final angle = parentData.angle;

      final centerX = size.width / 2;
      final centerY = size.height / 2;

      final x = centerX + _radius * math.cos(angle) - child.size.width / 2;
      final y = centerY + _radius * math.sin(angle) - child.size.height / 2;

      parentData.offset = Offset(x, y);
      child = childAfter(child);
    }
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    final canvas = context.canvas;
    final center = Offset(size.width / 2, size.height / 2);

    final circlePaint = Paint()
      ..color = Colors.grey.withOpacity(0.1)
      ..style = PaintingStyle.stroke
      ..strokeWidth = 1;
    canvas.drawCircle(center, _radius, circlePaint);

    RenderBox? child = firstChild;
    while (child != null) {
      final parentData = child.parentData as CircleParentData;
      context.paintChild(child, offset + parentData.offset);
      child = childAfter(child);
    }
  }

  @override
  bool hitTestChildren(HitTestResult result, {required Offset position}) {
    RenderBox? child = lastChild;
    while (child != null) {
      final parentData = child.parentData as CircleParentData;
      final transformedPosition = position - parentData.offset;
      if (child.hitTest(result, position: transformedPosition)) {
        return true;
      }
      child = childBefore(child);
    }
    return false;
  }
}

class WaterfallFlowDemo extends StatelessWidget {
  const WaterfallFlowDemo({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('瀑布流布局')),
      body: CustomWaterfallFlow(
        columnCount: 2,
        spacing: 8,
        runSpacing: 8,
        children: List.generate(
          20,
          (index) => Container(
            decoration: BoxDecoration(
              color: Colors.primaries[index % Colors.primaries.length]
                  .withOpacity(0.7),
              borderRadius: BorderRadius.circular(8),
            ),
            height: 80 + (index % 4) * 40.0,
            child: Center(
              child: Text(
                'Item ${index + 1}',
                style: const TextStyle(
                  color: Colors.white,
                  fontWeight: FontWeight.bold,
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class CustomWaterfallFlow extends MultiChildRenderObjectWidget {
  final int columnCount;
  final double spacing;
  final double runSpacing;

  const CustomWaterfallFlow({
    super.key,
    required this.columnCount,
    this.spacing = 8,
    this.runSpacing = 8,
    super.children,
  });

  @override
  RenderObject createRenderObject(BuildContext context) {
    return RenderCustomWaterfallFlow(
      columnCount: columnCount,
      spacing: spacing,
      runSpacing: runSpacing,
    );
  }

  @override
  void updateRenderObject(
    BuildContext context,
    RenderCustomWaterfallFlow renderObject,
  ) {
    renderObject
      ..columnCount = columnCount
      ..spacing = spacing
      ..runSpacing = runSpacing;
  }
}

class WaterfallParentData extends ParentData
    with ContainerParentDataMixin<RenderBox> {}

class RenderCustomWaterfallFlow extends RenderBox
    with ContainerRenderObjectMixin<RenderBox, WaterfallParentData> {
  int _columnCount;
  double _spacing;
  double _runSpacing;

  RenderCustomWaterfallFlow({
    required int columnCount,
    required double spacing,
    required double runSpacing,
  })  : _columnCount = columnCount,
        _spacing = spacing,
        _runSpacing = runSpacing;

  int get columnCount => _columnCount;
  set columnCount(int value) {
    if (_columnCount != value) {
      _columnCount = value;
      markNeedsLayout();
    }
  }

  double get spacing => _spacing;
  set spacing(double value) {
    if (_spacing != value) {
      _spacing = value;
      markNeedsLayout();
    }
  }

  double get runSpacing => _runSpacing;
  set runSpacing(double value) {
    if (_runSpacing != value) {
      _runSpacing = value;
      markNeedsLayout();
    }
  }

  @override
  void setupParentData(RenderBox child) {
    if (child.parentData is! WaterfallParentData) {
      child.parentData = WaterfallParentData();
    }
  }

  @override
  void performLayout() {
    if (firstChild == null) {
      size = constraints.smallest;
      return;
    }

    final columnWidth =
        (constraints.maxWidth - _spacing * (_columnCount - 1)) / _columnCount;
    final columnHeights = List<double>.filled(_columnCount, 0.0);

    RenderBox? child = firstChild;
    while (child != null) {
      final shortestColumn =
          columnHeights.indexOf(columnHeights.reduce(math.min));

      final childConstraints = BoxConstraints(
        minWidth: columnWidth,
        maxWidth: columnWidth,
        minHeight: 0.0,
        maxHeight: constraints.maxHeight,
      );

      child.layout(childConstraints, parentUsesSize: true);

      final parentData = child.parentData as WaterfallParentData;

      final x = shortestColumn * (columnWidth + _spacing);
      final y = columnHeights[shortestColumn];

      parentData.offset = Offset(x, y);
      columnHeights[shortestColumn] += child.size.height + _runSpacing;

      child = childAfter(child);
    }

    final maxHeight = columnHeights.reduce(math.max) - _runSpacing;
    size = constraints.constrain(Size(constraints.maxWidth, maxHeight));
  }

  @override
  void paint(PaintingContext context, Offset offset) {
    RenderBox? child = firstChild;
    while (child != null) {
      final parentData = child.parentData as WaterfallParentData;
      context.paintChild(child, offset + parentData.offset);
      child = childAfter(child);
    }
  }

  @override
  bool hitTestChildren(HitTestResult result, {required Offset position}) {
    RenderBox? child = lastChild;
    while (child != null) {
      final parentData = child.parentData as WaterfallParentData;
      final transformedPosition = position - parentData.offset;
      if (child.hitTest(result, position: transformedPosition)) {
        return true;
      }
      child = childBefore(child);
    }
    return false;
  }
}

class CustomPaintDemo extends StatefulWidget {
  const CustomPaintDemo({super.key});

  @override
  State<CustomPaintDemo> createState() => _CustomPaintDemoState();
}

class _CustomPaintDemoState extends State<CustomPaintDemo>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      vsync: this,
      duration: const Duration(seconds: 3),
    )..repeat();
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('自定义绘制')),
      body: Center(
        child: AnimatedBuilder(
          animation: _controller,
          builder: (context, child) {
            return CustomPaint(
              size: const Size(300, 300),
              painter: SpiralPainter(_controller.value),
            );
          },
        ),
      ),
    );
  }
}

class SpiralPainter extends CustomPainter {
  final double progress;

  SpiralPainter(this.progress);

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final paint = Paint()
      ..style = PaintingStyle.stroke
      ..strokeWidth = 3
      ..strokeCap = StrokeCap.round;

    final path = Path();
    for (double i = 0; i < 720; i++) {
      final angle = (i + progress * 360) * math.pi / 180;
      final radius = i / 720 * 120;
      final x = center.dx + radius * math.cos(angle);
      final y = center.dy + radius * math.sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }

    final gradient = SweepGradient(
      center: Alignment.center,
      colors: [
        Colors.blue,
        Colors.purple,
        Colors.pink,
        Colors.orange,
        Colors.blue,
      ],
      stops: const [0.0, 0.25, 0.5, 0.75, 1.0],
      transform: GradientRotation(progress * 2 * math.pi),
    );

    paint.shader =
        gradient.createShader(Rect.fromCircle(center: center, radius: 120));
    canvas.drawPath(path, paint);
  }

  @override
  bool shouldRepaint(SpiralPainter oldDelegate) =>
      progress != oldDelegate.progress;
}

class HitTestDemo extends StatefulWidget {
  const HitTestDemo({super.key});

  @override
  State<HitTestDemo> createState() => _HitTestDemoState();
}

class _HitTestDemoState extends State<HitTestDemo> {
  String _lastHit = '点击任意形状';

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('命中测试')),
      body: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Text(
            _lastHit,
            style: const TextStyle(fontSize: 18, fontWeight: FontWeight.bold),
          ),
          const SizedBox(height: 32),
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceEvenly,
            children: [
              GestureDetector(
                onTap: () => setState(() => _lastHit = '点击了圆形'),
                child: CustomPaint(
                  size: const Size(100, 100),
                  painter: CircleShapePainter(Colors.blue),
                ),
              ),
              GestureDetector(
                onTap: () => setState(() => _lastHit = '点击了星形'),
                child: CustomPaint(
                  size: const Size(100, 100),
                  painter: StarShapePainter(Colors.orange),
                ),
              ),
              GestureDetector(
                onTap: () => setState(() => _lastHit = '点击了心形'),
                child: CustomPaint(
                  size: const Size(100, 100),
                  painter: HeartShapePainter(Colors.red),
                ),
              ),
            ],
          ),
        ],
      ),
    );
  }
}

class CircleShapePainter extends CustomPainter {
  final Color color;

  CircleShapePainter(this.color);

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()..color = color;
    canvas.drawCircle(
      Offset(size.width / 2, size.height / 2),
      size.width / 2 - 5,
      paint,
    );
  }

  @override
  bool shouldRepaint(CircleShapePainter oldDelegate) => color != oldDelegate.color;
}

class StarShapePainter extends CustomPainter {
  final Color color;

  StarShapePainter(this.color);

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()..color = color;
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final outerRadius = size.width / 2 - 5;
    final innerRadius = outerRadius * 0.4;

    for (int i = 0; i < 10; i++) {
      final radius = i.isEven ? outerRadius : innerRadius;
      final angle = (i * 36 - 90) * math.pi / 180;
      final x = center.dx + radius * math.cos(angle);
      final y = center.dy + radius * math.sin(angle);

      if (i == 0) {
        path.moveTo(x, y);
      } else {
        path.lineTo(x, y);
      }
    }
    path.close();
    canvas.drawPath(path, paint);
  }

  @override
  bool shouldRepaint(StarShapePainter oldDelegate) => color != oldDelegate.color;
}

class HeartShapePainter extends CustomPainter {
  final Color color;

  HeartShapePainter(this.color);

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()..color = color;
    final path = Path();
    final center = Offset(size.width / 2, size.height / 2);
    final scale = size.width / 100;

    path.moveTo(center.dx, center.dy + 15 * scale);
    path.cubicTo(
      center.dx - 35 * scale,
      center.dy - 15 * scale,
      center.dx - 35 * scale,
      center.dy - 40 * scale,
      center.dx,
      center.dy - 20 * scale,
    );
    path.cubicTo(
      center.dx + 35 * scale,
      center.dy - 40 * scale,
      center.dx + 35 * scale,
      center.dy - 15 * scale,
      center.dx,
      center.dy + 15 * scale,
    );
    path.close();

    canvas.drawPath(path, paint);
  }

  @override
  bool shouldRepaint(HeartShapePainter oldDelegate) => color != oldDelegate.color;
}

class PerformanceDemo extends StatefulWidget {
  const PerformanceDemo({super.key});

  @override
  State<PerformanceDemo> createState() => _PerformanceDemoState();
}

class _PerformanceDemoState extends State<PerformanceDemo>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  bool _useCache = true;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      vsync: this,
      duration: const Duration(seconds: 2),
    )..repeat();
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('性能优化')),
      body: Column(
        children: [
          Padding(
            padding: const EdgeInsets.all(16),
            child: Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                const Text('使用缓存'),
                Switch(
                  value: _useCache,
                  onChanged: (value) => setState(() => _useCache = value),
                ),
              ],
            ),
          ),
          Expanded(
            child: Center(
              child: SizedBox(
                width: 300,
                height: 300,
                child: RepaintBoundary(
                  child: AnimatedBuilder(
                    animation: _controller,
                    builder: (context, child) {
                      return CustomPaint(
                        size: const Size(300, 300),
                        painter: PerformancePainter(
                          _controller.value,
                          _useCache,
                        ),
                      );
                    },
                  ),
                ),
              ),
            ),
          ),
          const Padding(
            padding: EdgeInsets.all(16),
            child: Text('RepaintBoundary 可以隔离重绘范围，提升性能'),
          ),
        ],
      ),
    );
  }
}

class PerformancePainter extends CustomPainter {
  final double progress;
  final bool useCache;

  PerformancePainter(this.progress, this.useCache);

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);

    for (int i = 0; i < 100; i++) {
      final angle = (i * 3.6 + progress * 360) * math.pi / 180;
      final radius = 50 + i * 0.5;
      final x = center.dx + radius * math.cos(angle);
      final y = center.dy + radius * math.sin(angle);

      final paint = Paint()
        ..color = Colors.primaries[i % Colors.primaries.length]
            .withOpacity(0.7);
      canvas.drawCircle(Offset(x, y), 3, paint);
    }
  }

  @override
  bool shouldRepaint(PerformancePainter oldDelegate) =>
      progress != oldDelegate.progress || useCache != oldDelegate.useCache;
}

九、总结

本文深入探讨了 Flutter 的自定义渲染引擎系统，从 RenderObject 的底层原理到高级布局实现，涵盖了以下核心内容：

  1. 渲染管线架构：理解 Widget、Element、RenderObject 三层架构
  2. 基础 RenderObject：实现简单的自定义渲染对象
  3. 高级布局系统：圆形布局、瀑布流布局等复杂布局实现
  4. 命中测试：自定义触摸区域响应
  5. Widget 封装：LeafRenderObjectWidget、SingleChildRenderObjectWidget、MultiChildRenderObjectWidget
  6. 性能优化：布局缓存、绘制缓存、RepaintBoundary
  7. OpenHarmony 适配：平台差异处理和性能监控

通过掌握这些技术，你可以构建高性能、可定制的自定义组件，为 Flutter 应用提供更丰富的视觉效果和交互体验。

💡 提示：RenderObject 开发需要深入理解 Flutter 的渲染机制，建议先从简单的自定义绘制开始，逐步掌握布局协议和命中测试。
⚠️ 注意：自定义 RenderObject 时要注意性能优化，避免不必要的布局和绘制计算。

相关推荐
早點睡3902 小时前
Harmony Flutter 跨平台开发实战：鸿蒙与音乐律动艺术、粒子物理引力场：万有引力与排斥逻辑
flutter·华为·harmonyos
九狼2 小时前
Riverpod 2.0 代码生成与依赖注入
flutter·设计模式·github
空白诗3 小时前
Harmony Flutter 跨平台开发实战：鸿蒙与音乐律动艺术、傅里叶变换与频谱：从时域到频域的视觉翻译
flutter
2601_949593653 小时前
Harmony Flutter 跨平台开发实战：鸿蒙与音乐律动艺术、极坐标对称投影：万花筒般的几何韵律
flutter·华为·harmonyos
阿林来了3 小时前
Flutter三方库适配OpenHarmony【flutter_web_auth】— Dart 层源码逐行解析
flutter
心之语歌3 小时前
Flutter Provider 使用教程：Consumer/of/watch/read 全解析
flutter
2601_949593653 小时前
Harmony Flutter 跨平台开发实战：鸿蒙与音乐律动艺术、Voronoi 泰森多边形：空间分割的动态演化
flutter·华为·harmonyos
松叶似针3 小时前
Flutter三方库适配OpenHarmony【doc_text】— Word 文档解析插件功能全景与适配价值
flutter·word·harmonyos
2601_949593653 小时前
Harmony Flutter 跨平台开发实战：鸿蒙与音乐律动艺术、分布式联觉震动：鸿蒙多端同步的节奏共鸣
flutter·harmonyos
热门推荐
01GitHub 镜像站点02AI Agent 平台横评：ZeroClaw vs OpenClaw vs Nanobot03Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services04【OpenClaw 本地实战 Ep.3】突破瓶颈：强制修改 openclaw.json 解锁 32k 上下文记忆05Clawdbot部署教程：解决‘gateway token missing’授权问题的完整步骤06openClaw安装飞书插件｜核心踩坑：spawn EINVAL 错误终极解决指南07全面体验 Grok API 中转站（2025 · Grok 4 系列最新版）08HTML 早已不是标签了，它现在是系统级接口：这 9 个 API 直接干翻常用 JS 库09AI 规范驱动开发“三剑客”深度对比：Spec-Kit、Kiro 与 OpenSpec 实战指南10jdk21下载、安装（Windows、Linux、macOS）
