🔥 实战 | 基于SoulX-FlashHead构建25FPS实时唇形同步FLV直播服务

大家好，今天给大家分享一个实战项目：基于SoulX-FlashHead模型搭建高帧率（25FPS）的实时唇形同步FLV直播服务。通过这个项目，我们可以实现输入文字自动生成语音，并同步生成对应唇形的视频流，最终以FLV格式推流，实现低延迟、高流畅度的直播体验。

📋 项目背景

SoulX-FlashHead是一款轻量级的唇形同步模型，能够根据音频生成逼真的人脸唇形视频。默认配置下的帧率和码率往往无法满足直播级别的流畅度要求，本文将重点讲解如何将模型推理、TTS语音合成、FFmpeg编码整合，打造25FPS高流畅度的FLV直播服务。

🎯 核心功能

  • ✅ 文字转语音（TTS）：基于edge-tts实现中文语音合成
  • ✅ 25FPS高帧率推理：优化模型推理参数，提升视频流畅度
  • ✅ FLV实时推流：通过FFmpeg编码生成低延迟FLV视频流
  • ✅ FastAPI服务封装：提供Web界面和HTTP接口，开箱即用
  • ✅ 模型预热机制：减少首次推理延迟
  • ✅ 完整的异常处理：保证服务稳定性

🛠️ 环境准备

1. 基础依赖安装

bash 复制代码
# 基础Python依赖
pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu118
pip install fastapi uvicorn loguru edge-tts librosa soundfile opencv-python numpy
pip install simplejpeg  # 可选，加速JPEG处理
pip install flash_head  # SoulX-FlashHead模型
pip install ffmpeg-python

# 系统依赖（FFmpeg必须）
# Ubuntu/Debian
sudo apt update && sudo apt install -y ffmpeg
# CentOS
sudo yum install -y ffmpeg
# MacOS
brew install ffmpeg

2. 模型下载

需要提前下载以下模型文件，并放到指定目录：

  • SoulX-FlashHead-1_3B：唇形同步主模型（放到models/SoulX-FlashHead-1_3B）
  • wav2vec2-base-960h：音频特征提取模型（放到models/wav2vec2-base-960h）
  • 参考人脸图片：放到examples/girl.png（可替换为自己的图片）

🚀 核心代码实现

完整代码（server.py）

python 复制代码
import os
import cv2
import torch
import numpy as np
import threading
import time
import asyncio
import uvicorn
import edge_tts
import io
import librosa
import soundfile as sf
import subprocess
import queue
from loguru import logger

from fastapi import FastAPI
from fastapi.responses import HTMLResponse, StreamingResponse

from flash_head.inference import get_pipeline, get_base_data, get_infer_params, get_audio_embedding, run_pipeline
import torch._dynamo
torch._dynamo.config.suppress_errors = True

try:
    import simplejpeg
    USE_FAST_JPEG = True
except:
    USE_FAST_JPEG = False

# ==============================
# 配置项 (调整为 25 FPS)
# ==============================
CKPT_DIR = "models/SoulX-FlashHead-1_3B"
WAV2VEC_DIR = "models/wav2vec2-base-960h"
MODEL_TYPE = "lite"
COND_IMAGE_PATH = "examples/girl.png"
TTS_VOICE = "zh-CN-XiaoxiaoNeural"
SAMPLE_RATE = 16000
# 【修改】帧率调整为 25，更流畅
TARGET_FPS = 25
# 【修改】码率提升到 600k，保证画质
VIDEO_BITRATE = "600k"
AUDIO_BITRATE = "32k"

app = FastAPI()
pipeline = None

# ==============================
# 模型加载 & 预热 (3秒)
# ==============================
def load_model():
    global pipeline
    logger.info("Loading Model...")
    pipeline = get_pipeline(world_size=1, ckpt_dir=CKPT_DIR, model_type=MODEL_TYPE, wav2vec_dir=WAV2VEC_DIR)
    get_base_data(pipeline, cond_image_path_or_dir=COND_IMAGE_PATH, base_seed=9999, use_face_crop=True)
    logger.info("Model Loaded.")

def warm_up():
    logger.info("Warming up (Duration: 3s, FPS: 25)...")
    try:
        duration = 3
        t = np.linspace(0, 1, SAMPLE_RATE * duration)
        dummy_audio = (np.sin(2 * np.pi * 440 * t) * 0.5).astype(np.float32)

        with torch.no_grad():
            emb = get_audio_embedding(pipeline, dummy_audio)
            params = get_infer_params()
            params['tgt_fps'] = TARGET_FPS
            _ = run_pipeline(pipeline, emb[:, :params['frame_num']])
            if torch.cuda.is_available():
                torch.cuda.synchronize()
        logger.info("Warmup Complete.")
    except Exception as e:
        logger.warning(f"Warmup skip: {e}")

# ==============================
# FFmpeg 封装器
# ==============================
class FLVStreamer:
    def __init__(self):
        self.process = None
        self.is_running = False
        os.makedirs("temp", exist_ok=True)
        self.temp_audio_path = os.path.join("temp", f"temp_audio_{time.time_ns()}.wav")

    def set_audio(self, audio_data):
        logger.info(f"Writing audio to {self.temp_audio_path}...")
        sf.write(self.temp_audio_path, audio_data, SAMPLE_RATE)

        command = [
            'ffmpeg',
            '-y',
            # 视频输入：明确指定 -r 25
            '-f', 'rawvideo',
            '-vcodec', 'rawvideo',
            '-s', '512x512',
            '-pix_fmt', 'bgr24',
            '-r', str(TARGET_FPS),
            '-i', '-',

            # 音频输入
            '-i', self.temp_audio_path,

            # 编码配置
            '-c:v', 'libx264',
            '-preset', 'ultrafast',
            '-tune', 'zerolatency',
            '-b:v', VIDEO_BITRATE,
            '-pix_fmt', 'yuv420p',
            '-g', str(TARGET_FPS * 2), # 关键帧间隔
            '-vsync', 'cfr',

            '-c:a', 'aac',
            '-b:a', AUDIO_BITRATE,
            '-ar', '16000',

            '-f', 'flv',
            '-flvflags', 'no_duration_filesize',
            'pipe:1'
        ]

        logger.info(f"Starting FFmpeg (FPS: {TARGET_FPS})...")
        self.process = subprocess.Popen(
            command,
            stdin=subprocess.PIPE,
            stdout=subprocess.PIPE,
            stderr=subprocess.PIPE,
            bufsize=0
        )
        self.is_running = True

        def log_stderr():
            while self.is_running:
                line = self.process.stderr.readline()
                if not line: break
                try:
                    msg = line.decode('utf-8', errors='ignore').strip()
                    if msg: logger.debug(f"[FFmpeg] {msg}")
                except: pass

        threading.Thread(target=log_stderr, daemon=True).start()

    def feed_video(self, frame_bgr):
        if not self.process or not self.is_running:
            return
        try:
            self.process.stdin.write(frame_bgr.tobytes())
        except BrokenPipeError:
            logger.warning("FFmpeg stdin broken")
            self.is_running = False
        except Exception as e:
            logger.error(f"Feed video error: {e}")
            self.is_running = False

    def read_stream(self):
        if not self.process: return
        try:
            while self.is_running:
                chunk = self.process.stdout.read(4096)
                if not chunk: break
                yield chunk
        finally:
            self.stop()

    def stop(self):
        self.is_running = False
        if self.process:
            try:
                self.process.stdin.close()
                self.process.terminate()
                self.process.wait(timeout=2)
            except: pass
        if hasattr(self, 'temp_audio_path') and os.path.exists(self.temp_audio_path):
            try: os.remove(self.temp_audio_path)
            except: pass

# ==============================
# 推理线程
# ==============================
def inference_worker(text, streamer):
    try:
        logger.info(f"[Worker] 开始生成: {text[:20]}...")

        # 1. TTS
        comm = edge_tts.Communicate(text, TTS_VOICE)
        audio_buffer = io.BytesIO()
        loop = asyncio.new_event_loop()
        asyncio.set_event_loop(loop)

        async def get_audio():
            async for c in comm.stream():
                if c["type"] == "audio": audio_buffer.write(c["data"])

        loop.run_until_complete(get_audio())
        loop.close()

        audio_buffer.seek(0)
        audio_data, sr = sf.read(audio_buffer)
        if sr != SAMPLE_RATE:
            audio_data = librosa.resample(audio_data, orig_sr=sr, target_sr=SAMPLE_RATE)
        audio_data = audio_data.astype(np.float32)

        # 2. 准备音频
        audio_int16 = (audio_data * 32767).astype(np.int16)
        streamer.set_audio(audio_int16)

        # 3. 推理参数
        params = get_infer_params()
        params['tgt_fps'] = TARGET_FPS
        tgt_fps = params['tgt_fps']
        f_num = params['frame_num']
        m_num = params['motion_frames_num']
        s_len = f_num - m_num

        s_a = s_len * SAMPLE_RATE // tgt_fps
        f_a = f_num * SAMPLE_RATE // tgt_fps

        # 音频对齐
        rem = (len(audio_data) - f_a) % s_a
        if rem > 0:
            audio_data = np.concatenate([audio_data, np.zeros(s_a - rem, dtype=np.float32)])

        with torch.no_grad():
            emb = get_audio_embedding(pipeline, audio_data)

        chunks = (emb.shape[1] - f_num) // s_len

        # 计算总帧数
        audio_duration = len(audio_data) / SAMPLE_RATE
        target_total_frames = int(audio_duration * tgt_fps)

        logger.info(f"Audio Duration: {audio_duration:.2f}s | Target Frames: {target_total_frames}")

        generated_frames = 0

        for i in range(chunks):
            if generated_frames >= target_total_frames:
                break

            s = i * s_len
            e = s + f_num
            c_emb = emb[:, s:e].contiguous()

            with torch.no_grad():
                vid = run_pipeline(pipeline, c_emb)

            if i != 0:
                vid = vid[m_num:]

            frames_np = vid.cpu().numpy().astype(np.uint8)

            for k in range(frames_np.shape[0]):
                if generated_frames >= target_total_frames:
                    break

                f_rgb = frames_np[k]
                f_bgr = cv2.cvtColor(f_rgb, cv2.COLOR_RGB2BGR)
                streamer.feed_video(f_bgr)
                generated_frames += 1

        logger.info(f"Finished. Generated {generated_frames} frames.")
        time.sleep(1)
        streamer.stop()

    except Exception as e:
        logger.error(f"Worker error: {e}")
        import traceback
        traceback.print_exc()
        streamer.stop()

# ==============================
# API 路由
# ==============================
@app.get("/")
async def index():
    return HTMLResponse(content=html_content)

@app.get("/live.flv")
async def live_stream(text: str = "大家好，帧率已调整为25帧，画面更流畅。"):
    streamer = FLVStreamer()

    def run_inference():
        inference_worker(text, streamer)

    t = threading.Thread(target=run_inference, daemon=True)
    t.start()

    start_wait = time.time()
    while streamer.process is None:
        await asyncio.sleep(0.1)
        if time.time() - start_wait > 20:
            return {"error": "FFmpeg start timeout"}

    return StreamingResponse(
        streamer.read_stream(),
        media_type="video/x-flv",
        headers={
            "Cache-Control": "no-cache",
            "Connection": "keep-alive",
        }
    )

# ==============================
# 前端页面
# ==============================
html_content = """
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>AI实时唇形同步 (25FPS版)</title>
<style>
body{background:#111;color:#eee;font-family:sans-serif;text-align:center}
.container{width:600px;margin:20px auto;}
video{width:100%;background:#000;border:2px solid #4CAF50;}
textarea{width:100%;height:60px;background:#222;color:#eee;border:1px solid #444;padding:10px;box-sizing:border-box;margin-bottom:10px;}
button{padding:12px 30px;background:#4CAF50;border:none;color:#fff;cursor:pointer;font-size:16px;border-radius:4px}
.log{color:#aaa;font-size:12px;height:100px;overflow-y:scroll;background:#1a1a1a;padding:10px;text-align:left;border:1px solid #333;margin-top:10px;font-family:monospace;}
</style>
<script src="https://cdn.jsdelivr.net/npm/flv.js@latest/dist/flv.min.js"></script>
</head>
<body>

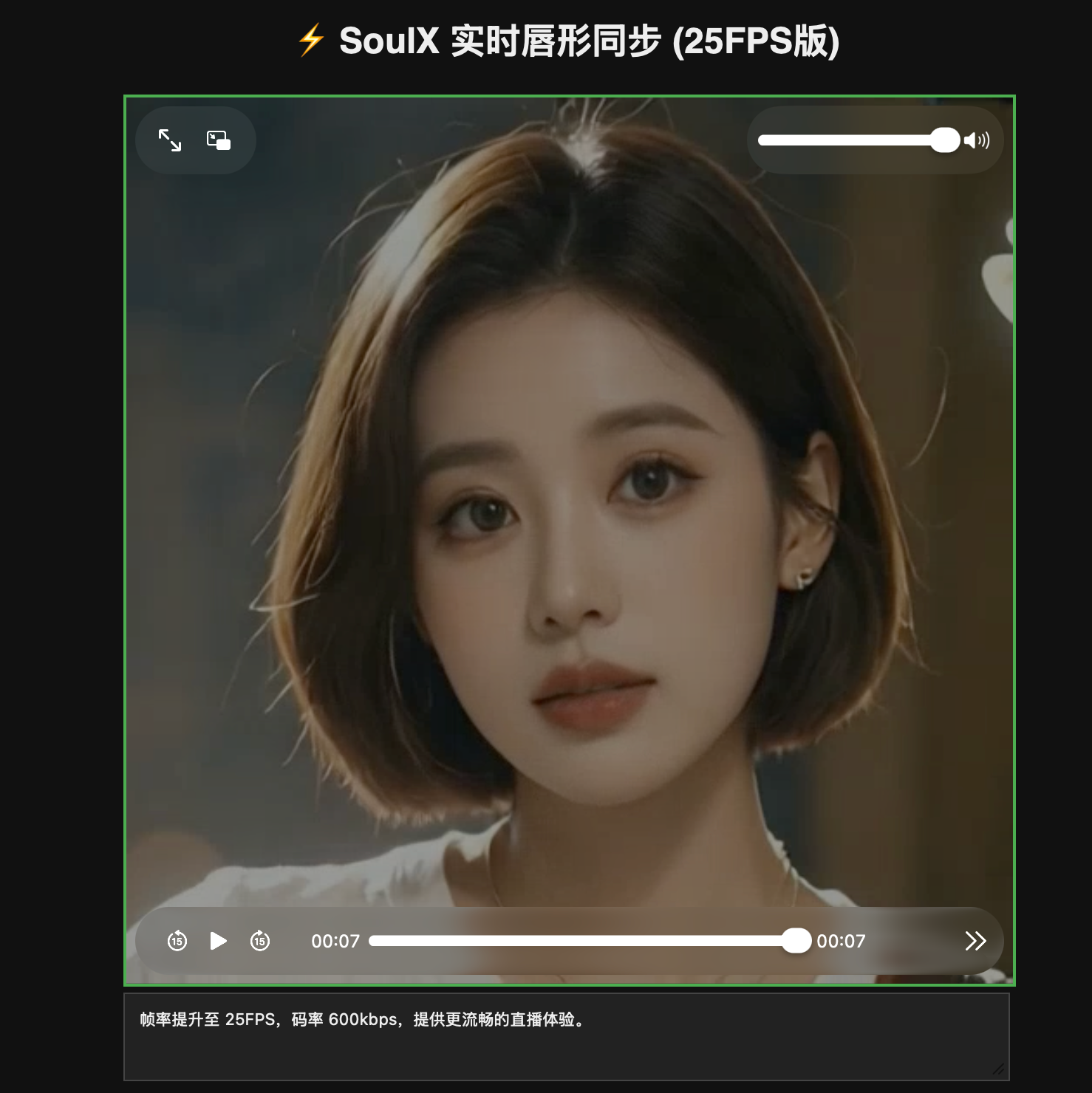

<h2>⚡ SoulX 实时唇形同步 (25FPS版)</h2>
<div class="container">
    <video id="videoPlayer" controls autoplay>Your browser does not support HTML5 video.</video>

    <textarea id="t">帧率提升至 25FPS，码率 600kbps，提供更流畅的直播体验。</textarea><br>
    <button onclick="start()">▶ 开始直播</button>
    <div id="log" class="log">系统就绪...</div>
</div>

<script>
const videoElement = document.getElementById('videoPlayer');
const logEl = document.getElementById('log');
let flvPlayer = null;

function l(m){
    const now = new Date();
    const ts = `${now.getHours().toString().padStart(2,'0')}:${now.getMinutes().toString().padStart(2,'0')}:${now.getSeconds().toString().padStart(2,'0')}`;
    logEl.innerHTML = `[${ts}] ${m}<br>` + logEl.innerHTML;
}

function start() {
    const text = document.getElementById('t').value;
    if(!text) return;

    l("正在启动...");

    if (flvPlayer) {
        flvPlayer.pause();
        flvPlayer.unload();
        flvPlayer.detachMediaElement();
        flvPlayer.destroy();
        flvPlayer = null;
    }

    if (flvjs.isSupported()) {
        flvPlayer = flvjs.createPlayer({
            type: 'flv',
            url: '/live.flv?text=' + encodeURIComponent(text),
            isLive: true,
            hasAudio: true,
            hasVideo: true,
            cors: true
        }, {
            enableStashBuffer: false,
            stashInitialSize: 128,
            lazyLoad: false
        });

        flvPlayer.attachMediaElement(videoElement);
        flvPlayer.load();

        let playPromise = videoElement.play();
        if (playPromise !== undefined) {
            playPromise.then(_ => {
                l("播放已启动");
            }).catch(error => {
                l("自动播放被阻止，请点击视频区域");
            });
        }
    }
}
</script>
</body>
</html>
"""

@app.on_event("startup")
async def startup_event():
    load_model()
    warm_up()

if __name__ == "__main__":
    uvicorn.run(app, host="0.0.0.0", port=8383)

🔍 核心模块解析

1. 模型加载与预热

python 复制代码
def load_model():
    global pipeline
    logger.info("Loading Model...")
    pipeline = get_pipeline(world_size=1, ckpt_dir=CKPT_DIR, model_type=MODEL_TYPE, wav2vec_dir=WAV2VEC_DIR)
    get_base_data(pipeline, cond_image_path_or_dir=COND_IMAGE_PATH, base_seed=9999, use_face_crop=True)
    logger.info("Model Loaded.")

def warm_up():
    logger.info("Warming up (Duration: 3s, FPS: 25)...")
    try:
        duration = 3
        t = np.linspace(0, 1, SAMPLE_RATE * duration)
        dummy_audio = (np.sin(2 * np.pi * 440 * t) * 0.5).astype(np.float32)

        with torch.no_grad():
            emb = get_audio_embedding(pipeline, dummy_audio)
            params = get_infer_params()
            params['tgt_fps'] = TARGET_FPS
            _ = run_pipeline(pipeline, emb[:, :params['frame_num']])
            if torch.cuda.is_available():
                torch.cuda.synchronize()
        logger.info("Warmup Complete.")
    except Exception as e:
        logger.warning(f"Warmup skip: {e}")
  • 模型加载：初始化FlashHead管道，加载参考人脸图片
  • 预热机制：使用3秒的虚拟音频进行一次推理，预热GPU/模型缓存，减少首次请求延迟
  • 关键参数：设置目标帧率为25FPS

2. FFmpeg FLV编码封装

python 复制代码
command = [
    'ffmpeg',
    '-y',
    # 视频输入：明确指定 -r 25
    '-f', 'rawvideo',
    '-vcodec', 'rawvideo',
    '-s', '512x512',
    '-pix_fmt', 'bgr24',
    '-r', str(TARGET_FPS),
    '-i', '-',

    # 音频输入
    '-i', self.temp_audio_path,

    # 编码配置
    '-c:v', 'libx264',
    '-preset', 'ultrafast',
    '-tune', 'zerolatency',
    '-b:v', VIDEO_BITRATE,
    '-pix_fmt', 'yuv420p',
    '-g', str(TARGET_FPS * 2), # 关键帧间隔
    '-vsync', 'cfr',

    '-c:a', 'aac',
    '-b:a', AUDIO_BITRATE,
    '-ar', '16000',

    '-f', 'flv',
    '-flvflags', 'no_duration_filesize',
    'pipe:1'
]
  • 编码优化 ：
    • 使用ultrafast预设 + zerolatency调优，优先保证低延迟
    • 关键帧间隔设置为2倍帧率（50帧），平衡延迟和容错性
    • 固定25FPS输入，保证视频流畅度
    • 600k视频码率，保证画质的同时控制带宽
  • FLV格式 ：设置no_duration_filesize，支持实时流输出

3. 推理与流推送

python 复制代码
def inference_worker(text, streamer):
    try:
        # 1. TTS语音合成
        comm = edge_tts.Communicate(text, TTS_VOICE)
        # 2. 音频处理与对齐
        # 3. 模型推理生成视频帧
        # 4. 逐帧推送到FFmpeg编码管道
        # 5. 异常处理与资源清理
    except Exception as e:
        logger.error(f"Worker error: {e}")
        import traceback
        traceback.print_exc()
        streamer.stop()
  • TTS合成：使用edge-tts将文字转为语音
  • 音频对齐：调整音频长度，保证与视频帧同步
  • 分块推理：将长音频分块处理，避免内存溢出
  • 逐帧推送：将生成的视频帧实时推送到FFmpeg编码进程

4. Web服务与前端

  • FastAPI路由：提供根页面和FLV流接口
  • 前端页面：使用flv.js播放FLV流，支持自定义文字输入
  • 低延迟配置：关闭缓存、最小化缓冲区，保证实时性

🎬 运行与测试

1. 启动服务

bash 复制代码
python server.py

2. 访问服务

打开浏览器访问 http://localhost:8383，即可看到Web界面：

  • 在文本框中输入想要合成的文字
  • 点击"开始直播"按钮
  • 等待几秒后即可看到实时生成的唇形同步视频流

🎨 效果优化建议

  1. GPU加速：确保使用CUDA版本的PyTorch，大幅提升推理速度
  2. 模型优化：可尝试使用TensorRT加速模型推理
  3. 码率调整 ：根据网络情况调整VIDEO_BITRATE（建议400k-1000k）
  4. 语音优化 ：更换TTS音色（修改TTS_VOICE参数）
  5. 参考图片 ：替换COND_IMAGE_PATH为自定义人脸图片

❌ 常见问题解决

1. FFmpeg启动超时

  • 检查FFmpeg是否正确安装：ffmpeg -version
  • 确保临时目录有写入权限：mkdir -p temp && chmod 777 temp

2. 视频卡顿

  • 检查GPU是否足够：nvidia-smi 查看显存使用
  • 降低码率或使用更小的模型（MODEL_TYPE="lite"）
  • 确认TARGET_FPS设置正确（25）

3. 音频不同步

  • 检查音频采样率是否为16000Hz
  • 调整-vsync cfr参数，强制恒定帧率

### 总结

  1. 本项目基于SoulX-FlashHead实现了25FPS高帧率的实时唇形同步FLV直播服务，核心整合了TTS语音合成、模型推理、FFmpeg编码和FastAPI Web服务；
  2. 关键优化点包括：25FPS帧率设置、600k视频码率、FFmpeg低延迟编码配置、模型预热机制；
  3. 项目提供完整的Web界面，支持自定义文字输入，开箱即用，可根据实际需求调整模型、码率、帧率等参数优化体验。
热门推荐
01GitHub 镜像站点02OpenClaw 使用和管理 MCP 完全指南03本地部署 OpenClaw + DeepSeek-R1 完全指南04得物前端部门，没了05OpenClaw 连接飞书完整指南：插件安装、配置与踩坑记录06OpenClaw 飞书机器人不回复消息？3 小时踩坑总结07Window 10部署openclaw报错node.exe : npm error code 12808OpenClaw macOS 完整安装与本地模型配置教程（实战版）09npm-error code 128问题解决方法10OpenClaw 接入 QQ Bot 完整实践指南
