1.Nginx简介

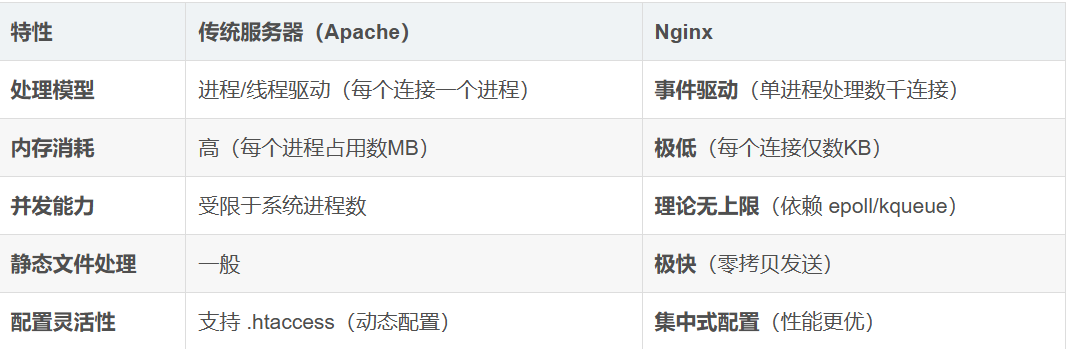

Nginx以其高并发、低内存消耗和高扩展性著称，如今已成为全球最流行的 Web 服务器之一

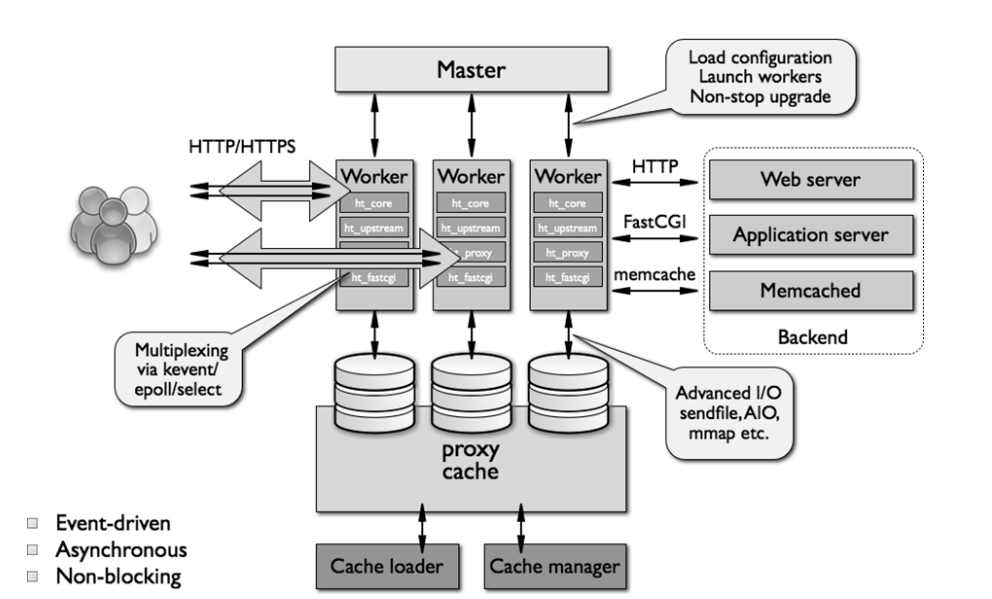

Nginx 之所以能处理百万级并发，源于其独特的架构设计，如图

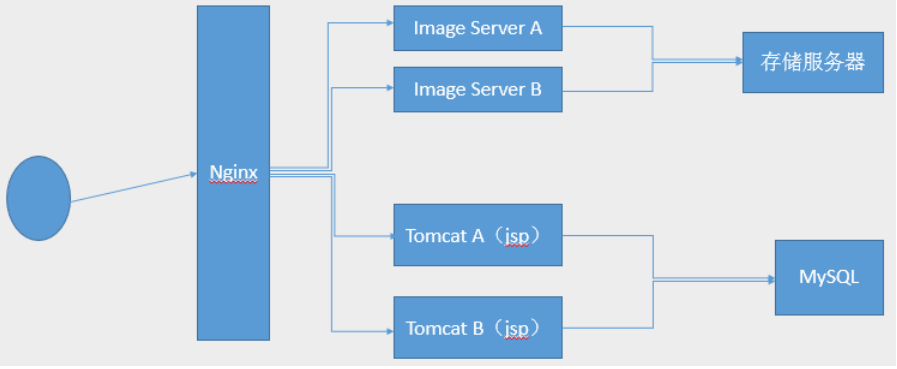

基于Nginx的工作场景：
Nginx 架构和进程
2.Nginx的源码编译
2.1.下载软件

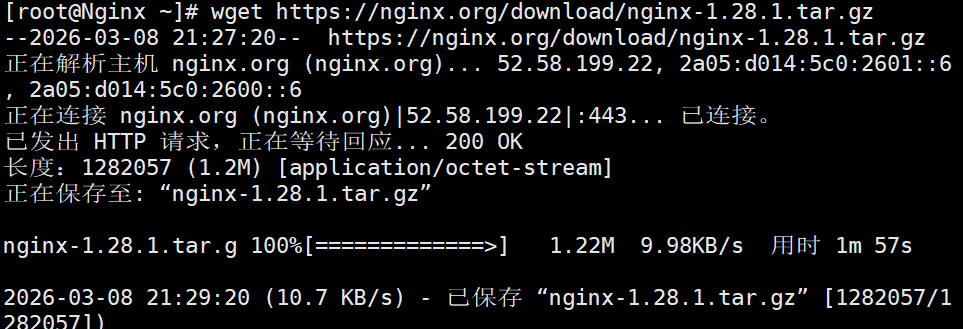

root@Nginx \~\]# wget https://nginx.org/download/nginx-1.28.1.tar.gz
2.2解压

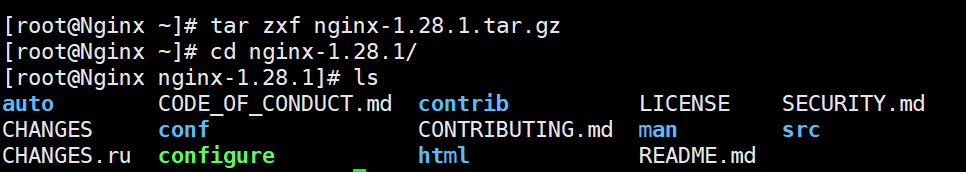

root@Nginx \~\]# tar zxf nginx-1.28.1.tar.gz \[root@Nginx \~\]# cd nginx-1.28.1/ \[root@Nginx nginx-1.28.1\]# ls
2.3.检测环境
#安装依赖性
root@Nginx \~\]# dnf install gcc openssl-devel.x86_64 pcre2-devel.x86_64 zlib-devel -y \[root@Nginx nginx-1.28.1\]# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module
2.4.编译
root@Nginx nginx-1.28.1\]# make \[root@Nginx nginx-1.28.1\]# make install
2.5.nginx启动
#设定环境变量
root@Nginx sbin\]# vim \~/.bash_profile export PATH=$PATH:/usr/local/nginx/sbin \[root@Nginx sbin\]# source \~/.bash_profile
root@Nginx sbin\]# source \~/.bash_profile \[root@Nginx logs\]# useradd -s /sbin/nologin -M nginx \[root@Nginx logs\]# nginx \[root@Nginx logs\]# ps aux \| grep nginx
#测试

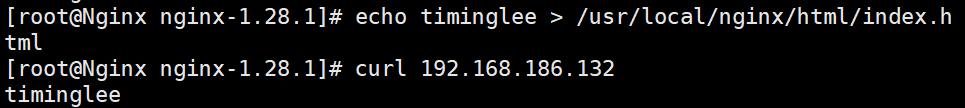

root@Nginx logs\]# echo timinglee \> /usr/local/nginx/html/index.html \[root@Nginx logs\]# curl 192.168.186.132 timinglee
2.6.编写启动文件

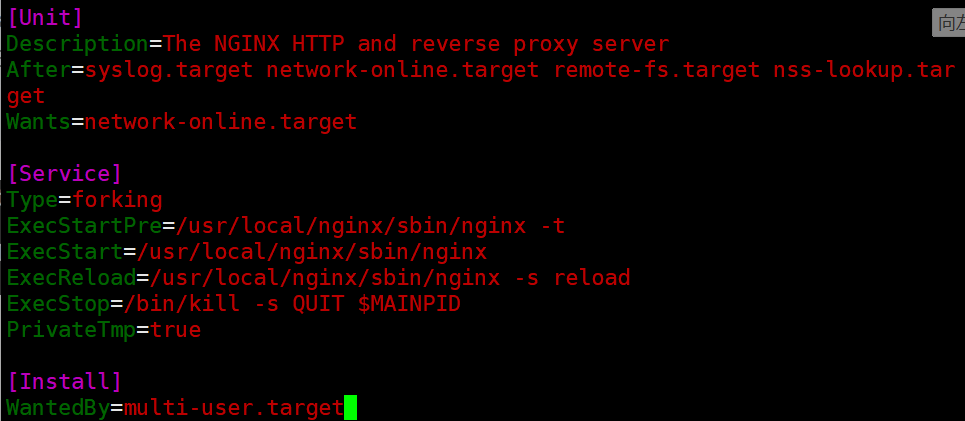

root@Nginx \~\]# vim /lib/systemd/system/nginx.service \[Unit
Description=The NGINX HTTP and reverse proxy server
After=syslog.target network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target
Service
Type=forking
ExecStartPre=/usr/local/nginx/sbin/nginx -t
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/usr/local/nginx/sbin/nginx -s reload
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
Install
WantedBy=multi-user.target
root@Nginx \~\]# systemctl daemon-reload
#验证

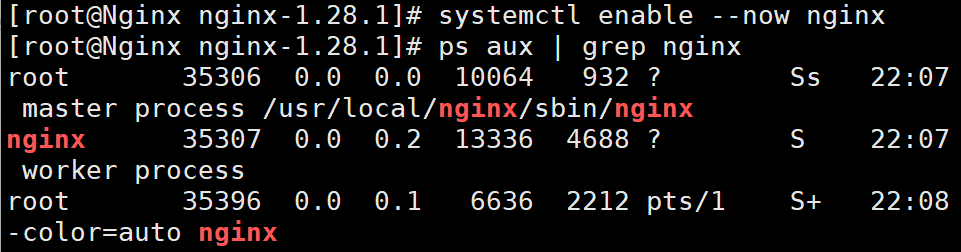

root@Nginx \~\]# systemctl status nginx.service \[root@Nginx \~\]# systemctl enable --now nginx \[root@Nginx \~\]# ps aux \| grep nginx
root@Nginx \~\]# reboot \[root@Nginx \~\]# systemctl status nginx.service
3.Nginx的平滑升级及回滚
3.1.下载高版本的软件
root@Nginx \~\]# wget https://nginx.org/download/nginx-1.29.4.tar.gz
3.2.对于新版本的软件进行源码编译并进行平滑升级
#编译nginx隐藏版本
root@Nginx \~\]# tar zxf nginx-1.29.4.tar.gz \[root@Nginx \~\]# cd nginx-1.29.4/src/core/ \[root@Nginx core\]# vim nginx.h #define nginx_version 1029004 #define NGINX_VERSION "" #define NGINX_VER "TIMINGLEE/" NGINX_VERSION
#文件编辑完成后进行源码编译即可
root@Nginx core\]# cd ../../ \[root@Nginx nginx-1.29.4\]# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module \[root@Nginx nginx-1.29.4\]# make \[root@Nginx nginx-1.29.4\]# cd objs/ \[root@Nginx objs\]# ls autoconf.err nginx ngx_auto_config.h ngx_modules.c src Makefile nginx.8 ngx_auto_headers.h ngx_modules.o \[root@Nginx objs\]# cd /usr/local/nginx/sbin/ \[root@Nginx sbin\]# ls nginx \[root@Nginx sbin\]# \\cp -f /root/nginx-1.29.4/objs/nginx /usr/local/nginx/sbin/nginx \[root@Nginx sbin\]# ls /usr/local/nginx/logs/ access.log error.log nginx.pid \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2360 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process \[root@Nginx sbin\]# kill -USR2 1643 #nginx master进程id \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process root 4923 0.0 0.1 6636 2176 pts/0 S+ 10:25 0:00 grep --color=auto nginx \[root@Nginx sbin\]# ls /usr/local/nginx/logs/ access.log error.log nginx.pid nginx.pid.oldbin
#测试效果
root@Nginx sbin\]# nginx -V nginx version: TIMINGLEE/ built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC) built with OpenSSL 3.2.2 4 Jun 2024 TLS SNI support enabled configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module
#回收旧版本子进程
root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 1644 0.0 0.2 14888 3896 ? S 09:55 0:00 nginx: worker process root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process root 4929 0.0 0.1 6636 2176 pts/0 S+ 10:27 0:00 grep --color=auto nginx \[root@Nginx sbin\]# kill -WINCH 1643 \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process root 4932 0.0 0.1 6636 2176 pts/0 S+ 10:28 0:00 grep --color=auto nginx
root@Nginx sbin\]# cd /usr/local/nginx/sbin/ \[root@Nginx sbin\]# cp nginx nginx.new -p \[root@Nginx sbin\]# \\cp nginx.old nginx -pf \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process \[root@Nginx sbin\]# kill -HUP 1643 \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4921 0.0 0.2 14916 4156 ? S 10:24 0:00 nginx: worker process nginx 4963 0.0 0.2 14888 3896 ? S 10:32 0:00 nginx: worker process root 4965 0.0 0.1 6636 2176 pts/0 S+ 10:32 0:00 grep --color=auto nginx \[root@Nginx sbin\]# nginx -V nginx version: nginx/1.28.1 built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC) built with OpenSSL 3.2.2 4 Jun 2024 TLS SNI support enabled configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module
#回收新版本进程
root@Nginx sbin\]# kill -WINCH 4919 \[root@Nginx sbin\]# ps aux \| grep nginx root 1643 0.0 0.1 14688 2744 ? Ss 09:55 0:00 nginx: master process /usr/local/nginx/sbin/nginx root 4919 0.0 0.4 14716 7936 ? S 10:24 0:00 nginx: master process /usr/local/nginx/sbin/nginx nginx 4963 0.0 0.2 14888 3896 ? S 10:32 0:00 nginx: worker process root 4969 0.0 0.1 6636 2176 pts/0 S+ 10:34 0:00 grep --color=auto nginx
