vscode+jadx-mcp-server配置及使用

一、准备工具

1. vscode:官网下载即可
2. jadx:https://github.com/skylot/jadx/releases/download/v1.5.5/jadx-gui-1.5.5-with-jre-win.zip
3. jadx-mcp-server:https://release-assets.githubusercontent.com/github-production-release-asset/962125208/9def5e94-724a-4154-a048-429465569f67?sp=r&sv=2018-11-09&sr=b&spr=https&se=2026-03-17T08%3A49%3A08Z&rscd=attachment%3B+filename%3Djadx-mcp-server-v6.2.0.zip&rsct=application%2Foctet-stream&skoid=96c2d410-5711-43a1-aedd-ab1947aa7ab0&sktid=398a6654-997b-47e9-b12b-9515b896b4de&skt=2026-03-17T07%3A48%3A20Z&ske=2026-03-17T08%3A49%3A08Z&sks=b&skv=2018-11-09&sig=qSZiCn8%2Bn7ZaRqzxL%2BCos3FMH32e%2FsWtOXpuxiqlHn0%3D&jwt=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJnaXRodWIuY29tIiwiYXVkIjoicmVsZWFzZS1hc3NldHMuZ2l0aHVidXNlcmNvbnRlbnQuY29tIiwia2V5Ijoia2V5MSIsImV4cCI6MTc3MzczNTIzNiwibmJmIjoxNzczNzM0OTM2LCJwYXRoIjoicmVsZWFzZWFzc2V0cHJvZHVjdGlvbi5ibG9iLmNvcmUud2luZG93cy5uZXQifQ.P_xtf2Bh5z1T_uqIXbDOr22EJ2nvDQSlBWcUv29WLBg&response-content-disposition=attachment%3B%20filename%3Djadx-mcp-server-v6.2.0.zip&response-content-type=application%2Foctet-stream
4. jadx-ai-mcp:https://release-assets.githubusercontent.com/github-production-release-asset/962125208/6548bf22-aace-44b5-8b99-5c66c7549355?sp=r&sv=2018-11-09&sr=b&spr=https&se=2026-03-17T08%3A51%3A52Z&rscd=attachment%3B+filename%3Djadx-ai-mcp-6.2.0.jar&rsct=application%2Foctet-stream&skoid=96c2d410-5711-43a1-aedd-ab1947aa7ab0&sktid=398a6654-997b-47e9-b12b-9515b896b4de&skt=2026-03-17T07%3A51%3A17Z&ske=2026-03-17T08%3A51%3A52Z&sks=b&skv=2018-11-09&sig=1ItccLwYD%2FW5tZtkyZRuojvC%2Bf8yeDoa0W6XJtnoy7I%3D&jwt=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJnaXRodWIuY29tIiwiYXVkIjoicmVsZWFzZS1hc3NldHMuZ2l0aHVidXNlcmNvbnRlbnQuY29tIiwia2V5Ijoia2V5MSIsImV4cCI6MTc3MzczNTIzNCwibmJmIjoxNzczNzM0OTM0LCJwYXRoIjoicmVsZWFzZWFzc2V0cHJvZHVjdGlvbi5ibG9iLmNvcmUud2luZG93cy5uZXQifQ.OiZwrVnUm7GpNv1Af-URWGKL06KW_5RKqaBGraE2XA4&response-content-disposition=attachment%3B%20filename%3Djadx-ai-mcp-6.2.0.jar&response-content-type=application%2Foctet-stream

安装及配置

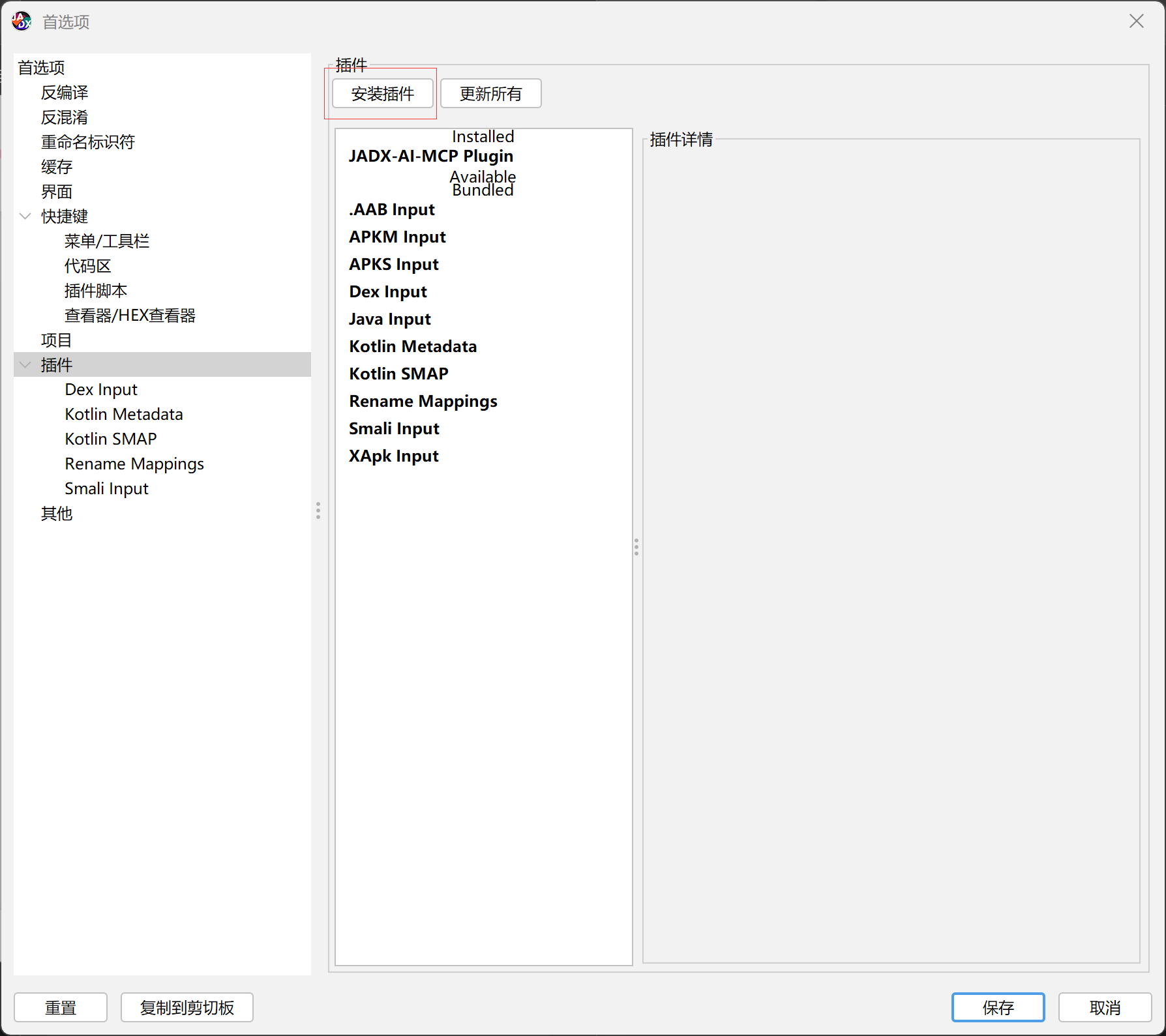

1. 下载Jadx最新release包，运行jadx-gui-1.5.5.exe，菜单文件->首选项->插件中，点击安装插件

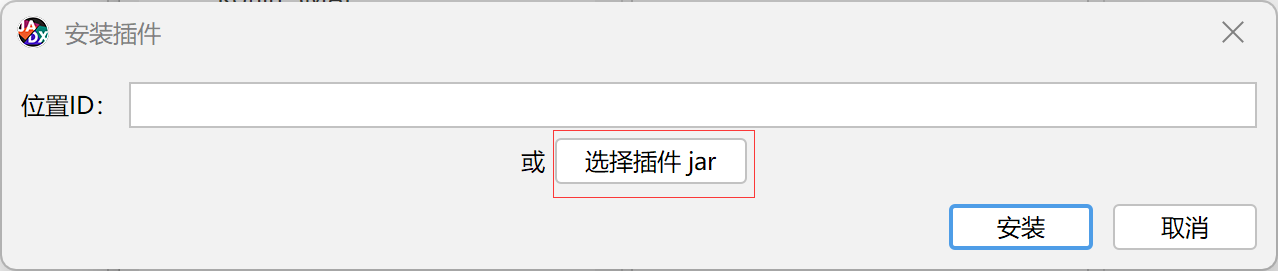

2. 点击选择插件.jar

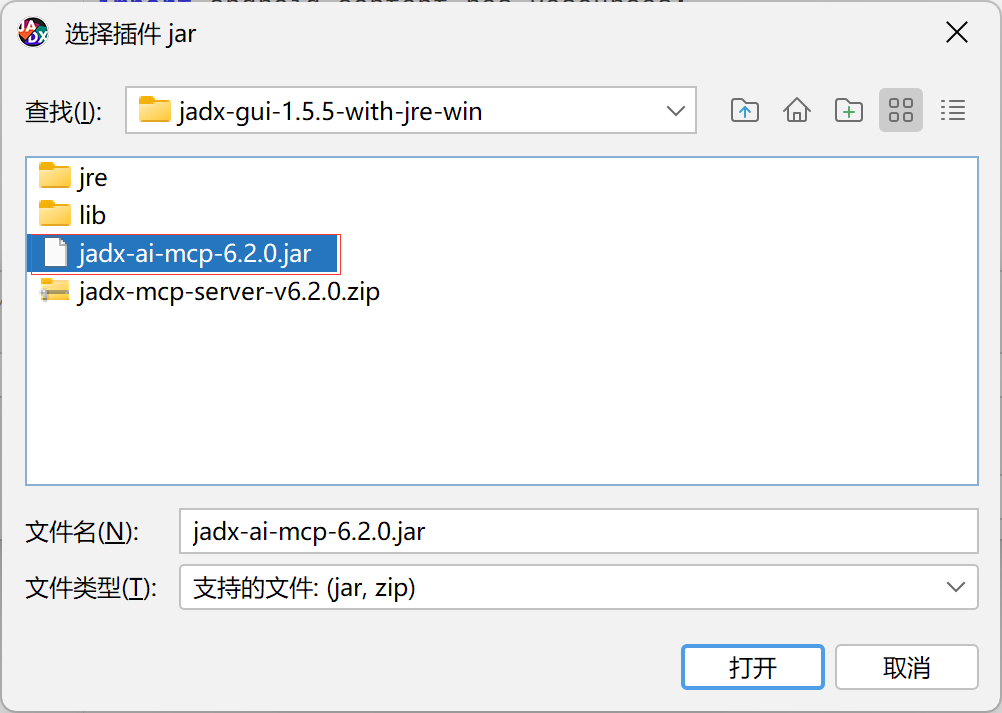

3. 选择jadx-ai-mcp-6.2.0.jar

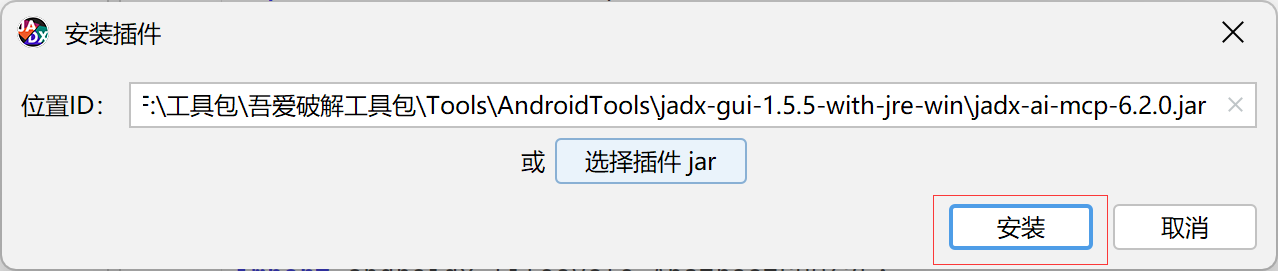

4. 点击安装

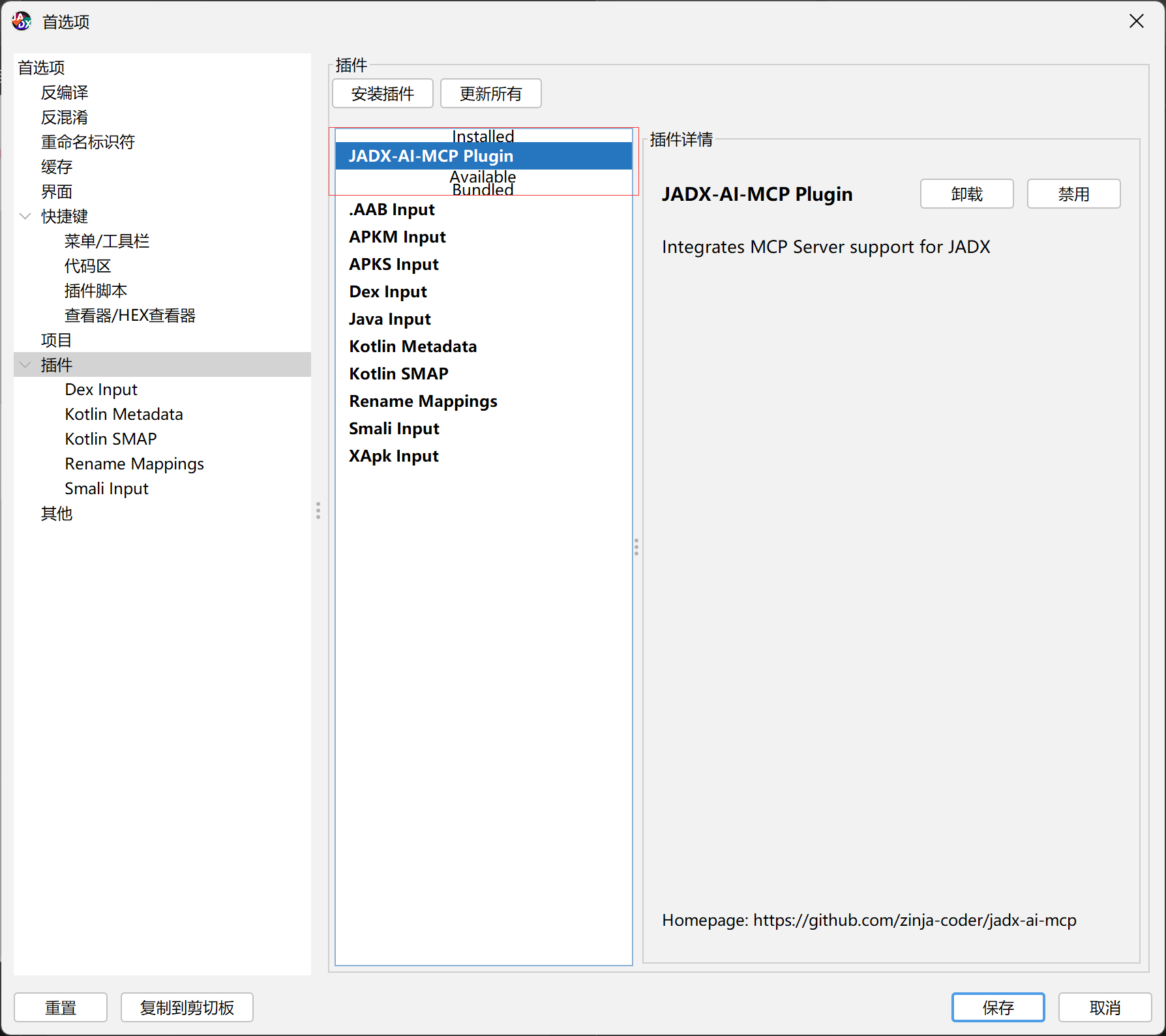

5. 插件列表中显示正确安装

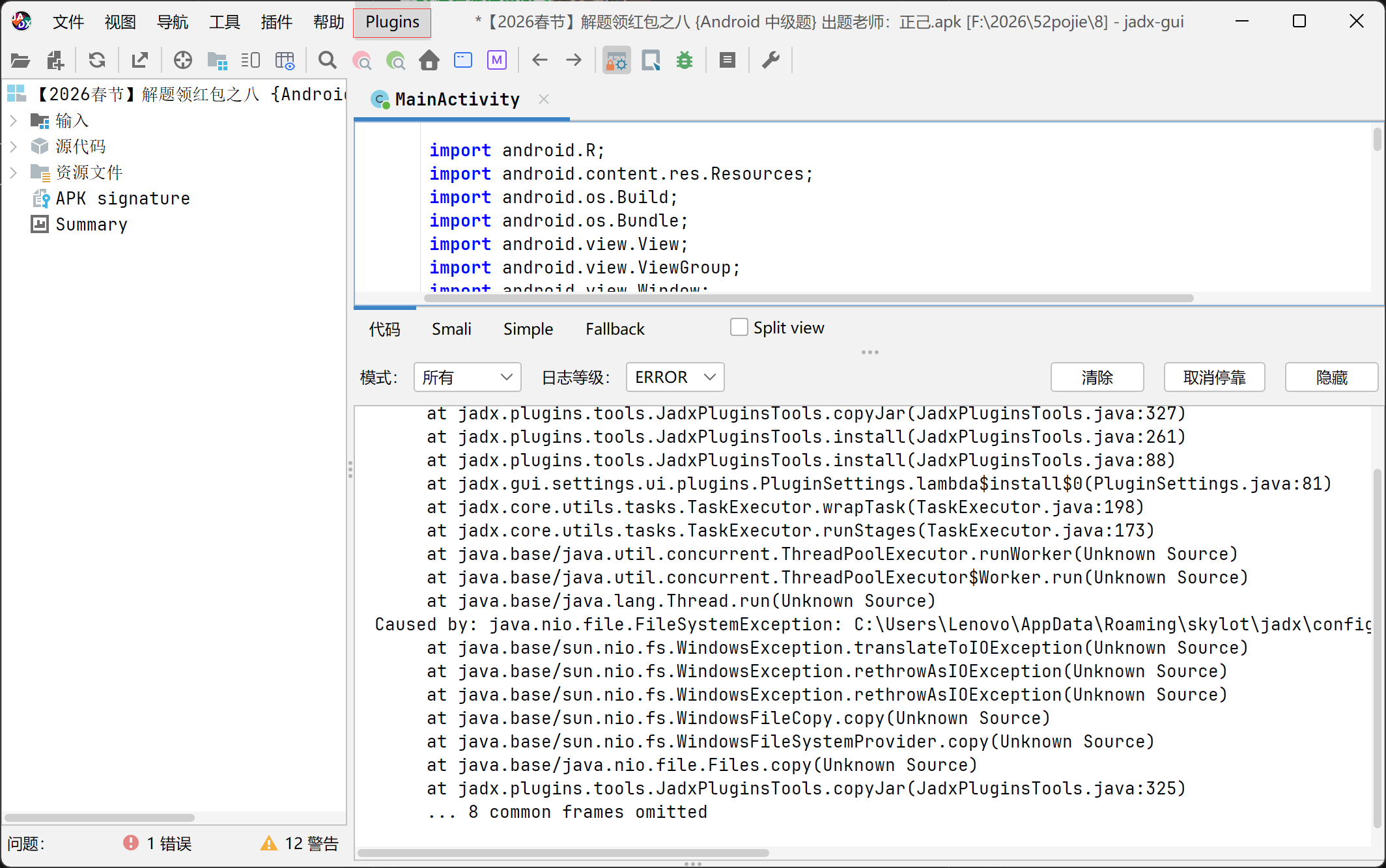

6. 任意打开一个apk工程，菜单中出现Plugins

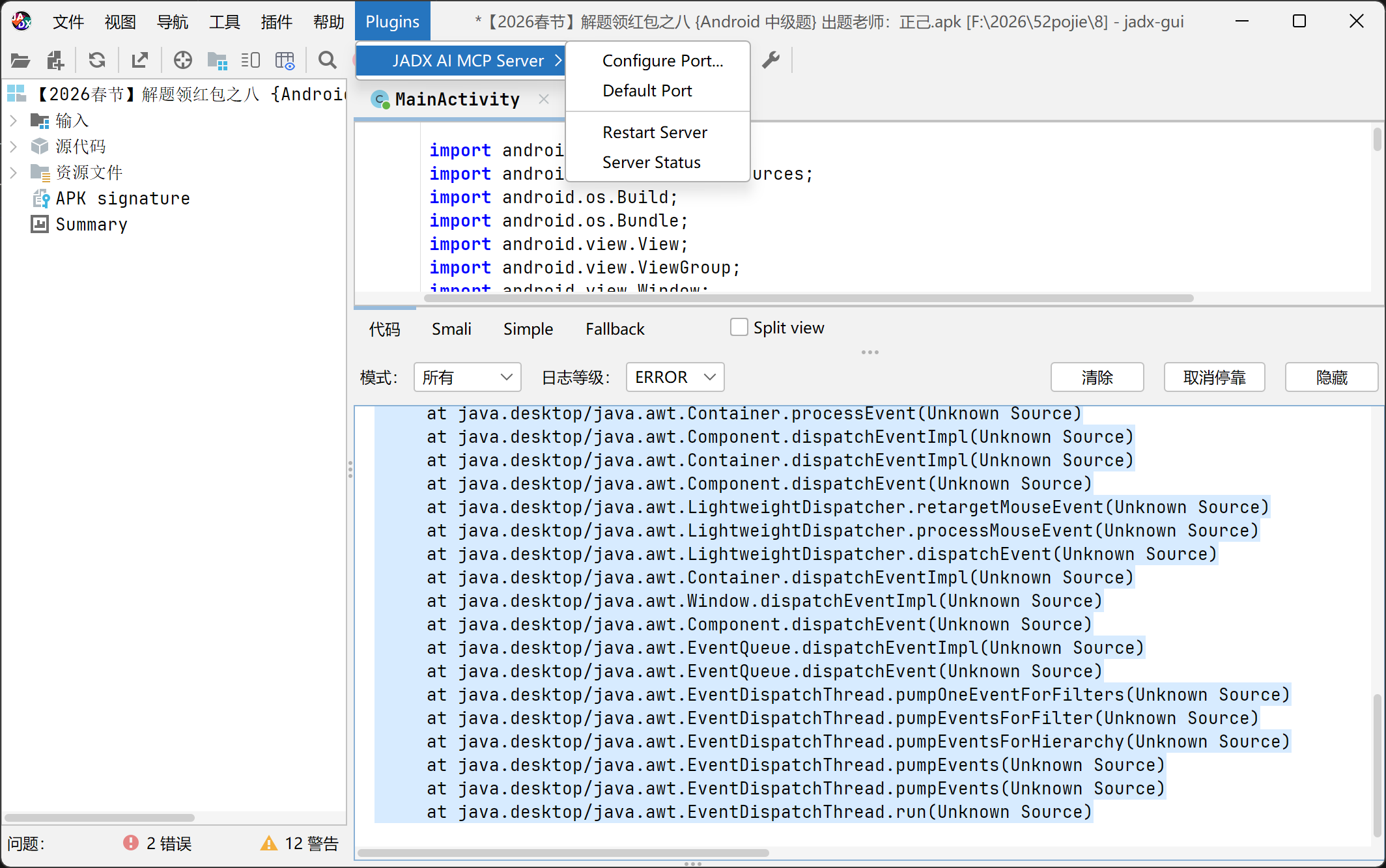

7. 点击Plugins，出现如图的状态，服务端已正确安装并启动

配置客户端

1. 解压jadx-mcp-server-v6.2.0.zip，个人推荐解压到python的Lib\site-packages目录下，方便统一管理

2. 编写mcp配置文件内容

   {
   "mcpServers": {
   "jadx-ai-mcp": {
   "command": "python",
   "args": [
   "D:\python311\Lib\site-packages\jadx-mcp-server\jadx_mcp_server.py",
   "--port",
   "8650"
   ]
   }
   }
   }

3. 配置通义灵码

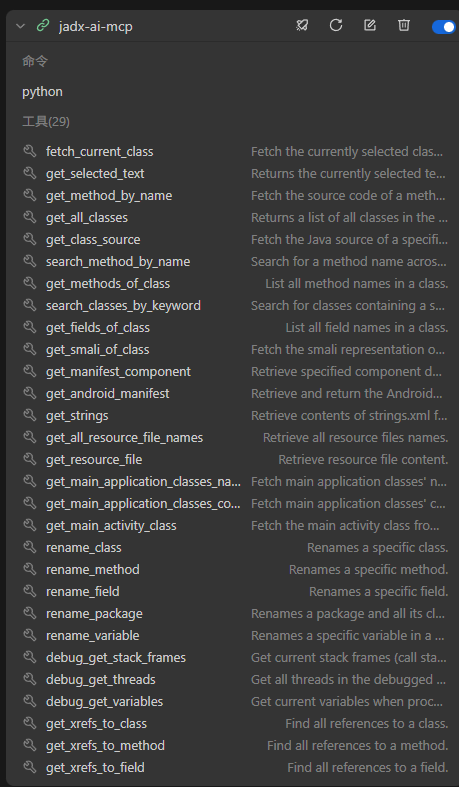

   点击MCP工具、点击右上角+旁的向下箭头、选择配置文件添加，将上面的内容复制到文件中，保存，连接成功后可以看到工具列表，即为连接成功

4. 配置Trae

   右上角点击设置、选择MCP，点击添加、下拉列表选手动添加，将2的配置粘贴进去点确认。

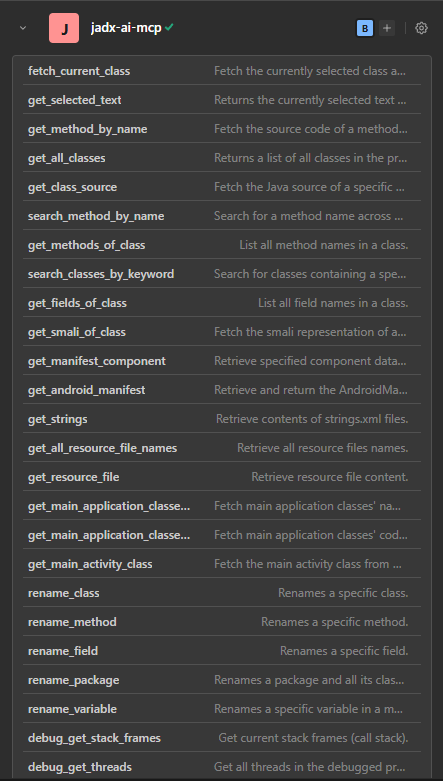

   看到如图的工具列表即为连接服务端成功
