SAP有很多消息是可以修改的
FI: OBA5|OFMG|OFPM
CO: OPR4_ACT|OPR4_CK|OPR4_CKML|OPR4_CKPF|OPR4_KKA|OPR4_KKP|OPR4_KKS|
OPR4_KKS1|OPR4_PPCOPP
MM: OMRM|OKZZ|OMT4|OMCQ |O04C|
SD: OVAH
Others: OPR5|OPR1|OPR3|OPR6|OPR7|OPR8|OPR9|OPRCMFE|MSW1|MSW2
SAP修改消息内容和报错类型（OBA5)
SAP消息也是这样,你可将所有能忽略的消息ignore让它鞠躬尽瘁死而后已为你工作.
从是否允许你configure层次分两种: configurable和non-configurable.
对configurable message可选的message type通常有S, I, W, E, A，-
(online表示即时output message -表示switch off message继续做后面工作 batchi表示做batch input时).
就是说对configurable message SAP允许你设置它是Error, warning或者switch off干脆忽略,通常这些个
错误不至于引起致命的系统逻辑错误.
一.基本概念
你可简单理解为消息是SAP为exception预警的一种手段.
Application area:告诉你消息归属,分类吧.其实就是SE91所说的Message class
二:消息相关最常用的后台表table:
T100: SAP default Message, 包含所有的消息。
T160M :Message Control: Purchasing (System Messages)
T100C: User_defined messaeg mainly for FI 。用户自定义消息通常出现在此表。
TVGMS: View Control
T100S: Configurable system messages。系统支持的你能配置/设置的消息。
T100W: For Workflow
T100U: 最后更改消息的user table
T5CBN: PC Operation Conditions
需要指出的是你必须注意做重要的三个表
T100:包含所有的message
T100C:你定义的message通常将出现在此表
T100s:Configurable system messages顾名思义就是你能设置的消息.
比如OBA5你想设置F5 060消息,这个是FB50在balance<>0你想强行save弹出的,在T100s
中你将看到F5 060不在其中,因为这是将影响财务的致命错误,当然OBA5是不允许你去设置的.
**欺骗SAP使用OBA5强行Switch off F5 060.

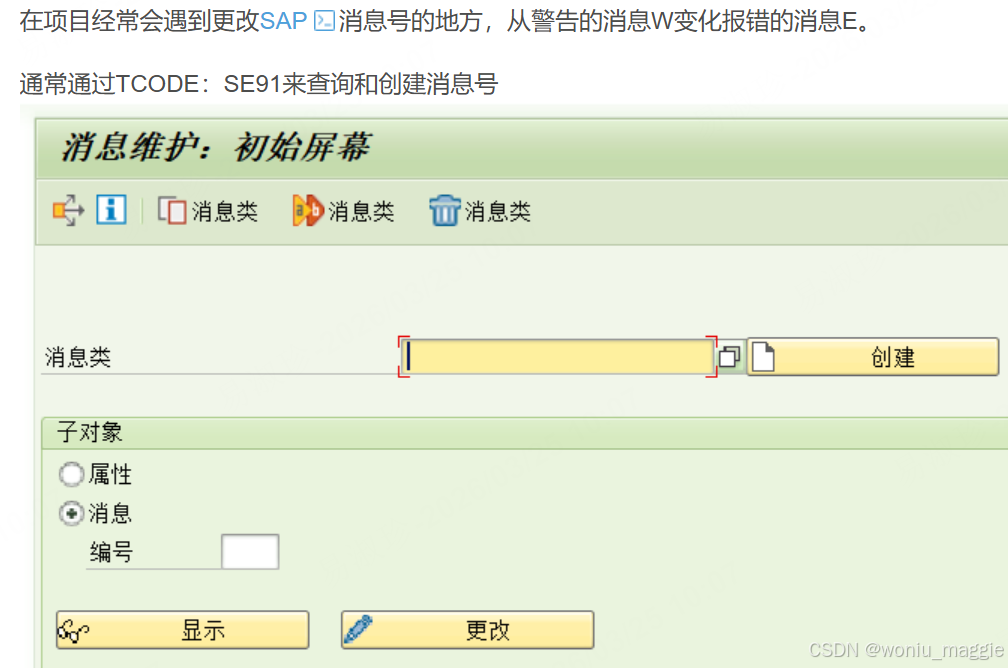

三.建立查询消息.
T-code:SE91
你可为自己的程序和Enhancement编写消息.
通常在程序中你能看到类似.
CALL FUNCTION 'READ_CUSTOMIZED_MESSAGE'
EXPORTING
i_arbgb = i_arbgb
i_dtype = i_dtype
i_msgnr = i_msgnr
IMPORTING
e_msgty = l_msgts.
IF l_msgts NE '-'.(如果没switch off)
然后就是提示. 然后去读T100C 用户自定的messge type(Error,warnig, error0决定是否继续work.
四.设置消息(这个应该对大家有点用处)
相关T-code:(**很多是雷同的)
FI 部分:
OBA5:FI messge
BD60:Additional data for message type
OFMG:FOr FM Message
O04C:PI: Message Control Purchasing
OFPM:Change Message Control
OMPJ:Reqmts Type Message Control
F00-->***这个是send office message
KD99:setup message
KDNN:Setup messaeg
MM-PUR部分:
O04C:For purchase
OKZZ:Invoice Verification/Valuation

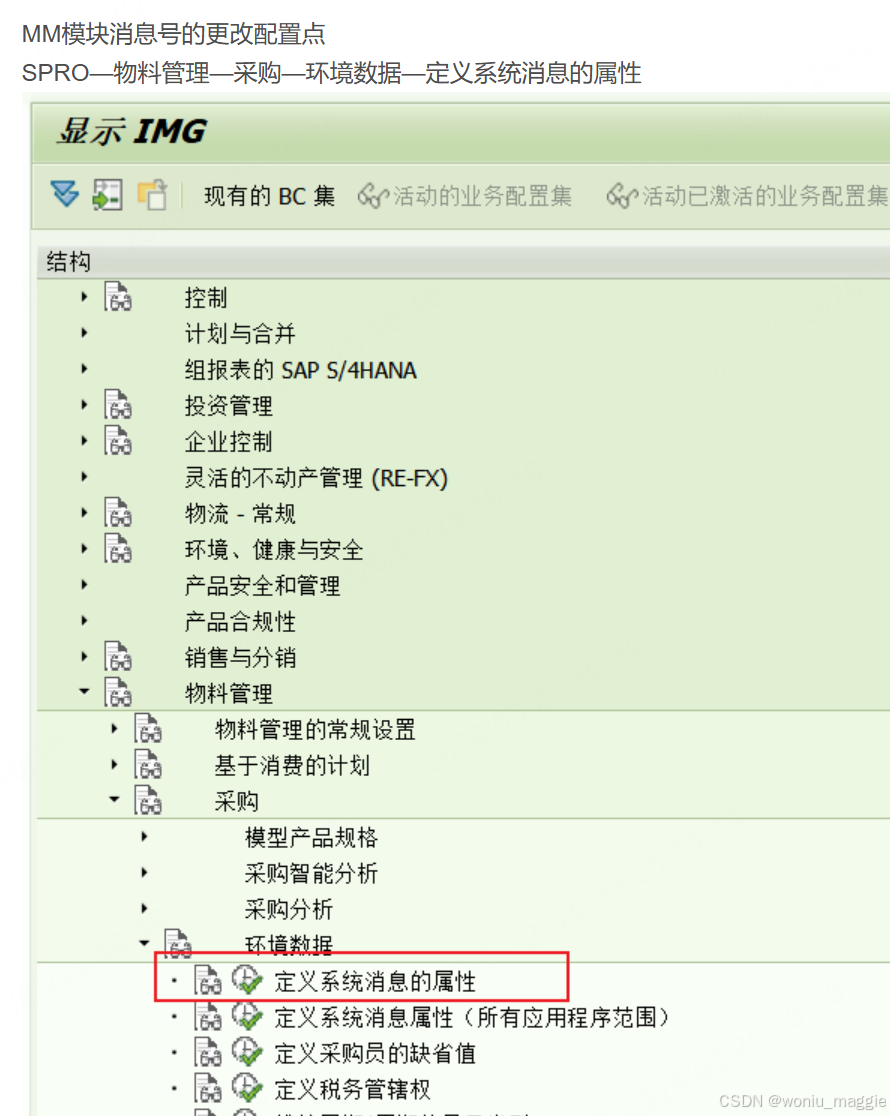

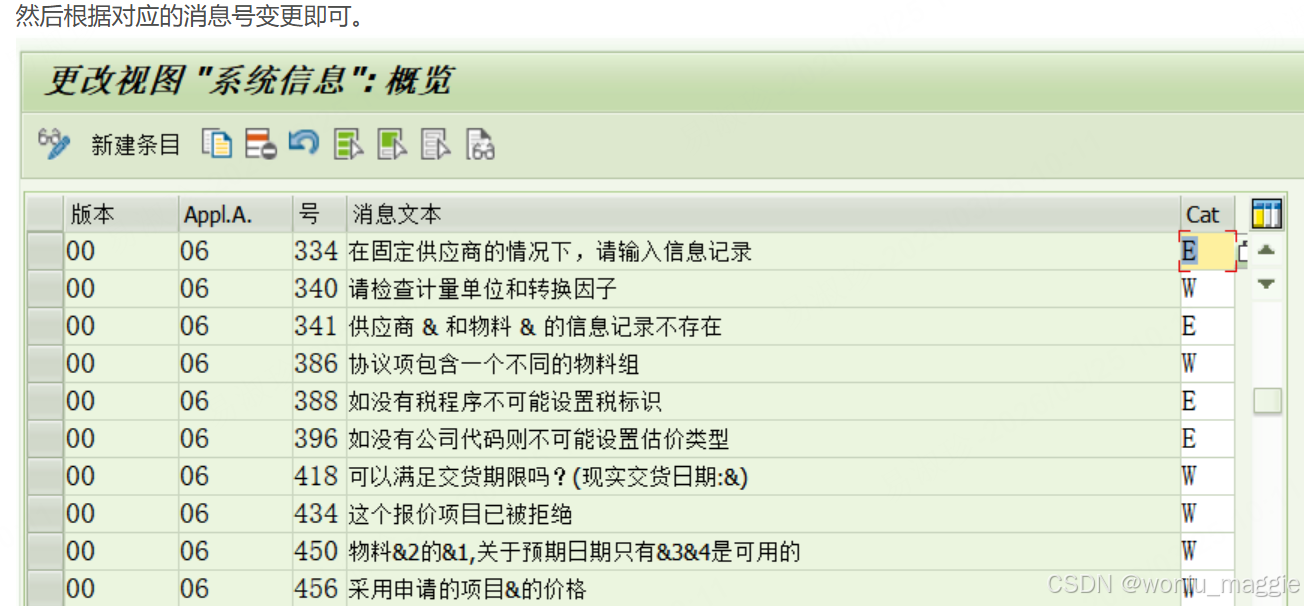

MM模块的消息号更改配置点在SPRO的配置路径如下：
SPRO/物料管理/采购/环境数据/定义系统消息的属性
CO部分:
OPR4_ACT Multilevel Actual Settlement
OPR4_CK Material Cost Estimate
OPR4_CKML Closing and Calc. of Periodic Price
OPR4_CKPF Price Update
OPR4_KKA WIP Calculation
OPR4_KKP Repetitive Mfg and Process Mfg
OPR4_KKS Collective Processing: Variances
OPR4_KKS1 Individual Processing: Variances
OPR4_PPCO Production Order: Cost Calculation
OPR5 Definition of Error Mgmt IDs (SAP)
OPR1 Area of Responsibility <-> Message
OPR3 Definition of Breakpoints
OPR6 Definition of Object IDs (SAP)
OPR7 Def. of Areas of Responsibility
OPR8 Def. of Minimum Message Types (SAP)
OPR9 Def. of Reference Objects (SAP)
OPRCMFE User-Defined Messages
SD部分"
OVAH :SD Define Variable Messages
SAP允许用户修改的消息都save在T100S中,你配置后的消息从T100C可看到
但是如果我将不允许的消息强行coding塞进去,会有什么后果呢?
***严格地将下面的T-code多是设置output打印的.
M/30 Maintain Types: RFQ
M/32 Maint. Determ. Schema: RFQ
M/34 Maintain Types: PO
M/36 Maintain Determ. Schema: PO
M/38 Maint. Types: Outline Agmt.
M/40 Maint. Types: Del. Schedule
M/42 Maintain Schema: Del. Sched.
M/48 Maintain Access Sequences: RFQ
M/50 Maintain Access Sequences: PO
M/56 s: Create Cond. Table: RFQ
M/57 s: Change Condition Table
M/58 s: Display CondTab: RFQ
M/59 s: Create CondTab: Pur. Order
M/60 s: Change CondTab: Pur. Order
M/61 s: Disp. CondTab: Pur. Order
M/62 s: Create CondTab: Del. Schd.
M/63 s: Change CondTab: Del. Schd.
M/64 s: Disp. CondTab: Del. Sched.
M/65 s: Create CondTab: O. Agmt.
M/66 s: Change CondTab: O. Agmt.
M/67 s: Disp. CondTab: Outl. Agmt.
M/68 Maintain Schema: Outl. Agmt.
M/70 s: Create CondTab.: Entry Sh.
M/71 s: Change CondTab.: Entry Sh.
M/72 s: Disp. CondTab.: Entry Sh.
M/73 Maintain Access Sequences: Entry
M/74 Maintain Access Sequences: Entry
M/75 Maintain s: Serv. Entry Sheet
M/76 Display s: Entry
M/77 Maintain Schema: Entry Sheet
M/78 Disp. Determ. Schema: Entry
M/N1 Maintain accesses (fr.gds - purch.)
五.重置警告消息.
将消息warning change to display显示.
MSW1 Reset Warnings
MSW2 Reset Warnings
六附录: Message_related tables:(部分)
T100: All message
T100A: IDs for T100
T100C: Control by User
T100O: Assignment of to object
T100S: Configurable system s
T100SA: Application Areas for Configurable s
T100U: Last person to change s
T100V: Assignment of s to tables/views
T100W: Assign s to Workflow
T100X: Error s: Supplements
T139A: Exception s: Period Closing Program
T139B: Exception s: Period Closing Program
T159F: MMIM: Error s Resulting From Blocked Objects
T160M: Control: Purchasing (System s)
T160MVAL: category restriction for T160M
T161M: Fine-Tuned Control: Types
T161N: Determination Schemas: Assignment
T321K: Definition of Accumulated s to HOST (R/2)
T323P: Parameters for Generating Logs and Mail s (R/2->R/3)
T440F: Exception s for the forecast
T458A: Exception s in Material Requirements Planning
T458B: Description of exception s
T458C: Selection Group for Exception s
T555E: Time Evaluation s
T5CAR: for Employee Attribute Combination
T5CBN: s for PC Operation Conditions
T5D5D: Supplementary Benefits for Civil Service: Fields
T5D5E: Supplemenary Bens. for Civil Service: Reason Table
T5E31: Actions and situations for registration s
T5F6N: Global Error s.
T5F6NN: Communication of Error s (ADP Interface)
T5MP1: General s for the PBS Remuneration Statement
T5QGM: Payroll Highlight s Australia
T5QGT: s Area Check Table Australia
T5QSM: Superannuation Highlight s Australia
T5S0S: s for sickness administration (SE)
T5V5M: s sent electronically to AA-registeret
T5V7B: s sent to employees/emplyoers register
T7NZGM: Payroll Highlight s NZ
T7NZSM: Superannuation Highlight s NZ
TA20PPZ: handling: chosen priority with top priority
TA20PPZ1: handling (language-dependent)
TA22RSF: START: Error s
TA22RSF1: START: Error s (Language-Dependent)
TAFWD: CORU: s that are not interpreted as errors
TBD05: Distribution model for types
TBD12: Mapping type -> serialization and link type
TBD14: type -> object type
TBD17: Dependencies between types
TBD33: Dependencies between methods and types
TBD40: Assign Types to Serialization Group
TBD53: ALE: Object Channel Serialization: Type of Bus. Obj.
TBD62: Assignment of change document field to type
TBDA2: ALE active
TBDME: ALE supplement data for EDI type
TBDMS: Assignment of type to IDoc type
TBDTPM: Template for Type
TBDTPMD: Data Filters for Types
TC50: PP-PI: Proc. Categories/ Proc.Instruction Categories
TC50A: Assignment of Charact. to Dest.-Spec. Target Fields
TC50C: Characteristics for Process s / Process Instructions
TC50D: Process Management: Destinations
TC50P: Characteristics for Dest.-Specific Target Fields
TC50T: Process /Instr. Categories: Lang.-Dependent Texts
TC51T: Destinatiosn: Language-Dependent Texts
TC53: Characteristics Groups for Process s and Instructions
TC55: Destination-Specific Target Fields for Destinations
TCA10: Task lists: s depending on the task list type
TCB02: Types of Destination
TCB02T: Types of Destination: Language-Dependent Texts
TCB10: Predefined Proc. Categories/Proc. Instr. Categories
TCB10T: Predefined Categories: Language-Dependent texts
TCB11: Assignment of Characteristics to Predefined s
TCB12T: Predefined Destinations: Language-Dependent Texts
TCB13: Target Fields for Predefined Destinations
TCB13T: Target Fields for Predef. Destin.: Lang-Dep. Texts
TCB14: Predefined Assignments of Destinations to Categories
TCB16: Predefined Charact. Groups for and Instruction Cat.
TCB18: PP-PI-PMA: System Settings for Process Processing
TCMF1: Assignment: Area of Responsibility <->
TCMF9: Minimum Type (SAP)
TCMFA: User-Defined s
TCOINF: Displaying Info. in Monitor / Ctrl Recipe Monitor
TCPT1: Code pages: Table 1 for tests and s
TCUSSYSL: Summary table of types read from the system log
TCY43: s for flow control
TCY43T: Texts for s for flow control
TDSP01: ALE Distribution Packet : Types to be Controlled
TEMSG: System s
TEMSI: Central ID assignment for Express s
TMAN1: Trigger Condition of Determination
TMAN2: Trigger Group of Determination
TMAN2T: Trigger Group of Determination - Description
TMAN3: Trigger Group of Determination - Trigger Condition
TMAN4: Trigger Conditions s - Change-Relevant Tables
TMAN5: Trigger Conds s; Possible Change-Relevant Fields
TMAN6: Trigger Conds s: Change-Rel. Tbl per Object+ChangeTyp
TMAN7: Trigger Conditions - Applications
TMSG1: Logical s and Process Codes in Outb. Procg
TMSG2: Logical s and Process Codes in Inb. Procg
TMSQAMTREE: TMS: Assigning to Tree Nodes in the Alert Monitor
TMSQAMTRET: TMS: Assigning to Tree Nodes in Alert Monitor- Texts
TNODE02_AP: Test case attributes: Problem data
TOPRK: Log s
TPT_WLIST_AREA: Processing: Functional Area
TPT_WLIST_AREA_T: Processing: Functional Area Text
TPT_WLIST_PROC: Processing: Methods
TPT_WLIST_PROC_T: Processing: Processing Method Text
TRMSG: Syntax Check Error s
TSL1D: System Log (Formerly 100S or TSL01)
TSL1T: System Log: texts (Formerly T100S, TSL01)
TSL2D: System Log: Classification ID for s
TSL2T: System Log: Class Names
TVERR: Basis verification: Infos for s to be sent
TVGMS: View Control: Error s
TWPDO: Assignment of retail to PD org. object
TXMIMSG: Table for Lang.-Depend. Texts in XMI Log
TZ38T: Text table for indicator reason for appendix 8 R5/97
TZW02: User <-> Determine
WFMCMSGENQ: Special Handling for System s
WPXST: POS interface: status external subsystems (error s)
WRPE: Replenishment: Error s
WTMIGMESS: s Logged for Withholding Tax Changeover
WTMIGMESSEXC: Withholding Tax Changeover: Alternative Types
相关资源：批量下载sap程序代码_sap下载资源
财务模块消息调整的场景应用
消息号AC305：固定资产清理科目报错处理
AO90配置如下：
报错消息如下：
问题原因：
按照中国会计制度要求，对于固定资产的转出处置需要通过"固定资产清理"科目来过渡处理，归集资产的原值、累计折旧，以及处置过程中的收入、费用等，最后将余额转到营业外收支的中处置固定资产收益或损失中。
在SAP系统后台配置AO90等，配置固定资产清理科目时，系统提示报错消息："AC305 account XXXX not allowed to be balance sheet account"或"AC306 account XXXX not defined as P&L account"。
原因是：SAP按照西方会计业务处理，直接将固定资产处置的收益及损失记入到损益科目，不通过"固定资产清理"这类资产类科目来过渡。
解决办法：
方法1：修改消息属性控制，将消息号AC305\AC306 修改为警告。
Tcode:SM30 表/视图：V_T100C, 进入工作区：AC表示消息类型，就填写到这个工作区；305是具体消息号。
方法2：
将系统配置的"固定资产清理"科目改为损益类科目，然后修改AO90配置，再将"固定资产清理"科目改为资产负债类。

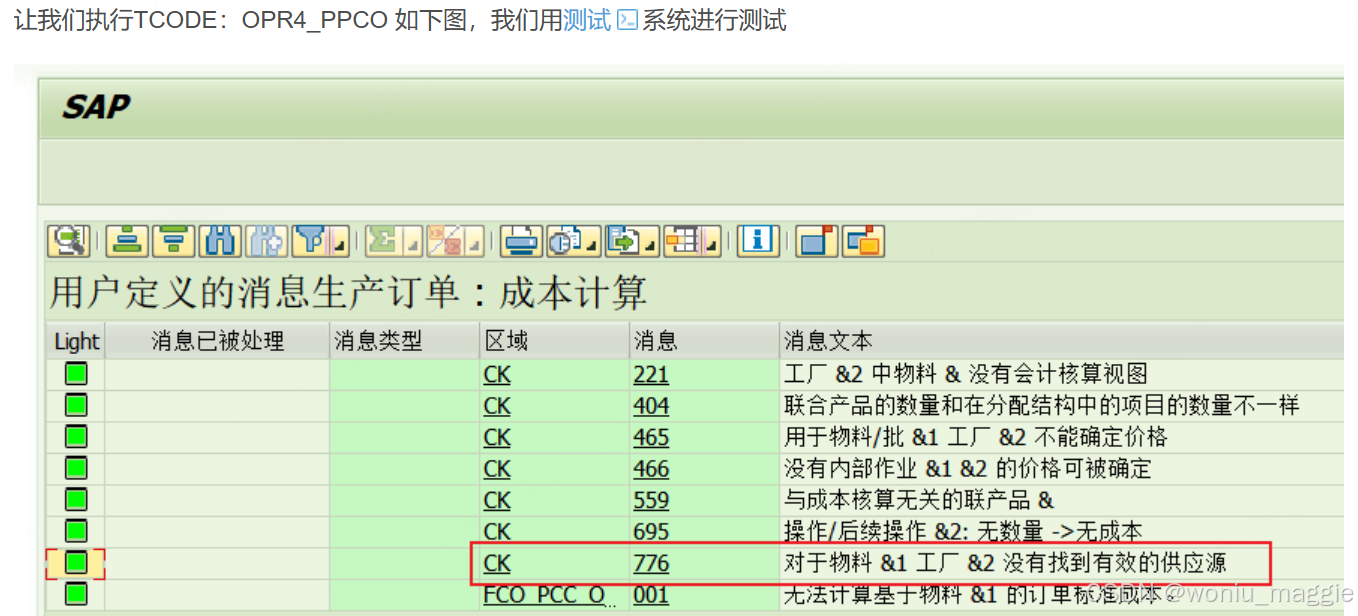

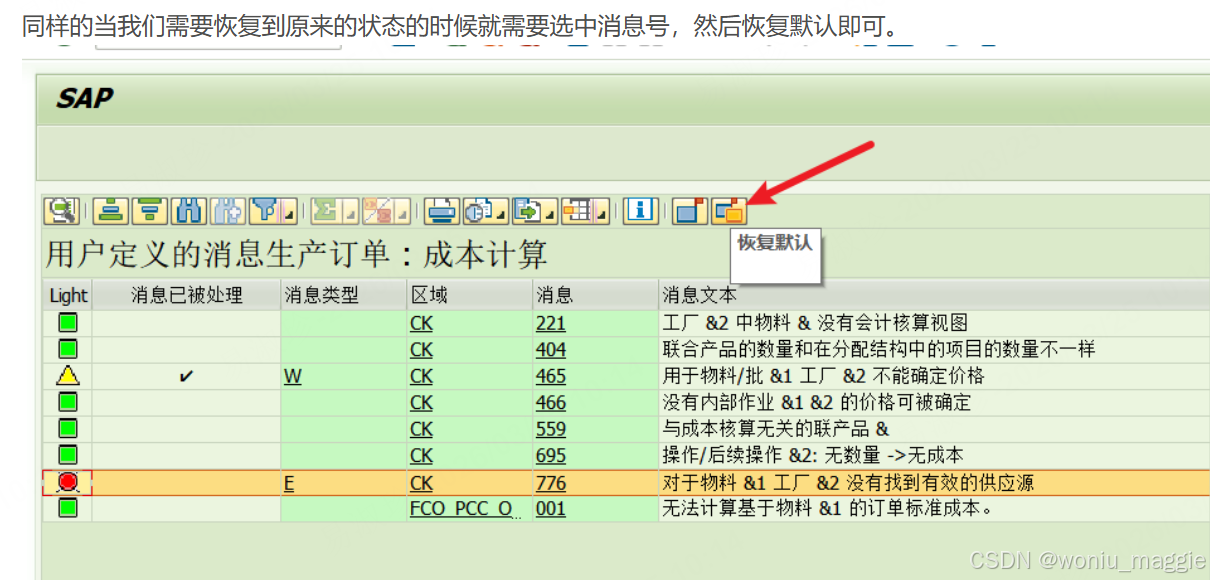

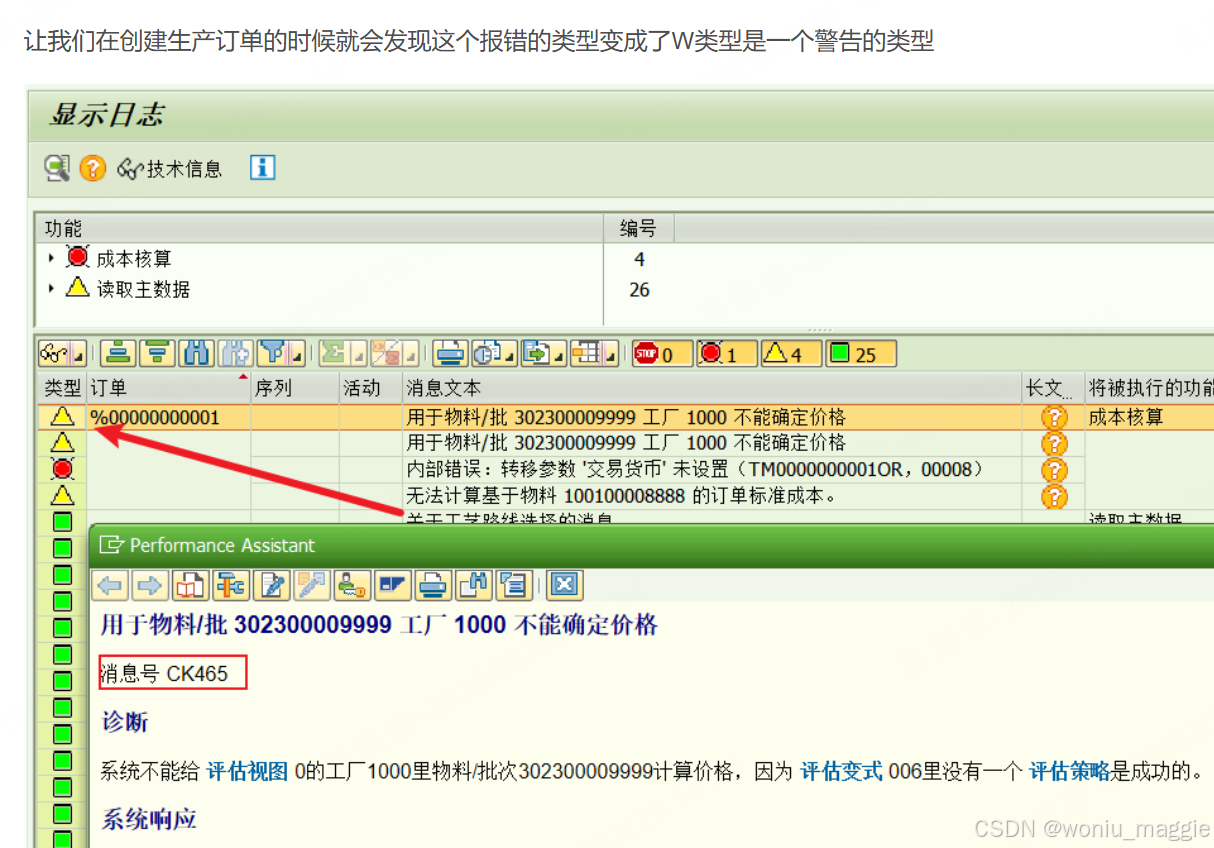

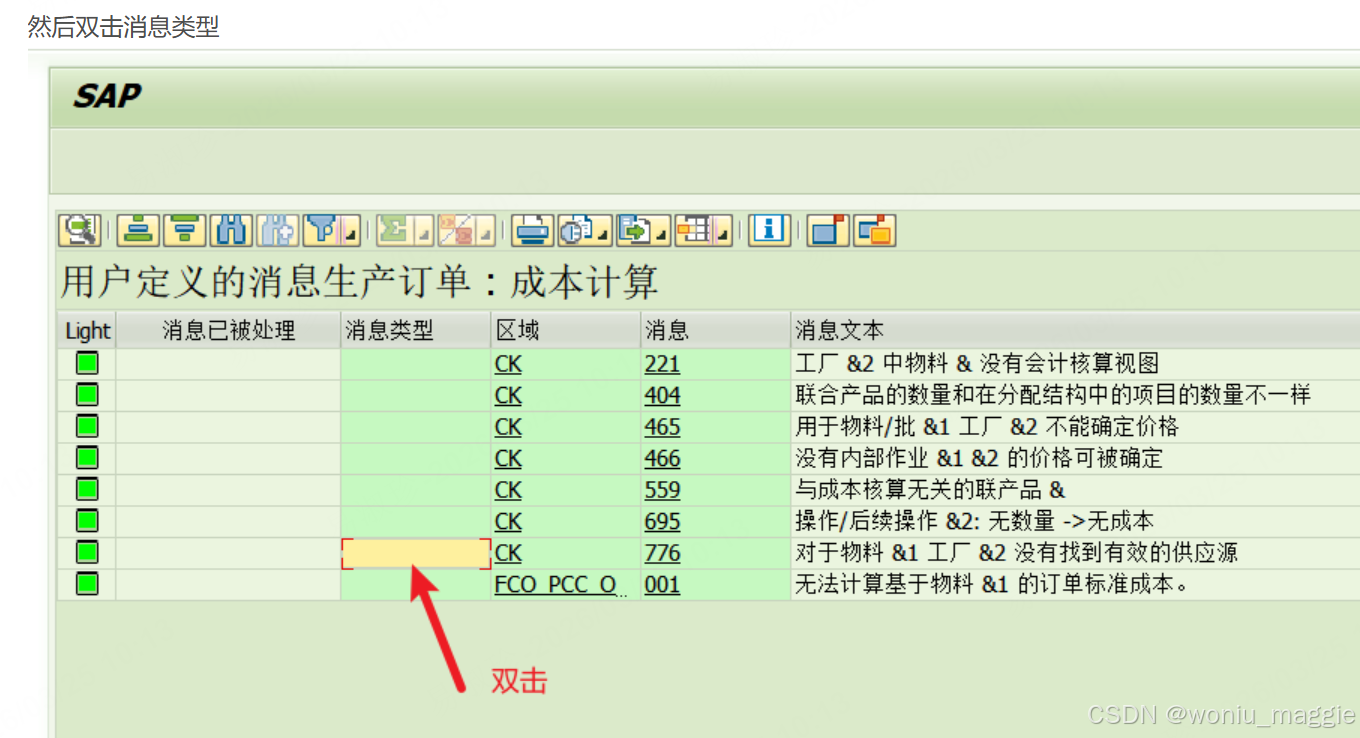

PP模块消息号调整应用

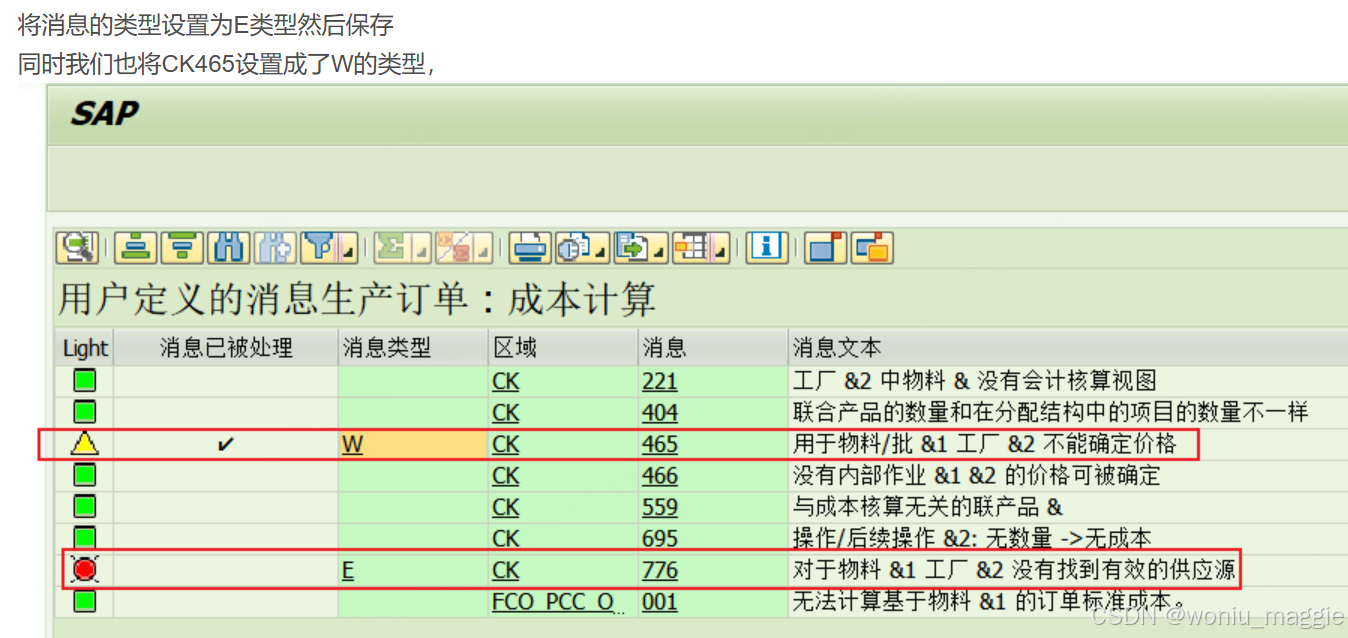

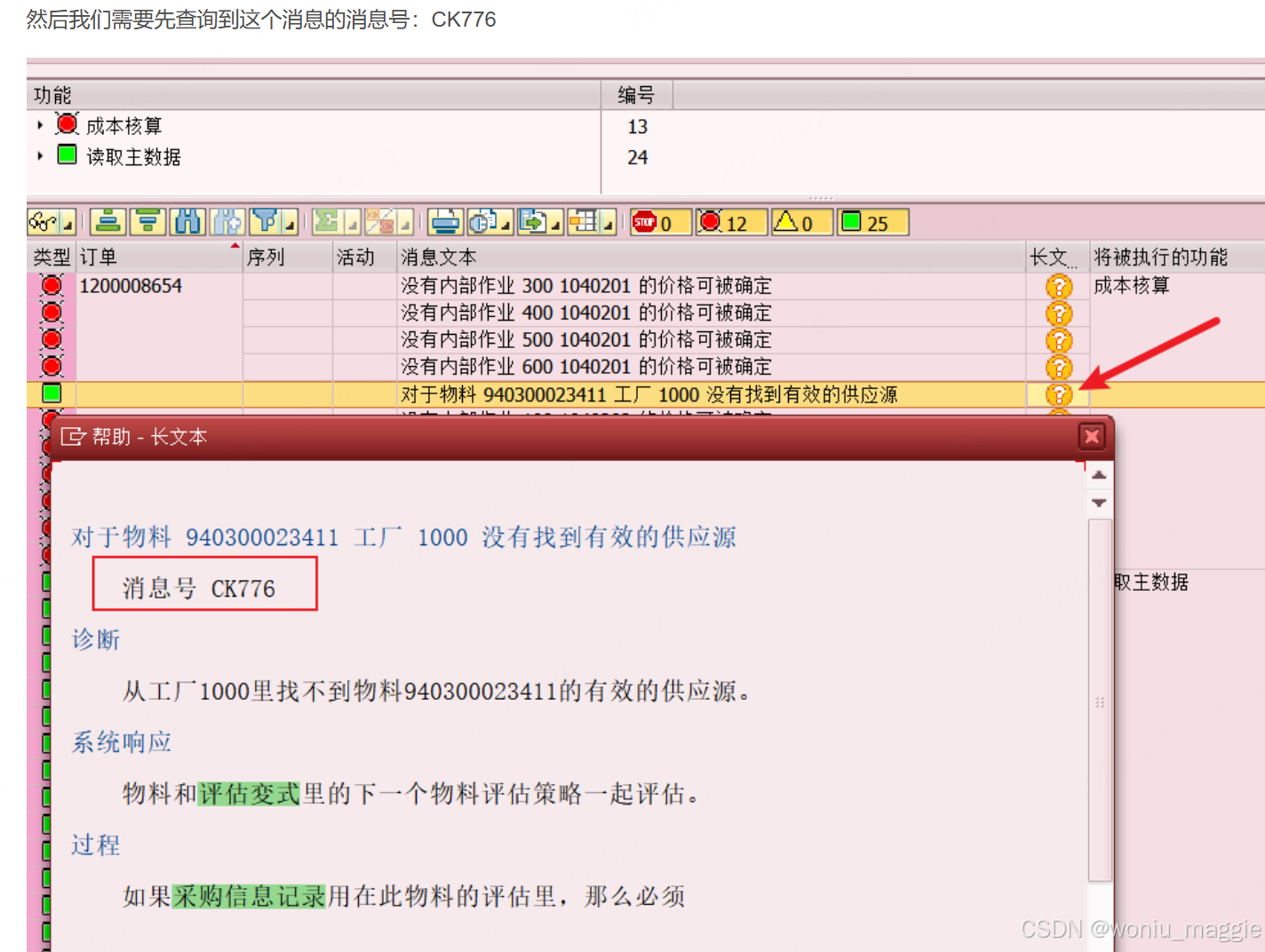

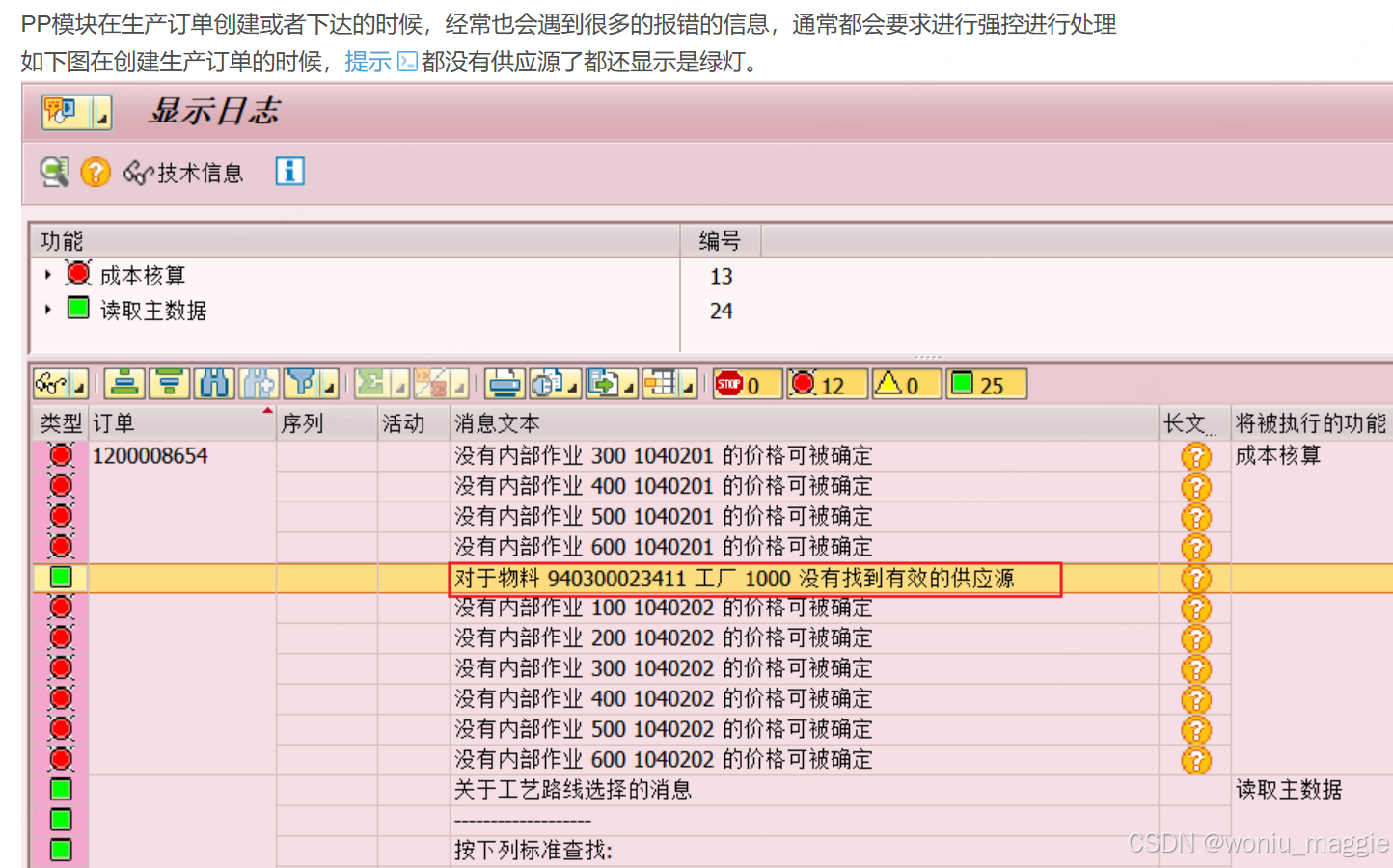

应用场景：如PP生产订单创建或下达时，经常遇到报错信息类型的调整：
