1.字符串内部数据填充：

复制代码
<?xml version="1.0" encoding="utf-8"?>
<TcPlcObject Version="1.1.0.1" ProductVersion="3.1.4024.6">

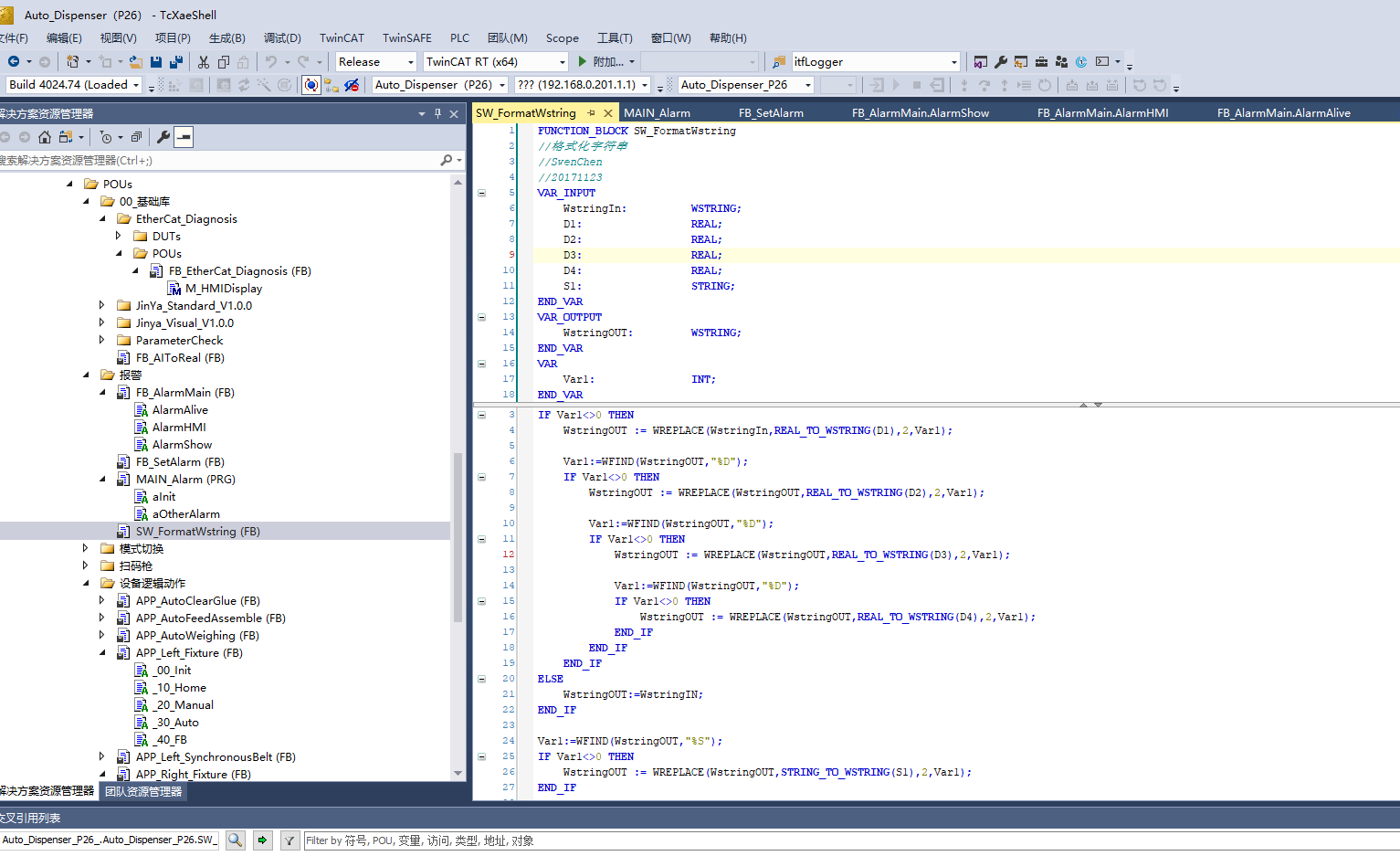

  <POU Name="SW_FormatWstring" Id="{26730b47-e2ce-4ffe-9d4b-72ef26749fd2}" SpecialFunc="None">
    <Declaration><![CDATA[FUNCTION_BLOCK SW_FormatWstring
//格式化字符串
//SwenChen
//20171123
VAR_INPUT
	WstringIn:			WSTRING;
	D1:					REAL;
	D2:					REAL;
	D3:					REAL;
	D4:					REAL;
	S1:					STRING;
END_VAR
VAR_OUTPUT
	WstringOUT:			WSTRING;
END_VAR
VAR
	Var1: 				INT;
END_VAR
]]></Declaration>
    <Implementation>
      <ST><![CDATA[
Var1:=WFIND(WstringIn,"%D");
IF Var1<>0 THEN
	WstringOUT := WREPLACE(WstringIn,REAL_TO_WSTRING(D1),2,Var1);

	Var1:=WFIND(WstringOUT,"%D");
	IF Var1<>0 THEN
		WstringOUT := WREPLACE(WstringOUT,REAL_TO_WSTRING(D2),2,Var1);

		Var1:=WFIND(WstringOUT,"%D");
		IF Var1<>0 THEN
			WstringOUT := WREPLACE(WstringOUT,REAL_TO_WSTRING(D3),2,Var1);

			Var1:=WFIND(WstringOUT,"%D");
			IF Var1<>0 THEN
				WstringOUT := WREPLACE(WstringOUT,REAL_TO_WSTRING(D4),2,Var1);
			END_IF
		END_IF
	END_IF
ELSE
	WstringOUT:=WstringIN;
END_IF

Var1:=WFIND(WstringOUT,"%S");
IF Var1<>0 THEN
	WstringOUT := WREPLACE(WstringOUT,STRING_TO_WSTRING(S1),2,Var1);
END_IF




]]></ST>
    </Implementation>
    <LineIds Name="SW_FormatWstring">
      <LineId Id="25" Count="0" />
      <LineId Id="22" Count="0" />
      <LineId Id="27" Count="0" />
      <LineId Id="50" Count="0" />
      <LineId Id="47" Count="0" />
      <LineId Id="31" Count="0" />
      <LineId Id="30" Count="0" />
      <LineId Id="51" Count="0" />
      <LineId Id="74" Count="3" />
      <LineId Id="79" Count="4" />
      <LineId Id="78" Count="0" />
      <LineId Id="35" Count="0" />
      <LineId Id="45" Count="1" />
      <LineId Id="29" Count="0" />
      <LineId Id="23" Count="0" />
      <LineId Id="37" Count="1" />
      <LineId Id="55" Count="0" />
      <LineId Id="16" Count="4" />
      <LineId Id="9" Count="0" />
    </LineIds>
  </POU>
</TcPlcObject>
